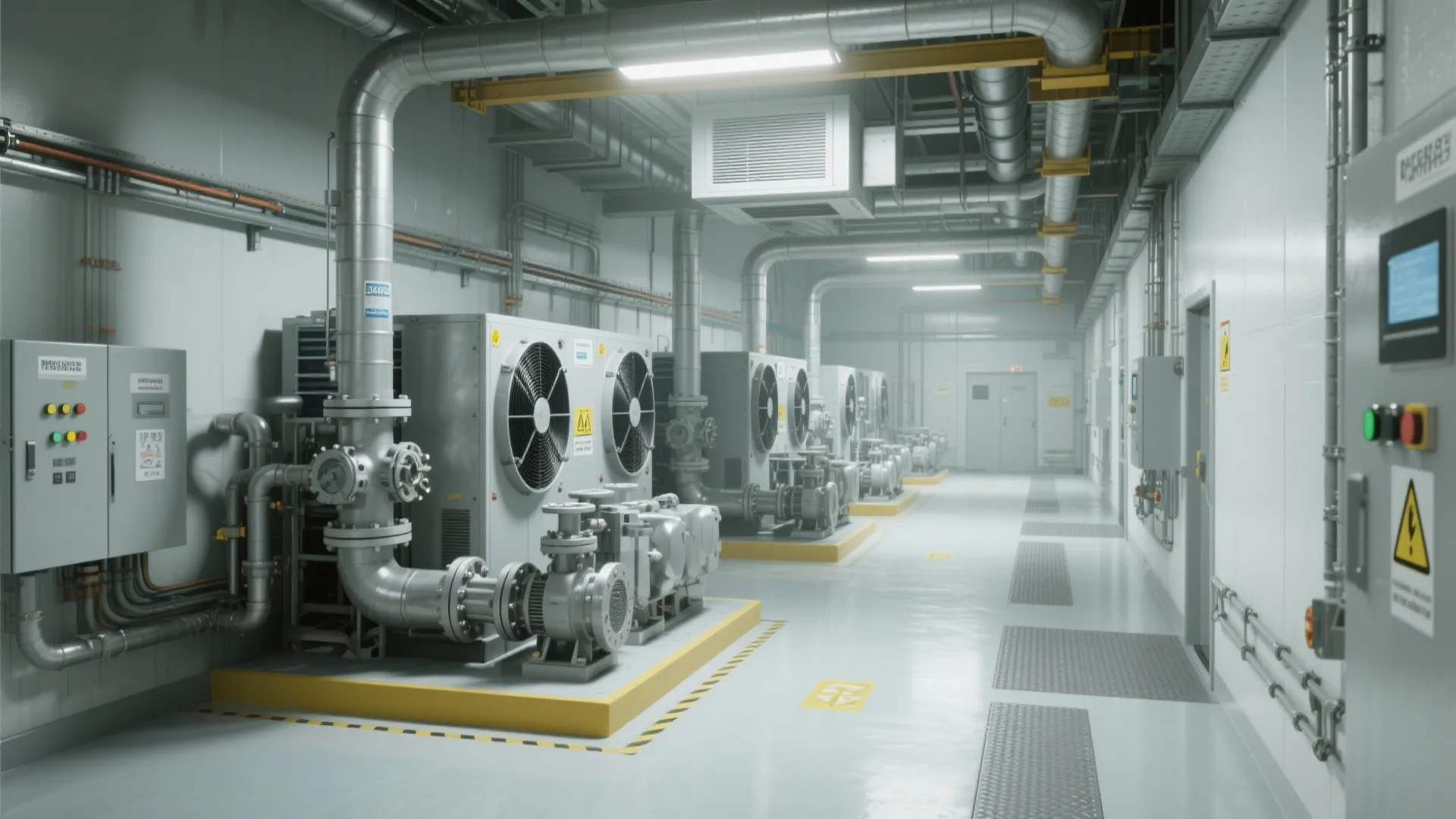

HVAC Plant Room Design: Essential Guide for Efficient Spaces: 1 Minute to Master HVAC Plant Room Optimization

I design HVAC plant rooms to be compact, maintainable, and safe under pressure—literally and figuratively. The goal is a space where equipment runs at peak efficiency, technicians can work without obstacles, and future upgrades happen without tearing down walls. That balance starts with clear spatial ratios, robust airflow strategy, and human-centered ergonomics.

Performance must be quantifiable from day one. WELL v2 recommends maintaining thermal comfort within operative temperature ranges of roughly 20–23°C for most office environments and relative humidity within 30–60% to support occupant health, with PMV/PPD targets minimizing dissatisfaction (source: v2.wellcertified.com). On acoustics, the IES lighting standards emphasize visual task clarity but in plant rooms we pair that with typical noise targets around NC 35–40 for adjacent occupied areas, achieved through isolation, damping, and zoning (source: ies.org/standards). Embedding these targets in design criteria keeps the room aligned with building certification pathways.

The business case is solid. Steelcase research associates optimized environmental factors with measurable gains in worker performance and well-being across workplaces; in mechanical support areas, reducing service disruptions and improving maintainability often cuts mean-time-to-repair by double-digit percentages and lowers lifecycle costs (source: steelcase.com/research). I design with those outcomes in mind—predictable access, standardized clearances, and service pathways that technicians actually use.

Foundations: Spatial Ratios and Circulation

Start with equipment footprints plus ergonomic clearances. Chillers, AHUs, boilers, pumps, and manifolds need continuous access on their service sides—typically 900–1200 mm minimum, with 1500–1800 mm where tube bundles, burner assemblies, or coil pulls occur. Keep primary circulation aisles at 1200–1800 mm so two techs can pass with carts. Vertical clearance should accommodate hoisting frames and removable panels; design lifting routes free of conduit crossings.

Where the plant program changes frequently or the building has tight cores, a simple interior layout planner helps test aisle widths, service envelopes, and pallet pathways before committing to construction. A room layout tool can visualize equipment spacing and service pulls while revealing conflicts early: room layout tool.

Airflow Strategy and Thermal Zoning

Plant rooms are thermal hotspots. Separate combustion air intakes and provide dedicated make-up air for dilution and pressurization. Cross-ventilation helps, but mechanical exhaust with variable-speed control stabilizes temperature under part-load and protects electronics. Keep AHU/boiler intakes away from exhaust discharge to prevent short-circuiting. Maintain negative pressure relative to corridors to contain odors and heat; balance with pressure-relief pathways to avoid door blowback.

Where chillers or VRF condensers sit indoors, account for reject heat and ensure the condenser loop has sufficient ventilation. Instrument with temperature sensors at technician height (around 1.5 m) to validate working conditions against WELL thermal comfort ranges, especially near flues and electrical gear.

Lighting: Visibility Without Glare

Service work demands shadow-free illumination. Provide 300–500 lux general ambient light and 750–1000 lux task lighting over panels and pump skids. Keep correlated color temperature around 4000–5000K for neutral color rendering that makes wiring and labels readable. Use diffusers or prismatic lenses to control glare and support visual ergonomics per IES task lighting guidance (ies.org/standards). Motion sensors can trigger task lights while preserving energy and extending lamp life.

Acoustics and Vibration Control

Noise migrates through structure if you ignore vibration paths. Mount rotating equipment on spring or neoprene isolators matched to load and frequency. Use flexible connectors on pump suction/discharge to decouple piping. Enclose loud components with perforated acoustic panels backed by mineral wool and isolate the enclosure from structure. For adjacent occupied areas, target NC 35–40; in the plant room itself, prioritize technician communication and alarms—avoid masking tones that hide warning sounds.

Safety and Code-Driven Layout

Safety lines the room. Maintain clear egress routes with 900 mm minimum width and visible floor markings. Place emergency shut-off controls near exits, not buried in equipment rows. Combustion zones need compliant flue routing, condensate management, and gas detection tied to ventilation override. Provide lockout/tagout points at eye level and label every isolation valve and breaker with durable, color-coded tags.

Fire protection must match hazards: clean-agent systems near electrical panels, sprinklers with appropriate hazard classification, and heat detection in high-load zones. Store chemicals and lubricants in ventilated cabinets away from ignition sources. Keep floor drains with oil separators where leaks are plausible.

Human Factors and Maintainability

I plan for both the everyday and the worst day. Ergonomic service heights—between 800–1200 mm—minimize strain. Provide fold-down worktops near control panels and dedicated laptop shelves with power and data. Route cable trays with 300 mm separation from hot piping; avoid overhead clutter above regular maintenance zones. Service pulls for coils or tube bundles need direct linear paths to staging space; otherwise, every major service becomes a construction project.

Wayfinding matters in plant rooms. Use consistent label hierarchies: system → equipment → component → connection. Color-coded piping per local standards, and QR codes that link to manuals and recent service logs. This reduces diagnostics time and avoids unsafe improvisation.

Material Selection and Durability

Moisture, heat, and chemicals punish finishes. Favor non-slip epoxy floors with chemical resistance, coved bases for hygiene, and high LRV wall coatings to improve reflectance for lighting. Stainless or galvanized cable trays, aluminum ladders, and UV-stable labeling resist degradation. Acoustic panels should be cleanable and mold-resistant. Choose insulation with closed-cell structure where condensate or cleaning is expected.

Access, Logistics, and Future-Proofing

Plan routes for deliveries and equipment swaps: door widths, turning radii, and slab load ratings matter. Overhead hoists need certified beams and clear fall zones. Allow spare capacity in switchboards, chilled-water headers, and BMS points for future additions. Provide stub-outs and valves on primary manifolds to minimize shutdowns during expansions.

For renovations, model service sequences. An interior layout planner can simulate how a chiller tube bundle or AHU coil will be extracted, ensuring the planned path clears cable trays, lighting, and door frames: interior layout planner.

Controls, Monitoring, and Commissioning

Robust controls keep the room stable under varying loads. Use differential pressure sensors across filters, vibration monitoring on rotating equipment, and trending for temperature and humidity near sensitive electronics. Commission damper sequencing, lead/lag logic for pumps, and alarm priorities so genuine issues aren’t drowned by nuisance alerts.

Integrate lighting with occupancy for energy savings, but preserve manual overrides for service tasks. Maintain secure remote access to BMS with clear user roles, protecting critical systems without slowing technicians.

Sustainability and Lifecycle Performance

Efficiency isn’t just a spec sheet; it’s layout, controls, and maintenance strategy. Low-pressure-drop ducting and piping reduce pump and fan energy. Variable-speed drives paired with accurate sensors cut part-load wastage. Heat recovery from flue stacks or condenser circuits can preheat domestic or process water. Select materials with long service life and low VOCs to protect both air quality and budgets.

Common Pitfalls I Avoid

- Undersized aisles that turn routine maintenance into contortions.

- Short-circuiting ventilation, leaving hot zones around controls.

- Overhead congestion, blocking hoists and coil pulls.

- Labels that fade or don’t match the as-built system hierarchy.

- Ignoring acoustic paths through structure, leading to complaints upstairs.

- No future connection points, forcing shutdowns for simple add-ons.

FAQ

What are the minimum clearances I should plan around large HVAC equipment?

Keep 900–1200 mm along service sides and expand to 1500–1800 mm where coil pulls, burner access, or tube bundle removal is required. Aisles should run 1200–1800 mm to accommodate carts and two-person passage.

How much lighting is appropriate for a plant room?

Provide 300–500 lux ambient and 750–1000 lux task lighting over panels and service areas, with 4000–5000K CCT for neutral color rendering. Control glare with diffusers to support visual ergonomics consistent with IES guidance.

How do I manage noise and vibration to protect adjacent offices?

Use spring/neoprene isolators, flexible connectors, and acoustic enclosures with absorptive backing. Aim for NC 35–40 in adjacent spaces, and decouple loud equipment from structural paths.

Which thermal comfort targets should inform plant room design?

Maintain technician working zones within operative temperatures around 20–23°C where feasible and relative humidity 30–60%. Reference WELL v2 thermal comfort criteria for PMV/PPD-based targets.

What’s the best way to plan for future equipment replacement?

Design clear extraction routes, certified hoist points, spare electrical and hydronic capacity, and stub-outs with isolation valves. Validate paths with a layout simulation tool before construction.

How can layout improve maintainability and safety?

Elevate service components to ergonomic heights (800–1200 mm), keep egress paths marked and unobstructed, and position emergency shut-offs near exits. Uniform labeling and QR-linked manuals cut diagnostic time.

Do plant rooms need special materials?

Yes—use chemical-resistant epoxy floors with coves, high-LRV wall finishes for reflectance, corrosion-resistant trays and fasteners, and cleanable acoustic materials. Insulation should resist moisture and mold.

What controls and sensors are most valuable?

Differential pressure across filters, vibration sensors on rotating equipment, temperature/humidity trending, and well-tuned alarm priorities. Verify lead/lag pump logic and damper sequencing in commissioning.

How should combustion air and exhaust be arranged?

Provide dedicated combustion air, separate from general ventilation. Keep intakes clear of exhaust discharge to avoid short-circuiting, and maintain negative pressure to contain heat and odors.

Can I use color to improve safety and wayfinding?

Absolutely. High-contrast, UV-stable labels and color-coded piping support rapid identification. High LRV wall colors increase light reflectance and reduce shadowing for safer work.
