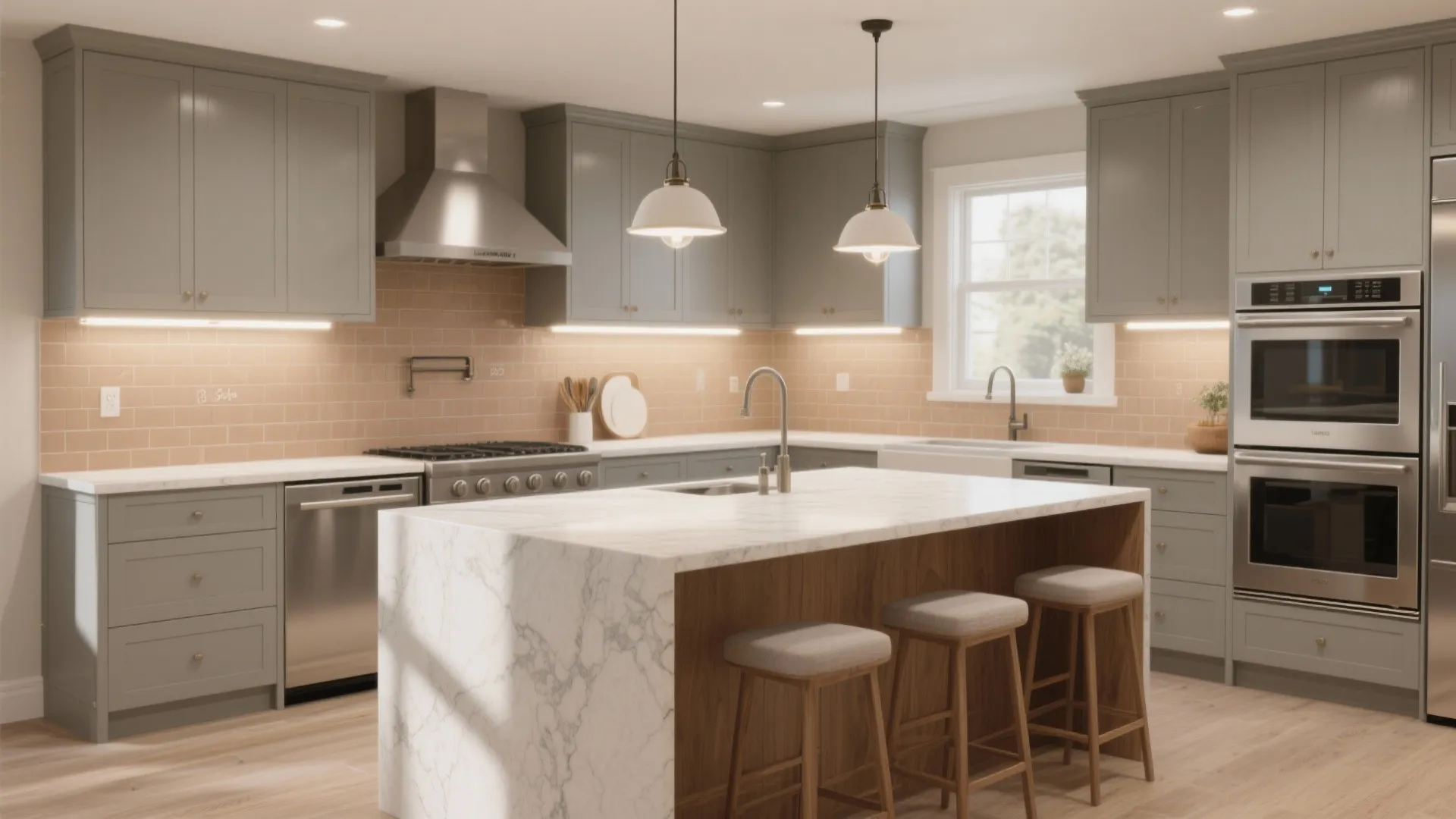

Kitchen Elevation Dimensions: Expert Guide for Functional Design: 1 Minute to Grasp Perfect Kitchen Elevation Dimensions for Your Remodel

I design kitchens to be worked in, not just looked at. Elevation dimensions shape everything from reach comfort to sightlines and the way light hits the countertop. A few inches up or down can change posture, safety, and flow. In most homes, the counter-to-eye relationship, appliance door swings, and vertical storage set the daily rhythm; getting elevations right is the fastest way to elevate performance.

Evidence backs this up: WELL v2 suggests task illuminance in kitchens generally falls in the 300–500 lux range to support visual acuity at work surfaces, which directly influences the perceived success of elevation placement relative to lighting. Steelcase research on posture and reach notes that neutral reach zones reduce strain and increase task efficiency, guiding ideal shelf and control heights within 15–48 inches above the floor. To avoid glare hotspots on vertical finishes, I follow IES recommendations for luminance balance and shielding angles around task lights—keep undercabinet fixtures at the front rail and aim for uniformity ratios that reduce harsh contrasts.

The National Kitchen & Bath Association (NKBA) baseline for counter height sits at 36 inches, with 42 inches for bar tops and 30 inches for seated work. Pair that with common backsplash heights of 18 inches between countertop and upper cabinet to clear appliances and task lights. From experience, even small deviations—say taking a counter to 37 inches for a 6'3" primary user—dramatically improves wrist neutrality and reduces back flexion. I keep upper cabinet bottoms at 54 inches AFF (above finished floor) when counters are 36 inches high to maintain the 18-inch working gap.

Core Elevation Dimensions

- Countertops: 36 inches standard; 34–35 inches for shorter users or accessibility; 37–38 inches for taller users; islands with mixed heights (30 inches seated + 36 inches prep) support multifunctional use.

- Backsplash gap: 18 inches between counter and upper cabinet bottom; stretch to 20 inches if you rely on tall appliances or oversize coffee machines.

- Upper cabinet heights: Bottom at 54 inches AFF with 36-inch counters; top varies by ceiling height—use 90–96 inches overall for full-height looks; for 8-foot ceilings, 30-inch uppers often align well.

- Toe kick: 3–4 inches high, 2 inches deep to allow foot clearance and closer reach to vertical planes.

- Wall oven centerline: 48–52 inches AFF for average height users; adjust down to ~44–46 inches if primary users are shorter to keep the heaviest rack between shoulder and waist height.

- Microwave: 34–49 inches AFF depending on type; avoid above 54 inches to reduce spill risk.

- Range hood bottom: 30–36 inches above cooktop depending on manufacturer and fuel type; 30 inches common for electric, 33–36 inches for gas with higher BTUs.

- Dishwasher: Raise 2–4 inches on a platform if the household spends long hours loading/unloading to reduce back flexion.

Ergonomics and Reach Zones

Neutral reach governs elevation success. Steelcase and Herman Miller workstation studies translate well to kitchens: frequent-use items belong between 15–48 inches AFF. In practice, I put daily plates on the first shelf of uppers (about 54–66 inches AFF) and oils/salt at 42–50 inches on open rails near the range. Heavy bowls and small appliances live at 18–30 inches in base cabinets or drawers; very light or seasonal items can rise above 66 inches if step stool access is safe. Handle placement matters—a 36-inch counter with a 4-inch pull vertical offset reduces wrist deviation when opening deep drawers.

Lighting Elevations for Task Clarity

Task lighting must align with elevation decisions. Under-cabinet fixtures should sit 1–2 inches behind the cabinet face to wash the front half of the counter and minimize backsplash specular highlights. Aim for 300–500 lux on prep zones (WELL v2), and supplement island tasks with pendants hung 30–36 inches above the countertop; bottom of shade typically at 60–66 inches AFF, keeping sightlines open. IES guidance on glare suggests shielding LEDs to prevent visual discomfort; matte backsplash materials and 3000–3500K color temperature balance warmth with color rendering for food prep. Dim-to-warm fixtures help transition from bright prep to relaxed dining without remounting luminaires.

Appliance Elevations and Safety Clearances

Refrigerator handles sit around 36–44 inches, but the real decision is shelf height; place the most-used refrigerator shelf between 42–50 inches AFF. Wall ovens center at 48–52 inches AFF; ensure a 15-inch clear landing space adjacent to oven doors for hot trays. For ranges, keep the cooktop at counter level (36 inches) and ensure hood clearances per manufacturer. Microwaves over the range are functional but often too high; a 42–48-inch microwave shelf avoids spill-over at face level. Dishwasher elevations benefit from a subtle raise when possible; even 2 inches makes a difference for lumbar comfort. Always verify swing clearances: oven doors require 20–24 inches of free space; dishwasher doors need 27–30 inches.

Upper Cabinet Strategy

The 18-inch backsplash gap supports countertop appliances and safe elbow movement. Within uppers, set the first shelf around 60–62 inches AFF for daily-use dishes; adjust to household height. If you’re going full-height to the ceiling, consider a two-tier strategy: everyday storage to 66 inches AFF, secondary storage above with integrated step access. Glass-front elevations should consider reflections; matte interiors or low-gloss laminates reduce glare at eye level. Alignment across appliances, hood, and cabinetry face planes builds visual rhythm; consistent bottom lines at 54 inches AFF anchor the wall.

Base Cabinets and Drawers

Drawer-centric bases improve ergonomics. Top drawers align just under the counter at ~34–35 inches AFF; medium-depth drawers land 20–32 inches AFF, ideal for pots. Place waste/recycling at 20–28 inches AFF for easy pull and short travel from prep. Tall pantries with pull-outs keep heavy items between 18–42 inches AFF. Toe kicks at 3–4 inches high allow a closer stance while slicing, cutting, and whisking without knee contact.

Island and Peninsulas

Islands often carry mixed heights: 36 inches prep on one side, 30 inches seated dining or baking on the other. Bar seating rises to 42 inches for social perch and buffer from the cook zone. Maintain pendant bottoms at 30–36 inches above island surfaces, and keep 12–15 inches minimum knee clearance for seated zones. Seating depth (overhang) should be 12 inches for counters, 15 inches for bar tops.

Material Selection and Visual Balance

Elevation choices interact with reflectance and color. High-gloss backsplashes amplify luminance contrast; matte or honed finishes around eye-height zones (~54–66 inches AFF) reduce glare. Color psychology indicates warm neutrals (beige, soft clay) encourage social comfort, while cooler hues (soft gray, pale blue) signal cleanliness—use cooler tones around prep elevations and warmer tones at seating heights for behavioral cues. Sustainable materials—low-VOC paints, FSC wood, recycled glass counters—keep indoor air quality aligned with WELL standards while offering durable surfaces that behave predictably under task lighting.

Ventilation and Acoustic Comfort

Hood elevation and ducting influence noise. Keep the hood bottom 30–36 inches above the cooktop, and choose models with lower sone ratings; higher mounting for gas needs compensated CFM and baffle efficiency. Soft materials at ear level, such as fabric stools or acoustic panels at 48–60 inches AFF, dampen clatter. The soundscape is part of usability—pendant height, hood body, and cabinet faces should avoid hard reflective alignments at typical ear heights (~60 inches AFF).

Clearances and Vertical Flow

Plan landing spaces: 15 inches minimum on either side of a cooktop, 12 inches minimum next to the refrigerator pull, and at least 24 inches near ovens. Maintain 1.5-inch setbacks on open shelves above counters to prevent drip lines over work surfaces. In tight kitchens, a slight reduction of upper cabinet depth to 11 inches preserves headroom while keeping reach range practical. Where layout planning is involved, simulate appliance swings and human paths with a room layout tool to validate elevation decisions and prevent collision points.

2024–2025 Trends Shaping Elevations

- Multi-height islands blending 30/36/42-inch tiers for cooking, baking, and socializing.

- Integrated task lighting with higher CRI LEDs at 3000–3500K for natural food color rendering.

- Thin-profile uppers with reduced depth for lighter visual mass and better head clearance.

- Raised dishwashers and wall ovens clustered for reduced bending.

- Seamless ventilation with plaster-integrated hoods at precise elevations to keep sightlines clean.

Authority References

For evidence-based standards and ergonomics guidance, refer to WELL v2 for lighting performance, and IES lighting guidance for glare and illuminance control. Both inform elevation decisions by revealing how our eyes and bodies interact with vertical planes and task surfaces. Explore workplace reach-zone insights through Steelcase research, which translates effectively to kitchen storage ergonomics.

FAQ

Q1: What is the standard kitchen counter height?

A1: 36 inches is standard. Adjust to 34–35 inches for shorter or accessible needs and 37–38 inches for taller users.

Q2: How much space should be between the countertop and upper cabinets?

A2: 18 inches is the typical gap, supporting appliances, task lights, and comfortable elbow movement.

Q3: Where should under-cabinet lights be mounted?

A3: Place fixtures near the front underside of the cabinet, 1–2 inches from the face, producing 300–500 lux on the counter per WELL v2 to improve visibility and reduce shadows.

Q4: What is the best height for a wall oven?

A4: Centerline around 48–52 inches AFF works for most users; adjust based on household height to keep heavy racks between waist and shoulder levels.

Q5: How high should pendant lights hang over an island?

A5: Typically 30–36 inches above the countertop; this keeps sightlines clear while delivering focused task light.

Q6: What microwave height is safest?

A6: 42–48 inches AFF is comfortable for loading without spills; avoid heights above 54 inches.

Q7: Are raised dishwashers worth it?

A7: If space allows, raising the dishwasher 2–4 inches reduces bending and improves ergonomics during frequent loading/unloading.

Q8: How do material finishes affect glare at eye level?

A8: Matte or honed surfaces around 54–66 inches AFF reduce specular highlights; pair with LED fixtures that have proper shielding per IES guidance.

Q9: What color temperature works best in kitchens?

A9: 3000–3500K offers warm, accurate rendering for food and skin tones; higher CRI strengthens color fidelity on work surfaces.

Q10: How do I plan elevations in a compact kitchen?

A10: Use slimmer uppers (11–12 inches depth), prioritize drawer storage between 18–32 inches AFF, and verify door swings and clearances with a room layout tool before committing.

Q11: What’s the ideal backsplash height?

A11: The functional dimension is the 18-inch gap between counter and uppers; total backsplash can extend to the underside of the cabinets or full height behind the range for visual emphasis.

Q12: How do I reduce kitchen noise through elevations?

A12: Choose low-sone hoods mounted at correct heights, add soft finishes around ear level (~60 inches AFF), and break up reflective planes with open shelving or textured panels.
