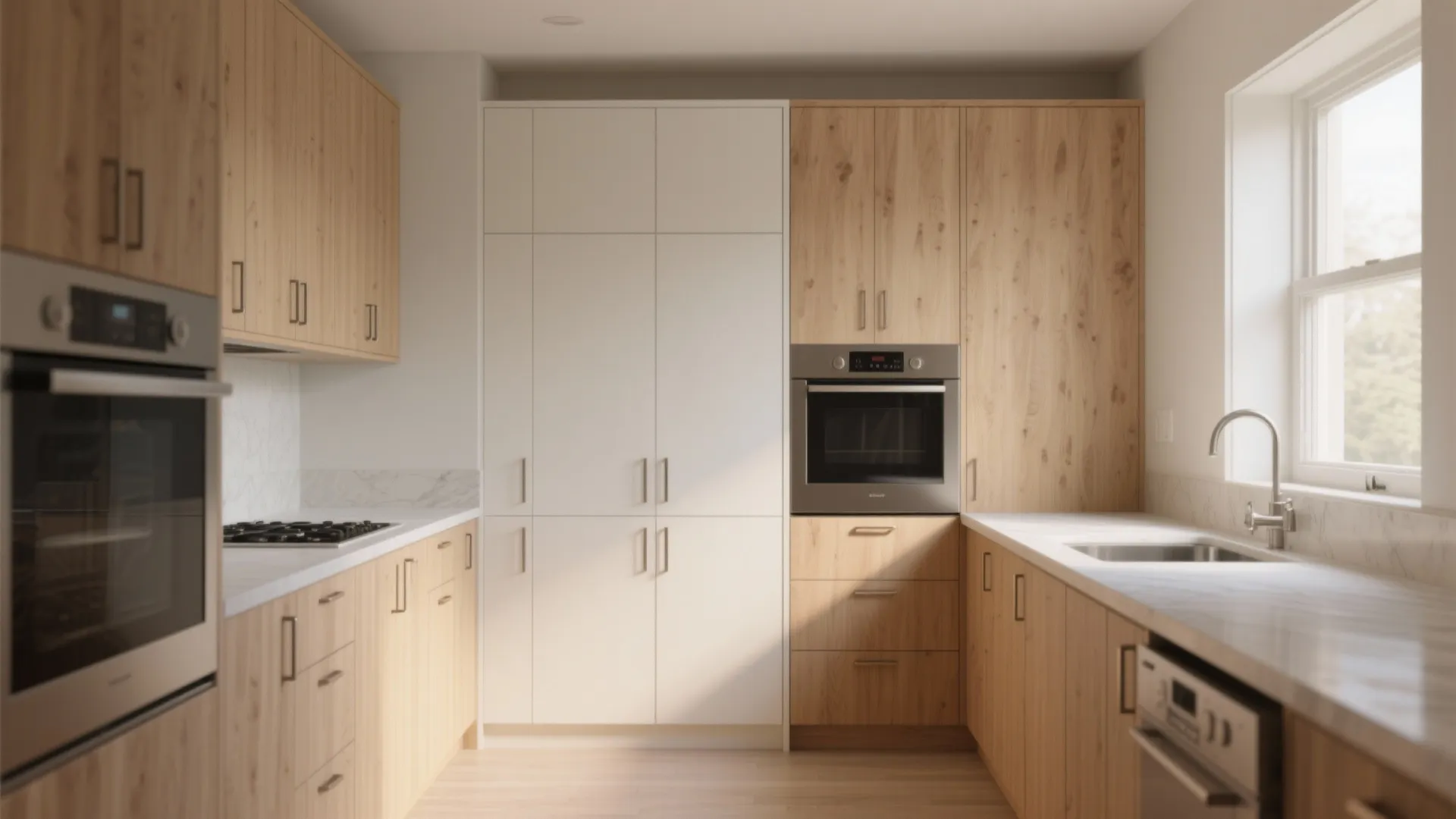

Kitchen Unit Door Sizes — 5 Smart Ideas: Practical kitchen unit door size ideas for small kitchens from a senior designer

I once installed cabinet doors that were so wide the oven couldn’t open fully — a rookie mistake that cost a Saturday and a lot of swearing. That taught me a simple truth: in kitchens, door size matters as much as style. Small kitchens make me nerdy-happy because constraints force clever solutions. In this article I’ll share 5 practical design inspirations for kitchen unit door sizes based on real projects and usable measurements.

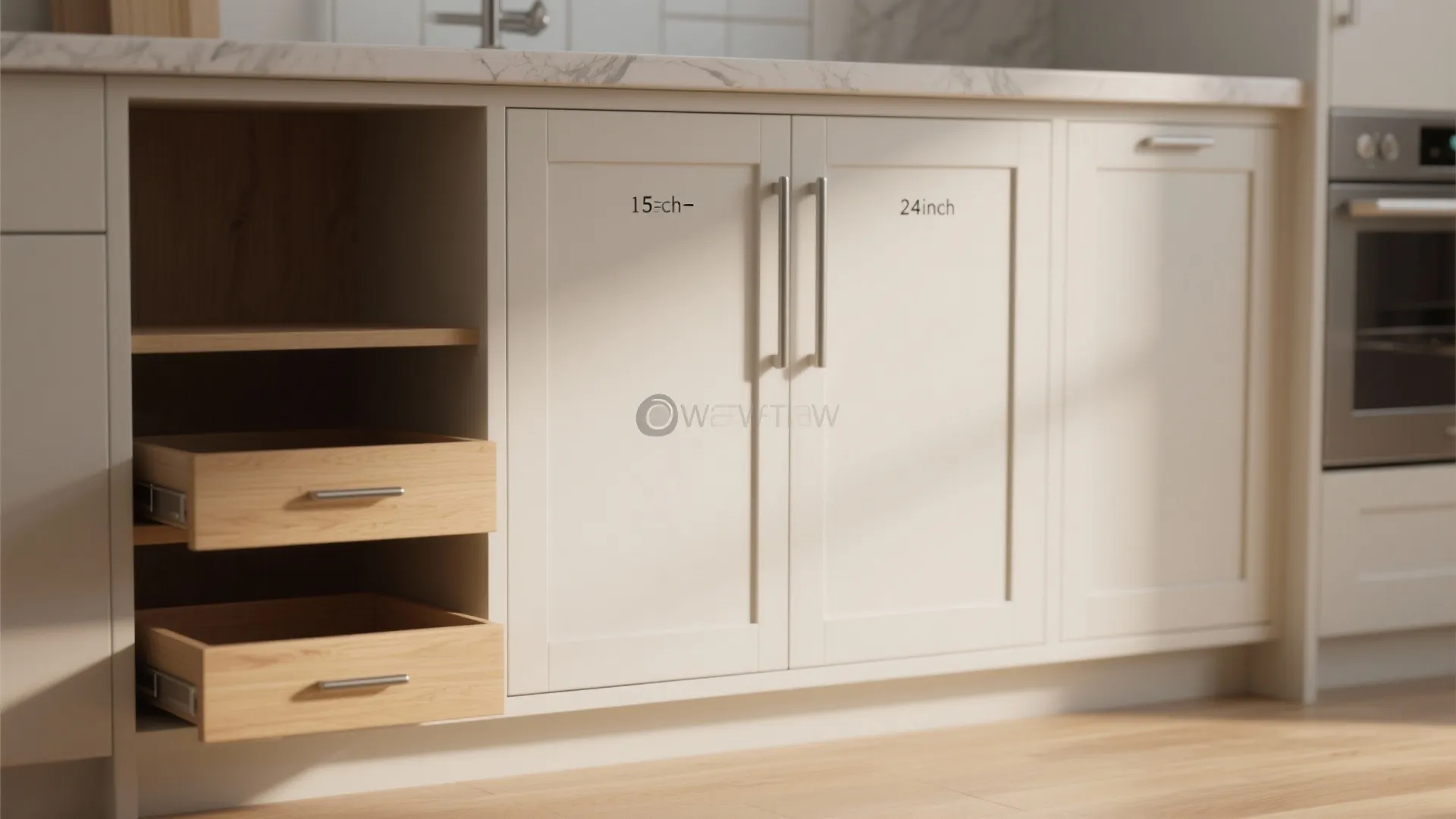

1. Standard base cabinet doors: think 15–24 inches

For base cabinets I usually recommend door widths between 15 and 24 inches (38–61 cm). They’re easy to source, look balanced, and work with standard drawer boxes and shelf depths. The upside is straightforward installation and replacement; the downside is that very wide single doors can warp or be heavy, so split them into two doors if they exceed 24 inches.

save pin

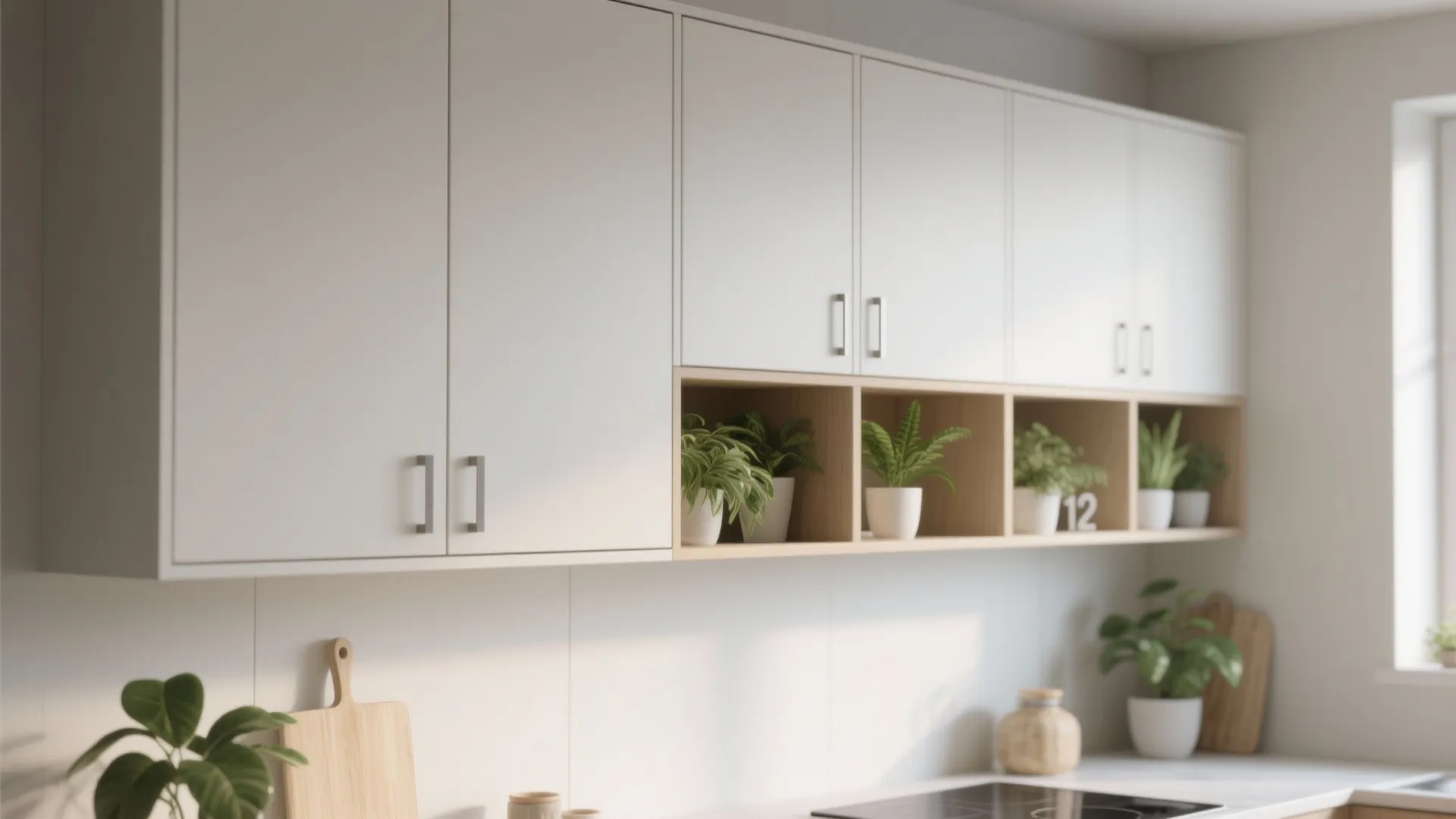

2. Wall cabinet doors: keep them 12–18 inches

Wall units feel lighter when each door stays around 12–18 inches (30–46 cm). Narrower doors reduce sag and make reachability better in taller kitchens. A trade-off: more doors mean more hinges and slightly higher cost, but you gain flexibility in interior organization and avoid awkward wide panels.

save pin

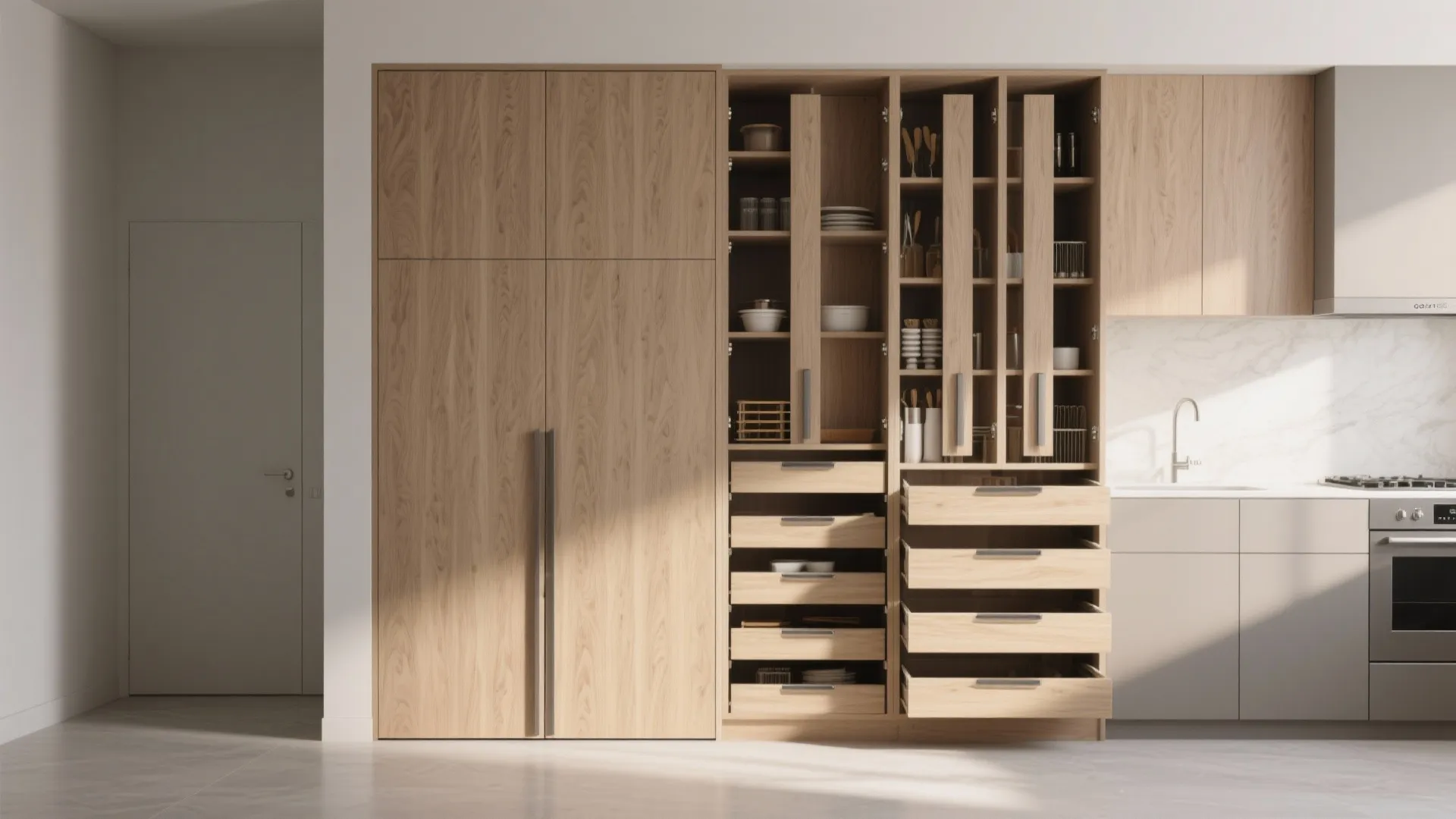

3. Tall pantry doors: use full-height panels or 16–20-inch sections

For tall pantry units I sometimes go with full-height single panels when the unit is up to 24–30 inches wide, otherwise break it into 16–20 inch (41–51 cm) vertical sections. Full panels give a sleek look, while divided doors limit weight and allow internal pull-out accessories. Be mindful of clearance for swing doors in narrow galley layouts.

save pin

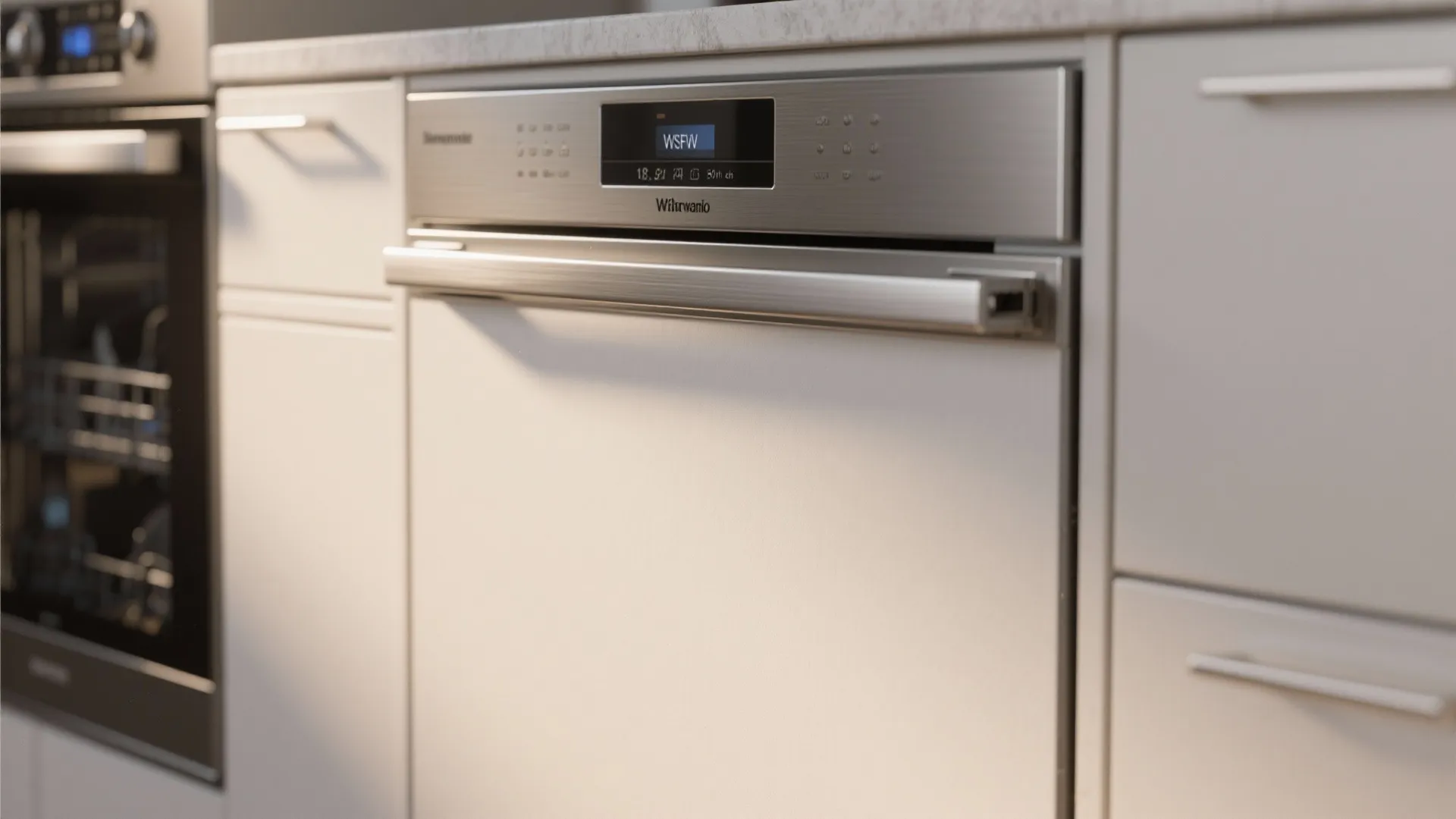

4. Appliance-integrated doors: match proportions not numbers

When integrating dishwashers or fridges, match the door width and height to the appliance width for a seamless look. Many integrated panels are standard 18, 24, or 30 inches; the catch is you may need custom sizing if your appliance is non-standard. I once had to resize a panel to align seams across a run — it looked perfect after that little hassle.

save pin

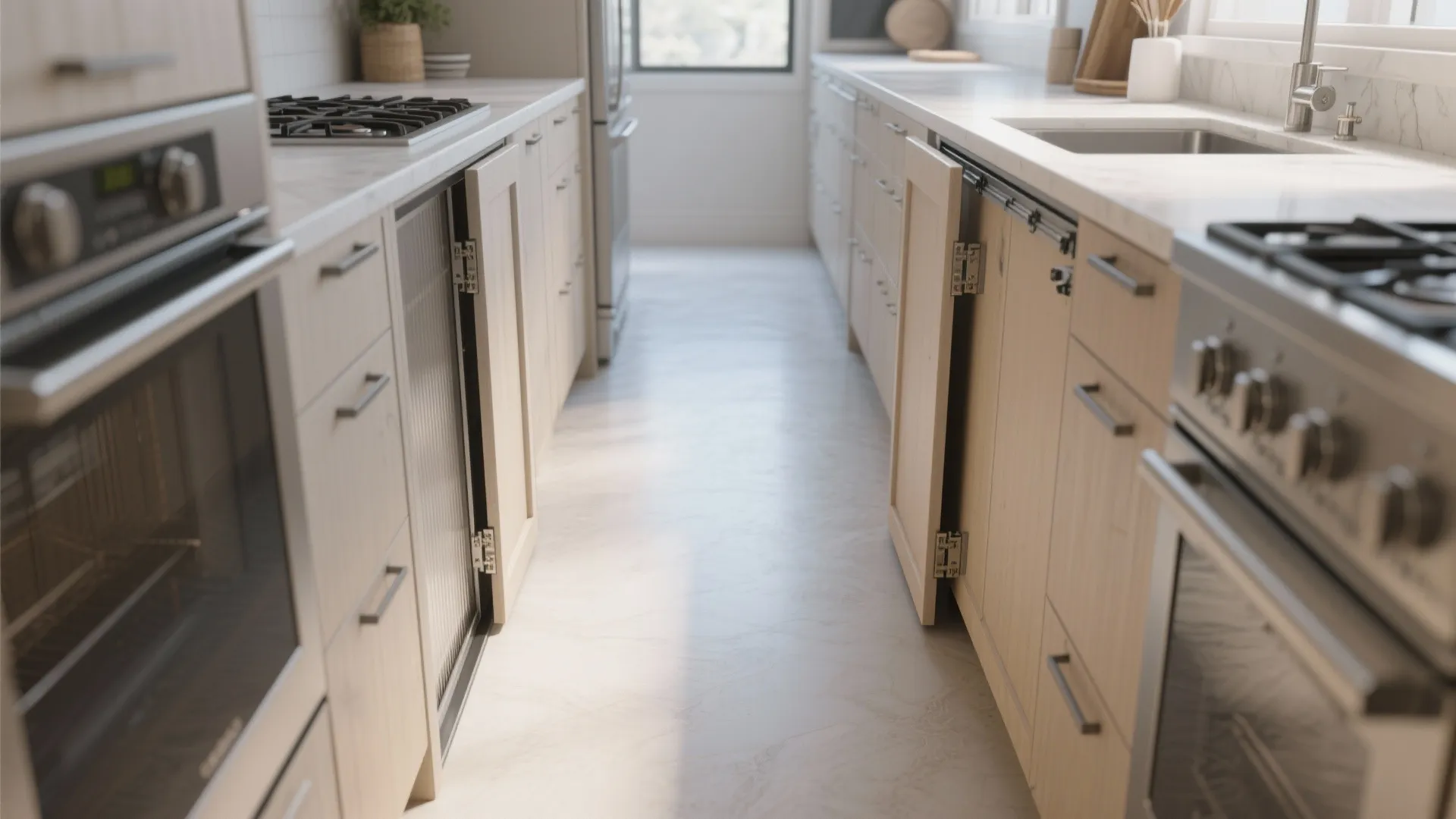

5. Pocket and sliding doors: for very tight spaces

If swing clearance is the issue, consider pocket or sliding cabinet doors that run along 12–24 inch openings. They solve access in narrow walkways but require rail hardware and precise installation. They’re not as cheap as ordinary hinges, yet they’re a lifesaver in tiny kitchens — worth it when every inch counts.

save pin

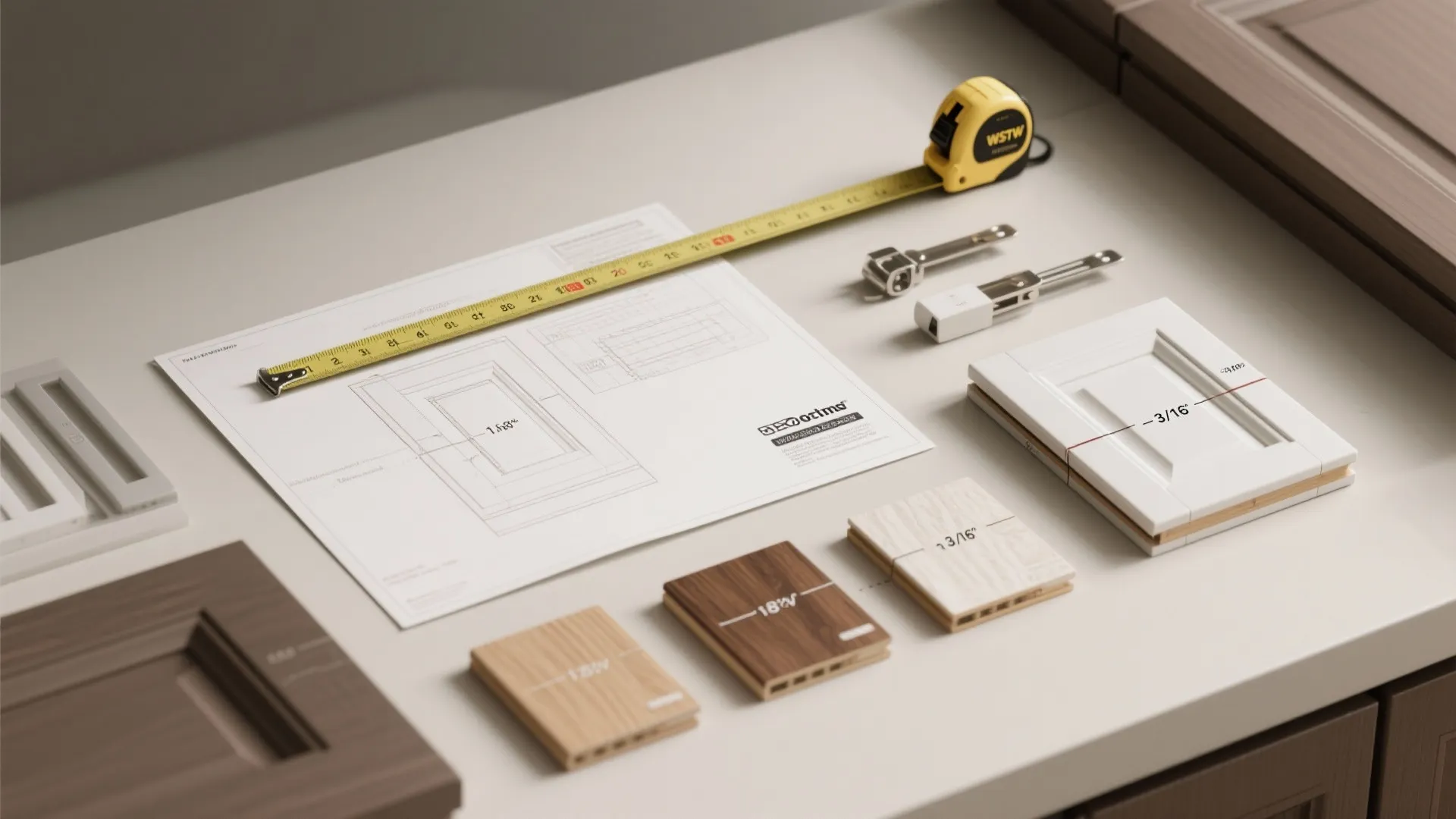

Quick sizing tips

Measure twice and factor in hinge overlay, reveal gaps, and countertop overhang. For face-frame cabinets add 3/8"–1/2" per stile; for frameless, confirm overlay dimensions. When in doubt, mock up a paper template to visualize swing and clearances — I do this on almost every job.

save pin

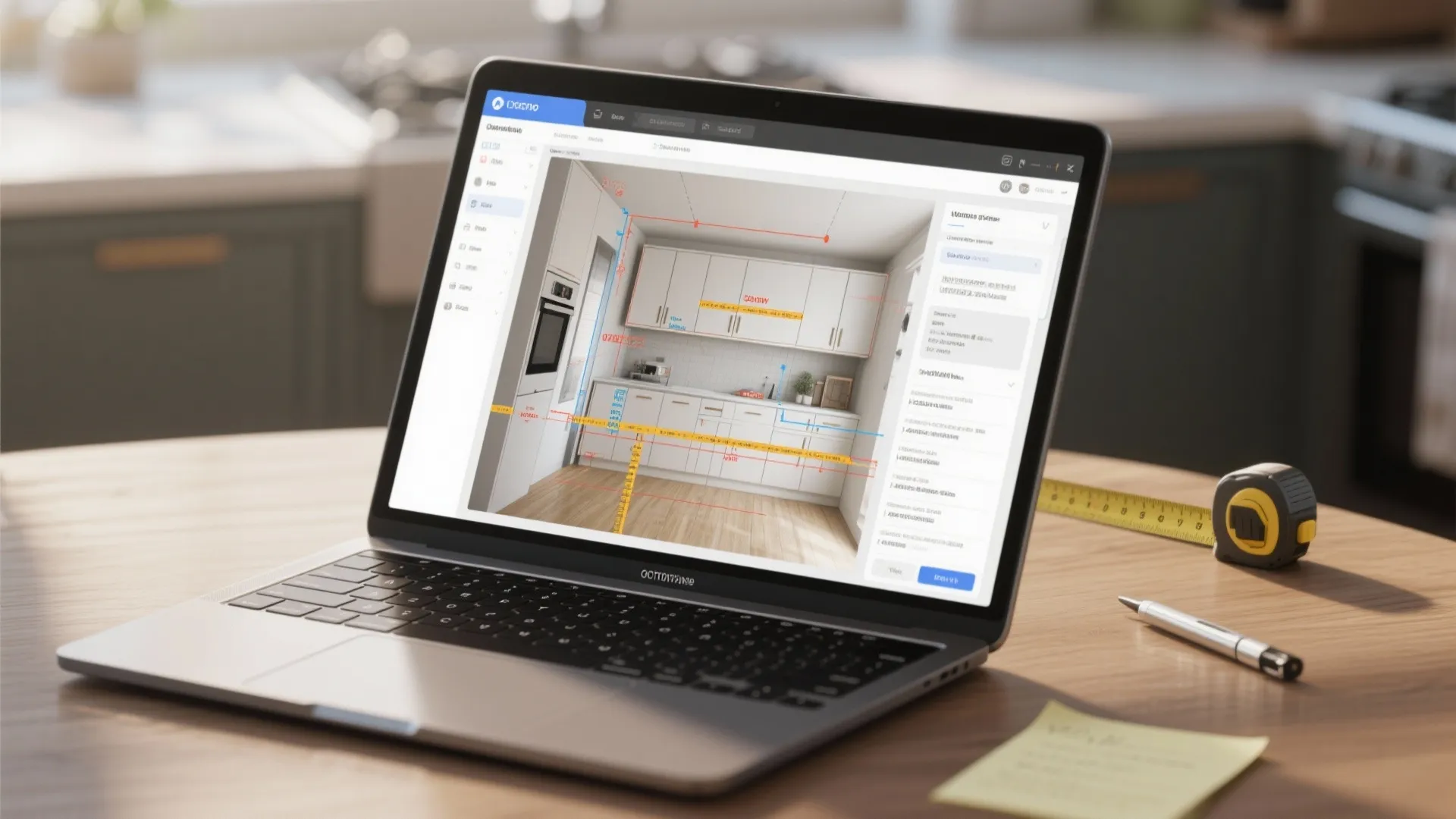

Useful planning resources

If you want to experiment with door layouts and circulation, try a reliable room planner to sketch up cabinet runs and check clearances. A visual mock-up prevents costly mistakes and helps you choose the best door widths for your flow.

save pin

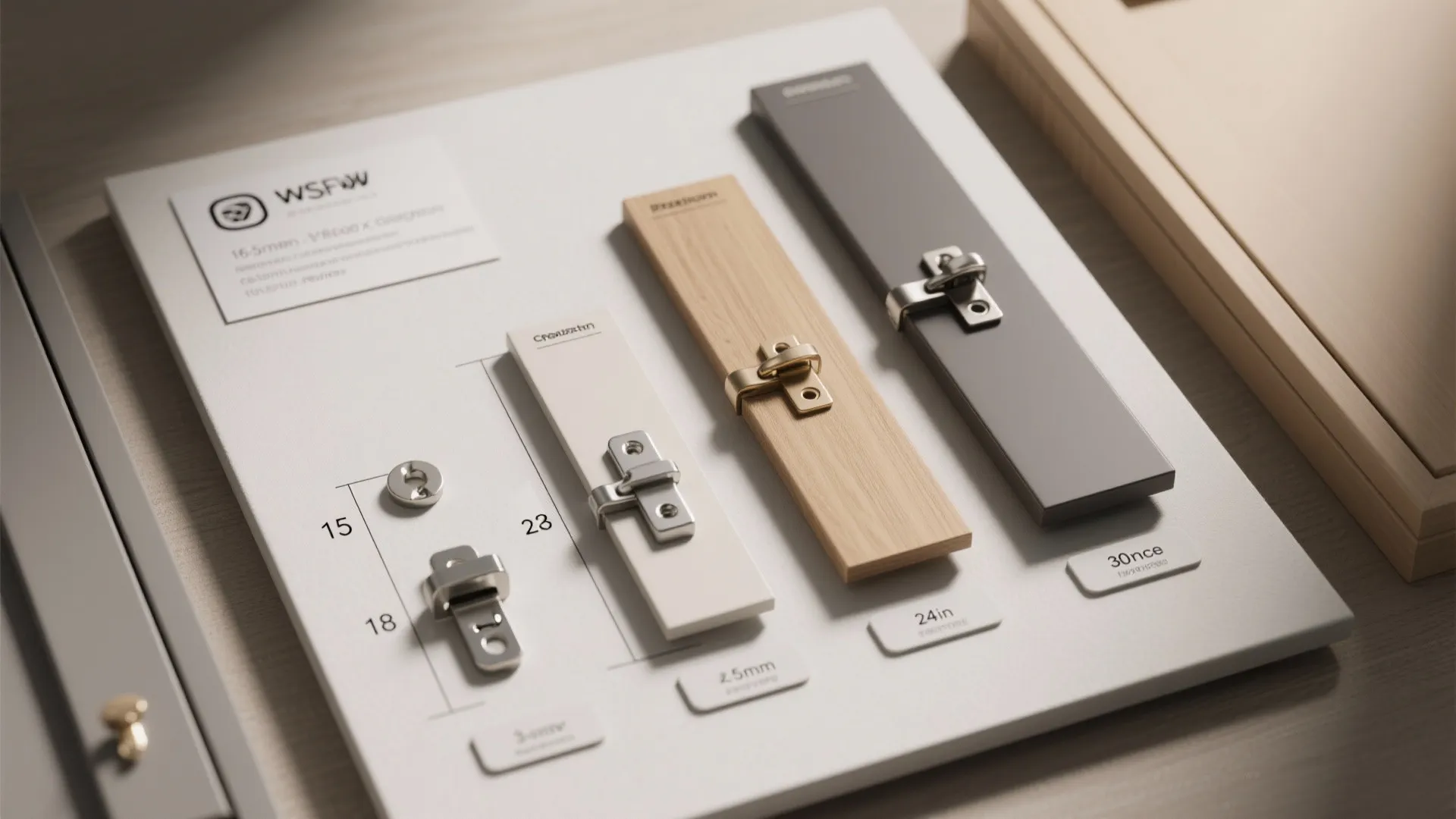

FAQ

Q: What is the most common kitchen unit door width? A: The most common widths are 15, 18, 24, and 30 inches, matching modular cabinet boxes and appliances.

Q: Can I have a single 36-inch cabinet door? A: You can, but it’s heavy and prone to sag. I usually split above 24–30 inches into two doors for durability and easier handling.

Q: How much gap should I leave between cabinet doors? A: Typical reveal gaps are 1/8" to 3/16" (3–5 mm) to allow hinge operation and prevent rubbing.

Q: Do frameless cabinets affect door size choices? A: Frameless systems use full-overlay doors, so widths align with box sizes; account for 1–2 mm edge clearances instead of face-frame allowances.

Q: Are custom-sized doors significantly more expensive? A: Yes, custom doors cost more than standard sizes, but they allow perfect alignment and unique proportions when the layout demands it.

Q: How do I handle doors for integrated appliances? A: Match the panel to the appliance width and thickness, and ensure proper ventilation and service access behind the panel.

Q: Where can I find authoritative cabinet sizing standards? A: Authoritative guidance can be found in industry publications like the NKBA (National Kitchen & Bath Association) guidelines: https://nkba.org for minimum clearances and standard dimensions.

Q: When should I consult a pro? A: Consult a designer or cabinetmaker if you have non-standard dimensions, structural constraints, or want integrated appliances — it saves headaches and money long-term.
