Kitchen Water Storage Tank: Save Space, Stay Efficient: 1 Minute to Smarter, Sleeker Kitchen Water Storage Solutions

I’ve planned dozens of compact kitchens where hot-water cylinders, RO tanks, and buffer tanks had to disappear into tight cabinetry without sacrificing usability. The key is treating a water storage tank as part of the kitchen’s workflow and services core, not an afterthought. When sized and placed correctly, a tank can stabilize pressure, improve appliance performance, and free up valuable counter and floor area.

Space and performance targets benefit from data-backed choices. NKBA’s planning guidelines recommend minimum 36 in. (914 mm) of continuous countertop for prep and at least 21 in. (533 mm) clear space in front of appliances, which you preserve when services tuck into dead zones such as toe-kicks, tall pantry voids, or corner bases. On the wellness side, WELL v2 emphasizes access to safe drinking water and maintenance protocols that limit stagnation and microbial growth—especially relevant for RO and chilled tanks. These benchmarks anchor layout and specification so storage capacity never undermines health or workflow.

Hot water delivery affects cooking cadence. Steelcase research on workflow shows that reducing motion and wait time increases task efficiency; similarly, placing point-of-use hot water or buffer tanks near the sink shortens heat-up delays, keeping prep and cleanup continuous. For lighting around service cabinets, I follow IES recommendations for task zones (roughly 300–500 lux at counters) to ensure maintenance and leak inspections are straightforward and safe without adding glare.

Plan the Right Capacity First

Under-sink RO tanks commonly range from 2–4 gallons usable capacity; compact electric buffer tanks for on-demand hot water often sit between 2–7 gallons. For households with frequent tea or pasta prep, a 4–6 gallon buffer reduces draw lag from distant heaters. If you rely on a whole-house tank but the kitchen is far from the heater, a 2–3 gallon point-of-use tank bridges that gap. I size by peak routine: number of back-to-back sink uses, dishwasher cycles, and beverage station demand within 15 minutes.

Map It Into the Layout, Not Just the Cabinet

Think of the tank as part of the wet zone—sink, dishwasher, and waste center—so your supply and drain runs are short and accessible. I typically allocate the rear 10–12 in. depth of a 36 in. sink base for a vertical tank or the side bay of a sink base with a pull-out trash on the opposite side. When planning multiple iterations, a room layout tool helps test hinge swings, trap clearance, and shut-off reach before you build. Use this interior layout planner to simulate service access and door hardware interactions: room layout tool.

Under-Sink vs. Tall Pantry Integration

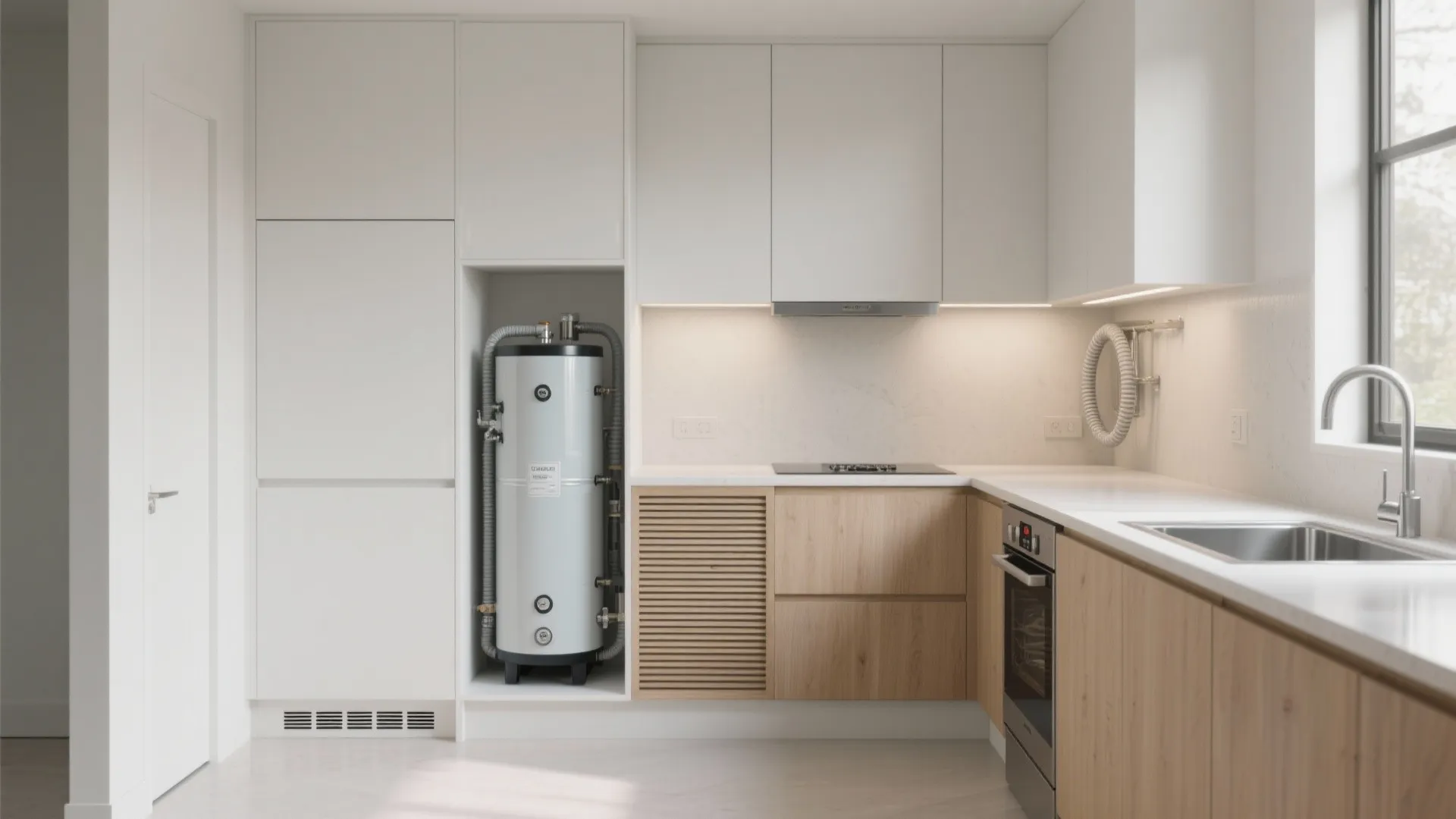

Under-sink is quickest for short runs and minimal heat loss, but tall pantry integration keeps the sink base clean for waste sorting and cleaning tools. I often stack a slim 6–8 in. deep tank in a tall utility cabinet with a louvered panel for ventilation, mounting it above a leak tray with a sensor. In small apartments, the toe-kick zone under adjacent cabinets can house a shallow, horizontal tank—serviceable via a removable grill—freeing valuable base cabinet volume.

Ventilation, Heat, and Condensation

Any warm tank in a closed cabinet raises temperature and humidity. I specify perforated backs or discreet top/bottom vents and avoid sealing tanks in airtight boxes. If the tank chills water (chillers or RO), include a drip tray and insulation jackets to prevent condensation on lines. Keep clearances per the manufacturer—typically 2–3 in. around the shell—for heat dissipation and maintenance.

Pressure, Flow, and Pump Considerations

RO tanks rely on inlet pressure (often 40–60 psi). If local supply dips, a small booster pump stabilizes flow. For buffer tanks feeding mixers, check that the mixing valve can handle the tank’s output temperature and that check valves prevent backflow. I place isolation valves and unions on every connection so the tank can drop out in minutes without dismantling the trap or disposal.

Hygiene and Maintenance Protocols

To align with WELL v2 water guidelines, I schedule filter changes and periodic sanitization per manufacturer, label service dates inside the door, and add a low-cost leak detector on the cabinet floor. RO tanks should be flushed after prolonged non-use; hot buffer tanks benefit from anti-scald mixing and a monthly high-temp cycle if supported to discourage microbial growth. Easy visibility matters—install LED strip task lighting inside the service cabinet for quick inspections.

Acoustics and Vibration Control

Pumps and refill cycles can hum. I set tanks on neoprene pads, decouple lines with flexible braided hoses, and avoid rigid contact with cabinet sides. If a booster pump is needed, mount it on an isolation plate and keep it off party walls. Quiet kitchens adhere to workplace-grade acoustic comfort principles: limit structure-borne vibration and mask intermittent noise with soft materials nearby.

Materials, Safety, and Sustainability

Choose tanks with certified food-grade bladders or liners and lead-free fittings. Insulation reduces standby losses and improves energy performance. If you’re targeting durability, stainless shells resist corrosion near coastal air. Plan end-of-life: quick-disconnects and recyclable metals simplify replacement. For countertops and cabinet interiors around wet services, I favor water-resistant laminates or sealed plywood rather than raw particleboard.

Ergonomics: Access and Reach

Ergonomically, valves and filters should sit within 24–48 in. from the finished floor and within a 20 in. deep reach envelope. I avoid burying tanks behind full-height cleaning caddies; instead, mount accessories on the door and keep the tank front edge at least 4 in. back to protect it from impacts when loading bins.

Color, Lighting, and Visual Order

Color psychology nudges good habits. I tag service areas with neutral, low-saturation colors and clear iconography, reserving high-contrast tape for emergency shut-offs. For lighting, target 300–500 lux inside the service bay with warm-neutral 3000–3500K LED strips—bright enough for quick checks without glare. This aligns with IES task lighting ranges while maintaining comfortable visual balance.

Workflow Pairings That Boost Efficiency

Pair a hot buffer tank with your dishwasher supply to reduce cycle time starts, or preheat water for pasta to speed dinner service. For coffee lovers, a small under-sink tank serving a dedicated pot filler or hot tap trims minutes from morning routines. Keep the drinking-water spout at the primary sink to avoid redundant fixtures that eat counter space.

Step-by-Step Integration Checklist

- Confirm local water pressure and quality; specify pre-filters as needed.

- Size capacity by peak 15-minute demand and distance to main heater.

- Choose location: under-sink, tall utility, toe-kick, or shared closet.

- Add ventilation, leak tray, and sensor; include shut-offs and unions.

- Plan electrical needs for powered tanks or pumps (GFCI where required).

- Isolate vibration and route flexible hoses with drip loops.

- Provide cabinet lighting and service labeling.

- Test for flow, temperature, and leaks; document maintenance intervals.

FAQ

Q1: How big should a kitchen water storage tank be?

A: For point-of-use hot water, 2–7 gallons typically covers back-to-back sink tasks; 4–6 gallons suits heavier cooking routines. For RO drinking water, 2–4 gallons usable capacity is common. Size by peak 15-minute demand and distance to the main heater.

Q2: Will a tank take too much cabinet space?

A: A slim vertical cylinder can occupy the back 10–12 in. of a 36 in. sink base, leaving front space for bins or organizers. Alternatives include tall pantry placement or toe-kick integration with a removable grille to reclaim base storage.

Q3: How do I prevent stale water or bacterial growth?

A: Follow manufacturer service intervals, flush RO tanks after long inactivity, keep hot tanks at safe but effective temperatures with anti-scald mixing, and provide ventilation. WELL v2-aligned maintenance and leak monitoring add another layer of protection.

Q4: Do I need a pump?

A: If municipal pressure is consistently below about 40–50 psi, a small booster pump stabilizes RO performance. For buffer tanks, ensure adequate pressure and install check valves to prevent backflow. Isolate pumps with vibration pads.

Q5: What about energy consumption?

A: Insulated buffer tanks have minimal standby loss, especially when sized appropriately and located near the point of use to reduce pipe heat loss. Use timers or smart controls where supported and insulate nearby hot lines.

Q6: Can I install a tank with a garbage disposal present?

A: Yes. Plan the trap and disposal on one side of the sink base and the tank on the other, maintaining access to clean-outs and shut-offs. Quick-disconnect fittings make future service easier.

Q7: Which materials are safest?

A: Look for food-grade liners or bladders, lead-free brass or stainless fittings, and corrosion-resistant shells. For cabinetry near tanks, specify moisture-resistant substrates and sealed edges.

Q8: How do I control noise?

A: Set the tank on neoprene pads, use flexible braided connectors, avoid rigid cabinet contact, and if using a pump, mount it on an isolation plate away from bedroom or party walls.

Q9: What lighting should I include inside service cabinets?

A: Provide 300–500 lux task lighting at 3000–3500K with covered LED strips for safe, glare-free inspection and maintenance, consistent with IES task recommendations.

Q10: How does this affect dishwasher performance?

A: A nearby buffer tank reduces cold-start delays so the dishwasher reaches target wash temperatures faster, helping cycles run efficiently and consistently.

Q11: Is a toe-kick tank safe and serviceable?

A: Yes, if housed in a protective tray with a leak sensor, accessible via a removable grille, and connected with flexible lines. Keep electrical components GFCI-protected where required.

Q12: Can I model the layout before committing?

A: Absolutely. Use a layout simulation tool to test clearances, hinge swings, and service access, and to visualize how the tank shares space with waste systems and pull-outs.
