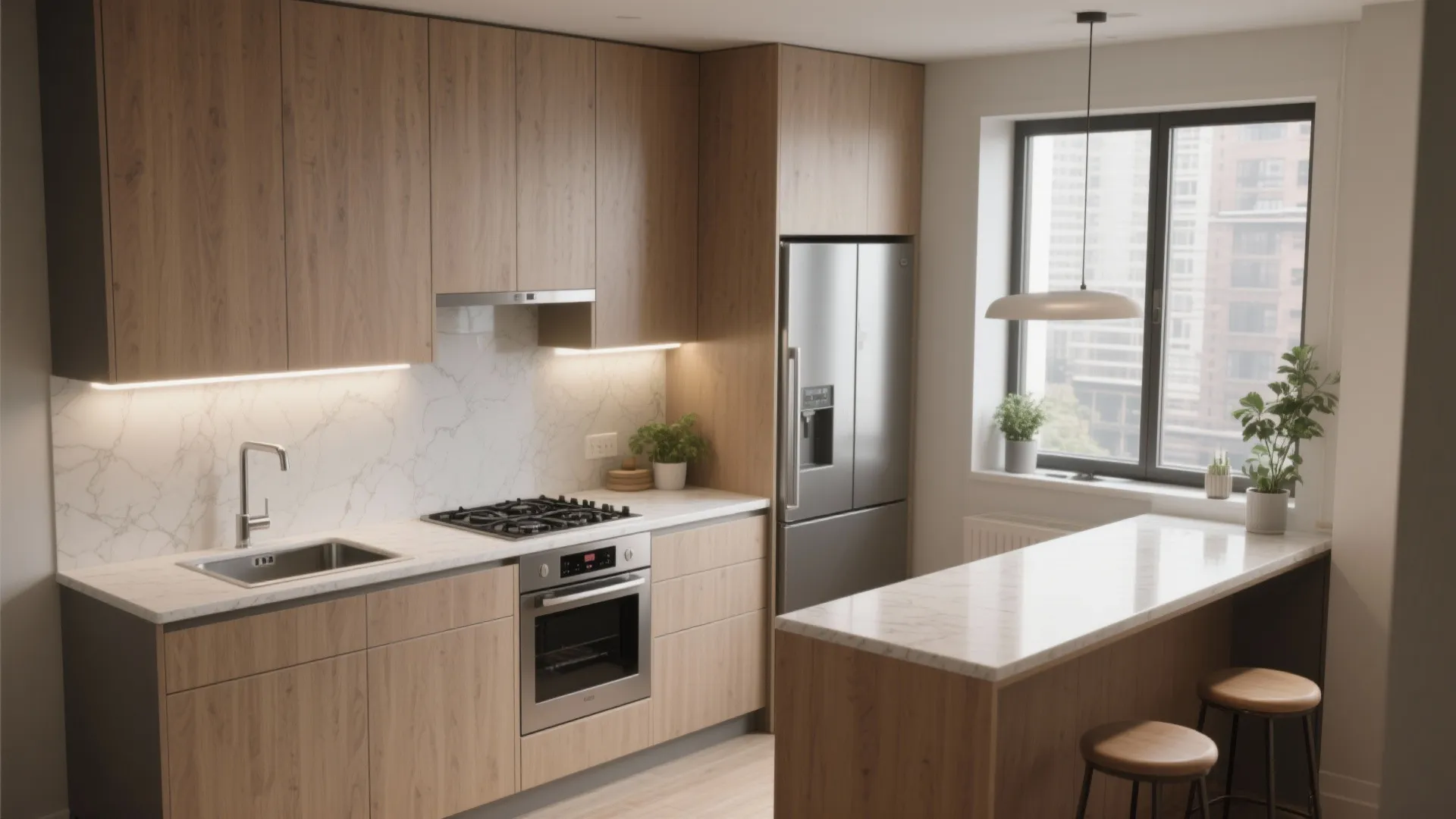

L Shaped Modular Kitchen Designs Catalogue PDF Guide: 1 Minute to Download the Best L Shaped Modular Kitchen Ideas PDF for Smart Small Space Living

An L-shaped modular kitchen remains one of the most efficient footprints for urban homes and compact apartments, thanks to its ability to carve circulation space while maintaining generous work zones. In my projects, it consistently delivers strong ergonomics, clear workflow paths, and balanced storage without sacrificing daylight or seating potential. Steelcase research shows that well-planned, task-oriented environments can increase performance and reduce friction in everyday activities, a principle that translates directly into residential task hubs like kitchens. WELL v2 highlights that adequate lighting quality and glare control contribute to occupant comfort and safety—critical when specifying under-cabinet illumination, task lights, and reflective finishes near cooktops.

To structure design decisions, I use three anchors: verified ergonomic dimensions, lighting standards, and workflow zoning. According to NKBA planning guidelines, the recommended clear walkway in a kitchen is at least 36 inches and 42 inches for a work aisle (48 inches if multiple cooks)—a key metric for L-shaped layouts that often fit within 8–12 feet per leg. IES task illuminance guidance generally falls around 500 lux for food prep and 300–500 lux in general kitchen areas, informing the layering of ambient and task lighting over counters. For more insights on research-backed comfort and productivity in task environments, Steelcase’s research library offers valuable context on spatial design and human performance.

Design Intent: What Makes L-Shaped Modular Kitchens Work

Modular L-shapes reduce complexity by concentrating prep, cook, and clean along two perpendicular runs, allowing a leg for storage-heavy tasks and another for cooking and cleaning. The corner becomes a strategic junction for workflow: a blind corner can be upgraded with a LeMans or carousel unit to prevent dead space; tall pantry or integrated fridge on the longer leg helps balance massing. I prioritize uninterrupted counter spans of 36–48 inches for prep next to the sink, with a secondary landing zone near the cooktop for hot pots and pans.

Layout Ratios and Flow

In practice, I target leg lengths of 8–12 feet per side for most apartments, ensuring the triangle between sink, cooktop, and refrigerator stays within 13–26 feet combined (NKBA’s classic work triangle range). If the kitchen serves multiple users, I widen the primary work aisle to 48 inches and separate the refrigerator landing zone from the cook zone to avoid conflicts. When testing options or visualizing the L-turn, a room layout tool helps simulate clearances, appliance swing, and corner storage.

Lighting Strategy for L-Shaped Kitchens

Lighting makes or breaks usability. I set ambient illumination close to 300–400 lux, then elevate task zones (cutting, mixing, plating) to ~500 lux using under-cabinet linear LEDs with diffusers to reduce glare. Keep correlated color temperature between 2700–3500K for warm yet crisp rendering; prioritize 90+ CRI near prep areas for accurate food color. Control hotspots at glossy backsplashes by angling under-cabinet fixtures toward the counter edge. WELL v2’s Light concept underscores glare control and color quality—pairing that guidance with layered lighting rules ensures comfort during extended cooking sessions.

Ergonomics and Human Factors

Ergonomics drives comfort and speed. Counter height typically lands at 36 inches; if the household cooks have varied heights, consider a split-height counter with a dedicated 34-inch prep zone. Mount wall cabinets so the lowest shelf sits around 48–54 inches above floor for average reach. Keep heavy-use drawers in the 24–48 inch vertical band and reserve high storage for infrequent items. For safety, position the dishwasher adjacent to the sink (ideally on the same run) and ensure at least 24 inches of landing space on either side of the cooktop.

Appliances: Placement and Ventilation

The refrigerator sits near the kitchen entry to allow quick access without crossing hot zones. Provide 15 inches minimum landing space adjacent to the fridge and oven; more if the kitchen supports baking or frequent meal prep. Ventilation should be sized to the cooktop output; for gas, specify a hood with capture depth and cfm appropriate to burner power, and keep makeup air considerations in mind for tight envelopes. Induction reduces ambient heat and improves safety around the L-corner.

Storage Logic for the L-Corner

Corner modules are the backbone of L-shaped modular kitchens. I prefer pull-out corner units with full-extension hardware to avoid deep-reach fatigue. Use two shallow drawers next to the corner for utensils and prep tools, and a deeper pot-pull for cookware. Tall pantry elements on the longer leg keep vertical rhythm and can frame a built-in oven tower, balancing visual mass and anchoring the layout’s focal point.

Materials and Sustainability

For cabinet carcasses, choose moisture-resistant plywood or high-grade particleboard with low formaldehyde emissions. Facades can mix matte laminates for durability with wood veneers to soften the tone. On countertops, engineered quartz offers stain resistance and neutral color consistency, while porcelain slabs deliver heat tolerance. Opt for low-VOC finishes and energy-efficient appliances. Material selection impacts acoustics as well: soft-close hardware and textured fronts dampen sound in compact kitchens.

Acoustic Comfort

High-gloss, hard surfaces bounce sound. Introduce acoustic moderation through fabric blinds, textured rugs in adjacent dining, and panel-backed banquettes. Soft-close drawers and dampened hinges reduce mechanical noise. This becomes more important in open-plan living where the L-kitchen shares air and sightlines with the lounge.

Color Psychology and Visual Balance

Color influences appetite, focus, and perceived cleanliness. Warm neutrals promote conviviality, while desaturated greens can signal freshness without overwhelming small volumes. Verywell Mind’s overview on color psychology notes that color can affect mood and behavior; I translate this by choosing mid-tone palettes and reserving bold hues for small accents like barstools or backsplash inserts, preserving visual calm and wayfinding clarity.

Seating and Transitions

Where the L opens to a dining or living area, a peninsula ledge of 12–15 inches overhang supports casual seating without crowding the work aisle. Keep at least 24 inches per stool and maintain sightlines from sink to living zone for social cooking. In narrow apartments, a slim bar ledge on the short leg can double as a breakfast counter.

Cataloguing Your L-Shaped Modular Options

When building your catalogue, group modules by function—prep bases (24–36 inches wide), sink bases with integrated waste, corner solutions, tall appliance towers, and wall cabinet variants. For finishes, create a matrix of laminate, acrylic, veneer, and paint options alongside edge profiles and handle types (recessed, rail, push-to-open). Include standardized cut sheets with clearances, hinge types, and drawer load ratings to make specification fast and accurate.

Planning Workflow and Digital Visualization

I map layouts with scaled blocks, then test variants using a room design visualization tool to confirm reach, swing, and sightlines. This helps catch conflicts like oven door interference with the corner base or refrigerator blocking the entry. Create scenario views—single cook vs. multi-cook, baking-intensive vs. quick meals—to stress-test the catalogue.

Case Notes from Practice

In a 9x11-foot apartment kitchen, a 10-foot long primary leg hosted sink and dishwasher with 48 inches of uninterrupted prep, while the 8-foot short leg carried the cooktop and a narrow spice pull-out. We layered 350 lux ambient lighting with 500 lux task lighting and installed a carousel corner unit. The result reduced step counts between prep and cook by roughly 20% compared to the prior linear layout, and created better social interaction across the adjacent dining space.

Specification Checklist

- Work aisle: 42–48 inches for one to two cooks

- Work triangle: 13–26 feet combined

- Task lighting: ~500 lux at counters; ambient 300–400 lux

- Counter heights: 36 inches standard; consider 34 inches prep

- Landing space: 24 inches around cooktop; 15 inches near fridge/oven

- Corner storage: pull-outs or carousel to avoid dead zones

- Vent hood sized to cooktop; induction for cooler, safer operations

- Low-VOC finishes and high-CRI lighting for comfort

FAQ

Q1: What leg lengths work best for an L-shaped modular kitchen?

A1: Aim for 8–12 feet per leg in typical apartments. This keeps the work triangle within NKBA’s recommended range and maintains adequate counter continuity.

Q2: How wide should the aisle be?

A2: 42 inches for a single cook, 48 inches for two. These widths minimize collisions and allow appliance doors to open safely.

Q3: How much lighting do I need over prep areas?

A3: Target around 500 lux for prep tasks, with ambient lighting near 300–400 lux. Use diffused under-cabinet LEDs to reduce glare.

Q4: Where should the refrigerator go in an L layout?

A4: Near the entry or at the end of a leg, with a minimum 15-inch landing area adjacent. This placement prevents crossing hot zones during quick access.

Q5: What’s the best solution for the corner cabinet?

A5: Pull-out corner systems (LeMans-style trays or carousels) maximize access and minimize deep reach, turning the corner into usable storage.

Q6: How do I manage acoustics in a compact kitchen?

A6: Combine soft-close hardware, textured cabinet fronts, and nearby soft furnishings. This dampens clatter and makes open-plan spaces feel calmer.

Q7: Which countertop materials work well?

A7: Engineered quartz for stain resistance and consistent color; porcelain slabs for heat tolerance. Both pair well with low-VOC sealants.

Q8: What color temperatures suit kitchens?

A8: 2700–3500K maintains warmth while providing clarity. Select 90+ CRI for accurate food color rendering at prep zones.

Q9: Can an L-shaped kitchen include seating?

A9: Yes. A 12–15 inch overhang on a peninsula or short leg supports stools; allow 24 inches per seat and maintain aisle clearance.

Q10: How do I plan for multiple cooks?

A10: Widen the work aisle to 48 inches, add secondary prep near the sink, and ensure duplicate landing areas to prevent clashes.

Q11: What about ventilation for gas vs. induction?

A11: Gas needs higher capture and cfm; induction reduces ambient heat and requires less aggressive extraction, improving comfort.

Q12: How can I quickly visualize layout options?

A12: Use a room layout tool to test clearances, door swings, and corner storage behavior before finalizing your module selection.
