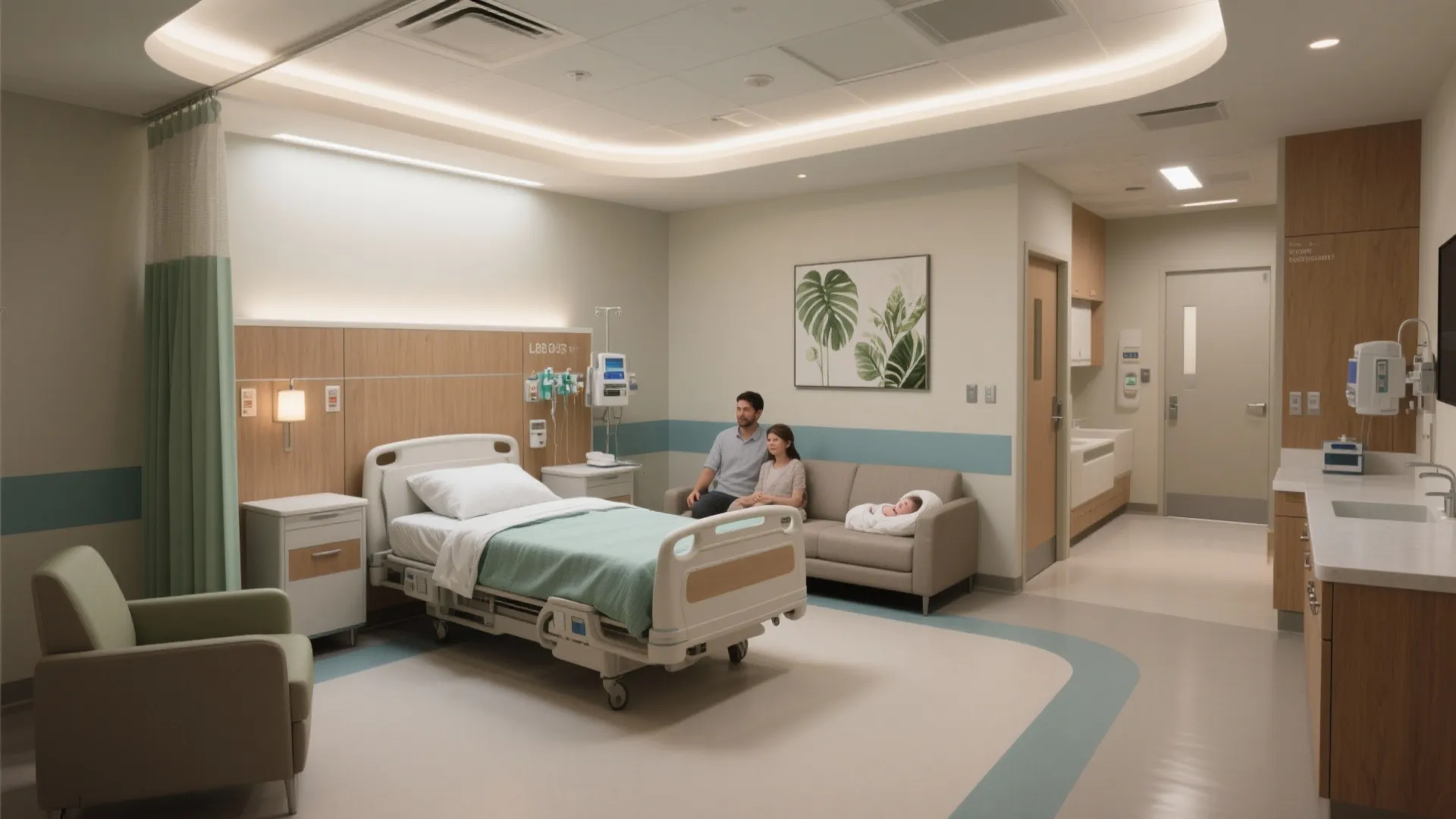

LDR Room Hospital: Innovative Design Guide for Modern Maternity Wards: Fast-Track Guide to Designing LDR Rooms That Save Time and Enhance Care

I’ve spent the past decade refining Labor–Delivery–Recovery (LDR) rooms that balance clinical precision with the warmth families expect. A well-designed LDR suite can calm anxiety, streamline care, and respect privacy while remaining nimble for urgent interventions. That balance isn’t guesswork. Steelcase research links environmental control and choice to improved wellbeing and performance in high-stress settings, while the WELL Building Standard emphasizes acoustics, circadian-aligned lighting, and biophilia as measurable contributors to physiological recovery. I design LDR rooms with these principles from the first sketch.

Lighting warrants the same rigor as medical infrastructure. The Illuminating Engineering Society recommends 300–500 lux for general patient rooms, with higher task illuminance at procedures and lower night levels to protect circadian rhythms. WELL v2’s Light concept highlights daytime vertical illuminance and warmer, lower-intensity night lighting to avoid melatonin suppression. In practice, I layer ambient 300–350 lux with ≥1,000 lux adjustable task lights for exams and induction, and dim-to-warm night paths at 5–20 lux for safe movement without sleep disruption.

Design Intent: Safety, Dignity, and Adaptability

Every LDR room must pivot from serene to surgical within seconds. I plan a clear 6–8 ft (1.8–2.4 m) turning radius around the bed for equipment and providers, plus a protected caregiver zone on one side and a family zone on the other. The headwall conceals gases, power, and data behind millwork panels that open silently, preserving a residential aesthetic until needed. Glazing with integral blinds and electrochromic privacy options maintain dignity during cervical checks or epidural placement. Surfaces and junctions are detailed for infection prevention: coved resilient base, minimal joints, and sealed integral sinks.

Spatial Planning and Flow

Flow beats footprint. I separate three bands: clinical (bed + headwall + staff alcove), family (sofa-sleeper, dining/writing ledge, wardrobe), and hygiene (ensuite with labor tub). A 10–12 ft patient transfer path from door to bed stays obstacle-free. For teams practicing intermittent monitoring or low-intervention births, I include a dedicated movement lane around the bed for birthing balls and upright labor. When mocking up space with clients, I test various furniture rotations and equipment parking using a room layout tool from Coohom for quick visualization and scale-checking: room layout tool.

Lighting Strategy: From Labor to First Night

Ambient: 300–350 lux at 3500 K for day comfort, with high CRI ≥90 for accurate skin tone assessment. Task: 1000–1500 lux, 4000 K exam lights with glare shielding and precise aiming. Night: 5–20 lux amber/low-blue pathway lights at 1800–2200 K from entry to bed to bath, with toe-kick LEDs in casework. Dimming curves should be smooth to 1% for neonatal resuscitation to golden-hour bonding transitions. Control: nurse presets (Exam, Delivery, Recovery, Night) plus patient overrides for reading and relaxation. I specify indirect uplighting to reduce veiling reflections on monitors and integrate blackout + sheer layers for daylight modulation.

Ergonomics and Human Factors

Labor demands micro-adjustments. Beds should allow 18–22 in seat height range and lateral support for side-lying positions. Grab points at 32–36 in AFF aid squat and lunge positions; a ceiling-mounted support (rated ≥1000 lb) doubles as lifting assistance and birthing aid. For staff, charting surfaces at 28–30 in seated and 38–40 in standing heights reduce strain across 12-hour shifts. I angle headwalls 10–15 degrees where possible to improve line-of-sight to mother and neonate, shortening reach distances for suction and O2.

Acoustic Comfort and Privacy

Birth is intimate; acoustics must honor that. I target an STC 50+ for partitions to adjacent rooms, seal door frames, and specify soft-close hardware. Ceilings with NRC 0.80+ dissipate coaching voices without deadening staff communication. Mechanical noise stays below NC 30–35 in recovery mode. White-noise options in the family zone help parents rest while staff work.

Materiality: Cleanability Without Sterility

Infection control drives selections: seamless sheet flooring with heat-welded seams, non-porous solid surface in wet areas and headwall, antimicrobial hardware where appropriate, and bleach-cleanable textiles rated ≥100,000 double rubs for durability. I balance warm wood tones (HPL or thermally treated veneers with healthcare finishes) with soft neutral palettes. Color psychology suggests muted greens and blues can lower heart rate and anxiety; I punctuate with nature-referenced art to encourage parasympathetic response without visual clutter.

Family-Centered Amenities

A 72–78 in sleeper sofa, a compact wardrobe, lockable cubbies, and a small hospitality niche (sink, undercounter refrigerator if policy allows) reduce corridor trips. Indirect reading lights and device charging within arm’s reach keep partners anchored. If space permits, a rocking chair with wipeable upholstery supports early feeding and comfort.

Clinical Readiness and Resilience

Behind the calm: redundant medical gases, easily accessed emergency power, and a recessed neonatal alcove within 6–8 ft of the bed that can accept a warmer or resuscitation cart. I keep a 4–5 ft clear approach to the bath for rapid transfer. Door widths of 44–48 in accommodate beds and equipment; consider sliding pocket or breakaway doors for clear egress. Finishes and casework must tolerate frequent disinfection without degrading.

Bathroom and Hydrotherapy

An ensuite within 10–15 ft of the bed reduces falls risk. A curbless shower with trench drain allows labor movement, with textured R10–R11 slip ratings under wet conditions. Where tubs are used, integral seats and 36 in grab bars maintain safety. Lighting here follows night-mode logic with 5–10 lux toe-kicks to prevent glare.

Technology and Monitoring

Discreetly mount patient monitoring with cable management, leaving fronts clean for photography and family comfort. Provide ceiling drops for futureproofing wireless fetal monitoring or RTLS tags. Wi-Fi calling zones and sound-masked staff charting niches outside rooms reduce doorway conversations and protect confidentiality.

Wayfinding and Arrival

Arrival should feel certain and secure. I contrast door and frame colors subtly for visibility, add readable signage at 48–54 in heights, and provide a vestibule or privacy curtain line inside to buffer views from the corridor. Floor patterns guide wheels, not feet—no high-contrast stripes that can trigger depth-perception issues under stress.

Space Ratios and Room Sizes

Typical LDR rooms I plan fall between 300–450 sq ft (28–42 m²), with 8–10 ft clear between bed centerline and family wall, and 4–5 ft clear on the staff side. The neonatal alcove adds 20–30 sq ft. Ensuites run 60–80 sq ft with clear 5 ft turning space. These ratios accommodate multiperson teams without pushing family amenities into circulation zones.

Sustainability and Operations

LED systems with controls cut energy loads while improving care. Low-VOC finishes protect maternal and neonatal respiratory health. Durable, modular casework keeps lifecycle costs in check and simplifies deep cleaning. Daylight, views to green, and circadian-friendly lighting align with WELL strategies and have been associated with better mood and sleep quality for patients and staff.

Implementation Playbook

1) Discovery

Shadow clinicians, review incident reports, and map typical labor journeys from triage to recovery. Identify bottlenecks and anxiety triggers (noise bursts, exposure during exams).

2) Mock-ups and Simulation

Build a full-scale or digital mock-up to test equipment reach, sightlines, and lighting presets. Rapidly iterate layouts with an interior layout planner to validate turning radii and equipment parking: interior layout planner.

3) Detail and Commissioning

Specify dimming curves, acoustic seals, and protective finishes. Commission lighting scenes with caregivers present, and rehearse emergency conversions.

4) Post-Occupancy Learning

Survey mothers and staff, track falls, transfers, and noise complaints, and tune controls and furniture placement accordingly.

Key References for Evidence-Led Decisions

- IES recommendations for healthcare lighting provide lux ranges and glare control considerations for patient and exam areas (see IES healthcare lighting guidance and standards).

- WELL v2 Light and Mind concepts supply targets for circadian support, acoustic comfort, and environmental quality that translate well to LDR environments.

FAQ

Q1. What lighting levels work best for labor versus delivery?

A1. For labor and early exams, maintain 300–350 lux ambient with warm-white tones. For delivery or procedures, layer in 1000–1500 lux focused task lighting with precise aiming and glare control. After birth, dim to 5–20 lux pathway levels to support rest and newborn bonding while maintaining safe circulation.

Q2. How much clear space should be around the bed?

A2. Plan a 6–8 ft turning radius with at least 4–5 ft clear on the staff side and 3–4 ft on the family side. This accommodates teams, anesthesia carts, and emergency access without displacing family amenities.

Q3. What acoustical targets protect privacy?

A3. Aim for STC 50+ walls, solid-core doors with perimeter seals, ceilings at NRC 0.80+, and mechanical systems tuned to NC 30–35 in recovery mode. These mitigate cross-room audibility and equipment noise.

Q4. Which materials balance warmth and cleanability?

A4. Use heat-welded sheet flooring, solid-surface counters, bleach-tolerant performance textiles, and HPL or protected wood-look finishes. Avoid deep textures and open joints; detail coves and integral backsplashes for easy disinfection.

Q5. How can I support mobility and non-supine labor positions?

A5. Provide grab bars at 32–36 in, a ceiling support rated for assisted movement, space for balls and stools, and uncluttered circulation. Bed controls and side rails should facilitate lateral and upright positions without trapping cords.

Q6. What family amenities matter most in an LDR room?

A6. A full-length sleeper sofa, dimmable reading lights, personal storage, device charging, and a small hospitality niche reduce stress and corridor trips. Privacy control (integral blinds, electrochromic glass) is equally important.

Q7. How do I futureproof monitoring and tech?

A7. Include additional data drops and conduit, ceiling service panels for future devices, and cable management channels. Plan for wireless fetal monitoring and RTLS, and keep wall faces clean for a residential feel.

Q8. What are ideal bathroom features for safety during labor?

A8. A curbless shower with slip-resistant surfaces, strategically placed 36 in grab bars, a handheld shower, and toe-kick night lights. Keep a straight, wide path from bed to bath and a bench or integral seat for stability.

Q9. How can lighting support circadian health for mothers and staff?

A9. Maximize daytime vertical illuminance with tunable 3500–4000 K ambient light and daylight control, then shift to warm 1800–2200 K and low illuminance at night. Provide patient and nurse presets to avoid abrupt changes.

Q10. What room size is practical without compromising care?

A10. A 300–450 sq ft footprint with dedicated neonatal alcove (20–30 sq ft) and an ensuite (60–80 sq ft) typically provides adequate circulation for teams, equipment, and family comfort.

Q11. How should we zone staff and family areas?

A11. Keep the clinical band (bed/headwall) on one side with a staff alcove near the door; locate the family zone opposite with seating, storage, and soft lighting. Maintain clear paths and sightlines to the mother and newborn.

Q12. What commissioning steps are often overlooked?

A12. Scene programming with caregivers present, night-mode light checks, acoustic seal adjustments, and mock emergency drills to confirm equipment reach and door clearances. Fine-tune dimming curves to avoid flicker during video capture or neonatal care.
