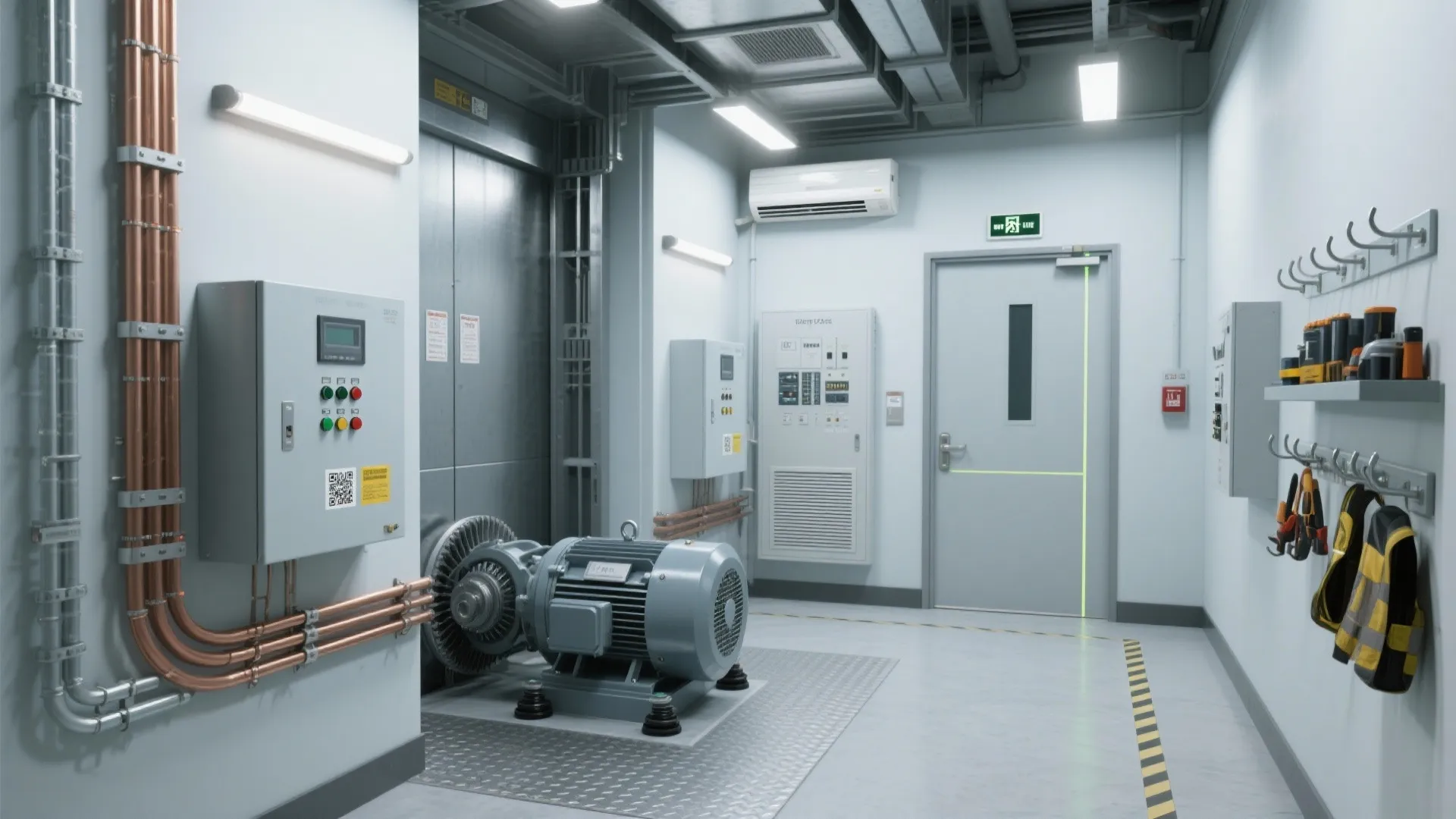

Lift Machine Room Design: Essential Guide for Efficient Spaces: 1 Minute to Understand the Key Elements of a Lift Machine Room

I’ve designed and audited dozens of lift machine rooms for mixed-use towers, hospitals, and transit hubs, and the best-performing spaces always balance code compliance, maintainability, and human factors. Machines don’t maintain themselves—technicians need safe reach, clear egress, stable light, and controlled heat. According to WELL v2 Feature L04, recommended ambient lighting for work areas is in the 300–500 lux range, which aligns with service tasks in machine rooms where detailed inspection occurs. Steelcase research has shown that ergonomic and human-centered environments improve task effectiveness and reduce error rates; in technical zones, this translates to clearer sightlines, organized interfaces, and reduced cognitive load for maintenance teams.

Thermal and acoustic control are just as critical as clearances. The Illuminating Engineering Society (IES) recommends task lighting levels that reduce glare and shadowing in high-risk tasks; combining 300–500 lux ambient with 500–750 lux task lighting on control panels keeps labels legible without veiling reflections. From a human-factors perspective, Herman Miller’s research into ergonomics underscores that reducing strain and awkward postures lowers fatigue—practical in lift machine rooms where technicians routinely reach panels, sheaves, and controllers. For deeper reading on human-centered design in technical environments, see IES lighting standards and the WELL Building Standard for lighting and thermal comfort.

Core Planning Principles

I plan machine rooms around three interlocking priorities: safety, uptime, and future serviceability. Safety comes first—noncombustible construction, self-closing, fire-rated doors, and proper clearances around controllers and drive equipment per manufacturer requirements. Uptime requires resilient power, clean separation of circuits, and reliable cooling. Future serviceability means routes for equipment replacement, logical pathways for conduit, and labeling that stays readable for the life of the installation.

Spatial Requirements and Clearances

Every manufacturer publishes minimum clearances, and these govern the room geometry. As a baseline, I maintain:

1. Front working clearance at controllers and VFDs: 1.0–1.2 m (or per label / local code), with door swing protected.
2. Side and rear clearance: 0.75–1.0 m where access is required for cable termination, heat rejection, or filters.
3. Hoisting and replacement path: clear corridor and headroom for pulling motors, brake assemblies, and ropes.
4. Dedicated equipment zones: unshared floor area for the elevator system—no plumbing lines, tenant storage, or unrelated building services.

When I’m fitting tight footprints, I use a compact interior layout planner to test reach distances, door swings, and service corridors with maintenance teams. A simple room layout tool helps visualize panel fronts, overhead hoist beams, and ladder storage before walls are set.

Power, Electrical Coordination, and Redundancy

Reliable power is a lifeline. I specify dedicated feeders with clear labeling, lockable disconnects within visible distance of the equipment, and selective coordination upstream so a minor fault doesn’t drop the entire bank. Emergency power/standby circuits are segregated cleanly with color-coded raceways and panel schedules. For VFD-based gearless machines, harmonics and heat are predictable; I coordinate line reactors/filters and provide copper busbar grounding to keep noise off signal lines. All receptacles for maintenance are GFCI-protected where required and positioned at usable heights to avoid extension cabling across walkways.

Thermal Management and Ventilation

Heat kills electronics. I design for a narrow band—often 18–27°C—based on equipment data sheets, with derating margins for peak loads. Where split systems are used, I place the indoor unit to avoid blowing directly onto control electronics. Ductless systems get condensate routing away from pathways. I specify continuous and demand-controlled ventilation to maintain temperature and dilute ozone or oil mist. Equipment rooms should be negatively pressurized relative to adjacent corridors to contain odors and particulates, and filters should be serviceable from the front without special tools.

Lighting Strategy and Visual Ergonomics

Lighting must eliminate surprises. I target 300–500 lux uniform ambient with 4000–4500K neutral white to keep color rendering consistent on wiring and labels, adding 500–750 lux task lighting at panels. Linear LED with prismatic lenses keeps glare low; supplemental magnet-mounted task lights allow close-up work. Emergency egress lighting is set to code minimums and tested with the same frequency as the lift’s life-safety systems. Switch locations sit just inside the door swing with occupancy sensors configured to fail-on for safety during system faults.

Acoustics and Vibration

Machine rooms adjacent to occupied spaces demand damping. I use high-compression rubber or spring isolators under drives and mount control panels on vibration-damped frames. Wall and door assemblies reach the needed STC with mineral wool infill and sealed penetrations. Where rope noise or machine hum transmits via structure, I decouple supports and add constrained layer damping to panels. Even a 3–5 dB reduction significantly improves perceived comfort for nearby offices and improves technician focus during diagnostics.

Fire and Life Safety Integration

Doors are self-closing and fire-rated, with no hold-opens unless magnetic and tied to the fire alarm. Penetrations are firestopped and labeled. No combustible storage. Sprinkler decisions follow local code and manufacturer guidance; if installed, I protect electrical equipment with shields and provide proper clearance to heads. Clear, photoluminescent egress markings and unobstructed pathways are non-negotiable. I also ensure smoke detection interfaces correctly with the lift control logic and that shunt-trip requirements are fully coordinated.

Human Factors: Access, Ergonomics, and Workflow

Technicians should never need to climb over cabling to reach a disconnect. I place panels at 900–1200 mm AFF, center labels at eye level, and maintain 800–1000 mm aisle widths. Hooks and shelves keep tools and PPE off the floor. I integrate whiteboards or laminated schematics at the entry so teams review procedures before touching equipment. Color coding matters: consistent wire ferrule colors and panel backgrounds reduce mistakes during downtime-critical repairs.

Material Selection and Durability

Floors get resinous or sealed concrete with anti-slip aggregate; oil-resistant and easy to clean. Walls in light gray N5–N7 value enhance brightness without glare. Doors and frames are steel with durable hardware and vision panels only where allowed. All finishes tolerate 60–70% RH and resist staining from lubricants. Conduit, trays, and anchors are corrosion-resistant, labeled, and spaced for quick add-ons. Fasteners are standardized across the room to speed maintenance.

Labeling, Controls, and Documentation

I adopt an industrial labeling standard: heat-shrink markers on cables, engraved lamacoid tags on equipment, and QR codes that link to O&M manuals and wiring diagrams. A dedicated, lockable document cabinet stores as-builts, test logs, and permits. Control interfaces use consistent nomenclature with clear status LEDs visible at 2 m distance. Routine log sheets posted near the entrance improve accountability and shorten troubleshooting time.

Access, Security, and Egress

Access is controlled—proximity readers with logged entries. Corridors stay free and meet minimum clear widths. Where ladders are required, I prefer fixed caged ladders with gate landings. The room requires two-way communication devices where mandated and a posted contact list for on-call technicians. No shared occupancy: the fewer people in the room, the lower the risk.

Planning for Replacement and Future Upgrades

Large components eventually age out. I plan a “replacement path” from machine room to loading dock—door widths, floor loads, turning radii, and beam hoist points. Junction boxes and spare conduits anticipate future modernization (e.g., new controllers, IoT sensors). Cable trays are sized with 30–40% spare capacity. Every penetrated wall has spare sleeves capped and labeled.

Commissioning and Maintenance Rhythm

Before handover, I run a punchlist that covers torque checks, thermal scans under load, light level measurements, and sound level readings at key points. I mark breaker IDs against a single-line diagram and run simulated power loss tests. Maintenance schedules are posted with quarterly filter checks, semiannual emergency lighting tests, and annual thermal imaging of panels.

Layout Simulation and Coordination

Early coordination prevents field rework. I model equipment, clearances, and door swings, then walk the model with the elevator vendor and facilities team. A simple layout simulation tool helps align drain points, condensate routing, and ceiling access with the final equipment footprint. When a building has multiple elevator groups, I standardize panel locations so technicians build muscle memory across rooms. Try a lightweight interior layout planner to validate aisle widths, access panels, and egress routes quickly: room layout tool.

Verified References for Standards and Research

For lighting and human-centered performance benchmarks, consult the Illuminating Engineering Society’s lighting standards on task illumination and glare control and the WELL Building Standard’s guidance on lighting quality. These sources inform the lux levels, glare control, and ergonomics noted above without overriding manufacturer instructions or local codes.

FAQ

What light levels should I target in a lift machine room?

Aim for 300–500 lux ambient with neutral 4000–4500K color temperature and 500–750 lux task lighting at panels. This aligns with guidance from WELL v2 on work area illumination and common IES practice for technical task zones.

How do I size cooling for drive equipment?

Calculate sensible heat from all components (VFDs, transformers, control gear) using manufacturer BTU/hr values, then add a 10–15% margin for peak ambient and standby heat. Maintain 18–27°C and keep airflow paths clear of control faces.

What are the minimum clearances around controllers?

Follow the manufacturer’s data sheet and local electrical code. As a working rule, maintain at least 1.0–1.2 m in front of panels and 0.75–1.0 m at serviceable sides or rears. Protect door swings and egress paths.

Can I place non-elevator equipment in the machine room?

No. Keep the room dedicated to elevator systems. Avoid plumbing, tenant storage, or unrelated HVAC to protect uptime, reduce contamination, and maintain code compliance.

How do I control noise and vibration near offices?

Use equipment isolators, decouple supports from partitions, and specify higher STC wall/door assemblies with sealed penetrations. Add constrained layer damping to panels if needed and verify impact with on-site sound readings.

What color finishes work best?

Use light neutral walls (N5–N7) to boost brightness without glare, non-slip resinous floors resistant to oils, and high-durability steel doors. Ensure finishes tolerate 60–70% RH and clean easily.

How should labeling be handled?

Engraved lamacoid tags on equipment, heat-shrink wire markers, and large, legible panel IDs. Add QR codes linking to O&M documents, and maintain a lockable cabinet with as-builts and permits.

What’s the best way to plan the layout in a tight room?

Model equipment footprints and clearances early with the elevator vendor and facilities team. Validate aisle widths, door swings, and hoisting paths using an interior layout planner or a quick room layout tool to catch conflicts before construction.

Do I need emergency power in the machine room?

Where required by code or facility resilience goals, provide standby or emergency power for critical controls and ventilation. Segregate circuits and label clearly to avoid cross-connection.

How often should lighting and safety systems be tested?

Test emergency lighting per life-safety code intervals, verify illuminance annually, and log all checks. Combine with semiannual thermal scans of panels and quarterly filter maintenance for HVAC.
