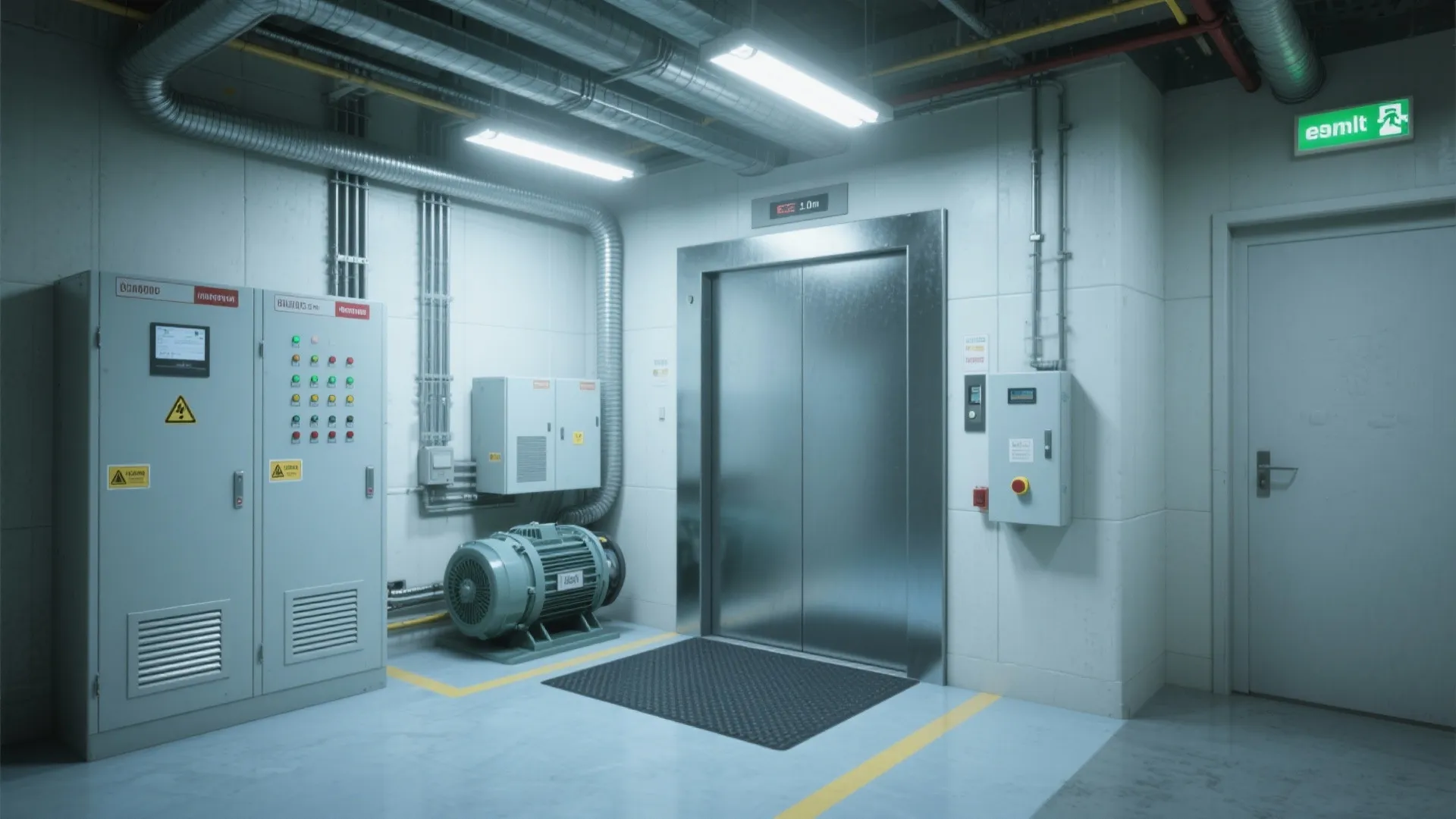

Lift Machine Room Size: Essential Guide for Your Building: Fast-Track Guide to Choosing the Right Lift Machine Room Size

Elevator machine rooms are compact, high-stakes environments where mechanical reliability meets code compliance. When I plan a lift system, I balance clearance, ventilation, acoustic control, and maintainability—because cramped, overheated rooms are the fastest way to shorten equipment life and inflate service calls. A well-sized, well-ventilated machine room reduces downtime and protects operational continuity, especially in mixed-use and high-traffic buildings.

Data consistently supports this focus on environment quality. The WELL Building Standard v2 highlights thermal and noise thresholds that directly impact human performance and maintenance personnel comfort; WELL’s Thermal Comfort concept targets operative temperature between roughly 20–23°C for most occupants and requires dedicated environmental controls in critical spaces like equipment rooms. Steelcase research associates reduced noise and thermal stress with fewer errors and faster task completion, underscoring that lift machine rooms—where technicians perform precision work—benefit from controlled ambient noise and temperature. See WELL v2’s guidance on thermal and acoustic conditions to frame your performance criteria: WELL v2.

Key Size Benchmarks and Clearances

While exact dimensions vary by elevator type, several baselines help prevent design missteps:

1. Headroom: Many traction systems require 2.2–2.5 m headroom, with additional height for sheaves, controllers, and overhead beams. MRL systems may reduce overhead but still require specified clearances per manufacturer data.
2. Working Clearances: Maintain a minimum 0.9 m clear path in front of control panels and at least 0.75 m around major equipment for service access. In retrofit scenarios, I push to 1.0–1.2 m in front of controllers for safer maintenance.
3. Door Width: Target 900–1,000 mm clear door width to bring in motors, drives, and replacement components without destructive work.
4. Floor Loading: Verify structural load capacity for equipment weight plus dynamic loads, typically ≥5.0 kN/m² for plant rooms, adjusted to your local code and the manufacturer’s spec.

These dimensions are starting points; manufacturers’ installation manuals dictate exact clearance envelopes. For spatial planning and layout iterations, I often test alternatives with a room layout tool to confirm safe corridors, reach zones, and equipment placement before finalizing construction documents.

Traction vs. Hydraulic vs. MRL: Impact on Room Size

Elevator type strongly shapes the machine room footprint:

1. Traction (Gearless/Gear): Typically requires a dedicated machine room above the shaft. Expect larger floor area to accommodate motor, drive, controller, and rope equipment, plus sheave access and overhead beams.
2. Hydraulic: Often locates pump unit and controller near the pit or in a small adjacent room at lower levels. Room size is modest but demands oil storage compliance, spill containment, and ventilation.
3. MRL (Machine-Room-Less): Places machinery in the hoistway, reducing or eliminating a full machine room. Space is still needed for controllers and rescue devices; adhere to manufacturer-specific clearances and code access rules.

I find MRL systems workable in tight buildings but they shift design attention to shaft tolerances, access panels, and heat dissipation strategies within the hoistway.

Code Compliance: Access, Egress, and Fire Protection

Regardless of type, plan for compliant access paths, non-combustible finishes, fire-rated enclosures where required, and emergency lighting. Provide self-closing, self-locking doors with restricted access. Maintain clear emergency routes and ensure no unrelated equipment shares the room (avoid ad-hoc storage). Check local fire codes for extinguishers and suppression rules specific to electrical equipment. Lockout-tagout procedures should be supported by adequate working space and panel labeling.

Thermal Management and Ventilation

Elevator drives and motors generate significant heat. Poor ventilation leads to thermal trips and shortened component life. I design for:

1. Target Operative Temperature: 20–27°C, tuned to equipment spec. Dedicated HVAC is preferable to passive ventilation; keep intake and exhaust paths unobstructed.
2. Air Changes: Size mechanical ventilation to manufacturer heat load. Include redundancy for mission-critical sites.
3. Zoning: Separate machine room conditioning from tenant HVAC to avoid load swings.

Consider referencing IES lighting standards for equipment room lighting levels; typical task areas benefit from 300–500 lux with low glare, allowing clear panel legibility and safer maintenance. See IES standards for applicable illuminance guidance.

Acoustic Control and Vibration

Noise affects diagnostic accuracy and technician communication. Use resilient mounts under motors and drives, seal penetrations, and specify acoustic doors if adjacent spaces are noise-sensitive. In mixed-use towers, I add anti-vibration pads and float slabs to prevent structure-borne noise migrating to residential levels.

Electrical Strategy and Redundancy

Provide clear electrical pathways, labeled panels, emergency power provisions (where applicable), and surge protection. Maintain dedicated circuits for lighting and HVAC within the room to avoid total darkness during equipment trips. Keep cable trays high and clear of service zones; coordinate disconnect locations to be within visual reach of service panels.

Ergonomics and Human Factors

Technicians work in confined postures for extended periods. I make sure controls sit within comfortable reach (roughly 500–1,200 mm above finished floor), provide anti-fatigue mats, and avoid sharp transitions or protrusions along common routes. Color coding on conduits and panels speeds troubleshooting—tying color psychology to function (cool hues for cooling systems, high-contrast labels for hazards) reduces errors during time-critical interventions.

Spatial Ratios and Circulation

Beyond raw square meters, the circulation loop matters. Maintain at least one unobstructed service corridor, keep heavy-lift paths straight from the door to major equipment, and align floor anchors so replacement motors can be dollied without tilting. If space is limited, simulate multiple layouts in an interior layout planner to test reach envelopes and emergency egress.

Material Selection and Safety

Choose non-slip, oil-resistant flooring, fire-resistant wall linings, and durable corner guards. Lighting should be flicker-free, CRI ≥80, 300–500 lux, 4000–5000K CCT for clear legibility with minimal glare. Provide spill kits for hydraulic systems and clearly marked storage for PPE.

Common Mistakes I See

1. Undersized doors and corridors that block equipment replacement.
2. Shared storage that compromises clearances and violates codes.
3. Passive ventilation mismatched to drive heat loads.
4. Poor lighting quality that hampers diagnostics.
5. Ignoring structure-borne vibration, causing complaints above.

Planning Steps and Documentation

Coordinate early with the elevator vendor. Lock down exact clearance charts, anchoring details, and environmental requirements. Issue dimensioned plans, elevations, and sections; overlay structural beams and MEP runs to avoid late clashes. Verify emergency procedures with building operations and integrate signage at the door and panels.

FAQ

How big should a lift machine room be?

Size depends on elevator type and manufacturer, but plan for clear working space: roughly 0.9–1.2 m in front of panels, 0.75 m around equipment, and headroom 2.2–2.5 m for traction. Confirm exact envelopes in the vendor’s installation manual.

Do MRL elevators eliminate the machine room entirely?

Often yes, but you still need space for controllers and rescue equipment, plus code-compliant access. Heat management shifts into the hoistway, so ensure adequate ventilation per manufacturer.

What lighting levels are appropriate?

Provide 300–500 lux task lighting with low glare and flicker-free drivers. Neutral-white 4000–5000K supports legibility. Refer to IES guidance for critical equipment spaces.

Is air conditioning necessary?

In most modern installations, yes. Drives and motors generate heat; HVAC keeps temperatures within the equipment’s operating range and reduces nuisance trips.

Can other building services be placed in the machine room?

Avoid shared services. Codes typically require machine rooms to be dedicated, with restricted access and no storage that interferes with clearances.

What door width should I allow?

900–1,000 mm clear is a practical target to move equipment safely. Wider is advisable in high-capacity traction systems.

How do I control noise and vibration?

Use resilient mounts, sealed penetrations, and consider floating slabs in sensitive buildings. Coordinate with structural engineers to minimize structure-borne transmission.

Are there standards for technician comfort?

WELL v2 provides thermal and acoustic benchmarks that support performance and safety in critical work areas. Maintain comfortable operative temperatures and control noise to aid accurate maintenance.

What about emergency power?

If the building requires ride-through or evacuation capability, coordinate with electrical engineers for generator or UPS integration and ensure dedicated circuits for room lighting and HVAC.

How do I plan for future upgrades?

Reserve extra clearance in front of panels, keep cable tray paths accessible, and specify doors and corridors that accommodate the largest anticipated replacement component.
