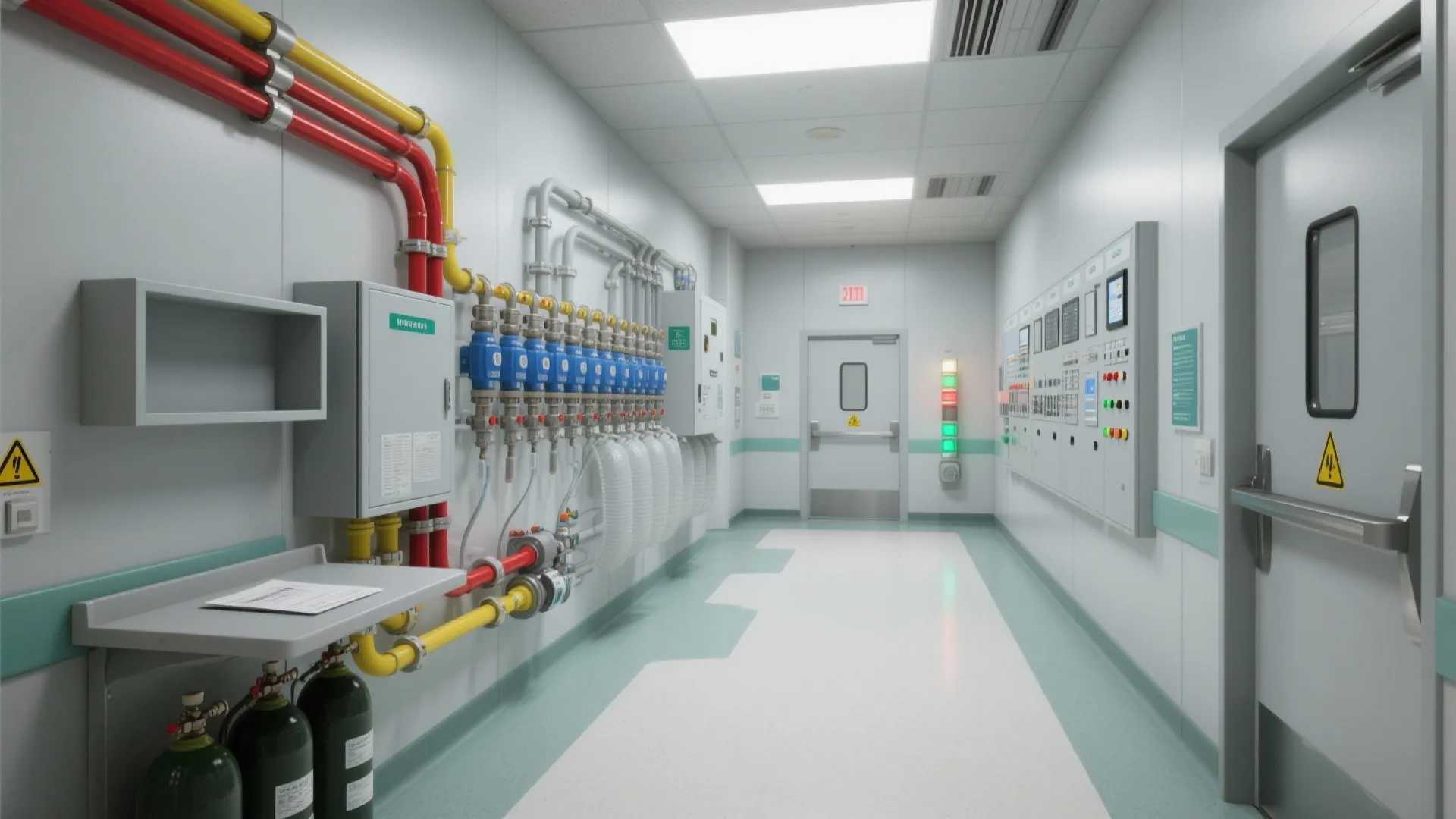

Manifold Room in Hospital: A Designer’s Perspective: Fast-Track Guide to Hospital Manifold Room Design for Maximum Efficiency

Manifold rooms—often housing medical gas manifolds, vacuum systems, and monitoring panels—sit at the intersection of engineering reliability and clinical safety. My design lens prioritizes controllability, clear circulation, and serviceability. A manifold room is not a public space; it’s a mission-critical back-of-house environment that must be legible under stress and safe under failure.

Safety and visibility start with lighting and access. I aim for uniform horizontal illuminance around 300–500 lux with glare control and ≥80 CRI for accurate gauge reading, aligning with recommendations for technical task lighting cited by IES practice guidance. In hospitals consistently ranking acoustic comfort as a contributor to performance, Steelcase research indicates 61% of workers report noise as a top distraction in critical environments—quiet, controlled acoustics improve technical tasks and error detection. Clear service aisles (typically 900–1200 mm minimum) and dedicated egress reduce tripping risks and speed maintenance under duress.

Environmental wellness informs design choices beyond the purely mechanical. WELL v2 promotes indoor air quality and clear labeling/wayfinding to minimize cognitive load for staff; its Air and Mind concepts emphasize filtration and legibility that directly translate to manifold rooms. Color plays a role: Verywell Mind’s overview on color psychology notes that high-chroma red can increase arousal, while balanced blues/greens promote calm focus—use neutrals for background with highly saturated color only for emergency markers. For additional guidance, WELL Certified offers frameworks on environmental clarity and safety (WELL v2).

Functional Priorities

When I plan a manifold room, I start with four pillars: life safety, operational clarity, adaptability, and maintainability. Redundant gas manifold banks and failover valves must be visibly distinct, with lockout/tagout zones and tamper-evident seals. I map adjacency to critical departments (ORs, ICUs) to reduce response time, then verify that service corridors accommodate cylinder swaps without blocking panels. A simple, consistent labeling schema (material, gas type, pressure, date, inspection status) prevents hesitation. If your facility needs to prototype aisle widths and panel clearances, a room layout tool can help test access loops and sightlines before construction.

Lighting Strategy and Glare Control

The space should read like a cockpit. Target 300–500 lux ambient with localized task lighting at gauges and valve stations; shield luminaires to minimize specular reflection from metallic surfaces. I specify 4000–4500K neutral white to maintain contrast for labeling while avoiding the cold, harsh feel of higher CCTs. Emergency lighting with an independent feed and battery backups must keep all critical indicators legible at reduced output; test placement so shadows don’t split critical labels.

Ergonomics and Human Factors

Design for reach and attention. Handle heights between 900–1200 mm reduce strain; primary gauges at eye level (approximately 1400–1600 mm for standing users) minimize neck flexion. Label typography should be high-contrast, sans-serif, with consistent hierarchy: gas type first, pressure second, service date third. I introduce zoning via color blocking: cool gray background walls; emergency bars and valve handles in high-visibility hues; inspection stickers in a standardized color to avoid visual noise.

Acoustic Comfort

Manifold rooms can carry tonal hum from compressors and alarms. Continuous exposure increases cognitive load and error likelihood. I use absorptive panels in high reflection zones, resilient flooring, and gasketed doors. Maintain alarms within recommended sound pressure levels: audible but not startling. Where facilities teams require alarms to cut through ambient noise, layer visual alarms—stack lights—so staff can confirm status without relying solely on sound.

Workflow and Spatial Intention

Plan circulation like a loop: clear entry, immediate line-of-sight to master panels, then continuous access along manifolds with turning radii for carts. Allocate a staging nook for replacement cylinders separated from the main aisle to avoid acute clutter. Keep inspection and documentation surfaces nearby—ideally a narrow shelf or fold-down tray adjacent to the main panel—to reduce walking micro-delays during routine checks.

Material Selection and Sustainability

Fire-resistive assemblies, non-shedding finishes, and chemical-resistant coatings stand up to cleaning protocols. I prefer low-VOC paints, sealed concrete or epoxy flooring with high slip resistance, and metal guards where carts can strike edges. Consider circularity: modular panel mounts facilitate component upgrades without wall demolition. Avoid overly glossy finishes that reflect light and mask dirt; satin sheens reveal wear without glare.

Safety Systems and Redundancy

Redundancy should be obvious, not hidden. Separate power feeds for alarms, UPS backups for monitoring panels, and clear manual overrides with physical separation. Color-coded piping and directional arrows curb missteps. Mount emergency shut-offs with break-glass covers where needed, and ensure a direct path from entry to master valves. Routine drills need space: plan standing room for two technicians plus rolling equipment without blocking exits.

Visual Rhythm and Legibility

Even technical rooms benefit from visual order. Align panels on a consistent datum line; keep conduit runs parallel; cluster labels by function. The rhythm of repeating manifolds creates a readable pattern. To aid memory and training, mirror symmetry is acceptable only if it doesn’t confuse left/right emergency sequences; asymmetry with clear hierarchy often reduces errors.

Commissioning and Maintenance

Before handover, I push for a lighting focus, acoustic check, and stress test of circulation with carts. Validate sightlines to the most critical indicators under emergency lighting. Document color and label standards so replacements remain consistent. Maintenance scheduling boards or digital displays near the entry keep tasks visible and time-bound.

Trends 2024–2025

Hospitals are integrating sensor-rich monitoring with predictive maintenance, using stack lights, dashboard screens, and QR-based inspection logs. Neutral palettes with bold emergency accents remain preferred. Modular manifolds accommodate decentralization, and facilities teams lean into leak detection with low-profile visual cues to reduce noise reliance.

Tips 1: Quick Planning Checklist

- Provide 900–1200 mm clear aisles and unobstructed egress.

- 300–500 lux ambient lighting, 4000–4500K, glare-controlled.

- Eye-level gauges, ergonomic handles at 900–1200 mm.

- Acoustic treatment; alarm layering (visual + audible).

- High-contrast, standardized labels; color-coded piping.

- Staging nook for cylinders; fold-down documentation surfaces.

- Redundant feeds, UPS for monitoring; clear manual overrides.

- Commission lighting, acoustics, circulation before handover.

FAQ

Q1: What illuminance should a hospital manifold room target?

A: Aim for 300–500 lux uniform ambient lighting with task lights on gauges and valves. This range supports technical tasks referenced in IES lighting best practices while controlling glare.

Q2: Which color temperature improves legibility?

A: Neutral white around 4000–4500K balances contrast and comfort; it enhances label readability without the harshness common to very high CCTs.

Q3: How wide should service aisles be?

A: Provide 900–1200 mm clear width to allow cylinder handling, panel access, and two-person maintenance without blocking egress.

Q4: What acoustic strategies reduce error rates?

A: Use absorptive panels, resilient flooring, and gasketed doors to tame hum and resonance. Steelcase research highlights noise as a top distraction, making layered visual alarms a smart complement.

Q5: How do I organize labels to cut cognitive load?

A: Standardize typography and sequence: gas type, pressure, service date, inspection status. Keep labels high contrast and avoid mixed color systems that compete with emergency coding.

Q6: Where should emergency shut-offs be placed?

A: Near the main entry on a direct path, with clear sightlines and break-glass covers if required. Maintain physical separation from routine controls to prevent accidental activation.

Q7: What materials hold up to hospital cleaning?

A: Low-VOC paint, sealed concrete or epoxy flooring with high slip resistance, and chemical-resistant coatings. Avoid glossy finishes that increase glare and mask residue.

Q8: How do WELL v2 principles apply here?

A: WELL v2’s Air and Mind concepts support clean air, filtration, and legible wayfinding—valuable for manifold rooms where clarity and maintenance tasks dominate (WELL v2).

Q9: Is color psychology relevant in technical rooms?

A: Yes. Use calm neutrals for background, reserving saturated hues for critical markers. Verywell Mind notes high-chroma reds elevate arousal; use them selectively for emergencies.

Q10: Can digital tools help test layouts?

A: A layout simulation tool is helpful for prototyping aisle widths, sightlines, and equipment turning radii before committing to construction.

Q11: What commissioning steps are essential?

A: Verify lighting levels and glare, test emergency lighting visibility, perform acoustic checks, and run circulation drills with carts. Document label/color standards for consistency.

Q12: How should alarms be calibrated?

A: Keep alarms audible without being startling; layer with stack lights or visual indicators. Position them where they’re visible from the entry and primary workflow paths.
