MCC Room Full Form and Its Importance in Building Design: 1 Minute to Understand All About MCC Rooms in Modern Spaces

The MCC room—short for Motor Control Center room—is the nerve center for power distribution and motor management in many commercial and industrial facilities. It houses switchgear, VFDs, soft starters, protection relays, metering, and communication panels that keep HVAC systems, pumps, conveyance, process lines, and life-safety equipment running. In Gensler’s workplace research, building system reliability is repeatedly tied to occupant experience and productivity, with resilience planning rising as a top priority for owners. Meanwhile, Steelcase reports that environments that reduce disruptions and foster predictability can measurably support performance, underscoring why well-planned infrastructure spaces like MCC rooms matter.

Sizing and detailing an MCC room is not just an engineering exercise—it’s a design decision that carries downstream implications for safety, uptime, and maintainability. WELL v2 highlights continuous noise control and environmental quality as foundational to occupant health, urging designers to manage mechanical noise and vibration transfer into adjacent areas. From an ergonomics standpoint, clear working envelopes reduce human error and improve maintenance outcomes; Herman Miller’s research on human factors consistently links reach, posture, and access to fewer incidents and greater efficiency. Planning the MCC with adequate clearances, logical routing, and acoustic separation directly supports these performance goals while preserving the architectural program around it.

What Is an MCC Room?

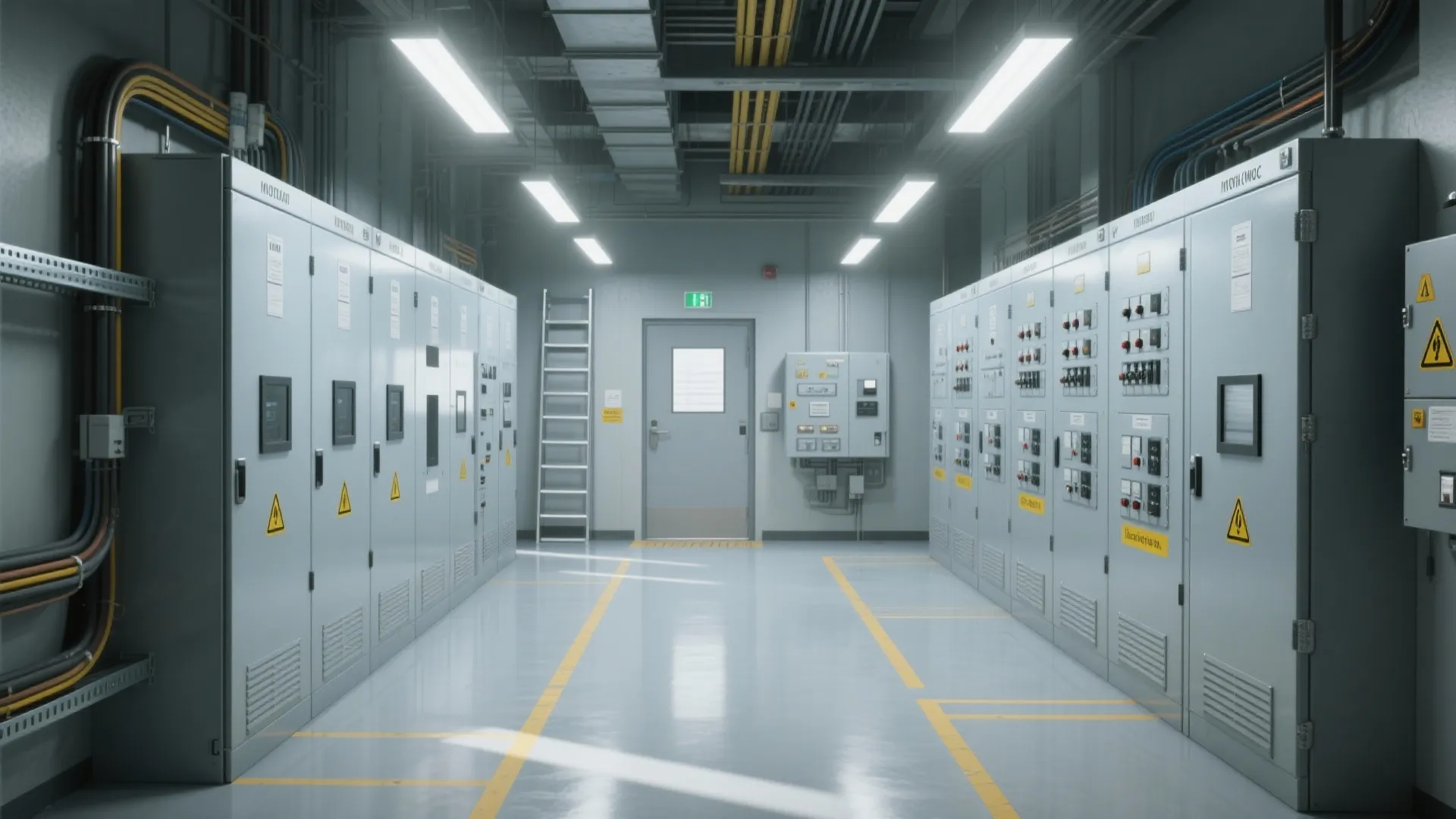

An MCC (Motor Control Center) room is a dedicated, controlled environment for centralized control of motors and high-load equipment. It consolidates motor feeders, protection devices, control wiring, power monitoring, and network interfaces (BACnet/Modbus/IEC 61850 where applicable). Typical systems supported include chillers, cooling towers, air handling units, fire pumps (where code permits separation), booster sets, elevators/escalators interfaces, industrial conveyors, and packaging lines. The room provides safety separation, fault containment, and organized maintenance access—critical when uptime targets are non-negotiable.

Core Design Drivers

I plan MCC rooms around six drivers: safety, maintainability, redundancy, spatial efficiency, acoustic control, and future adaptability.

1. Safety and code compliance: Provide working clearances, egress paths, and arc-flash boundaries in line with electrical codes and manufacturer data.
2. Maintainability: Front-access panels, labeled cable trays, and swing space for breaker racking reduce downtime and technician strain.
3. Redundancy and resilience: Dual feeds, segmented bus, or N+1 VFDs for mission-critical motors can isolate faults and keep core services running. Gensler’s resilience insights emphasize layered redundancy for business continuity (Gensler Research).
4. Spatial efficiency: Logical zoning by voltage class and function avoids cross-interference and simplifies cable routing.
5. Acoustic and vibration control: Decouple the MCC from noise-sensitive areas; add resilient mounts and sealed penetrations; specify doors with appropriate STC where adjacency demands.
6. Future growth: Reserve bus capacity and wall space for 20–30% expansion when lifecycle plans expect load growth.

Spatial Planning and Layout

The layout should enable unobstructed front and (if required) rear access, with clear aisles and a clean cable routing hierarchy. For multi-bay MCC lineups, align service corridors to allow panel withdrawal and safe maneuvering of replacement gear. Early in schematic design, I map the feeder paths to risers and plant rooms to reduce bends and voltage drop. If you’re evaluating adjacency, a simple interior layout planner can help test corridor widths and turning radii before committing to walls—use a room layout tool to visualize access and maintenance envelopes: room layout tool.

Environmental Conditions: Thermal, Lighting, and Acoustics

Heat rejection from VFDs and switchgear can be substantial. Separate conditioned air (not return-air) is preferred to avoid particulate and humidity spikes. Lighting should meet task requirements and minimize glare: I target uniform, high-CRI illumination with controlled luminance on vertical planes so labels and terminations are legible. Reference illuminance levels are informed by IES standards; even distribution and reduced veiling reflections cut errors during maintenance (IES standards). For acoustics, isolate from work areas with buffer zones (storage, corridor) and consider acoustic panels where transformer hum or VFD noise could propagate through structure.

Human Factors and Safety Workflow

Good MCC rooms respect the human body and typical service sequences. Standing clearances at each panel, knee/shoulder height mounting for frequently used disconnects, and consistent labeling reduce cognitive load. I place emergency lighting and glow-in-the-dark labeling for safe egress during outages. Ergonomic reach ranges keep terminals within comfortable access to lower the risk of overextension, aligning with human factors research that ties posture and reach to reduced incidents (Herman Miller Research). Logical left-to-right or process-based panel ordering supports intuitive troubleshooting.

Power Architecture and Redundancy

For critical buildings—hospitals, data-centric offices, pharma plants—consider segregated A/B bus, automatic transfer to emergency power, and selective coordination so faults don’t cascade. Where code and program allow, isolate life-safety loads on dedicated gear. Provide metering at main and feeder levels for energy analytics and predictive maintenance. Short-circuit, arc-flash, and coordination studies early in design help right-size gear, determine PPE categories, and set required clearances. Cable routing should minimize parallel run coupling that could introduce harmonics or EMI near controls.

Materiality, Durability, and Sustainability

Materials should be non-shedding, non-porous, and easy to clean. Epoxy or conductive flooring (where specified) can support static control and durability. Cabinets with corrosion-resistant finishes are critical in coastal or humid climates. From a sustainability lens, choose high-efficiency VFDs, specify low-standby-loss meters, and plan for heat recovery from electrical rooms where feasible. Lifecycle gains come from modular gear that can be expanded without full replacement, lowering embodied carbon over time.

Color Psychology and Visual Hierarchy

Color is not decorative here—it’s a visual language. High-contrast labels, safety color codification on floors (e.g., arc-flash approach lines), and muted wall colors reduce glare and visual fatigue. Consistent contrast improves wayfinding and lowers error rates during stressful events, a principle widely supported in human factors and color psychology literature.

Coordination with Architecture and MEP

Place the MCC room near major vertical distribution (shafts) to shorten feeders and reduce losses. Avoid adjacency to high-traffic quiet zones like focus rooms; instead, pair with service corridors, loading, or mechanical yards. Coordinate slab penetrations early to avoid late core drilling near live equipment. Verify door dimensions for equipment delivery and replacement paths; plan a removable panel or knock-out wall where gear is oversized. Maintain flood resilience in ground floors with plinth-mounted gear or raised slabs in flood-prone regions.

Documentation, Labeling, and Digital Twins

Comprehensive documentation is as important as the gear itself: one-line diagrams at the door, circuit directories on each panel, QR codes that link to O&M, and panel schedules that reflect field changes. For complex facilities, a digital model that maps circuits to loads speeds troubleshooting. During commissioning, record thermal scans and torque checks and store them with the asset tags for predictive maintenance later.

Commissioning and Lifecycle Strategy

Commissioning should include insulation resistance tests, relay calibration, VFD parameter verification, network checks, and alarm mapping to the BMS. Plan routine access with lockout/tagout (LOTO) stations and job boxes. Train facilities teams not only on operation but on failure scenarios. A spare parts and critical spares strategy (fans for VFDs, contactors, communication modules) prevents extended downtime.

Common Pitfalls I Avoid

1. Underestimating expansion: No wall or bus capacity left for future motors.
2. Insufficient clearance: Violates access requirements and raises arc-flash risk.
3. Poor thermal planning: Overheats gear and shortens component life.
4. Noise bleed: Locating the room against focus spaces without isolation.
5. Cable management chaos: No tray hierarchy; difficult, error-prone maintenance.
6. Unplanned equipment paths: Gear can’t be replaced without major demolition.

When to Model the Layout

I start test-fitting the MCC room as soon as motor schedules stabilize. Use an interior layout planner or layout simulation tool to validate clearances, panel swing, and trolley paths for breakers—this prevents late-stage clashes and change orders. A room design visualization tool also helps communicate maintenance envelopes to stakeholders: room design visualization tool.

FAQ

What does MCC stand for?

MCC stands for Motor Control Center. It is a centralized assembly of motor starters, VFDs, protective devices, and control components used to operate and protect electric motors and related loads.

How large should an MCC room be?

Size depends on connected load and gear type, but allow full working clearances per code plus service aisles for equipment removal. I typically reserve at least two clear aisles and 20–30% wall or bus capacity for expansion.

What are the recommended lighting levels in an MCC room?

Provide uniform task lighting aligned with IES guidance for technical rooms, ensuring high legibility on labels and terminations. Avoid glare and ensure good vertical illuminance for reading panel interiors.

How do I reduce noise from an MCC room?

Use buffer spaces, resilient floor/wall mounts, sealed penetrations, and specify doors with appropriate acoustic ratings. Separate from noise-sensitive adjacencies like focus rooms or conference spaces.

Should MCC rooms be cooled?

Yes. VFDs and switchgear dissipate heat continuously. Provide dedicated conditioned air, monitor temperature, and keep humidity controlled to protect electronics and maintain component lifespan.

What redundancy should I consider?

For critical facilities, consider dual feeds, segmented bus, redundant VFDs for essential motors, and selective coordination so a fault on one feeder doesn’t trip upstream devices.

How does color and labeling improve safety?

High-contrast, consistent labeling and floor markings reduce cognitive load, aid wayfinding, and speed fault isolation during emergencies, aligning with human factors best practices.

Can I place an MCC room near occupied areas?

Yes, with proper acoustic isolation and structural separation. Still, it’s better to pair with service zones to limit noise and traffic conflicts.

What documentation must be posted inside the MCC room?

Current one-line diagram, panel schedules, LOTO procedures, emergency contacts, and equipment labels matching the asset register. QR links to O&M manuals are highly useful.

When should the MCC room be coordinated in design?

During early schematic design, once preliminary motor lists are known. Early coordination with architecture and MEP avoids late structural changes and ensures clear equipment paths.
