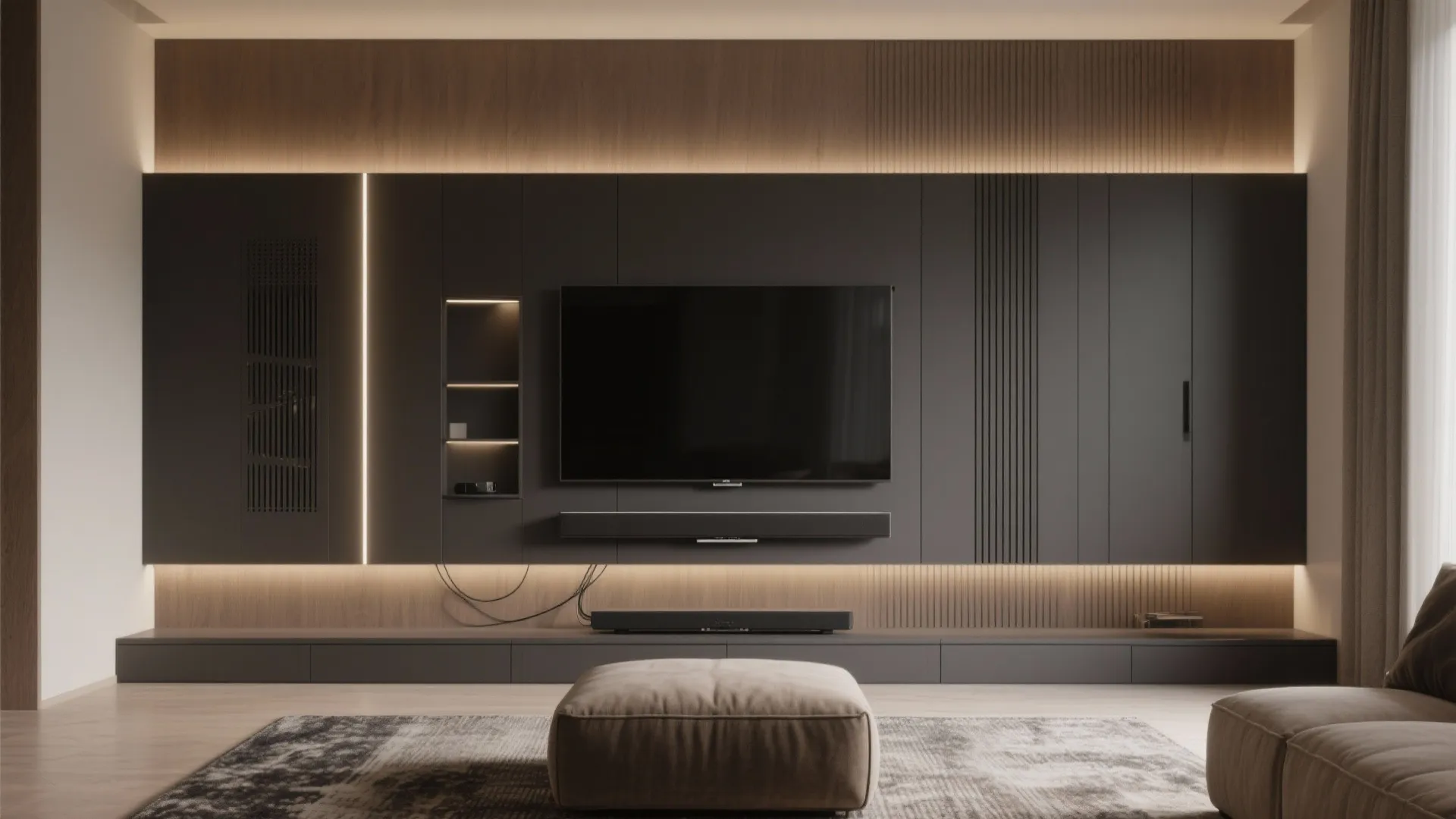

Media Wall DIY: Create a Stunning Focal Point on a Budget: 1 Minute to a Custom Media Wall—No Contractor Needed

I’ve built and specified media walls in apartments, family rooms, and compact studios where every inch and every dollar mattered. A great media wall doesn’t need custom millwork from day one; it needs well-measured structure, concealed cable paths, disciplined lighting, and finishes that play well under real-life use.

Function drives the form. Steelcase’s global research indicates workers rank glare and visual comfort among top environmental needs, directly affecting focus and fatigue (Steelcase Research). WELL v2 recommends limiting direct glare and aiming for balanced vertical illuminance around 150–300 lux in living zones to ease eye strain (WELL v2 Light). Build those numbers into your plan and the wall will look good on screen and off.

Human factors matter. Herman Miller’s seating and posture studies show viewing height aligned with eye level at typical sitting posture reduces neck flexion and discomfort (Herman Miller Research). Anchor the TV center roughly at your seated eye height—usually 42–48 inches from finished floor for sofas—to keep strain down.

Plan the Structure Before the Style

Start with a measured elevation. Note TV size and VESA mount pattern, speaker or soundbar width, devices (streaming box, console, router), and ventilation needs. Keep at least 2–3 inches of free air space around electronics; trapped heat shortens component life. If you’re exploring different shelf and cabinet configurations, use a room layout tool to simulate dimensions, cable runs, and sightlines before cutting wood.

Budget-Friendly Framework Options

• Track-mounted steel studs or 2x3 timber: Create a shallow false wall (3–4 inches) to hide cables and mount the TV securely. Add horizontal blocking at the exact mount height.

• Flat panel over rail: If false wall depth is tight, install a French cleat or plywood backer spanning studs for the mount and finish with lightweight MDF slats or laminate panels.

• Modular cubes: Off-the-shelf cabinets (IKEA, big-box) combined with a plywood back panel deliver hidden storage without custom costs.

Cable Management and Power Safety

Run power and low-voltage separately to reduce interference. Use an in-wall power relocation kit rated to UL standards. Carve a service channel: a vertical 1.5–2 inch chase behind the TV for HDMI, fiber, and speaker wire. Label both ends. Add a brush plate at the device shelf for clean exits. Keep bend radii generous, especially for fiber or premium HDMI.

Acoustic Comfort Without Expensive Treatments

Media walls get lively. If the room is hard-surfaced, add soft layers close to the wall: a rug with dense pile, fabric ottomans, and felt-backed shelves. Place a soundbar at ear height and align with the TV edge to preserve stereo imaging. If you can integrate shallow acoustic panels (1–2 inches), target first reflection points beside and above the screen; even two panels reduce flutter and improve dialog clarity.

Lighting: Glare Control and Mood

Mount lighting so the screen never catches direct beams. Aim for layered light: dimmable backlighting, soft vertical wash, and a task light for controllers or remotes. For comfortable viewing, warm–neutral color temperatures (2700–3500K) keep skin tones natural. Follow IES guidance by limiting luminance ratios; avoid a bright downlight on the screen, and balance wall illuminance so the screen isn’t the only bright object.

Ergonomics and Viewing Geometry

• Eye level: Center of screen near 42–48 inches typical when seated on standard sofas.

• Distance: For 4K, a rough guide is 1.2–1.6× the screen diagonal; a 65-inch feels right around 6.5–8.5 feet.

• Tilt: Minimal tilt unless mounting higher than eye level; reduce neck extension by tilting down 5–10 degrees if necessary.

Material Selection That Looks Expensive

• Plywood core with wood veneer: Stable, repairable, and takes edge-banding cleanly.

• Painted MDF: Great for slatted designs; use a hard-wearing enamel for durability.

• Laminate panels: Fingerprint-resistant matte laminates deliver a sleek look without the maintenance of high gloss.

• Real stone accents: Use thin stone veneer or porcelain slabs for hearth-like groundedness without full slab budgets.

Color Psychology and Visual Balance

For binge nights, darker neutrals around the screen reduce contrast and perceived glare. Verywell Mind’s color psychology overview notes blues and greens often promote calm, while warm hues can feel cozy but raise arousal. Frame the TV with a slightly darker field color and keep cabinetry a step lighter to avoid a monolithic block. A vertical rhythm—slats, reveals, or pilasters—adds visual order and keeps large surfaces from feeling heavy.

Storage and Ventilation Strategy

Design shelves with adjustable heights and include vent slots at cabinet tops and bottoms for passive airflow. If you close doors, add mesh or perforated panels to keep remotes responsive and let heat escape. Place the most frequently used devices in open niches to avoid repetitive door handling.

Smart Integration Without the Premium Price Tag

Plan a small conduit (3/4 inch) for future cables. Use smart plugs or a budget IR/RF hub hidden behind a perforated panel. Mount a multi-outlet surge-protected strip inside the cabinet and dedicate one clean outlet for the TV. Keep firmware updates on a visible sticky note inside the door; maintenance is part of design.

Step-by-Step Build Outline

1) Measure and mark the TV centerline at seated eye height.

2) Locate studs; install horizontal blocking at mount height.

3) Frame a shallow false wall or add a plywood backer if depth is tight.

4) Route power via a rated in-wall kit; add low-voltage brush plates.

5) Run HDMI, speaker wire, and network through the chase; test all connections.

6) Install the mount; hang the TV temporarily for alignment checks.

7) Fit cabinets or shelves; confirm ventilation gaps.

8) Add lighting: LED backlight strips and a soft wall wash; test dimming to reduce glare.

9) Finish surfaces—paint, veneer, or laminate; caulk and touch up trims.

10) Calibrate audio and video; finalize cable management.

Budget Tactics I Rely On

• Keep structure simple and finishes elevated; clean paint and smart lighting outshine complex joinery.

• Buy cables and hardware during sales; quality mounts and surge protection pay off.

• Mix materials: veneer for focal areas, painted MDF for secondary spans.

• Phase upgrades: build the core now; add doors, panels, or stone accents later.

FAQ

What height should I mount the TV on a media wall?

Center the screen near your seated eye level, typically 42–48 inches from the floor for most sofas. If mounting higher, introduce a slight downward tilt to reduce neck strain.

How do I avoid screen glare from lights and windows?

Use indirect lighting, dimmable backlighting, and light-blocking window treatments. Keep luminance balanced across the wall and avoid placing spotlights aimed at the screen, aligning with WELL and IES glare control principles.

Can I hide cables without building a deep false wall?

Yes—install a plywood backer over studs, add a brush plate, and route cables through a shallow chase. A French cleat system can provide service access while keeping the profile slim.

What’s a cost-effective finish that still feels premium?

Matte laminate or painted MDF with a high-grade enamel looks tailored and resists fingerprints. Combine with a small area of real wood veneer for warmth.

How much ventilation do devices need?

Maintain at least 2–3 inches of clearance and provide vent paths high and low within cabinets for passive airflow. Perforated doors preserve remote signal and reduce heat buildup.

What’s the ideal viewing distance for a 65-inch TV?

Approximately 6.5–8.5 feet for 4K content, keeping detail crisp without emphasizing pixels. Adjust based on seating depth and personal preference.

How can I improve sound without expensive acoustics?

Add soft furnishings near the wall, place the soundbar at ear height, and treat first reflection points with thin acoustic panels or fabric art. Even small interventions reduce echo and sharpen dialog.

Is RGB backlighting a good idea?

Use it sparingly. Neutral warm backlighting (2700–3000K) typically reduces eye strain better. If using color, keep saturation low to avoid skewing skin tones and image perception.

Should I put the media wall on the longest wall?

Not always. Prioritize the wall with minimal window glare, clean cable access, and direct sightlines from seating. A layout simulation tool helps test options before drilling.

Do I need a professional for electrical work?

Use licensed electricians for new circuits or in-wall power kits to meet code and safety standards. Low-voltage runs can be DIY if you follow best practices and maintain separation from power lines.
