mud room floor plan: Designing the Perfect Mud Room Floor Plan for Your Home

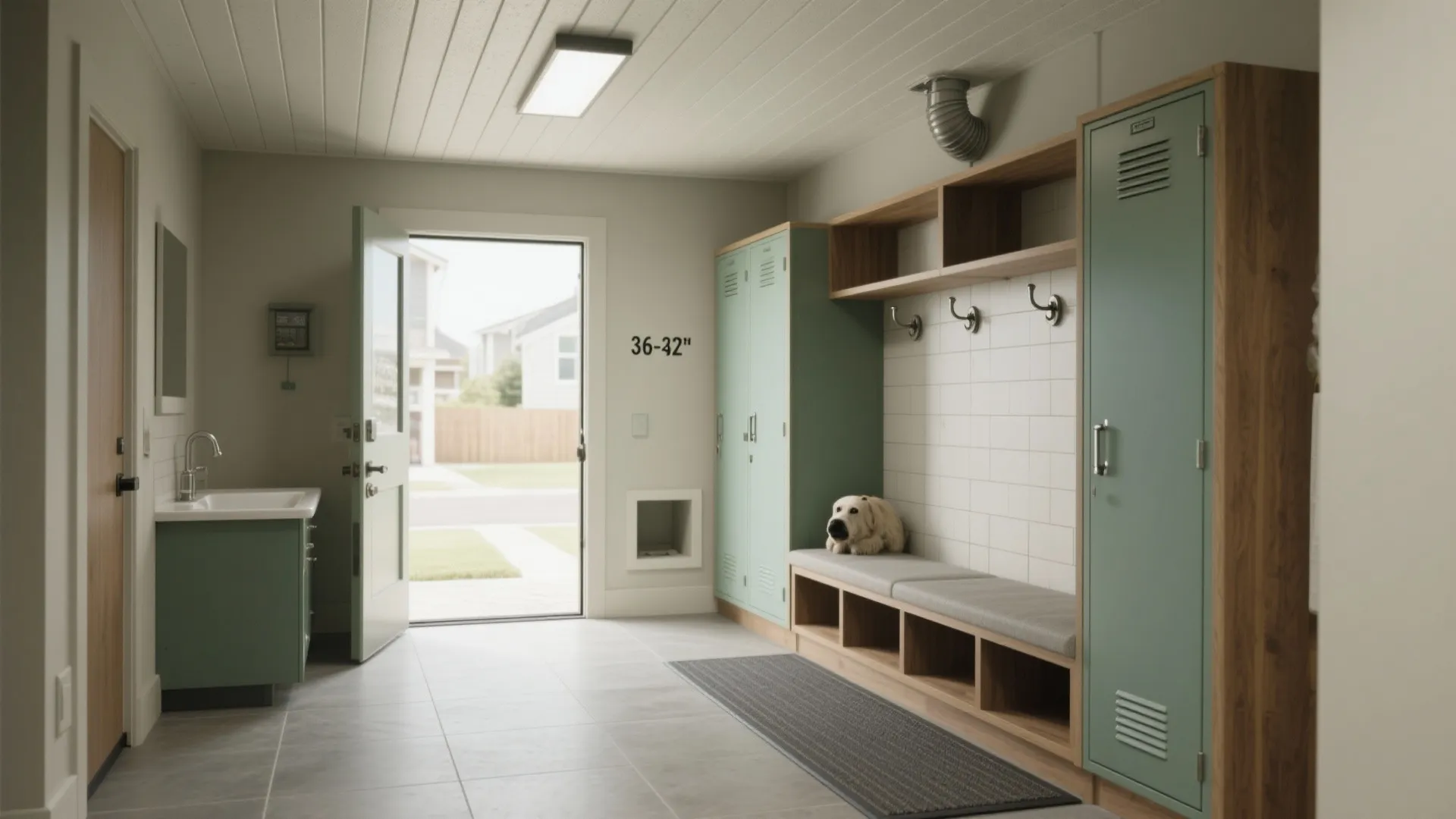

I design mud rooms to behave like pressure valves: they catch moisture, grit, bags, and noise before any of it reaches living spaces. A well-planned mud room cuts daily friction and preserves your home’s finishes. In recent post-2020 renovations, clients ask for more storage, better ventilation, and pet zones—and the floor plan carries most of that load.

Space efficiency matters more than square footage. According to NKBA planning guidance, primary circulation in utility spaces should maintain 36 in (915 mm) clear width to move safely with bags or laundry. For lighting, I follow IES recommendations for task areas at 300–500 lux, with 2700–3500K color temperature to keep the space calm yet functional. Beyond convenience, air quality is a health issue: projects that pursue WELL v2 guidance target active exhaust in entry zones and easy-to-clean finishes, helping contain pollutants and moisture. For workplace-behavior parallels, Steelcase research on flow interruptions notes that environmental friction compounds daily stress; the same principle applies at home—every snag removed at the mud room reduces stress downstream.

Plan the Sequence: Entry → Drop → Clean → Store → Exit

Successful mud rooms follow a repeatable sequence. I map circulation from the dominant entry (garage or back door) directly to a drop zone, then hand-off to cleaning (shoe scrape/mat + bench), then storage (hooks, lockers, cabinets), and finally a clean exit path into the house. If you’re testing alternative door swings or bench lengths, a quick layout pass with a room layout tool can reveal pinch points and door conflicts before you commit.

Core Dimensions That Keep Things Moving

- Circulation: 36 in clear path minimum; 42 in feels generous if two people pass with gear.

- Bench height/depth: 17–19 in high; 15–18 in deep. I like 48–60 in bench runs per 2–3 users.

- Hook zone: 66–70 in to top hook; add a lower hook at ~42 in for kids.

- Tall storage: 15–18 in deep lockers; 24 in deep if you’re hanging winter coats facing front.

- Shoe storage: 12–14 in deep shelves; 7–8 in vertical spacing per pair of adult shoes.

- Pet niche: 24–30 in deep, 18–24 in wide; add a hose bib and floor drain if bathing is included.

- Laundry pass-through: 30 in clear in front of appliances; 1 in side clearance per manufacturer.

Three Proven Mud Room Layouts

1) Single-Wall Line (Minimum Width)

Best for narrow entries. Place bench with cubbies below and hooks above on the long wall, with tall storage at one end. Keep door swing toward the wall without storage. Add a stop-mat zone at the threshold and a second mat after the bench to catch the last of the grit.

2) Galley with Opposed Functions

Two parallel runs: one side for drop/bench/hooks, the other for closed storage and a utility sink. Maintain 36–42 in aisle. This format separates wet from clean-side circulation and supports families moving at different speeds.

3) L-Shape Corner Hub

Use corner space for tall brooms/vacuum or a pet niche. Place bench on the longer leg, tall storage on the short leg. The L naturally buffers sightlines to the rest of the home while keeping a direct path through.

If you’re juggling appliance locations or shifting walls, test the traffic pattern with an interior layout planner to simulate door clearance, bench length, and stroller turns in minutes.

Flooring and Finishes that Survive Real Life

- Flooring: Porcelain tile with R10–R11 slip resistance, dense quarry tile, or sealed concrete. Matte finishes help hide scuffs; large-format tile minimizes grout lines. Use a recessed walk-off mat at the threshold to trap grit.

- Grout: Epoxy or high-performance urethane grout for stain resistance.

- Base and wall: 6–8 in coved base if you expect splashes; semi-gloss or scrubbable matte on walls.

- Millwork: HPL or thermofoil fronts for durability; marine-grade plywood in high-moisture zones.

- Hardware: Full-extension, soft-close; double-hooks with 35–50 lb rating for backpacks.

Light, Air, and Acoustics

- Lighting: Target 300–500 lux at benches and sinks; add motion sensors for hands-full entries. Keep color temperature at 3000–3500K for accurate color rendering of outerwear and mud levels.

- Glare control: Use diffused lenses and perimeter wall-wash to read surfaces without hotspots.

- Ventilation: Provide dedicated exhaust or tie to nearby bath exhaust with timed boost. A small transfer grille toward exterior doors prevents pressure traps.

- Acoustics: Soft surfaces are scarce in mud rooms; add a washable runner and acoustic ceiling tile or wood slats with acoustic backing to keep clatter down when kids drop gear.

Ergonomics and Behavior Cues

- Sit-then-store flow: Put the bench before the hooks to encourage seated shoe changes.

- Kid access: Lower hooks and open cubbies create ownership and reduce pile-ups.

- Visual hierarchy: Open items (daily use) at eye-hand level; seasonal gear in closed uppers.

- Color psychology: Earth neutrals and muted greens promote calm; a high-chroma accent at the drop zone subtly draws people to the correct landing spot.

Storage Systems that Don’t Fight You

- Daily bin per person: 12–14 in wide x 10–12 in high; labeled, breathable.

- Vertical tools: Narrow cabinet with perforated panel and rails for mops and sports gear.

- Dirty/clean divide: One closed cabinet for muddy items; one for clean linens and paper goods.

- Hidden charging: 120V outlets inside a cubby for e-bikes, gloves, or dog trackers; provide ventilation for electronics.

Integrations: Laundry, Pets, and Power

- Laundry: Side-by-side with a 24 in folding counter above; or stacked with a tall pantry next to it. Keep a floor drain if codes allow.

- Pet wash: 6–8 in curb, hand shower, and wall protection up to 48 in. Slip-resistant mosaic on the pan helps paws grip.

- Tech: Motion sensor plus manual override, weather station display, and a heated bench drawer for gloves in cold climates.

Resilience and Sustainability

- Moisture-first: Sloped floor at entry (1/8 in per foot) toward the threshold or drain.

- Durable cores: Specify formaldehyde-free, moisture-resistant substrates where possible.

- Recycled content: Porcelain with verified recycled percentage and low-VOC sealants.

- Maintenance plan: A hose connection or utility sink nearby, plus storage for cleaning tools, determines how tidy the room stays months after move-in.

Quick Checklist Before You Lock the Plan

- Confirm which door is the true daily entry.

- Map the drop–clean–store sequence on plan.

- Verify 36–42 in clear aisle after all door swings.

- Bench first, hooks second; shoe zone below.

- Provide 300–500 lux task lighting and exhaust.

- Choose slip-resistant floors and stain-proof grout.

- Carve a pet/utility niche if needed.

- Add power where you’ll actually charge things.

FAQ

Q1: What’s the smallest practical mud room width?

A1: You can work at 5 ft (60 in) if storage is on one wall and the opposite wall is kept clear. That leaves a 36 in passage with 12–15 in deep storage.

Q2: How much lighting do I need?

A2: Plan 300–500 lux at benches and sinks with 3000–3500K fixtures for comfortable, accurate color rendering. This hits a functional range aligned with common task-lighting recommendations from IES practice.

Q3: Are lockers better than open hooks?

A3: For families, a hybrid works best: hooks and bench for daily speed, one closed locker per person for visual calm and seasonal overflow.

Q4: What floor is most durable for mud and snow?

A4: Porcelain tile or sealed concrete with a slip-resistant finish. Use epoxy or urethane grout to avoid staining from de-icing salts and red clay.

Q5: Do I need ventilation in a mud room?

A5: Yes. A timed exhaust or connection to a nearby bath exhaust helps dry wet gear and reduce odors. Projects informed by WELL v2 guidance prioritize exhaust and cleanable finishes in entry transition zones.

Q6: How deep should shoe storage be?

A6: 12–14 in deep with 7–8 in vertical spacing per pair for adult shoes; allow a deeper 16 in shelf for boots.

Q7: Can I fit laundry in a compact mud room?

A7: If you have 6 ft of linear wall, a stacked washer/dryer can fit with a 30 in clearance in front. Add a shallow folding counter or wall-mounted drop-down surface.

Q8: What’s the best color strategy?

A8: Keep large surfaces in mid-tone neutrals to hide scuffs, then add a saturated accent near the drop zone as a visual cue. Muted greens and earth tones help reduce perceived stress during transitions.

Q9: How high should I place hooks for kids?

A9: Around 42 in from the floor so children can reach and actually use their assigned spot; adult hooks at 66–70 in.

Q10: Any acoustics tips for the clatter?

A10: Add a washable runner, soft-close hardware, and an acoustic ceiling tile or slatted wood with acoustic backing to dampen impact noise.

Q11: Where do wet umbrellas and skis go?

A11: Dedicate a drip tray cabinet with a waterproof liner and a small floor drain if feasible; otherwise, a metal tray on a lower shelf with ventilation slots.

Q12: What about heating for wet gear?

A12: A toe-kick hydronic loop or a small radiant panel under the bench speeds drying; ensure clearances and ventilation per manufacturer.
