Occupational Therapy Room Equipment Essentials for Effective Rehabilitation: 1 Minute to Understand How to Choose the Right OT Room Equipment

Effective occupational therapy (OT) environments don’t happen by accident—they’re designed, tested, and continuously refined around function, safety, and patient motivation. Across my projects, the most successful rooms blend flexible equipment, adjustable ergonomics, and clear activity zones so patients can relearn daily living skills with confidence. Lighting, acoustics, and materials matter as much as the devices you specify.

Outcomes follow design. According to WELL v2, balanced illumination with appropriate glare control and task lighting can improve visual comfort and reduce fatigue, directly impacting task performance. Similarly, Steelcase research links adaptable work settings to higher perceived control and engagement, variables that influence therapy participation and compliance. I bring both into OT rooms: uniform ambient lighting, high CRI task lights, and movable, patient-scaled stations to sustain focus and safe progression. For color, Verywell Mind’s overview of color psychology notes that blues and greens can lower heart rate and promote calm—useful when patients face challenging tasks.

Human factors are non-negotiable. The WELL v2 framework emphasizes posture variation, reach ranges, and clearances; when we set countertop heights and transfer surfaces within accessible ranges, patients perform tasks longer and more independently. I also treat noise strategically: mild sound absorption reduces cognitive load and supports instruction clarity. With these principles in place, here’s the equipment and layout mix that consistently supports effective rehabilitation.

Core Zones and Spatial Planning

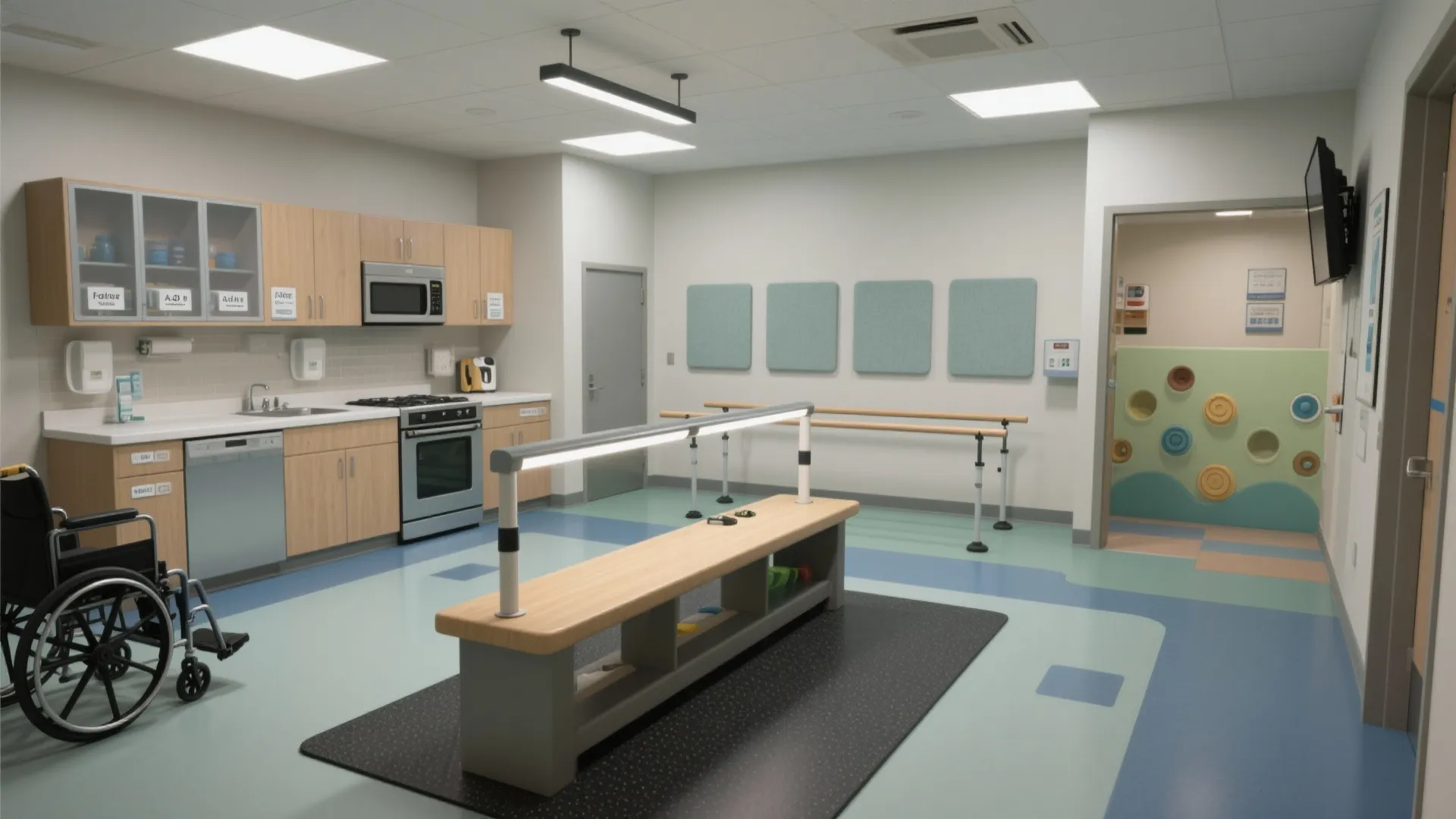

I map OT rooms into four primary zones: Activities of Daily Living (ADL), Fine Motor and Cognition, Strength and Endurance, and Sensory/Regulation. Each zone has adjustable elements and clear circulation paths for wheelchairs and walkers. When I iterate floor plans or simulate patient flows, a room layout tool helps validate clearances, turning radii, and task adjacency without guesswork: interior layout planner.

ADL Training Essentials

ADL areas replicate the home: a compact kitchen galley, a bathroom mock-up, and a wardrobe/entry vignette. I specify:

1. Adjustable-height sink base and counters (electric or crank) to accommodate seated and standing tasks.
2. Induction cooktop with auto shut-off, lightweight cookware, and color-contrasted edges for low-vision users.
3. Front-control appliances, side-opening oven, and a counter-height microwave for safer reaches.
4. Bathroom module with grab bars (horizontal and vertical), transfer bench, hand-held shower, and varied-height toilet risers.
5. Dressing station with reach-calibrated closets, shoehorns, button hooks, sock aids, and elastic laces for donning/doffing practice.

Surfaces should be slip-resistant (R10–R11), matte to control glare, and easy to sanitize. I keep at least one counter with open knee clearance and rounded edges to reduce injury risk during transfers.

Fine Motor, Cognitive, and Vision Rehab

This zone asks for precise lighting and textures. I use high-CRI (90+) task lamps with adjustable color temperature (3000–4000K) and diffusers to cut shadowing at the work plane. Equipment includes:

1. Therapy putty set (graded resistance), pegboards, graded clips, and pinch pins for dexterity and pincer strength.
2. Bilateral coordination boards, stacking cones, modular blocks, and in-hand manipulation kits.
3. Cognitive kits: sequencing cards, memory games, money management sets, and wayfinding tasks.
4. Low-vision aids: high-contrast reading guides, tactile bump dots, magnifiers, and large-print materials.
5. Writing and computer access: slant boards, weighted pens, keyguards, alternative mice, and switch access interfaces.

Acoustically, I aim for 0.6–0.8 NRC on select ceiling tiles or wall panels near instruction points to keep speech intelligible without over-damping the room.

Strength, Endurance, and Functional Mobility

Motor recovery thrives on progressive loading with functional carryover. I specify:

1. Adjustable parallel bars with integrated gait markers and a clear line of sight for therapist spotting.
2. Therapy steps (variable riser heights) and curb simulators with handrails on both sides.
3. Weighted cuffs, dumbbells (0.5–5 kg range), resistance bands (color-coded), and medicine balls with grippy surfaces.
4. Upper extremity ergometer (UBE) and compact recumbent cycle for cardiovascular reconditioning.
5. Balance systems: foam pads, wobble boards, tilt boards, and stepping stones with tactile cues.

I use durable vinyl or rubber floors with a subtle texture, transitioning to low-pile, dense carpet in balance zones to manage slip risk and provide haptic feedback.

Sensory Integration and Regulation

For patients with sensory processing needs, a controlled, gradable environment is crucial. My kit typically includes weighted lap pads, compression vests, therapy swings (in dedicated reinforced bays), crash pads, textured fidgets, and visual schedules. Dimmable lighting with optional warm bias (2700–3000K) supports downregulation, while neutral palettes with a single accent color avoid overstimulation.

Transfer Training and Wheelchair Skills

Safe mobility underpins independence. I plan for a transfer station with a mat table (hi-lo, 28–32 in max height), slide boards, gait belts, and adjustable bed mock-up. A wheelchair skills course with thresholds, carpet transitions, door weights, and tight turns helps patients practice community obstacles.

Splinting, Orthotics, and Work Conditioning

Where clinics offer fabrication, I include a heat-resistant workbench, splinting pans, thermoplastic sheets, rivets/Velcro kits, shears, and a vented heat source with clear fume control. For vocational rehab, modular workstations with adjustable heights (sitting/standing), parts bins, torque-limited drivers, and anti-fatigue mats simulate task demands safely.

Ergonomics and Human Factors

Adjustability is the backbone of accessibility. Chairs should offer seat height 16–22 in with armrests and firm cushions for sit-to-stand practice. Work surfaces that shift between 28–40 in cover most reach and posture profiles. I also integrate visual balance—organized, labeled storage at 15–48 in reach zones reduces cognitive load and time lost to searching, improving session efficiency.

Lighting: Task Precision and Safety

General illumination at 300–500 lux keeps navigation safe; task areas can step to 750–1000 lux with high CRI for color-critical activities. Diffuse, indirect/half-indirect fixtures help minimize glare; add localized, dimmable task lights at fine-motor benches. Followies best practices and layer lighting so caregivers can model tasks without casting disruptive shadows.

Acoustic Comfort and Speech Clarity

Hard, hygienic surfaces can create echo. I use a mix of cleanable acoustic panels, ceiling tiles with suitable NRC, and strategically placed curtains to tame reflections. Keeping the signal-to-noise ratio high supports instruction and reduces fatigue—particularly for cognitive rehab.

Materials, Infection Control, and Sustainability

Specify healthcare-grade, phthalate-free vinyls, bleach-cleanable textiles in limited applications, and solid surfaces with seamless edges. Where possible, choose low-VOC finishes and FSC-certified millwork. Rounded corners, integral coved bases, and hands-free hardware (lever or paddle) boost safety and hygiene.

Storage, Safety, and Workflow

I design storage by frequency and weight: heavy items at waist height, high-use kits at the front edge, and clear bins with large labels. Lockable cabinets handle sharps and heated equipment. A dedicated cleaning station with posted protocols keeps turnover quick and compliant.

Technology Integration

Tablets for visual schedules and home program videos, large displays for mirroring exercises, and simple EMR-access points near zones reduce therapist travel distance. Wearables and simple biofeedback tools can gamify progress without overwhelming patients.

Room Size and Flex Patterns

Even in compact clinics, mobile casters, foldable partitions, and ceiling tracks create day-to-day flexibility. In larger suites, I like a central open therapy mat with zones radiating outward—sightlines stay clear, and the team can supervise multiple patients safely. Use a layout simulation tool when combining ADL mock-ups and mobility courses to validate clearances: room design visualization tool.

Staff Workflow and Patient Dignity

Visual privacy screens, thoughtful acoustics, and predictable wayfinding preserve dignity. Locate handwash and PPE points at zone thresholds to reduce cross-traffic. Keep family seating close—but not in the therapist’s operating envelope—to support observation and coaching.

Commissioning and Continuous Improvement

Before go-live, I run mock sessions to validate reach ranges, transfers, and line-of-sight supervision. Capture therapist feedback weekly for the first quarter, then trim, relocate, or up-spec equipment based on real usage. The best rooms stay current by evolving with patient profiles and clinical protocols.

References and Evidence Touchpoints

For deeper guidance on human-centered environments and health performance, WELL v2 offers structured criteria for lighting, ergonomics, and materials. Color psychology insights from Verywell Mind can inform palette choices that support regulation and focus.

FAQ

What is the minimum lighting standard for an OT room?

I aim for 300–500 lux general lighting and 750–1000 lux at fine-motor stations with high CRI task lights. This balance supports navigation, detail work, and visual comfort.

How do you prevent glare during fine-motor tasks?

Use matte surfaces, diffused task lamps with adjustable CCT, and position lights to the side rather than directly overhead to reduce specular highlights and shadows.

What adjustable features matter most for patient independence?

Hi-lo mat tables, height-adjustable counters and sinks, variable step heights, and chairs with arms. These adapt to different body sizes, strengths, and mobility levels.

How should an ADL kitchen be configured for safety?

Front controls, induction cooking, side-opening oven, counter-height microwave, and open knee clearance. Color-contrast edges and anti-slip flooring further reduce risk.

What flooring works best across therapy zones?

Rubber or resilient vinyl for durability and cleanability, with low-pile carpet inserts in balance areas. Maintain smooth transitions for wheelchairs and walkers.

How do you handle acoustics without compromising hygiene?

Specify cleanable acoustic panels and high-NRC ceiling tiles. Use curtains or movable acoustic screens that meet infection-control requirements.

Which equipment is essential for upper limb rehab?

Therapy putty, graded pegboards, pinch pins, UBE, resistance bands, and weighted cuffs—paired with adjustable task lighting and stable work surfaces.

What’s the best way to plan layouts for mixed patient profiles?

Create modular zones with mobile equipment and validate wheelchair clearances and task adjacencies using an interior layout planner to test multiple scenarios.

How do color choices influence therapy participation?

Cool, desaturated blues and greens can promote calm and focus. Reserve saturated accents for wayfinding or motivation points without overwhelming the space.

What storage principles keep sessions efficient?

Store heavy items at waist height, keep high-use kits front-facing in clear bins, label boldly, and separate clean/soiled flows to speed turnover.

Do I need separate sensory integration space?

If caseload warrants, yes; otherwise, use dimmable lighting, portable weighted tools, and a small, acoustically damped corner to create a sensory micro-zone.

How do you ensure safety around therapy swings or heated splinting tools?

Reinforce ceiling points, set clear fall zones with crash pads, use lockout storage for heat sources, and post SOPs with staff training.
