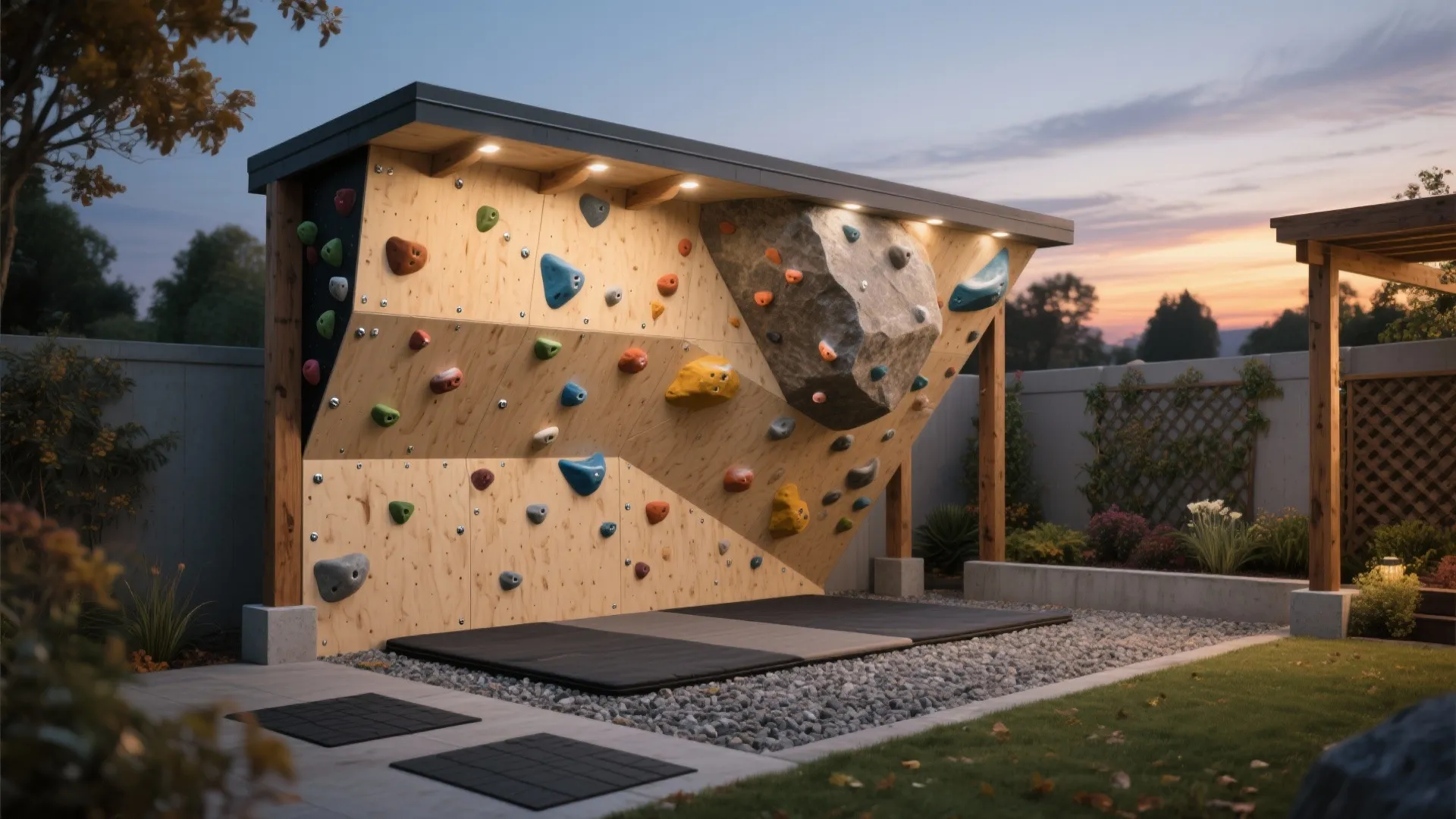

Outdoor Climbing Wall DIY: Build Your Own Adventure at Home: Fast-Track Guide to Building a DIY Backyard Climbing Wall

I’ve designed and overseen several residential training walls and small outdoor bouldering structures, and the most successful builds balance structural integrity, ergonomics, and weather performance. A backyard climbing wall is more than plywood and holds; it’s a system of loads, angles, textures, and safe fall zones. Done right, it becomes a year‑round training asset and a magnet for family and friends.

Safety sets the baseline. In workplace ergonomics research, Steelcase reports that 57% of users adapt posture to poorly designed environments—an insight that directly translates to climbing angle, reach distances, and hold spacing because bodies compensate when geometry is off. From lighting to color, human factors matter: Verywell Mind’s color psychology guidance shows warm hues can energize while cool tones calm—useful when choosing wall colors for training intensity versus cool‑down areas. I also aim for lighting that meets IES recommendations for task zones (generally 200–500 lux); while climbing is not an office task, ensuring adequate, glare‑controlled illumination at twilight sessions reduces missteps.

Budget and footprint planning come first. For most homes, a 2.4–3.0 m wide by 3.0–3.6 m high panel set with a 10–25° overhang offers versatile movement without exceeding typical yard setbacks. A compact freestanding bouldering wall usually runs $1,800–$5,000 in materials depending on framing timber quality, marine‑grade plywood, hardware, weatherproofing, and pads.

Site Selection and Layout Strategy

Choose stable ground with natural drainage, at least 1.8 m clearance around the wall, and a fall zone that fits pads or engineered surfacing. Avoid placing the wall under large shedding trees to reduce debris and moisture load. If you are testing angles or overhangs before committing, a room layout tool can help visualize spatial relationships with surrounding elements and walkways: room design visualization tool.

Structural Framing: Loads, Angles, and Fasteners

I frame outdoor walls like small pergolas with diagonal bracing. For a 3.6 m tall panel, use pressure‑treated 4x4 or 6x6 posts set in concrete footings (minimum 450–600 mm deep, widened to frost depth where applicable). A typical grid: vertical studs at 400 mm centers with 2x6 or LVL joists behind overhanging planes. Sheathing is 18 mm marine plywood or structural exterior plywood with phenolic film; it holds T‑nuts securely and resists delamination. Stainless or hot‑dip galvanized fasteners are mandatory outdoors. For steep planes (20–30°), add compression struts and tension ties so dynamic loads don’t rack the frame.

Panel System and T‑Nut Map

Pre‑drill T‑nut holes in a staggered 150–200 mm grid. I prefer 3/8"‑16 zinc or stainless T‑nuts with closed‑back designs to keep moisture out. Label panel edges and keep a mirrored map so you can relocate volumes later without losing hole indexes. Seal all cut edges with epoxy or polyurethane.

Surface Texture and Weatherproofing

Marine plywood benefits from a rolled texture coat: silica or rubber granules mixed into exterior acrylic or polyurethane deck paint. Aim for a fine texture that provides friction without shredding skin. All panels get primer plus two topcoats, and seams receive flexible polyurethane sealant. Consider a shallow rooflet or drip edge over the top to keep run‑off off the holds. Periodically re‑coat high‑traffic areas every 12–18 months.

Fall Zone: Pads and Impact Management

For bouldering heights up to ~3.6 m, I use crash pads layered over a drained base. A simple base is compacted gravel with weed barrier, topped by interlocking rubber tiles under pads to reduce slip. Maintain at least 2.0 m clear fall depth from the wall and protect side posts with pad wraps. Never rely on grass alone—it compacts and becomes slick.

Ergonomics, Reach Ranges, and Route Setting

Route ergonomics should align with human factors: average comfortable reach envelopes for adults sit around 600–800 mm laterally and 400–600 mm vertically between sequential holds on moderate angles. Keep clipping positions (if you add a top‑rope anchor for traverses) around shoulder height to avoid awkward stretching. Vary hold textures and shapes to reduce repetitive strain, mixing slopey volumes for open‑hand grip with edges for finger strength. Color coding routes supports behavior: warm accent holds for power problems, cool palettes for technical balance lines, echoing color‑psychology cues mentioned earlier.

Lighting for Evening Sessions

Outdoor wall lighting should be glare‑controlled and evenly distributed. Mount fixtures above eye level, shielded, and offset from the climbing plane to avoid casting hard shadows under holds. Target 200–400 lux on the wall with neutral 3500–4000K color temperature so rock texture and hold edges remain legible. Refer to IES guidelines for task illumination thresholds and glare reduction best practices.

Hardware: Anchors, Holds, and Volumes

Use stainless steel hardware where hands contact metal. For T‑nut bolts, stick with 3/8" socket head cap screws. Volumes should be sealed composite or coated plywood with backing plates to spread load. If you add a hangboard or rings, mount them to a dedicated reinforced beam rather than the sheathing.

Weather Strategy and Maintenance

Seasonal checks prevent structural creep. Every 3–6 months: torque test 10% of hold bolts, inspect framing for movement, re‑seal exposed edges, and retire worn pads. After storms, brush grit from holds and verify drainage. A breathable cover helps in rainy seasons, but avoid trapping moisture against wood.

Angles and Progression

Beginners thrive on 5–10° overhang or vertical with slight features; intermediates benefit from 15–25° with varied volumes; advanced training may include a 30–40° section for power endurance. If space is tight, build a hinge‑adjustable kicker panel at the base to change movement style without changing the main frame.

Acoustic Comfort

Outdoor walls can echo against hard boundaries. Adding a timber trellis with climbing plants or a perforated fence panel alongside the wall diffuses sound and lowers perceived noise during sessions. Rubber tiles under pads dampen landings.

Sustainability and Materials

Opt for FSC‑certified timber, low‑VOC exterior coatings, and recycled rubber pad bases. Stainless steel has a longer life cycle outdoors, reducing replacement waste. Design for disassembly: use bolts and plates over adhesives so panels can be repaired or upgraded without scrapping the frame.

Permit, Codes, and Neighbor Considerations

Check local regulations for accessory structures—height limits, setbacks, and foundations. Out of courtesy, angle the wall away from neighbors and manage evening lighting to limit spill.

Build Sequence

1) Stake, square, and dig footings to required depth. 2) Set posts with concrete, brace, and cure. 3) Install beams, joists, and diagonals; check plumb and racking. 4) Mount sheathing, pre‑sealed and mapped for T‑nuts. 5) Texture coat, paint, and seal seams. 6) Install holds and volumes, beginning with easy circuits. 7) Lay pads and test falls at low height before full routes.

Training Rhythm and Recovery

I encourage a 3:1 effort‑to‑rest ratio for bouldering intervals and deliberate warm‑ups—mobility, finger activation, and low‑angle traverses. Plan shaded rest spots with seating near the wall and use cooler color accents to encourage recovery.

Authority References

For broader guidance on human factors and workplace‑adjacent research that informs ergonomic decision‑making in active environments, explore Steelcase’s research library and color psychology insights from Verywell Mind. Both offer user‑centered evidence that applies to how we shape movement‑based spaces.

FAQ

Q1: What angle is best for a first outdoor climbing wall?

A 5–10° overhang or near‑vertical section is ideal for foundational technique. It reduces strain and allows longer sessions while still engaging core and footwork.

Q2: Which plywood should I use outside?

Marine or structural exterior plywood at 18 mm thickness performs best. Seal edges and faces with exterior primer and polyurethane or acrylic deck paint with fine aggregate for friction.

Q3: How many T‑nuts per panel are enough?

A 150–200 mm staggered grid gives excellent setting flexibility. For a 1.2 x 2.4 m panel, that’s roughly 60–90 T‑nuts depending on spacing and margins.

Q4: What lighting specs work for evening sessions?

Target even 200–400 lux on the wall at 3500–4000K with shielded fixtures placed above eye line to minimize glare and harsh shadows.

Q5: How do I protect the wall from rain?

Use exterior‑grade coatings, seal seams, cap exposed edges, and add a shallow top drip edge. Consider a breathable cover in prolonged wet seasons and ensure base drainage.

Q6: What’s the safest fall surface for bouldering heights?

Layer high‑quality crash pads over a non‑slip base like rubber tiles on compacted gravel. Maintain at least 2.0 m clear fall zone depth from the wall.

Q7: How should I choose hold colors?

Use warm hues for power problems and cool hues for balance/technique lanes, leveraging color psychology to cue intensity and recovery.

Q8: Do I need permits?

Many jurisdictions require permits for structures above certain heights or with fixed footings. Check local codes for setbacks, max height, and foundation rules before building.

Q9: Can I make the angle adjustable?

Yes. Build a hinge‑mounted kicker or a bolt‑adjustable upper plane with reinforced pivots and bracing. Ensure all moving parts use rated hardware.

Q10: How often should I maintain hardware and pads?

Inspect every 3–6 months. Torque‑check a sample of hold bolts, re‑seal wood edges, and retire pads that show compressed zones or torn covers.

Q11: What’s a sensible budget?

Expect $1,800–$5,000 for a modest freestanding wall depending on timber, plywood, hardware grade, coatings, and pads.

Q12: Can I integrate training accessories?

Yes—hangboards, rings, or campus rungs can be mounted to reinforced beams. Keep accessory loads off the sheathing and verify anchors.
