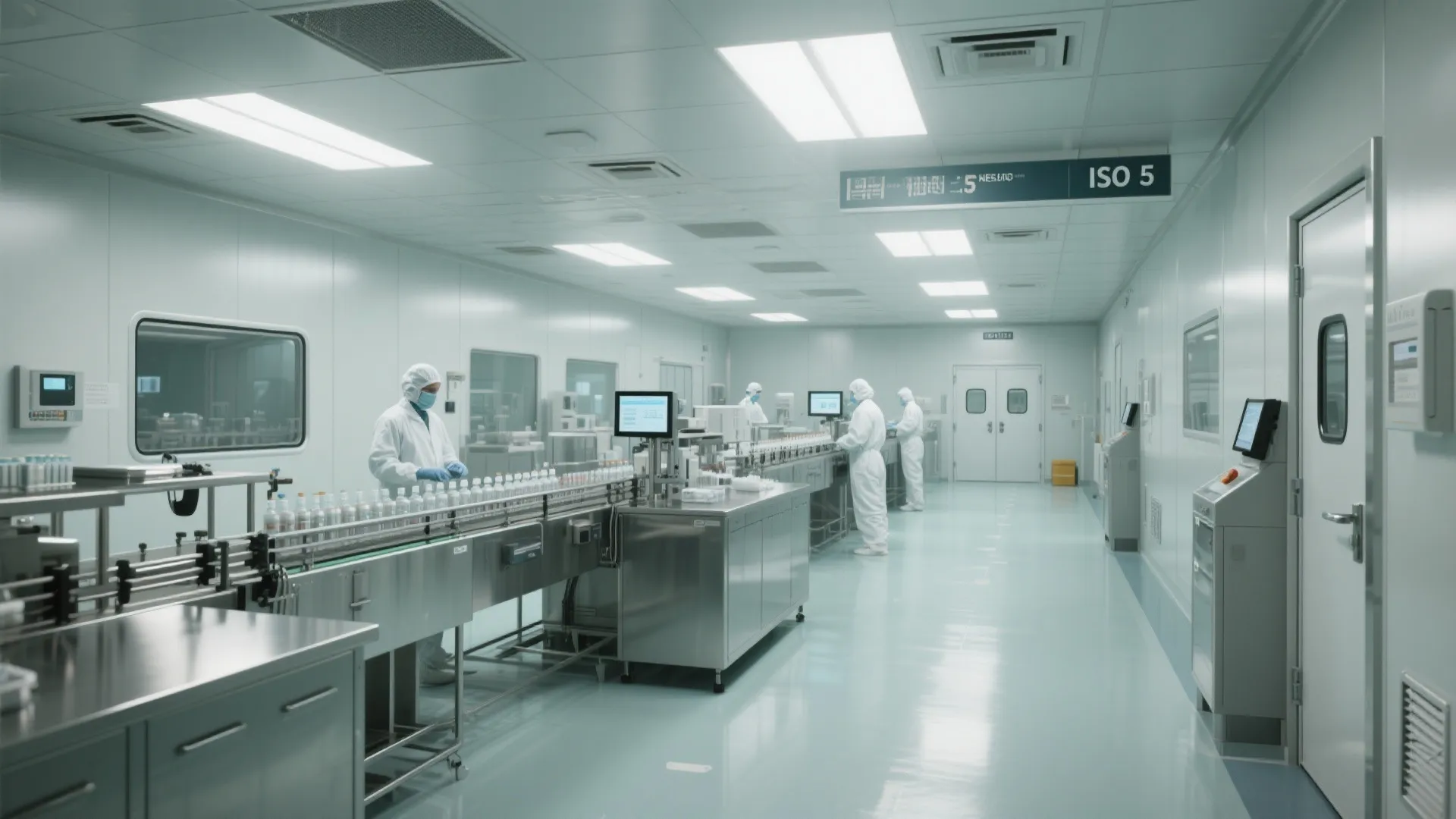

Pharma Clean Room Design: Create a Sterile Space That Works: Fast-Track Guide to Designing a Pharma Clean Room in Minutes

Creating a pharmaceutical clean room that truly supports sterile manufacturing demands more than meeting ISO classifications. It requires a rigorous balance of environmental controls, workflow ergonomics, and material strategy—each tuned to protect product integrity and the people who make it. In my projects, the best-performing rooms align air change rates, pressure cascades, light quality, and human movement from day one.

Two data points consistently guide early decisions. First, WELL v2 highlights that glare and poor task lighting impact error rates and fatigue; its Light concept cites maintaining appropriate illuminance and minimizing discomfort glare to support performance (v2.wellcertified.com). Second, Steelcase research associates physical discomfort and environmental stressors with measurable drops in cognitive performance, reinforcing the need for ergonomic station heights and visual comfort (steelcase.com/research). Both insights directly translate to clean room layout, lighting, and workflow tuning.

In sterile manufacturing, illumination level and visual comfort matter. The Illuminating Engineering Society (IES) recommends task illuminance ranges of roughly 500–1000 lux for detailed work, with uniformity ratios and glare control that protect visual acuity (ies.org/standards). I target 600–800 lux at critical inspection and filling tasks, 300–500 lux for circulation, and color temperature around 4000–5000K for accurate product and particulate visibility. Pair that with high CRI (90+) for visual consistency and carefully shielded fixtures to reduce disability glare.

Plan the Room Around Flow and Contamination Control

Contamination control starts with an unbroken behavioral choreography: personnel, materials, and waste should never cross paths. Map unidirectional routes for people and product with a clear pressure cascade—higher pressure in cleaner zones, stepping down toward support spaces. A smart interior layout planner can help simulate circulation, buffer zones, and gowning sequences; a room layout tool can support rapid iterations when validating people/material flows: room layout tool.

Pressure Cascades and Air Change Strategies

For ISO 7–8 support spaces moving into ISO 5 critical areas, maintain positive pressure in cleaner zones by 10–20 Pa relative to adjacent spaces, verified with continuous monitoring. Typical air changes per hour (ACH) range from 20–40 for ISO 7 and can exceed 240 in localized laminar flow hoods for ISO 5 work benches. Use low-turbulence diffusers, laminar flow ceilings over filling lines, and return air placed low to capture particulates. Balance HEPA/ULPA coverage with serviceability; ceiling grid zones should allow fast filter swaps without breaching cleanliness.

Gowning Suites and Behavioral Protocols

Design gowning rooms as behavioral checkpoints, not merely storage. A three-stage sequence—pre-change, hand hygiene, and final donning—reduces bioburden transfer. Provide clear visual cues, storage for size-specific PPE, hands-free sinks, and mirror checks. Benches that divide "street" and "clean" sides prevent crossover contamination. Sightlines matter: staff should see each station in sequence without ambiguity, reducing non-compliant shortcuts.

Ergonomics and Human Factors at the Line

Task stations must fit the anthropometrics of gloved, gowned operators. Adjustable work surfaces between 740–1100 mm accommodate seated and standing work; monitor mounts and reach envelopes should keep wrists neutral and shoulders relaxed. Steelcase research ties environmental fit to cognitive load and performance, a reminder that ergonomic discomfort quickly becomes a quality risk. I design finger rest points and anti-fatigue flooring in long-duration tasks to help stabilize fine motor actions under PPE.

Light Environment: Illumination, Color, and Glare Control

Combine uniform ambient lighting with targeted task lighting using diffused, sealed luminaires. Keep unified glare rating (UGR) low—aim for UGR < 19 in detailed inspection areas—and avoid specular surfaces that amplify glare. Choose 4000–5000K LEDs with high CRI to balance alertness and accurate color rendering of solutions and residues. Integrate dimming for non-critical spaces to support energy management and visual comfort during shift changes. Where inspection fidelity is vital, use localized 600–800 lux with shadow-free geometry.

Material Selection and Cleanability

Favor non-porous, seamless, and chemically resilient finishes. Epoxy or PU floors with coved bases eliminate dirt traps. Wall systems with flush glazing, sealed penetrations, and minimal ledges reduce particulate accumulation. Avoid fiber-shedding materials; select stainless steel for high-touch surfaces and specify cleanroom-grade sealants rated for frequent disinfectant cycles. If the process uses aggressive solvents, confirm compatibility with the disinfectant rotation to prevent surface degradation.

Acoustic Comfort Without Compromising Cleanliness

High airflow can mean high noise. Excessive sound elevates stress and impairs verbal communication. Use aerodynamic duct design, vibration isolation for AHUs, and sealed acoustic panels in non-critical support areas that do not shed fibers. Target NC 40–45 in general clean zones and quieter conditions near inspection tasks. Clear voice communication reduces errors and rework.

Spatial Ratios and Visual Balance

Operators work better when the space breathes. Maintain circulation widths that allow two-way movement with PPE—generally 1200–1500 mm for shared corridors—and provide visual order through consistent datum lines, integrated storage, and clear zone demarcation. In my layouts, equipment masses are balanced along axes with short visual runs to exits and wash stations, reducing cognitive friction and aiding emergency response.

Temperature, Humidity, and Comfort Within Constraints

Process needs drive setpoints, but human comfort keeps quality stable. Pharmaceutical clean rooms often operate at 20–22°C; humidity typically 40–60% RH unless product requires tighter control. Provide localized radiant panels or airflow tuning to mitigate drafts at operator positions. Balance filtration resistance with fan sizing so setpoints remain stable across filter life.

Monitoring, Controls, and Data Integrity

Integrate continuous monitoring for particulate counts, differential pressure, temperature, humidity, and VOCs if relevant. Alarms should be tiered: visual, audible, and logged, with SOPs that specify response times. Segment BMS access with strict user roles to protect data integrity. Place display panels at decision points—gowning exit, critical line entries—so operators can confirm conditions before work begins.

Layout Simulation and Validation

Prototype the workflow before building. A layout simulation tool accelerates design validation, revealing pressure boundary conflicts, backflow risks, and pinch points. For multi-room suites, iterate adjacency diagrams and test clean-to-dirty separations with an interior layout planner to refine personnel and material routes: interior layout planner.

Waste, Cleaning, and Maintenance Strategy

Waste should exit through a dirty corridor that never touches clean inflows. Provide staging for segregated waste streams and hands-free access. Cleaning programs need space: chemical storage, mop systems compatible with clean room, and service alcoves for filters and valves. Design maintenance access that does not breach clean envelopes—use interstitial spaces and above-ceiling service corridors where possible.

Compliance, Qualification, and Documentation

Plan for IQ/OQ/PQ from the outset: instrument calibration zones, sampling points, and cleanable sensor placements. SOP staging areas and training nooks near gowning help embed procedures. Qualification runs should be anticipated in the HVAC and filtration design so performance margins are visible and testable without operational disruption.

FAQ

What illuminance levels are best for pharmaceutical clean rooms?

Target 600–800 lux over detailed tasks and 300–500 lux in circulation. Align with IES guidance on task illuminance, glare control, and uniformity for visual accuracy.

How should pressure cascades be structured?

Maintain positive pressure in cleaner zones by 10–20 Pa relative to adjacent spaces, stepping down from ISO 5 to ISO 7/8 and then to support areas. Monitor continuously at partitions.

Which materials minimize shedding and ease cleaning?

Use non-porous, seamless finishes: epoxy or PU floors with coved bases, flush wall panels, stainless steel for high-touch points, and cleanroom-grade sealants resistant to disinfectants.

What color temperature and CRI support inspection accuracy?

Choose 4000–5000K lighting with CRI ≥ 90 for faithful color rendering and alertness, paired with low-glare luminaires to reduce visual fatigue.

How do I reduce acoustic stress without compromising cleanliness?

Design quiet airflow paths, isolate mechanical vibration, and use sealed acoustic treatments in support spaces. Aim around NC 40–45 in general zones to aid communication.

What are effective gowning room features?

Stage gowning in three steps, provide hands-free sinks, size-specific PPE storage, bench dividers for clean/dirty sides, and clear wayfinding to prevent crossover.

How can layout tools improve contamination control?

Simulation tools test personnel and material routes, pressure boundaries, and pinch points before construction, enabling cleaner separation and smoother operations.

Which environmental parameters should be continuously monitored?

Track particulate counts, differential pressure, temperature, humidity, and process-specific VOCs. Use tiered alarms and SOPs for quick response and data integrity.

What ergonomic dimensions help operators in PPE?

Provide adjustable surface heights (roughly 740–1100 mm), neutral reach envelopes, anti-fatigue flooring, and stabilized finger rests for precision tasks.

How should waste handling be organized?

Route waste through dedicated dirty corridors, segregate streams, and ensure hands-free access, keeping all outflows isolated from clean inflows.
