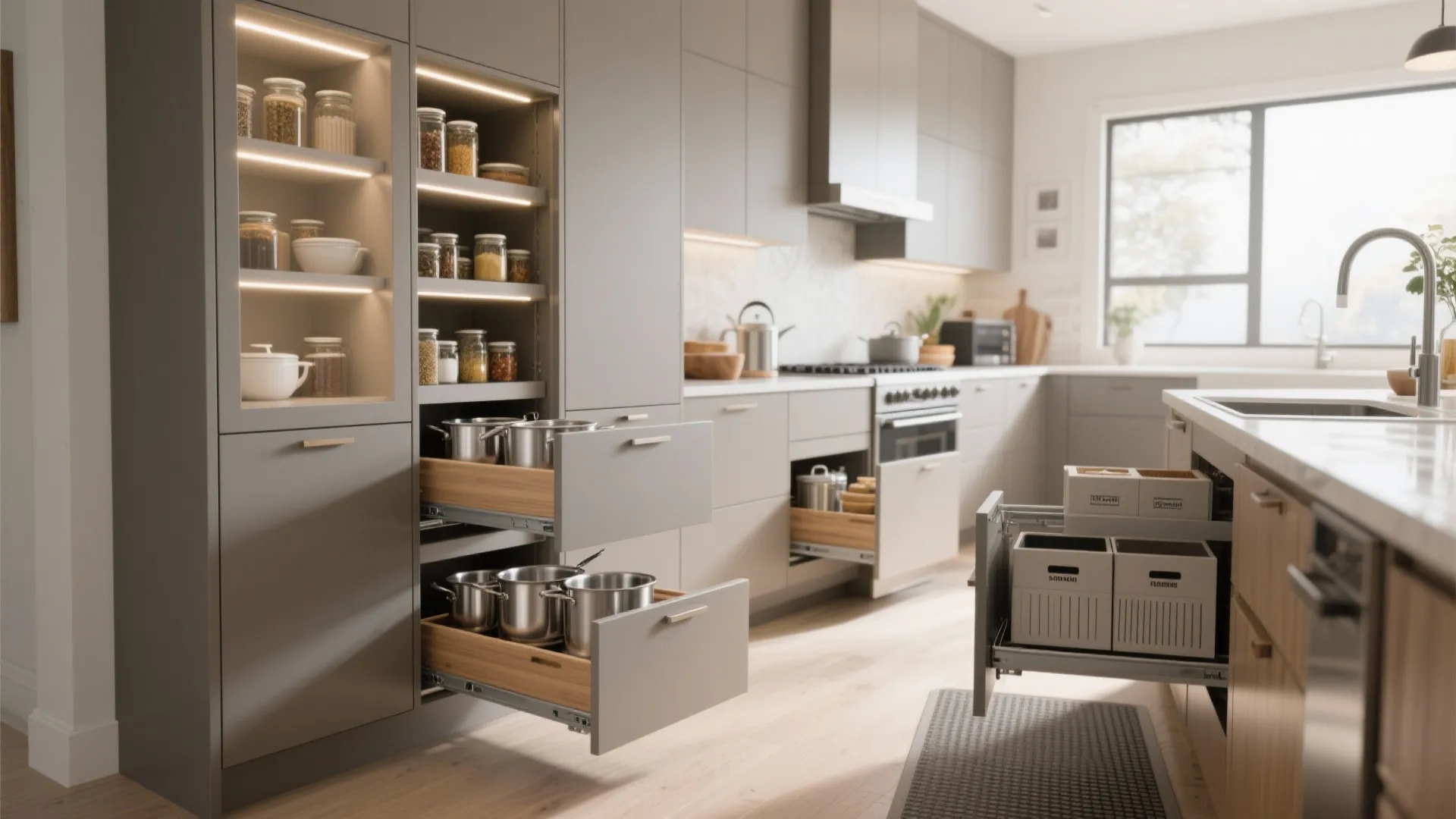

Pull Out Units for Kitchen Cabinets: My Designer's Guide: 1 Minute to Instantly Maximize Your Kitchen Storage

I’ve spent over a decade fitting pull-out units into kitchens—from compact city galleys to open-plan chef’s spaces—and the right mechanism can change how a kitchen works day to day. Good pull-outs aren’t just about squeezing in more stuff; they reduce reach distances, support safer lifting, and keep frequently used items visible and within a smooth hand path.

Two data points shape how I design these systems. First, the National Kitchen & Bath Association’s storage planning norms consistently emphasize minimizing bend-and-reach motions to reduce strain; in parallel, WELL v2 suggests task lighting of 300–500 lux on work surfaces, which I extend into tall cabinet pull-outs so contents are legible and safe to access under typical kitchen lighting conditions (see WELL v2 Light concept at wellcertified.com). Second, Steelcase research on workflow and cognitive load shows visual access reduces search time; translated into kitchens, that means slide-outs that reveal full contents prevent rummaging and decision fatigue (steelcase.com/research).

Core Types of Pull-Out Units I Rely On

Pull-out hardware has matured a lot: smoother glides, higher load ratings, and better dampers. Below are the most reliable categories I specify.

1) Full-Extension Drawer Pull-Outs

These are the workhorses for base cabinets. Full-extension runners bring the entire drawer box beyond the face frame, so nothing hides at the back. I use them for heavy cookware, mixing bowls, and pantry bins. Select soft-close slides rated 75–100 lb for pots; for pro-level setups or wide drawers (30–36 in), step up to 110–150 lb under-mount slides. Ergonomically, drawers at knee-to-waist height reduce trunk flexion and awkward twisting.

2) Roll-Out Trays (Retrofit Heroes)

Perfect for existing cabinets. A shallow tray mounted on full-extension slides transforms a dark base box into accessible storage. I stack two or three per cabinet, leaving at least 10–12 in clearance for larger appliances. Add low-profile dividers to prevent toppling. This is the fastest ROI upgrade in older kitchens.

3) Pull-Out Pantries (Tall Cabinets)

Wire or solid-sided tall pull-outs (often 18–24 in wide) create a “storefront” of food items. Choose frames with synchronized slides to prevent sway. Prioritize shelf lips and anti-slip mats to keep jars stable. I position the heaviest items between 24–48 in from floor—within the primary reach zone—to reduce lift risk. Integrated side lighting or vertical light blades inside the cabinet keep labels readable at 300–500 lux.

4) Corner Pull-Outs (LeMans, Magic Corner, Carousel)

Corners devour space; these systems reclaim it. LeMans kidney trays glide out individually for full access to pots. Magic Corner units pull forward then slide sideways to present contents. Carousels are budget-friendly but can waste depth; I reserve them for larger radii where big items can sit without collision. Always confirm door swing and handle clearance against adjacent appliances.

5) Spice and Bottle Pull-Outs (3–12 in Fillers)

Use narrow gaps efficiently with vertical pull-outs flanking the range or prep zone. I separate volatile oils from heat sources—keep at least 9–12 in away from oven sides to mitigate heat exposure. Opt for ball-bearing slides with lateral stability so tall bottles don’t shimmy.

6) Under-Sink Pull-Outs and Waste Systems

Trapezoid trays and U-shaped drawers dodge plumbing while keeping cleaners and sponges visible. For waste, a dual or triple-bin pull-out near prep saves steps: one for general waste, one for recycling, optionally one for organics. Use metal frames and moisture-resistant box materials; specify full-extension slides with protected dampers because this zone sees frequent, fast cycles.

7) Tray Dividers and Vertical Sheet Pans

Install vertical dividers on a pull-out base for baking sheets, cutting boards, and trays. Spacing at 2–3 in keeps items upright without friction. Heavy-gauge dividers with adjustable slots future-proof changes in cookware.

Planning the Layout Around Your Workflow

Before shopping for hardware, map the kitchen’s choreography: prep, cook, plate, clean. Place pull-outs where hands travel most. For instance, a roll-out for mixing bowls should sit under the main prep counter, while pots live within two steps of the cooktop. If you’re working through a replan, a quick interior layout planner helps visualize clearances and door-swing conflicts using a room layout tool: room layout tool.

Zones I Assign Pull-Outs To

1. Prep zone: knives, boards, bowls; shallow drawers with dividers and one deep pull-out for small appliances.
2. Cooking zone: pots, lids, oils, spices; heat-safe pull-outs with anti-tilt guides.
3. Pantry zone: tall pull-out with staggered shelves, label-forward storage, integrated lighting.
4. Cleanup zone: waste pull-out, dish tabs, towels, under-sink tray with leak mat.

Ergonomics, Reach Ranges, and Safety

Human factors drive where I set shelf heights and loads. Keep frequently used, heavier items between 24–48 in from the floor to minimize spinal flexion and shoulder elevation. For tall pull-outs, cap individual shelf loads to manufacturer spec—typically 20–30 lb per basket. Specify soft-close and anti-rebound latches to prevent ricochet, especially on narrow bottle pull-outs. Add task lighting where deep units create shadows; WELL v2’s recommended 300–500 lux on task planes is my benchmark for interior cabinet lighting at eye level (wellcertified.com).

Materials and Hardware That Last

Moisture, heat, and repeated loading are the enemy. I lean on powder-coated steel frames, zinc-plated runners, and marine-grade plywood or high-density melamine for drawer boxes. Use sealed edges around sink bases. Choose slides with sealed bearings for kitchens in humid climates. Where bottles or jars are stored, add removable mats for cleanability.

Lighting, Color, and Acoustic Comfort Inside Cabinets

Lighting inside tall or deep pull-outs reduces search time. I specify 3000–3500K LED strips with diffusers to cut glare when you look down into a unit. On color, a light matte interior (warm gray, soft beige) boosts contrast without the clinical feel of pure white; highly glossy surfaces amplify glare. For sound, soft-close dampers and felt bumpers tame impact noise—small, but noticeable in open-plan homes.

Common Dimensional Rules of Thumb

1. Base drawer widths: 24–36 in for cookware; use higher load slides above 30 in.
2. Spice pull-outs: 6–9 in wide; set rails at 10–12 in increments for small jars.
3. Tall pull-outs: 18–24 in wide; verify full extension clearance with island overhangs.
4. Under-sink pull-out: confirm trap height first; keep 2 in margin around plumbing.
5. Toe-kick drawers: 3–4 in internal height for trays and mats; mind air returns and vac pans.

Installation Notes I Give Every Contractor

1. Shim perfectly plumb and square; even 1/8 in racking causes slide bind and premature wear.
2. Use proper carcass reinforcement on frameless cabinets—spreader blocks or full backs where slides mount.
3. Set slide setback per manufacturer; under-mounts often need precise 1/8 in reveals.
4. Test-load with actual cookware before final front adjustment to ensure parallel reveals under load.
5. Add a leak sensor under sinks where pull-outs conceal plumbing.

Small Kitchen Strategies

In tight footprints, avoid over-wide drawers that can block perpendicular aisles when open. Split into two narrower units to maintain circulation. Use vertical pull-outs near the range and a slim roll-out pantry (12–15 in) to net usable linear storage without crowding. Consider a layout simulation tool to confirm that open drawers don’t clash with dishwasher or oven doors: room design visualization tool.

Sustainability Considerations

Durability is sustainability. Choose repairable hardware with replaceable dampers. Opt for E0/E1-rated panels and low-VOC finishes. Where possible, consolidate storage so doors open fewer times per task—less lighting on-time, less hardware cycling. Stainless or powder-coated steel frames outlast chrome in coastal zones.

Budget Tiers and Where to Spend

1. Entry: retrofit roll-out trays, basic spice pull-outs, 75 lb slides.
2. Mid: soft-close under-mount slides, pull-out waste, vertical dividers, one corner solution.
3. Premium: synchronized tall pull-outs, integrated lighting, high-load slides, custom dividers, dual-damper corners.

Maintenance and Longevity

Vacuum slide channels annually, wipe with a dry cloth, and avoid silicone sprays that attract dust. Tighten mounting screws each spring. Replace worn mats and clean spills promptly, especially inside bottle pull-outs where oils can degrade finishes.

FAQ

1) What slide load rating should I choose for cookware drawers?

For typical pots and cast-iron pieces, I specify 100 lb under-mount slides; for 30–36 in wide drawers or pro-grade cookware, move to 110–150 lb to prevent sag and racking.

2) Are tall pull-out pantries stable when fully extended?

Yes—if you choose synchronized, full-extension slides with anti-sway frames and observe shelf load limits (often 20–30 lb per basket). Anchor cabinets securely to studs and level carefully.

3) How close can spice or oil pull-outs be to the range?

I keep them at least 9–12 in from major heat sources. Heat degrades oils and can warp narrow pull-out faces over time.

4) What lighting color temperature works inside cabinets?

Stick to warm-neutral 3000–3500K with diffusers. It renders food and labels naturally while minimizing glare. Aim for roughly 300–500 lux on the contents, consistent with WELL v2 task lighting guidance.

5) Which corner solution is best: LeMans, Magic Corner, or carousel?

For heavy pots and maximum visibility, LeMans excels. Magic Corner suits narrow openings with deep storage. Carousels are economical but need generous radius to avoid collision and wasted depth.

6) Can I retrofit pull-outs into existing framed cabinets?

Absolutely. Use roll-out trays with side or bottom-mount brackets and add blocking where needed. Measure clear openings—face frames reduce width, so order trays accordingly.

7) How do pull-outs affect workflow efficiency?

They reduce searching and reaching. Research in workplace design shows visual access shortens decision time; in kitchens, full-extension visibility means faster task transitions and fewer duplicate items.

8) What materials hold up best in damp areas like under sinks?

Powder-coated steel frames, sealed plywood or high-density melamine boxes, and stainless fasteners. Add a leak mat and avoid raw edges.

9) Should I use custom dividers or off-the-shelf organizers?

For wide drawers (30 in+), custom dividers stop lateral shift and extend hardware life. In narrower drawers, modular inserts work well and are easy to reconfigure.

10) How do I prevent bottles from tipping in narrow pull-outs?

Choose frames with lateral stabilizers, use anti-slip mats, and size compartments closely to bottle diameters. Keep heavier bottles at the bottom tier.

11) Are soft-close mechanisms worth the cost?

Yes. They reduce impact loads on joinery, cut noise in open plans, and prolong slide life—especially for frequently used waste pull-outs.

12) What clearances do I need in front of pull-outs?

Maintain at least 39 in aisle width in two-cook kitchens; verify that open drawers won’t clash with oven or dishwasher doors. In compact kitchens, split oversized drawers to preserve circulation.
