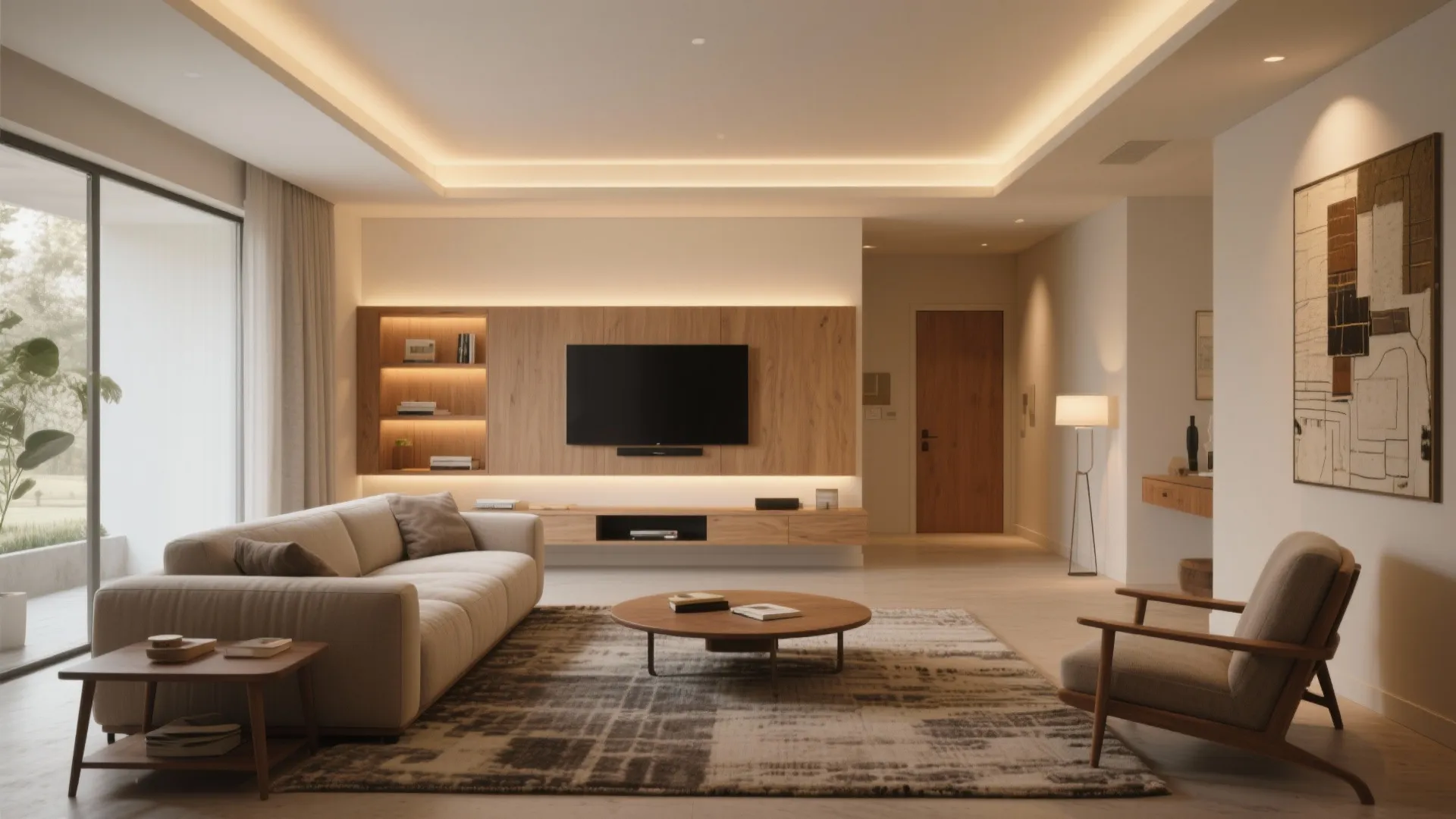

Recessed Lighting Placement: 5 Smart Ideas: Practical recessed lighting layouts for living rooms — my top 5 space-saving solutions

I once installed recessed lights in a client’s living room only to realize I’d centered the fixtures on an old coffee table the owners no longer used — we both laughed, I learned, and the lesson stuck: placement matters more than symmetry. Small mistakes like that taught me that small spaces can spark big ideas. In this piece I’m drawing on a decade of kitchen and living-room projects to share 5 practical recessed lighting ideas that make a living room feel layered, comfortable, and actually usable.

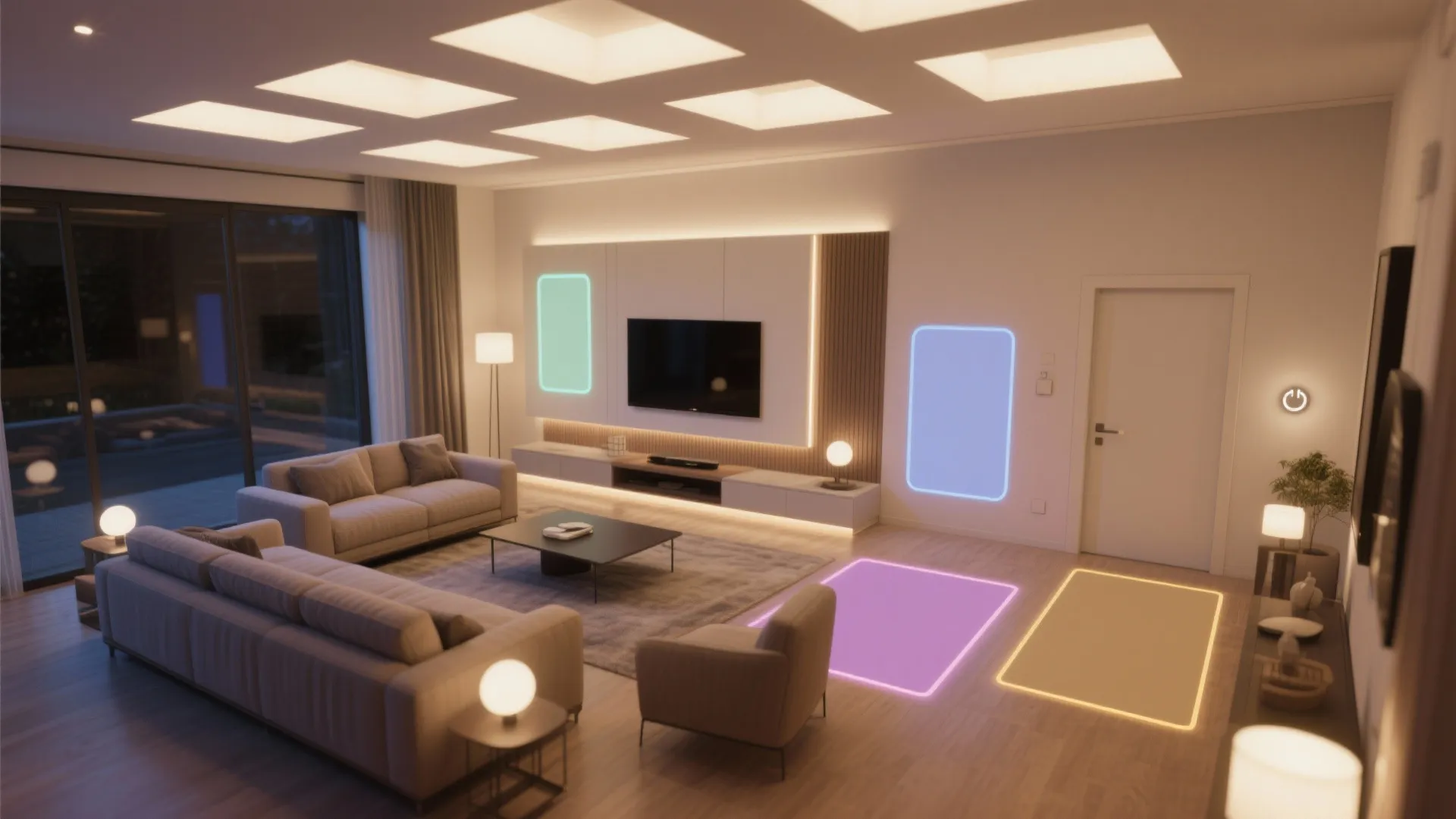

1. Create zones with a grid and dimmers

I like to start with a loose 4x4 or 3x3 grid (depending on room size) spaced roughly 4–6 feet apart to give even general illumination. Then I split the grid into lighting zones — seating, TV wall, and entry — each controlled by its own dimmer. The advantage is simple: you get even ambient light when guests arrive and softer, cozier light for movie nights. The small challenge is wiring complexity and slightly higher initial cost for multi-circuit dimmers, but I’ve found the comfort payoff is worth it.

save pin

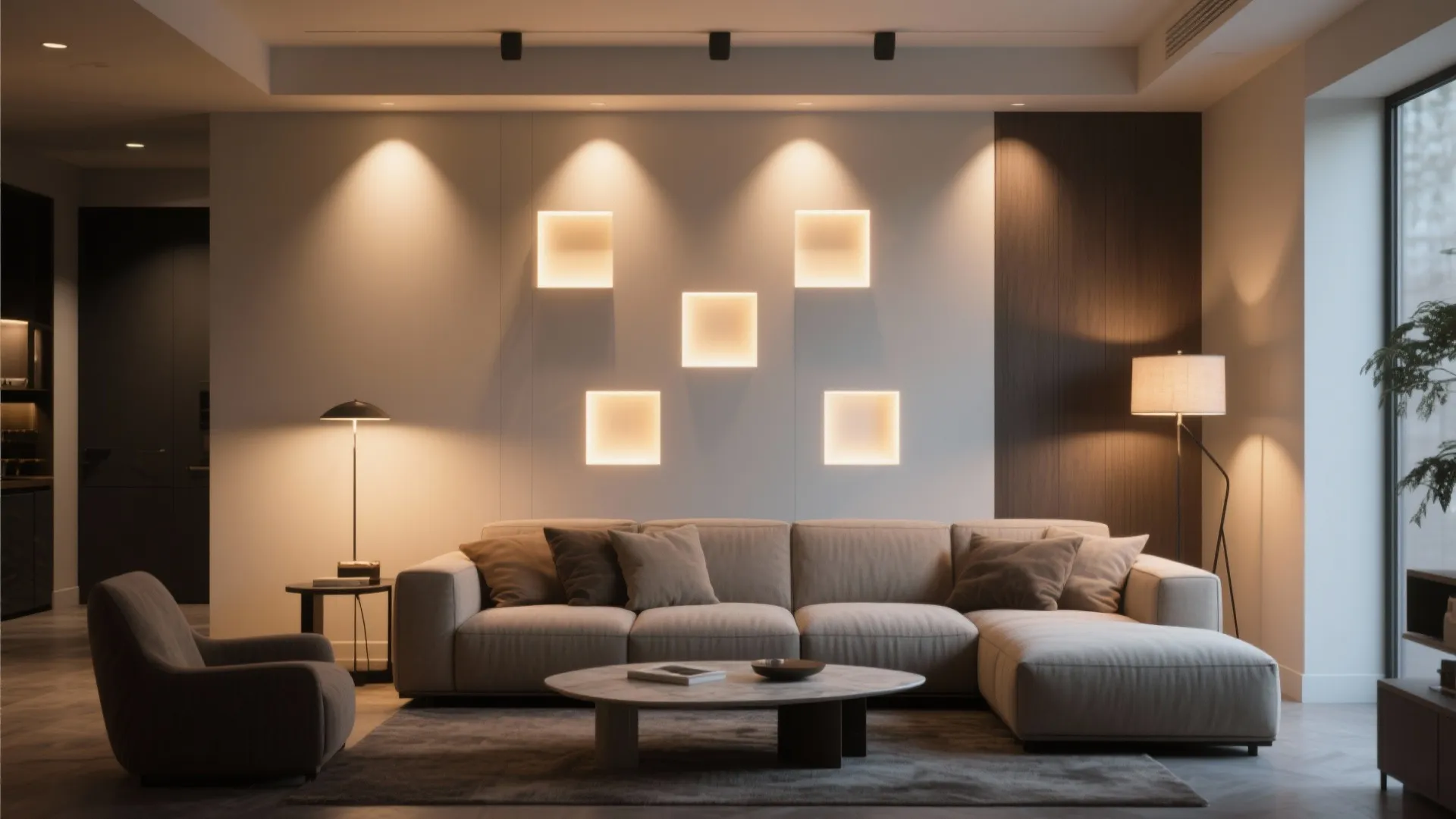

2. Highlight the seating area with recessed accents

Place a tighter cluster of can lights centered above the main sofa or conversation group, about 2–3 feet in from the furniture edge. This concentrates light where people read or talk, while keeping peripheral areas softer. It’s a friendly trick for open-plan homes, though you must be careful not to create glare on coffee-table surfaces — I sometimes pair this with an adjustable floor lamp for reading tasks.

save pin

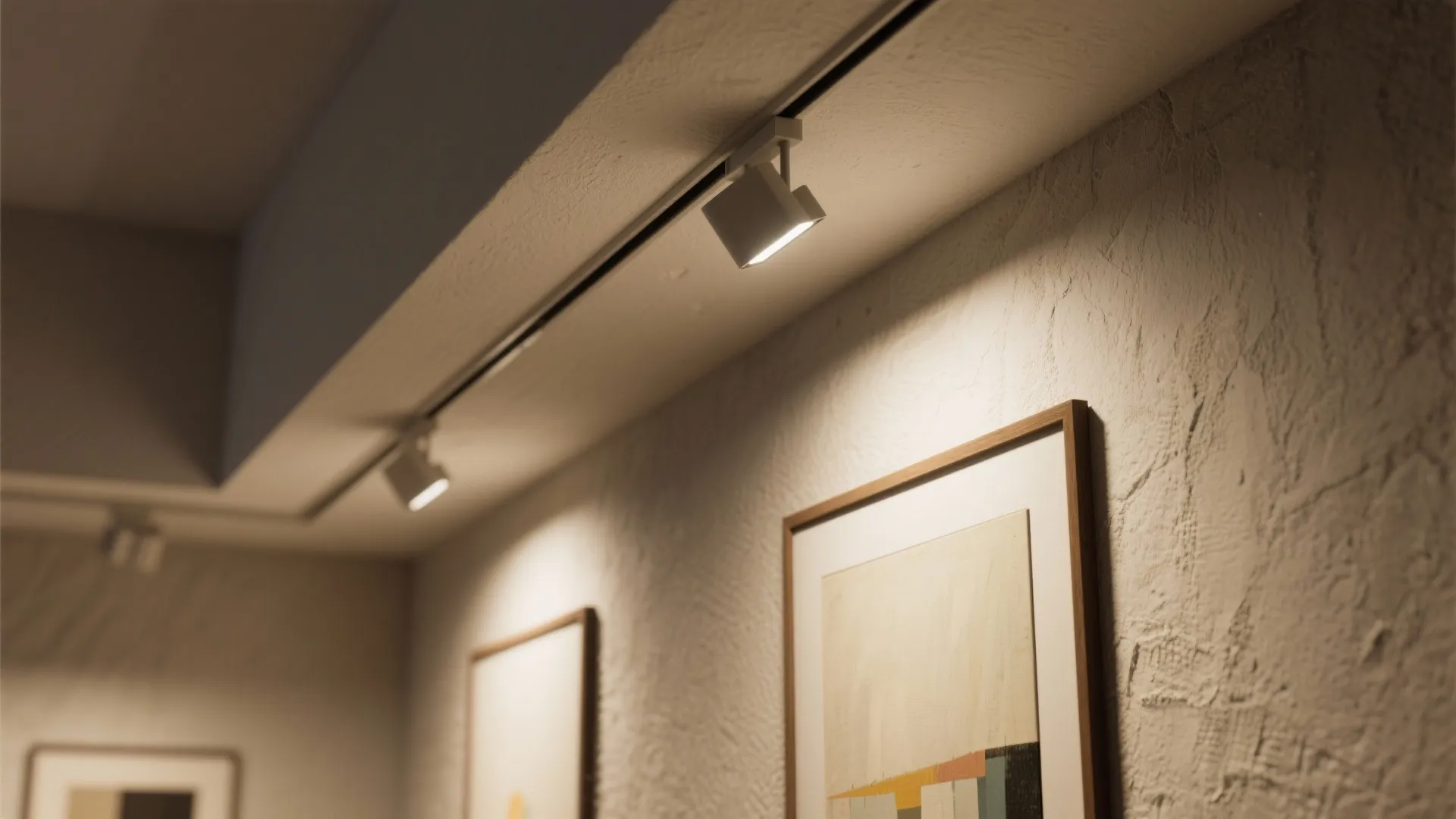

3. Wash walls and art with angled recessed lights

To make the room feel taller and showcase artwork or textured wallpaper, aim a few adjustable recessed fixtures toward the wall at a shallow angle (typically 30 degrees) about 2–3 feet from the wall. This creates flattering wall-wash light that reduces harsh shadows. The downside is you’ll need fixtures that can tilt and possibly different beam angles — an easy upgrade that elevates a room dramatically.

save pin

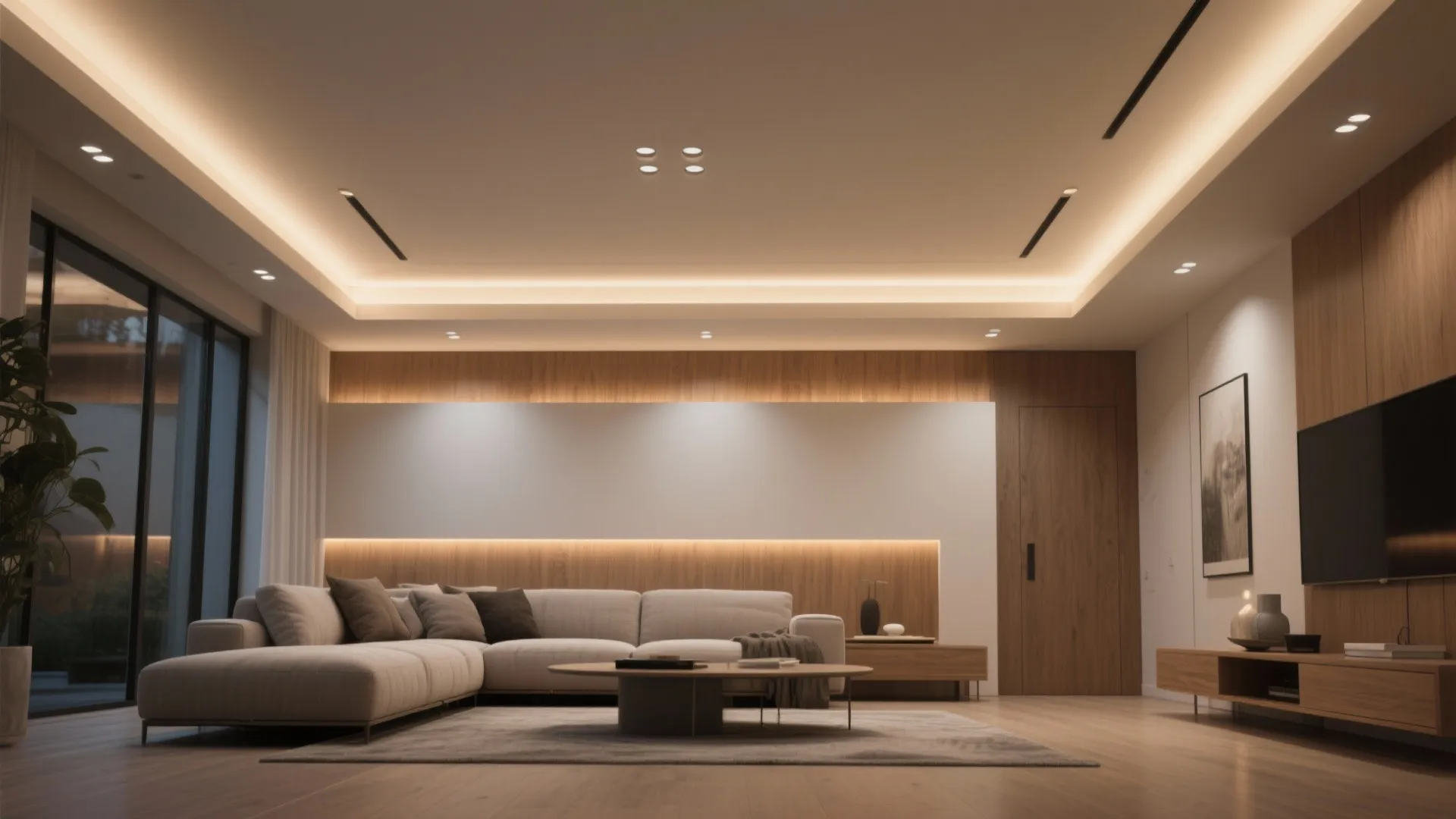

4. Combine with cove lighting for layered depth

When budget and ceiling detail allow, combine recessed cans with hidden cove LED strips along a perimeter soffit. Recessed lights provide task and ambient glow while the cove adds soft uplight that visually raises the ceiling. This duo is great for modern living rooms, though it’s a bit more involved during installation. If you want to sketch layouts or try different positions before drilling, I often use tools like room planner to test spacing and sightlines.

save pin

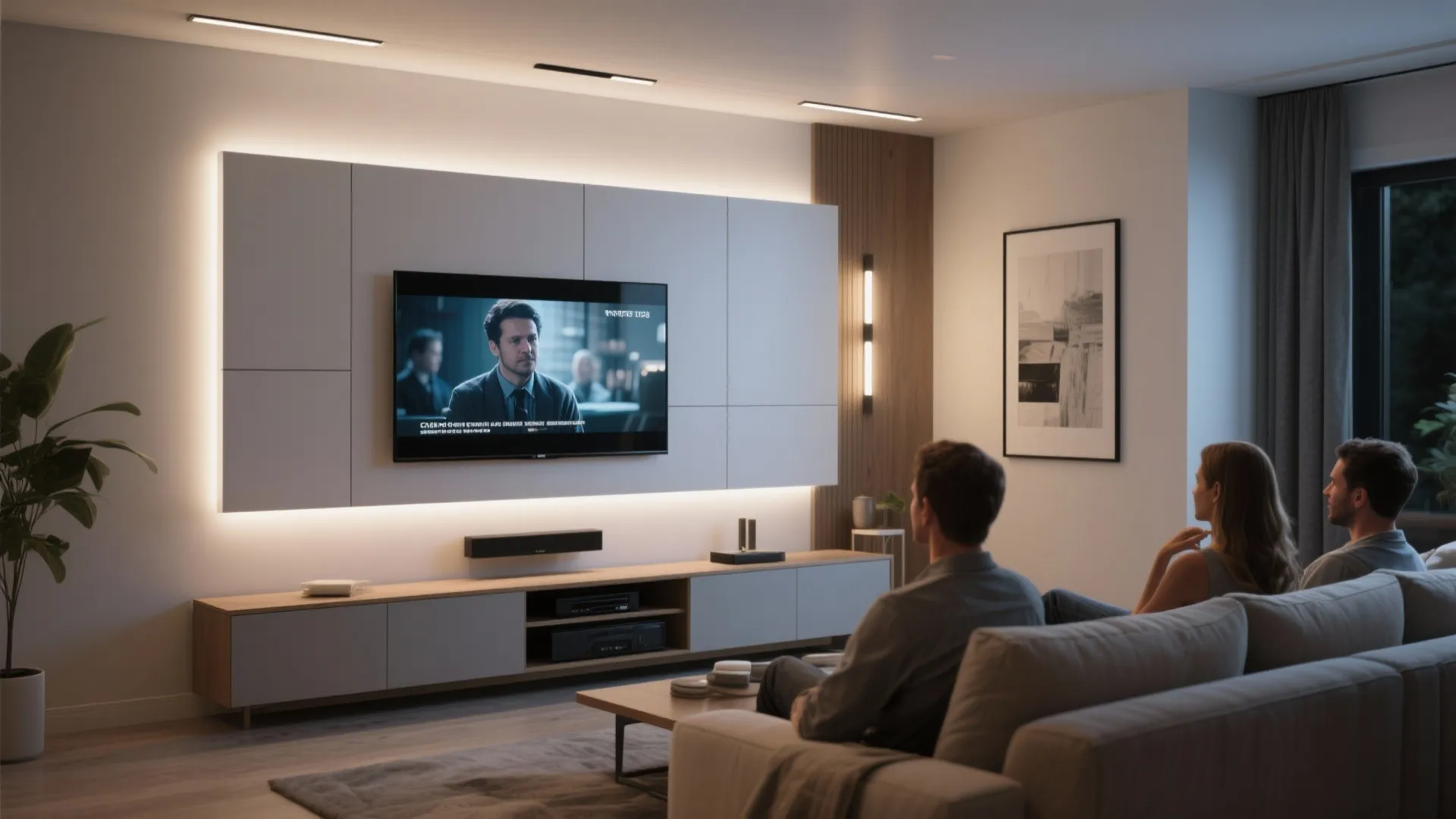

5. Avoid TV glare with smart placement and beam control

Position any recessed fixtures about 30–40 degrees off the front of the TV and use narrow-beam trims or baffles to limit direct reflections. That way you maintain comfortable ambient light without washing out the screen. It’s a small planning detail that saves a lot of rework — I once had to reconfigure an entire row after a client’s TV looked washed out during soccer matches.

save pin

Tips 1:

General spacing rules I use: 4–6 feet between fixtures for 8–9 foot ceilings; add more for higher ceilings. Choose warm 2700K–3000K for living rooms and layer with lamps. If you want to rapidly iterate layouts and visualize light effects, try a 3D floor planner to preview options before committing to cuts and wiring.

save pin

FAQ

Q: How far apart should recessed lights be in a typical living room?

A: For 8–9 foot ceilings, spacing lights roughly 4–6 feet apart works well; increase spacing for taller ceilings. This balances glare and even illumination.

Q: How many recessed lights do I need?

A: Count zones (seating, TV, entry), then size each zone with a loose grid. A small living room often needs 6–8 fixtures, while larger rooms may need 10–12 or more — dimmers help reduce the need for extra fixtures.

Q: What trim and bulb type should I choose?

A: Choose baffle trims to reduce glare and LED modules for energy efficiency. Use warm color temperature (2700K–3000K) for a cozy feel.

Q: Can recessed lights be used with a home automation dimmer?

A: Yes — most modern LED recessed fixtures are compatible with standard trailing-edge dimmers and smart dimmer switches, but always check manufacturer compatibility lists.

Q: How do I avoid shadows on faces when entertaining?

A: Layer lighting: combine recessed ambient with side lamps or wall sconces at eye level to reduce unflattering shadows on faces.

Q: Is it okay to have recessed lights in a low-ceiling living room?

A: Absolutely — keep fixtures shallow, use fewer recessed cans closer together, and add uplighting or wall washes to create a sense of height.

Q: Do code or insulation requirements affect recessed light placement?

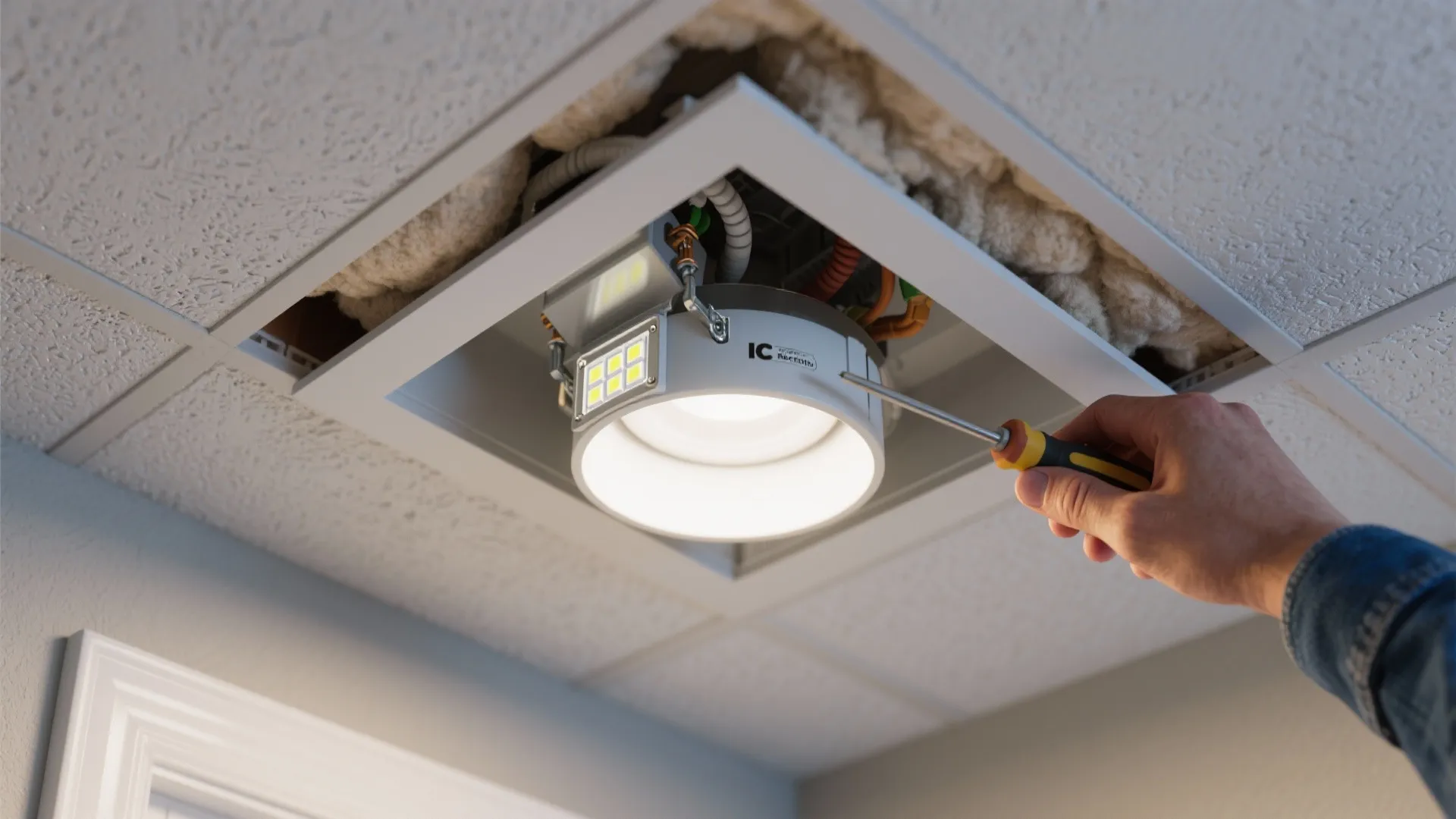

A: Yes — use IC-rated fixtures where insulation is present and follow local electrical codes; consult a licensed electrician for safe spacing and fire-rated boxes.

Q: Where can I test layouts digitally before installing?

A: I recommend using reputable visualization tools; for professional previews, Coohom offers planning and 3D preview features (see their case studies). For authoritative lighting guidance, consult the Illuminating Engineering Society (IES) standards at https://www.ies.org.
