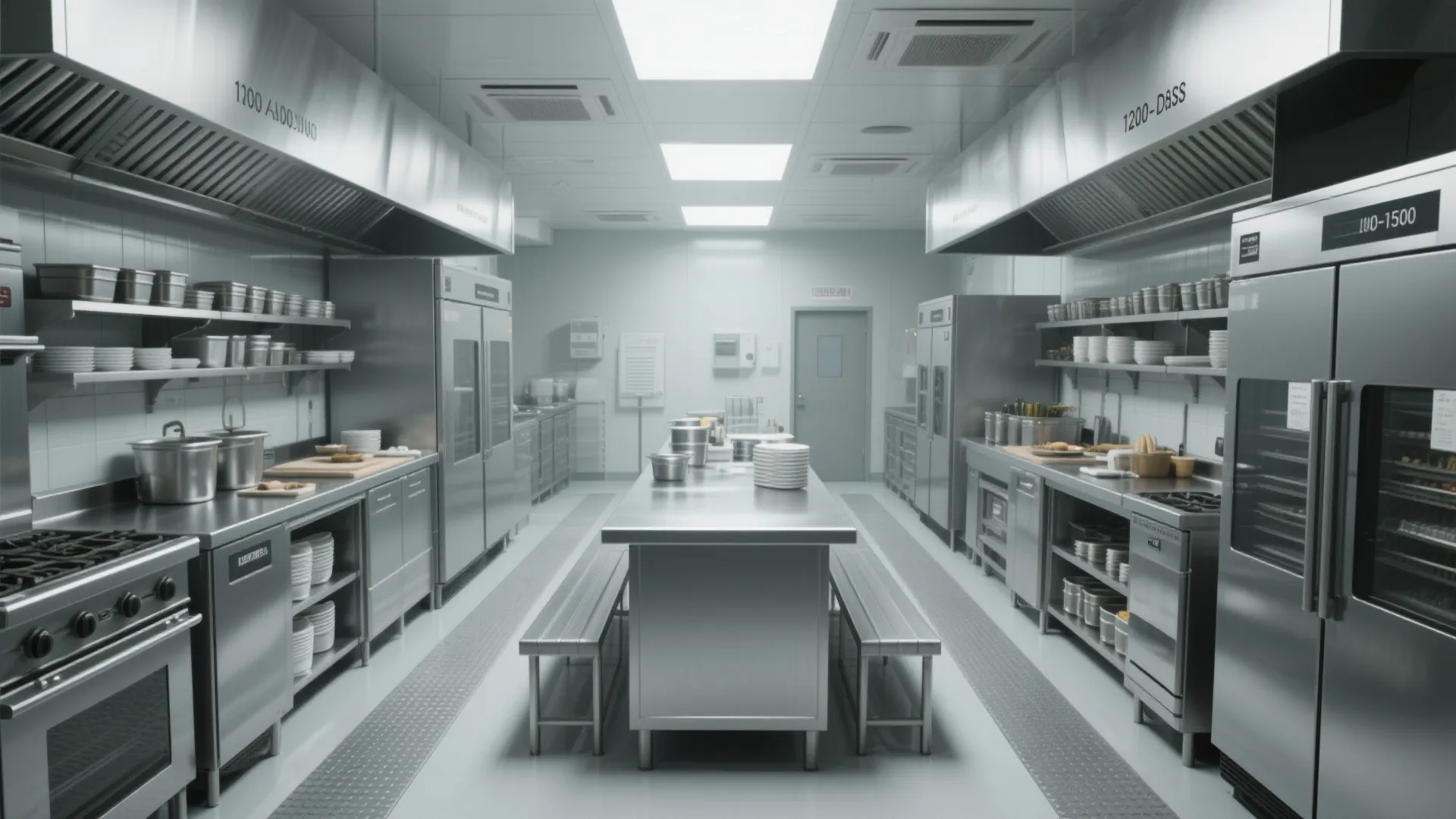

Restaurant Kitchen CAD Blocks: My Expert Guide to Space-Savvy Layouts: 1 Minute to Find the Must-Have Restaurant Kitchen CAD Blocks for Smart, Efficient Design

I’ve planned and re-planned more than a hundred professional kitchens over the last decade, and the same truth keeps surfacing: smart CAD blocks and disciplined layouts shave seconds off every movement—and seconds add up to service capacity. Kitchens designed around the way cooks actually work can lift throughput without adding square footage. In fact, Gensler’s research on workplace performance correlates efficient spatial planning with measurable productivity gains, and in hospitality those gains show up as more covers per hour and fewer misfires. Lighting also plays a quiet role; according to IES task lighting guidance, prep surfaces should be lit in the 500–1000 lux range to maintain accuracy and reduce eye strain during peak service.

Ergonomics data makes an equally strong case for better block planning. The WELL v2 features emphasize minimizing repetitive strain and optimizing reach zones; in my builds, keeping primary tools within a 400–600 mm reach arc, and limiting counter heights to 900–950 mm for standing prep, consistently reduces micro-pauses. Steelcase research further links ergonomic fit to decreased error rates and faster task switching—patterns I’ve seen mirrored on hot lines during tasting menus and in fast-casual trenches.

Core Kitchen Zones I Always Model First

Every CAD starts with clear operational zones: receiving, cold/dry storage, prep, hot line, plating/pass, dish/utility, and circulation. I block these in rectangles first, then refine with equipment symbols. As a rule of thumb, I protect a minimum 1200 mm aisle for two-way traffic; 1500 mm is ideal near the pass where expediter, runners, and chefs converge. This is where a room layout tool can help quickly validate circulation and sightlines: room layout tool.

Hot Line Geometry: Shrink Steps, Improve Tempo

I map the classic sequence—protein, sauté, fry, garnish, pass—left to right for right-handed teams (mirror if your lead is left-handed and sets the kitchen’s choreography). Place undercounter refrigeration directly beneath the most-used stations; vertical reach should not exceed 1600 mm for overheads to keep hot pans safely below shoulder height. I plan 900–1000 mm between opposing lines, expanding to 1200 mm at fryer banks to prevent collision while dumping baskets.

Prep and Cold Line: The Real Throughput Engine

Most service bottlenecks are seeded in prep. I specify 700–750 mm deep stainless benches with 500–1000 lux task lighting and low-glare diffusers to meet IES comfort guidelines. For cold stations, I align GN pans in a consistent left-to-right gradient—protein, veg, garnish, sauces—to reduce cognitive friction. Acoustic absorption under counters and on adjacent walls (mineral wool behind perforated panels) keeps verbal checks audible; a 0.6–0.8 NRC mix near the pass helps clarity without killing energy.

Dish and Utility: The Unsung Flow Control

Dish drops should never cross the hot line. I CAD a unidirectional path: scrape, pre-rinse, rack, machine, unload, store. Keep 1200 mm clear in front of the dishwasher and a 900 mm bypass lane. Locate chemical storage in a vented cabinet; segregate clean and soiled zones with a low splash guard and floor drain gradient toward the soiled side. Noise from dishwashers can spike stress—line the ceiling with washable acoustic baffles and specify rubber feet under equipment.

Storage Logic That Cuts Hunt Time

Dry storage works best as a gridded map: heavy items between knee and hip height, daily pulls at hip-to-elbow height. Cold rooms get a U or L rack configuration with 100 mm wall clearance and 150 mm floor clearance for sanitation and airflow. Place frequently accessed items within a 5–7 meter roundtrip of the prep bench to keep the mise loop tight. Label uprights consistently—aisle, bay, level—so purchase orders translate to a physical location instantly.

Lighting That Makes Food—and Work—Better

Task lighting over prep: 500–1000 lux, 3500–4000 K neutral white for color fidelity without fatigue. Hot line: 300–500 lux with lower glare; specify asymmetrical optics to throw light forward onto the cooking surface. Pass and expo benefit from 400–600 lux and CRI 90+ to judge doneness and plating details. WELL v2 acknowledges glare control and visual comfort as keys to performance; combine matte finishes on benches with shielded luminaires to cut specular reflections.

Material Choices for Durability and Hygiene

304 stainless for benches, 316 near brine and heavy acids. Non-slip quarry tile or resinous flooring (R10–R12 slip rating) with coved base. Choose high-temperature, cleanable acoustics (micro-perf metal with mineral core) near hot stations. Keep heat loads in mind: black finishes read sharp but increase radiant temps around the grill; I often pivot to medium-grey powder coat for equipment panels to reduce perceived heat while maintaining a contemporary look.

Fire, Ventilation, and Heat Management

Hood capture depends on equipment line-up; overhangs of 150–300 mm beyond the appliance face help contain plumes. Balance supply and exhaust to prevent negative pressure dragging dining room odors into the kitchen. Position make-up air diffusers so they don’t disrupt hood capture. Keep fryers away from open-flame char when possible, and add thermal breaks between ovens and low-temp fridges. I set a service corridor behind hoods where possible for quick filter swaps.

CAD Blocks I Keep in My Template Library

- Ranges, combi ovens, fryers with grease troughs and safe-service clearances

- Refrigeration: undercounter, uprights, prep tables with GN layouts

- Sinks: triple-compartment, handwash, mop, with clear turning circles

- Worktables with integrated cutting boards and undershelves

- Hot holding lamps at the pass, with beam spread annotations

- Racks and speed rails with plan and elevation markers

- Aisle buffers and swing radii for doors, ovens, and fridges

- Trash, recycling, grease caddies with routing arrows to exterior

Workflow-First Layout Patterns

For à la carte service, I group stations in convex arcs aimed at the pass so cooks rotate rather than step. For banquets, I switch to linear assembly with staging carts parallel to plating lines. Fast casual benefits from a two-line mirror layout—cookline on one side, build station on the other—with shared cold well in the center. Use an interior layout planner to simulate throughput and test runner paths during peak: interior layout planner.

Ergonomics and Human Factors That Save the Team

Counter edges get a 3–5 mm radius to protect wrists. Frequently used knives park on magnetic rails at shoulder height; rarely used tools migrate to upper shelves. Mount ticket rails within a 15-degree downward viewing angle from the expo’s eye line to reduce neck flexion. Place footrails at standing stations to alternate leg loading and alleviate lumbar strain. Keep hydration within arm’s reach; it sounds banal, but it reduces off-line wander.

Color Psychology and Visual Rhythm

Color is more than branding—it changes tempo. Neutral greys at prep reduce visual noise and support focus, while warm accents near the pass energize pace. Research in color psychology notes that cool hues can support sustained attention, while saturated reds elevate arousal—good for the pass, not for fine knife work. Establish visual hierarchy with finishes: matte for work planes, satin for verticals, and high-gloss only in feature areas away from task glare.

Acoustics Without Killing the Buzz

Target a balanced spectrum: soft surfaces on ceilings and selected walls, hard and cleanable finishes on work planes. Add line-of-sight baffles near the dish area and perforated metal clouds above the pass. Maintain communication clarity by treating slap echo, not eliminating energy; the goal is crisp call-and-response without fatigue by the second turn.

Plan Review Checklist Before You Lock the CAD

- Two-way aisles ≥1200 mm; 1500 mm at the pass

- Clear swing radii for all doors and appliances

- Primary reach arcs 400–600 mm; overheads ≤1600 mm

- Task lighting: prep 500–1000 lux; pass 400–600 lux; hot line 300–500 lux

- Unidirectional dish flow with soiled/clean separation

- Hood capture and make-up air balance verified

- Thermal separation between hot equipment and refrigeration

- Slopes to drains and non-slip finishes confirmed

- Dedicated runner lanes from pass to dining, no cross-traffic

From CAD to Reality: Mock and Iterate

Before final construction, I stage a cardboard mock-up of the hot line, test ticket volume with a skeleton crew, and time common movements—protein to pass, fry dump to salt to hold, garnish reach, and expo plate turn. Small relocations of rails, wells, or shelves routinely save 10–15 seconds per dish. Across a 150-cover night, that’s real capacity.

FAQ

Q1. What aisle width should I use between parallel cook lines?

A1. Aim for 900–1000 mm for light stations and 1200 mm around fryer or combi oven zones to prevent collision and allow safe basket/door operation.

Q2. How bright should prep lighting be?

A2. 500–1000 lux at the work surface with 3500–4000 K color temperature and CRI 90+ helps accuracy and reduces eye strain, aligning with IES task guidance.

Q3. What’s the optimal counter height for standing prep?

A3. Most kitchens perform best at 900–950 mm; adjust ±25 mm for staff anthropometrics and task type (e.g., heavy chopping slightly lower).

Q4. How do I lay out a dish area to avoid cross-contamination?

A4. Keep a one-way sequence—scrape, pre-rinse, rack, machine, unload—with a physical divider between soiled and clean. Provide 1200 mm clear in front of the machine and a 900 mm bypass lane.

Q5. Where should undercounter fridges go on the hot line?

A5. Directly beneath the corresponding station with thermal breaks between heat sources and cold units. Store highest-turn items at hip height for fastest grabs.

Q6. What ventilation mistakes cause the most headaches?

A6. Undersized hood overhangs, poorly placed make-up air that disrupts capture, and unbalanced exhaust/supply that drags odors into dining rooms. Maintain 150–300 mm overhang beyond appliance faces and balance airflow.

Q7. How can I use CAD blocks to speed service?

A7. Include swing radii, reach arcs, and aisle buffers in every block. When you see conflicts in plan—oven doors crossing walkways, for example—you can fix them before they become service delays.

Q8. What finishes control glare without dulling the space?

A8. Matte or low-sheen worktops, satin verticals, and shielded luminaires. Keep glossy finishes away from task planes and the pass to protect visual comfort.

Q9. How do I plan for runners at the pass?

A9. Reserve 1500 mm clear in front of the pass with a dedicated lane to dining. Add acoustic treatment overhead so calls remain intelligible during peak.

Q10. What’s a quick way to validate my layout before construction?

A10. Build a tape-and-cardboard mock-up and simulate service with a small crew. Time movements and adjust block positions until the steps feel frictionless. You can also test variants with a layout simulation tool to visualize circulation and congestion.

Q11. Any guidance on color near the pass?

A11. Warm, saturated accents can energize the pace, but keep work planes neutral to maintain focus and accurate color perception when judging doneness.

Q12. How do I keep noise under control without soft, hard-to-clean surfaces?

A12. Use cleanable micro-perforated metal panels with mineral cores, sealed acoustic baffles, and rubber isolation under equipment to reduce structure-borne noise.
