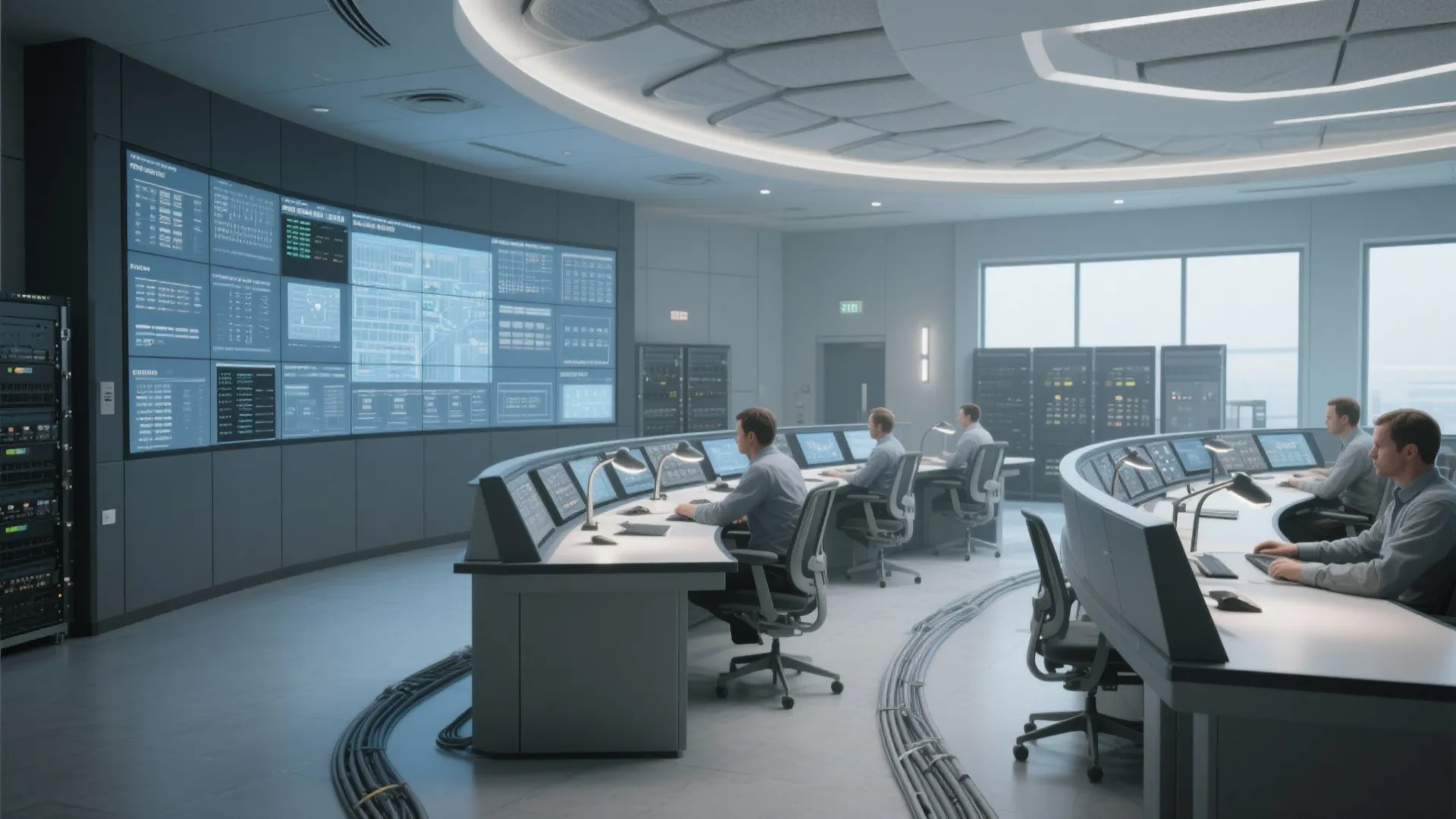

SCADA Room Design: Key Principles for Control Centers: Fast-Track Guide to an Efficient SCADA Room in Just 1 Minute

Designing a SCADA control room is about clarity, resilience, and human-centered detail. I prioritize sightlines to critical displays, resilient infrastructure, and ergonomic consistency so operators can respond quickly and accurately. Research reinforces the stakes: Steelcase found that posture variability and task lighting reduce cognitive fatigue in complex monitoring work, improving attention across long shifts; WELL v2 guidelines also emphasize visual comfort, recommending luminance contrast control and glare mitigation for task-critical environments to protect visual acuity and reduce errors.

Operational efficiency must be quantifiable. Herman Miller’s research on ergonomic seating and movement shows reductions in musculoskeletal strain and improvements in sustained attention during multi-hour tasks. The IES recommends balanced vertical and horizontal illuminance and careful luminance ratios to preserve screen legibility and adapt to low-light monitoring scenarios. I design lighting layers to meet these standards while giving operators independent control of task lights to fine-tune illuminance at the console.

Core Spatial Strategy

Start with a clean axial alignment: primary video walls and process synoptic displays should sit within a 15–20° horizontal field from each operator’s neutral line of sight. Consoles are staggered in shallow arcs so cross-team communication happens without raised voices, and critical alarm displays stay central. For planning alternative layouts or simulating sightlines before build-out, I often test options with an interior layout planner like this room layout tool: room layout tool.

Ergonomics: Consoles, Seating, and Reach

Height-adjustable consoles with a 22–32 inch monitor-to-eye distance and top-of-screen at or slightly below eye level reduce neck flexion. Cable management routes under-desk and rear gutters keep heat and noise away from knees and calves. Chairs should support micro-movements: breathable back, adjustable lumbar, 3D armrests that clear console edges, and casters suited to anti-static flooring. Herman Miller research links varied posture and microbreaks with reduced discomfort over prolonged monitoring cycles; I embed sit–stand cues into shift protocols so changes in posture align with low-risk operational windows.

Visual Hierarchy and Display Design

Alarm hierarchy must be legible at a glance. I prefer muted base palettes for background process data, reserving high-saturation hues for true exceptions. Color psychology matters: according to Verywell Mind’s synthesis on color psychology, red increases arousal and urgency, which is useful for critical alarms, while cooler hues maintain calm for routine monitoring—applied sparingly to avoid desensitization. Large displays should limit information density per tile and maintain consistent grid systems. Avoid bezel confusion by keeping high-priority components away from mullion intersections.

Lighting: Glare Control, Circadian Balance, and Adaptability

Lighting makes or breaks a SCADA room. I use indirect, dimmable ambient lighting with a warm-neutral range (3000–4000K) and task lighting with higher CRI for paper work and inspection. The IES standards stress luminance balance and glare control; matte finishes and baffled luminaires prevent specular reflection on screens. WELL v2 guidance encourages tunable lighting and visual comfort controls—operators should be able to dial down intensity during night shifts, with circadian-friendly settings to reduce sleep disruption across rotating schedules.

Acoustic Comfort and Speech Intelligibility

Noise is cognitive load. Reinforced gypsum and mineral wool cores in partitions, ceiling clouds over console clusters, and soft-finish wall panels keep reverberation times within comfortable ranges for speech. White noise can mask intermittent mechanical sounds, but I prefer addressing sources directly: vibration isolation for server racks, decoupled doors, and careful HVAC diffuser selection to prevent high-frequency hiss aimed at operator positions.

Workflow, Zoning, and Behavioral Patterns

SCADA rooms benefit from a clear behavioral map: an operations zone (low-distraction), a collaboration bay (stand-up review), and a supervisor area (overwatch with quick ingress/egress). Circulation should skim behind consoles rather than cut through sightlines. Access control and egress paths remain obvious but discreet; swing-free doors and low-profile hardware reduce accidental noise. When testing different console radii and aisle widths, a layout simulation tool helps validate collision points and clearances: layout simulation tool.

Resilience: Power, Cooling, and Redundancy

Mission-critical means planning for failure. Dual UPS feeds at console clusters, isolated circuits for video walls, and clean cable routing reduce single points of failure. Cooling should account for both ambient conditions and rack-level heat; I prefer separate HVAC zones for equipment rooms with positive pressure, and underfloor or rear-exhaust paths that keep warm air away from operator knees. Labeling and service corridors must allow on-the-fly maintenance with minimal disruption to monitoring.

Materials and Finishes

Low-gloss surfaces reduce veiling reflections; anti-static flooring protects equipment; rounded console edges prevent wrist compression. Sustainable selections—low-VOC paints, certified composite panels, and durable textiles—support long-term health and maintenance. I avoid highly textured materials near visual focus areas to prevent visual noise and distraction.

Human Factors: Fatigue Management and Shift Design

Fatigue compounds risk. Alternating microbreaks, hydration points within easy reach, and planned visual resets (distant focal targets) help stave off tunnel vision. Seating with active support and task lighting controls at the operator level reinforce autonomy. Consistent alarm sound profiles reduce startle while preserving urgency; auditory thresholds should avoid harsh high-frequency peaks.

Security and Access Control

Layered security—with controlled vestibules, clear credential zones, and camera coverage that avoids screen capture—protects data and privacy. Sightlines from supervisor stations to access points allow quick verification without disrupting monitoring.

Commissioning and Testing

Before handover, I run light measurements at operator eye level, test glare against live screen content, record reverberation times, and simulate shift handoffs. Operator feedback loops help refine console heights, monitor angles, and lighting presets. Documentation should include annotated diagrams for power, data, and cooling paths with maintenance clearances marked.

Authority References

For deeper reading on workplace performance and environmental ergonomics, Steelcase provides research perspectives on cognitive load and posture in task-intensive environments, and WELL v2 offers visual comfort and lighting guidance directly applicable to 24/7 monitoring spaces: Steelcase research and WELL v2.

FAQ

How should operator sightlines be organized?

Keep critical displays within 15–20° of the operator’s neutral gaze, stagger consoles in shallow arcs, and avoid placing high-priority content across display bezels.

What lighting temperatures work best for SCADA rooms?

Use 3000–4000K ambient lighting to reduce eye strain, with high-CRI task lights for paperwork, and provide dimming for night shifts in line with WELL v2 visual comfort guidance.

How do I mitigate glare on screens?

Combine matte finishes on consoles, baffles on luminaires, controlled luminance ratios per IES guidance, and perpendicular monitor placement to dominant light sources.

What are the ergonomic essentials for consoles and seating?

Height-adjustable consoles, monitor tops at or slightly below eye height, 22–32 inch viewing distance, adjustable lumbar chairs with supportive armrests, and space for posture variation.

How should zones be planned in a control center?

Divide into operations (low-distraction), collaboration (briefing), and supervision (overwatch) zones, with circulation behind consoles and protected sightlines to video walls.

How can acoustics improve operator performance?

Reduce reverberation with ceiling clouds and soft wall panels, isolate equipment vibration, and ensure speech intelligibility without reliance on masking noise.

What redundancy does a SCADA room need?

Dual UPS feeds, isolated circuits for displays, separate HVAC zones for equipment rooms, and clearly labeled service corridors for live maintenance.

How should alarm colors be chosen?

Reserve high-saturation red for critical alarms, use cooler tones for routine states, and maintain consistent palettes to avoid alarm fatigue, aligning with color psychology insights.

What flooring and finishes are recommended?

Anti-static flooring, low-gloss surfaces to minimize reflections, rounded edges on consoles, and low-VOC materials for health and durability.

How do I validate the layout before construction?

Model console arcs, sightlines, and circulation using a room design visualization tool and perform mock operations to test communication and access control.
