SCADA Room Design: Maximize Efficiency in Limited Space: Fast-Track Guide to Setting Up a Modern SCADA Room

I design SCADA rooms to perform under pressure. When space is tight, the difference between a room that merely fits and a room that truly works comes down to sightlines, ergonomics, light control, and acoustics. Operators need uninterrupted visual access to critical data, minimal cognitive load, and a layout that supports swift collaboration without clutter.

Reliable performance starts with standards and measurable targets. For lighting, the Illuminating Engineering Society recommends 300–500 lux for control rooms, with controlled luminance to reduce glare and veiling reflections on displays (IES standards). On the human side, the WELL v2 guidelines call for reducing distracting noise and improving speech intelligibility through reverberation control (WELL v2, Sound concept). These numbers align with my field experience: once ambient illuminance exceeds ~500 lux without spectral tuning or shading, micro-glare and contrast loss on multi-screens quickly degrade readability.

Layout impacts reaction time. Steelcase research indicates that workplaces with optimized posture support and proximity reduce musculoskeletal discomfort and increase task performance over time; proximity and reach zones materially affect efficiency (Steelcase research). When consoles, shared screens, and support equipment are placed within ergonomic reach (typically 400–600 mm for frequent reach) and the collaborative axis is kept clear, operators move less, coordinate faster, and maintain attention longer. For rapid scenario testing in limited footprints, a room layout tool can help visualize console spacing, circulation, and viewing angles: room layout tool.

Plan the Control Core First

Begin with the operational nucleus: operator consoles, primary video wall, and critical servers/UPS behind a service corridor. Optimal sightlines place the video wall within a 30–35° vertical viewing angle and 1.5–2.5 times the image height for primary operators. Keep the coordination triangle—lead operator, secondary operator, supervisor—unobstructed, with 1,000–1,200 mm clear circulation aisles to allow quick pivots and face-to-face handoffs.

Consoles, Reach, and Visual Hierarchy

Design consoles to enforce a clear information hierarchy. Primary alarms at the centerline, secondary process trends flanking, tertiary logs accessible but out of the primary focal band. Maintain monitor top edges around eye level to reduce neck extension; angle screens 10–20° to limit specular glare. The ergonomic reach envelope should separate frequent controls (keyboard, jog dial, alarm ack) within 400–600 mm and occasional controls beyond 700 mm. Cable management and integrated power/data raceways prevent visual noise and snag hazards.

Lighting That Protects Legibility

Layer light: low-glare ambient at ~300–400 lux, task lights with ~2700–3500K for localized control, and dimmable bias lighting around the video wall to stabilize contrast and reduce eye strain. Use luminaires with UGR < 19 in the operator zone. Avoid downlight grids directly above screens; lateral wall washers and indirect uplight help maintain uniformity (0.6–0.8) without specular hits. For evidence-based guidance on visual comfort and performance thresholds, see IES recommendations at ies.org/standards.

Acoustic Control in Compact Rooms

Control rooms accumulate HVAC hum, equipment fans, and constant speech. Target NC-30–35 for background noise. Apply broadband absorption (NRC 0.8+) on rear walls and ceilings in the operator field; introduce limited diffusion near the collaboration zone to maintain speech clarity without echoes. WELL v2’s Sound concept provides benchmarks for reverberation and distraction mitigation; use those as thresholds for small-volume rooms where RT60 can spike quickly.

Color Psychology for Focus and Alertness

Neutral, low-saturation palettes reduce cognitive fatigue. Cool neutral walls (e.g., desaturated blue-gray) can help maintain vigilance without overstimulation; Verywell Mind’s color psychology overview notes cooler tones support focus whereas highly saturated reds increase arousal and may elevate stress for prolonged exposure. Reserve accent colors for wayfinding and status zones, not broad surfaces near the video wall.

Micro-Zoning: Make Small Spaces Feel Capable

Divide limited footprints into functional micro-zones without walls: an operator core, a brief-stand collaboration bay, and a quiet supervision perch. Use console orientation and light cues to delineate zones. Circulation should never cross the primary sightline to the wall. A compact glass-front equipment alcove with acoustic treatment keeps heat and noise isolated while allowing quick visual checks.

Thermal and Air Quality Discipline

Equipment loads raise temps. Provide dedicated return above the video wall and low-velocity supply diffusers near the operator area to avoid drafts across faces or screens. Keep setpoints within 21–23°C, with CO2 kept under 800 ppm to guard against cognitive sluggishness during long shifts. Monitoring these parameters aligns with WELL v2 Air and Thermal Comfort guidance.

Reliability: Power, Redundancy, and Maintenance Access

Plan dual power feeds, UPS with clear maintenance paths, and color-coded cable maps. In tight rooms, create a 600–800 mm service corridor behind consoles or racks. Labeling visible from the operator side reduces troubleshooting time. Use modular furniture and front-access racks to avoid dismantling during hot swaps.

Human Factors for 24/7 Shifts

Shift work amplifies fatigue. Integrate adjustable sit-stand consoles, footrests, and task chairs with lumbar support and adjustable armrests consistent with ergonomics research on musculoskeletal health (Steelcase research). Provide a low-stimulus nook—just a compact bench and subdued light—for short breaks to reset focus without leaving the control perimeter.

Coordination and Incident Workflow

Map typical incident flows: detection, verification, communication, resolution. Position whiteboards or a small digital planning surface within 1–2 steps from the lead operator for rapid swarming. Keep headsets and radios docked at the edge of the collaboration bay. Limit the number of public-facing screens to avoid crowding and maintain data confidentiality.

Material Selection for Durability and Hygiene

Choose low-VOC finishes and matte, fingerprint-resistant laminates on consoles. Floors should be anti-static, high-abrasion, and easy to clean. Acoustic ceiling tiles with high NRC and washable surfaces balance performance with maintenance. Avoid glossy paints around screens to reduce reflected glare.

2024–2025 Control Room Trends

Smaller footprints, more data. I see the best results from consolidating displays into fewer, larger, higher-contrast panels; adding integrated bias lighting; and emphasizing flexible sit-stand ergonomics. Lighting is increasingly tunable to circadian cues during night shifts, and collaboration moves to compact digital boards rather than sprawling tables.

Compact Layout Example

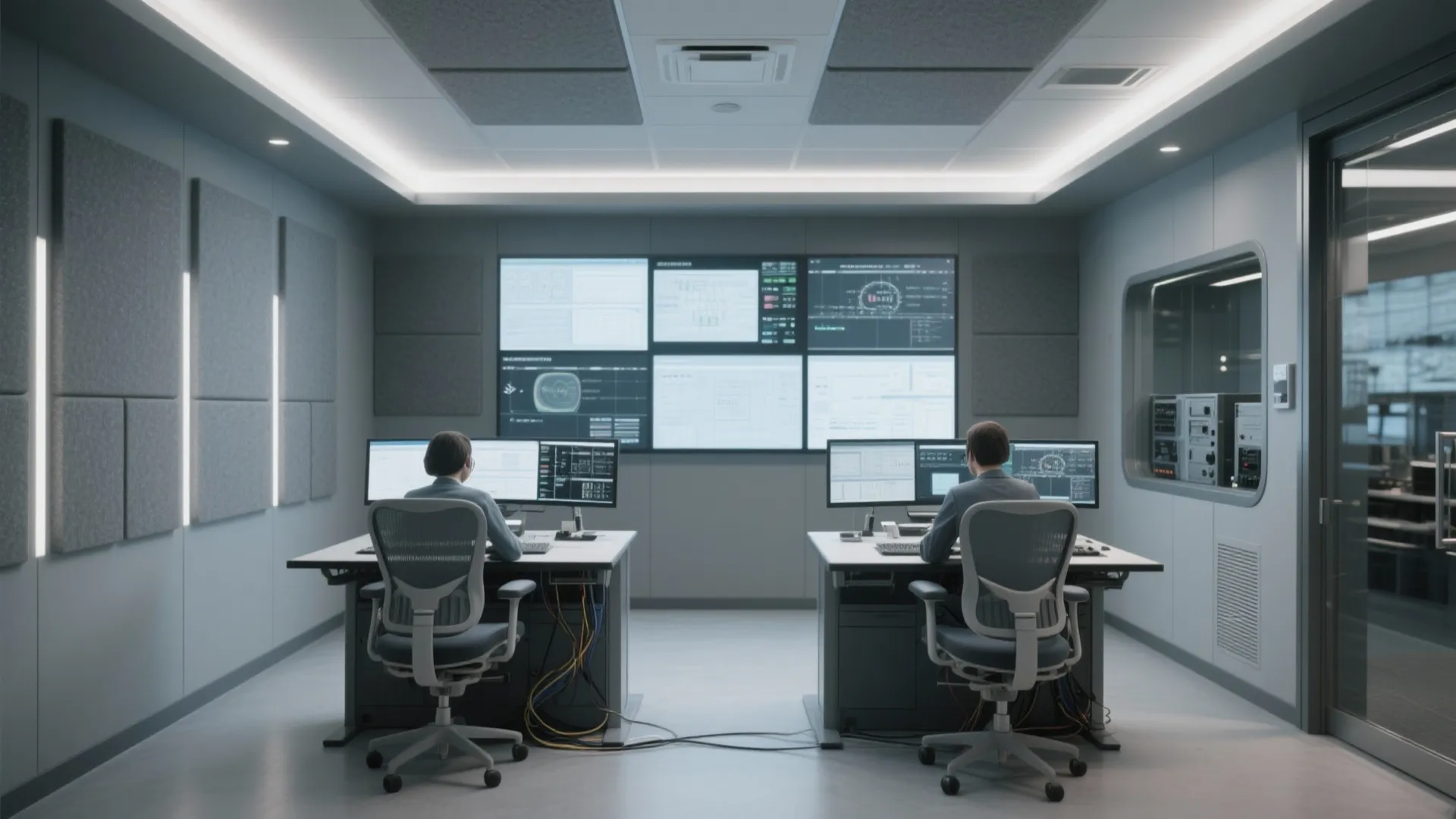

In a 18–22 m² SCADA room, place two operator consoles facing a 3x2 display wall, with 1,200 mm aisle behind. Supervisor perch at the rear corner with acoustic backing. Equipment rack in a glassed alcove offset from the entry. Circulation arcs around operators, never crossing the viewing axis. Prototype this arrangement with an interior layout planner to test sightlines and aisle widths: interior layout planner.

FAQ

What illuminance should I target in a compact SCADA room?

Aim for 300–400 lux ambient with local task lighting, maintaining uniformity and low glare per IES guidance to protect display legibility.

How do I prevent screen glare in limited spaces?

Use luminaires with UGR < 19, indirect/upward lighting, matte finishes, and screen angles of 10–20°. Avoid downlights directly over displays.

What’s the ideal viewing distance to a video wall?

Typically 1.5–2.5 times the image height for primary operators, keeping vertical viewing angles within 30–35°.

How much aisle clearance do I need?

Provide 1,000–1,200 mm clear aisles for swift movement and code compliance, even in tight rooms.

Which chair and console features matter most for 24/7 use?

Adjustable sit-stand consoles, task chairs with lumbar support and adjustable arms, footrests, and well-defined reach zones reduce fatigue.

How can I manage acoustics without thick partitions?

Target NC-30–35; apply high-NRC ceiling tiles and rear-wall absorption, with limited diffusion near the collaboration spot.

What color palette supports focus?

Low-saturation cool neutrals around screens, with accents reserved for wayfinding and status. Avoid high-gloss finishes that reflect light.

Where should equipment racks go in a small room?

In an acoustically treated alcove with glass for visual checks, plus a 600–800 mm service corridor to maintain access and airflow.

How do I integrate collaboration tools without crowding?

Use a compact digital board or small whiteboard within two steps of the lead operator, and keep radios/headsets docked at the bay edge.

What are the thermal comfort targets?

Maintain 21–23°C, low drafts, and adequate return near heat sources. Monitor CO2 to stay below ~800 ppm for cognitive performance.

Do I need tunable lighting for night shifts?

Tunable white helps night-shift alertness; cooler spectra during high-vigilance periods and warmer tones for breaks can reduce fatigue.

What redundancy is essential in a compact SCADA room?

Dual power feeds, UPS, labeled cabling, and front-access racks ensure fast maintenance and reliable uptime in tight footprints.
