Small Assisted Living Floor Plans: Expert Space Solutions: Fast-Track Guide to Maximizing Small Assisted Living Spaces

I design small assisted living environments to feel both reassuring and liberating. In compact footprints, the challenge is balancing clinical needs with home-like warmth, while optimizing circulation, lighting, and acoustics. In my recent 38–60 m² unit conversions, careful zoning and storage integration reduced staff travel paths and resident confusion—two small wins that add up to better daily living.

Data consistently supports a people-first approach. Steelcase research notes that clear spatial cues and simplified wayfinding lower cognitive load and stress for occupants and caregivers. WELL v2 guidance recommends glare control, balanced ambient lighting, and access to daylight as foundational for health, with illuminance targets around 300–500 lux in general areas and task lighting tuned to needs. These standards anchor my specification decisions and help clients understand how lighting and layout jointly support safety and calm. For further reading, WELL’s performance-based framework outlines actionable strategies for light, air, and comfort, while Steelcase research explores behavior-informed environments that promote dignity and independence.

Safety and usability increase when policies follow evidence. I keep circulation paths between 900–1200 mm clear, avoiding tight turns, and create small “pause pockets” along longer corridors to reduce fatigue. Night lighting is soft and indirect—2700–3000K LED strips at baseboards or under vanities—so residents maintain orientation without disruptive glare. Bathrooms use matte, high-contrast tile in the 30–60 LRV range to distinguish surfaces and reduce slip risks, and grab bars are aligned with transfer zones rather than over-generalized placements.

Core Spatial Strategy

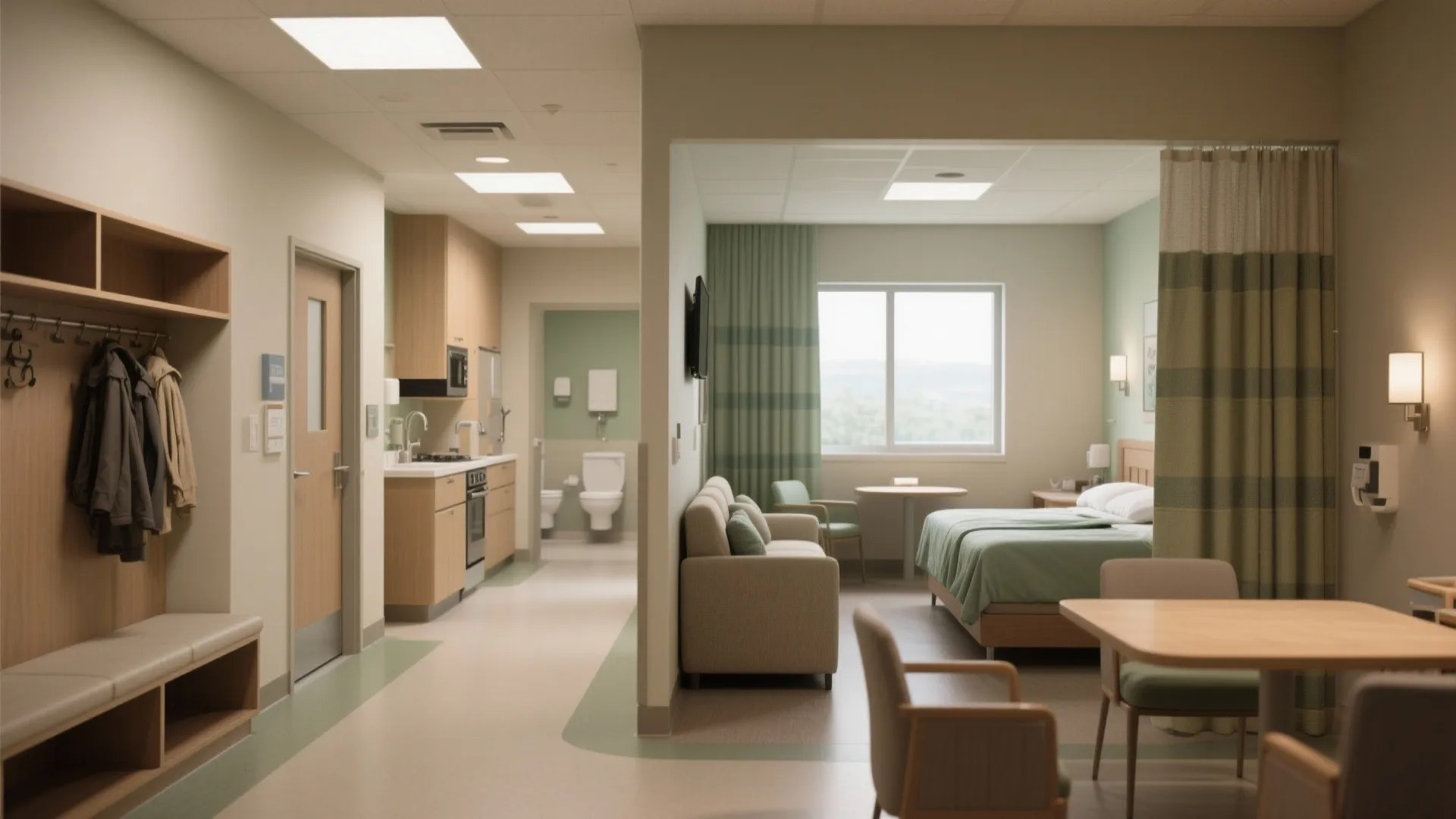

Small assisted living plans work best when the unit reads as three distinct rings: arrival, living, and care. Arrival holds a bench, coat storage, and a drop shelf for meds and daily essentials. Living combines a kitchenette, dining nook, and soft seating, with sightlines to a window. Care zones include sleep and bath, quietly separated yet accessible. This layered approach clarifies intention and reduces wandering.

Unit Sizes and Ratios

In 32–45 m² studios, I aim for a 60/25/15 split: living (including kitchenette), sleep, and bath. At 45–60 m² one-bedrooms, I shift slightly to 55/25/20, expanding living for visitors and light exercise. Within these ratios, I maintain straight-through circulation: entry to living to sleep to bath—no backtracking. If your team needs to visualize options quickly or test furniture clearances, a room layout tool helps simulate turning radii, wheelchair approach zones, and staff pathways.

Living Area: Warmth with Cues

A compact living zone benefits from clear task anchors. I use a three-point arrangement: a reading chair with task light (300–500 lux task level), a small table for activities, and a TV at neutral height to avoid neck strain. Color psychology can gently support routine—muted greens and warm neutrals lower arousal and encourage lingering; Verywell Mind highlights green’s association with calm and balance. Acoustic comfort matters too: fabric panels and soft window treatments tamp down echoes, helping residents with hearing aids avoid auditory overload.

Kitchenette and Dining: Safe Autonomy

For small kitchenettes, I prefer 1800–2400 mm linear runs with induction hobs, front-control ovens set at chest level, and contrasting edge bands for visual clarity. Countertops at 860–890 mm suit most residents, with D-shaped handles and loop pulls aiding grip. Storage is zone-based: daily-use items at waist height; heavier items near knee height to minimize lifts. Dining remains close—ideally adjacent—to the window for circadian support and social cues. Under-cabinet lighting at 3000–3500K reduces shadows at prep tasks.

Bedroom: Transfer Zones and Orientation

The bed anchors the plan. I maintain 900–1000 mm clearance on at least two sides for lift use and caregiver support. Headboards in mid-contrast fabrics provide visual grounding and protect walls. A small gallery shelf or memory niche near the entry aligns with behavior patterns—familiar photos reduce disorientation upon waking. Nightstands integrate motion-sensing lights (low-lumen, warm white) and cable management to avoid trip hazards. Closets use sliding doors and full-height pulls; interior lighting triggers automatically.

Bathroom: Safe Habits

Slip-resistant flooring (≥ R10 rating) and rear-wall contrasting tile help residents detect depth. A wall-hung sink with knee clearance supports seated grooming, while single-lever mixers reduce fine motor demands. Showers are curbless, 1500×900 mm if possible, with linear drains and dual grab bars set to transfer positions. I angle mirrors slightly to avoid glare and specify non-gloss paint to protect contrast at edges.

Lighting and Glare Control

Lighting blends ambience, task, and orientation. Ambient light: 300–400 lux in living; 200–300 lux in bedroom; 150–200 lux pathway at night. Task light: 500+ lux at reading and kitchen prep. Color temperature stays warm (2700–3000K) in living and sleep to preserve circadian comfort, nudging to 3500K in kitchen and bath for visual acuity. I soften brightness contrasts to align with IES glare control recommendations, using diffused lenses, matte finishes, and indirect cove lighting along circulation.

Ergonomics and Human Factors

Every touchpoint should accommodate aging bodies. Lever handles, rocker switches at 900–1100 mm, and seated-height grooming counters lower effort. I adjust furniture seat heights to 450–480 mm with firm cushions, and favor armrests that aid sit-to-stand transitions. Power and data run along walls, not floors, and I standardize outlets at both standard and higher positions to avoid excessive bending. Storage labels use simple icons, supporting cognition without feeling institutional.

Acoustic Comfort

Small units amplify noise if finishes are too reflective. I balance absorptive and diffusive elements: rugs with solid underlay, acoustic curtains, upholstered chairs with high backs, and perforated ceiling panels in corridors or community areas. In sleeping zones, a modest NRC of 0.6–0.7 for ceiling and wall treatments keeps ambient noise stable without muting conversation.

Materials and Sustainability

Materials should be tactile, safe, and maintainable. I choose low-VOC coatings, slip-resistant flooring, and laminates with antimicrobial properties. Wood tones bring warmth; laminate edges in mid-contrast improve visual boundaries. Fabrics use crypton-style or bleach-cleanable finishes while staying residential in texture. Sustainability is pragmatic: durable, repairable components reduce long-term waste and cost.

Wayfinding and Visual Rhythm

In small footprints, subtle cues prevent confusion. I use color blocking at thresholds, consistent door hardware, and luminance contrast between walls and floors. Visual rhythm—repeating forms and textures—creates predictability. Artwork follows a biographical thread, placed at decision points to guide movement. I avoid complex patterns that can trigger misperception for residents with visual processing issues.

Staff Workflow and Storage

If staff travel paths exceed necessity, care feels rushed. I cluster supply closets near unit entries and integrate shallow storage near living zones for linens, cleaning, and therapy tools. Medication storage is lockable but present—visible routines reduce errors. When planning multiple units, an interior layout planner helps test supply distribution and reduce redundant movement between rooms.

Micro-Community Spaces

Even in small facilities, shared lounges and pocket gardens matter. Daylight, plants, and comfortable seating foster social interaction, lowering loneliness indicators. Seating arrangements favor small groups of two to four, with direct sightlines to exits to minimize anxiety. Soft acoustics and warm light keep gathering areas inviting throughout the day.

My Field Notes

On a recent retrofit, adding a 300 mm deep memory niche near entries cut nighttime wandering by giving residents a familiar cue. Swapping glossy tiles to matte improved perceived depth in baths, reducing hesitation. Simple upgrades—baseboard night lights and consistent door pulls—made movement safer without signaling “hospital.” These are small, human-scale changes that shift daily experience.

Authority references

Explore behavior-first design insights at Steelcase research and performance standards at WELL v2 for lighting, comfort, and health.

FAQ

Q1: What minimum clearances should I plan around the bed?

A1: Aim for 900–1000 mm on at least two sides to support walkers, lifts, and caregiver assistance.

Q2: How bright should living areas be?

A2: Keep general ambient light at 300–400 lux, with 500+ lux task lighting for reading and crafts, aligned to WELL v2 and IES guidance.

Q3: Are warm or cool lights better for seniors?

A3: Warm white (2700–3000K) suits living and sleeping for comfort; shift to 3500K in kitchen and bath for clarity without glare.

Q4: What flooring reduces slips without looking clinical?

A4: Matte, slip-resistant LVT or porcelain rated around R10 works well; pair with mid-contrast edges to improve depth perception.

Q5: How can I improve wayfinding in a small unit?

A5: Use consistent hardware, color accents at thresholds, memory niches, and artwork near decision points to gently guide movement.

Q6: What acoustic steps help residents with hearing aids?

A6: Add soft window treatments, area rugs with underlay, high-back seating, and selective acoustic panels to reduce echo and high-frequency glare.

Q7: Which kitchen features support safe autonomy?

A7: Induction hobs, chest-height ovens, D-shaped pulls, under-cabinet lighting, and waist-height storage reduce strain and risk.

Q8: How do I handle nighttime lighting?

A8: Install low-level, indirect path lights at 2700–3000K; avoid blue-rich light that disrupts sleep and increases confusion.

Q9: What bathroom dimensions work for assisted showers?

A9: A curbless 1500×900 mm shower with linear drain and correctly placed grab bars supports transfers and caregiver access.

Q10: How should staff storage be arranged in compact facilities?

A10: Cluster supply closets near entries and add shallow, distributed storage in units to cut travel time and reduce care delays.

Q11: What colors help residents feel calmer?

A11: Muted greens, warm neutrals, and mid-contrast tones support calm and orientation; avoid busy patterns that can distort perception.

Q12: Can layout tools help validate turning radii?

A12: Yes, using a room design visualization tool lets teams simulate mobility devices, furniture clearances, and staff routes before building.
