Small Dog Trot House Plans for Modern Living: 1 Minute to Find Efficient, Cozy Layouts You’ll Love

I’ve always loved how the classic dogtrot turns constraints into comfort: two compact volumes linked by an open-air breezeway that becomes the home’s seasonal heartbeat. In hot-humid regions, that void is not wasted space; it’s passive ventilation you can live in. Today’s small dogtrot house plans adapt that vernacular to modern living—think 600–1,200 sq ft per volume, flexible interiors, high-performance envelopes, and a breezeway calibrated for real use, not just nostalgia.

In warm climates, cross-ventilation is more than a nice-to-have. WELL v2 recommends operable windows and strategies that support natural ventilation to reduce reliance on mechanical cooling, while the Illuminating Engineering Society notes that daylit spaces paired with glare control improve comfort and task performance. Workplace research from Steelcase indicates that access to daylight and choice of settings correlates with higher wellbeing and productivity. Translating that to a home: a well-proportioned dogtrot funnels wind, tempers heat gain, and turns the shaded middle into a daily living zone. For more on human-centered comfort standards, see WELL v2 guidance at wellcertified.com and IES lighting principles at ies.org/standards.

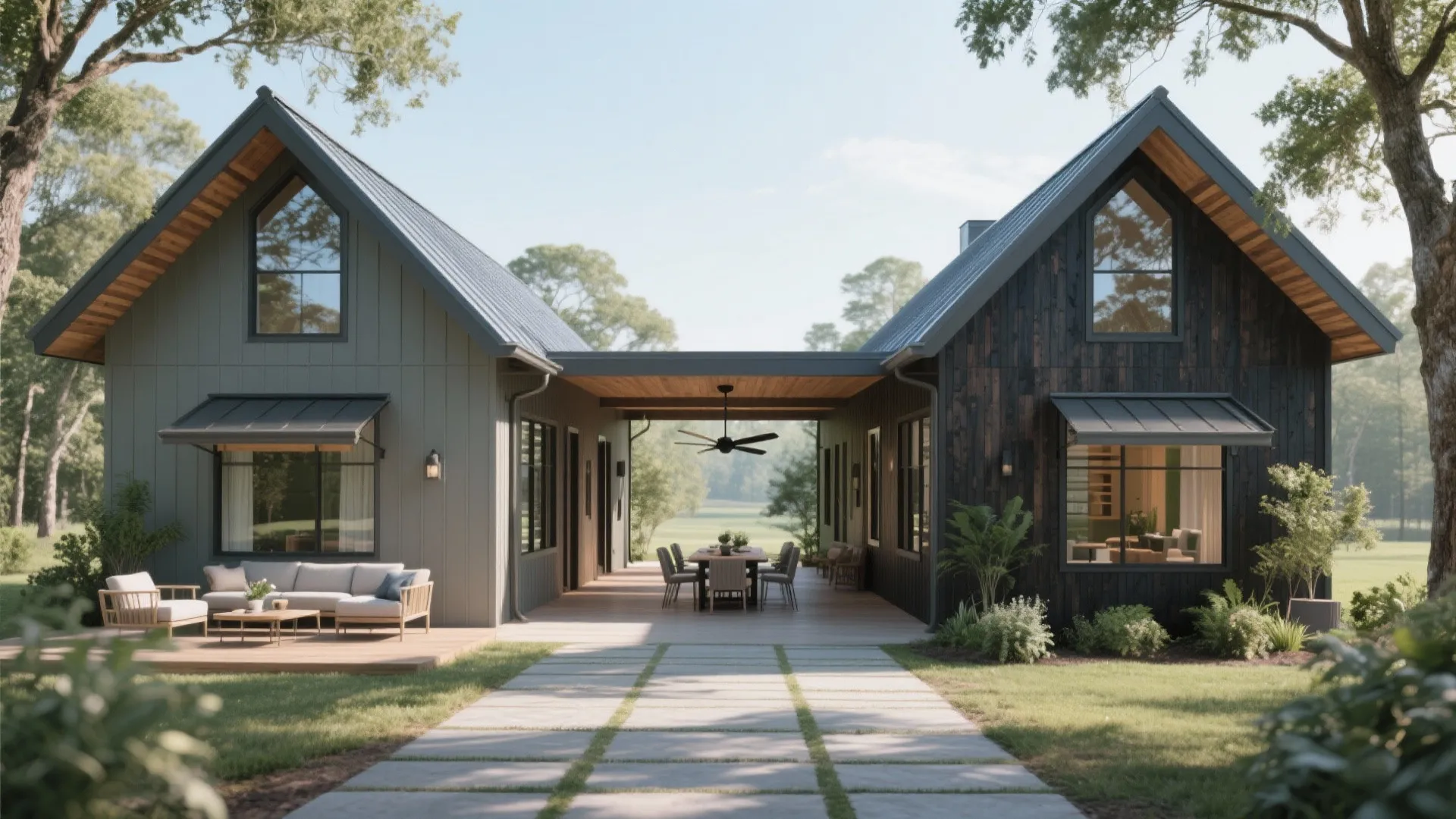

Defining the Modern Dogtrot

A contemporary dogtrot typically splits the program: one volume holds living, kitchen, and dining; the other contains bedrooms, a study, or a flexible studio. The breezeway sits between—part porch, part outdoor room. I keep each volume efficient—usually 18–22 ft wide—to promote cross-ventilation and economical spans. Rooflines can be symmetrical gables or a gable paired with a flat/low-slope roof to conceal modern services like PV and mechanicals.

Planning the Breezeway as a True Room

The breezeway should feel like your best porch, not a leftover corridor. I aim for 10–14 ft clear width so you can lounge, dine, and circulate without collisions. Orientation matters: align the opening to prevailing summer winds to harvest ventilation while framing views you actually want to live with. For layouts and quick adjacency tests, a room layout tool can help you visualize furniture zones and circulation before you pour a slab: room layout tool.

Climate Strategy: Passive First

I prioritize passive moves before specifying equipment. Deep roof overhangs (24–36 in) temper solar gain, while high operable windows or clerestories in each volume pull warm air up and out. In hot-humid zones, screens at the breezeway provide insect control without blocking airflow; in mixed climates, sliding glass panels or bifold louvers allow you to convert the breezeway into a three-season room. Properly placed deciduous trees can cut cooling loads in summer and admit winter sun once leaves drop.

Light, Glare, and Color

Daylight is free until glare ruins it. I map daylight apertures to achieve task illuminance of roughly 300–500 lux in work zones per IES recommendations, then add layered electric lighting: warm 2700–3000K for living, neutral 3500K for kitchens, and dim-to-warm options on the breezeway for evening social time. On color, soft greens and desaturated blues in the breezeway encourage calm and thermal perception of coolness, while warmer earth tones in the living core balance it—an approach consistent with color psychology findings that cooler hues can promote relaxation and perceived freshness.

Spatial Ratios and Flow

Proportion is everything in small plans. I like a 1:1.5 ratio for the breezeway (say 12 ft by 18 ft) so it reads as a destination. In the living volume, a 12–14 ft clear span with a compact U or one-wall kitchen keeps the public area breathable. Bedrooms perform well at 10x12 ft with built-ins to minimize furniture bulk. Keep circulation at or below 12–15% of total interior square footage by aligning doors across the breezeway and using pocket/slider doors to reclaim swing space.

Acoustic Comfort

Dogtrots thrive on openness, but sound can ricochet. I specify mineral wool in interior partitions around bedrooms, resilient channels on ceilings beneath hard roof decks, and soft finishes—woven rugs, upholstered panels—along the breezeway’s leeward wall. If the breezeway hosts evening gatherings, limit hard parallel surfaces or break them with planters and slatted screens to diffuse sound.

Material Selection and Durability

Exterior materials work hard here. I favor ventilated cladding (fiber cement, charred wood, or metal with a rainscreen gap), standing-seam roofs with high SRI coatings, and rot-resistant decking (modified wood or aluminum planks) for breezeway floors. Inside, low-VOC finishes support indoor air quality. In hurricane or storm-prone areas, specify impact-rated glazing and continuous load paths; the breezeway roof should be tied down as rigorously as the volumes it links.

Ergonomics for People and Pets

The dogtrot earned its name for a reason. I integrate a mud zone at one end of the breezeway with a low wash station (18–24 in height), floor drain, and hose bib. Pet-friendly materials—matte porcelain tile with R10–R11 slip rating and durable wall panels—keep maintenance quick. For people, seating heights around 17–18 in with firm cushions work well outdoors; dining surfaces at 28–30 in with ample knee clearance maintain comfort during long meals al fresco.

Energy and Systems

Right-size the mechanicals; the breezeway reduces cooling hours when used strategically. Mini-splits with high SEER2 and ceiling fans rated for damp locations make a strong pairing. I prefer ERVs in tighter envelopes to maintain fresh air when windows are closed. Put PV on the sunward roof and reserve the shaded breezeway roof for fans and lighting. Smart controls should prioritize ceiling fans before cooling calls to capitalize on elevated airspeed comfort.

Storage and Flex Space

Small plans succeed on storage. I build bench bases along the breezeway with hidden compartments for shoes, leashes, and outdoor gear. In the private volume, use wall-depth niches, headboard storage, and full-height wardrobes. A study nook off the breezeway with pocket doors can flex from remote work to guest overflow as needed.

Concept Plans: Three Scales

Micro Dogtrot (Approx. 880 sq ft total)

Living volume: 16x28 ft with compact kitchen, built-in banquette, and a combined living/dining area. Private volume: 16x27 ft with one bedroom, one bath, stacked laundry. Breezeway: 10x16 ft screened, ceiling fans, storage bench. Ideal for couples or a remote retreat.

Family Dogtrot (Approx. 1,320 sq ft total)

Living volume: 18x32 ft with island kitchen and a small pantry. Private volume: two bedrooms, shared bath, plus a small study. Breezeway: 12x20 ft convertible with sliding panels for three-season use.

Studio + Suite Dogtrot (Approx. 1,200 sq ft total)

Living volume: 16x34 ft open plan. Studio volume: flexible workspace/guest suite with a murphy bed and separate entry—useful for creative work or multigenerational living.

Siting and Landscape

Rotate the breezeway to capture prevailing breezes and shade it with deciduous trees on the west. Use permeable paving under and around the breezeway to manage runoff, and integrate a simple outdoor kitchen line (gas, water, power) along the leeward wall. Night lighting should be warm (2700K), shielded, and low-glare to keep stargazing intact.

Buildability and Budget

Two small volumes are often easier to phase than one big box. Standardize spans and window sizes, use repeatable truss profiles, and keep wet walls stacked. The breezeway roof can be framed with simple rafters; detail for water management where breezeway meets conditioned volumes—continuous flashing and back pans are non-negotiable.

Getting Your Layout Right

I like to iterate quickly with furniture footprints and door swings before committing. Test daylight on both volumes, mock up your breezeway at full width with painter’s tape, and simulate how people and pets will flow through the house on busy mornings. A lightweight interior layout planner helps you trial scenarios and verify clearances early: interior layout planner.

FAQ

How wide should a dogtrot breezeway be for daily living?

10–14 ft works well. At 12 ft, you can seat a lounge grouping and pass behind chairs without congestion.

Can a dogtrot work in colder climates?

Yes, but treat the breezeway as a three-season room with sliding glass or polycarbonate panels, overhead heaters, and air curtains if needed. Consider an ERV for fresh air when closed up.

What roof forms suit a modern dogtrot?

Paired gables for a traditional silhouette, or a gable plus low-slope for contemporary lines and discreet solar placement. Keep overhangs generous to protect entries into the breezeway.

How do I control glare while keeping daylight?

Use exterior shading (overhangs, screens), specify low-reflectance interior finishes near windows, and add layered lighting at 2700–3500K to balance daylight. Reference IES targets for tasks around 300–500 lux.

What materials hold up best in the breezeway?

Non-combustible or rot-resistant finishes: fiber cement or metal cladding, modified wood or aluminum decking, and corrosion-resistant ceiling fans rated for damp locations.

How do pets influence the plan?

Add a wash station at 18–24 in height, clipped drainage, durable slip-resistant floors (R10–R11), and storage for leashes and toys near the primary exit.

Is a dogtrot energy-efficient?

With correct orientation, shading, and operable windows, many hours can be shifted from active cooling to fan-assisted comfort. Right-sized mini-splits and ceiling fans reduce run time.

What’s the best way to furnish the breezeway?

Think zones: dining near the kitchen side, lounge near the private side for quieter evenings, with ceiling fans centered over both. Use weather-rated fabrics and movable screens for sun control.

How do I manage acoustics across the open center?

Use soft surfaces (rugs, cushions), leafy planters, and perforated or slatted panels to break up reflections. Insulate bedroom walls with mineral wool.

Can the breezeway double as a workspace?

Yes—add glare-free task lighting, a shade on the brightest side, and power/data at seating height. Sliding panels can control wind on video calls.

What foundations work best?

Piers or stem walls keep the breezeway elevated and airy; in flood-prone zones, raised foundations protect living areas and maintain airflow.

How do I plan for future expansion?

Terminate the breezeway at a framed wall that can open to a future third volume, and pre-run utilities through capped chases to minimize disruption later.
