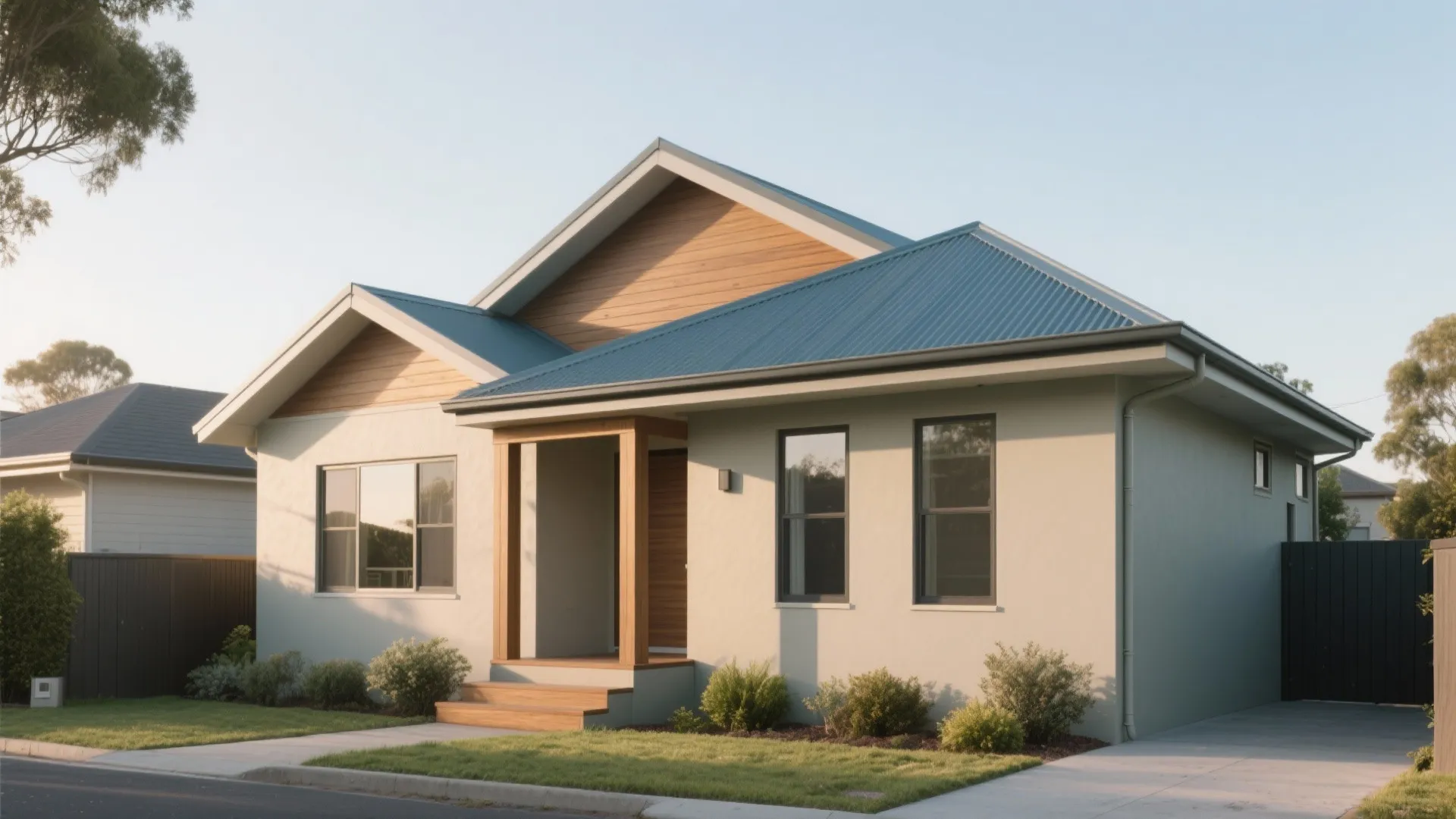

Small Hip Roof House Plans: Smart Design Ideas for Compact Spaces: Fast-Track Guide to Choosing the Perfect Small Hip Roof Home Plan

I’ve designed and built multiple compact homes with hip roofs in the past decade, and the pattern is consistent: a well-proportioned hip roof paired with thoughtful interior planning delivers a quiet, resilient silhouette and surprisingly generous living. Hip roofs distribute loads on all four sides, improving wind resistance and visual calm—useful for small footprints where every inch must work harder.

Light and comfort data drive the best small-home decisions. WELL v2 recommends task illuminance in the range of 300–500 lux for living areas and 500–1,000 lux at task planes (WELL Light concept), while IES standards suggest 300 lux for general residential rooms and 500 lux for kitchens and home offices (IES Lighting Handbook). On the behavioral side, Steelcase research associates varied postures and micro-zones with higher satisfaction in compact settings, where residents benefit from clear spatial cues and quiet nooks for focus and recovery (Steelcase research). I routinely calibrate these levels to reduce eye strain and support a balanced circadian rhythm without over-lighting small volumes.

Furniture density, circulation width, and acoustic control can make or break compact plans. Gensler’s workplace research highlights that perceptual spaciousness increases when pathways are clearly legible; in homes, keeping main circulation at 900–1,050 mm helps maintain flow without eating into program areas. In kitchens, NKBA advises minimum 1,200 mm between arrays for two-cook scenarios; in tight homes I target 1,050–1,100 mm to retain safe comfort while respecting constraints. These numbers steer the plan before style choices enter the conversation.

Hip Roof Proportion and Spatial Rhythm

A small hip roof wants careful proportion to avoid a “cap heavy” look. I often work with a main roof pitch between 5:12 and 7:12 for compact homes—steep enough to shed water and allow thin attic ventilation, but low enough to keep mass modest. Eaves at 450–600 mm add shadow relief, protect walls, and visually compress height so the home reads grounded. When we have a narrow lot, clipped hip forms or a Dutch hip can lift ceiling edges inside while keeping the exterior calm. The rhythm outside—fascia lines, eave depths, window headers—should echo interior axes so the home feels coherent from street to sofa.

Layout Strategies That Maximize Small Footprints

In compact plans, I use a “one clean axis” approach: align entry, living, and a pocket of daylight along a single circulation spine. Cross-axial views to windows expand perceived volume. If you’re experimenting before committing to framing, a room layout tool helps simulate sightlines, furniture fit, and door swing overlap at scale: room layout tool. Aim for 900 mm clear hallway widths and allow 750–800 mm around dining tables for pushback clearance. Sliding doors at tight bathrooms save 100–150 mm compared to swing doors and free the plan from hinge conflicts.

Ceiling Tactics Under a Hip Roof

Where structure permits, I vary ceiling heights to cue zones without adding walls: 2.4 m in support spaces, 2.6–2.7 m in main living, and a modest vault under the hip apex to relieve the center line. A shallow tray can hide indirect lighting and supply ducts while avoiding the acoustic harshness of high hard volumes. Keep the crown low; the goal is gentle lift, not a cathedral.

Daylight, Color, and Glare Control

I prefer tall, narrow windows on gable ends and broader units on hip sides to balance wall stiffness with daylight. A 30–40% window-to-wall ratio in living spaces is adequate for daylight without overheating in small homes. Color psychology suggests warm-neutral palettes (soft taupe, muted sand, light clay) provide calm backdrops; Verywell Mind notes that blues and greens tend to lower stress and support focus, while saturated reds can feel activating—use them sparingly for accents to avoid visual fatigue in compact rooms. Low-sheen paints reduce specular glare; pair with 3,000–3,500 K warm-white LEDs for evening comfort and 4,000 K task lighting in kitchens or desks when precision matters.

Acoustic Comfort Without Heavy Construction

Small homes magnify sound. Layer absorptive finishes and soft transitions: area rugs over resilient floors, fabric panels or book-lined walls, and lined drapery near hard glazing. In shared living, add at least one soft corner—an upholstered chaise with a floor lamp—where reverberation time feels shorter. Keep appliance walls away from bedrooms and consider sound-dampening underlayment beneath lightweight floors when you have thin assemblies under a hip roof.

Kitchen Efficiency in Compact Plans

For small hip-roof houses, I lean into galley or L-shaped kitchens with a consolidated work triangle: 1.2–2.7 m between sink, cooktop, and fridge. Optimize vertical storage to the ceiling and integrate 300 mm deep pantry pull-outs for high-density staples. Place task lights over prep zones at 500–700 lux and treat splash surfaces with matte materials to avoid glare. Keep the major appliances on one wall to simplify ventilation routes under the hip.

Bedrooms and Micro-Zones

In compact bedrooms, push storage to built-in wall systems and keep bed circulation at 600–700 mm minimum. Add a small reading niche under a sloped ceiling break; the hip roof’s lower perimeter can become usable shelves if detailed with low-profile LED strips. A pocket workstation—700 mm wide with a sliding panel—lets a bedroom flex as a quiet focus space when needed.

Materials and Sustainability

A restrained palette works best: engineered wood or cork for warmth and acoustic moderation; mineral-based paints with low VOCs; and compact stone or recycled solid-surface for durable counters. Favor closed storage with wood fronts to keep visual noise low. If you’re weighing options, Material ConneXion maintains a broad database of performance characteristics and sustainable alternatives.

Outdoor Edges and Eaves

Eaves at 600 mm give rain protection and shading in shoulder seasons. Add a slim veranda or stoop that mirrors the interior axis; even a 1.2 m deep covered entry becomes a micro-room extending living outdoors. Keep downspouts aligned with internal wall lines for clean elevations and simple maintenance.

Mechanical Planning Under a Hip Roof

Compact homes benefit from short mechanical runs and centralized utility cores. Under a hip roof, low-slope attic vents and baffles maintain airflow; pair insulation with continuous air sealing at top plates to prevent thermal stratification. Consider ducted mini-splits or high-efficiency heat pumps to minimize bulk, and hide distribution in dropped perimeters or tray ceilings that double as lighting coves.

Lighting Layers for Small Spaces

Layer ambient, task, and accent lighting. Ambient at 200–300 lux keeps the home soft; task at 500–1,000 lux in kitchens and desks supports performance (per WELL and IES guidance). Indirect coves reduce glare, while small, tight-beam accents highlight art or shelves without overpowering the room. Dimmers and tunable-white fixtures help match morning coolness and evening warmth for circadian comfort.

Planning Workflow and Visualization

Before construction, simulate layouts, walking paths, and furniture clearances. An interior layout planner is useful for quick iterations and verifying relationships across axes and window placements: interior layout planner. Check door swings against circulation lines, maintain 300–350 mm side tables for seating comfort, and avoid placing TV walls opposite the brightest window to reduce reflection.

Common Mistakes to Avoid

Overcomplicating roof forms; excessive ceiling height that increases echo; glossy finishes that amplify glare; undersized eaves in wet climates; and cluttered color palettes that reduce perceived calm. Keep decisions aligned with the plan’s main axis and the hip roof’s geometry.

FAQ

How steep should a hip roof be for a small house?

I typically choose 5:12 to 7:12. This range balances drainage, attic ventilation, and subdued massing so the roof doesn’t overpower the facade.

What ceiling height works best under a hip roof?

Set support zones around 2.4 m, main living at 2.6–2.7 m, and introduce a gentle vault or tray where structure allows to relieve the center and conceal indirect lighting.

How much window area should I target for living spaces?

About 30–40% window-to-wall ratio performs well for daylight without overheating. Pair low-sheen finishes with 3,000–3,500 K evening light to control glare.

What hallway width keeps circulation comfortable in a compact plan?

900–1,050 mm maintains a clear, natural flow without sacrificing program. Align the main axis to preserve views and reduce visual clutter.

Is a galley kitchen practical in small hip-roof homes?

Yes. A galley with a tight work triangle (1.2–2.7 m total) and vertical storage to the ceiling maximizes efficiency. Keep task lighting around 500–700 lux.

How do I control acoustics without heavy construction?

Layer soft materials: rugs, fabric panels, lined drapery, and bookshelves. Separate appliance walls from bedrooms and use sound-dampening underlay under lightweight floors.

What color palette suits compact interiors?

Warm-neutrals for background with restrained blues/greens for calm focus. Reserve saturated reds for accents to avoid visual fatigue per color psychology guidance.

Are hip roofs better for windy sites?

Hip forms distribute loads to all four walls and reduce uplift compared to simple gables. The compact silhouette and balanced eaves improve resilience in exposed locations.

Where should I place mechanicals in a small house?

Centralize a utility core and use short duct runs. Under a hip, maintain attic ventilation baffles and air sealing at top plates; consider ducted mini-splits for efficiency.

How can I visualize layouts before building?

Use a layout simulation tool to test furniture fit, door swings, and sightlines. It’s invaluable for preventing pinch points and glare-prone TV walls.

What eave depth is ideal?

450–600 mm typically. It shades walls, protects openings, and creates a subtle shadow line that calms the elevation.

How do I avoid glare in small living rooms?

Limit gloss, use indirect coves, tune fixture color temperature (3,000–3,500 K evenings), and avoid placing screens opposite the brightest window.
