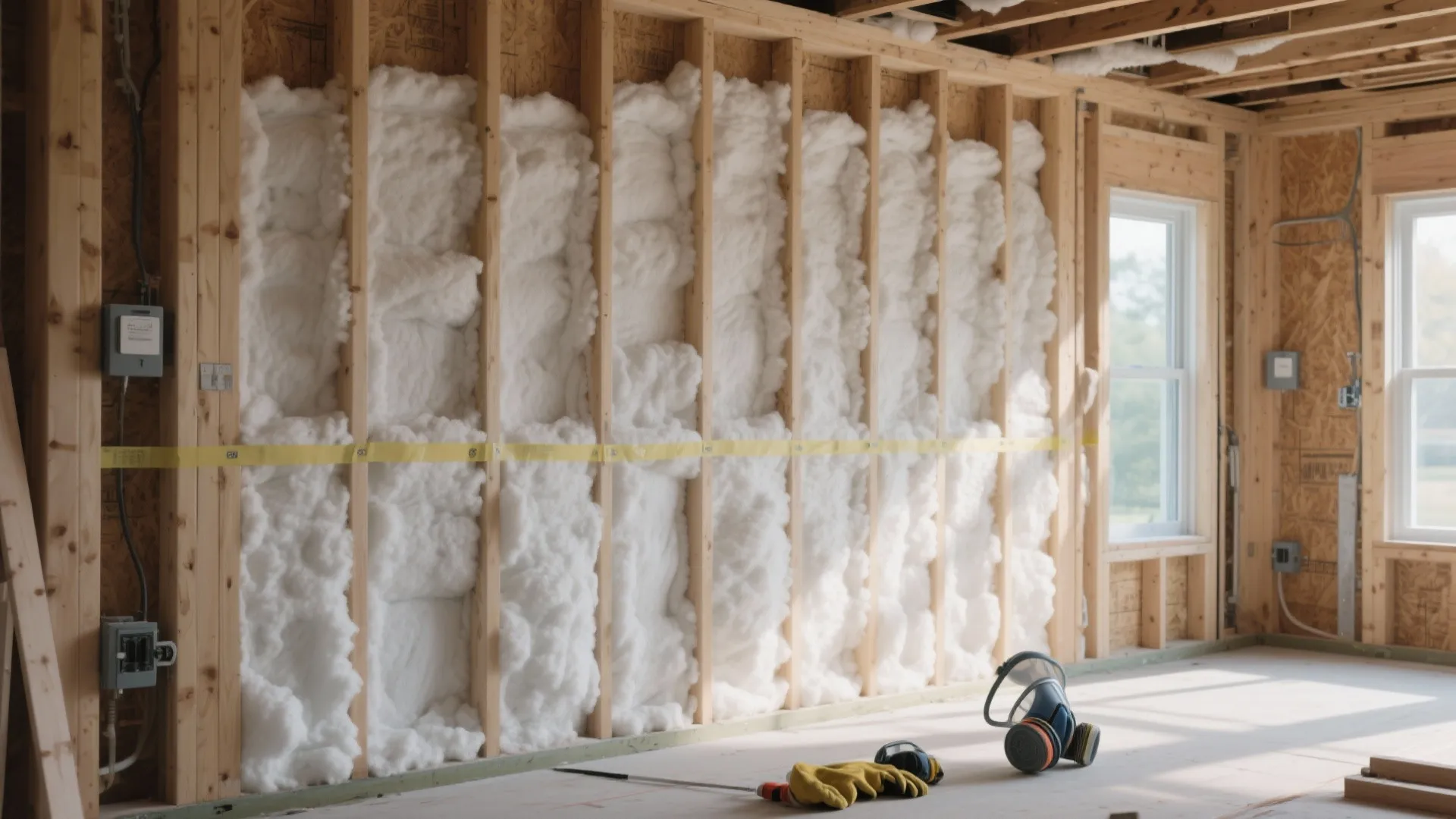

Spray Foam Wall Insulation DIY: A Step-by-Step Guide: Fast-Track Guide to Installing Spray Foam Wall Insulation Yourself

I’ve insulated more walls than I can count, and spray foam remains my go-to when the goal is airtightness, steady thermal performance, and moisture control. Done right, it transforms comfort and energy costs. Done poorly, it can trap moisture, expand unevenly, or create a mess. This guide walks through planning, safety, application, and finishing—grounded in real data and field-tested techniques.

Understand Performance and Set Goals

Before opening a kit, define what you need: air sealing, thermal R-value, and moisture management. Closed-cell spray foam typically delivers about R-6 to R-7 per inch; open-cell sits around R-3.5 to R-4 per inch. In practice, a 2-inch closed-cell application can match or surpass the effective thermal performance of thicker batt systems by eliminating air leakage at studs, rim joists, and penetrations. Workplace research confirms the impact of thermal consistency on comfort and productivity; Steelcase notes that temperature fluctuations and drafts are among top environmental complaints in offices, and improved insulation and envelope sealing reduce those issues. For color and finish planning in adjacent rooms, color psychology research by Verywell Mind indicates cooler hues can feel calmer and reduce perceived heat, which matters when balancing HVAC loads after insulation improves airtightness.

Beyond comfort, air control matters for health. WELL v2 emphasizes thermal and air quality strategies, including limiting infiltration and stabilizing temperatures to support occupant well-being. Align your target R-value with local code and climate zone, and consider how air sealing plus insulation can reduce both conductive and convective losses.

Plan Your Wall Assembly

Every wall is a system: structure, sheathing, air barrier, vapor profile, cavity insulation, and interior finish. Closed-cell foam acts as both insulation and a class II vapor retarder at around 1.5–2 inches, which helps in mixed-humid and cold climates. Open-cell foam is more vapor-permeable, useful for assemblies that need drying potential inward. If you’re reworking partitions or optimizing stud spacing for coverage, a room layout tool can help you visualize mechanical chases and access panels: room layout tool.

Safety and Prep: Non-Negotiables

I never start foam without full PPE. Use a fitted respirator rated for isocyanates, chemical-resistant gloves, eye protection, and disposable coveralls. Ventilation is critical—set up fans to exhaust out of a window or door, and isolate the work area with plastic sheeting. Protect floors and fixtures with rosin paper and poly. Turn off ignition sources; foam is applied with flammable blowing agents and can off‑gas during curing. Confirm the substrate is clean, dry, and within the kit’s temperature range (usually 60–80°F).

Assess framing and services: seal large gaps with backer rod and sealant, confirm electrical boxes are secured, and map plumbing runs to avoid “overfilling” around pipes. Mark target depths on stud faces with painter’s tape for visual guidance.

Open-Cell vs Closed-Cell: Choosing the Foam

Open-cell is lighter, expands more, and excels at sound absorption and cost efficiency per volume. Closed-cell adds structural rigidity, higher R-value per inch, and moisture resistance—ideal for exterior walls or areas prone to condensation. In flood-risk zones or basements, closed-cell’s limited water absorption is a safeguard. In interior partitions where acoustic comfort matters, open-cell helps dampen speech frequencies better.

Step-by-Step Application

1) Condition the Kit and Space

Store and stage the kit per manufacturer guidance. Aim for balanced component temperatures; cold resin under-expands and can cause shrinkage, while overheated chemicals can foam too aggressively. Keep the room at a steady temperature, and pre-warm cans if required.

2) Test Spray

Spray a small panel or scrap to verify mix color, expansion, and tack-free time. If the foam looks dark or collapses, check the gun settings and nozzle. Replace the nozzle whenever you pause more than 30–45 seconds to prevent clogging.

3) Spray in Lifts

Apply in thin, even passes (typically 0.5–1 inch per lift). Start at corners and edges, then infill the field. Avoid overfilling; closed-cell generates heat as it cures and can warp sheathing if applied too thick too fast. Let each lift set before adding the next.

4) Manage Expansion

Angle the nozzle slightly toward the substrate, move consistently, and keep distance uniform. For open-cell, allow for expansion and trim flush later. For closed-cell, aim for near-final depth to minimize trimming effort.

5) Seal Transitions

Foam around electrical boxes, top plates, and sill areas. Bridge small gaps between studs and sheathing. Use high-temperature foam near flues only if rated; otherwise maintain clearances and use mineral wool backers.

6) Cure and Trim

Let foam fully cure per product guidance. Use a flush-cut saw or specialized foam knife to trim proud areas. The goal is a smooth plane for drywall—not over-trimming that reopens cavities.

Air, Vapor, and Thermal Strategy

Think of foam as one layer in a control stack: you still need continuous air barriers at planes (drywall with sealed joints, taped sheathing) and to respect vapor profiles. In cold climates, closed-cell can serve as interior vapor control; in warm-humid climates, avoid interior vapor barriers that trap moisture. Seal penetrations (wires, pipes) with compatible sealants to complement the foam.

Acoustics and Comfort

Open-cell foam’s cellular structure absorbs mid- and high-frequency sound well, useful for bedrooms or home offices. Combine it with resilient channels and a solid-core door for better isolation. Thermal consistency reduces stratification; studies from Steelcase’s research library report that stable temperatures and reduced drafts correlate with fewer comfort complaints, especially in task-oriented spaces. In living areas, balanced color palettes—cooler walls near sunny exposures, warmer accents in shaded rooms—can psychologically tune perceived temperature and reduce reliance on aggressive thermostat swings.

Lighting, Shadows, and Workability

Good light reveals foam coverage. I set up 3000–4000K task lighting at a 30–45° angle to the wall to cast mild shadows so hollows and proud spots show clearly. Keep glare low to avoid misjudging thickness. If working at night, consistent illuminance helps you maintain even lift depth and trim accuracy.

Material Compatibility and Sustainability

Check foam compatibility with substrates (OSB, plywood, masonry) and finishes. Some foams adhere better to slightly rough surfaces; glossy paint may need scuffing. If sustainability is a priority, confirm the blowing agent’s global warming potential and consider kits with lower-GWP chemistry. Minimize waste by planning lift depths and nozzle counts ahead of time, and capture offcuts for appropriate disposal.

Finishing: Drywall and Detailing

After trimming flush, install drywall with screws at recommended spacing. Seal the drywall joints and perimeter to maintain the air barrier. Around windows and doors, check for any foam that may have bowed jambs; correct with shimming and careful trimming. Caulk baseboards and casings to lock in the air seal.

Common Mistakes I See

1. Overfilling cavities in a single pass, causing heat buildup and uneven curing.
2. Skipping ventilation and PPE—chemical exposure is avoidable with the right setup.
3. Ignoring vapor profiles and creating moisture traps.
4. Inconsistent lighting leading to lumpy surfaces and extra trimming.
5. Foaming tight against plumbing without allowing service space.

When to Call a Pro

If you have complex envelopes (cathedral ceilings, mixed claddings), extensive wiring/plumbing in cavities, or need large-area continuous spray with strict vapor targets, bring in a professional crew. They’ll stage multiple kits, manage lift timing, and test for adhesion and density. For most straightforward stud walls, a careful DIYer can achieve excellent results.

FAQ

What thickness should I aim for in exterior walls?

Closed-cell often targets 2 inches or more for combined air sealing and R-value; open-cell typically fills the cavity and is trimmed flush. Match local code and climate needs.

Will spray foam replace my vapor barrier?

Closed-cell at ~1.5–2 inches can act as a class II vapor retarder. Open-cell is vapor-permeable. Choose based on climate and drying direction; maintain a continuous air barrier regardless.

How do I handle electrical boxes and wiring?

Lightly spray around boxes, avoid forcing foam into the box interior, and maintain service loops. Trim after curing for flush drywall fit.

Is open-cell better for noise?

For interior partitions, yes—open-cell’s structure absorbs sound more effectively. Pair with resilient channels and sealing for best results.

Can I spray foam on cold surfaces?

Avoid it. Cold substrates reduce adhesion and expansion. Condition the space and kit to the recommended temperature range before spraying.

How long before I can drywall?

Most foams reach tack-free in minutes and full cure within hours, but wait until trimming is complete and off-gassing dissipates. Ventilate the space well.

Will spray foam affect indoor air quality?

During application and curing, off-gassing occurs; use proper PPE and ventilation. After curing, the foam is inert. WELL v2 guidance underscores controlling VOCs and maintaining ventilation during construction.

What R-value per inch can I expect?

Closed-cell generally provides about R-6 to R-7 per inch; open-cell delivers about R-3.5 to R-4 per inch. Actual performance depends on assembly and air sealing continuity.

Is it safe near recessed lights or flues?

Maintain clearances and use only foam rated for high temperatures. Around flues and chimneys, noncombustible materials and proper gaps are mandatory.

Do I still need a separate air barrier?

Yes. Treat foam as part of the system. Seal drywall perimeters, tape sheathing, and address penetrations for continuous control.

Can spray foam bow window frames?

If over-applied, expansion can push jambs. Use low-expansion foam around fenestration and trim cautiously.

How do I estimate kit quantity?

Calculate cavity volume and factor in lift strategy, waste, and trim. Manufacturers provide board-foot coverage; add a margin for edges and transitions.
