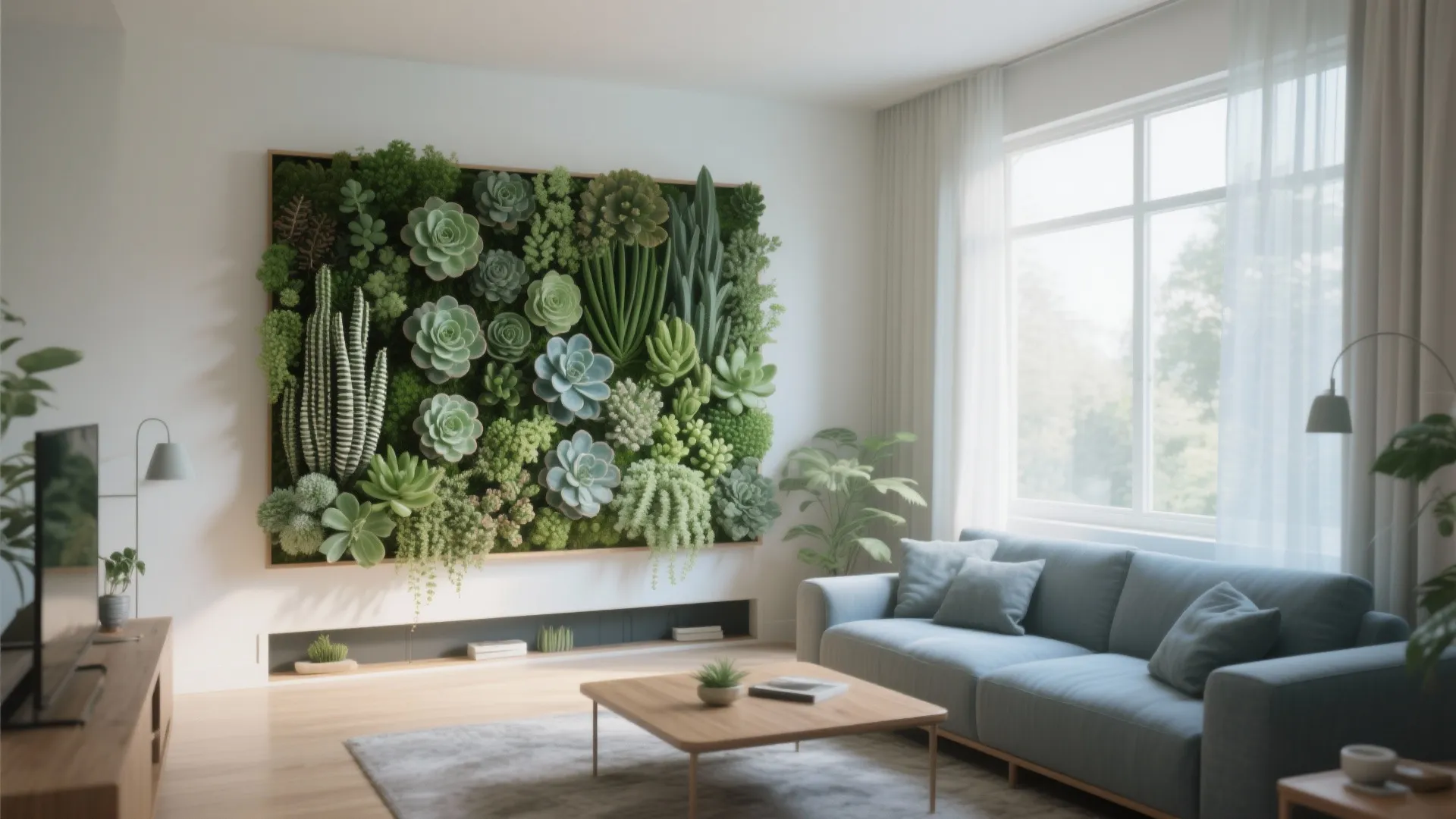

Succulent Wall DIY: Create a Living Art Piece at Home: Fast-Track Guide to Building a Stunning Succulent Wall in Minutes

Living walls turn underused vertical surfaces into biophilic focal points. I’ve installed versions from small kitchen herb grids to 8-foot succulent tapestries in dry climates—each one shifts the mood and improves perceived spaciousness. The benefit isn’t just visual. Research associated with WELL Building Standard features notes that biophilic strategies can reduce stress and support well-being; WELL v2 highlights connections to nature as a contributor to occupant satisfaction. Meanwhile, Steelcase reports that 13% of workers lack access to nature elements and are more likely to feel disengaged—simple plant integration can close that gap. A compact succulent wall brings that effect home without demanding high maintenance.

Lighting and comfort underpin success. The Illuminating Engineering Society (IES) recommends task lighting around 300–500 lux for detailed activities; succulents thrive with bright, indirect light approximating this range for 6–8 hours daily. In practice, I aim for consistent 300–1,000 lux across a living wall zone depending on species tolerance, using a full-spectrum LED where daylight is insufficient. On ergonomics, I keep the center of the composition around 54–60 inches above finished floor so planting and grooming don’t strain shoulders or lower back—an approach aligned with human factors best practices. For space planning or testing different wall sizes before buying materials, a quick pass with a room layout tool can prevent scale missteps: interior layout planner.

Plan Your Wall: Size, Light, and Microclimate

Start by locating a wall with bright, indirect light. South or east exposures filtered by sheers work well; west windows may require a light-diffusing shade to prevent leaf scorch. Measure the wall and sketch a footprint that respects circulation (minimum 36 inches clear path). For a first build, a 24 × 36 inch frame offers enough canvas for patterning without becoming heavy. Aim for a finished assembly under 8–10 lb/sq.ft. when saturated, which keeps loads friendly to typical residential walls with appropriate anchors. Keep a 2–3 inch offset from adjacent cabinetry or artwork for airflow and easy trimming.

Choose the Right System: Frame, Pocket, or Modular Panel

You have three reliable DIY routes: a shadow-box frame with a soil-retention mesh, a felt pocket organizer with a rigid backer, or modular plastic cells. Frames look like art and suit intricate patterning. Pocket systems are quick and inexpensive but need a moisture barrier. Modular cells excel at drainage and maintenance. Whatever you choose, prioritize: (1) moisture management—integrated drip tray or waterproof backing; (2) plant security—angle the face 10–15 degrees upward to resist slump; (3) serviceability—ability to remove a single cell or corner without dismantling the whole wall.

Plant Selection and Color Strategy

Succulents ask for well-draining substrate and infrequent watering. Mix textures and colors to read as a tapestry: Echeveria (rosettes, cool tones), Sedum (fine texture, trailing), Haworthia (vertical accents, zebra striping), Crassula (structural mass), and Graptopetalum (mauves and silvers). For color psychology, cool greens and blue-greys tend to lower arousal and feel restorative, while small hits of warm-toned Crassula ovata ‘Hummel’s Sunset’ add energy without visual noise. I keep a 60/30/10 ratio—60% calming base, 30% textural contrast, 10% accent—to maintain visual balance.

Soil, Drainage, and Weight Control

Use a cactus blend amended with 30–50% mineral content (pumice or perlite) for drainage. Avoid heavy topsoil; it compacts and adds weight. Backing materials should resist moisture: exterior-grade plywood with marine varnish, PVC sheet, or aluminum composite panel. Include a breathable layer (coconut coir or sphagnum) under the front mesh to hold plugs while rooting. Design a drip edge or hidden tray at the base to catch excess water; line it with EPDM and leave a 1/4 inch weep path. Keep saturated weights in mind—pre-hydrate soil and weigh a 12 × 12 test tile to extrapolate your total.

Lighting: Daylight, LEDs, and Heat Management

Target bright, indirect light. If daylight is marginal, supplement with 4000–5000K full-spectrum LEDs at 300–1,000 lux measured at plant surface. A 12–14 hour photoperiod mimics long bright days without overstressing tissue. Mount fixtures 12–18 inches off foliage to limit heat and maintain uniformity; use a basic lux meter or a reliable smartphone app for spot checks. Reduce stray glare with a low-gloss baffle and angle lights 15–25 degrees from perpendicular to minimize reflections—an approach consistent with visual comfort principles embraced by lighting standards communities such as IES.

Irrigation and Maintenance Rhythm

Water deeply but infrequently. After establishment, I water when the top 1–1.5 inches are dry—often every 10–21 days depending on humidity and light. Deliver water slowly with a squeeze bottle or small-flow can to avoid washouts. After any watering, allow the tray to dry out completely within 24 hours. Rotate or pinch back leggier varieties quarterly to keep the plane flat. Expect a mild seasonal slowdown in winter; extend the interval between waterings and reduce photoperiod by 1–2 hours if stretching appears.

Mounting and Wall Protection

First, waterproof the contact area on the wall: apply a peel-and-stick membrane or a painted-on elastomeric layer behind the frame footprint. Use French cleats or a continuous Z-clip for even load distribution, hitting at least two studs. For drywall without stud alignment, install a 1/2 inch plywood ledger across studs and mount the frame to it. Keep a 1-inch air gap behind the assembly to discourage condensation and allow passive airflow.

Step-by-Step Build (Frame + Mesh Method)

1) Build a 2–3 inch deep frame with a rigid backer. 2) Add a waterproof liner (EPDM or pond liner) over the backer and up the sides. 3) Fill with a lightweight, gritty mix. 4) Stretch galvanized hardware cloth (1/2 inch grid) or plastic mesh across the face; staple or screw with washers. 5) Top with a 1/4 inch mat of moistened sphagnum to stabilize plugs. 6) Pre-root succulent cuttings for 7–10 days until calloused, then insert through the mesh, spacing 1.5–2 inches on center. 7) Lay flat for 3–4 weeks to root before vertical mounting; mist lightly during this period. 8) Mount, then shift to the deep-but-infrequent watering routine.

Composition Tips from Project Work

I treat the wall like a woven textile. Anchor the composition with three larger rosettes forming a loose triangle at eye level, then weave in mid-scale textures along a gentle S-curve to create movement. Reserve high-contrast variegation for the top third where glare is lower and details are easier to perceive. Keep trailing sedums near the base to soften the tray line and provide a natural edge. Step back every 10–12 plants to reassess rhythm and density.

Common Pitfalls and How to Avoid Them

- Overwatering: succulents will rot at the crown; let the substrate dry thoroughly. - Too-fast vertical mounting: root the cuttings while the frame is flat to prevent slump. - Inadequate light: stretching and faded color indicate low lux; raise output or extend the photoperiod. - Weight creep: test a small panel wet and scale responsibly. - Poor wall protection: always include a liner and drip management.

When to Use a Modular Cell System

If you expect frequent swaps or are designing a wide wall (over 36 inches), modular cells make service easy. Each cell has its own drainage path; you can remove a failing plant without disturbing its neighbors. In open-plan spaces, this modularity also helps with acoustic diffusion, softening high-frequency reflections along corridors or media areas.

Long-Term Care and Refresh Cycles

Plan for a quarterly grooming session: remove spent leaves, rotate accent pieces, and check fasteners. Every 12–18 months, refresh 15–25% of plants to keep color saturation and texture crisp. Consider seasonal accents—add flowering Kalanchoe in spring, swap to silver-blue echeverias in summer for a cooler palette. Small, intentional changes keep the wall feeling alive as art, not just alive as plants.

FAQ

How much light do succulent walls need?

Aim for bright, indirect light around 300–1,000 lux at the foliage for 6–8 hours daily. Supplement with 4000–5000K LEDs if natural light is limited.

Can I install a succulent wall in a bathroom?

Only if there’s strong daylight and reliable ventilation. High humidity can work if the mix is very well-draining and watering is conservative.

What’s the best soil mix?

A cactus blend amended with 30–50% pumice or perlite. Avoid peat-heavy mixes that retain too much water and add weight.

How do I prevent water damage to the wall?

Use a waterproof liner inside the frame, seal the backer, include a drip tray or edge, and keep a 1-inch air gap with a French cleat or Z-clip.

How often should I water?

Typically every 10–21 days after establishment. Check the top 1–1.5 inches; only water when fully dry.

Will succulents stretch or lose color indoors?

They can. Increase light levels or extend the photoperiod. Keep color-rich species closer to the brightest zone of the wall.

What size is good for beginners?

A 24 × 36 inch frame balances visual impact and manageable weight. Test a small panel first to validate mounting and irrigation.

Do I need a grow light year-round?

Not always. In darker seasons or north-facing rooms, a full-spectrum LED on a 12–14 hour timer maintains compact growth and color.

Can I mix succulents with other plants?

Yes, if their water and light needs align. Most tropicals prefer more moisture, so keep the wall predominantly succulent or use modular cells to separate zones.

How do I plan the layout before building?

Mock up the footprint with painter’s tape, then test sightlines and reach. If you want a digital dry run, use a layout simulation tool to scale the frame relative to furnishings: room design visualization tool.

What color temperature should I choose for lights?

Neutral white (4000–5000K) keeps foliage true-to-color and supports alertness without feeling clinical.

Are living walls heavy?

Plan for 8–10 lb/sq.ft. saturated for framed systems. Verify fasteners hit studs or a structural ledger and distribute loads with cleats.
