Tagore Memorial Hall Ahmedabad: Modern Design Marvel: 1 Minute to Discover the Unique Architecture & Cultural Hub

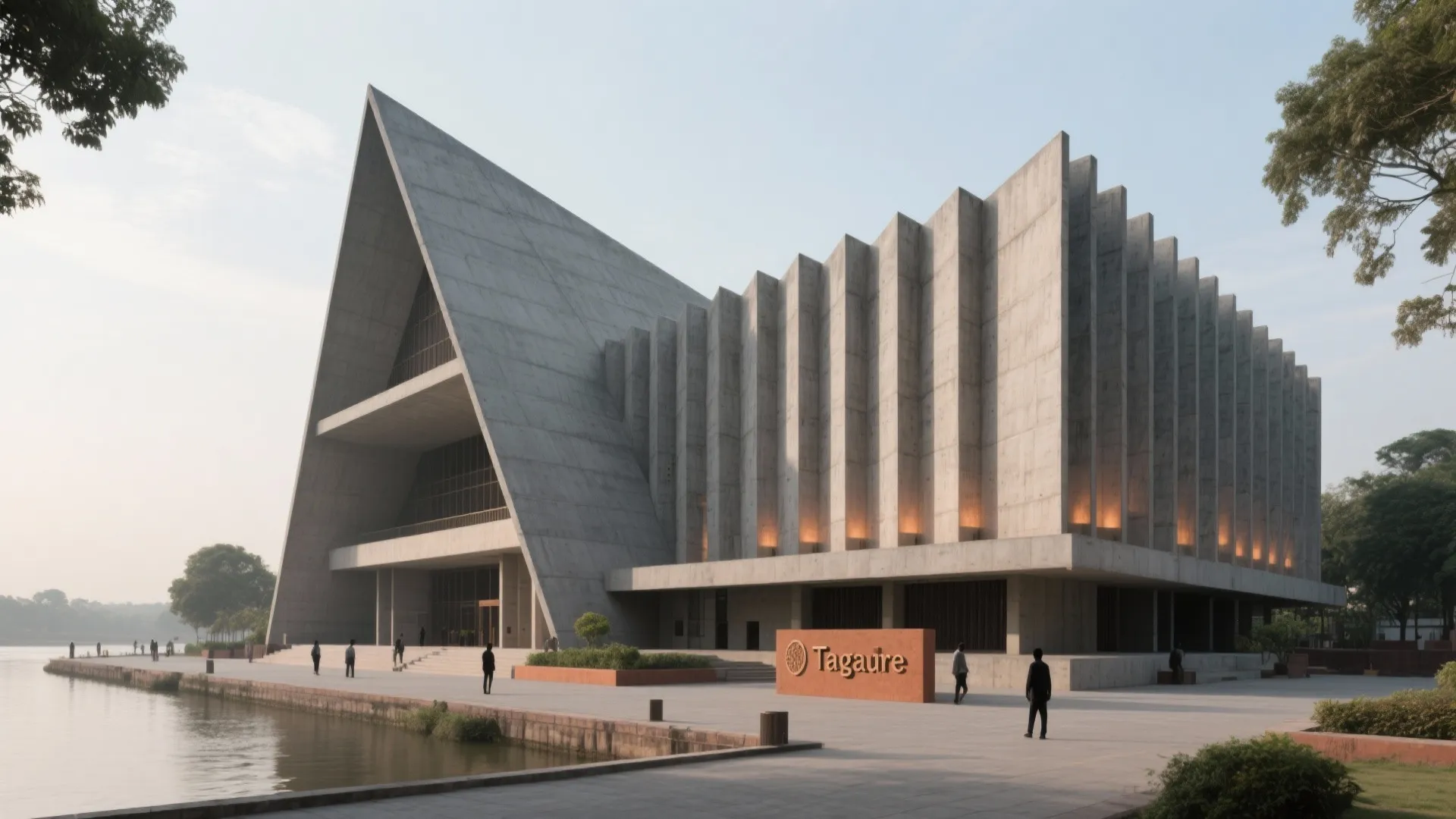

Tagore Memorial Hall in Ahmedabad remains one of India’s most compelling modernist civic buildings, celebrated for its unapologetic concrete expression and sharply faceted geometry. Designed in the late 1960s by B.V. Doshi under Louis Kahn’s influence, the hall’s tetrahedral roof truss and bold ribbed facade were conceived to deliver acoustic performance, climatic resilience, and an unmistakable architectural identity that engages the Sabarmati riverfront context. I’m revisiting this icon through the lens of today’s performance standards—light, acoustics, human factors—and considering how its bones can support future cultural programming without compromising its character.

Large auditoria succeed or fail on measurable comfort and performance. WELL v2 identifies equivalent sound pressure levels between 35–45 dBA and speech intelligibility targets above STI 0.6 for most assembly spaces, guiding acoustic clarity and audience comfort, while the Illuminating Engineering Society (IES) recommends horizontal illuminance for seating areas around 100–200 lux during entry/egress and 500–1000 lux on task areas such as music stands or control desks (IES standards). These benchmarks frame how Tagore Hall’s envelope and interior can be tuned to contemporary expectations without overwriting its modernist soul. For color and atmosphere, research in color psychology shows cool, desaturated hues can lower arousal and improve focus, while warm accents enhance perceived intimacy—evidence synthesized by Verywell Mind’s overview of color psychology.

Architectural Composition and Structural Logic

The building’s form is a study in structural honesty. Deep vertical ribs and triangulated roof elements channel loads transparently, creating an exterior language that is both ornamental and tectonic. The faceted concrete reflects Ahmedabad’s high-solar context, casting self-shade to mitigate heat gain at critical hours. Inside, the long-span truss releases the floor from column clutter, improving sightlines and circulation. The hall’s plan anchors a processional approach from the plaza, a choreography that primes audiences for performance and civic gathering. In spatial ratios, the volume balances a high proscenium with a compressed foyer, establishing rhythm and clear thresholds between public and performance zones.

Light Environment: Daylighting, Color Temperature, and Glare Control

Auditoria need disciplined light. I calibrate ambient levels in the main hall to 50–100 lux pre-performance, rising to 100–200 lux for intermission circulation, while stage and task lighting are layered at 1000 lux equivalent where needed. Warm white sources around 2700–3000K support the theatrical mood, while cooler 3500–4000K can be reserved for backstage and technical areas to aid alertness. Indirect coves behind rib modules and baffled wall washers prevent direct-view luminance spikes—critical for glare control and visual comfort. Where heritage constraints limit fixtures, localized micro-LED uplights can tuck into rib valleys, maintaining the original concrete silhouette. IES standards support these illuminance ranges for assembly spaces, and I keep unified glare rating (UGR) below 19 at audience seating to protect visual comfort.

Acoustic Comfort and Material Strategy

Concrete’s reflectivity demands targeted absorption and diffusion. The modernist shell can be acoustically tamed with perforated timber panels backed by mineral wool at mid-high frequencies, plus heavy-stage curtains on travelers to control early reflections. Ceiling coffers become natural diffusers; adding micro-perforations keeps reverberation times near 1.2–1.6 seconds for speech-heavy events and 1.8–2.0 seconds for music, achieved through deployable banners and balcony fronts treated with slotted absorbers. Seating upholstery with multi-density foam reduces seat-dip resonance. Mechanical systems should cap NC/NR at 25–30 in the hall; vibration mounts on pumps and duct-liners limit tonal noise that competes with voice clarity.

Human Factors, Sightlines, and Accessibility

Human-centered adjustments elevate experience without disturbing heritage. Rake angles between 12–16 degrees ensure unobstructed sightlines to the proscenium; I maintain eye-to-stage angles around 30–36 degrees for central rows, easing cervical strain. Aisle width at 1100–1200 mm accommodates egress and inclusive mobility. Tactile guidance strips along aisle edges and high-contrast seat numbering improve wayfinding under low light. The foyers benefit from clear circulation loops—ticketing, cloak, restrooms—organized to avoid cross-flows. For hearing accessibility, a loop system (telecoil) should overlay the hall’s PA, boosting speech intelligibility for assisted listening, aligning with WELL v2 Communication guidelines.

Color Psychology and Atmosphere

Concrete interiors invite a restrained palette. Cool neutrals—blue-grey, slate—temper visual noise and emphasize stage luminance. Accent bands in deep terracotta or muted saffron echo Ahmedabad’s material tradition, adding warmth near social nodes (bar, lounge, entry vestibules). According to Verywell Mind’s synthesis on color psychology, cooler hues support focus and lower stress, while warmer tones boost social engagement—an effective dual strategy in performance venues. Low-chroma palettes also help the audience’s visual adaptation between bright stage cues and dim seating.

Thermal Comfort and Sustainability

Ahmedabad’s climate is unforgiving. The hall’s mass helps dampen diurnal temperature swings; I propose ventilated shading screens at western exposures to reduce solar load while keeping the ribbed facade legible. Demand-controlled ventilation tied to CO2 and occupancy trims energy waste, while a hybrid system—displacement ventilation at seating and mixed-mode in foyers—maintains comfort without drafts. Refurbishing concrete with low-VOC sealers and upgrading glazing to spectrally selective units improves envelope performance. Material selection favors durable, repairable components: hardwoods from certified sources, mineral fiber acoustic cores, and modular seating for longevity. These moves align with performance intents recognized by WELL v2 and contemporary sustainability practice.

Wayfinding, Program, and Civic Life

Tagore Hall’s civic DNA thrives when the program is porous. A clear sequence—plaza, shaded threshold, foyer, hall—should include visible cultural cues: poster rails, digital displays with subdued luminance, and open rehearsal windows to humanize the building. Peripheral rooms—green room, small studio, workshop—can flex for community events. When evaluating seating reconfiguration, a room layout tool can simulate densities and egress routes without guessing, preserving sightlines and fire codes while stress-testing alternate setups.

Preservation Meets Performance

Modernist concrete ages in patterns—hairline cracking, patina, occasional spall. I favor conservation-based repairs: stitch epoxy for fine cracks, stainless pins and patch mortars where needed, and gentle cleaning to retain surface memory. Lighting and acoustic upgrades should be reversible, mounted to secondary frames that respect primary ribs. This approach safeguards authenticity while delivering comfort metrics expected in contemporary venues.

Design Checklist for Upgrades

- Keep audience illuminance at 50–100 lux pre-show; stage tasks 1000 lux equivalent.

- Aim RT60 around 1.4–1.8 s depending on program; cap NC/NR at 25–30.

- Maintain UGR ≤19 at seating; use indirect and baffled luminaires.

- Optimize sightline rake 12–16 degrees; center eye-to-stage angle 30–36 degrees.

- Integrate hearing loops; ensure tactile/contrast wayfinding.

- Use ventilated shading; upgrade glazing to spectrally selective types.

- Select modular, repairable materials; low-VOC finishes.

- Stress-test seating plans with a interior layout planner before construction.

References and Research

For performance baselines and evolving standards, I routinely cross-check WELL v2 guidance on acoustic and visual comfort (WELL v2) and illuminance targets and glare control from IES standards (IES standards). For audience mood and engagement strategies, the behavioral tint of color is concisely summarized by Verywell Mind’s overview of color psychology (color psychology).

FAQ

Q1: What illuminance levels work best for an auditorium like Tagore Hall?

A1: Keep seating areas around 50–100 lux pre-show, 100–200 lux during intermission, and deliver 500–1000 lux on stage tasks. Use indirect lighting to prevent glare and maintain UGR ≤19.

Q2: How can acoustics be improved without altering the concrete character?

A2: Add reversible perforated timber panels with mineral wool backing, deploy acoustic banners for variable RT60, and use heavy curtains on travelers. Treat balcony fronts with slotted absorbers and cap mechanical noise at NC 25–30.

Q3: What sightline geometry ensures comfortable viewing?

A3: A rake of 12–16 degrees and a central eye-to-stage angle of 30–36 degrees minimize neck strain and preserve clear views of the proscenium.

Q4: Which color temperatures should lighting designers choose?

A4: Warm whites (2700–3000K) in audience zones create intimacy; cooler whites (3500–4000K) in back-of-house areas support alertness, maintaining color consistency to avoid visual fatigue.

Q5: How does color influence audience mood in concrete interiors?

A5: Low-chroma cool hues reduce arousal and sharpen focus; warm accents near social zones enhance conviviality, aligning with summarized findings in color psychology research.

Q6: What sustainability upgrades suit a heritage auditorium?

A6: Spectrally selective glazing, ventilated shading at solar exposures, demand-controlled ventilation, low-VOC sealers, and modular, repairable seating reduce energy and extend lifecycle without aesthetic compromise.

Q7: How can accessibility be strengthened?

A7: Integrate hearing loop systems, ensure 1100–1200 mm aisle widths, provide tactile guidance and high-contrast signage, and maintain even, non-glare lighting along egress paths.

Q8: Is flexible seating feasible in a fixed modernist hall?

A8: Yes—use an interior layout planner to simulate densities, egress, and sightlines before committing to hardware changes, ensuring compliance and visual comfort.

Q9: What mechanical noise controls are most effective?

A9: Install vibration isolators on pumps and fans, specify low-sone diffusers, and line ducts to attenuate tonal noise that can mask speech.

Q10: How should concrete deterioration be handled?

A10: Prioritize conservation techniques—epoxy crack stitching, stainless pinning for spalls, and minimal cleaning—to preserve surface authenticity while ensuring structural safety.
