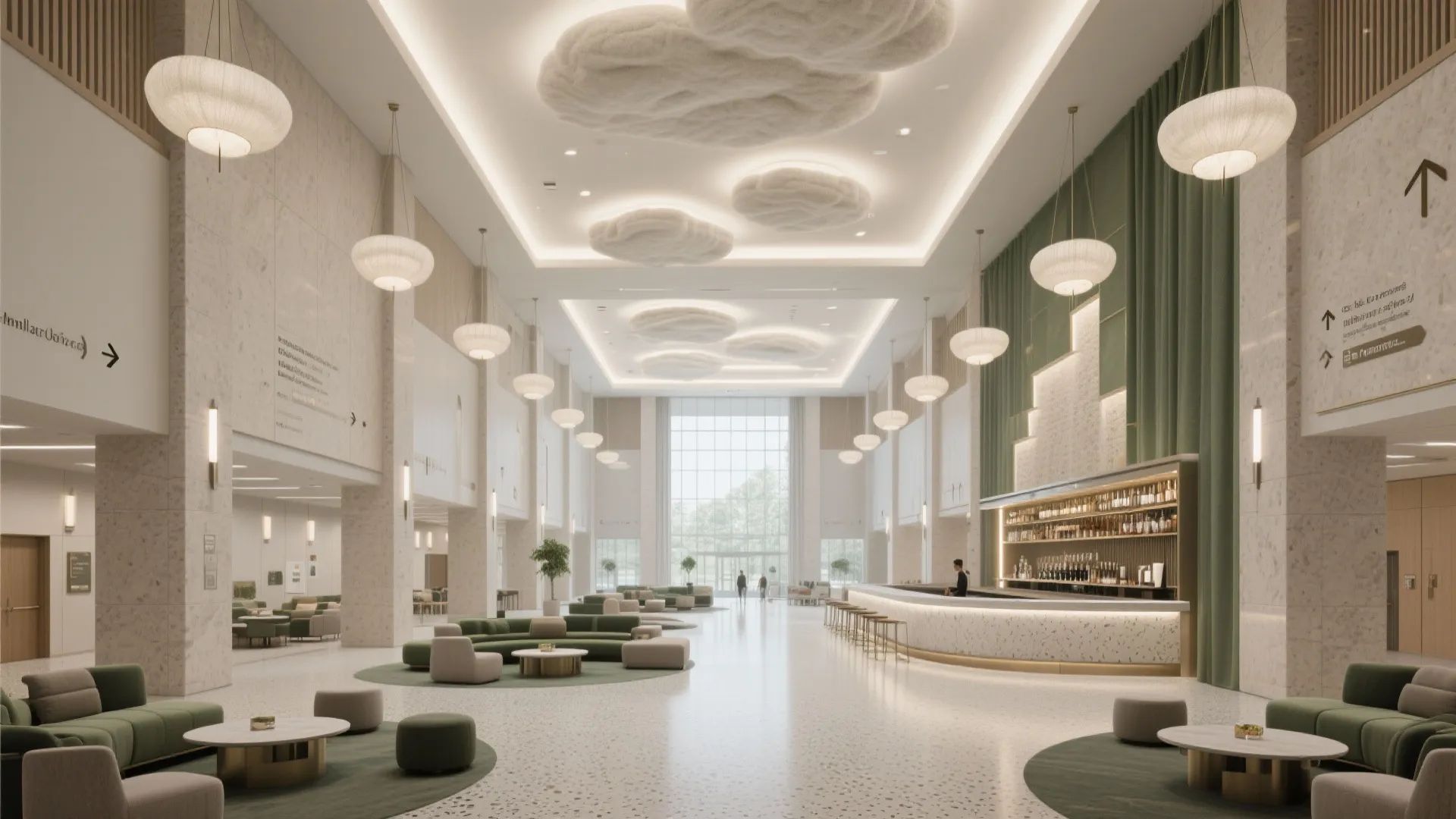

The Grand Hall: Transforming Large Spaces with Stunning Design: Fast-Track Guide to Designing a Grand Hall That Impresses Instantly

Large-volume interiors—ballrooms, lobbies, event halls, worship spaces—promise drama but punish missteps. I approach these projects by first establishing hierarchy, scale discipline, and a sensory baseline: controlled light, calibrated sound, and a circulation spine that anchors everything else. Data consistently shows that environment quality correlates with performance and satisfaction; for instance, Steelcase research reports that 53% of workers struggle with noise distractions, directly affecting focus and experience in open, expansive spaces where reverberation can spike if untreated. WELL v2 also emphasizes glare control and circadian lighting, linking light quality with alertness and comfort across diverse occupant profiles.

Proportion is the quiet hero. In my practice, I work within spatial ratios that balance vertical grandeur with human-scale touchpoints—think 1:3 to 1:4 height-to-width in primary volumes, then a cadence of lower zones for rest, service, and intimacy. This layered approach aligns with evidence-based design: the Illuminating Engineering Society recommends target illuminance levels and glare control to reduce visual fatigue in public spaces; aligning task planes around 300–500 lux and accent layers at 3:1 to 5:1 contrast keeps focal points legible without harsh hotspots. For acoustics, aim for a reverberation time of roughly 1.2–1.8 seconds in multi-use halls to support voice clarity and music warmth, then tune with absorptive banners, diffusers, and soft seating islands.

Set the Narrative: Purpose, Program, and Hierarchy

Every grand hall needs a narrative framework that converts vastness into intention. I map the program in tiers: primary procession (arrival axis), secondary congregation (gathering terraces), and tertiary service (back-of-house seams). This hierarchy simplifies wayfinding and prioritizes budget where it counts—thresholds, focal stages, bar/food hubs, and key vistas. When I prototype flow scenarios, I use a room layout tool to visualize density pockets, sightlines, and furniture clustering before committing millwork and lighting: room layout tool.

Light as Architecture: Layers, Color Temperature, and Glare Control

Lighting is my primary instrument for sculpting perceived scale. I layer ambient wash (indirect coves, large-format pendants), vertical accent (wall grazers on stone or textured plaster), and focal beams (narrow optics on stages, art, or ceremonial elements). Keep CCT coherent: 3000–3500K for hospitality warmth; 3500–4000K for multi-purpose clarity. I cap Unified Glare Rating (UGR) in seating areas to minimize visual fatigue and use dimmable scenes to shift mood from reception to performance. For standards and health alignment, I draw on WELL v2 Light and IES illuminance guidance—credible frameworks that help justify dimming, zoning, and daylight integration to clients.

Acoustic Comfort: Taming the Echo Without Killing the Energy

Big rooms magnify sound. Rather than over-absorbing, I balance absorption, diffusion, and strategic reflection. Tools include micro-perforated wood ceilings (NRC ~0.55–0.75), fabric-wrapped wall panels disguised within pilasters, and deep seating clusters with acoustic underlays. Large rugs with dense fiber backing and upholstered banquettes lower mid-high reverberation. I often float acoustic clouds over circulation spines to maintain clear speech while letting the main volume retain musical presence.

Human-Scale Anchors: Furnishing for Flow and Rest

People need places to land. I break expanses into recognizable micro-destinations—welcome desk islands, beverage points, gallery walls, and soft lounge nodes. Seating geometry follows natural circulation: arcs at junctions, linear benches along edges, and modular clusters near focal zones. A 1.2–1.5 m primary aisle supports bi-directional flow in events; secondary paths at 0.9–1.2 m keep local loops moving. I design clusters with inclusive ergonomics: seat heights at 430–460 mm, table heights at 710–740 mm, and clear knee space for diverse users. This aligns with ergonomic comfort principles cited by WELL and industry bodies, enhancing dwell quality without sacrificing capacity.

Color Psychology and Material Legibility

Color guides behavior. Neutral base palettes (stone, ecru, desaturated greens) calm the background, while saturated accents concentrate attention at stages or bars. From a color psychology standpoint, cool hues temper heat and crowding; warmer tones encourage social bonding and linger time. For materials, I combine reflective finishes that extend light (satin metal, limewash), tactile absorbers (bouclé, wool felts), and resilient floors that handle traffic without visual noise. I avoid over-glossed surfaces that spike glare and instead tune specularity to curate sparkle only where intentional.

Ceiling Strategy: Express Structure and Conceal Systems

Ceilings in grand spaces are both mask and marquee. I expose structure where beautiful and overlay lighting tracks, acoustic baffles, and sprinkler alignments in clean rhythms. If the volume is too tall, I bring the perceived ceiling down with suspended scrims or lantern clusters, then re-extend height over focal axes. Service grilles align to module seams; nothing destroys dignity like random penetrations. I keep maintenance access discrete—lift points above bars or back-of-house corridors—so the room’s serenity survives operational realities.

Staging, Technology, and Future Flexibility

A grand hall must pivot between gala, conference, and performance. I integrate concealed AV racks, redundant power drops, and rigging points rated for flexible loads. Demountable stages nest within millwork bays; operable partitions with proper STC ratings subdivide without telegraphing a “temporary” feel. Where planning multiple arrangements, I simulate options with an interior layout planner to test seating counts, sightlines, and egress before finalizing finishes: interior layout planner.

Wayfinding and Behavioral Cues

Big rooms confuse unless the environment quietly instructs. I use light gradients as cues: brighter toward destinations, softer in pass-through zones. Flooring inlays create intuitive lanes without barricading space. Landmark objects—art totems, sculptural trees, or a signature bar canopy—become beacons. Signage remains minimal but legible, aligned to eye height and key decision points, with accessible typography and contrast ratios.

Natural Light and Thermal Comfort

Where daylight floods in, I modulate with high-transparency mesh shades and adjustable louvers to maintain visual comfort and avoid heat gain spikes. Air distribution in tall volumes works best with displacement ventilation or high-level supply with low-velocity mixing. I position seating away from direct solar patches during midday and program scenes that rebalance electric light as the sun moves, sustaining visual consistency for photography and live broadcast.

Sustainability as Aesthetic Discipline

Responsible choices often produce better rooms. I specify FSC-certified timber, low-VOC finishes, durable textiles with recycled content, and LED fixtures with field-replaceable drivers. Durable floor assemblies reduce long-term embodied impacts by delaying replacement cycles. Where possible, I source local stone and ceramics to cut transport emissions and preserve regional character.

Circulation and Crowd Modeling

For high-occupancy events, I design for surge. I separate entry and exit paths, widen pinch points by at least 20%, and ensure clear signage for amenities. Service corridors shadow public paths so staff remain invisible yet efficient. Before construction, I stress-test scenarios—banquet, lecture, cocktail—using a layout simulation tool to validate egress and service choreography: layout simulation tool.

Case-Inspired Moves I Rely On

1. Frame the focal wall with vertical light to expand perceived height without adding volume.
2. Use a “quiet floor, active ceiling” approach: calm patterning underfoot, expressive rhythm above.
3. Carve alcoves into over-thick walls for intimate seating and acoustic relief.
4. Build a hospitality-grade bar as a social anchor; it pays social dividends in nearly every configuration.
5. Keep finishes in a family of related textures; let contrast come from light and shadow rather than random materials.

References and Further Reading

For research-backed principles on workplace and public-space performance, see Steelcase research on noise and focus, and consult WELL v2 Light and Mind features for guidance on glare, illuminance, and comfort. These frameworks help justify design investments with measurable outcomes.

FAQ

How much light should a grand hall have for multi-purpose use?

I target 300–500 lux on horizontal task planes with dimmable layers; accents run 3–5x brighter for focal clarity. Reference IES recommendations and tune to program type.

What color temperature works best for large events?

3000–3500K creates warmth for hospitality; 3500–4000K supports conferences and exhibits. Keep a consistent baseline and shift scenes with dimming rather than mixing clashing CCTs.

How do you control echo without deadening the room?

Blend absorption (panels, upholstery), diffusion (sculpted ceilings, bookshelves), and targeted reflection. Aim for 1.2–1.8 s reverberation depending on speech vs. music priority.

Which seating layouts are most flexible?

Modular clusters with flip-top tables and stackable chairs. I pre-plan banquet, classroom, and theater modes and validate counts and egress with a room design visualization tool.

What materials are both durable and elegant?

FSC-certified oak, terrazzo, porcelain slabs, wool upholstery, and metal accents in satin finishes. They age well, resist heavy traffic, and photograph beautifully under varied lighting.

How do you handle wayfinding in a featureless large room?

Use light gradients, floor inlays, and a few strong landmarks. Keep signage minimal but high contrast at decision points with clear lines of sight to destinations.

Can a grand hall support mixed uses in one day?

Yes—with concealed AV, rigging points, and demountable stages. Store modular elements in dedicated bays and program lighting scenes for rapid turnover.

What’s the biggest mistake to avoid?

Over-scaling everything. You need human-scale anchors—bars, lounges, alcoves—so the grandeur feels hospitable rather than overwhelming.

How do you approach sustainability without inflating costs?

Prioritize durability and maintenance access, choose local materials, and specify field-serviceable lighting. Long-life assemblies reduce life-cycle costs substantially.

What research can help justify acoustic and lighting investments?

Steelcase provides data on noise and productivity, and WELL v2 outlines light and comfort strategies; both help tie design to measurable outcomes.
