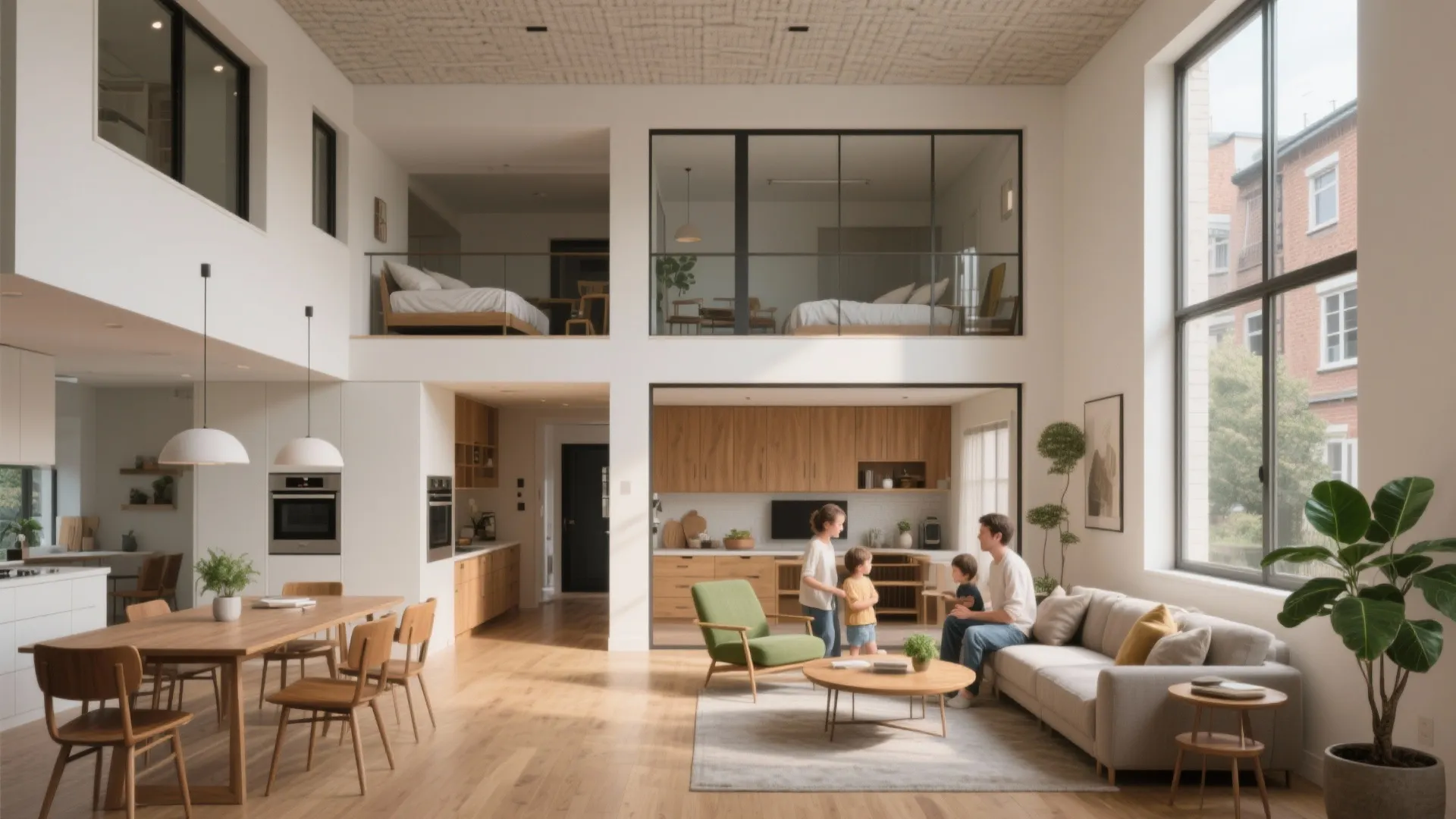

Townhouse 3-Bedroom Floor Plans — 5 Smart Ideas: Compact townhouse three-bedroom layouts that maximize space, light, and livability — tips from a pro with 10+ years designing small homes

I once had a client insist their townhouse needed a slide between the kids' room and the playroom — sounds fun, right? It taught me that small spaces demand big imagination, but also disciplined planning. Small townhouses can actually spark creativity: clever layouts, vertical storage, and multi-use rooms make three-bedroom living surprisingly roomy.

In this article I’ll share 5 practical townhouse floor plans and layout ideas I’ve used in real projects, with pros, trade-offs, budget tips and small tricks that work in everyday life.

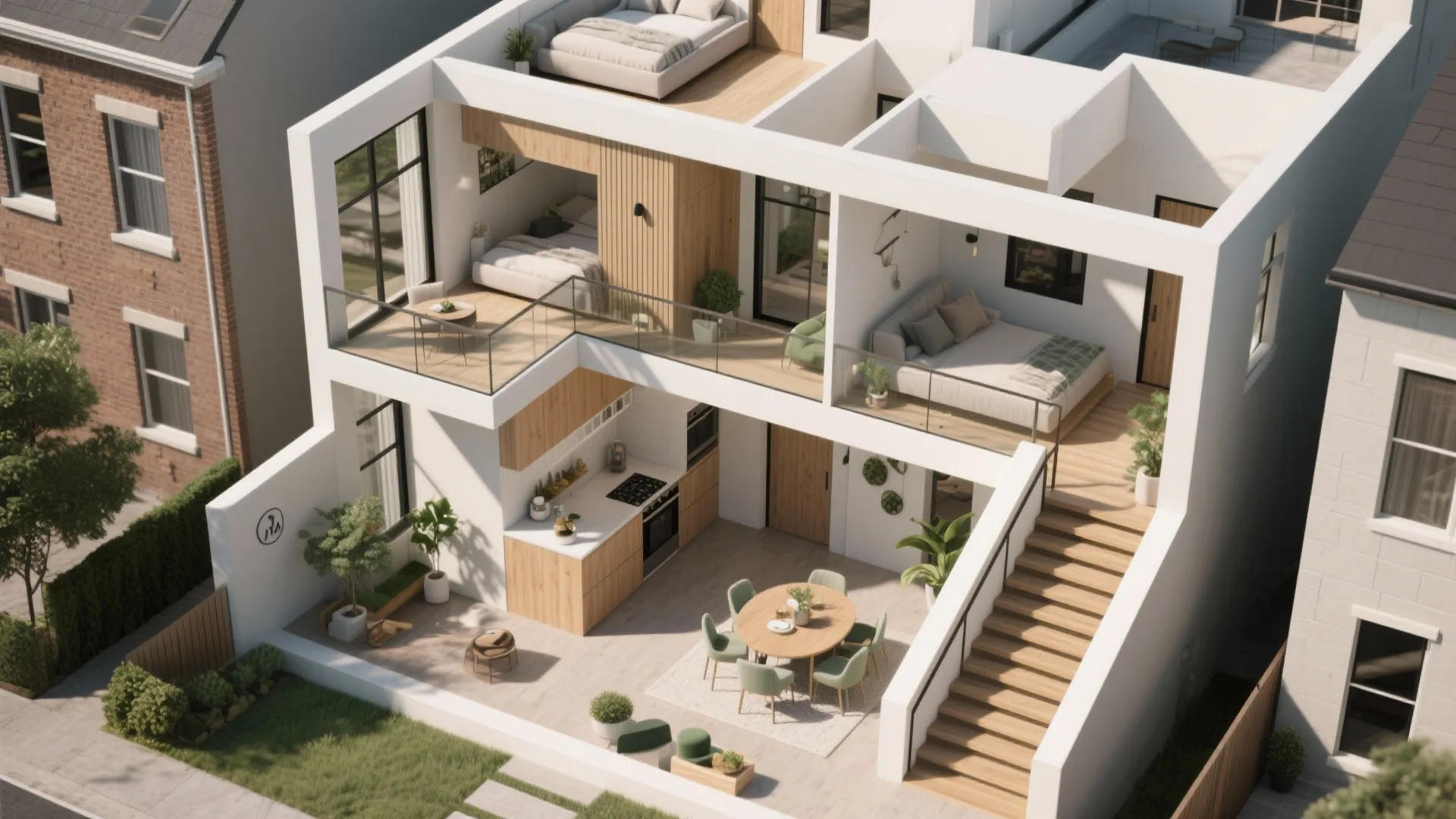

1. Open-plan living with stacked bedrooms

I like placing the living, dining and kitchen on the ground floor as an open plane, and stacking three bedrooms above. This gives great family flow downstairs and private sleeping quarters up. The upside is feel-good daylight and sociability; the downside is you’ll need good sound insulation between floors — I usually specify resilient channels or acoustic underlay to avoid noisy nights.

For visualization and quick iterations I often sketch a massing and then export to a 3D model to check head heights and window placement; that step catches awkward sightlines early.

save pin

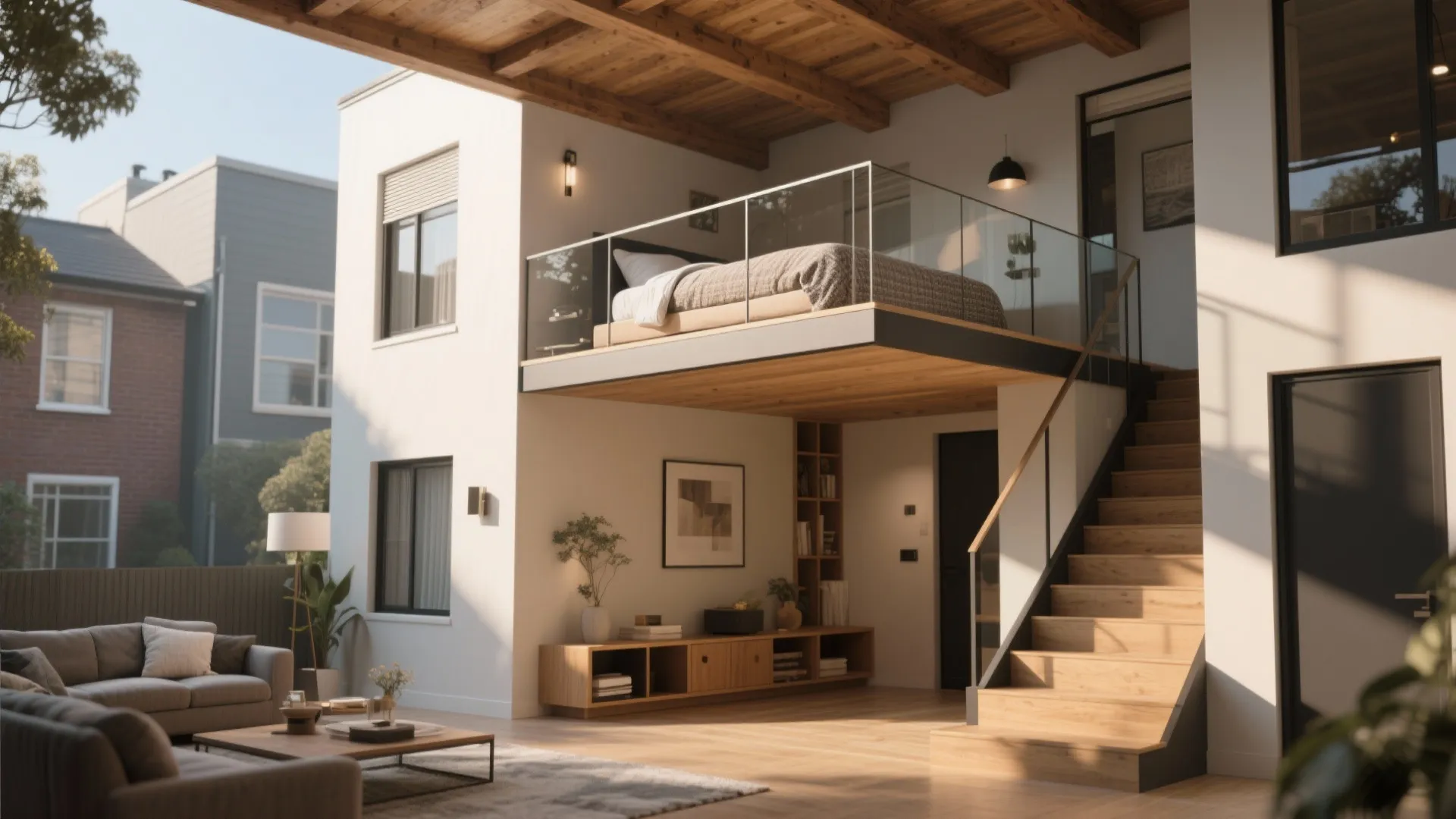

2. Split-level townhouse with mezzanine bedroom

A shallow lot? A split-level flips the script: half-floors create visual interest and let a mezzanine serve as a third bedroom or a flexible study. This keeps the footprint compact while feeling airy. It’s great for young couples who want a dedicated workspace, but it can be trickier for mobility-challenged residents because of extra stairs.

In one project I converted an attic into a cozy mezzanine bedroom with smart storage under the stairs — budget-friendly and full of character.

save pin

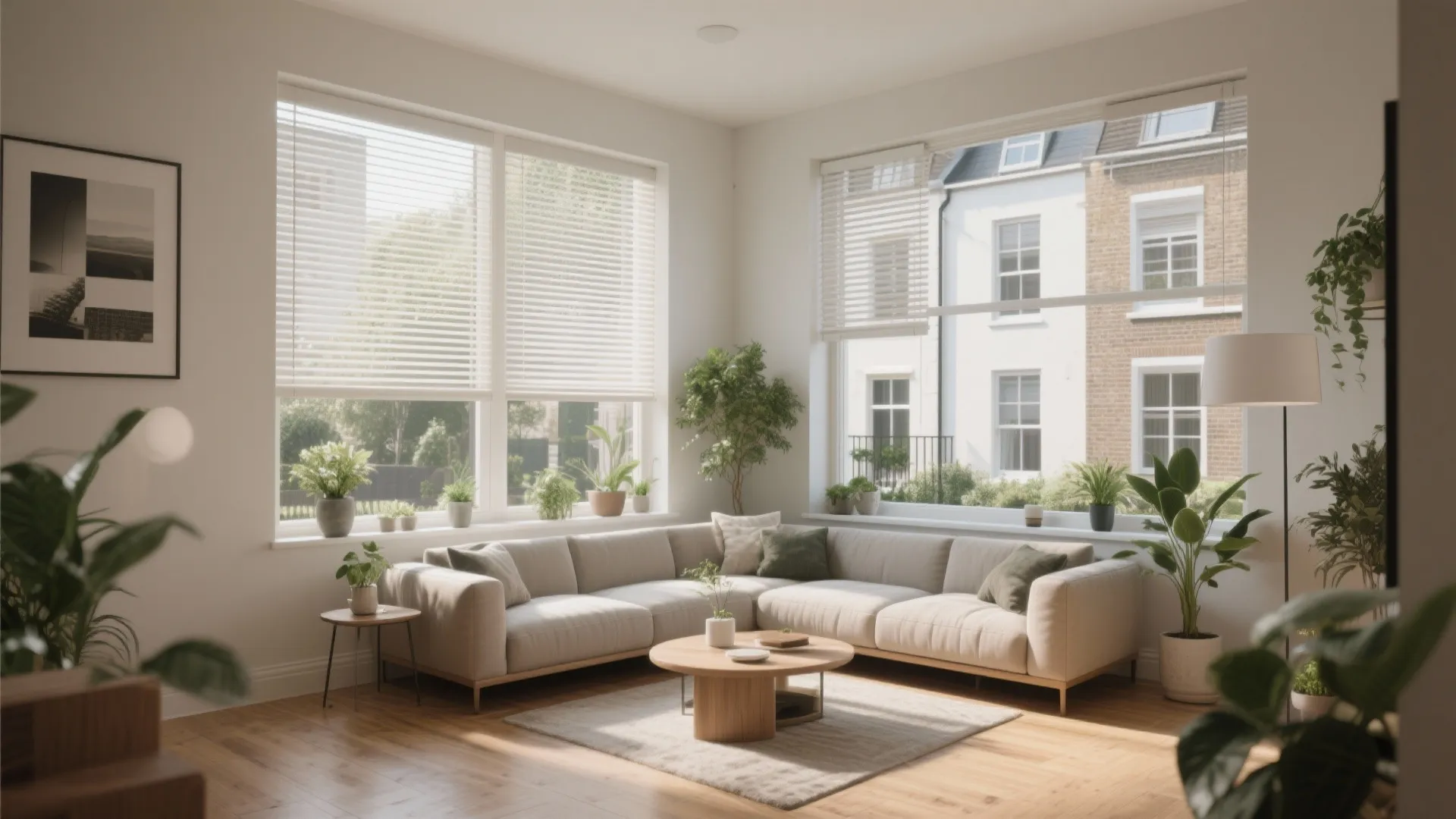

3. Corner townhouse with dual-aspect living room

Corner units are golden: dual-aspect windows give daylight and cross-ventilation. I orient the living area to take advantage of both exposures and tuck three bedrooms towards the quieter side. This layout improves energy efficiency and makes rooms feel larger without increasing square footage.

The trade-off is window treatments and privacy planning; I recommend layered blinds and a modest planting buffer outside to keep sightlines comfortable.

save pin

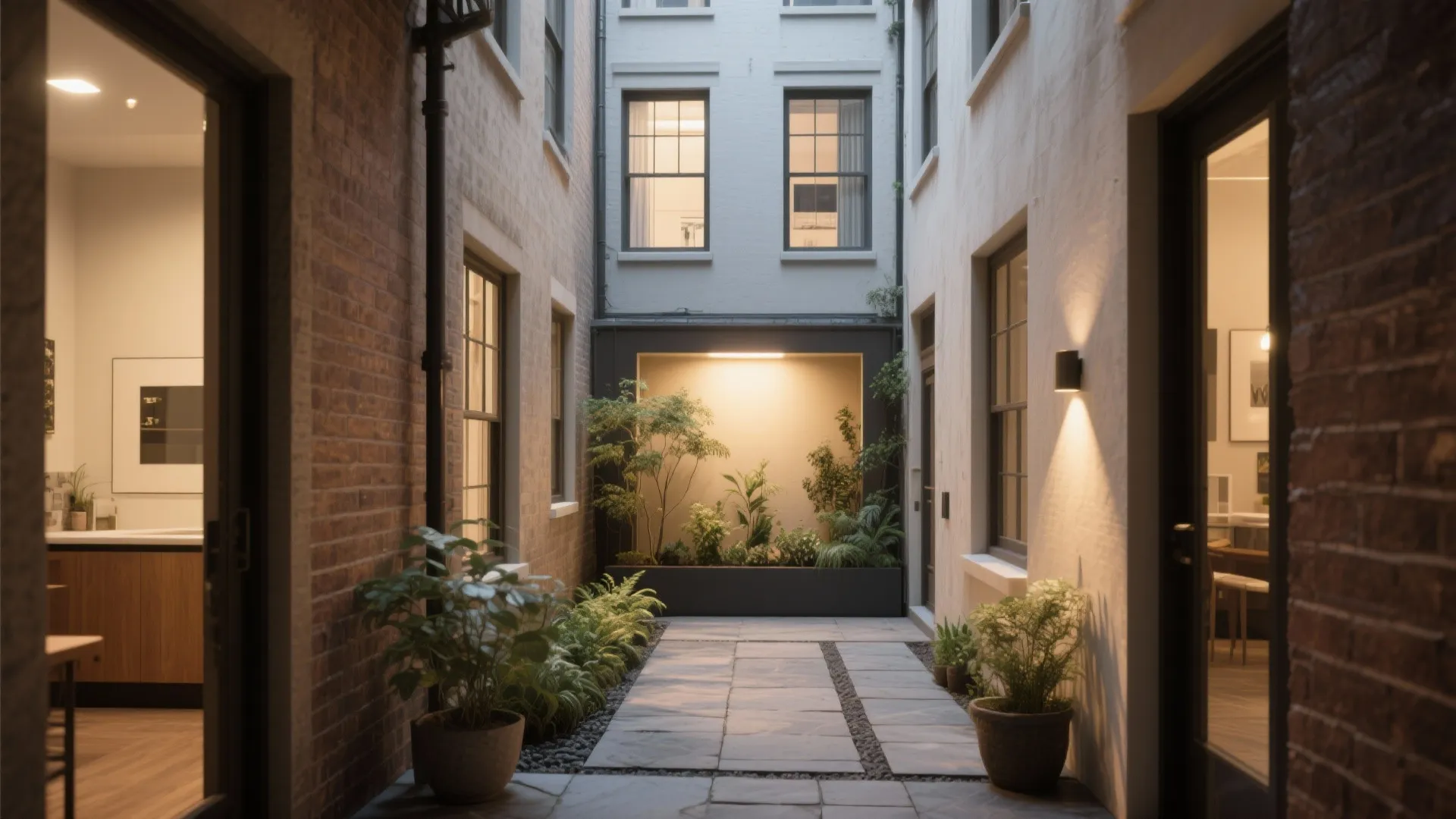

4. Courtyard-centric layout for light and privacy

If the site allows, carving a small internal courtyard or lightwell gives every floor natural light and creates a private outdoor nook. I’ve used courtyards to bring daylight into narrow townhouses so inner bedrooms don’t feel like caves. It’s an elegant solution, but expect extra waterproofing and slightly higher upfront costs.

Tip: use operable clerestory windows for ventilation without compromising wall space for storage.

save pin

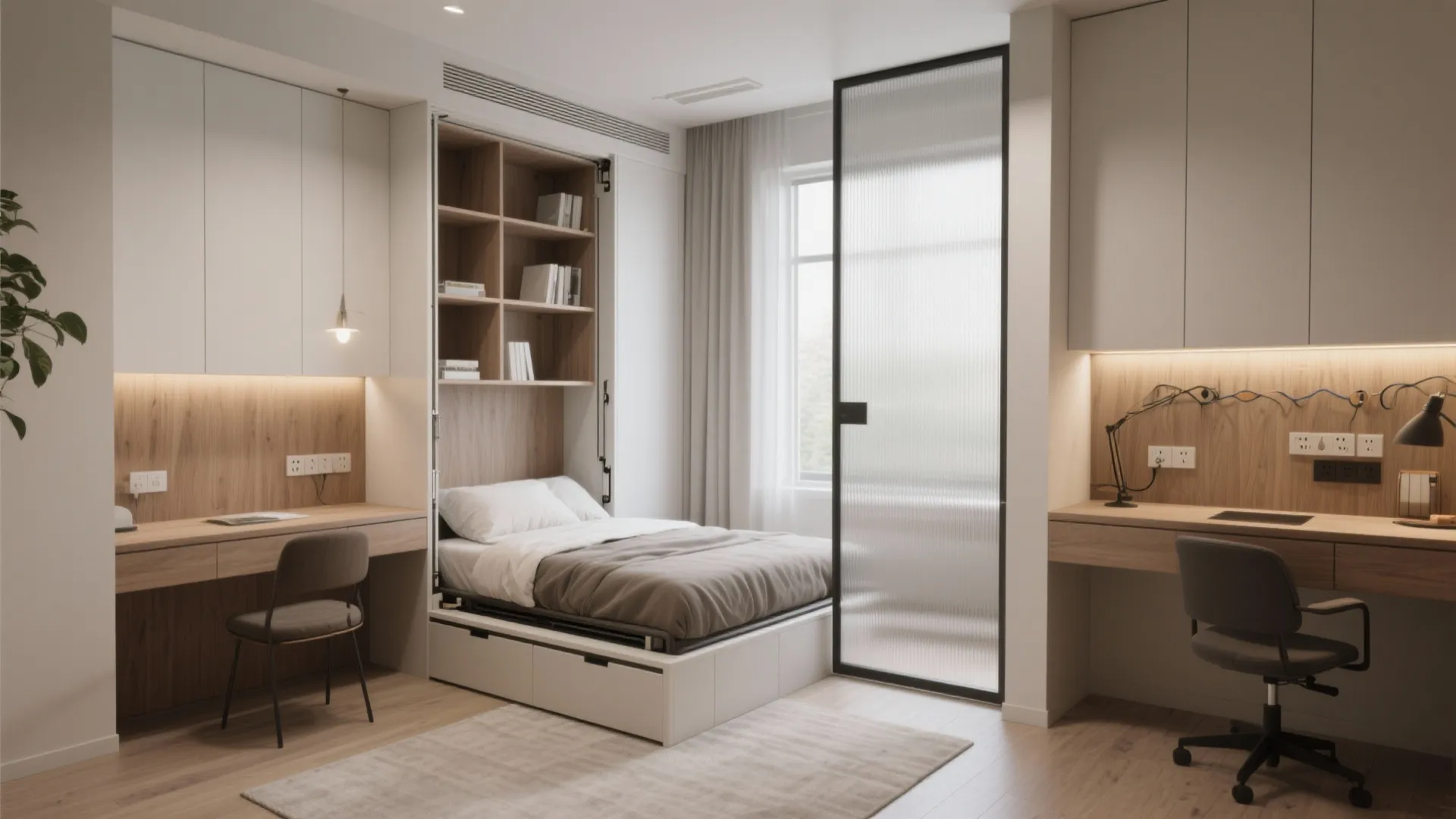

5. Flexible third bedroom that doubles as a study

Many clients want a third bedroom but rarely use it full-time. Designing a flexible room with a Murphy bed, built-in desk and sliding partitions turns that space into a work-from-home hub by day and guest room by night. The advantage is maximum utility in minimum area; the small challenge is coordinating mechanicals and outlets so both functions feel seamless.

In a recent townhouse I integrated a fold-down bed within a shelving wall — guests loved the comfort and homeowners gained the perfect daytime studio.

save pin

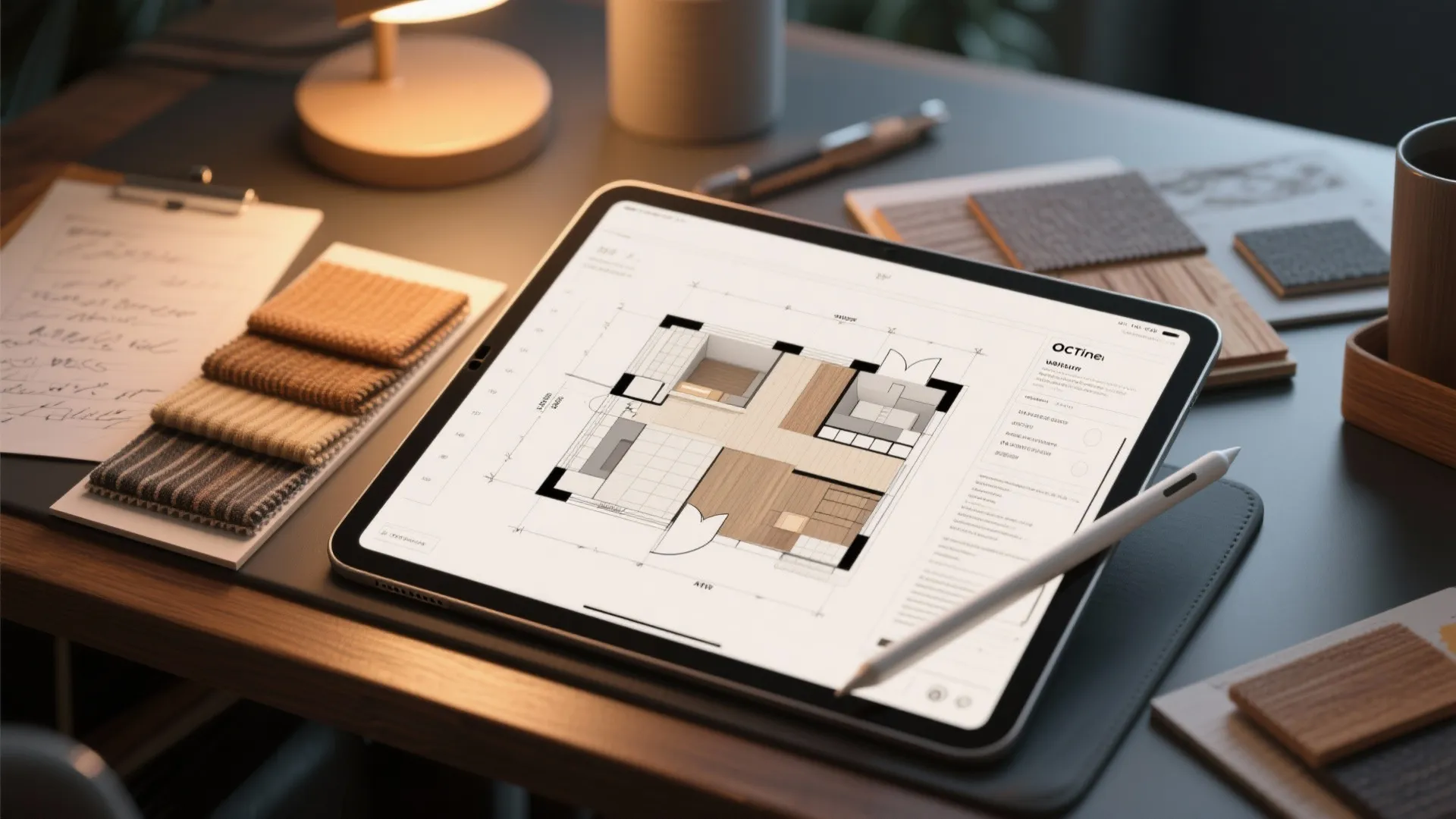

Helpful tools and examples

When I test layouts quickly, a fast 3D mock-up saves hours of back-and-forth. For example, I walked a client through a realistic 3D visualization from a proven 3D-floor planning solution that made the design decisions obvious and reduced revisions. This step boosted their confidence and sped construction approvals.

save pin

FAQ

Q: What is the ideal square footage for a 3-bedroom townhouse?

A: A comfortable 3-bedroom townhouse typically ranges from 900 to 1,400 sq ft depending on layout and ceiling heights; clever planning can make smaller footprints very livable.

Q: How do I get enough natural light in a narrow townhouse?

A: Use dual-aspect windows, lightwells, clerestories and light-colored finishes. Mirrored or glossy surfaces also help bounce light into deep plans.

Q: Are open-plan living areas good for townhouses?

A: Yes — they improve social interaction and perceived space, but consider acoustics and cooking odors; a good range hood and subtle zoning help a lot.

Q: How much does adding a mezzanine bedroom cost?

A: Costs vary, but expect structural alterations and stair construction to add to the budget; however, using lightweight timber framing and prefab elements keeps costs reasonable.

Q: Can I convert a study into a bedroom later?

A: Absolutely — designing with a wide door, closet space, and egress-compliant window makes future conversion straightforward.

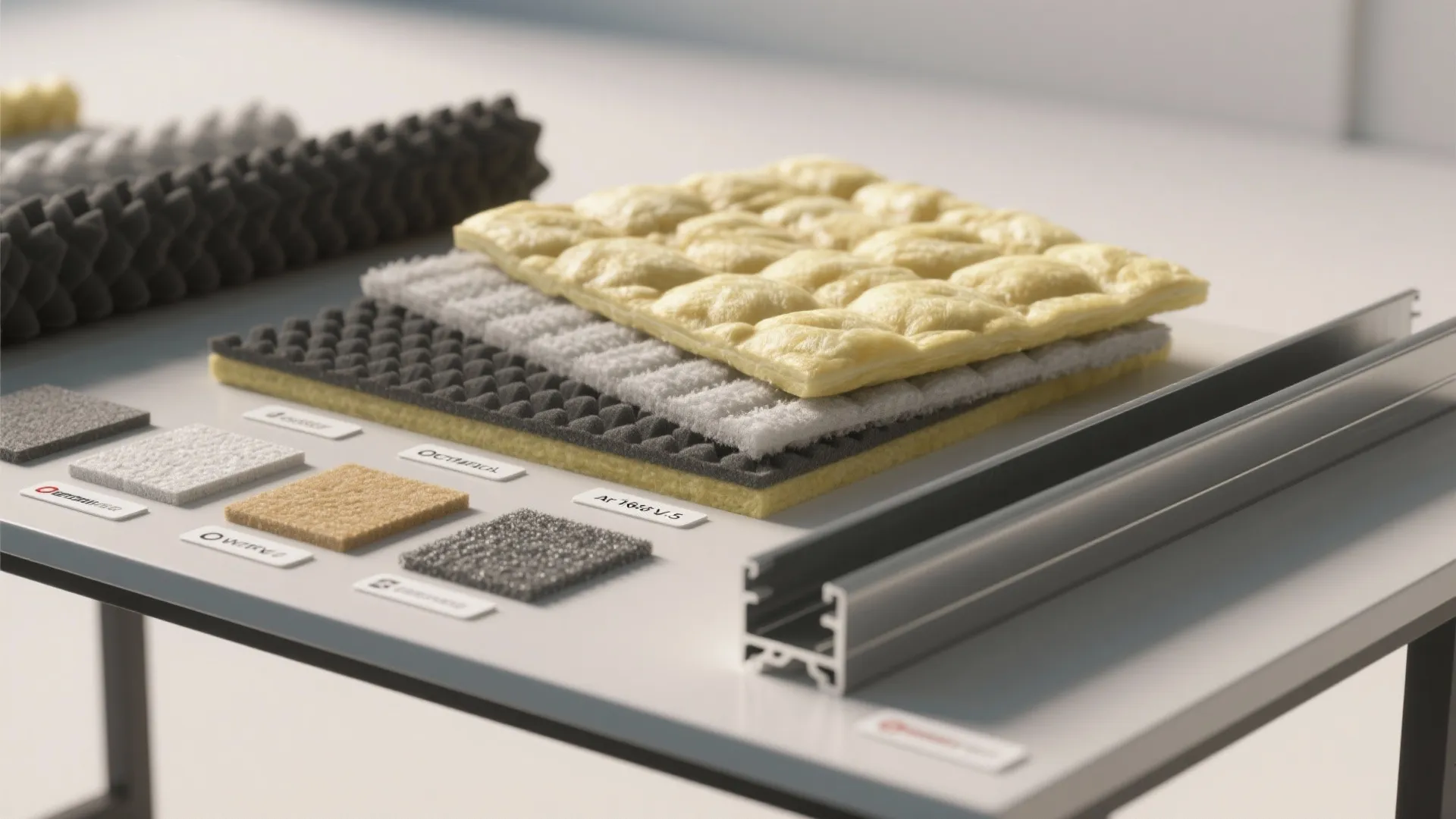

Q: What’s the best way to insulate between stacked bedrooms?

A: Use resilient channels, acoustic underlayment, and dense insulation in floor cavities; decoupling finishes significantly reduces airborne and impact noise.

Q: Where can I see interactive examples of townhouse layouts?

A: I often show clients interactive room planners and 3D examples; these visual tools clarify layout choices and finish palettes, leading to faster sign-off.

Q: Are there authoritative sources on residential space standards?

A: Yes — for example, the American Institute of Architects (AIA) publishes guidelines on residential design standards (see AIA resources for specifics).
