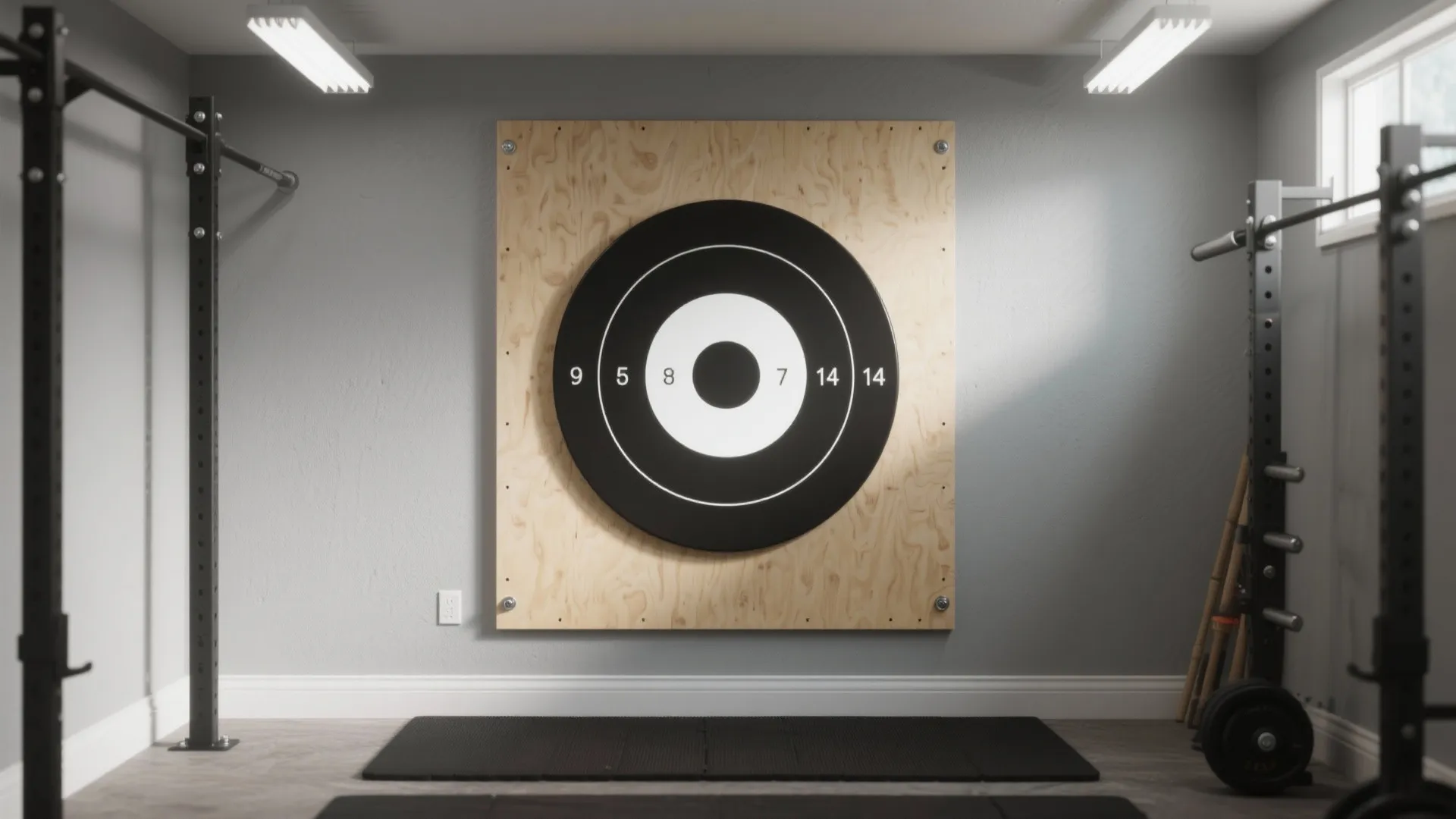

Wall Ball Target DIY: Simple Guide for Home Fitness: 1 Minute to a Custom Wall Ball Target on a Budget

Wall ball training thrives on repeatability: consistent height, an impact-friendly surface, and clear visual alignment cues. I’ve built and specified wall ball targets for home gyms and micro studios where durability, safety, and sightlines matter as much as the workout. A target set between 9 ft (2.74 m) and 10 ft (3.05 m) off the floor is standard, with 9 ft often used for general training and 10 ft for advanced users. Steelcase research notes that clarity and legible visual markers reduce cognitive load and improve user performance in task-oriented environments; a simple high-contrast ring around your target improves accuracy and rhythm during sets. WELL v2 highlights glare control and adequate vertical illuminance as key to visual comfort—if your target is washed out by harsh light, accuracy suffers and fatigue sets in.

From a safety and materials perspective, I prioritize impact dissipation and stable anchoring. In facilities work, we align with WELL v2 lighting guidance to avoid glare cones and provide 300–500 lux in training zones for clear visibility, and I maintain a 2–3 ft clear zone around the throw path to minimize collision risk. Steelcase research on behavioral cues in performance settings underscores the value of intuitive markers; a 12–16 in diameter target circle, painted matte and outlined at least 1–1.5 in wide, gives the eye a reliable aim point without visual clutter. For quick references on visual comfort and human performance considerations, see WELL v2 (v2.wellcertified.com) and Steelcase Research (steelcase.com/research).

Plan Your Target Height and Location

Choose 9 ft or 10 ft based on your training goals. I like to mark both heights on the wall so different users can train without rework. Mount on a load-bearing wall (concrete, CMU, or wood studs) with at least 4 ft of lateral clearance and 8 ft of unobstructed throw distance. If you’re setting up a multi-use garage gym, center the target on a stall mat bay so landing and pickup happen on high-friction, joint-friendly flooring.

Materials and Tools

For a durable DIY target, you can go minimalist or modular:

1. Backer: 3/4 in (19 mm) exterior-grade plywood or a 1/8–3/16 in (3–5 mm) steel plate mounted over studs.
2. Stand-off frame (optional): 2x4 lumber or steel angle to create a sacrificial panel that can be replaced over time.
3. Fasteners: 3–4 in structural screws for wood studs; 3/8 in concrete anchors for masonry. Use fender washers to distribute load.
4. Finish: Matte polyurethane or rubberized coating for plywood; matte powder coat or enamel for steel.
5. Visual target: High-contrast matte paint ring (12–16 in diameter) or a bolted steel ring with rounded edge.
6. Optional padding: 1/4 in rubber sheet behind plywood to dampen impact and reduce vibration transmission.
7. Lighting: Aim for ~300–500 lux at the wall target; 4000–5000K neutral-white lamps with CRI 80+ for color legibility.

Layout and Mounting Sequence

Layout first: snap a vertical centerline, mark 9 ft and 10 ft heights, and map your target circle with a template. Pre-drill backing and wall locations. On wood-stud walls, hit at least two studs and use a 4-point pattern at the perimeter of your panel to resist shear. On masonry, set anchors at least 2–2.5 in embedment. If you’re planning multiple targets or a shared training wall, sketch clear distances and test lines with a room layout tool like this interior layout planner: room layout tool to visualize spacing before you drill.

Dimensions That Work

Most home setups perform well with a 24–30 in wide panel centered at 9–10 ft. The target ring at 12–16 in diameter keeps throws contained and readable. If you use heavier balls (20 lb+), consider a 30–36 in wide backer to catch slight misses and protect the wall finish. Maintain a bottom clearance: the lowest edge of the panel should sit at least 6.5–7 ft from the floor so heads and shoulders don’t brush the panel during deep squats.

Build Options: Plywood vs. Steel

Plywood is forgiving and cost-effective. A laminated double layer (2 x 1/2 in) with staggered seams is stiffer than a single 3/4 in sheet. Finish with matte polyurethane to prevent scuff chalk from ghosting. For high-use setups or for those who like a crisp rebound feel, a 3–5 mm steel plate over furring strips gives a dense hit with minimal flex—just ensure rounded edges and a slight stand-off (1/4–1/2 in) to decouple vibration from the wall.

Lighting and Visual Comfort

Glare and shadows can sabotage aim. I keep fixtures out of the direct reflection path and bias lighting slightly off-axis, about 30–45 degrees from the wall plane, delivering ~300–500 lux at the target. Neutral-white (4000–5000K) keeps contrast high without harsh blue cast. WELL v2 emphasizes both illuminance and glare control for visual comfort, which translates directly into more consistent throws and less eye strain.

Color and Contrast Choices

A matte dark ring on a lighter field (or inverse) is easiest to track in peripheral vision. Verywell Mind’s color psychology overview notes that red can increase arousal and perceived intensity; if you prefer a calmer training atmosphere, a charcoal ring on a light gray field reads crisply without overstimulation. Avoid glossy finishes that create hotspots under LEDs.

Acoustics and Vibration

Repeated impacts can telegraph through framing. A thin rubber underlayment behind the panel and fender washers at fasteners spread energy and reduce buzz. If the wall backs a bedroom or office, shift the target onto a masonry bay or add a decoupled strut frame to isolate impact.

Safety, Clearances, and Ergonomics

Protect the throw zone: no shelves, handles, or protrusions within 36 in lateral clearance. If you train with partners, set targets at least 48 in apart. Keep the ball pickup path clean and use high-friction flooring (rubber mats) to prevent slips. For taller athletes, place the center of the ring at their target height mark rather than the top of the panel; this ensures the highest repeatability and reduces neck extension.

Step-by-Step: Quick DIY

1. Mark centerline and target height (9 ft/10 ft).
2. Cut panel (24–30 in wide) and round the edges.
3. Paint base color matte; add a 12–16 in target ring.
4. Pre-drill panel and wall; locate studs or anchor points.
5. Add rubber underlayment (optional), then mount with structural screws or anchors and fender washers.
6. Verify level, torque fasteners snug, not crushing the panel.
7. Light the wall to ~300–500 lux; aim fixtures to avoid glare.
8. Test with progressive throws (light ball first, 10–15 reps) and retighten hardware after the first session.

Maintenance and Upgrades

Check fasteners monthly, especially after humid seasons. Recoat the target ring when contrast fades. If you want multi-height training, add a second ring at the alternate height or a subtle dashed line between marks. For data-driven athletes, mount a small reflective marker so motion-tracking apps can log accuracy.

Common Mistakes I See

1. Mounting to drywall only—always anchor to studs or masonry.
2. Gloss paint that blooms under LEDs—use matte.
3. Too-small ring (<10 in) that punishes minor deviations.
4. Neglecting lighting; dim, uneven light hurts aim and pacing.
5. No edge radius on steel—always break edges to avoid snags.

FAQ

What height should I set for a home wall ball target?

Most users choose 9 ft for general conditioning and 10 ft for advanced workouts. Mark both if multiple people train at home.

What diameter should the target ring be?

12–16 in works best for visibility and accuracy. I use 14 in as a sweet spot for mixed-skill households.

Can I mount on drywall?

No. Always mount into wood studs or use appropriate masonry anchors on concrete/CMU. Drywall alone will fail under repeated impact.

What finish resists scuffs and glare?

Matte polyurethane on plywood or matte enamel on steel. Avoid gloss; it increases glare and reduces legibility.

How much lighting do I need on the target?

Plan for ~300–500 lux at the wall with neutral-white (4000–5000K) lighting and aim fixtures off-axis to control glare, aligning with WELL v2 comfort guidance.

Will a rubber layer help with noise?

Yes. A 1/8–1/4 in rubber sheet behind the panel and fender washers at fasteners reduce vibration and rattle, especially on stud walls.

Is plywood or steel better?

Plywood is quieter, cheaper, and forgiving. Steel is more durable and crisp but needs rounded edges and careful isolation to avoid noise transfer.

What clearances should I maintain?

Keep at least 2–3 ft clear laterally and 8 ft of unobstructed throw distance. If placing multiple targets, space them at least 4 ft apart.

How do I add multiple heights without clutter?

Use one solid ring for your primary height and a subtle dashed ring or small tick marks for the alternate height to preserve visual clarity.

Can I integrate it into a multi-use wall?

Yes. Use a replaceable sacrificial panel and keep shelves or hooks at least 36 in away from the throw zone to avoid snags and impacts.

What ball weights work best at home?

Start with 10–14 lb for general conditioning; progress to 16–20 lb as form and control improve. Heavier balls may warrant a wider backer panel.

How do I check my setup is secure?

After installation, perform gradual test throws, then retighten hardware. Inspect monthly for loosened fasteners or edge wear.
