Wall Bike Mount DIY: A Space-Saving Guide for Small Homes: 1 Minute to Custom Wall Bike Mount—No Drilling Expertise Required

Floor space is premium in small homes, and a well-designed wall bike mount can reclaim 4–6 square feet per bike while turning gear into a visual feature. I’ve installed dozens of wall systems in compact apartments and micro-studios, and the most successful builds balance load safety, stud anchorage, and eye-level ergonomics. Steelcase research shows cluttered environments correlate with lower perceived productivity and higher stress; reducing visual noise through vertical storage supports focus and comfort. WELL v2 also emphasizes safe reach ranges and secure mounting as part of human-centered design, which translates directly to how and where a bike sits on your wall.

Height and reach matter. For most adults, a comfortable grab zone is between 24 in (610 mm) and 72 in (1829 mm) from the floor, aligning with commonly used ergonomic reach ranges in workplace standards and WELL v2 guidance on accessible placement. From my projects, locating the tire contact point around 12–16 in off the floor and the bike’s top tube near chest height keeps the lift manageable while avoiding overhead strain. For broader guidance on how physical environment impacts comfort and performance, the research libraries at Herman Miller and Steelcase provide data-backed insights that inform residential storage choices.

Plan the Mount: Structure, Studs, and Load

Before drawing a single line, confirm what’s behind the wall. A typical road or city bike weighs 17–30 lb (7.7–13.6 kg); e-bikes run 40–70 lb (18–32 kg). Drywall alone won’t safely hold these loads long-term. You’ll need wood studs, masonry, or a continuous plywood backer. I aim for a minimum 2x shear safety factor—if the bike is 30 lb, fasteners and substrate should comfortably handle 60+ lb.

If you’re rearranging a living area or entry corridor to accommodate a bike wall, test pathways and clearances first with a room layout tool. A quick mock-up helps you avoid door swing conflicts and ensures the crank, bars, and pedals don’t clip adjacent furniture. Try this interior layout planner to visualize wall clearances: room layout tool.

Choose Your DIY Strategy

1) Peg-and-Saddle Top Tube Rest

A minimalist solution: two hardwood pegs (or steel rods with caps) support the top tube, with a leather or rubber saddle to protect the finish. Best for diamond-frame bikes 17–35 lb. Mount pegs on a solid backer board fixed to studs at two points minimum.

2) Vertical Tire Hook + Lower Bumper

The most space-efficient approach for tight hallways. A rubber-coated steel hook for the front wheel carries the primary load; a lower wall bumper or U-bracket stabilizes the rear wheel and keeps marks off paint. Works with fender-less bikes; confirm hook radius vs. tire width.

3) French Cleat Shelf for Mixed Frames

A wall-to-wall cleat distributes load across multiple studs. A shallow shelf cradle with cork or neoprene accommodates step-through and sloping top tube frames. This option is adaptable and renter-friendly if you use a single cleated panel that can be patched later.

Materials and Tools

- Backer: 3/4 in (19 mm) birch plywood or hardwood board (at least 28–34 in wide to span two studs at 16 in centers).

- Fasteners: 3–3.5 in wood screws for studs; sleeve or wedge anchors for masonry; never rely on plastic drywall anchors for primary loads.

- Hardware: rubber-coated tire hook (rated ≥ 50 lb), steel angle brackets, leather strap, or cork pads.

- Finishes: low-VOC waterborne polyurethane or hardwax oil to maintain indoor air quality (aligns with WELL v2 material guidance).

- Tools: stud finder, level, drill/driver, countersink bit, tape measure, sander, safety glasses.

Dimensions, Clearances, and Ergonomics

- Bar width and crank sweep: Allow 4–6 in clearance beyond handlebar width on each side to avoid wall rub; keep pedals at neutral to minimize projection.

- Mount height: For horizontal mounts, locate the top tube support roughly 48–56 in to center the bike in a comfortable lift window. For vertical mounts, set the hook so the rear tire just kisses the floor or sits 1–2 in above it for easier loading.

- Door and circulation: Maintain at least 36 in clear passage per common residential guidelines; 42 in is comfortable in narrow halls.

- Lift technique: Keep elbows close, lift from the triangle of the bike frame, and avoid reaching above shoulder height to reduce strain.

Step-by-Step: Vertical Tire Hook Build

1) Locate studs with a stud finder; verify by pilot drilling. Mark a vertical centerline aligned with a stud.

2) Pre-finish a 6–8 in wide plywood backer board, 30–40 in tall. This spreads load and protects the wall.

3) Fasten the backer to the stud with 3–3.5 in screws at four points, countersunk and level.

4) Mount the rubber-coated tire hook through the backer into the same stud at 68–74 in height (adjust for wheel size and rider height).

5) Add a lower bumper at 12–16 in from the floor to catch the rear tire. Use cork or neoprene pads to prevent scuffs.

6) Test with a static hang, then bounce-load lightly to confirm no movement or creaks.

7) Touch up edges, add a small tray or magnet strip for keys and a mini pump if desired.

Step-by-Step: Top Tube Peg Mount

1) Rip a 3/4 in hardwood board to 28–34 in wide; pre-finish all faces.

2) Lay out peg spacing to match your bike’s top tube balance point; typically 10–14 in apart.

3) Drill through-holes and epoxy steel rods or thread hardwood dowels into insert nuts; add leather sleeves.

4) Lag the board into two studs; confirm pegs are perfectly level to prevent roll-off.

5) Add a hidden angle bracket below for a small shelf (gloves, lights). Keep total shelf depth under 8 in to maintain egress clearance.

Surface Protection and Color Strategy

Bikes are tactile objects; paint should hold up. Opt for scrubbable eggshell or satin on the bike wall. Use cork bumpers at contact points. For small rooms, color psychology suggests cooler hues (soft blue-gray or desaturated green) recede visually, making the space feel broader. Warm accents near the mount (rust, ochre straps) can make the bike feel curated rather than stored.

Acoustics and Neighbor-Friendly Mounting

Metal-on-wood creaks transmit through studs. Decouple with neoprene gaskets between backer and wall and use tight pilot holes to minimize squeak. Avoid anchoring on party walls if possible; place mounts on interior partitions perpendicular to joists for better vibration control.

Safety, Ratings, and Maintenance

- Hardware rating: Choose hooks/brackets with stated load ratings exceeding your bike weight by at least 2x.

- Fastener check: Re-torque screws seasonally; wood dries and can loosen.

- Tire care: Avoid hanging by hook on freshly lubed tires; clean contact areas to prevent slippage.

- Child safety: Keep pedals clear of head height in kids’ zones; cap all exposed rods.

Renter-Friendly Approaches

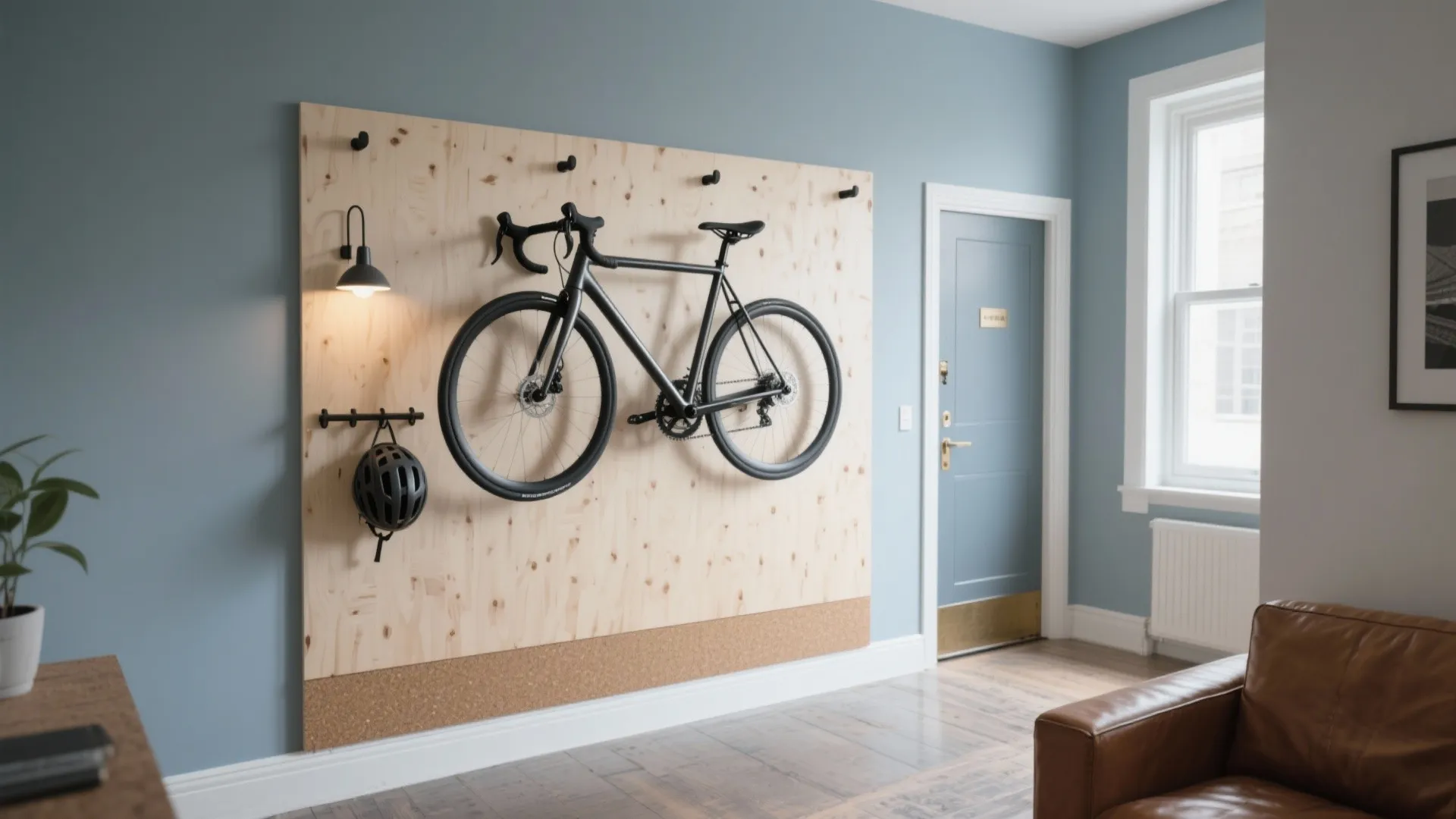

When you can’t hit studs, build a wide decorative panel (plywood wrapped in fabric or hardwood slats), fix it into studs at two points, then mount your bike hardware anywhere on the panel. Patching is simple, and the panel reads as wall art. French cleats allow full removal when you move.

Layout, Lighting, and Daily Workflow

Integrate the mount near natural entry paths—ideally 3–6 ft from your door but away from immediate swing arcs. A dimmable 3000–3500K wall washer or track head reduces glare off glossy frames while providing task light for lock/unlock and maintenance. Keep a tray or peg rail beneath for helmets and lights so pathways remain uncluttered.

Common Mistakes I See (And Fix)

- Anchoring into drywall toggles for primary load—inevitably sags.

- Hook too high—forces overhead lift and discourages daily use.

- Ignoring handlebar width—bike becomes a shoulder-bumper in narrow halls.

- No rear bumper—tire scuffs and swing marks accumulate fast.

- Finishes not cured—soft coatings dent under clamp pressure.

Budget and Time

Expect $35–$90 for a vertical hook build with a finished backer and pads; $70–$160 for a hardwood peg mount. Typical install time runs 90–150 minutes with basic tools.

FAQ

How do I find the right height for a vertical hook?

Hang a test line at eye level, lift the front wheel, and aim for the rear tire to just touch or sit 1–2 in above the floor. This minimizes lift effort and stabilizes the bike.

Can I mount into metal studs?

Not for primary loads with standard wood screws. Use a plywood backer that spans at least two studs and fasten with self-drilling fine-thread metal stud anchors plus toggle reinforcement, or choose a wall that has wood studs or masonry.

Will hanging by a wheel damage my bike?

For modern bikes, hanging by a wheel is generally safe. Use a wide, rubber-coated hook and avoid extreme heat; carbon rims and disc rotors should be clean and cool before storage.

What if my bike has fenders or a step-through frame?

Use a top tube cradle or French cleat shelf that supports the frame rather than a tire hook. For fenders, ensure the hook contacts the tire, not the fender.

How do I protect my wall from tire marks?

Install a cork or neoprene bumper at the rear tire contact point and use scrubbable paint. A removable clear polycarbonate strip also works discreetly.

Is there an ideal spot in a small apartment?

Near the entrance but outside door swing. Maintain a 36 in clear path and avoid protruding into circulation. Use a room design visualization tool to test placements before drilling.

What lighting should I use around the mount?

A single 3000–3500K adjustable spotlight or wall washer aimed at the frame reduces glare and helps with evening parking. Keep UGR low by shielding the source from direct view.

How can I make the mount look intentional, not improvised?

Match the backer finish to your millwork, add leather or cork details, and align the bike centerline with nearby artwork or switches for visual rhythm.

Can renters do this without losing a deposit?

Yes—use a decorative panel fixed into studs at two points and mount hardware to the panel. Patch and paint two holes when moving out.

How often should I check fasteners?

Quarterly. Seasonal humidity shifts can loosen screws; re-torque to spec and check pads and bumpers for wear.
