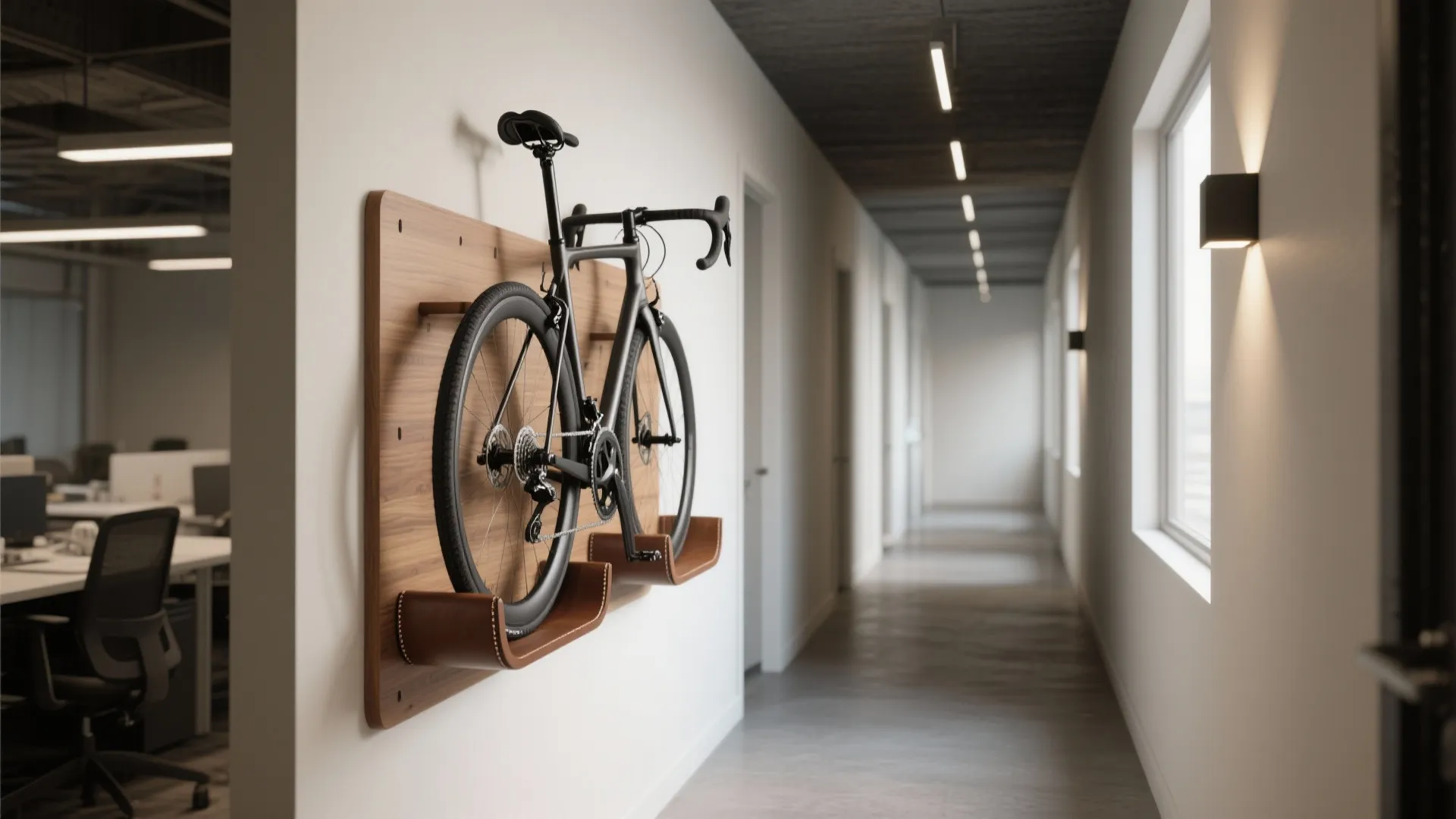

Wall Mounted Bike Rack DIY for Small Spaces: 1 Minute to a Clutter-Free Entryway: Fast-Track Guide to Building a Wall Mounted Bike Rack

Space gets tight fast in studios, hallways, or compact garages. A wall-mounted bike rack solves the clutter by shifting storage vertically, freeing 4–6 square feet of floor area per bike. In my projects, that single move opens circulation, improves sightlines, and reduces trip hazards. It also encourages daily riding because the bike stays visible and easy to grab. Steelcase research notes that visual order measurably reduces cognitive load and stress in work environments—a principle that translates well to small homes seeking calm, functional storage (Steelcase Research).

Proper ergonomics make the difference between a rack you love and one you avoid. According to WELL v2, frequently used items should ideally fall within the 20–44 inch reach zone for comfortable access, minimizing strain and overreach (WELL v2—Ergonomics). For most adults, that means placing the bike’s front hub or top tube around 44–52 inches from the floor if you lift by the frame, or lowering to 36–44 inches if you hook by the wheel. Keep the bottom tire at least 2–3 inches off the ground to reduce black scuffs on walls and ease cleaning.

What You’ll Build: A Minimal, Strong Wall Bike Rack

We’re aiming for a compact rack that holds one bike (up to 40–50 lb), keeps tires off the wall, and distributes load into studs. The design uses a shallow wooden backer, a padded cradle or wheel hook, and a stabilizing lower bumper. It’s slim enough for hallways yet solid for daily use. If you’re planning multiple bikes along a corridor, map door swings and walking clearances first. For quick spatial testing, drop your dimensions into an interior layout planner and simulate reach, handlebar overlap, and legroom using a room layout tool.

Materials and Tools

Choose materials that balance strength, wear resistance, and a clean profile:

1. Backer board: 3/4 in (19 mm) plywood or hardwood (maple/oak); cut ~26–30 in high x 10–12 in wide.
2. Main support: either a steel bike hook (rubber-coated) or a DIY wooden cradle (2x4 or laminated hardwood).
3. Lower wheel rest: small wood block or rubber bumper (1–2 in deep) to keep the rear or front tire off the wall.
4. Fasteners: 3–1/2 in structural screws for studs; 1–1/4 in wood screws for assembling components.
5. Anchors (only if no stud—avoid for heavy bikes): heavy-duty toggles rated ≥2x the bike weight.
6. Finish: waterborne polyurethane or hardwax oil; closed-cell padding or leather wrap for contact points.
7. Tools: stud finder, level, drill/driver, countersink bit, saw, measuring tape, pencil, masking tape.

Layout, Reach, and Clearances

Before you cut wood, measure the bike: overall length, handlebar width, tire size, and top-tube height. Target:

1. Mount height: top-tube or hub center at ~44–52 in for most users; adjust 2–3 in up/down for shorter or taller riders.
2. Handlebar projection: ensure 3–4 in clearance from adjacent walls or doors to avoid knuckle scrapes.
3. Vertical racks: stagger two bikes by 8–12 in to reduce handlebar interference.
4. Hallway minimum: aim for 36 in clear passage where possible; 32 in is tight but workable in small apartments.

For families, set kids’ bikes closer to 36–40 in. Ergonomically, the lift arc should be short and smooth—turn the front wheel ~15° inward so bars don’t jut into the walkway.

Step-by-Step Build

1) Prepare the Backer

Cut a 3/4 in plywood backer to your size. Round the corners to prevent snags, then sand to 180–220 grit. Pre-finish all faces and edges to protect drywall from unfinished wood pigments and to resist tire grime. Mark a vertical centerline for the hook/cradle.

2) Find Structure

Locate studs with a stud finder and confirm with a small pilot hole. You want at least two screws into a single stud or four screws into two studs. If a stud isn’t centered where you need, widen the backer so you can still hit structure while centering the bike visually.

3) Install the Main Support

Option A: Wheel hook (vertical storage). Pre-drill the backer and mount a rubber-coated hook rated for ≥50 lb. Position so the front wheel lifts onto the hook while the rear wheel lands 2–4 in above the floor.

Option B: Top-tube cradle (horizontal/angled storage). Build a cradle from a 2x4 offcut shaped to a U or V. Add a cork or leather wrap to protect paint. Angle the cradle upward 5–10° so the bike naturally nests without sliding.

4) Add a Lower Bumper

Mount a small wood block or rubber stop at tire contact height. This offloads lateral torque from the hook/cradle and stops tire marks. If using a top-tube cradle, position the bumper for the front wheel to gently touch.

5) Fasten the Backer to the Wall

Pre-drill and countersink. Use 3–1/2 in structural screws into studs—two at the top, two at the bottom. Check for plumbing/electrical before drilling in kitchens or near risers. Use a level; correct any wall bow with shims so the bike hangs plumb.

6) Fine-Tune and Protect

Stick clear wall film behind tire contact zones, or use a removable, scrub-resistant paint. Add felt dots at any potential rub points. Label centerlines for predictable re-hanging.

Lighting, Color, and Daily Usability

Lighting matters in tiny entries. The Illuminating Engineering Society recommends around 100–200 lux for corridors, which keeps the rack visible without glare (IES standards). Choose 3000–3500K for warm-neutral color rendering and low harshness. A small sconce with a forward throw prevents handlebar shadows. Color-wise, darker backers (charcoal, walnut) visually shrink the rack; lighter tones make tight halls feel larger. If you want the bike as a feature, use a contrasting backer with a matte finish to cut specular highlights.

Material Choices and Sustainability

Hardwood or premium plywood resists denting. Baltic birch plywood gives clean edges for a Scandinavian look. Finish with waterborne polyurethane for low VOCs and easy touch-ups. Use rubber derived from recycled content for bumpers. Where possible, design for disassembly: mechanical fasteners instead of adhesives make maintenance and reuse straightforward.

Acoustics and Vibration

In older buildings with thin party walls, damp micro-vibrations from hanging and removing the bike. A thin neoprene sheet between backer and wall can decouple contact slightly. Keep metal-to-metal contact minimal; padded hooks prevent ringing sounds that travel through studs.

Two Compact Layout Variations

1) Slim Vertical Hall Rack

Hook at 68–72 in, rear wheel bumper at 8–12 in above floor. Best for narrow corridors because the bike projects less. Works well with road and gravel bikes up to ~700x40 tires.

2) Angled Top-Tube Display

Cradle mounted at 44–50 in with a 10–15° angle to tuck handlebars closer to the wall. Ideal above a shoe bench. Add a shallow shelf above the cradle for helmets and lights; keep shelf depth ≤6 in to protect head clearance.

Safety Checks and Load Path

1. Always mount into solid framing. Drywall anchors alone are a last resort and only for very light bikes.
2. Check the weakest link: hook rating, screw shear, plywood integrity, and wall substrate.
3. Mind utilities: avoid drilling within 1–1/2 in of electrical boxes or vertical plumbing lines near sinks.
4. Test incrementally: hang a sandbag or free weights before trusting your favorite bike.

Finishing Touches

Conceal screws with matching plugs. Add a leather strap as a soft tie to keep the front wheel straight. For multi-bike walls, alternate saddle directions or stagger heights by 8–12 in. Label positions subtly so everyone parks in the same spot—behavioral cues sustain order long-term.

Maintenance

Wipe tires monthly to reduce wall marks. Re-tighten hardware every 6 months, especially where kids yank bikes off quickly. Refresh finish annually in high-traffic entries. If you repaint, remount using existing stud holes to preserve structure.

FAQ

How high should I mount a wall bike rack?

For easy lifting, place the top-tube or hub around 44–52 in off the floor for most adults. Lower to 36–44 in for shorter users or heavier bikes. Keep the bottom tire a couple of inches off the floor to avoid scuffs.

Is it safe to mount into drywall?

Mount into studs whenever possible using 3–1/2 in structural screws. Heavy-duty toggles can work for lighter bikes, but the safest load path is into wood framing.

Vertical hook or top-tube cradle—which is better for small spaces?

Vertical hooks save the most floor area and project less into hallways. Top-tube cradles are gentler on frames and are ideal when you want the bike as a feature over a bench or console.

Will tires mark the wall?

Use a lower bumper and clear wall film or a washable paint finish. Keeping the tire slightly off the wall also helps. Monthly tire wipes cut black transfer dramatically.

What about lighting near the rack?

Aim for 100–200 lux in corridors per IES guidance, with 3000–3500K color temperature to reduce glare. A forward-throw sconce or track head prevents harsh shadows on handlebars.

Can I store an e-bike on a wall rack?

Yes, if your structure and hardware are rated well above the e-bike’s weight. Many e-bikes exceed 50 lb—confirm hook and fastener ratings and consider a lower mount height to reduce lift strain.

How do I plan multiple bikes on one wall?

Stagger heights by 8–12 in and alternate handlebar directions to minimize interference. Maintain a 32–36 in clear path in hallways. You can pre-visualize spacing with a simple layout simulation tool like a room design visualization tool.

What finishes protect frames best?

Rubber-coated hooks, cork, or leather-wrapped wood cradles. Avoid raw metal edges. A matte, waterborne polyurethane on wood resists scuffs and is easy to renew.

How do I avoid hitting utilities in the wall?

Locate studs, then stay centered on them. Avoid drilling near switches, outlets, and wet walls. In kitchens or near risers, use a shallow pilot hole and inspect for unexpected resistance.

What if my walls are masonry?

Use masonry anchors and sleeve bolts rated above your load. Add a backer board with compressible pads to even out irregular surfaces, and pre-seal any dusting brick before mounting.

Any tips for renters?

Use existing stud lines and limit holes. Consider a cleat system so only the cleat remains at move-out. Keep finishes reversible and save paint touch-up for the final week.

Does color choice affect perceived clutter?

Yes. A darker backer visually recedes, making the bike read as a sculptural object. Lighter walls expand perceived width in narrow halls. Both reduce visual noise when paired with matte finishes.
