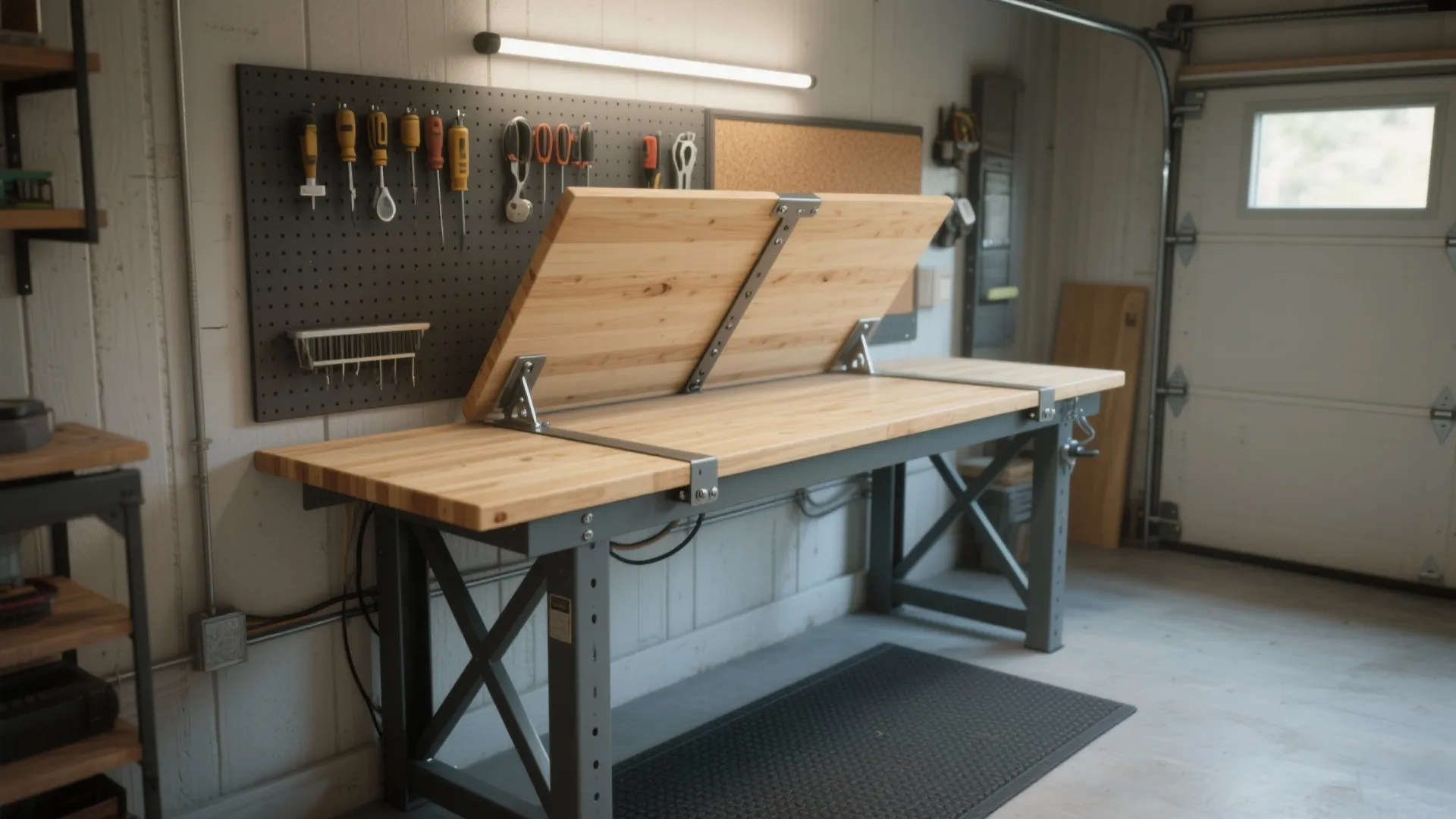

Wall Mounted Folding Workbench DIY: Space-Saving Guide: Fast-Track Guide to Building a Wall Mounted Folding Workbench at Home

I’ve designed and installed more than a dozen wall-mounted folding workbenches for compact garages and city studios, and the best builds share three traits: reliable load paths, intuitive fold mechanics, and ergonomics that keep you comfortable for hours. This guide details how I plan structure, materials, lighting, and acoustics so your fold-down bench feels like a permanent workstation when open—and vanishes when you need floor space.

Space is precious, and not just in apartments. Gensler’s workplace research notes that task-intensive zones benefit when surfaces are dimensioned to fit real workflows rather than generic footprints, which reduces movement inefficiency by double digits in observational studies (source: gensler.com/research). Comfort matters too: the WELL v2 ergonomics features target adjustable work heights and glare control to reduce musculoskeletal strain and visual fatigue (source: wellcertified.com). Using these benchmarks, I size, mount, and light wall benches to perform like full-size stations without compromising safety.

Strength and stability are non-negotiable. Steelcase research on posture and micro-movements emphasizes a stable, supportive work surface as the foundation for productivity; wobble or vibration erodes accuracy in detail work (source: steelcase.com/research). Translating that to a folding bench means specifying proper wall anchoring, triangulated support when the bench is open, and hardware that locks positively in both positions.

Plan the Size, Height, and Load

Bench depth and width should match your tasks. For precision hand work and small power tools, I aim for a 20–24 in depth and 42–60 in width. If you expect heavier loads (vises, benchtop tools), go 24–28 in depth. Typical standing work height is 36–38 in; for seated tasks, 30–31 in. A practical design load target is 200–300 lb distributed; confirm wall structure (stud spacing, substrate) before finalizing. If your layout is constrained, a quick layout simulation tool helps visualize clearance for folding motion and tool reach; try Coohom’s room layout tool: room layout tool.

Select the Right Materials

Top surface: 3/4 in Baltic birch plywood or laminated hardwood is my go-to—stiff, dimensionally stable, easy to finish. Edge-band for durability. For heavy-duty use, add a 1x2 hardwood perimeter under the top as a torsion rim. Frame: powder-coated steel angle or stout hardwood rails (e.g., ash, maple). Hinges: heavy-duty stainless or zinc-plated piano hinge spanning the full width to distribute load uniformly. Supports: fold-down steel brackets rated 300+ lb each, or custom triangular legs with positive-lock detents. Fasteners: structural screws (No. 10–12) and through-bolts with washers where possible. Finish: low-VOC polyurethane or hardwax oil for a durable, cleanable surface.

Anchor to the Wall Like a Pro

Locate studs with a reliable detector, then verify with pilot holes. In standard 16 in o.c. walls, I mount a continuous ledger board (e.g., 1x4 hardwood or steel channel) across at least three studs to distribute loads. Use 3–1/2 in structural screws into studs; for masonry, set sleeve anchors or wedge anchors sized per load. The hinge line mounts to the ledger; the fold-down supports mount below and bear directly into the wall’s structural members. Keep the center of gravity within 8–10 in of the wall when open; deeper benches need stronger brackets or front legs.

Ergonomics and Human Factors

Comfort is the difference between a bench you love and one you avoid. I set standing height so elbows rest at roughly 90–100° when tooling. Edge radii of 2–3 mm reduce wrist compression. Tool zones stay within a 24–30 in reach envelope to minimize repetitive strain. If you often switch tasks, add a drop-in riser block for benchtop tools to bring their working plane to elbow height. Cable hooks under the bench keep cords out of the knee space. For seated work, ensure clear legroom of at least 24 in depth.

Lighting: Illumination, Color, and Glare Control

The Illuminating Engineering Society recommends task lighting in the 500–1000 lux range for fine detail work (IES standards: ies.org/standards). I target 600–800 lux at the bench surface with 4000–5000 K LEDs for crisp contrast without harshness. Mount a glare-shielded linear fixture above the hinge line and add a pivoting task light to eliminate shadows from your hands. Matte finishes on the top help avoid specular reflections. If your garage is acoustically live, add a soft pinboard or cork panel above the bench; it absorbs a bit of high-frequency noise and doubles as a tool plan zone.

Safe Folding Mechanics

Reliability comes from simple, redundant mechanisms. Use a full-length piano hinge screwed every 3–4 in into the ledger; add fold-down brackets with positive stops rated beyond your expected load. A secondary safety latch (spring pin or barrel bolt) prevents accidental collapse if a bracket fails. When stowed, magnetic catches or recessed toggles hold the top cleanly to the wall.

Step-by-Step Build Sequence

1) Measure and mark stud positions; determine final height. 2) Mount the ledger level to studs using structural screws and washers. 3) Attach the piano hinge to the bench top first; then fasten hinge to the ledger. 4) Install fold-down brackets or triangular legs; test alignment so both share load evenly. 5) Add safety latch and stow hardware. 6) Finish edges, sand to 180–220 grit, and apply finish. 7) Integrate lighting and power: mount a task light above, route a power strip under the ledger, and label circuits. 8) Load test incrementally: start at 50 lb, then 150 lb, watching for deflection and hardware slippage.

Storage, Cable Management, and Tool Zoning

Keep the vertical zone working hard. Shallow French cleats above the bench let you swap tool holders. A slim drawer under the front edge can stay closed when folded; ensure it doesn’t interfere with brackets. Add under-bench cable trays and grommets for chargers and small tool transformers. Label zones—cutting, fastening, measuring—to streamline workflow and reduce movement.

Finish and Maintenance

Seal the top with two to three coats of low-VOC poly; sand lightly between coats. Retighten hinge and bracket fasteners quarterly. Inspect anchors annually, especially in masonry walls subject to moisture changes. Replace any deformed brackets immediately. If the bench sees heavy impact, add a replaceable 1/4 in sacrificial hardboard skin.

Layout and Clearance Considerations

Ensure a clear swing path and safe working clearance: 36 in minimum in front of the bench for body movement and tool draw, 48 in if you use longer stock. If your room is tight, simulate traffic flow and folding motion before drilling. A quick interior layout planner helps validate reach and circulation; use this room design visualization tool: room layout tool.

Acoustics and Vibration

If you run a trim router or benchtop sander, vibration can travel into studs. Decouple with thin neoprene pads between ledger and wall, and add a rubber mat on the top. Soft wall panels tame reflected noise—especially helpful in garages with hard surfaces. Secure tool mounts to prevent rattling when folding.

Safety Checklist

- Verify stud locations and fastener specs before loading. - Use eye and ear protection; task lighting on before power tools. - Keep the safety latch engaged whenever the bench is open. - Never exceed bracket ratings. - Store sharp tools off the folding plane to avoid interference.

FAQ

Q1: What size should I choose for a small garage?

A: A 42–48 in wide by 20–24 in deep top suits most hand-tool tasks without blocking circulation. Maintain at least 36 in clear floor space when the bench is open.

Q2: How much weight can a wall-mounted folding bench safely support?

A: With a continuous piano hinge, two 300 lb-rated brackets, and proper stud anchoring, a 200–300 lb distributed load is realistic. Always defer to your hardware ratings and wall conditions.

Q3: What’s the ideal work height?

A: For standing hand work, 36–38 in keeps elbows near 90–100°. For seated tasks, 30–31 in with knee clearance of 24 in depth works well.

Q4: Which lighting specs reduce eye strain?

A: Target 600–800 lux on the work surface with 4000–5000 K LEDs and glare shielding. These values align with IES task lighting ranges.

Q5: Which hinge is best for durability?

A: A full-length piano hinge distributes load evenly along the ledger, minimizing localized stress and reducing wobble.

Q6: How do I anchor into masonry walls?

A: Use sleeve or wedge anchors sized for your load; drill with a carbide bit, vacuum dust, and torque to spec. Consider a steel ledger for uniform load distribution.

Q7: Can I integrate power safely?

A: Mount a power strip to the ledger with strain relief, cable trays under the bench, and a GFCI-protected circuit for garage environments. Keep cords outside the folding plane.

Q8: What materials are most stable for the top?

A: 3/4 in Baltic birch plywood or laminated hardwoods offer stiffness, screw-holding strength, and predictable movement. Seal all faces to reduce moisture effects.

Q9: How do I prevent accidental collapse?

A: Use fold-down brackets with positive stops and add a secondary safety latch like a spring pin or barrel bolt that engages automatically when open.

Q10: Any tips to reduce noise and vibration?

A: Neoprene pads at the ledger, a rubber mat on the surface, and a small cork panel on the wall dampen vibration and cut reflected noise.

Q11: What finish holds up to heavy use?

A: Low-VOC polyurethane or hardwax oil offers a durable, repairable surface. Add a replaceable hardboard skin for messy glue-ups or routing.

Q12: How do I plan the layout in a tight room?

A: Validate clearances and fold motion with a simple interior layout planner; simulate traffic paths and tool zones before anchoring the ledger.
