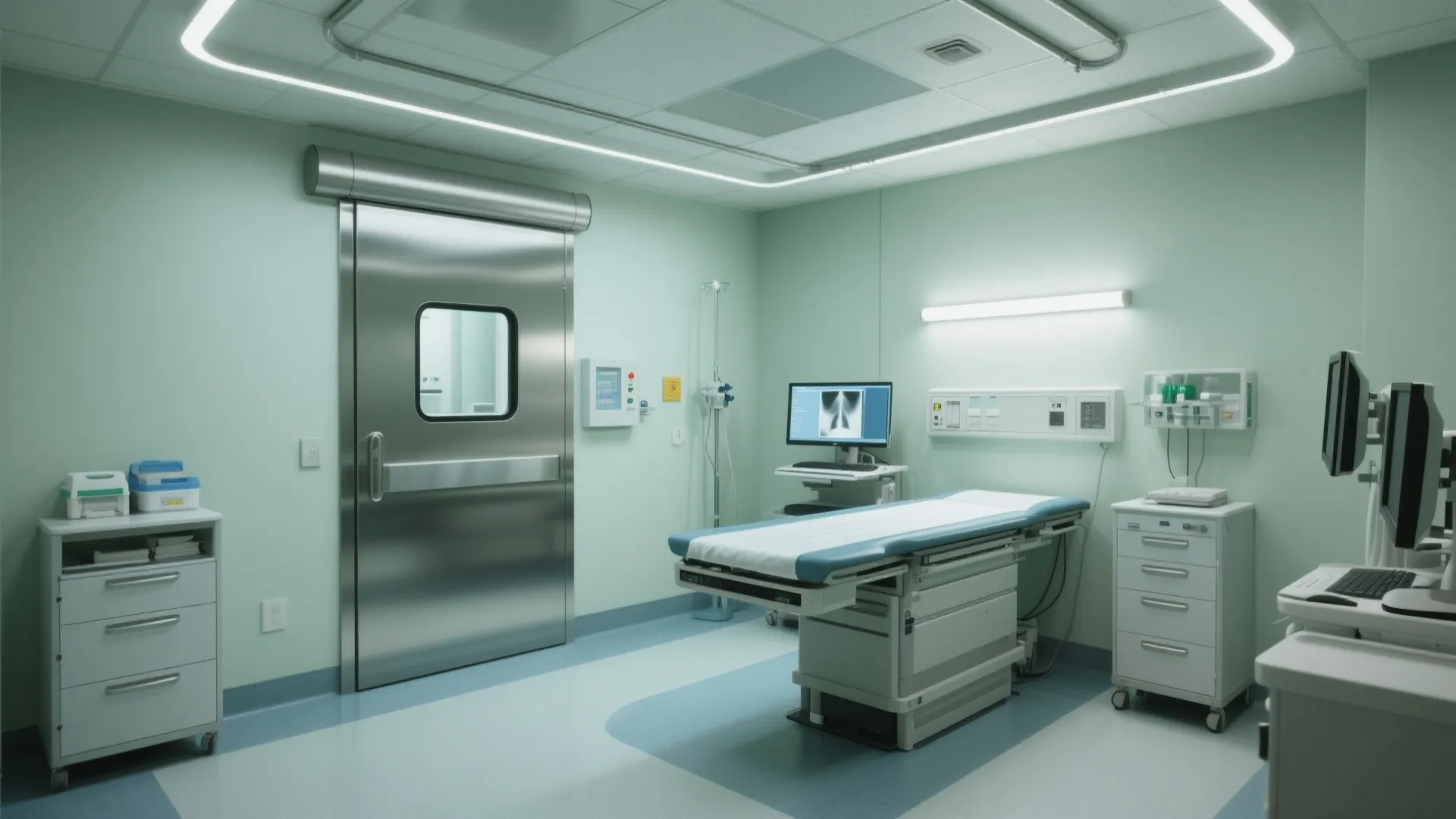

X Ray Room Design: Essential Guide for Safe, Functional Spaces: Fast-Track Guide to Creating an Efficient X Ray Room in 1 Minute

I approach X-ray room design as a balance of compliance, workflow precision, and human comfort. The best spaces safeguard clinicians and patients while enabling repeatable image quality. A single bottleneck—poor sightlines, inadequate shielding, or glare on monitors—can slow throughput and increase error risk.

Safety, lighting, and ergonomics should be quantified early. WELL v2 draws a clear line between visual comfort and task performance, recommending luminance balance and low-glare task lighting for clinical environments to reduce eye strain and error rates (v2.wellcertified.com). Steelcase research links cognitive fatigue to environmental stressors like glare and noise, showing that improved environmental control can lift task performance and well-being. These findings reinforce the need for controlled illumination, acoustic dampening, and intuitive workflows from arrival to image capture.

Core Planning Principles

Start with a shielded envelope sized to equipment and circulation, then refine adjacencies: patient entry, control area, equipment footprint, and gowned waiting. X-ray rooms typically range from 160–220 sq ft for fixed radiography systems, with added clearance for vertical bucky movement, tube travel, stretcher turning, and staff assist. Doors should open clear of patient approach paths and the tube stand’s travel. A 36–42 inch clear width works for stretcher access, with straight, obstruction-free approach to the table.

Radiation Shielding and Sightlines

Lead-lined partitions and doors must protect adjoining spaces without compromising visibility. Place the control booth to maintain a full view of the patient, table, and tube head, minimizing blind zones. The viewing window should be flush-mounted, sized for both table and wall-stand monitoring, and angled to control reflections from luminaires. Coordinate shielding with MEP penetrations—ducts, conduits, and cable trays need continuous protection. Document all penetrations and verify overlap in the shielding schedule.

Workflow and Layout Logic

I map the most frequent procedures first—chest, extremities, and spine—then test orientation options: table parallel to the door for stretcher transfer efficiency; tube suspenders aligned with major axes for predictable travel; and wall bucky with clear flank space for quick patient positioning. When validating clearances, a layout simulation tool like the room layout tool helps visualize transfers, tube trajectories, and staff positioning under time pressure.

Ergonomics and Patient Handling

Height-adjustable tables reduce strain during transfer and positioning. Keep frequently used accessories—sponges, markers, aprons—within a 48 inch reach zone. Herman Miller’s research highlights musculoskeletal strain as a driver of staff fatigue; applying adjustable working heights and minimizing awkward reaches is a practical countermeasure. Incorporate grab bars at transfer points and ensure floor finishes provide stable, slip-resistant footing without high glare. Design for the high-acuity scenario: a straight path for mobile patients, turning radius for wheelchairs, and side approach for stretchers.

Lighting: Image Quality and Visual Comfort

Lighting must be flexible. Use layered illumination: low-glare ambient (300–350 lux), dimmable task lighting near the wall bucky (200–300 lux during positioning), and tightly controlled light over the table to avoid reflections in the detector or monitor. The Illuminating Engineering Society (IES) emphasizes luminance ratios—keep monitor luminance contrast manageable by avoiding bright sources directly behind the display (ies.org/standards). Warm-neutral color temperatures (3500–4000K) maintain comfort for patients while preserving color fidelity for skin tone observation. Shield fixtures to avoid direct line-of-sight from the control window to high-brightness sources.

Acoustic Control

Hard surfaces can amplify equipment noise and staff communication, raising stress. Integrate acoustic ceiling panels with NRC 0.70+ in the control area and consider wall treatments with balanced cleanability and absorption in non-critical splash zones. A calmer soundscape supports precise positioning cues and reduces patient anxiety, which in turn improves cooperation and speed.

Color Psychology and Patient Calm

Color can soften the clinical feel. Muted greens and soft blues have been shown to reduce anxiety, improving perceived comfort and cooperation according to color psychology literature referenced by Verywell Mind (verywellmind.com/color-psychology). Keep accents low-saturation and avoid high-contrast patterns that can distract during alignment. In pediatric settings, add gentle, non-distracting graphics away from focal equipment.

Materials and Infection Control

Choose seamless, cleanable surfaces with low VOC content. Resinous floors or heat-welded sheet vinyl work well for infection control and easy rolling transfers. Select matte finishes to control glare. Use integral bases at casework, solid-surface counters, and concealed hardware to limit dust ledges. Apron storage should be ventilated to dissipate off-gassing and moisture after cleaning.

Power, Data, and Equipment Coordination

Coordinate ceiling rails or tube stands with structural supports and seismic bracing where required. Provide dedicated circuits for imaging equipment, UPS for critical controls, and clean power routing to mitigate electrical noise. Route data and control cabling within shielded zones, sealing penetrations to maintain radiation protection. Mark detector charging stations and accessory storage clearly to reduce prep time.

Safety Protocols and Zoning

Define zones: patient area, control booth, and protected corridors. Doors should have fail-safe interlocks, exposure warning lights, and clear signage. Emergency stops must be reachable from both patient and operator positions. Keep a minimal but accessible crash cart zone outside the primary radiation path, with direct access to the room.

Access and Inclusivity

Plan for multiple mobility profiles. Provide wheelchair turning diameter (~60 inches clear), side transfer space, and sightline accommodation for seated patients at the wall bucky. Wayfinding cues—floor borders, wall color bands—support orientation. Ensure call buttons and communication devices are within reach from table and standing positions.

Maintenance and Lifecycle

High-traffic diagnostic spaces benefit from modular finishes and removable panels for equipment servicing. Protect corners with guards, specify durable door hardware, and include a small service alcove for spare detectors, markers, and PPE. Document floor loading for equipment and provide anchoring sleeves where future upgrades may occur.

Commissioning Checklist

Before go-live, verify: shielding integrity and overlap; sightlines from control booth; glare and luminance ratios at monitors; stretcher transfer path; interlocks and warning lights; data and power redundancy; acoustic performance; accessory storage reach zones; and infection control surfaces. Test common procedures end-to-end with staff to catch friction points.

FAQ

1) What is the optimal room size for a general X-ray suite?

For a fixed radiography system, 160–220 sq ft typically accommodates table, wall bucky, transfers, and control booth. Larger footprints may be needed for specialized equipment or high-volume throughput.

2) How should lighting be configured to avoid glare on monitors?

Use dimmable ambient lighting around 300–350 lux, indirect fixtures, and avoid bright sources behind displays. Follow IES guidance on balanced luminance ratios to reduce eye strain.

3) Where should the control booth be located?

Place the booth with a direct view of the table and wall stand, minimizing blind spots. Angle the window to limit reflections and coordinate shielding around penetrations.

4) What materials are best for cleanability without harsh glare?

Matte, non-porous surfaces like solid surface counters, seamless resinous floors or heat-welded sheet vinyl, and integral base casework provide cleanability and glare control.

5) How do ergonomics influence staff safety?

Height-adjustable tables, reach zones within 48 inches, and clear transfer paths lower musculoskeletal strain. Herman Miller research links reduced physical strain to improved staff performance.

6) How is acoustic comfort addressed in a small diagnostic room?

Include acoustic ceiling panels (NRC 0.70+) and selective wall absorption, balancing infection control with sound dampening. Lower noise supports clearer communication and calmer patients.

7) What role does color play in patient experience?

Low-saturation greens and blues help reduce anxiety, per established color psychology references. Keep patterns subtle to avoid distraction during alignment.

8) How should power and data be coordinated with shielding?

Run cables through shielded paths and seal penetrations to maintain continuous protection. Provide dedicated circuits, clean power, and UPS for critical controls.

9) What safety signage and interlocks are essential?

Exposure warning lights, door interlocks, emergency stops accessible to both operator and patient, and clear radiation signage at entries are baseline requirements.

10) How do I plan for wheelchair access and stretcher transfers?

Provide a ~60 inch turning diameter, side transfer clearance, straight approach to the table, and unobstructed door swing. Check each scenario with a layout mock-up.

11) Which standards inform visual comfort in clinical rooms?

WELL v2 offers guidance on visual comfort and glare control, while IES standards address illuminance and luminance ratios for task performance.

12) How can I future-proof the room for upgrades?

Design anchoring sleeves, modular finishes, accessible service panels, and spare conduit paths. Document loads and clearances for potential equipment changes.
