3-Bedroom House Plans with Balcony: 5 Smart Ideas: My field-tested guide to designing 3-bedroom house plans with balcony—5 ideas that boost light, storage, and livability in small footprints

[Section: Meta 信息] Meta Title and description are included below in the meta field. [Section: 引言] I’ve designed dozens of compact 3-bedroom house plans with balcony in the past decade, and the trend is clear: more daylight, smarter storage, and flexible rooms that adapt over time. Small footprints push big creativity—balconies become mini living rooms, privacy buffers, and light engines. In this guide, I’ll share 5 design ideas I use in real projects, blending my own field notes with expert data, so you can plan a 3-bedroom home that lives large. [Section: 首屏内链] I’ll also reference a few visual planning resources I personally test when iterating layouts—starting with case studies on how “L-shaped living-dining zones” open sightlines and add usable wall space for storage. See examples under English anchor: "L-shaped living-dining zones" at https://www.coohom.com/case/room-planner. [Section: 灵感列表]

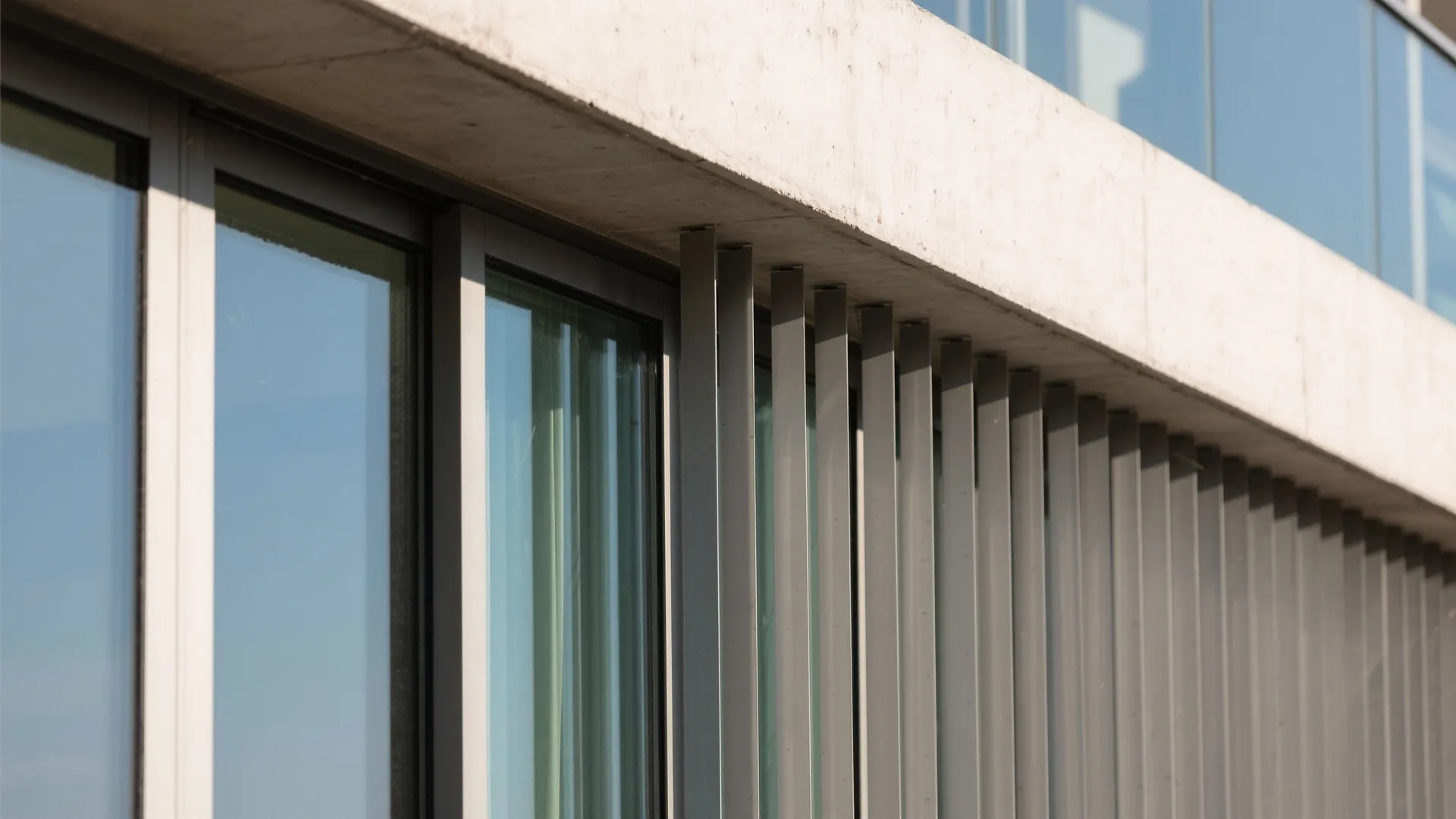

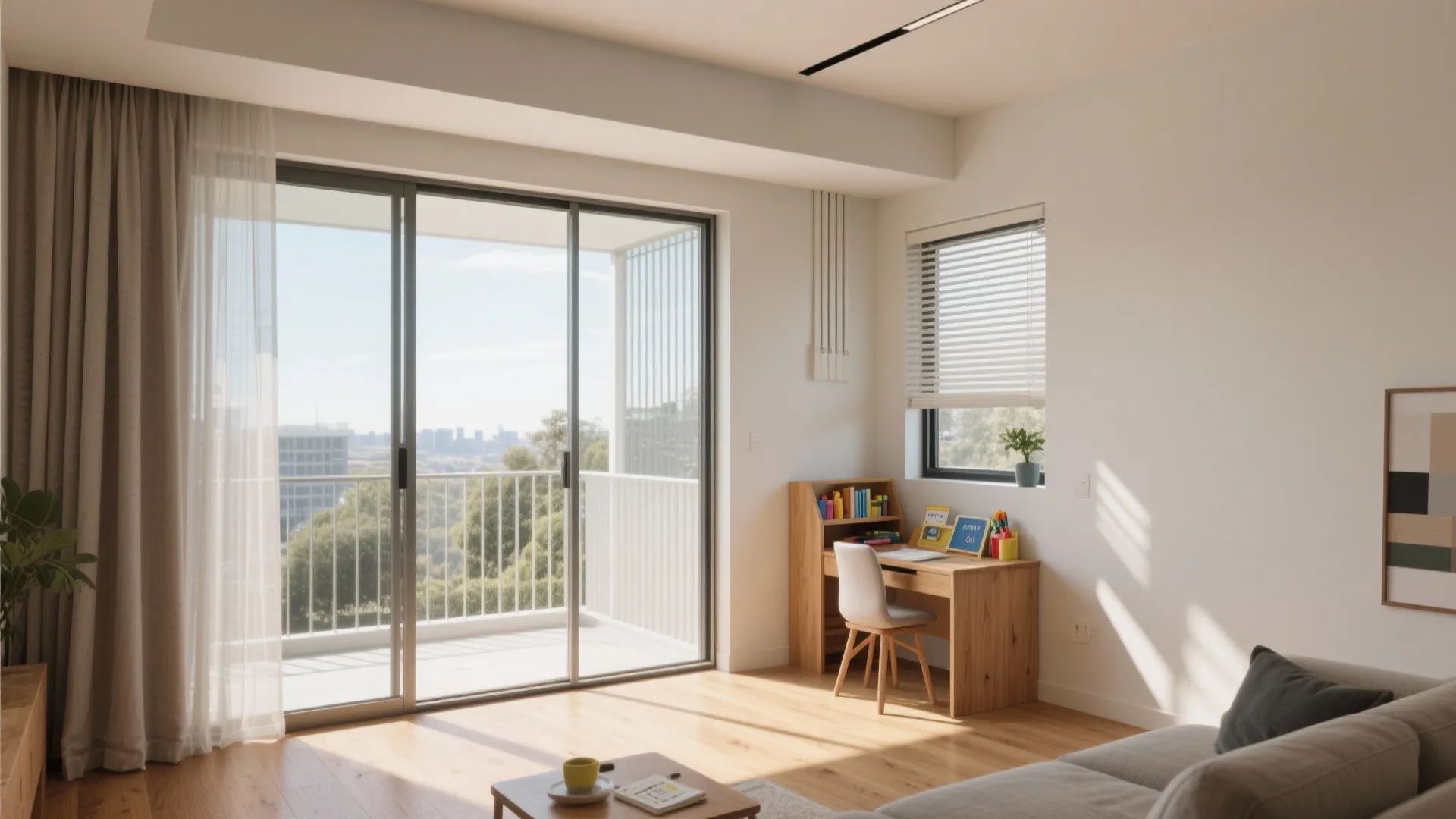

South-facing balcony for a daylight-first layout

My Take I once shifted a client’s balcony from west to south by reorienting the stair core—and the living area stopped needing lights at 2 p.m. The kids’ homework nook moved to the balcony edge, and suddenly the apartment felt a size up without adding a square inch. Pros - South-facing balconies act as a passive light shelf, improving daylight factor and reducing artificial lighting. Long-tail keyword: “energy-efficient 3-bedroom house plan with balcony.” CIE daylight guidance supports daylight-first design for visual comfort. - Placing the balcony on the living-dining facade improves cross-ventilation when paired with an operable window opposite. ASHRAE 62.1’s principles of natural ventilation align with this approach. Cons - Overheating can be real in warm climates; you’ll need shading (deep slab, fins, or vertical screens). I once crisped a rubber plant here—lesson learned. - South orientation may complicate privacy if facing a busy street; acoustic glazing or balcony planters add cost and maintenance. Tips / Cost - Add a 900–1200 mm deep overhang; it’s the sweet spot for shade without killing winter sun. Budget a 5–8% premium for sun-control elements.

save pin

save pin

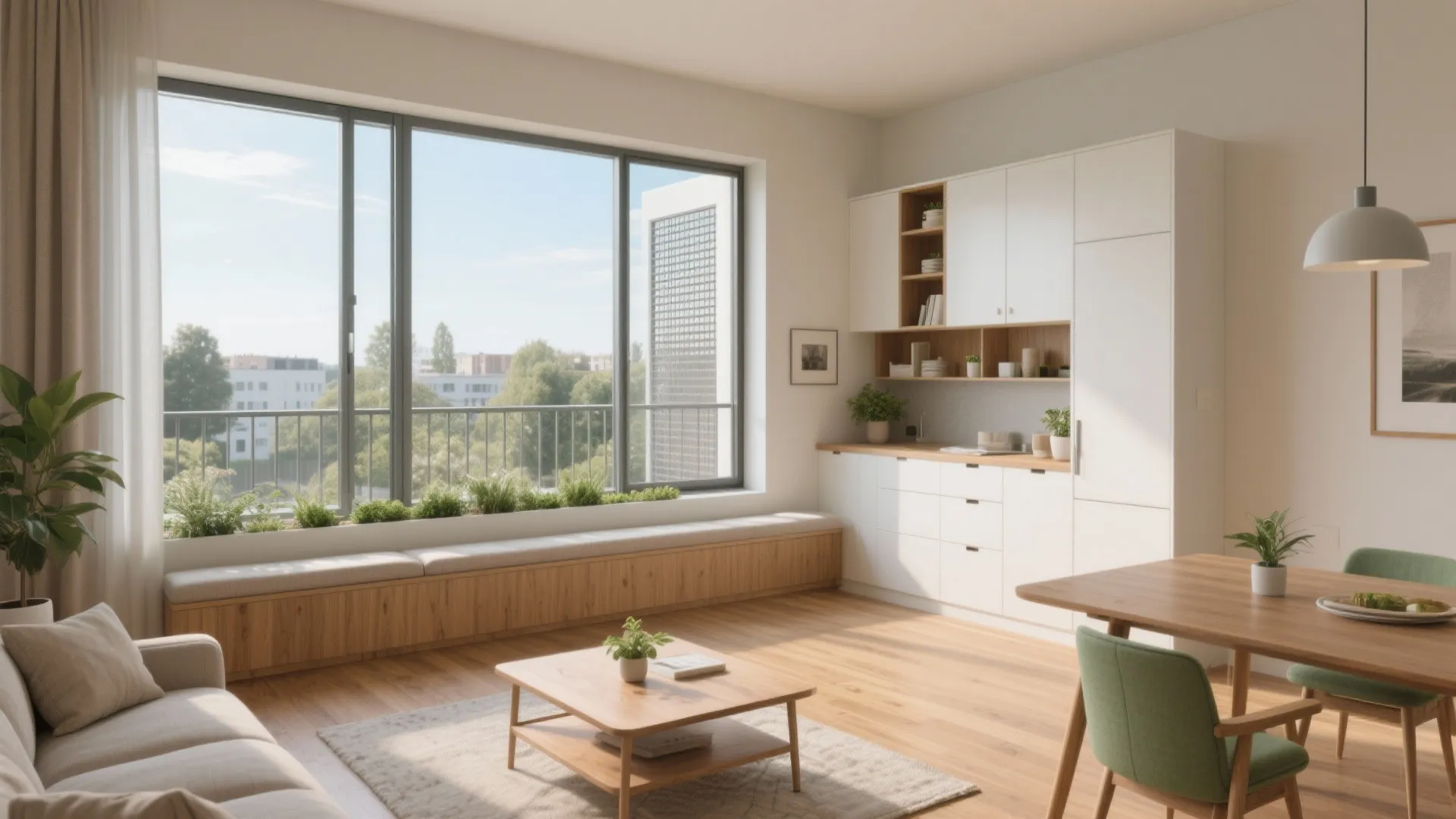

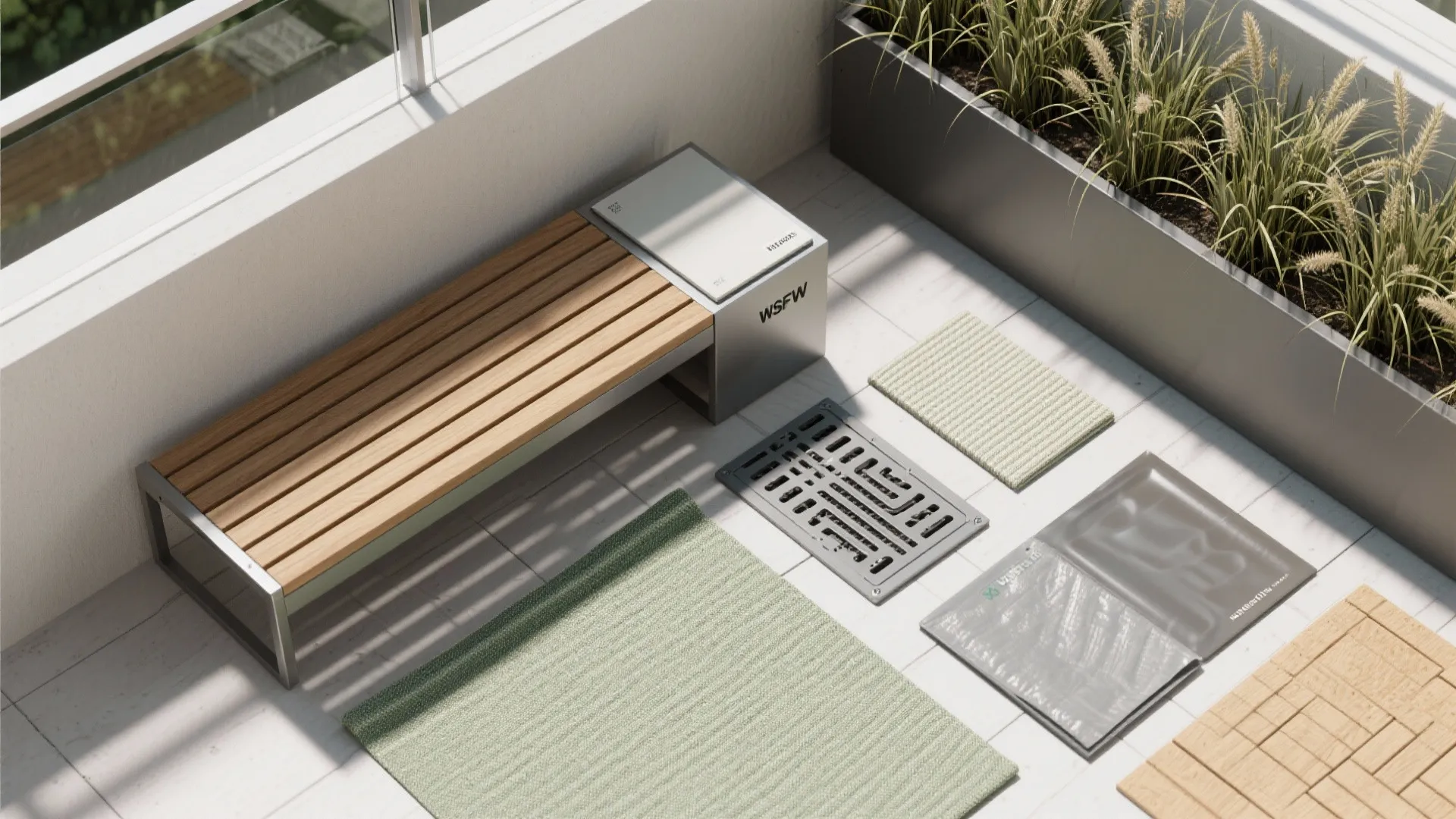

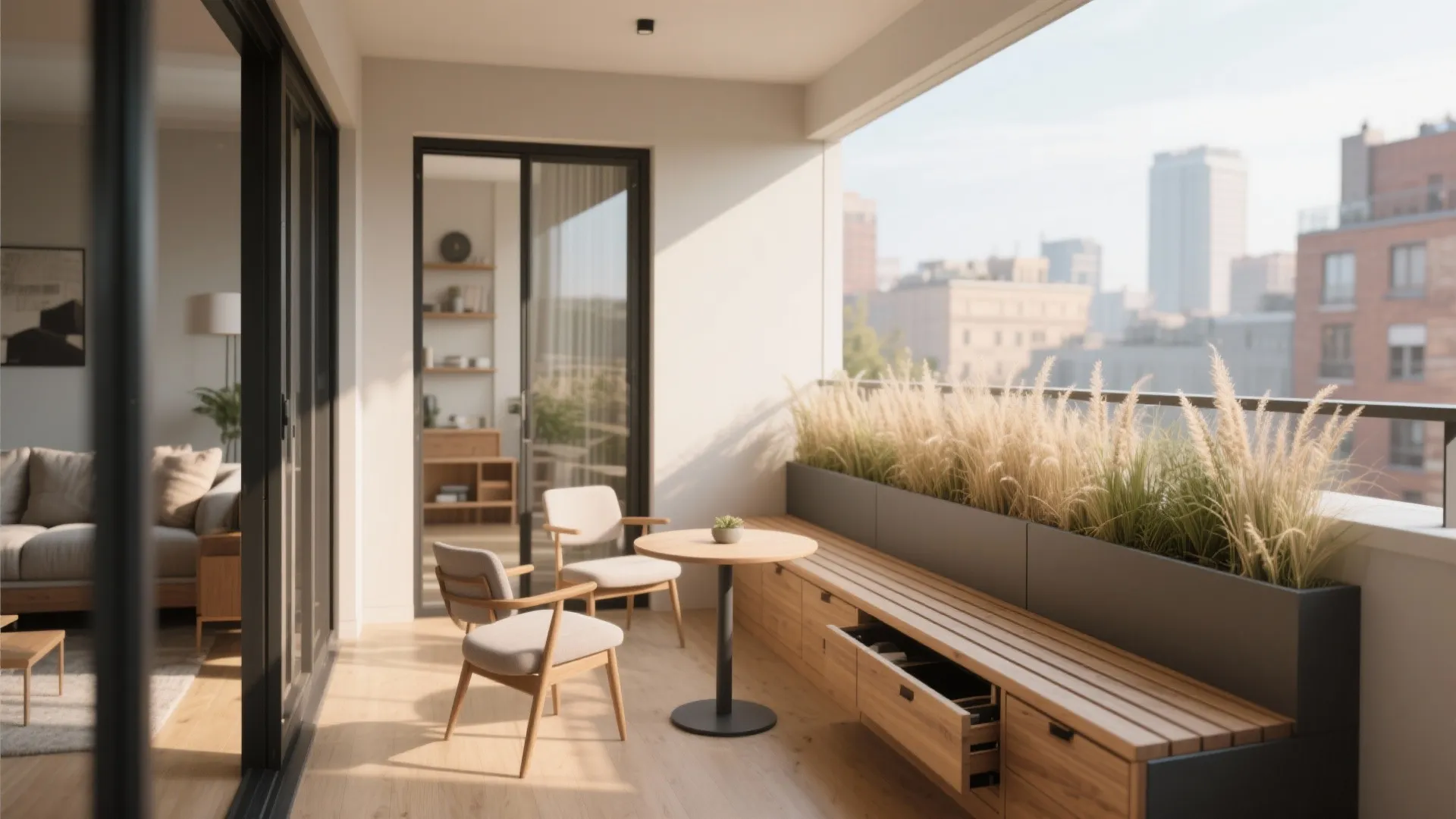

Balcony-as-room: 1.5 m depth with built-in bench and planter edge

My Take When a balcony is too shallow, no one uses it. I’ve standardized 1500 mm depth so two people can sit with a small table. A site-built bench with lift-up storage turned one client’s balcony into the morning coffee ritual zone. Pros - A 1.5 m balcony depth supports “usable outdoor living” and meets practical clearance for chairs—long-tail keyword: “functional balcony design for 3-bedroom homes.” Studies on residential outdoor comfort (e.g., Building and Environment journal) indicate use correlates with furniture fit and perceived privacy. - Built-in seating doubles storage for folding chairs, cushions, and kid gear, keeping the living room calmer. Cons - Waterproofing and drainage details become critical; bench bases can trap moisture if not vented. - Extra railing height or planters may be needed to maintain privacy—costs add up in custom metalwork. Tips / Case - Use a slatted bench lid for airflow; spec marine-grade plywood or composite. For privacy, staggered planter boxes with 1200–1400 mm high grasses give screening without feeling boxed in. At roughly 150–300 USD/m for planters, it’s a quick win. [内链 #1 at ~20%] For planning sightlines and verifying furniture clearance on balconies, I test scenarios with English anchor: "balcony clearance mockups in 3D" linking to https://www.coohom.com/case/3d-floor-planner to visualize bench depth, rail offsets, and door swing before committing to millwork.

save pin

save pin

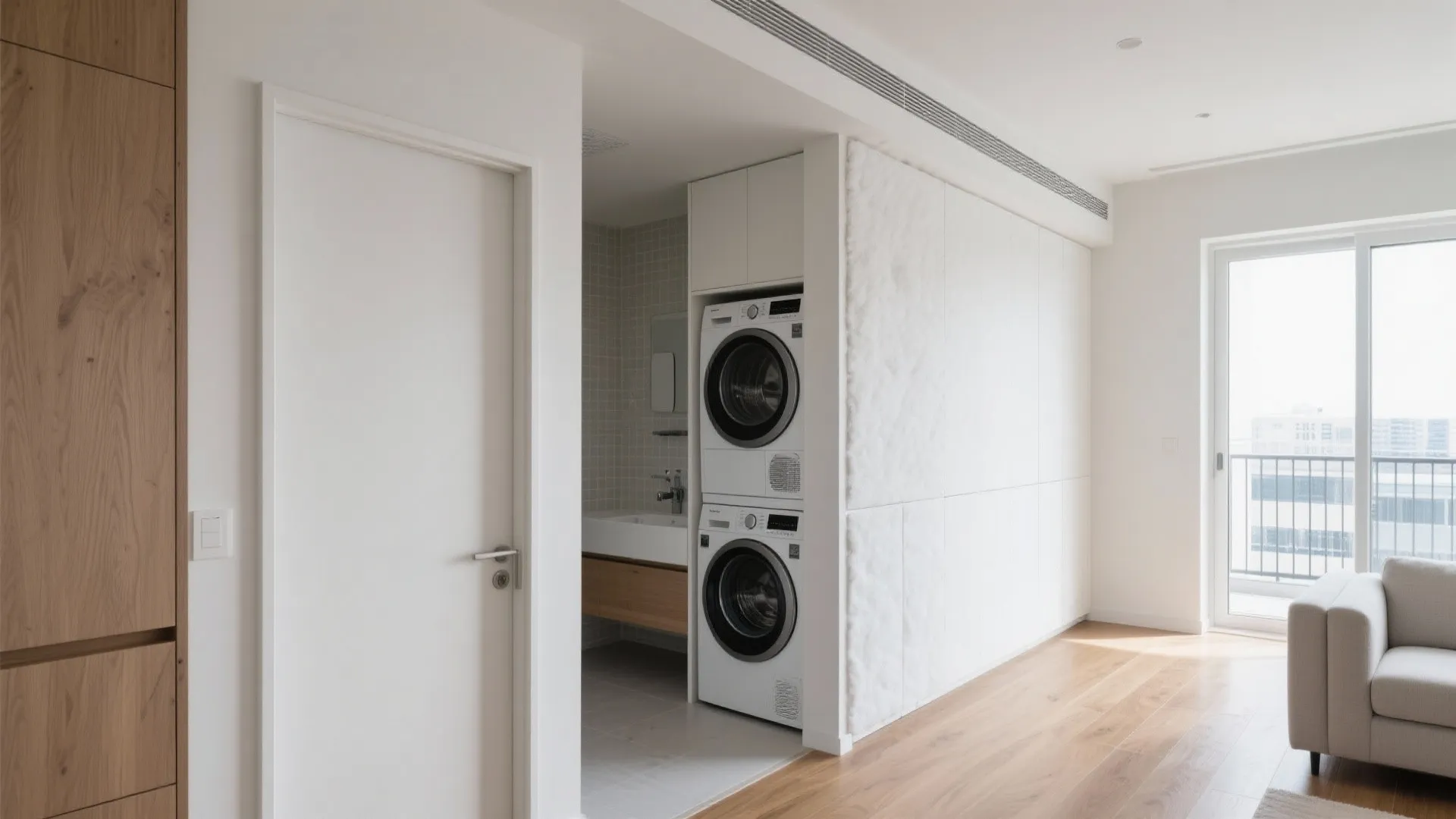

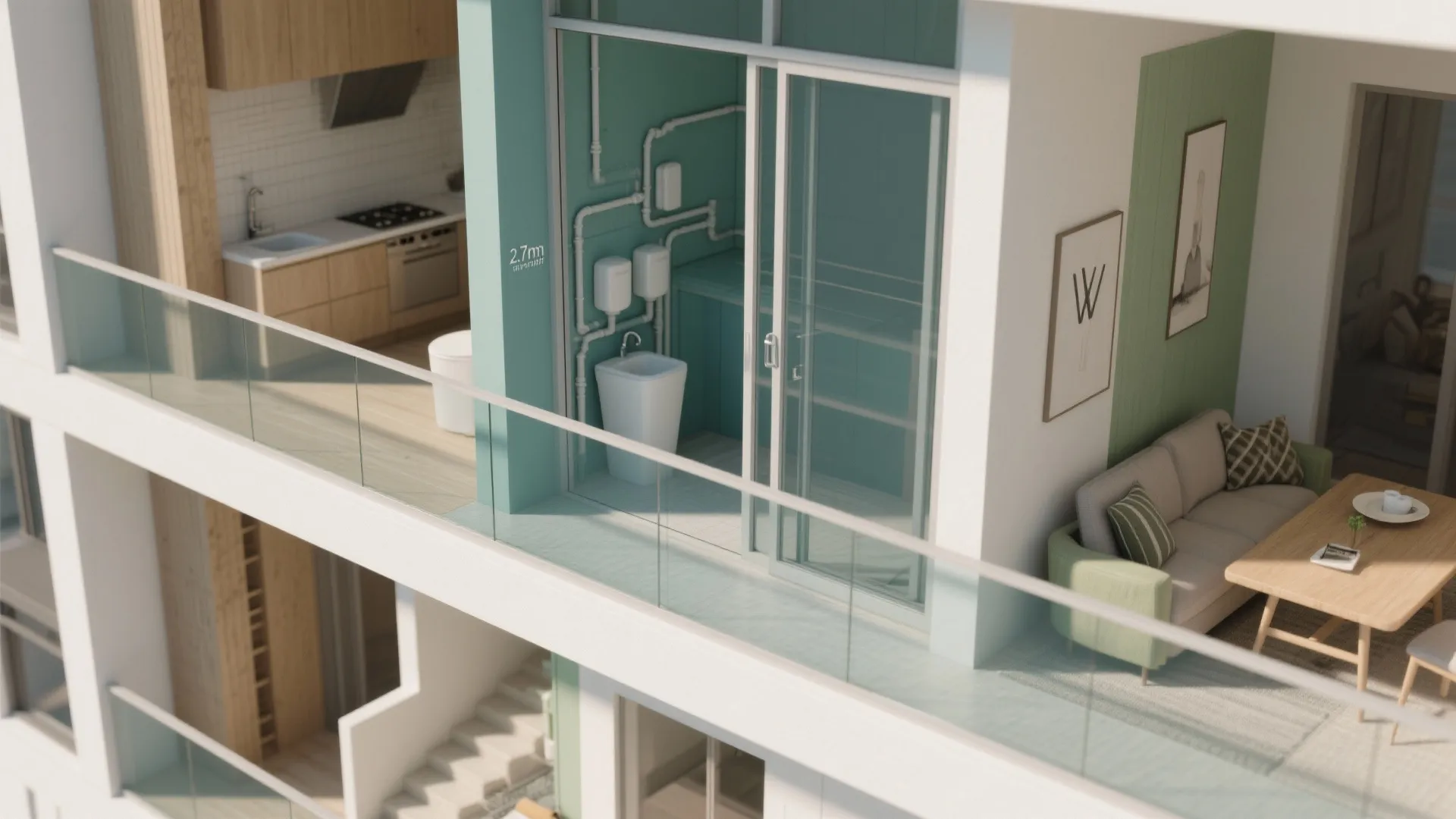

Stacked wet core: tighten plumbing, free the balcony wall

My Take On tight lots, I stack bathrooms and the kitchen along an internal spine—what I call the “wet core.” By uncluttering the exterior wall, I free the balcony facade for large sliding doors and a clean, glazed rhythm. Pros - A stacked wet core shortens plumbing runs and reduces penetrations on exterior walls—long-tail keyword: “compact 3-bedroom floor plan with efficient plumbing.” This typically saves labor and simplifies maintenance access. - With the balcony wall clear, you can run a 2.4–3.0 m sliding opening, boosting daylight autonomy; evidence-backed by daylight autonomy metrics used in LEED and WELL. Cons - Centralizing services can make one zone busier; acoustic insulation around bathrooms is a must, or you’ll hear late-night showers. - If structural columns clash with the wet core, rerouting adds cost; early coordination with structural engineer is key. Tips / Cost - Put laundry stacked in the wet core niche, freeing a bedroom closet. Expect 3–5% savings on plumbing materials; reinvest in better doors for the balcony frontage. [内链 #2 at ~50%] When I iterate stacked cores against living layouts, I storyboard adjacency options with English anchor: "zoning a compact 3-bedroom layout" which links to https://www.coohom.com/case/free-floor-plan-creator to check door conflicts and circulation flow before finalizing the balcony span.

save pin

save pin

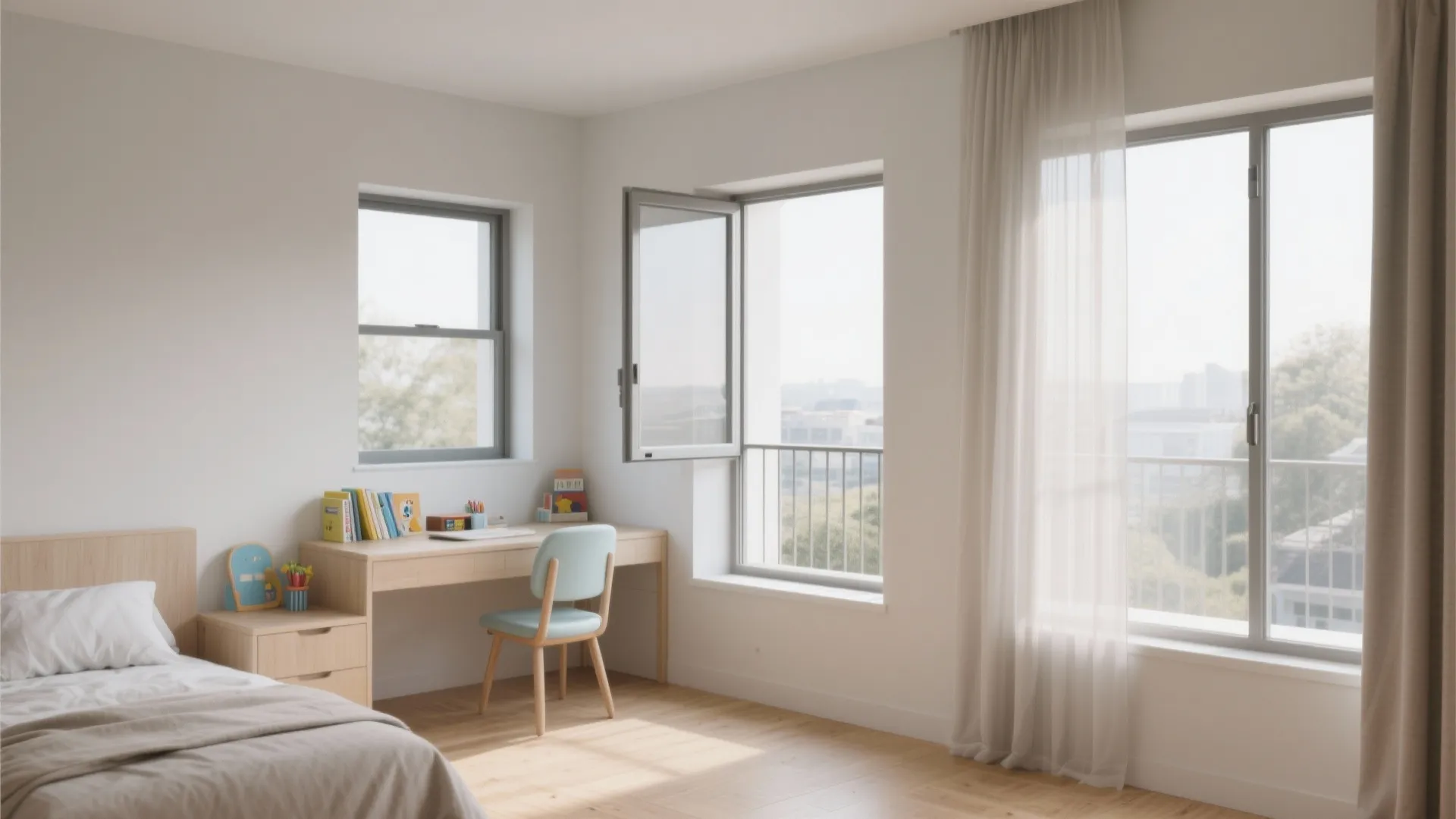

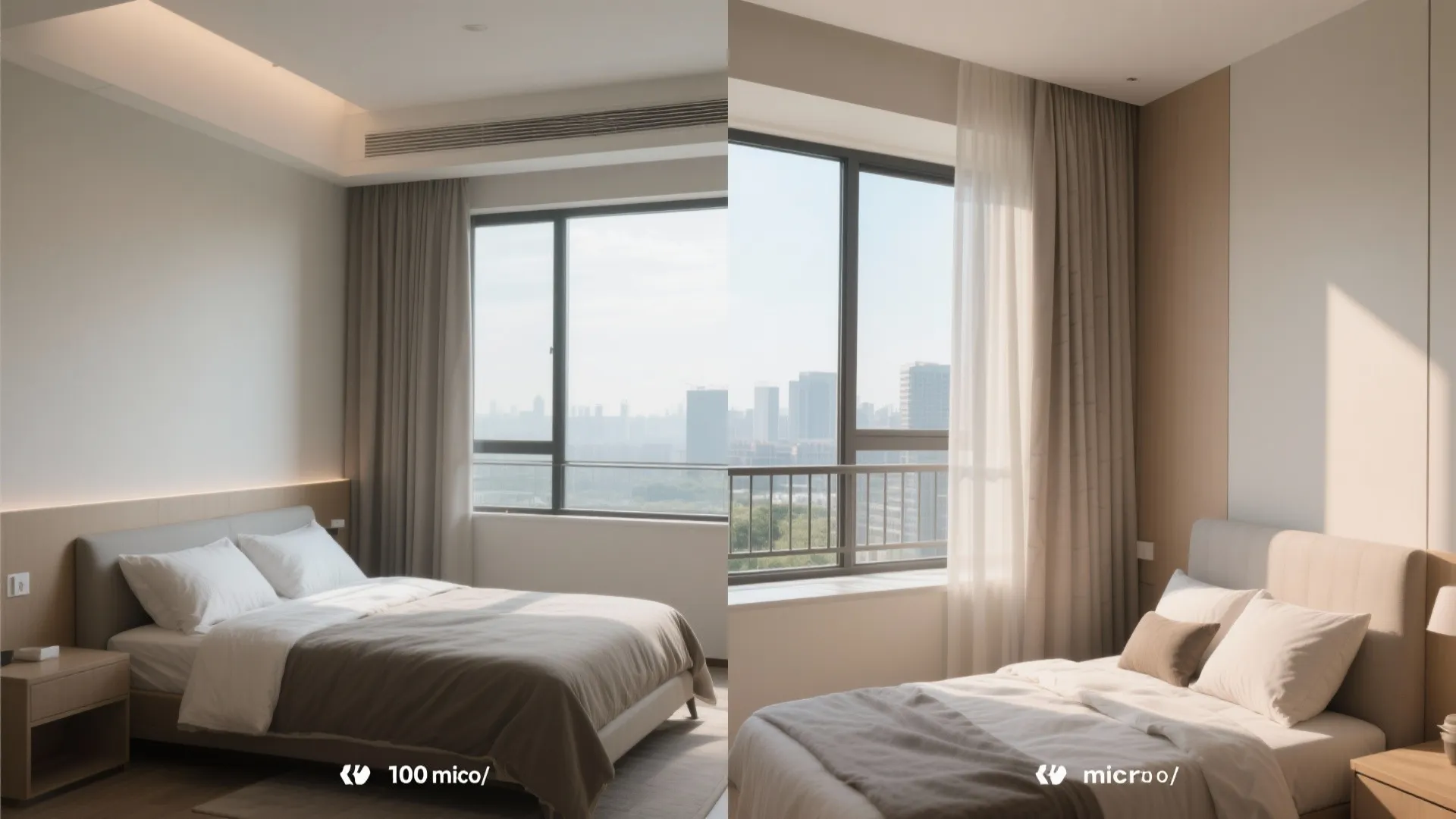

Dual-aspect corner bedroom with micro-balcony for cross-breeze

My Take In one townhouse, we carved a 700 mm deep “micro-balcony” off a corner bedroom. It wasn’t for chairs—it was for air. With a trickle-vent window on the adjacent wall, that room became the coolest spot in summer. Pros - Even a shallow balcony can improve cross-ventilation and indoor air quality—long-tail keyword: “cross-ventilated 3-bedroom home with balcony.” WHO and ASHRAE guidance note the benefits of increased air exchange for comfort and health. - Corner glazing captures morning and afternoon light, reducing reliance on artificial lighting for kids’ study hours. Cons - Micro-balconies won’t serve as hangout zones; they are performance-first. Manage expectations. - Railing and waterproofing still cost nearly the same as larger balconies; cost per usable area feels high. Tips / Case - Use a Juliet rail for ultra-shallow projections; it keeps the facade light and budgets sane. For heat-prone climates, specify low-SHGC glazing on the corner.

save pin

save pin

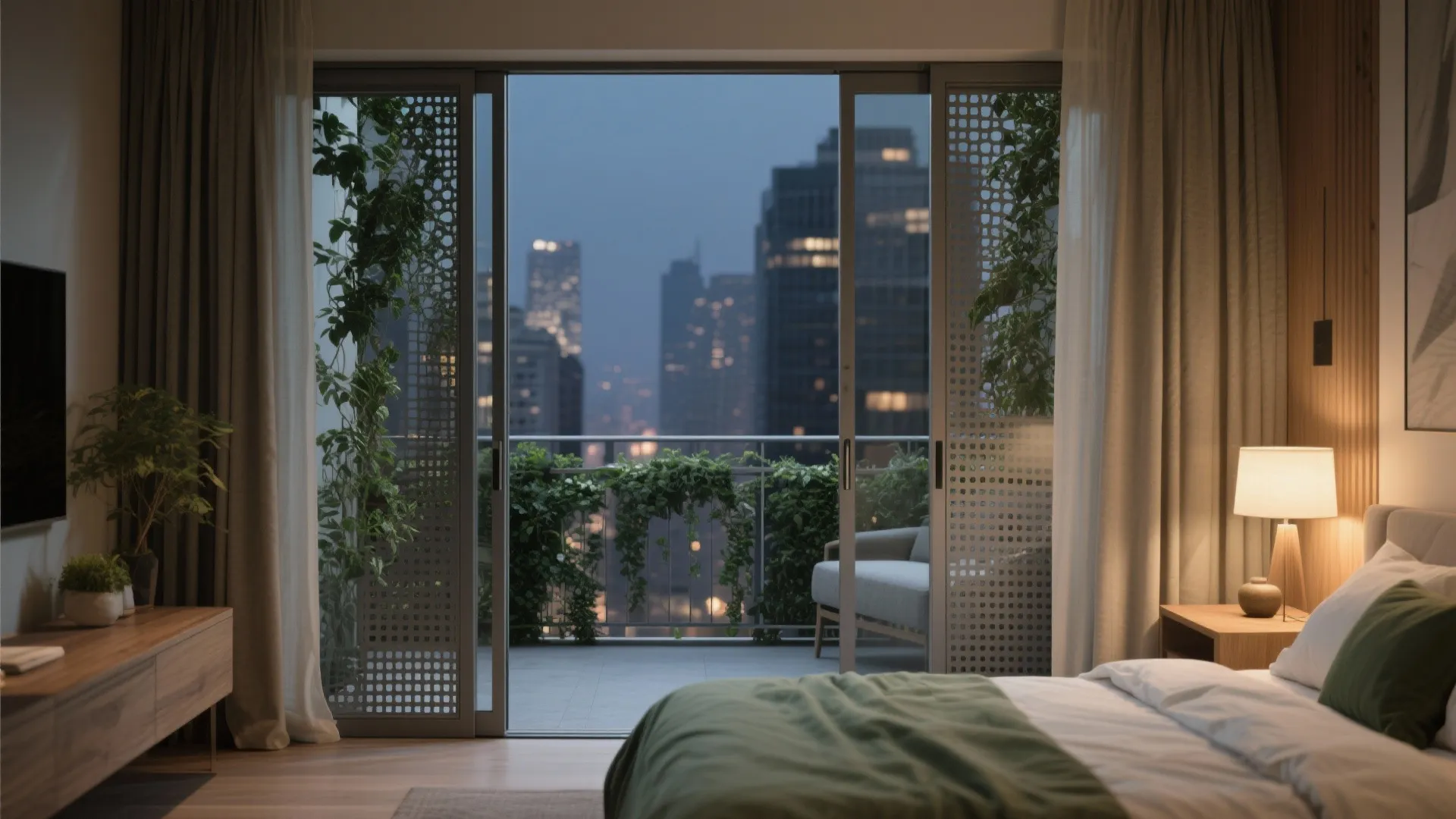

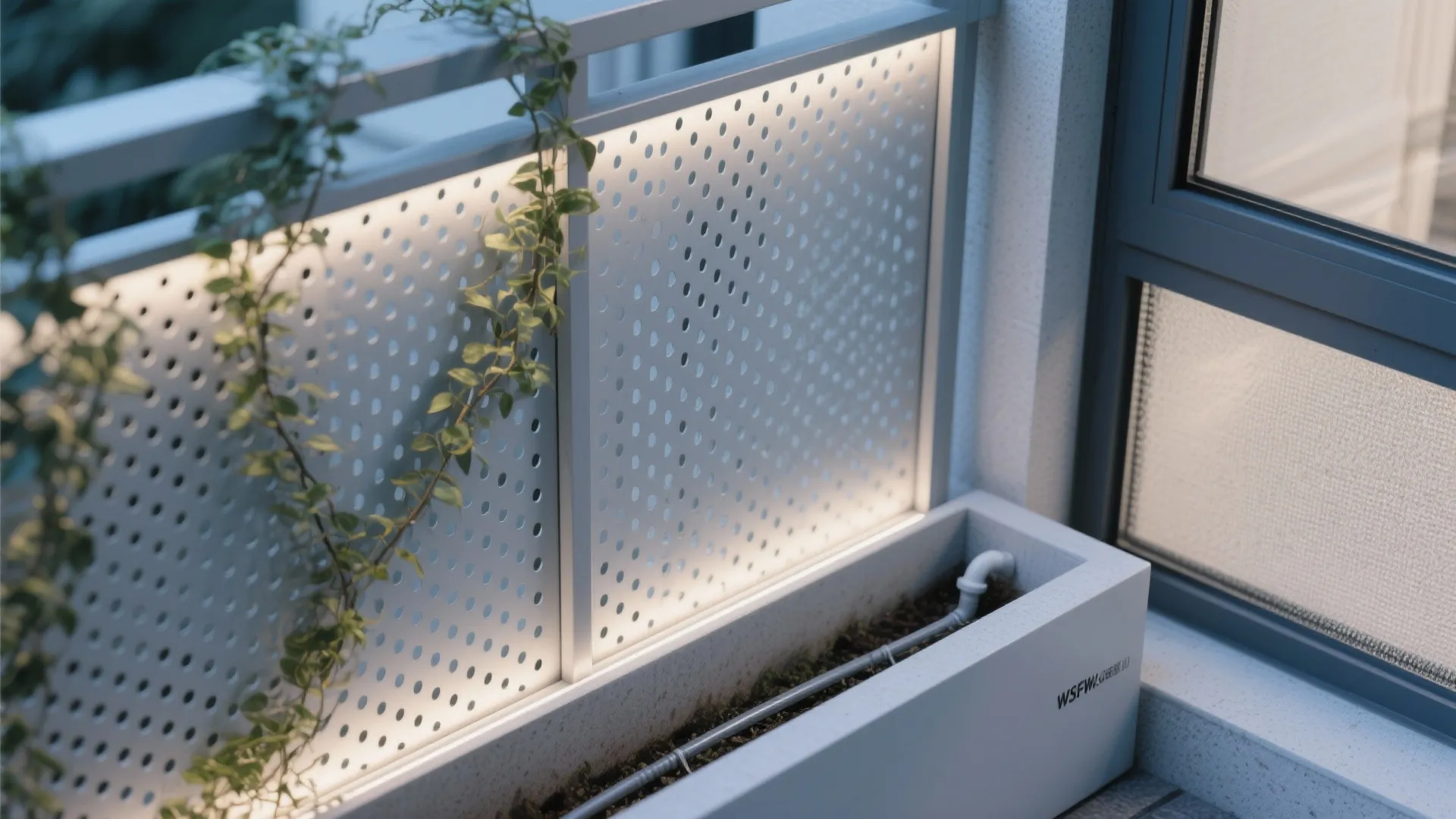

Quiet-on-quiet: balcony off primary suite with acoustic screening

My Take A balcony for the primary suite is my go-to “retreat move.” On a busy urban street, I layered a perforated metal screen with climbing plants—clients told me it feels like a private garden two stories up. Pros - Pairing a balcony with acoustic glazing and a screen creates a calm sleep environment—long-tail keyword: “private balcony for master bedroom in 3-bedroom plan.” Acoustic strategies align with WHO Environmental Noise Guidelines for better sleep quality. - The screen becomes a thermal buffer and privacy veil, letting you ventilate without feeling exposed. Cons - Screens and planters add weight; coordinate with structure and drainage early. - Maintenance of vines and finishes needs honest planning; otherwise the retreat becomes a chore. Tips / Cost - Choose powder-coated aluminum screens (slower corrosion than mild steel). Budget 80–150 USD/m² for simple perforations; add irrigation line for planters to keep greenery alive. [内链 #3 at ~80%] For clients who need to test bedroom-bath-balcony adjacencies and visualize morning light, I demo scenarios with English anchor: "primary suite balcony adjacencies" pointing to https://www.coohom.com/case/ai-home-design to compare options side-by-side before committing to the final 3-bedroom plan. [Section: 总结] Small kitchens, small bedrooms, small balconies—none of these are limits in a 3-bedroom house plans with balcony; they’re invitations to design smarter. Orient for light, plan the wet core, and give each balcony a job—living, breathing, or resting. As the CIE and ASHRAE guidance consistently show, daylight and ventilation aren’t just nice-to-haves; they’re performance drivers. Which of these five ideas would you try first in your own 3-bedroom plan with balcony? [Section: FAQ 常见问题] 1) What is the ideal balcony depth for a 3-bedroom house? - 1.2–1.5 m supports seating and circulation. Anything under 900 mm becomes decorative only. I prefer 1500 mm for a table and two chairs comfortably. 2) Where should I place the balcony for best daylight? - South or southeast facades typically deliver more consistent daylight in temperate zones. Reference CIE daylight principles for balanced illumination without glare. 3) How can I prevent overheating on a south-facing balcony? - Use a deeper slab overhang (900–1200 mm), vertical fins, and low-SHGC glass. External shading controls solar gain better than internal blinds. 4) Is a stacked wet core worth it in a compact 3-bedroom? - Yes—shorter runs, fewer exterior penetrations, and more uninterrupted glazing at the balcony wall. It usually cuts plumbing complexity and frees design options. 5) Can a micro-balcony actually help ventilation? - Yes. Even shallow projections with operable doors and a second opening enable cross-breeze, aligning with ASHRAE natural ventilation principles for improved comfort. 6) What railing height should I choose for safety? - Many codes require 1000–1100 mm minimum height with max 100–110 mm gaps. Always verify your local building code and wind load requirements. 7) How do I budget balcony waterproofing and finishes? - Plan for membranes, flashing, and slope to drain. Typical costs vary widely, but the detail quality matters more than finish—leaks are costlier than tiles. 8) What’s the best way to test furniture fit on the balcony before building? - Mock up in tape on-site or explore digital layouts. I compare options with English anchor: "balcony furniture fit in 3D" linking to https://www.coohom.com/case/kitchen-layout-planner for quick visual checks, then confirm measurements on site. Citing source: ASHRAE 62.1 for ventilation parameters when testing openings.
