3D Bathroom Design: 5 Proven Ideas That Actually Work: From a senior interior designer’s notebook: five data-backed 3D bathroom design ideas for small spaces, plus real-world pros and cons

I’ve been designing compact homes for over a decade, and the pace of 3D bathroom design tools and trends in the last few years is wild—in the best way. Small spaces spark big creativity, and bathrooms are where thoughtful planning really pays off. In this guide, I’ll share 5 design inspirations I use in real projects, blending my on-site experience with expert data so you can visualize smarter, decide faster, and renovate with fewer surprises.

Before we dive in, I’ll say this: 3D bathroom design isn’t just about pretty renders. It’s a decision-making tool that helps you test clearances, light, storage, and finishes before you spend a dime. When I model in 3D, I spot conflicts early—like a shower door clipping a vanity or a towel bar fighting the mirror—saving my clients time and budget.

For more visual examples of planning, I often reference “L 型布局释放更多台面空间” as a concept when optimizing adjacent rooms because spatial logic translates across zones. See how that principle is applied here: L 型布局释放更多台面空间.

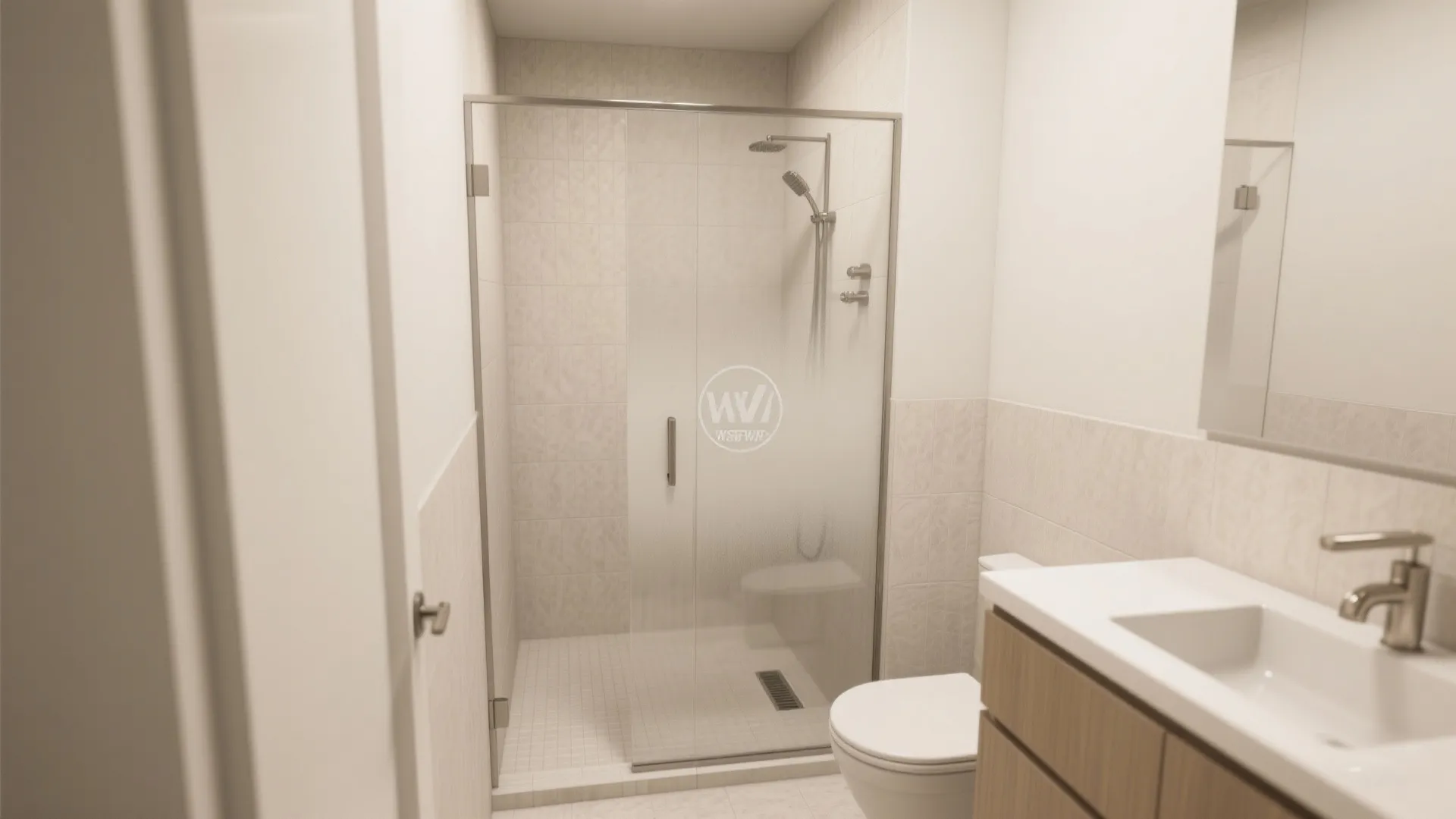

Frameless Glass Shower to Maximize Sight Lines

My Take

I still remember a 4.2 m² apartment bath where the client swore the room felt "stuck". We swapped a bulky shower enclosure for a frameless glass panel and the space instantly read wider. In 3D, we tested door swing vs. fixed panel, and the fixed panel won for circulation.

Pros

- Continuous sight lines make a tiny bath feel larger—perfect for “small bathroom layout ideas with glass partition.”

- Easier to clean than framed doors; fewer seals means fewer grime traps.

- In 3D, you can preview reflectivity and privacy levels with frosted zones, aligning with universal design clearances (like 30" turning circles) before ordering.

Cons

- If your shower is near a vanity, overspray can reach the counter; a 10–15 cm threshold or deflector helps.

- Tempered glass adds cost and needs precise measurement—no room for sloppy tile tolerance. I once had to reorder because a wall bowed by 8 mm.

Tips / Cost

- Budget: mid-range tempered glass panel with hardware runs $600–$1,200 in most cities; add for custom angles.

- Slope your shower floor at 1–2% toward the drain; verify this in the 3D model sections to avoid pooling.

save pin

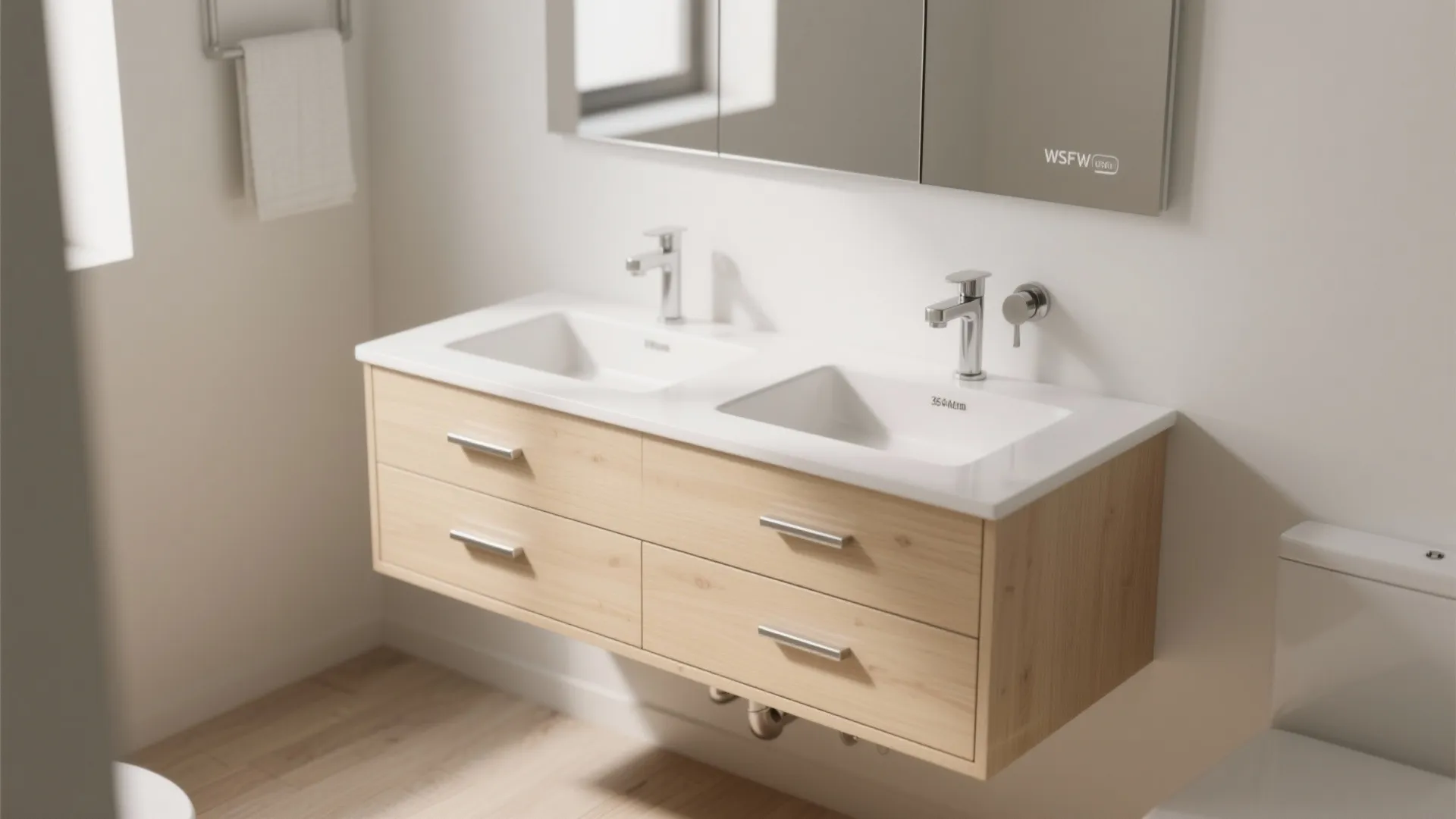

Wall-Hung Vanity with Integrated Storage

My Take

In narrow baths, I default to wall-hung vanities. The floor line remains visible, which tricks the eye into reading more volume. I love modeling drawer clearances in 3D to make sure the bottom drawer doesn’t snag on a bath rug or the adjacent shower curb.

Pros

- Frees floor area and improves cleaning—ideal for “small bathroom vanity ideas wall-mounted.”

- Allows flexible height: I often set the countertop at 85–90 cm for a comfortable reach in compact spaces.

- Plumbing can be boxed neatly; in 3D, you can align trap position with drawer cutouts to maximize usable storage.

Cons

- Requires solid wall blocking; older buildings may need reinforcement and moisture-proof anchors.

- Shallow drawers reduce tall-item storage; I typically add a mirrored cabinet for vertical volume.

Tips / Case

- A recent studio project gained 20% more open floor area by lifting the vanity and using a 40 cm deep top; we verified knee clearance in the model to prevent toe-stubs.

- Soft-close hardware reduces noise echo in tiled rooms—your future self will thank you.

save pin

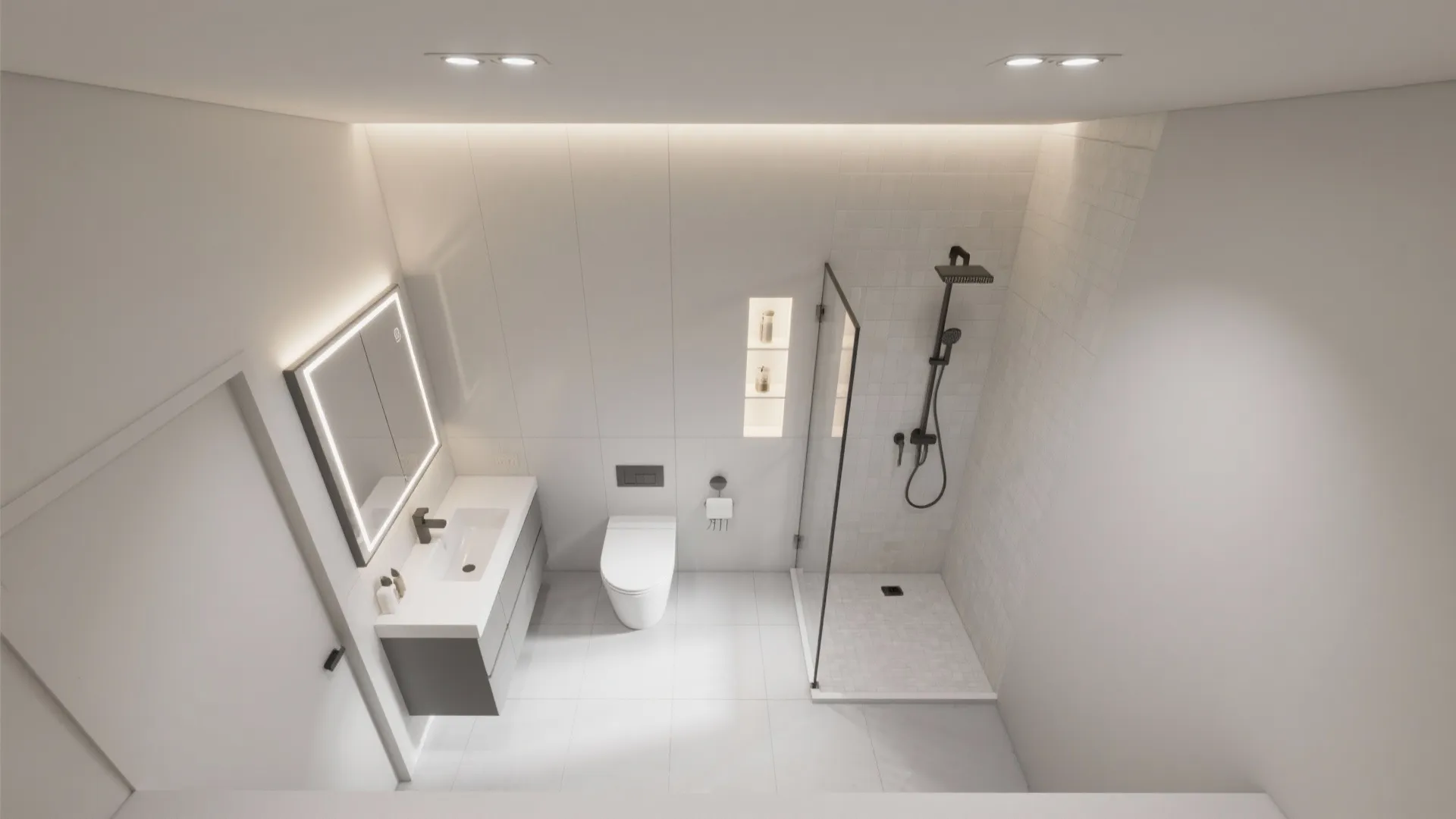

Light, Reflective Finishes and Layered Lighting

My Take

Lighting makes or breaks a small bathroom. I once swapped a single ceiling fixture for layered lighting—ceiling + backlit mirror + shower niche—and the 3D render matched the final space almost perfectly. Clients immediately felt the room was calmer and bigger.

Pros

- High-LRV (light reflectance value) tiles and satin paints bounce light, supporting “small bathroom lighting plan with high LRV finishes.”

- Layered lighting reduces shadows on faces; task lighting at eye level is a game changer for grooming.

- According to the U.S. Department of Energy, LED lighting can reduce energy use by up to 75% compared to incandescent, while offering better directional control and color options (energy.gov).

Cons

- Over-glossy tiles can create glare; in renders, I dial down specular highlights to preview realistically.

- Too many color temperatures in one room feel chaotic. I standardize at 3000–3500K for warm-neutral consistency.

Tips / Cost

- Use your 3D tool’s photometric IES profiles to simulate how fixtures cast light—worth the extra setup time.

- Backlit mirrors typically add $150–$500; niche lights, $60–$120 each including drivers.

At this point, clients often ask for a holistic preview of finishes and lighting together. If you want to see how multi-room lighting scenarios look in 3D, this case is handy: glass backsplash makes the kitchen feel airier.

save pin

Wet Room Layout with Continuous Flooring

My Take

When space is tight, a wet room can be liberating. I’ve converted many 3–5 m² baths by running one continuous floor tile and a linear drain, then using a partial glass screen for splash control. In 3D, I animate water paths to ensure drainage slope works with the door swing.

Pros

- One uninterrupted floor visually enlarges the room—great for “wet room small bathroom design with linear drain.”

- Accessibility improves: fewer thresholds and easier shower entry, aligning with aging-in-place goals.

- Cleaning is simplified; fewer joints and transitions mean less maintenance.

Cons

- Requires meticulous waterproofing and a pre-plan for slope; your contractor must be detail-obsessed.

- Towels, toilet paper, and wood elements need splash protection; I add micro-frames or recesses.

Tips / Cost

- Linear drains cost more ($200–$500+), but installation is often faster in long, narrow rooms.

- In 3D, cut section views every 50 cm to verify slope continuity; a 1.5% gradient typically balances drainage and comfort.

save pin

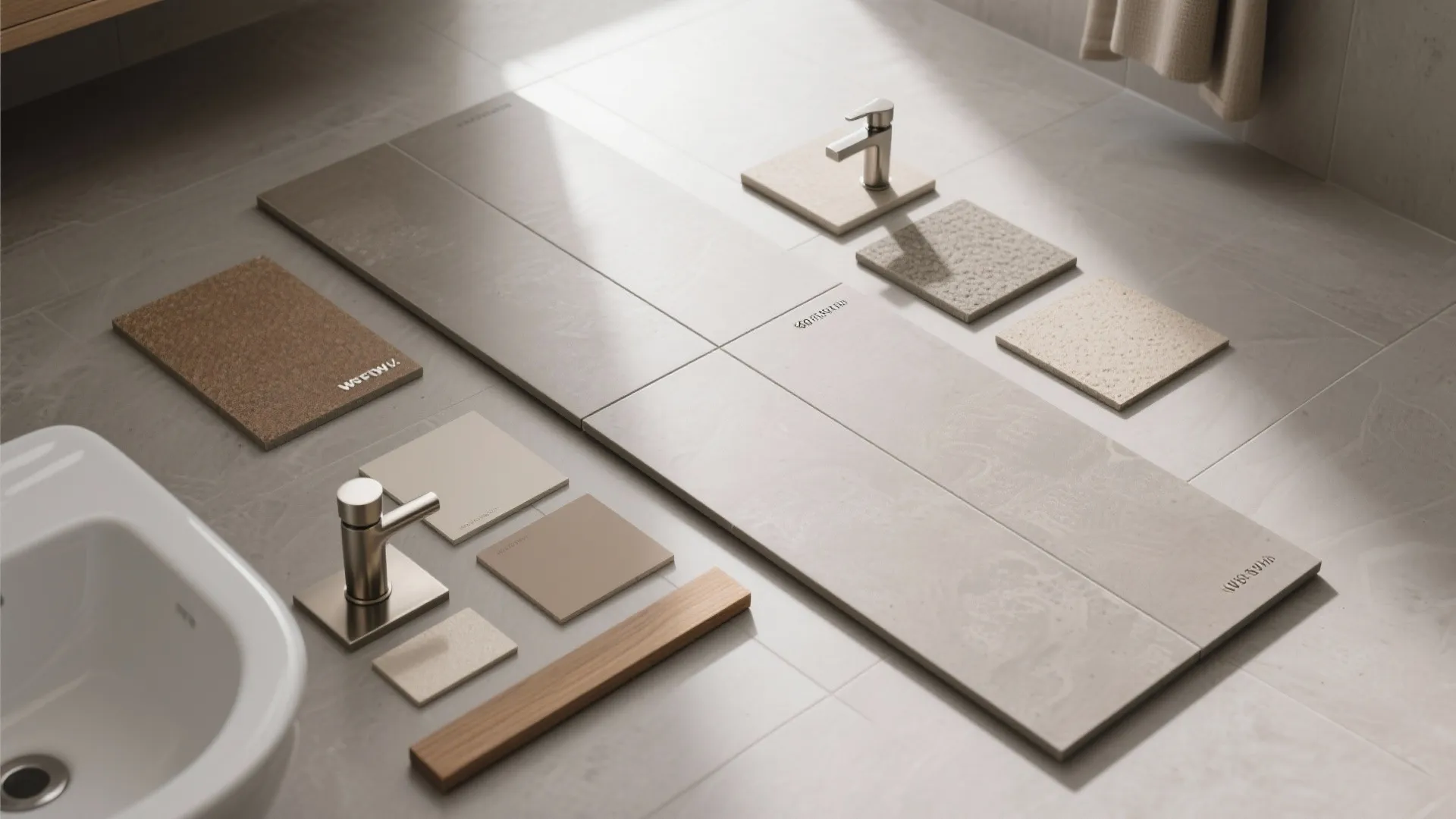

Statement Surface: Large-Format Tile or Microcement

My Take

I’m a fan of fewer grout lines. Large-format porcelain (e.g., 60x120 cm) or microcement walls calm visual noise in small baths. I love testing texture and sheen in 3D to ensure the final look reads warm, not clinical.

Pros

- Minimal grout equals less maintenance—ideal for “large format tile bathroom small space.”

- Visually elongates walls and floors; with the right orientation, tiles guide the eye along the long axis.

- Microcement creates a monolithic spa feel with slip-resistant options and lighter structural load.

Cons

- Large tiles need perfectly flat substrates; lippage is merciless under bright vanity lighting.

- Microcement requires skilled installers; patch repairs can be visible if not color-matched precisely.

Tips / Case

- Order extra tiles (10–15%) for cuts and future repairs. I once saved a renovation timeline purely because we had spare slabs.

- Sample boards in 3D are helpful, but always request a physical sample to validate tone and texture under your bathroom lighting.

Around the mid-point of many projects, I like to pressure-test circulation and fixture spacing across the whole home in 3D. This planning workflow is exemplified here: minimalist kitchen storage design.

save pin

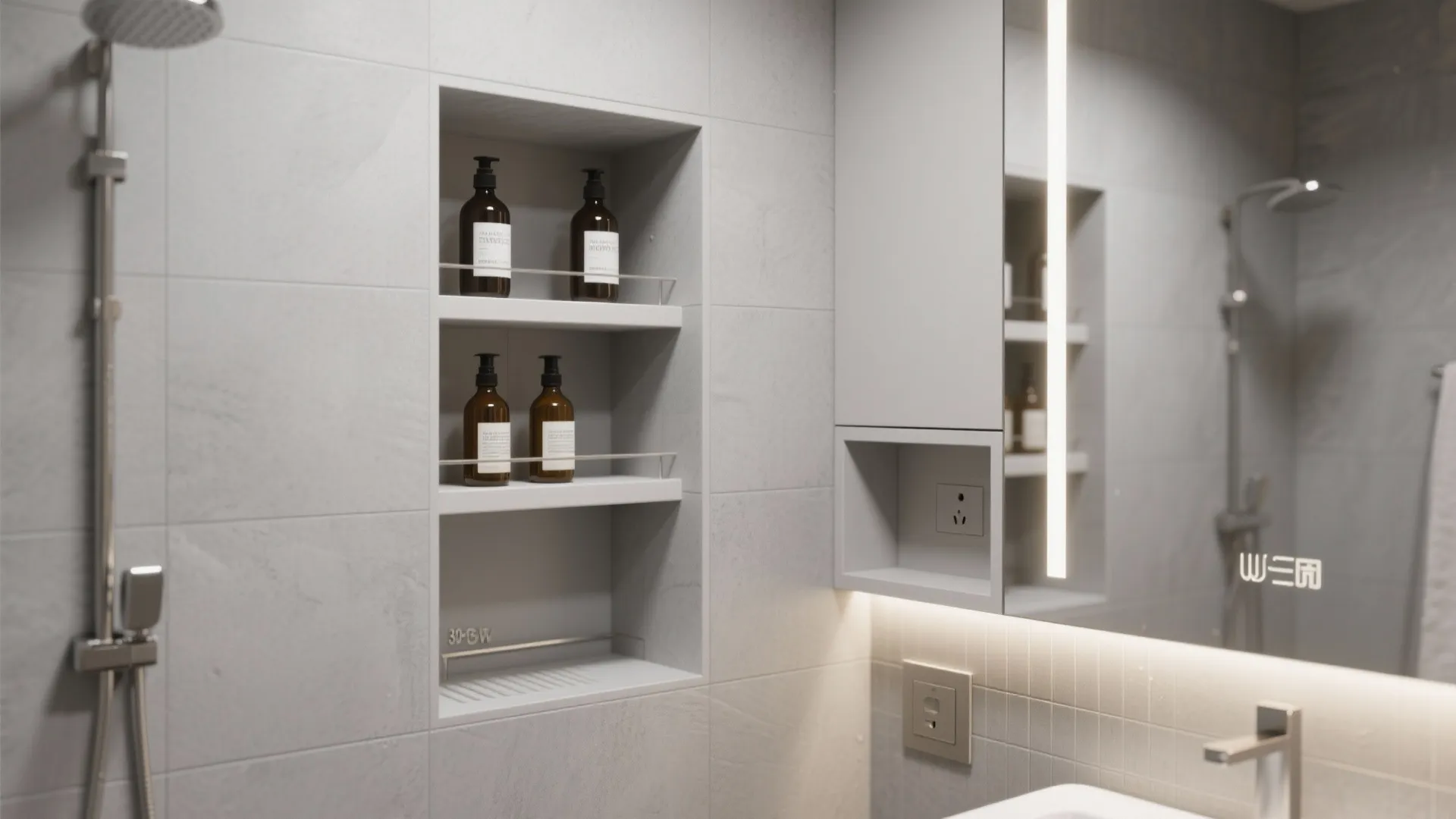

Smart Storage: Recessed Niches and Mirror Cabinets

My Take

Storage is where small baths either shine or struggle. I still remember a busy couple who needed a tidy vanity but had endless skincare. We modeled recessed niches in the shower and a shallow, wide mirror cabinet; everything suddenly had a home.

Pros

- Recessed niches keep bottles off ledges—great for “shower niche size and placement in small bathrooms.”

- Mirrored cabinets double as task lighting reflectors and offer concealed outlets for electric toothbrushes and shavers.

- The National Kitchen & Bath Association (NKBA) recommends at least 20" clear in front of the toilet and 30" in front of showers; 3D planning helps uphold these standards while squeezing in storage (nkba.org).

Cons

- Stud placement can limit niche width; plan early to avoid hitting plumbing vents.

- Mirror cabinets may protrude; choose 10–13 cm depth to balance storage and clearance over vessel sinks.

Tips / Cost

- Waterproof niche boxes simplify installation; budget $80–$200 per unit plus tile labor.

- In 3D, set shelf heights at 30–35 cm for tall bottles; add a low lip to prevent sliding in wet zones.

When you’re deep into storage and layout, it helps to simulate multiple bathroom arrangements quickly. Here’s a practical case reference for that exploration: wood accents bringing warmth.

save pin

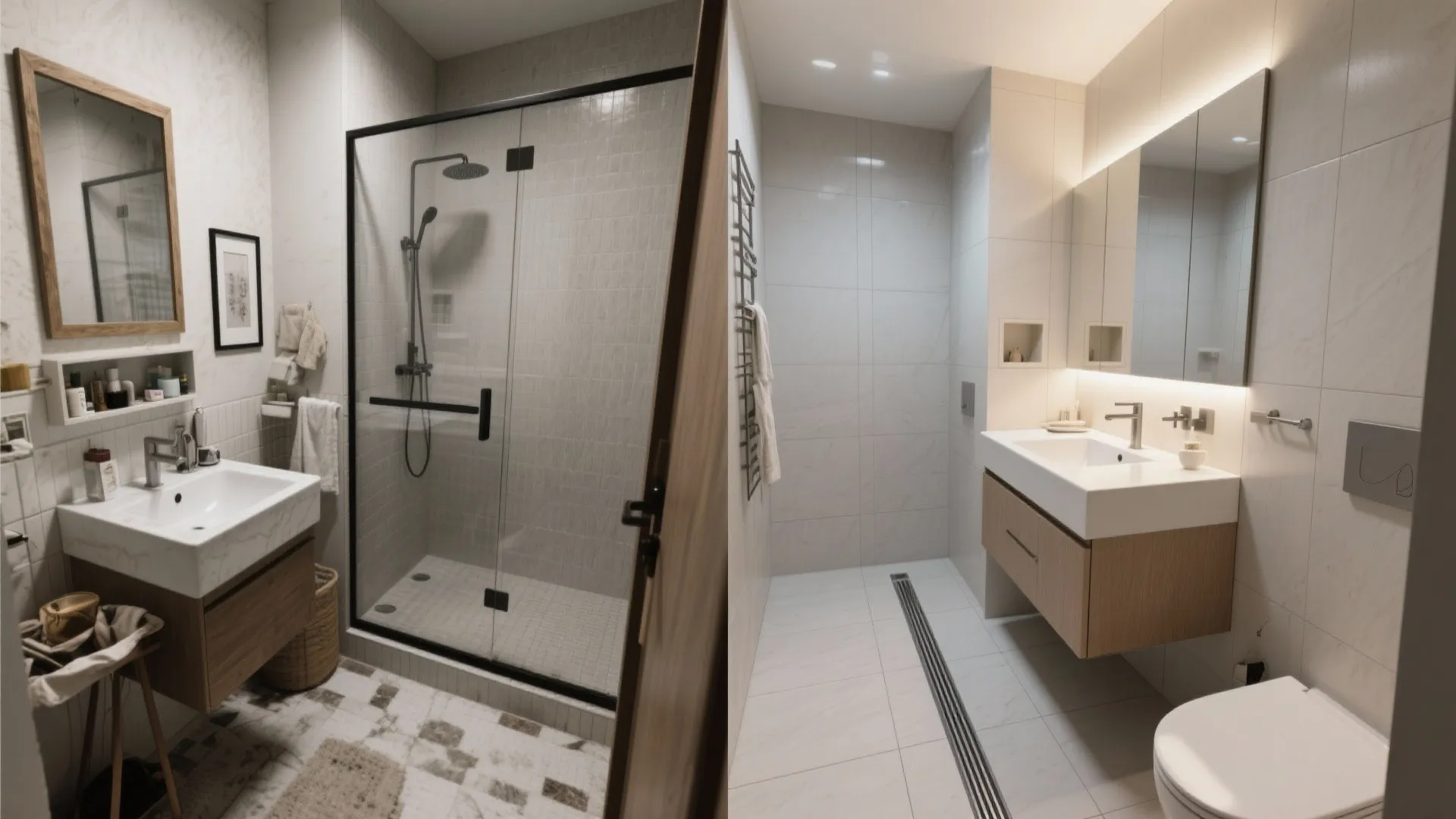

Summary

Small bathrooms aren’t limits; they’re invitations to design smarter. With 3D bathroom design, you can test glass openness, floating fixtures, layered lighting, wet-room slopes, and unified surfaces before demo—and align them with storage that actually fits your life. As the NKBA space-planning standards remind us, good bathrooms are built on clearances and function first; 3D just makes those decisions visible and confident. Which of these five ideas are you most excited to try in your own space?

save pin

FAQ

1) What is 3D bathroom design and why use it?

It’s the process of modeling your bathroom in software to test layout, finishes, and lighting. You’ll spot clearance issues early, compare materials, and share precise intent with contractors.

2) How do I choose the best layout for a small bathroom?

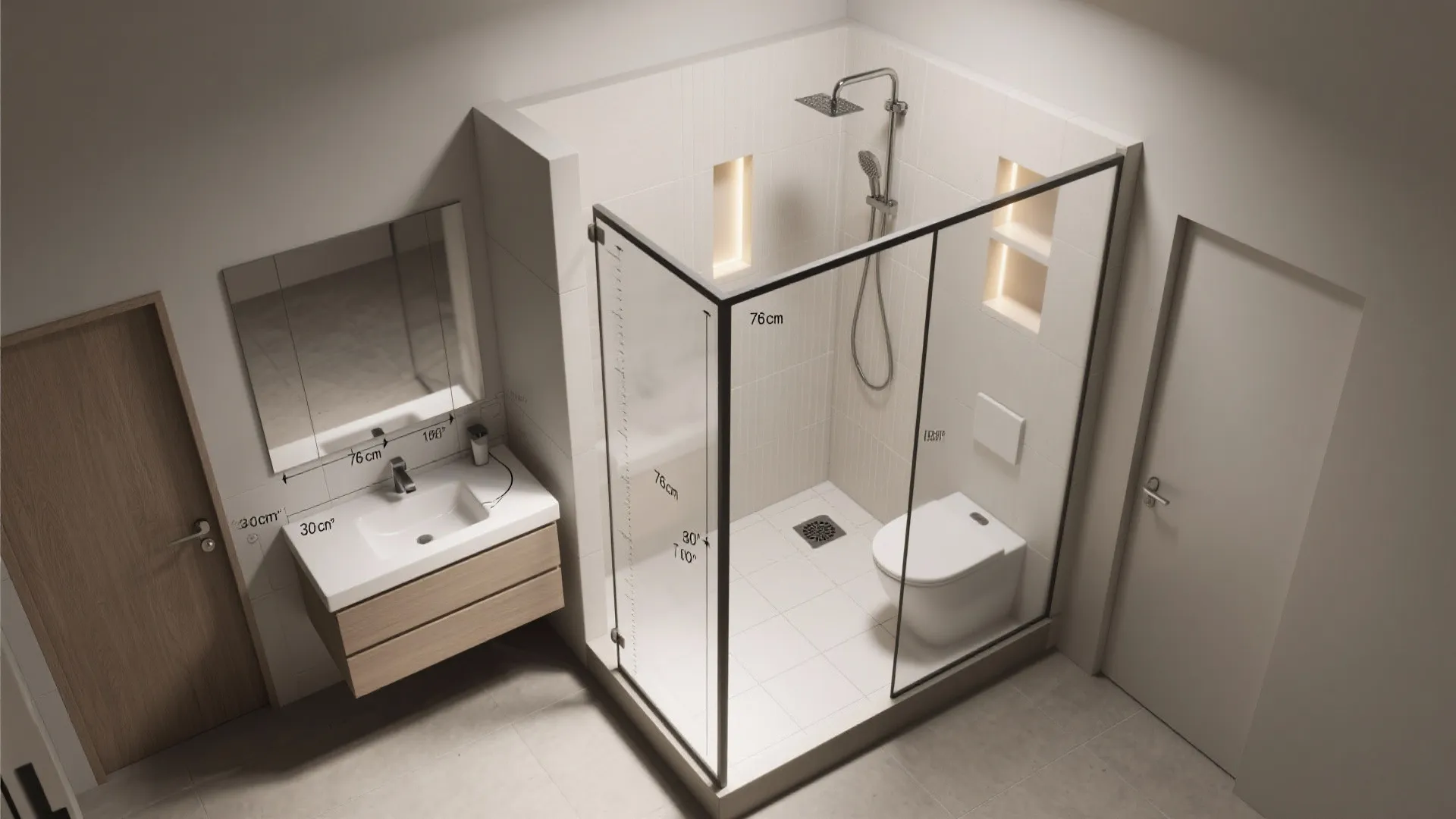

Start with circulation and clearances: aim for around 76 cm in front of major fixtures and confirm door swings. In 3D, test a wet room vs. a corner shower to see which preserves sight lines.

3) What lighting color temperature is best for bathrooms?

Most small baths look balanced at 3000–3500K for a warm-neutral tone. Match all fixtures to one temperature in your model to avoid patchy color.

4) Are large-format tiles practical in tiny bathrooms?

Yes, if your substrate is flat. Fewer grout lines make cleaning easier and visually calm the space; model your tile layout to minimize slivers around drains and niches.

5) How do I plan a wet room safely?

Ensure a continuous waterproofing system and a 1–2% slope toward a linear drain. In 3D, cut sections to validate gradients and test splash zones with partial glass screens.

6) What standards should I follow for clearances?

The NKBA suggests minimum front clearances around toilets and showers; consult their guidelines (nkba.org) and reflect them in your 3D model. These ensure comfort and code alignment.

7) How can I keep a small bathroom organized?

Combine a wall-hung vanity with a shallow mirror cabinet and a shower niche. In 3D, assign exact shelf heights to the items you own so everything has a home.

8) Where can I see examples of 3D bathroom design workflows?

Look for realistic case studies that show layout, lighting, and materials tested together. For cross-room planning logic, this example is helpful: L 型小厨房布局.
