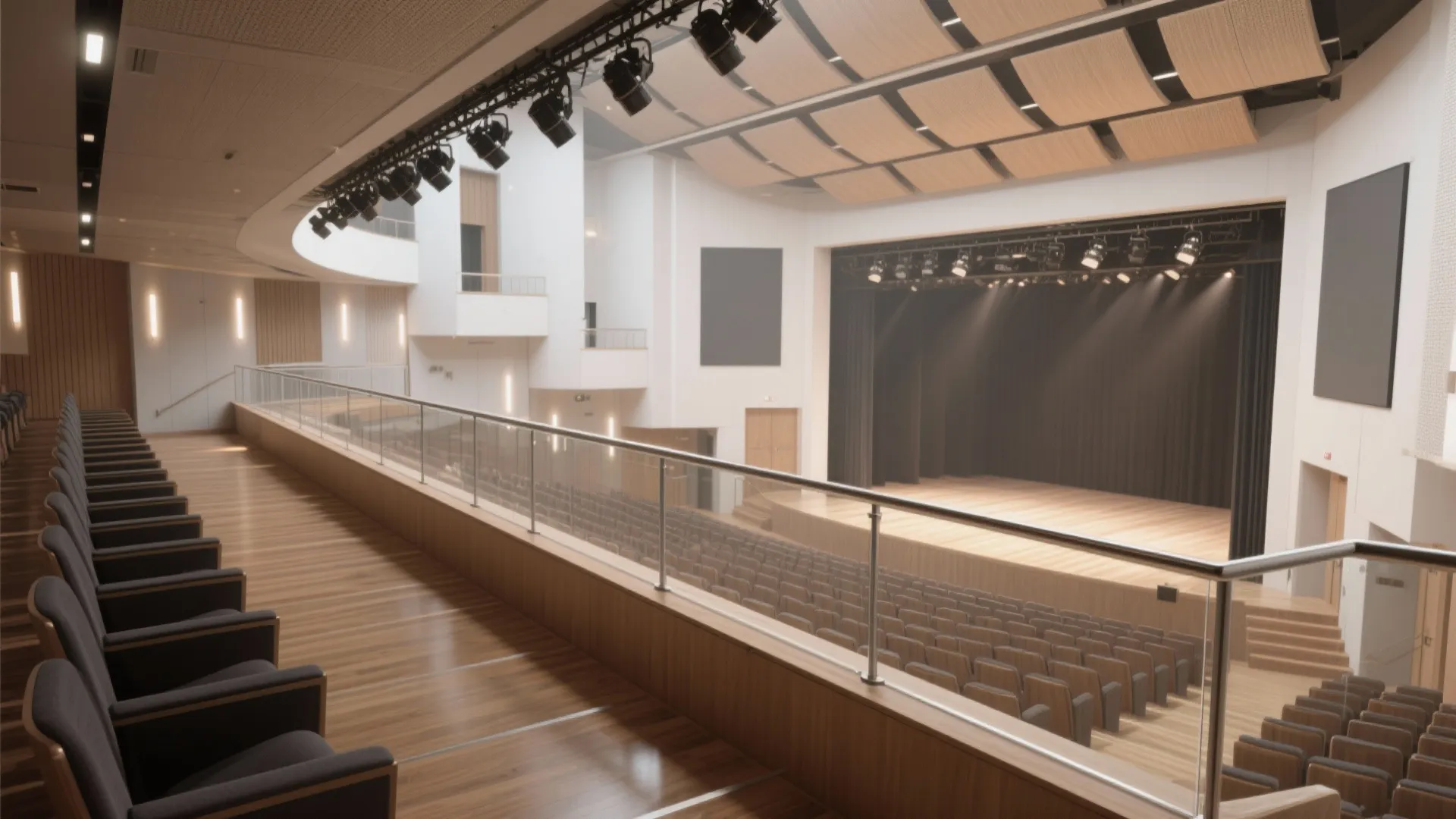

5 Auditorium Balcony Design Standards I Use (With Real Tips): From sightlines to safety, here are five proven, people-first standards for auditorium balcony design—backed by field experience and expert data

I’ve spent over a decade shaping compact homes and public interiors, and one thing always rings true: small spaces unlock big creativity. The same logic applies to auditorium balcony design standards. Whether you’re optimizing sightlines or meeting safety codes, tight constraints can produce smarter, more human-centered solutions. In this guide, I’ll share 5 balcony design insights I rely on, blending real-world experience with expert data so you can plan with confidence.

Before we dive in, here’s a quick note: I’ll reference practical norms for sightlines, riser heights, guardrails, and egress. Balcony design lives at the crossroads of architecture, interior planning, and life-safety—so details matter. And yes, we’ll keep it friendly and actionable.

Early in my career, I helped retrofit a small community theater balcony that was infamous for “neck-crane” seats. Fixing that space taught me that standards are not just paperwork—they’re the difference between so-so and spectacular audience experience. Below are the five design ideas I’d start with today.

By the way, because many readers also plan adjacent spaces and backstage flows, here’s a detailed look at L 型布局释放更多台面空间 that shows how circulation logic translates across rooms.

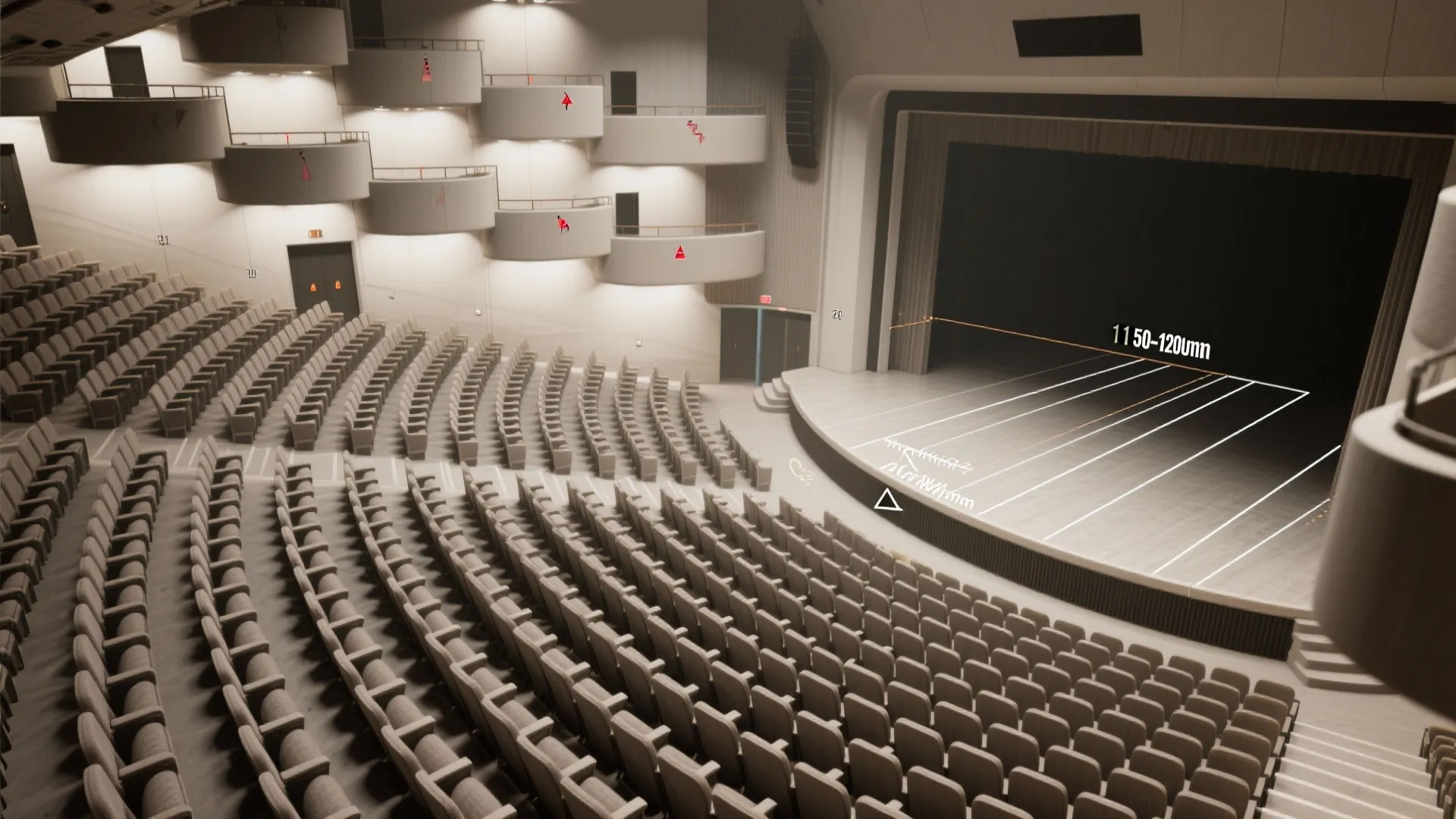

1) Sightline Geometry That Works, Not Just on Paper

My Take: I obsess over sightlines first, because if the view is compromised, nothing else matters. In a 450-seat hall we upgraded, I used a simple C-value approach (vertical clearance to the object of view) to ensure even the back-row balcony seats saw the bottom of the proscenium clearly.

Pros: A defined sightline standard (often a C-value of 120–150 mm) improves comfort and reduces head-tilt fatigue—an essential long-tail keyword here is “auditorium sightline standards for balcony tiers.” With careful rake and seat stagger, you can protect views to the stage edge and orchestra pit. The Royal Institute of British Architects and Theatre Projects routinely reference measurable sightline targets; Theatre Projects’ guidance on C-values is particularly practical.

Cons: Steeper balcony rakes that improve sightlines can increase vertigo for some audience members and complicate ADA seating dispersion. Also, aggressive staggers may create awkward aisle geometry if your bay widths are tight.

Tip/Cost: Run quick digital mockups early. A simple parametric model can test C-values, eye heights (typically 1,150–1,200 mm seated), and object heights across multiple stage configurations. Iterating now is far cheaper than re-raking after steel is set.

save pin

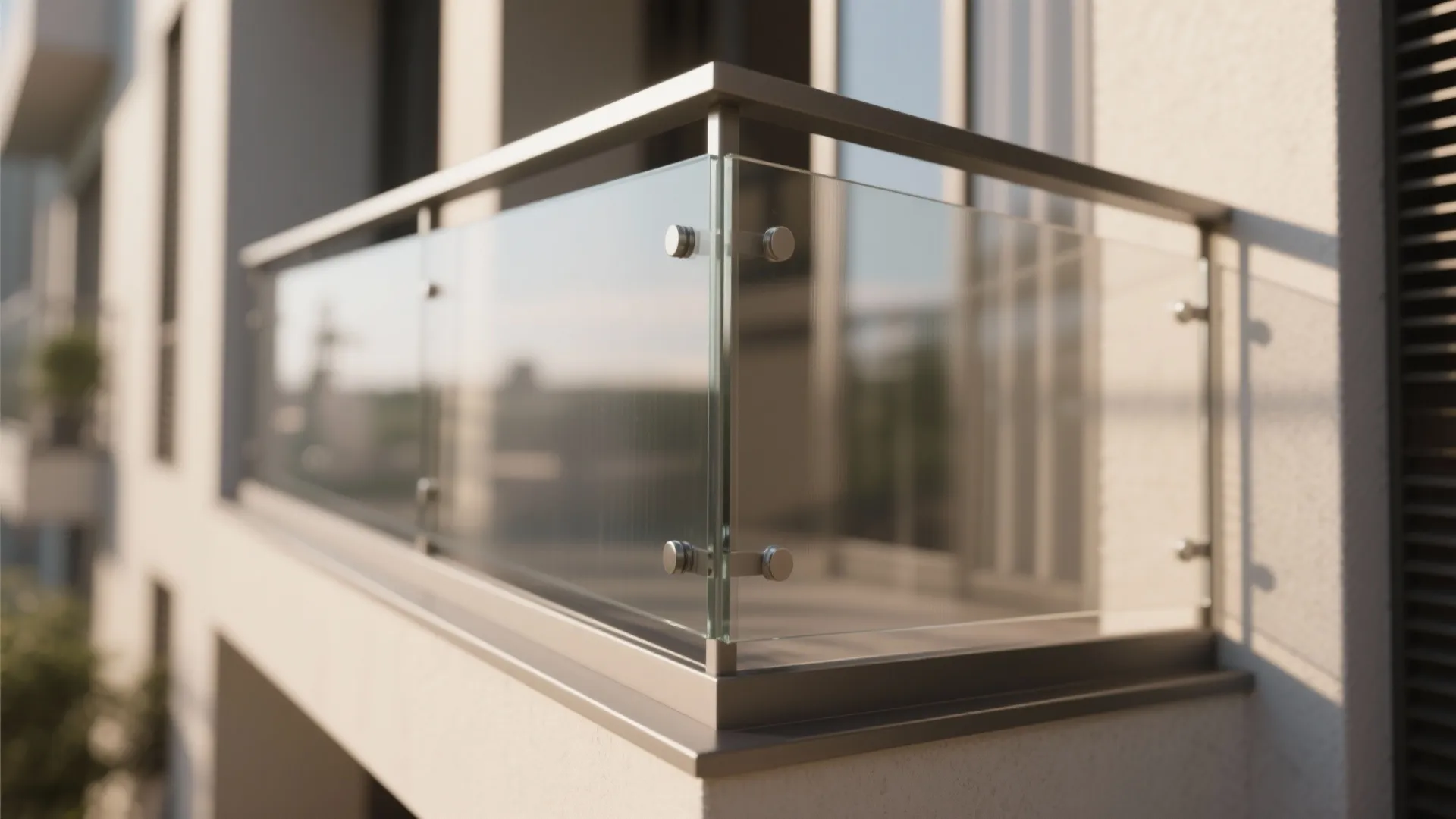

2) Safe, Readable Guardrail and Balustrade Design

My Take: In every balcony I’ve touched, the front guard becomes a focal line. I aim for a visually light profile that doesn’t steal the show but meets code. Laminated glass tops with a slender cap rail have been my go-to for mixed-use halls where transparency matters.

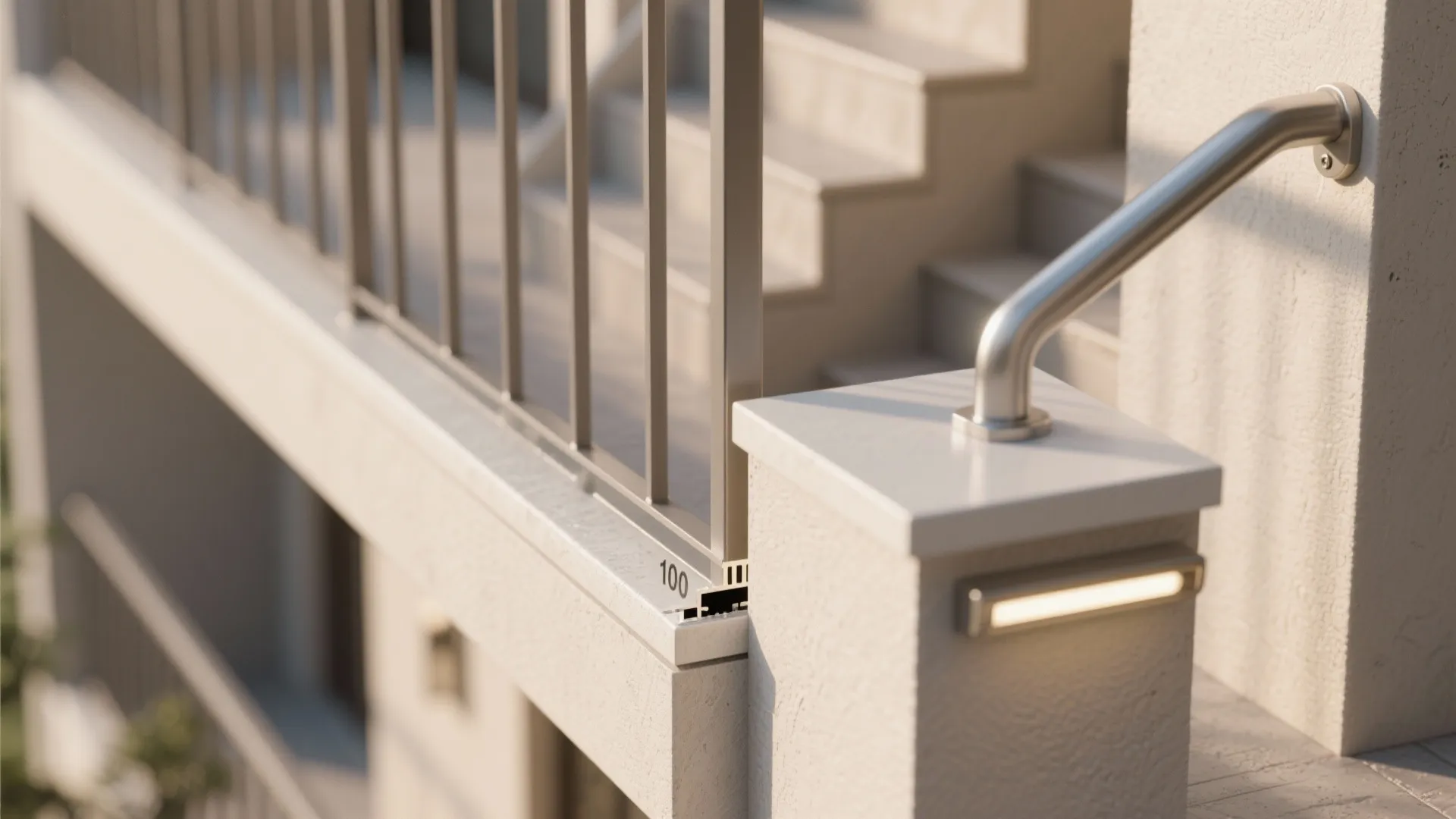

Pros: Following guardrail height standards (commonly 1,070 mm/42 in at the front row in many jurisdictions) protects against falls and psychological discomfort—searchers often land on “balcony guardrail height for auditorium seating.” Using clear balustrades preserves sightlines and a sense of openness. The International Building Code (IBC 2018/2021) requires that openings do not allow a 4 in sphere to pass in most conditions; it’s a clear, enforceable benchmark.

Cons: Glass balustrades can reflect stage lighting and show fingerprints under houselights—small things, but real. Metal pickets are cost-effective, though visually busy and sometimes distracting in close-up venues.

Tip/Case: For a youth theater, we added a faint anti-reflective interlayer to the glass and a matte cap rail—result: zero glare complaints in a year of shows. If you’re weighing options midway through planning, skim a gallery that demonstrates how 玻璃背板让厨房更通透 logic applies to transparent safety elements and overall visual flow.

save pin

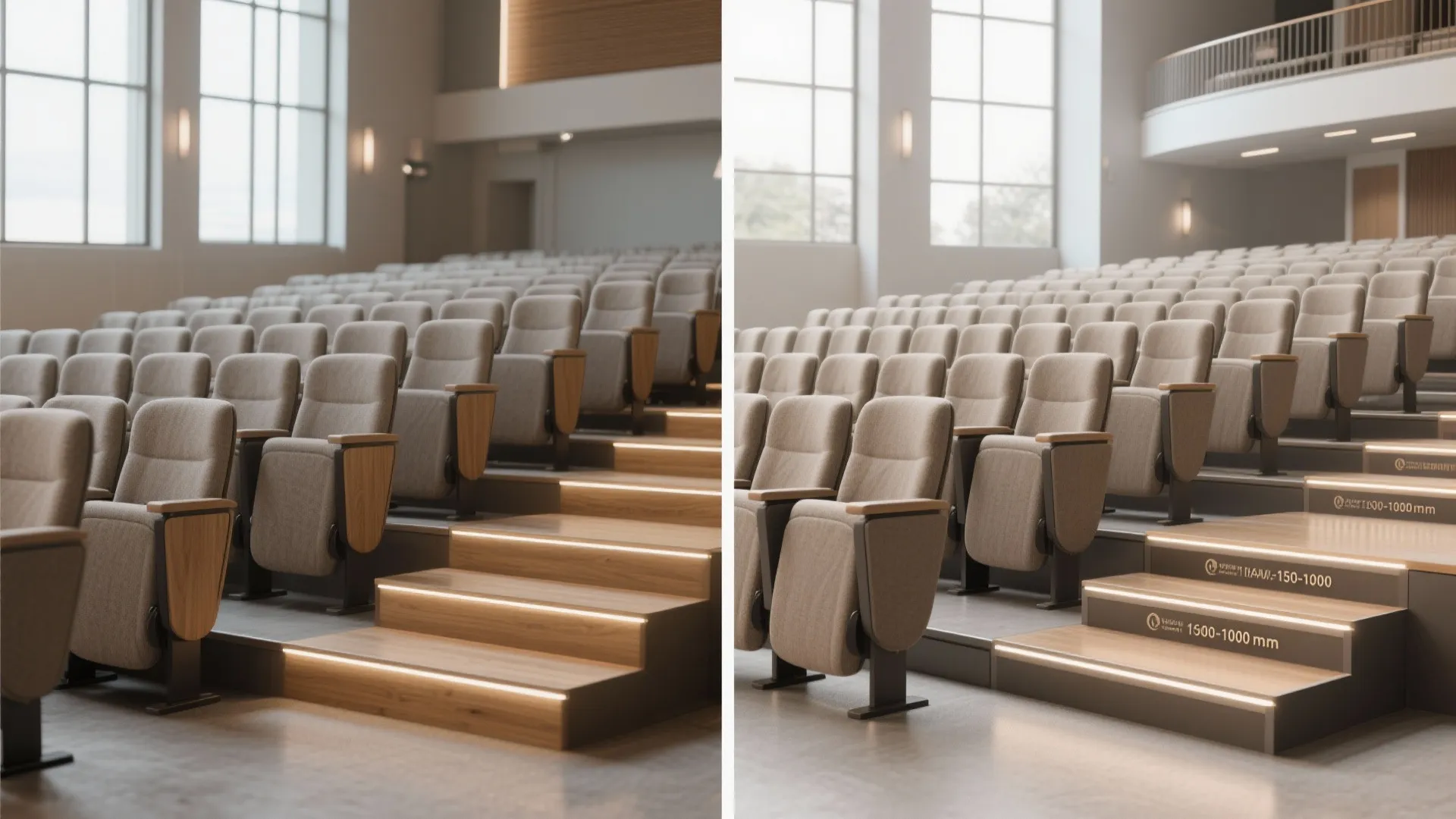

3) Riser Heights, Row Depth, and Comfort Spacing

My Take: I learned the hard way that squeezing row depth to hit seat count backfires; knees don’t negotiate. I aim for 900–1,000 mm (35–39 in) clear row depth for fixed seating, adjusting risers to maintain sightlines without producing a climbing gym.

Pros: Calibrating riser heights (typically 150–200 mm per row in balconies) and tread depth stabilizes circulation and sightlines—key phrase: “auditorium balcony riser height standards.” It also reduces noise from footfalls and trip risk. Comfortable knee clearance boosts satisfaction scores and repeat attendance; this is one of those metrics venue operators quietly track.

Cons: Generous row depth trims seat count, which can pressure revenue projections. Taller risers may require additional intermediate handrails and lighting, nudging both budget and maintenance.

Authority Note: Theatre Projects and Arup’s published guidance often align around balancing a minimum C-value with humane row depth. While local codes vary, these firms’ technical briefs give reliable starting ranges you can tune to your jurisdiction.

Tip/Cost: Use mock-up rows with temporary risers to test comfort. Your audience demographic matters: children’s venues can accept slightly tighter rows; symphony-goers with winter coats cannot.

save pin

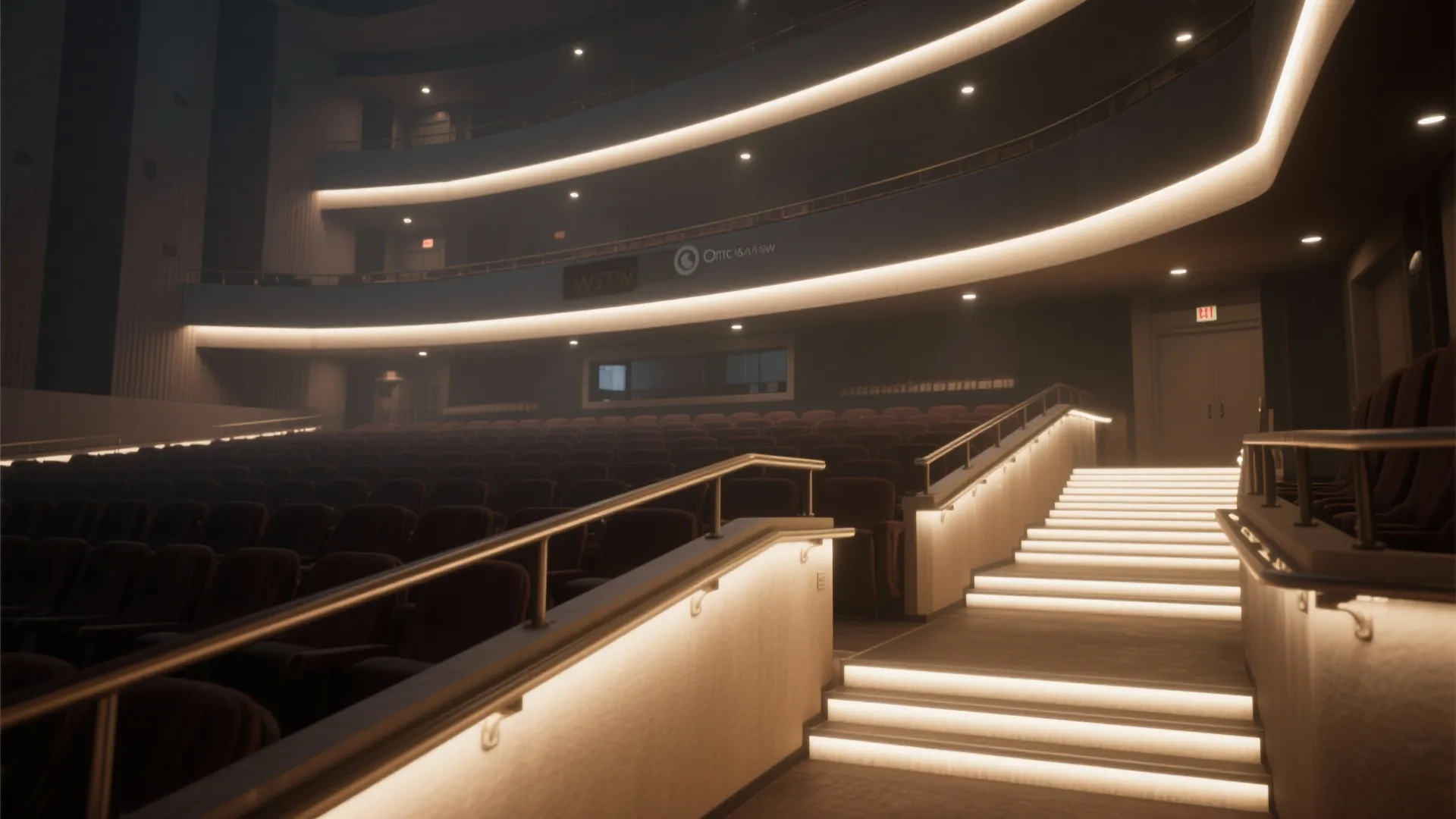

4) Aisles, Egress, and Lighting That Calm, Not Panic

My Take: During a fire drill in a renovated hall, I watched how aisle lighting and handrail placement either invited smooth flow or created hesitation. The balcony should feel intuitive to exit, even in low light.

Pros: Clear egress widths, compliant travel distances, and continuous handrails make “auditorium balcony egress requirements” more than a checkbox—they’re life-safety. Photoluminescent or low-glare LED aisle markers preserve night vision and guide wayfinding. The NFPA 101 Life Safety Code provides authoritative metrics on exit access, illumination levels, and emergency lighting duration.

Cons: Over-bright step lights can wash performers with spill or distract the audience. Extra handrails can clutter sightlines if not detailed carefully with the seat layout.

Tip/Case: I program step lights to a warm 2700K at sub-1 cd/m² luminance—easy on eyes, invisible from the stage. For complex balconies wrapping around boxes, a quick spatial mockup—similar in spirit to testing an 极简风的厨房收纳设计—helps untangle traffic and lighting conflicts before they’re poured in concrete.

save pin

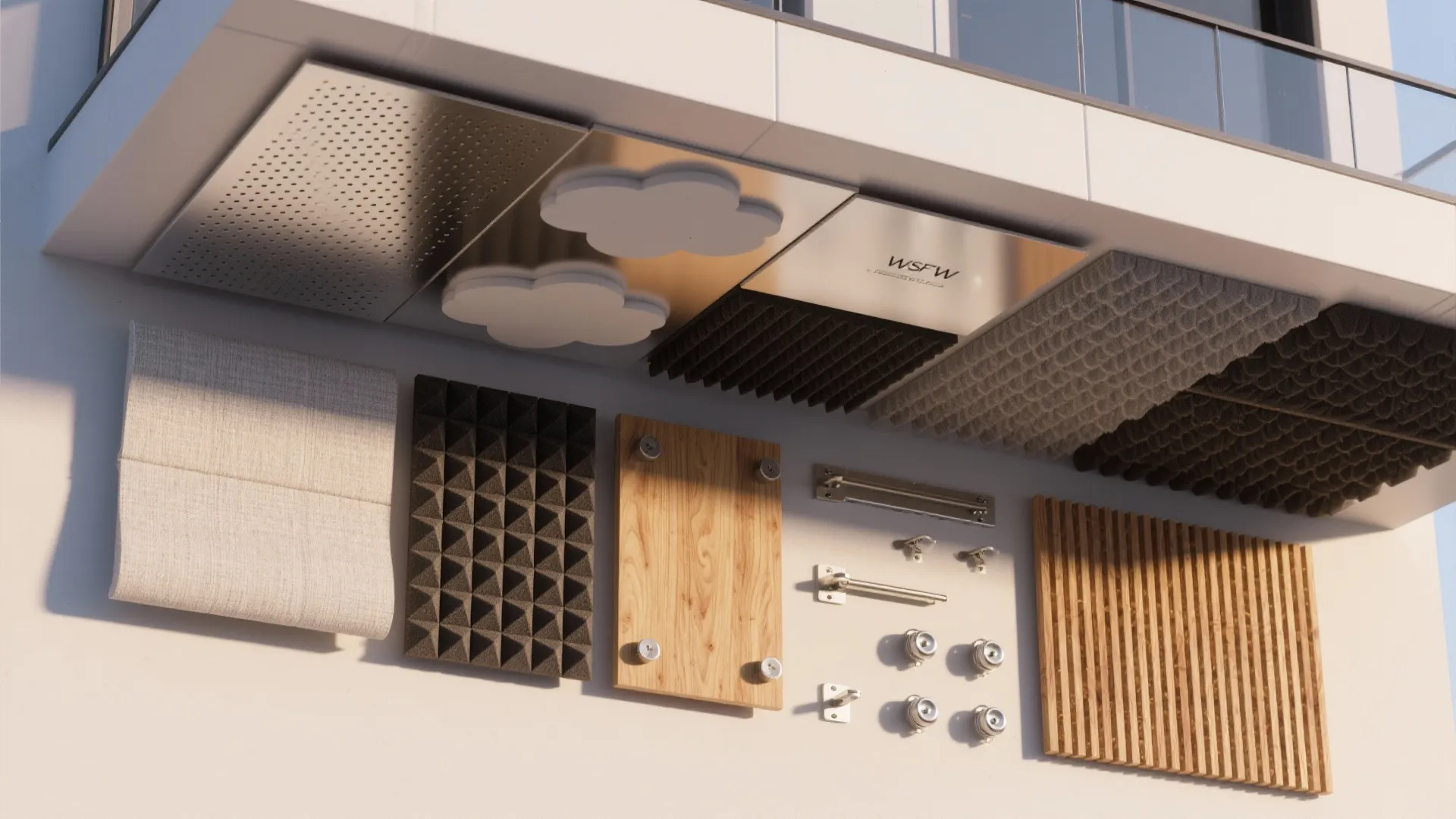

5) Acoustics, Overhangs, and the “Shadows” You Don’t See

My Take: The balcony overhang is sneaky—it can either hug the sound or starve it. In a black-box conversion, our first balcony cut too deep over the stalls; upper seats sounded dull until we reintroduced reflective soffit panels and perforated clouds.

Pros: Tuning the overhang depth and soffit reflectivity improves clarity and warmth—look up “auditorium balcony overhang acoustics” and you’ll see why. Balanced early reflections (20–50 ms) help speech intelligibility (STI) and orchestral presence. The Acoustic Society of America and texts by Barron support using a mix of reflective and absorptive treatments to avoid dead zones.

Cons: Acoustical fixes can be visually intrusive if not coordinated with lighting battens and projection lines. Over-absorbing to kill flutter echoes can flatten the room’s energy, making performances feel lifeless from the balcony.

Tip/Cost: Budget 2–4% of construction for acoustic treatments in balcony zones; small, targeted panels can transform value seats into fan favorites. Model with simple ray-trace tools early, then validate with an acoustician once the massing stabilizes.

save pin

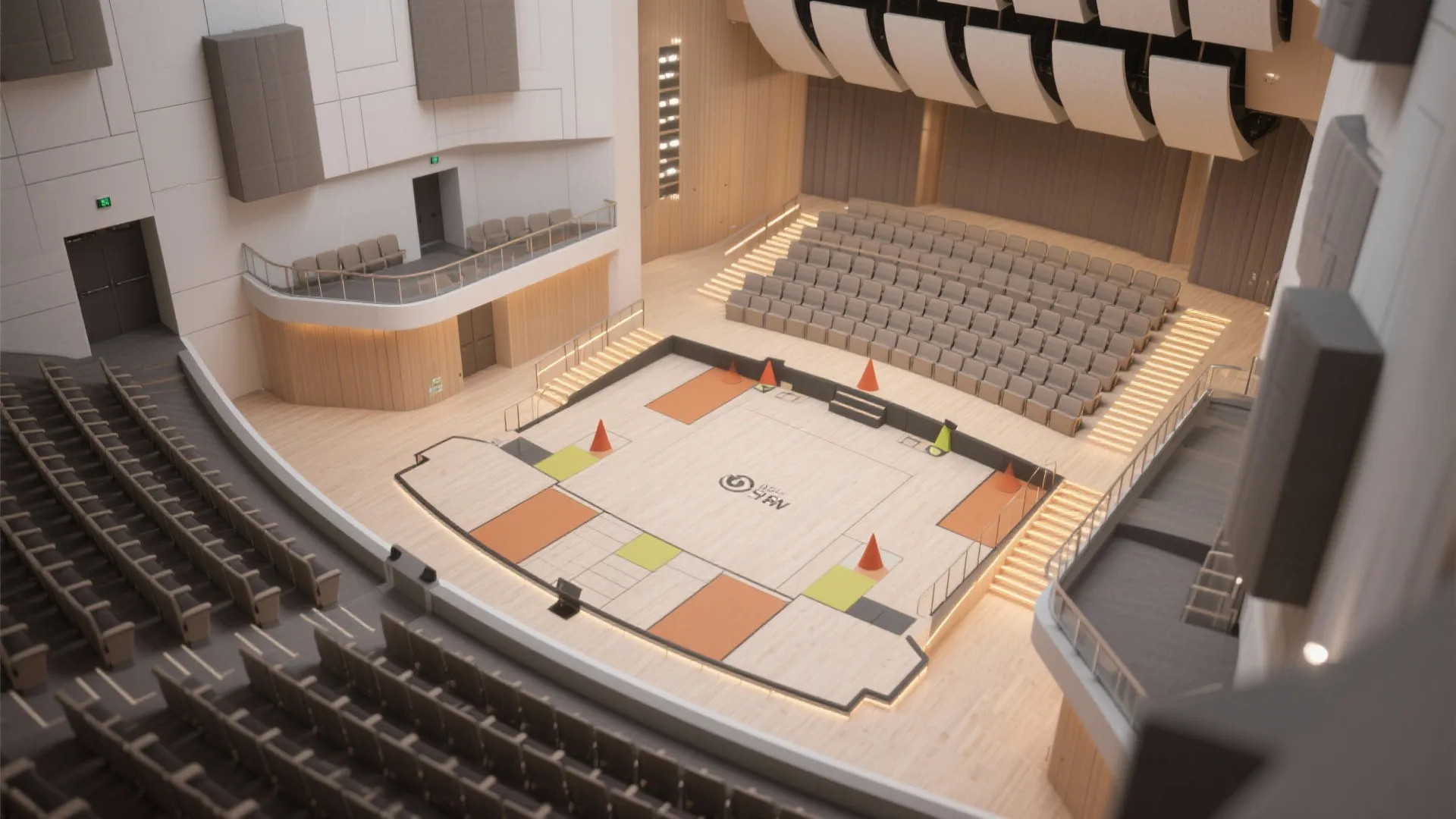

Summary

Small balconies don’t limit great experiences—they demand smarter, clearer auditorium balcony design standards. From sightlines and risers to guardrails, egress, and acoustics, the best results come from balancing human comfort with code. Theatre Projects, NFPA 101, and IBC guidance provide dependable baselines you can adapt to your venue’s scale and audience profile. Which of these five ideas would you try first in your auditorium?

save pin

FAQ

1) What are the core auditorium balcony design standards?

Focus on sightlines (C-value 120–150 mm), guardrail height (often 1,070 mm/42 in), comfortable riser/row depth, compliant egress, and tuned acoustics. These anchor both comfort and safety, the heart of any balcony plan.

2) What is a good balcony sightline metric?

Many theater consultants target a minimum C-value around 120 mm, rising to 150 mm for premium rows. Theatre Projects discusses practical C-values and how they translate to rake and seat stagger in real rooms.

3) How high should the front balcony guard be?

In many jurisdictions, expect about 1,070 mm (42 in) minimum with 100 mm/4 in maximum openings per IBC guidance. Always confirm with your local building official, as performance venue exceptions can apply.

4) What’s a comfortable row depth and riser for balconies?

Plan roughly 900–1,000 mm row depth with 150–200 mm risers, then verify against your sightline section. Tighter rows reduce comfort quickly, especially for winter coats and instrument cases.

5) How do I handle egress lighting without distracting the show?

Use warm, low-luminance step lights and shielded fixtures; keep luminance near or below 1 cd/m² and avoid direct view from the stage. NFPA 101 sets expectations for emergency illumination duration and levels.

6) Do balcony overhangs hurt acoustics?

They can if too deep or absorptive. Use reflective soffits and targeted absorption to balance early reflections; Barron’s concert hall research supports managing early energy for clarity and warmth.

7) How early should I involve an acoustician or theater consultant?

As soon as balcony massing and rake are sketched. Early collaboration prevents costly rework and ensures sightlines, lighting, and sound all align.

8) Any quick tools to test balcony layouts?

Yes—simple parametric models for sightlines and basic acoustic ray-tracing can validate concepts quickly. For spatial coordination, a browser-based planner showcasing an approach like “L 型布局释放更多台面空间” can illustrate circulation logic before you commit to structural geometry.
