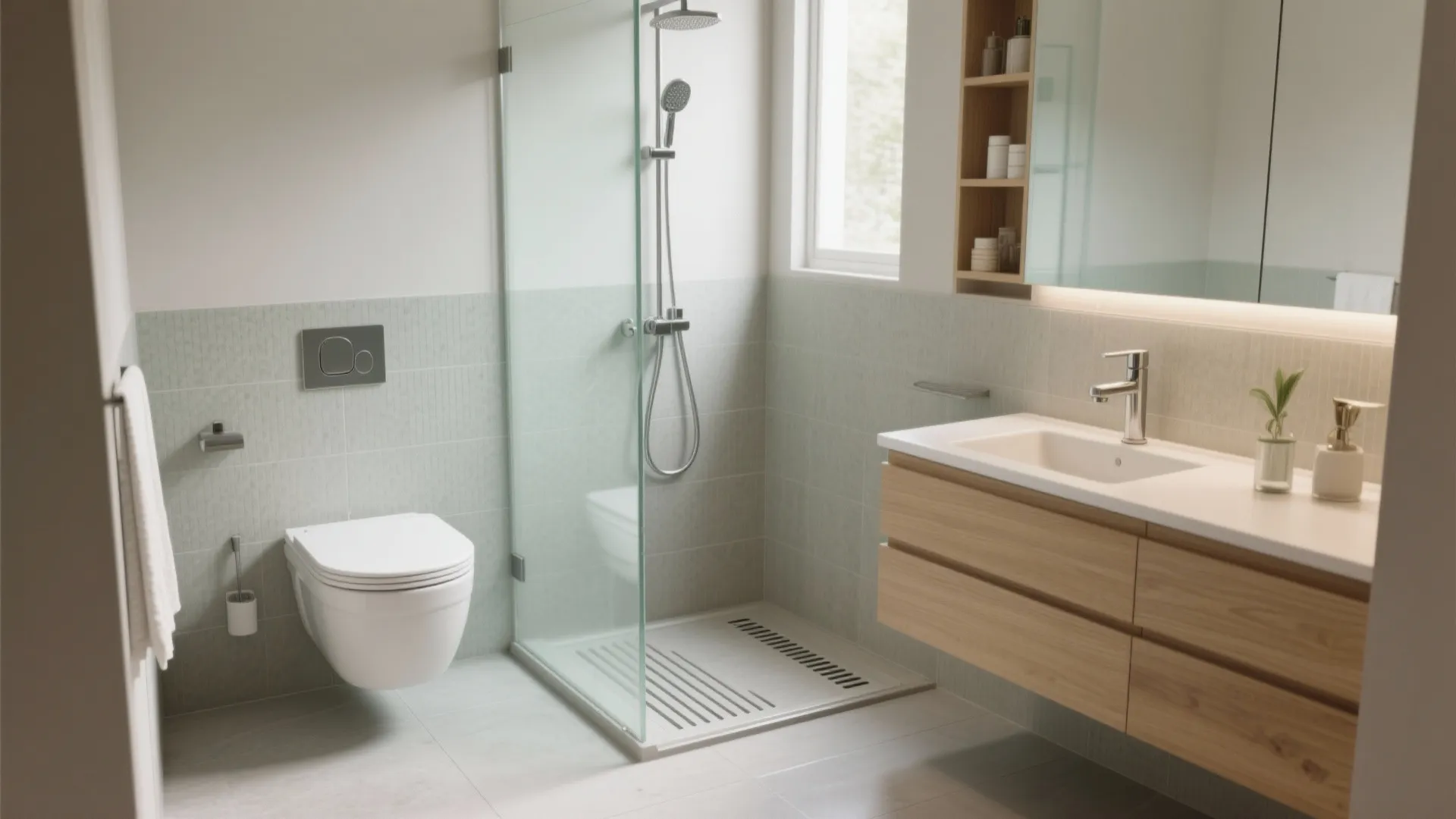

5 Bathroom Pan Design Ideas for Small Spaces: Smart, safe, and stylish bathroom pan design—5 field‑tested ideas from a designer who renovates tiny bathrooms for a living

[Section: 引言]

I’ve renovated enough tight bathrooms to know this: bathroom pan design can make or break the whole room. From curbless entries to linear drains, the latest trends favor clean lines, safer surfaces, and fewer visual breaks—perfect for small spaces. And honestly, small spaces spark big creativity; constraints push us to be sharper about slope, finish, and detailing.

In this guide, I’ll share 5 bathroom pan design ideas I use in real homes—what worked, what didn’t, and what I’d do differently next time. You’ll get my field notes plus select expert data, so you can make the right call for your layout, budget, and timeline.

[Section: 灵感列表]

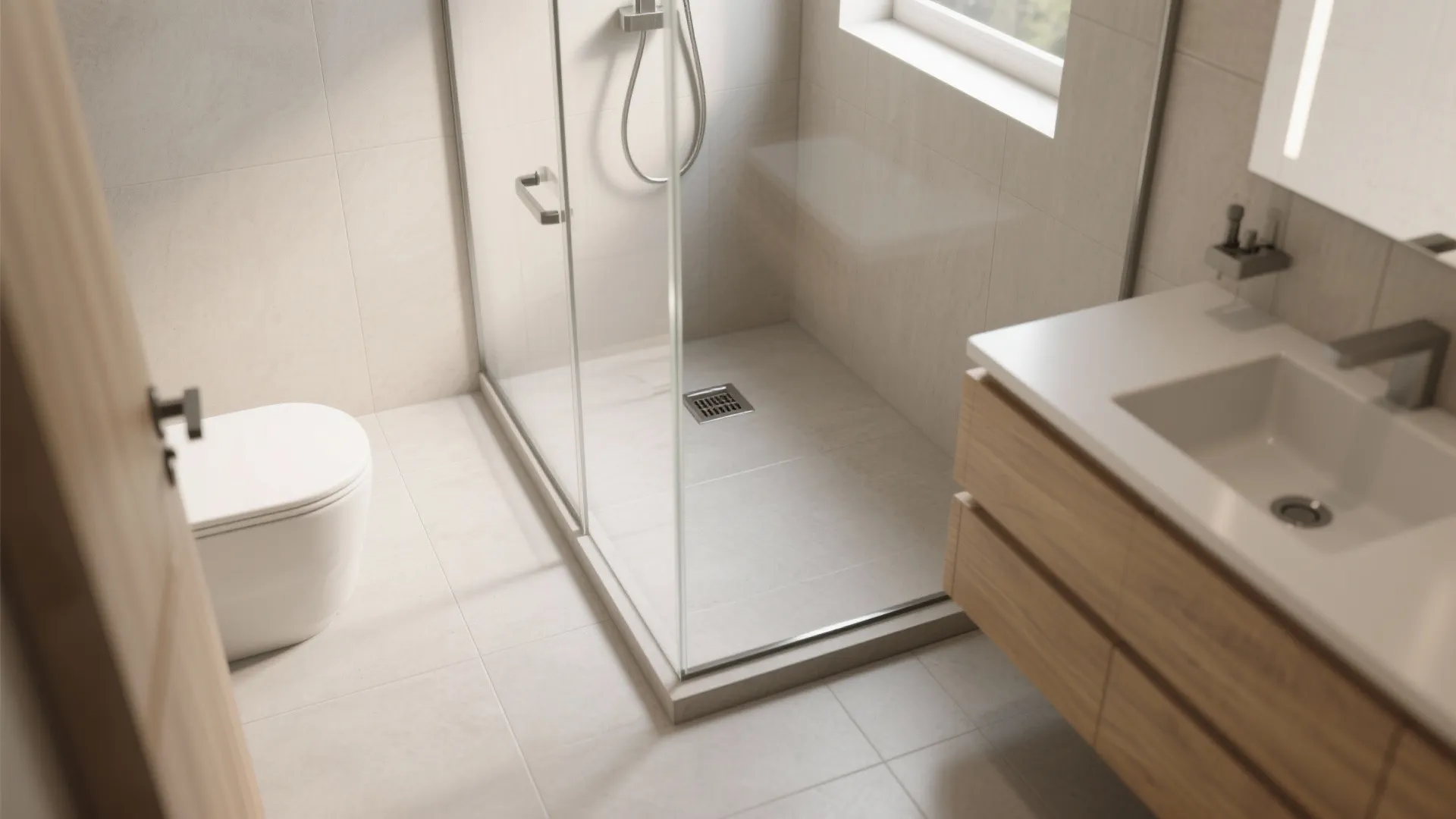

Curbless shower pan that visually extends the floor

My Take — The first time I demoed a curb in a 34-inch wide shower, it instantly felt bigger and calmer. A curbless shower threshold lets the bathroom floor run straight into the shower, so your eye reads one continuous plane. It’s the single most powerful small-bath upgrade I use.

Pros — Visually, a curbless shower pan for small bathrooms removes interruptions, making the space feel wider and more serene. It’s also better for aging in place and everyday convenience—no tripping over a raised lip. For performance, I stick to the industry guideline of 1/4 inch per foot slope toward the drain; TCNA and common plumbing codes align with that minimum, so water leaves promptly.

Cons — It’s not a “just swap the pan” project. You often need to recess the subfloor or use a tapered foam system, which adds cost and requires precise waterproofing. If the slope or drain placement is off by even a little, water can wander into the dry zone—ask me how I learned that lesson on a Monday morning with wet bath mats.

Tips / Case / Cost — In concrete slabs, I pre-plan recesses; in wood joist floors, I use a pre-sloped foam panel to keep things light. Look for membranes meeting ANSI A118.10 and run them beyond the wet zone. Budget: professionally installed curbless pans typically add $600–$1,500 over a standard curbed base, mostly for prep and waterproofing detail.

save pin

Linear drain along the wall for a simpler, cleaner slope

My Take — In my smallest guest bath remodels, a wall-to-wall linear drain behind the shower head lets me slope the floor in one plane. That means large-format tile and fewer grout joints, which makes cleaning easier and the room feel calmer—small bathrooms need that visual quiet.

Pros — A linear drain shower pan design allows a single-direction slope, ideal when you want big tiles and minimal lines. It also helps create that modern, spa-like look—especially if you line up the drain cover with full tile modules. If you’re pairing with a curbless entry, pushing the drain to the back wall minimizes splash-out into dry areas.

Cons — The drain itself can cost more than a standard round strainer, and rough-in precision matters a lot. If you’re off by even 1/4 inch, tile layout and the grate alignment will bug you every day. Hair build-up is real; choose a removable basket and get a good habit of clearing it on laundry day.

Tips / Case / Cost — Standard sizes like 24, 32, and 36 inches keep costs predictable. If you anticipate a low-profile pan or thin floor build-up, double-check the outlet height and trap location early. Material and install usually run $700–$1,800 depending on brand and length; fully custom grates add more.

save pin

Slip-resistant surfaces that feel good underfoot

My Take — I test shower floor samples barefoot in the office because tactile comfort matters. Too smooth and you brace yourself at every step; too rough and you’ll dread scrubbing day. The sweet spot is a micro-textured matte porcelain or a fine pebble-look mosaic with tight joints.

Pros — For safety, I target a wet DCOF of at least 0.42 as specified in ANSI A137.1; it’s a reliable baseline for interior wet areas. Porcelain mosaics with 1–2 inch pieces plus tight grout joints add grip without feeling like sandpaper. Choosing textured porcelain for safer footing lets you keep sleek aesthetics while meeting practical performance in daily use.

Cons — Heavily textured options trap soap scum faster, so you’ll spend more time with a soft brush. Pebble floors look serene in photos but can feel lumpy underfoot; if you love the look, preview a sample on a board and stand on it for a minute. Glossy tiles are beautiful—just not on shower floors.

Tips / Case / Cost — If grout maintenance is your worry, use a high-performance cement grout with sealer or a resin grout where appropriate. For cooler climates, add a low-voltage radiant mat outside the shower to help surfaces dry faster and feel warmer. Expect $8–$25/sq ft for quality porcelain mosaics and $12–$30/sq ft installed (materials vary by market).

save pin

Pre-fab shower base vs mortar bed: picking the right core

My Take — When I’m flipping a rental or need a fast, predictable outcome, I lean on a pre-formed base with an integral flange and pre-set slope. For odd-shaped alcoves or when I want a fully tiled floor-to-ceiling look, a traditional mortar bed with a surface membrane gives me the freedom to hit exact dimensions.

Pros — A preformed shower base vs mortar shower pan decision comes down to speed, risk, and customization. Pre-fab bases shine for speed, consistent slope, and easier waterproofing at the wall transition. Mortar beds are unbeatable for custom sizes, niches, benches, or diagonally set tiles, and they’re great when you want a perfectly centered drain or a unique footprint.

Cons — Pre-fab limits tile choice on the floor, which can make the rest of the bath harder to coordinate visually. Mortar beds rely on installer skill; an uneven or poorly compacted bed can telegraph ridges, and a misjudged pre-slope creates pooling. Also, mortar needs cure time—don’t push the schedule.

Tips / Case / Cost — Typical pre-fab pans range $300–$1,200 before install; a full mortar bed with membrane might land $1,000–$2,500 depending on complexity. Use a surface-applied membrane so water never saturates the bed, and maintain that 1/4 inch per foot slope to the drain. If you’re new to tiled pans, a bonded foam tray with factory slope is a great middle-ground.

save pin

Wall-hung toilet pan and micro wet-room integration

My Take — In a 5x7 bath, moving to a wall-hung toilet pan and running one continuous waterproofing layer across the floor turned the whole room into a tiny wet room. The floor felt bigger, cleaning was easier, and there were fewer edges to visually clutter the space. A wall-hung toilet frees floor space while the shower pan blends into the overall floor plane.

Pros — A wall-hung toilet pan for small bathrooms lets the floor continue underneath, so your eye sees more open area. Pairing this with a curbless shower and a linear drain keeps everything on one visual plane. It’s practical, too—mopping is faster, and mounting heights can be tuned for comfort.

Cons — There’s more behind-the-wall work: carriers, in-wall tanks, and future access considerations. The rough-in can add to budget, and you’ll want a competent plumber to coordinate venting and load requirements. If you’re in a condo with a concrete slab, plan for penetrations and acoustic considerations early.

Tips / Case / Cost — Typical carriers support significant loads (often 800–880 lbs per manufacturer specs), but follow the installation manual closely. For a wet-room approach, extend the membrane at least a few inches up the walls, flash neatly at the doorway, and consider a subtle water bar at the door if you’re splash-prone. Wall-hung conversions commonly add $1,200–$2,500 in parts and labor over a floor-mounted toilet.

[Section: 证据与规范参考]

Two quick standards I lean on in design reviews: 1) Minimum shower floor slope of 1/4 inch per foot toward the drain is a widely accepted industry requirement aligned with the TCNA Handbook and common plumbing codes (IPC/UPC). 2) For slip resistance, ANSI A137.1 calls for a wet DCOF of ≥ 0.42 in interior wet areas. For accessibility targets, the 2010 ADA Standards for Accessible Design cap shower thresholds at 1/2 inch for transfer and roll-in types; in homes, I aim for zero with proper water management.

[Section: 总结]

Small bathrooms aren’t a limitation—they’re an invitation to smarter choices. With thoughtful bathroom pan design, you can gain visual width, safer footing, and cleaner lines without inflating the footprint. Codes and standards offer guardrails; good detailing does the rest.

If you’re weighing options, start with slope and waterproofing, then pick the surface finish that fits your maintenance style. Which of these five ideas are you most excited to try in your own space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the ideal slope for a bathroom pan?

The widely accepted minimum is 1/4 inch per foot toward the drain. It moves water efficiently without feeling steep and is compatible with most tile sizes when planned well.

2) Are curbless showers suitable for small bathrooms?

Yes—curbless shower entries make a tiny room feel bigger by removing visual breaks. With proper waterproofing, a curbless bathroom pan design can be both safe and low-maintenance.

3) What tile is best for a shower floor?

Porcelain mosaics (1–2 inch) with a wet DCOF of ≥ 0.42 balance grip and comfort. Micro-textured matte tiles are easier to clean than deep textures or pebbles, which can trap soap scum.

4) Linear drain or center drain—which should I choose?

Linear drains favor one-way slope and large-format tile, creating a clean, modern look. Center drains are economical and flexible, but require multi-plane slopes that can chop up large tiles.

5) Do building standards address slip resistance?

Yes. ANSI A137.1 sets a wet DCOF threshold of ≥ 0.42 for interior wet areas; it’s a practical benchmark when choosing shower floor tile. Check manufacturer test data on the exact product you’re considering.

6) How much does a custom mortar-bed shower pan cost?

In most markets, $1,000–$2,500 installed, depending on complexity, tile choice, and membrane system. Pre-formed bases are faster and often cheaper, but less flexible for unique layouts.

7) What about waterproofing—liner below or membrane on top?

Surface-applied membranes keep water out of the mortar bed and speed drying, which helps cleanliness and longevity. Traditional liners can work, but they rely on careful pre-slope and weep hole protection.

8) Are there accessibility guidelines I should know?

For reference points, the 2010 ADA Standards limit shower thresholds to 1/2 inch for accessible types and emphasize clear floor space and grab bar placement. Even in non-ADA homes, borrowing these dimensions improves everyday safety.
