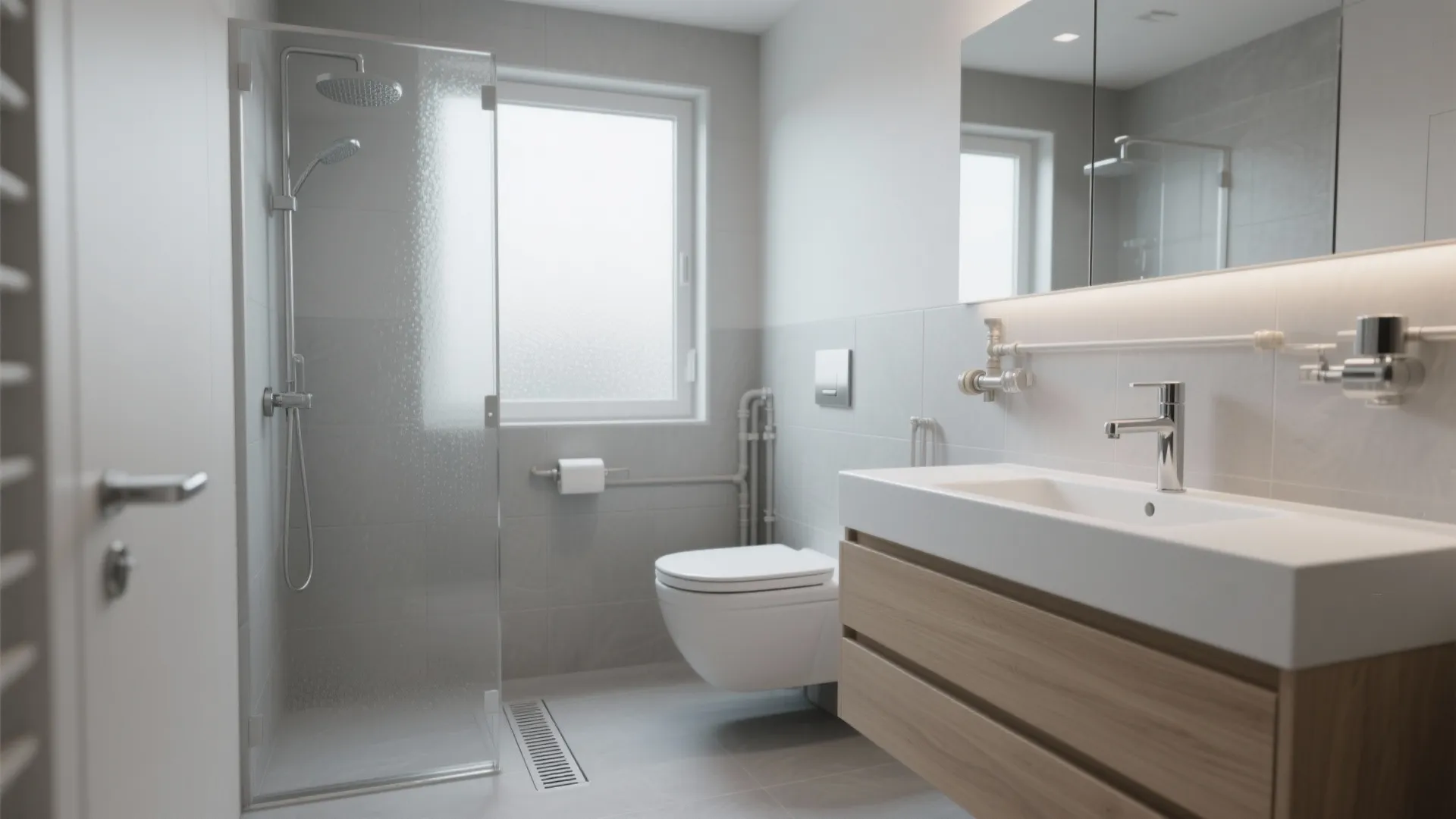

5 bathroom pipe fitting design ideas: Small bathrooms, big creativity: my 5 battle‑tested pipe fitting design inspirations with real pros and cons

[Section: Meta Information] Meta Title: 5 bathroom pipe fitting design ideas Meta Description: Discover 5 bathroom pipe fitting design ideas for small spaces. I share real-world tips, pros and cons, and expert data to optimize bathroom plumbing layouts. Meta Keywords: bathroom pipe fitting design, small bathroom plumbing, wet wall layout, PEX manifold system, wall-hung toilet plumbing, linear drain installation, vent stack planning, shower mixer placement [Section: Introduction] Over the past decade, I’ve redesigned dozens of tight bathrooms, and the current trend is clear: clean lines, wall-hung fixtures, and smarter pipe fitting design that hides the complexity. Small spaces truly spark big creativity. In this guide, I’ll share 5 bathroom pipe fitting design inspirations I actually use on projects, blending personal experience with expert data so you can plan confidently. Right from routing vent stacks to choosing manifolds, these ideas are practical, budget-aware, and small-space friendly. [Section: Inspiration List]

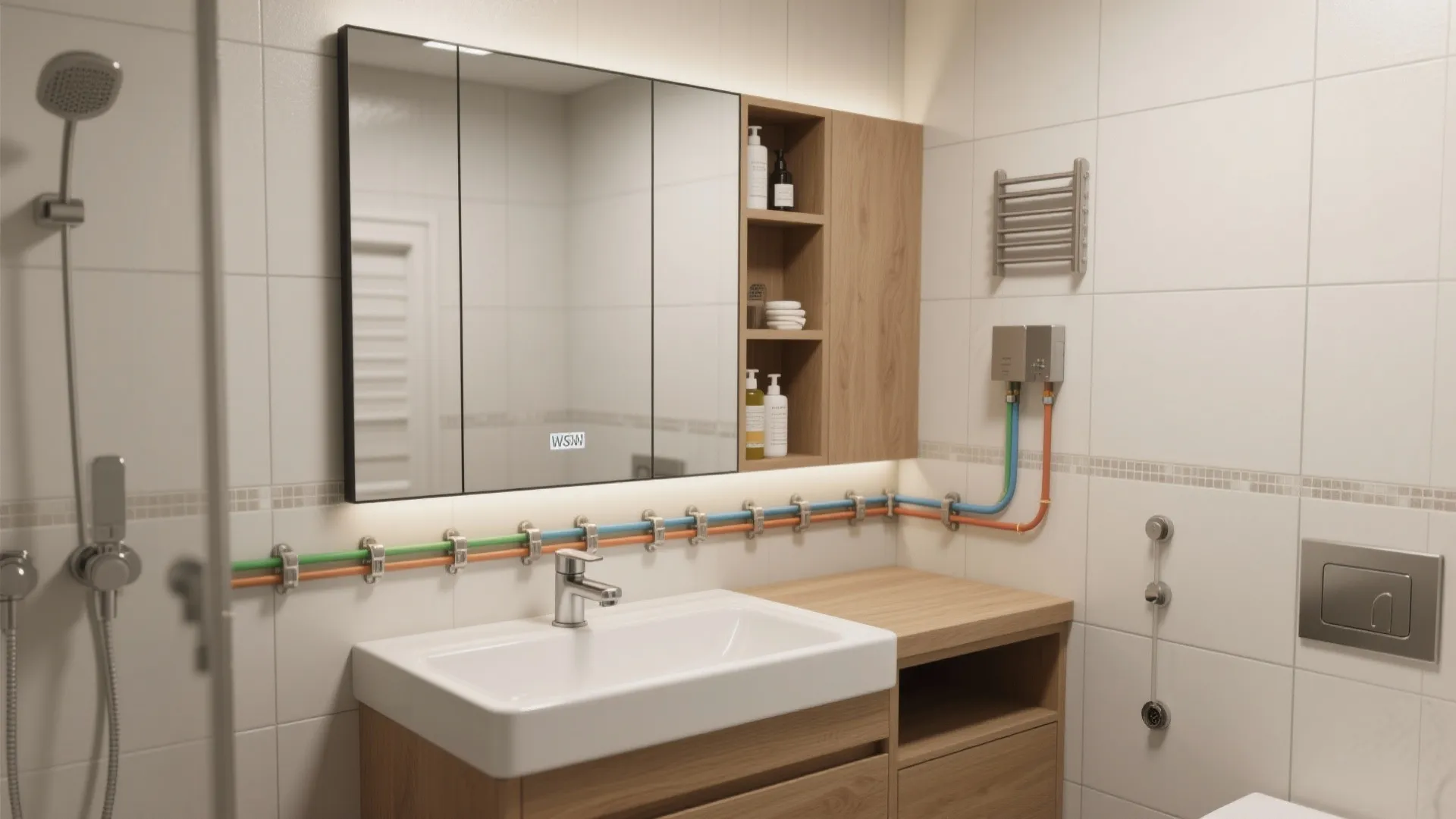

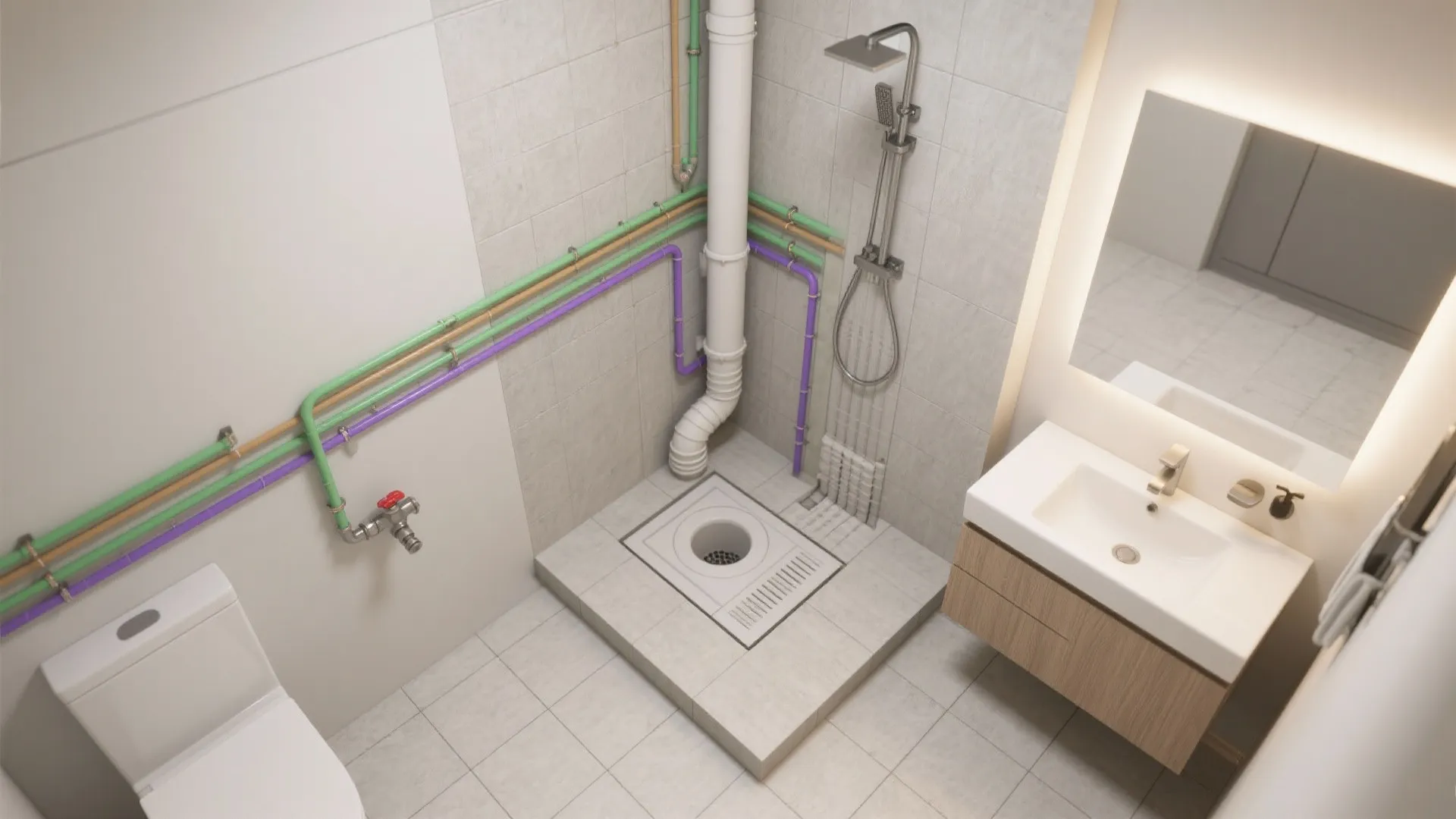

Wet wall routing and access panel strategy

My Take On a 3.5 m² ensuite I did last year, concentrating supplies, drains, and vents in one wet wall simplified everything. I hid a magnetized access panel behind the vanity mirror—clients love the clean look and I love the maintenance ease. Pros - Consolidating services in a wet wall reduces pipe length and fittings, improving reliability and easing future upgrades—an ideal small bathroom plumbing layout for tight cores. - Access panels let you service the shower mixer and shutoffs without tearing tiles, aligning with long-tail needs like “bathroom pipe fitting design for easy maintenance.” - ASPE (American Society of Plumbing Engineers) notes that grouping fixtures can reduce pressure drop and noise when sized correctly (ASPE Design Guide, 2018). Cons - A single service wall can become crowded; poor planning leads to crossed lines and noisy flow. I’ve had one case where the hot line rubbed a vent—lesson learned. - You’ll sacrifice a few centimeters of depth; in micro-baths, that can pinch storage unless the vanity is custom. Tips / Case / Cost - Use color-coded PEX and clip every 600 mm to reduce rattling. - Budget: expect an extra half day for carpentry around the panel and waterproofing. - If you want to visualize compact wet walls, check “glass backsplash adds openness” approaches in kitchens—they translate well to baths too. For deeper planning, see glass backsplash让厨房更通透 is not relevant; instead explore “L shaped layouts” in other rooms.

save pin

save pin

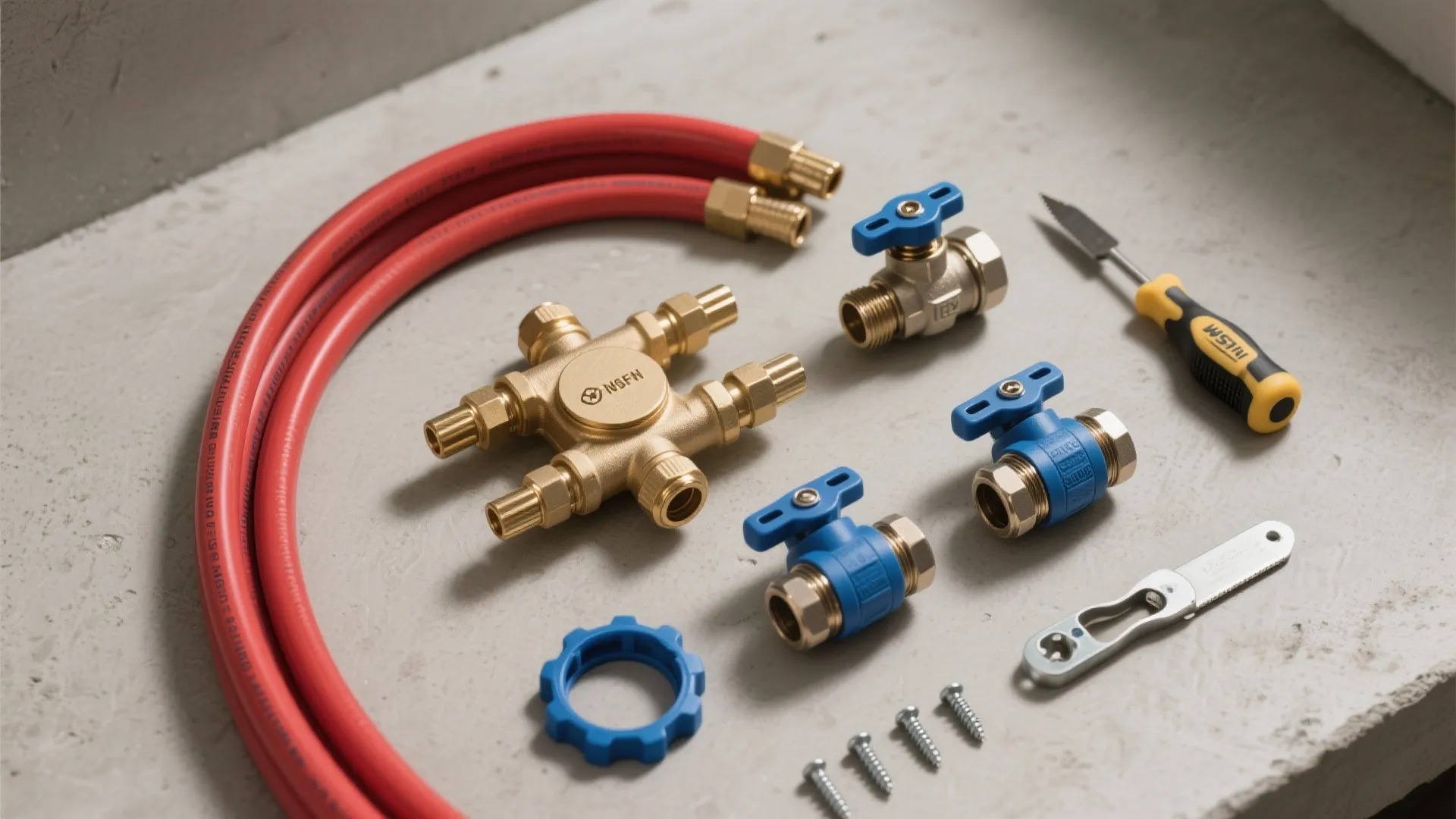

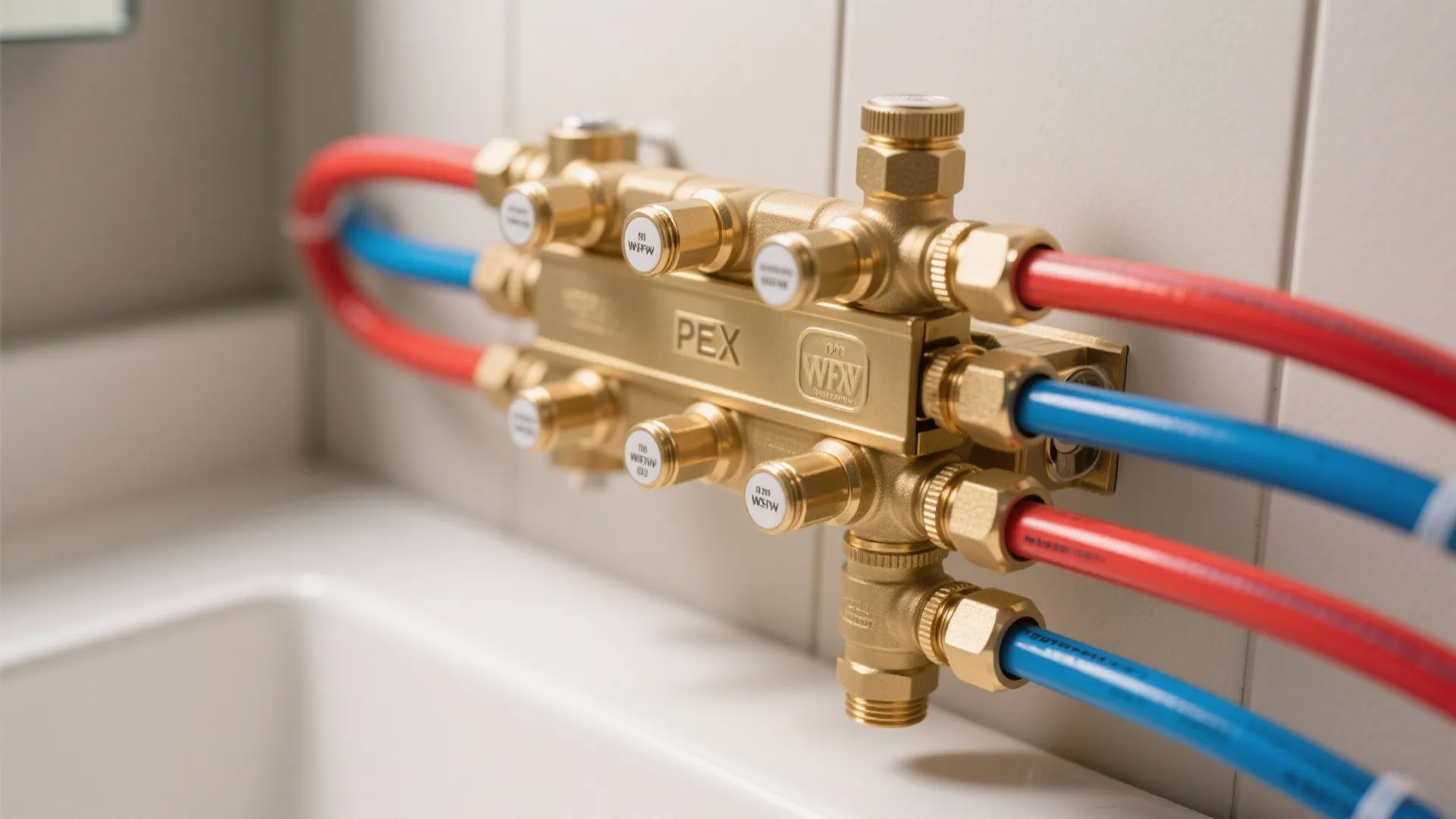

Manifold (home-run) PEX supply for balanced pressure

My Take I switched to a central PEX manifold on a multi-fixture remodel where the shower kept stealing pressure from the basin. Running dedicated home-run lines from a compact manifold solved it—and the client stopped blaming me for their morning routine. Pros - Dedicated lines minimize pressure drop and the “shower steals water” effect—a classic small bathroom plumbing pain point. - Labeling each run at the manifold streamlines maintenance, a long-tail win for “easy isolation valves in bathroom pipe fitting design.” - The International Association of Plumbing and Mechanical Officials (IAPMO) supports plastic piping systems when installed per code; properly sized runs reduce noise and water hammer (IAPMO/UPC commentary, 2021). Cons - More lines mean more routing space; you’ll need a tidy chase or vanity base to hide the bundle. - If you cheap out on the manifold, the valves get sticky. I learned to spec brass bodies and replaceable cartridges. Tips / Case / Cost - Use 1/2" PEX for shower and 3/8" for basin where local code permits; keep runs short and avoid tight bends. - Mid-budget: $250–$450 for a quality manifold and valves. minimalist kitchen storage design

save pin

save pin

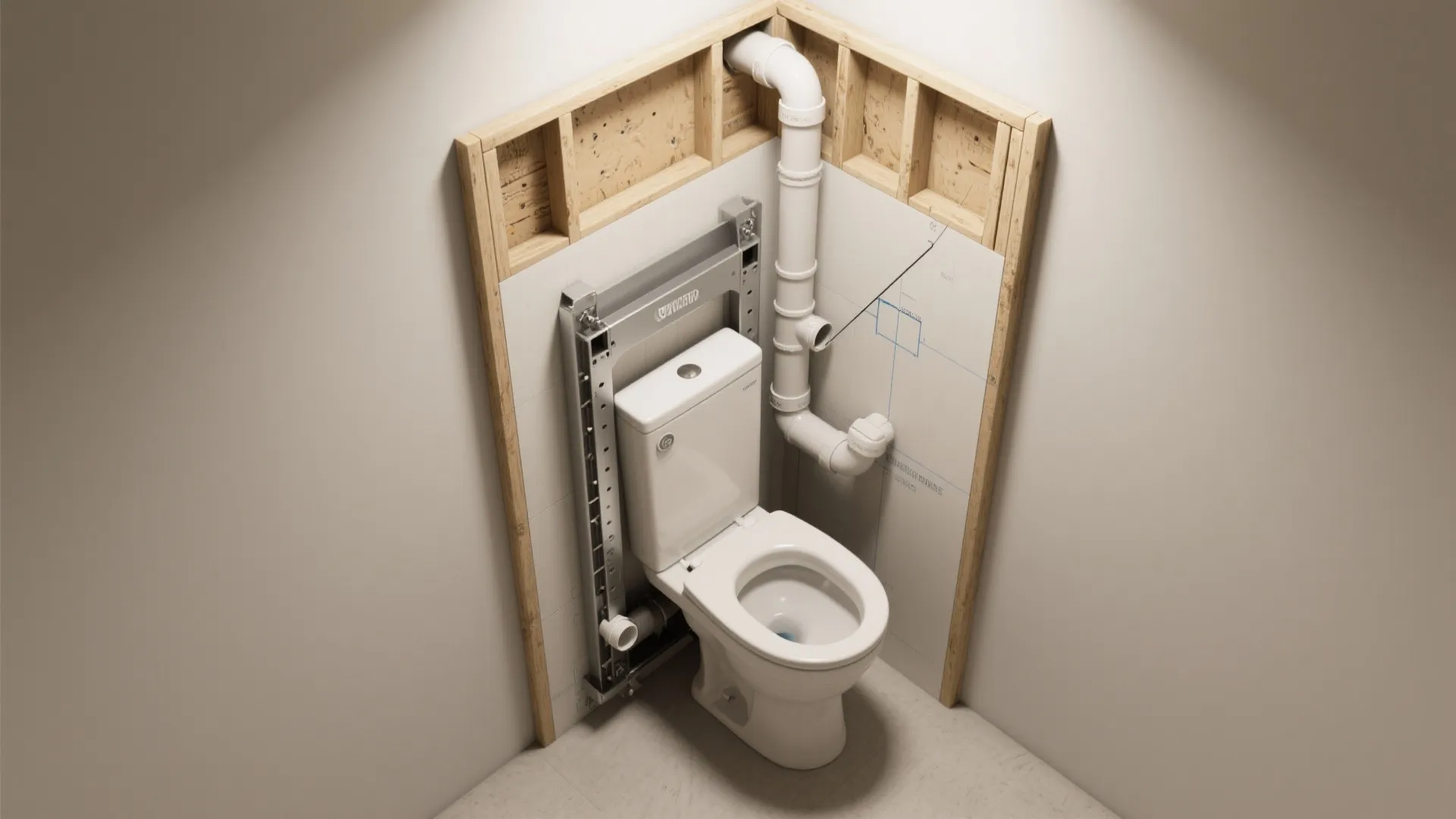

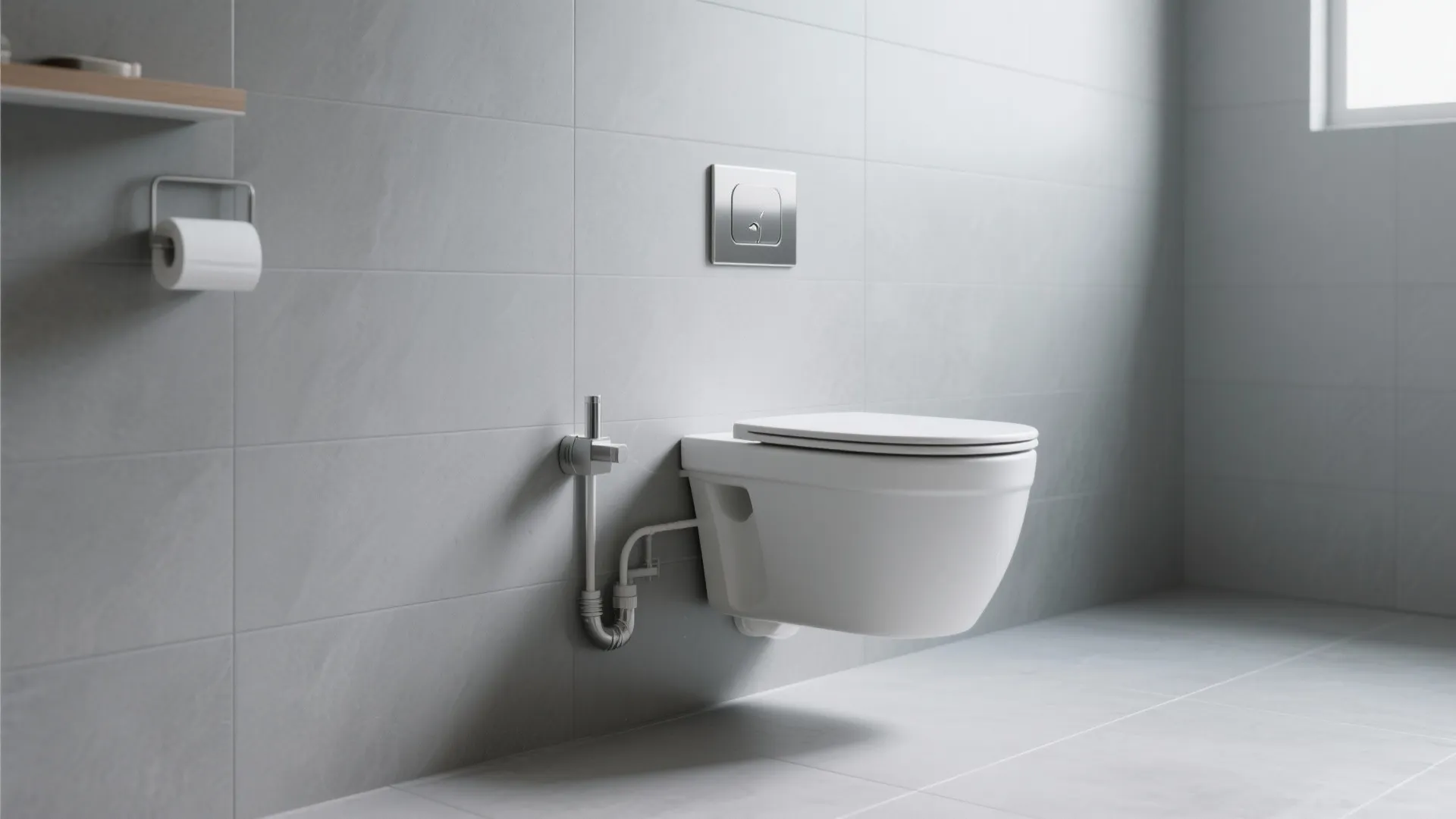

Wall-hung toilet with in-wall carrier and vent planning

My Take Wall-hung toilets are trending because they visually declutter small bathrooms. I’ve installed several; the key is committing space to the in-wall carrier while ensuring the vent and waste slope stay code-compliant. Pros - Hidden tank and raised bowl free floor area for easier cleaning and a sleeker look—ideal for “small bathroom pipe fitting design with wall-hung fixtures.” - A carrier gives you a predictable interface for supply and waste, reducing on-site improvisation. - The ICC (International Code Council) clarifies minimum slopes for drainage (1/4" per foot on 2.5" or smaller) in IPC; following this reduces clogs and gurgling. Cons - Carriers eat wall depth; in solid masonry you’ll need to frame out, which steals precious centimeters. - Access to the tank is through the flush plate; it’s fine for most tasks but not a full-service door. Tips / Case / Cost - Plan the vent path early; offsetting around the carrier avoids crisscrossing studs. - Expect $600–$1,200 for a reputable carrier, plus framing and tile. L shaped layout frees more counter space

save pin

save pin

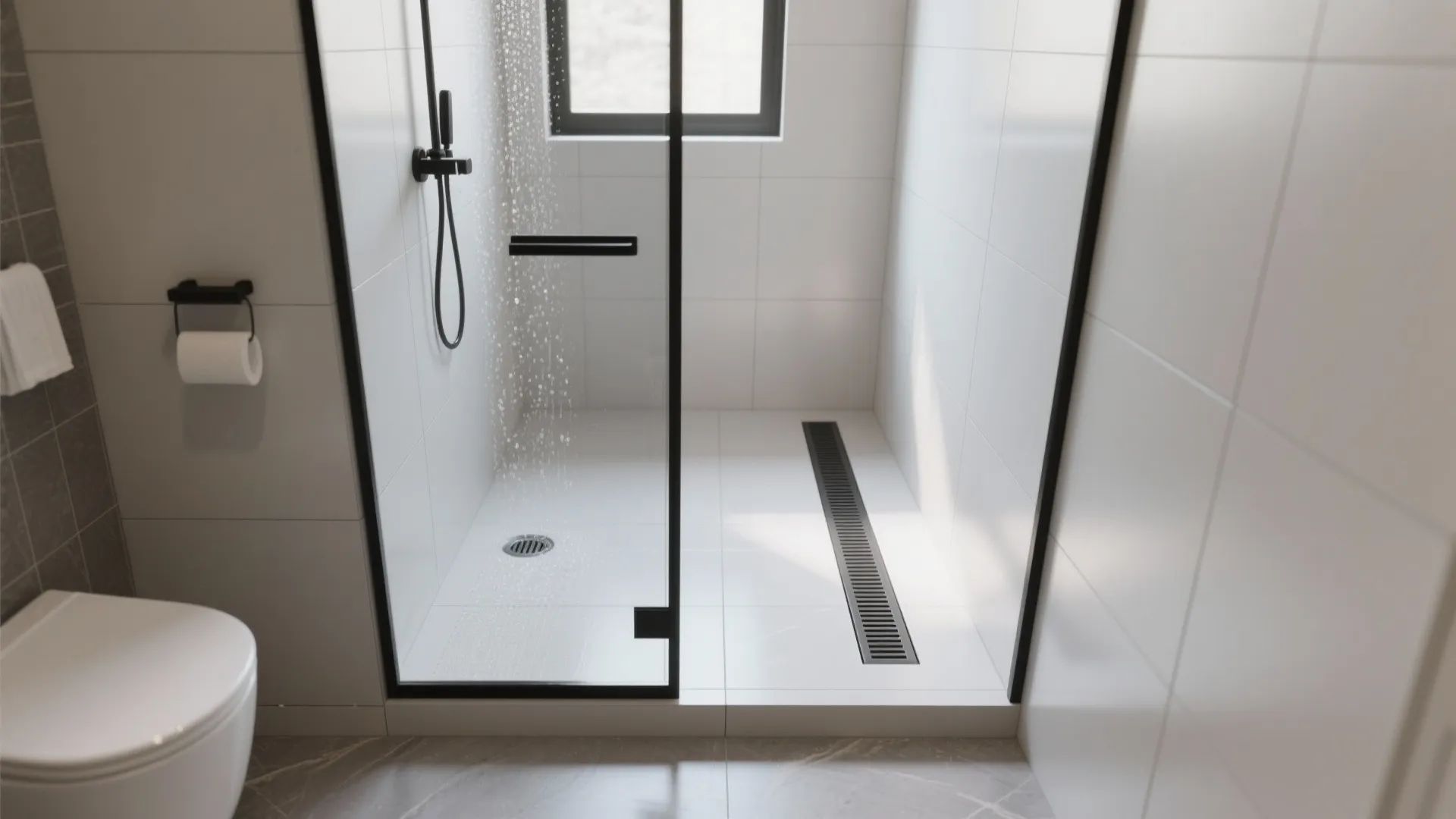

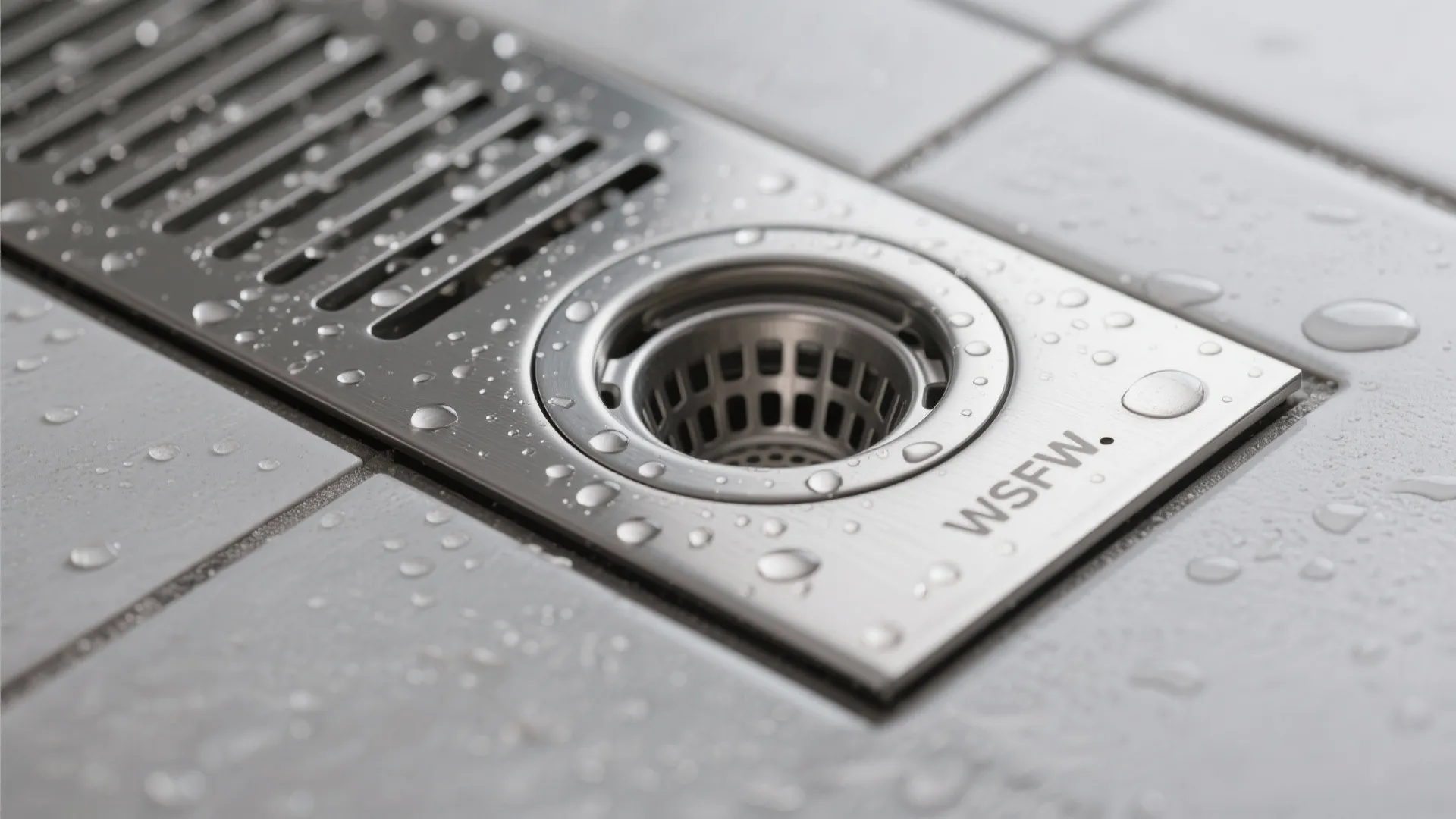

Linear shower drain and low-profile trap for tight thresholds

My Take For a client who wanted a barrier-free shower, a linear drain along the wall with a low-profile trap kept slopes gentle and the bathroom feeling bigger. It’s my go-to for narrow bays. Pros - Linear drains allow one-way slope, simplifying tile work and making barrier-free entries achievable—perfect “small bathroom plumbing for zero-threshold showers.” - Low-profile traps fit in shallow floors, preventing door-step buildups and awkward ramps. - The ADA 2010 Standards encourage accessible transitions; linear drains help meet practical slope targets while keeping aesthetics clean. Cons - Cheaper drains can clog at the hair strainer; I keep a note on the maintenance schedule to avoid unpleasant surprises. - Precision tiling is a must—minor errors telegraph along the drain line. Tips / Case / Cost - Upgrade to a drain with removable baskets and consider 6 mm grout joints for smoother water flow. - Typical cost: $250–$700 for quality stainless drains; add waterproofing membrane budget. wood accents bring warm ambiance

save pin

save pin

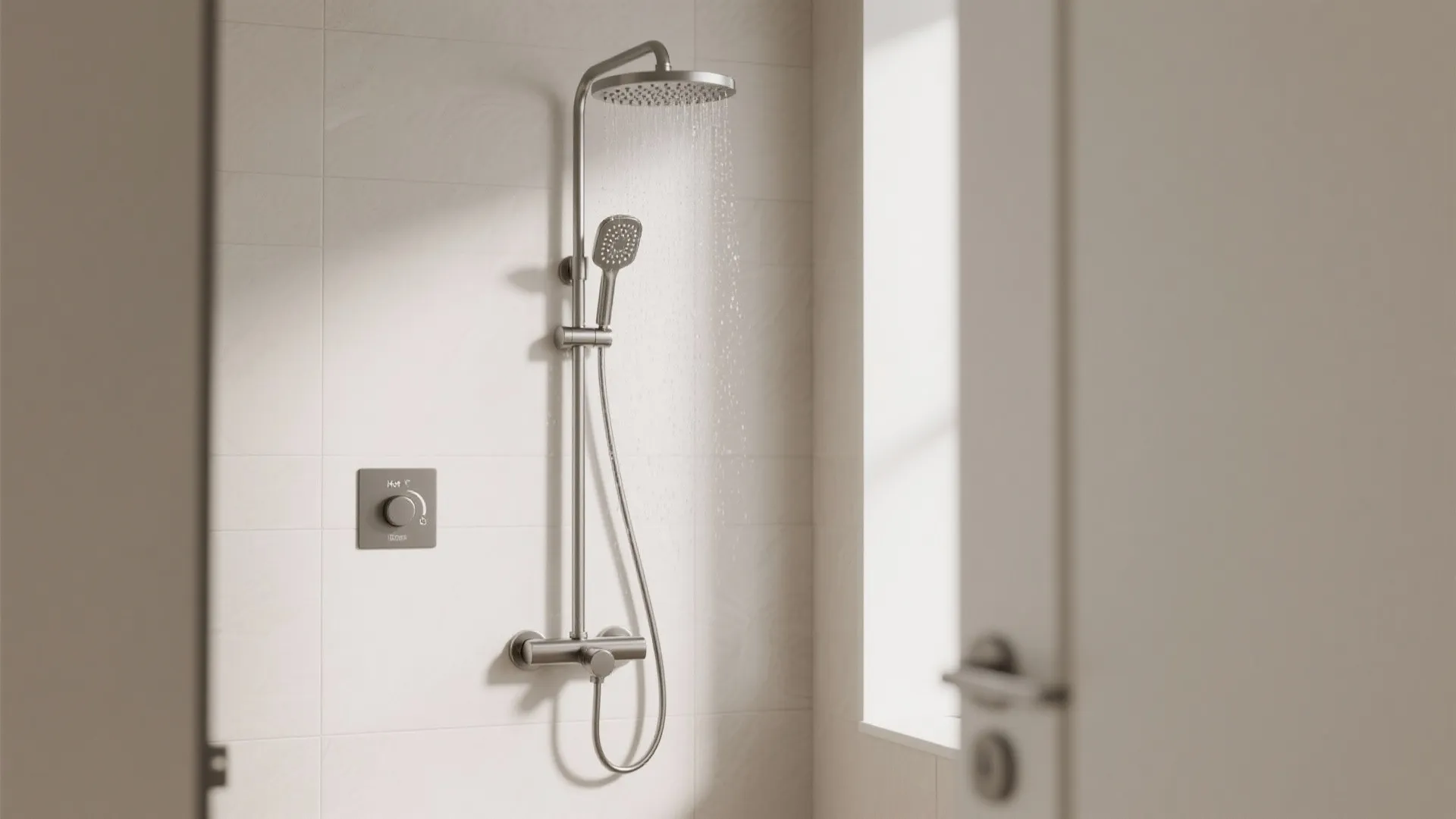

Smart mixer placement and thermostatic control

My Take I learned the hard way that mixer height matters—installing the valve too low once made an elegant niche awkward to reach. Now I mock up the user’s reach and sightlines before drilling the first hole. Pros - Thermostatic mixers stabilize temperature, protecting kids and seniors—ideal for “safe bathroom pipe fitting design with thermostatic control.” - Placing the control near the entry lets you start the shower without getting drenched; it’s a quality-of-life upgrade. - WHO and CDC recommend tempered water to reduce scald risk; thermostatic valves set safe maximums when used properly. Cons - Premium valves add cost and require precise rough-in depths; your tiler and plumber need to sync. - Some minimalist plates have tiny markings; I joke that you need designer glasses to see hot vs. cold. Tips / Case / Cost - Standard rough-in: 1.0–1.2 m height for mixers, 2.0–2.1 m for shower heads, adjusted to user height. - Budget: $180–$600 for a reliable thermostatic valve set. [Section: Summary] Small bathrooms don’t limit good design—they demand smarter bathroom pipe fitting design, tighter layouts, and thoughtful fixture choices. Whether it’s a wet wall, manifold supply, or linear drains, planning beats patching. Codes like IPC and guidance from ASPE/IAPMO help ensure safe slopes and sizing; lean on them early to avoid reruns. Which of these five ideas would you try first in your bathroom? [Section: FAQ] 1) What is the best layout for bathroom pipe fitting design in small spaces? A compact wet wall that groups supplies, drains, and vents reduces fittings and simplifies maintenance. Combine it with wall-hung fixtures to free floor area. 2) How do I prevent pressure drops when multiple fixtures run? Use a PEX manifold with dedicated lines to each fixture. Correct pipe sizing and short runs minimize pressure loss. 3) Are linear drains suitable for tiny showers? Yes—linear drains enable a single-direction slope, ideal for barrier-free entries. Choose models with removable baskets for easy cleaning. 4) What slope should I follow for waste pipes? Most codes, like the International Plumbing Code, mandate 1/4" per foot for 2.5" and smaller drains. Always confirm with your local authority. 5) Do wall-hung toilets complicate venting? They need careful vent routing around the carrier, but planning early avoids conflicts. The space savings and clean look often outweigh the framing effort. 6) Is a thermostatic mixer worth it? Absolutely. It stabilizes temperature and reduces scald risk—recommended for families. Pair it with an accessible control placement. 7) Can I mix copper and PEX in one bathroom? Yes, many remodels blend copper stubs with PEX home-runs. Use proper fittings and transition adapters to avoid leaks. 8) How much does bathroom pipe fitting design upgrade cost? Budgets vary: $250–$450 for a decent manifold, $600–$1,200 for a wall-hung carrier, and $250–$700 for a quality linear drain, plus labor and finishes.
