5 bathroom tiles leakage solutions that actually work: A senior interior designer’s real-world fixes for small-space bathrooms — with SEO-backed insights and human stories

As an interior designer who’s spent a decade rehabilitating tiny city bathrooms, I’ve seen how current design trends embrace smarter waterproofing and low-maintenance finishes. Small spaces really do spark big creativity — especially when bathroom tiles leakage threatens your peace of mind. In this guide, I’ll share 5 bathroom tiles leakage solutions drawn from my own projects and expert data, so you can tackle the problem confidently and keep your bathroom looking fresh.

On one memorable project, a micro-bath in a 40 m² apartment had hairline grout cracks and mysterious damp patches. The fix wasn’t just cosmetic — it required layered waterproofing and smarter details. Below are the five ideas that have consistently saved my clients time, money, and headaches.

For a visual of how layout impacts waterproofing details, I often reference cases like L-shaped layout provides more counter space to plan splash zones before tile work begins.

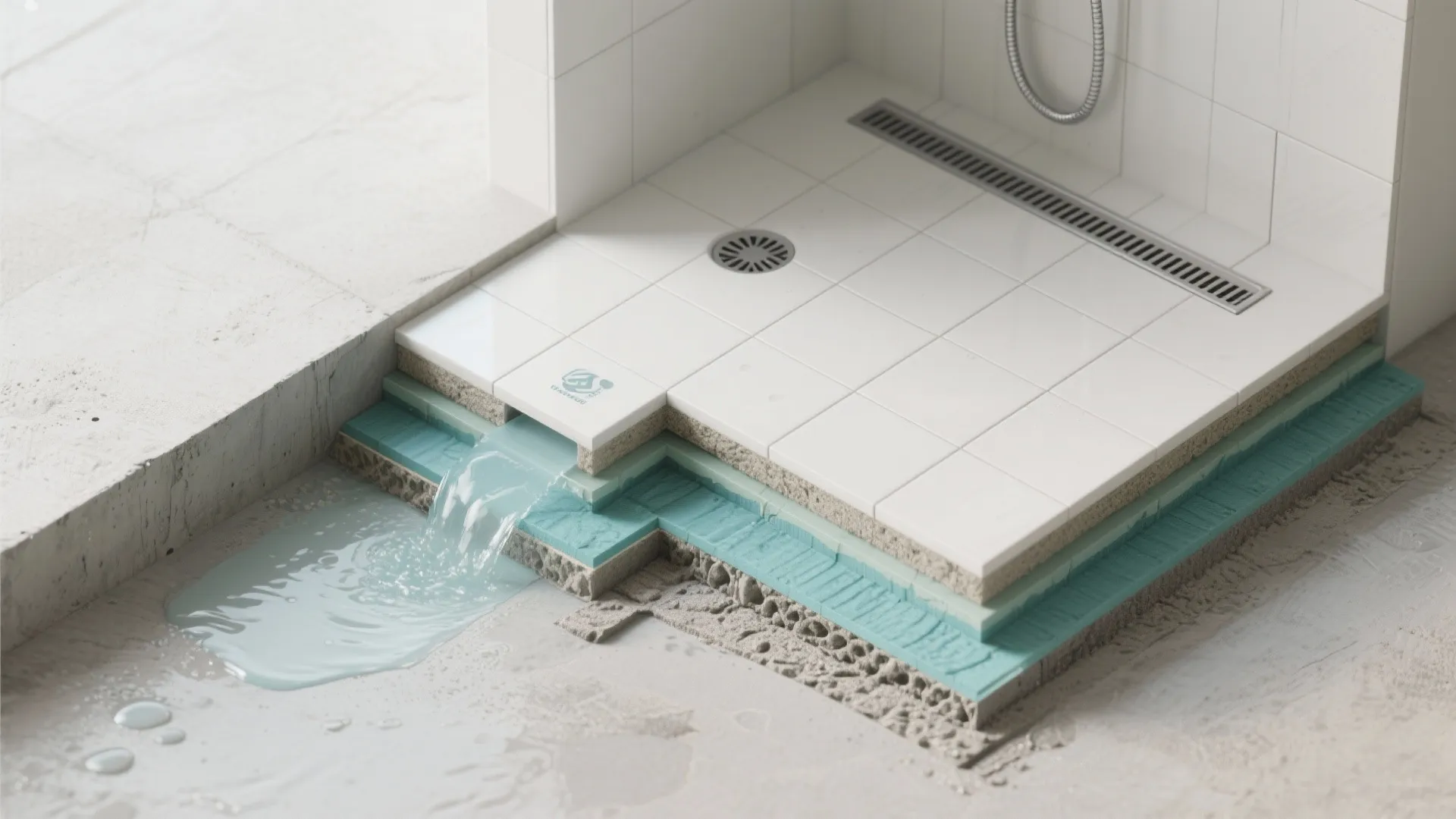

1) Systematic waterproofing under tiles

My Take

My first rule: treat waterproofing as a system, not a product. I once fixed a condo shower where the tiles looked premium, but the substrate was bare drywall — no membrane, no seal. The right layers prevented future leaks and saved the owner from another costly re-tile.

Pros

Using a liquid-applied waterproof membrane under tiles creates a continuous moisture barrier and reduces capillary seepage through grout lines. It’s a proven bathroom tiles leakage solution for wet zones like showers and niches. The ICC-ES and ANSI A118.10 standards recognize these membranes for load-bearing, bonded waterproofing — reliable benchmarks for contractors.

Cons

Membranes add a step and can feel “invisible,” so some homeowners skip them — which is a false economy. If applied too thin or without proper curing time, you’ll still get leaks or bubbles beneath tiles.

Tips / Cost

Budget an extra 10–20% for membrane materials and labor. Confirm coverage thickness with a wet-film gauge; most manufacturers specify ~1.0–1.5 mm total dry film.

save pin

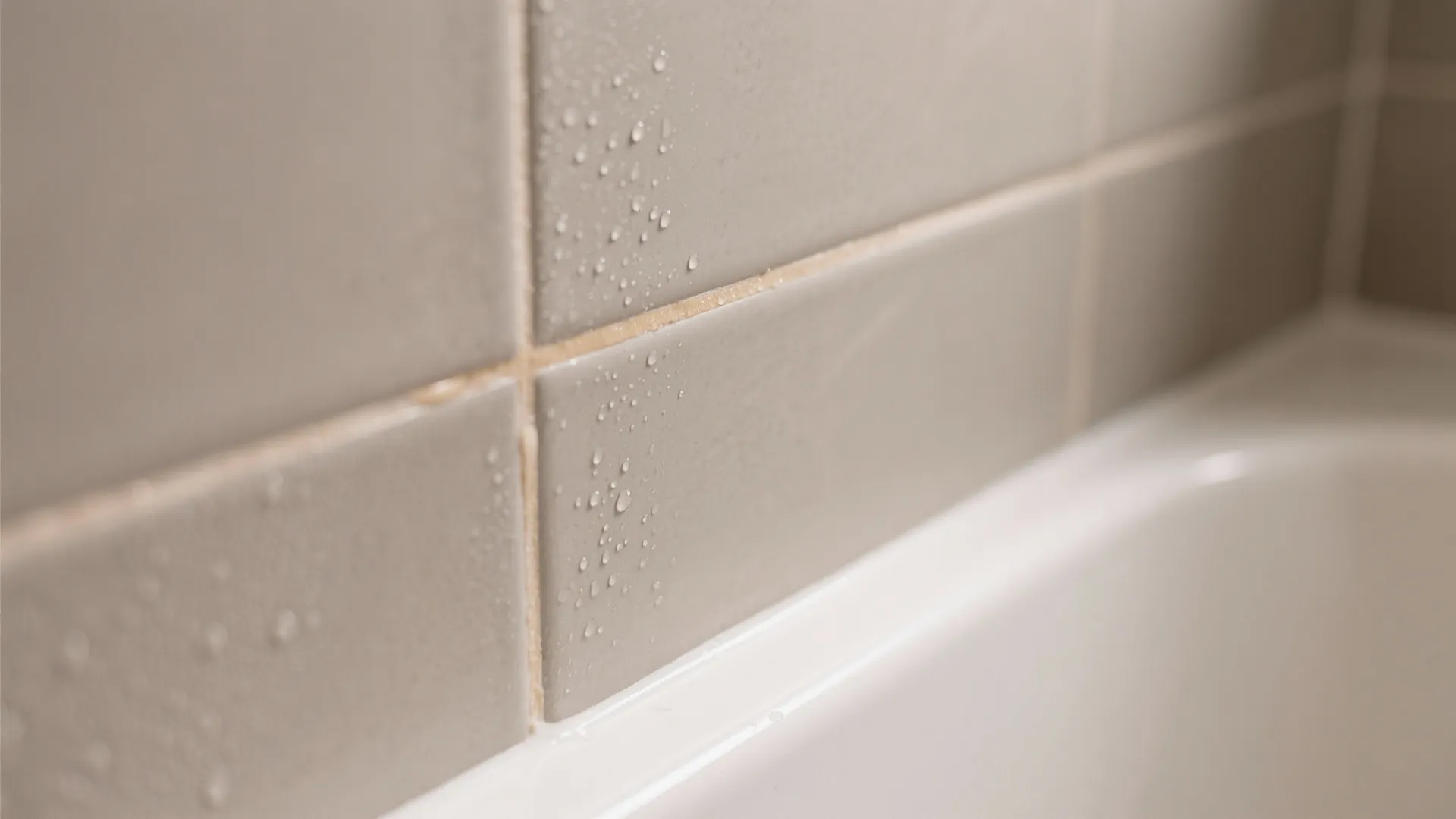

2) Epoxy grout and flexible sealants

My Take

On a rental unit, we swapped standard cement grout for epoxy in the shower surround, then added flexible silicone at all changes of plane. Two years later, zero staining and no micro-cracks at the tub-to-wall transition — my client told me their weekly scrub time dropped in half.

Pros

Epoxy grout is non-porous and resists water ingress, mold, and staining — ideal for bathroom tiles leakage problems. Pairing it with movement-tolerant silicone in corners prevents stress cracks that often become leak paths. The “epoxy grout for bathroom tiles” approach is especially effective in high-traffic, small-space showers.

Cons

Epoxy can be trickier to install; working time is shorter and cleanup is more demanding. If you dislike the slightly plastic sheen, opt for a sanded texture epoxy — it’s subtler.

Tips / Case

Use color-matched silicone at all perimeters. For maintenance, retool silicone every 3–5 years; it’s a small job that prevents big leaks.

save pin

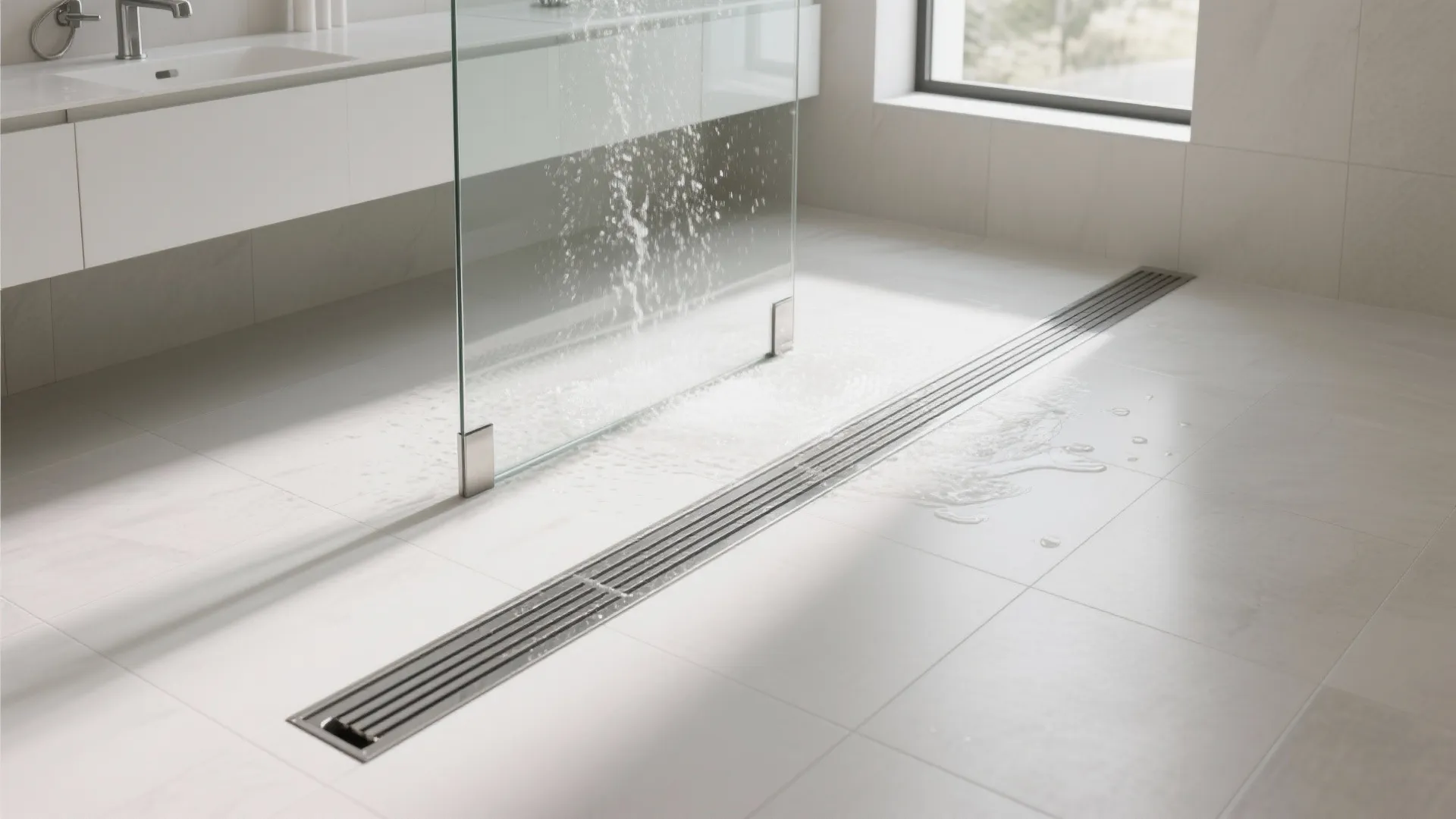

3) Drainage-first shower design

My Take

I’m a drainage nerd. In a loft conversion with a long linear drain, we tilted the floor at 1.5% slope toward the drain and kept the shower glass off the floor by 10 mm to avoid damming water. The client stopped seeing pooling and their below-neighbor stopped complaining about damp ceilings.

Pros

Thoughtful slope (typically 1–2%) and a properly sized linear drain increase evacuation speed, cutting the risk of water migrating through tile joints. This “bathroom drainage solution” is essential for curbless showers where overflow can sneak under tiles. Per the International Plumbing Code (IPC) and ASME A112.6.3, adequate drain capacity and trap seals are key to preventing backflow and seepage.

Cons

Retrofits can be hard if your slab height limits the drain body depth. Also, poor coordination between tile thickness and drain cover height can create lips that trap water.

Tips / Cost

Plan drain location during layout. Mid-range linear drains run $150–$400; spend on stainless steel and removable baskets for easy cleaning. Around the project midpoint, I often consult visuals like glass backsplash makes the kitchen more transparent to remind clients how smooth surfaces and proper slope control splashes — the same logic applies to wet zones.

save pin

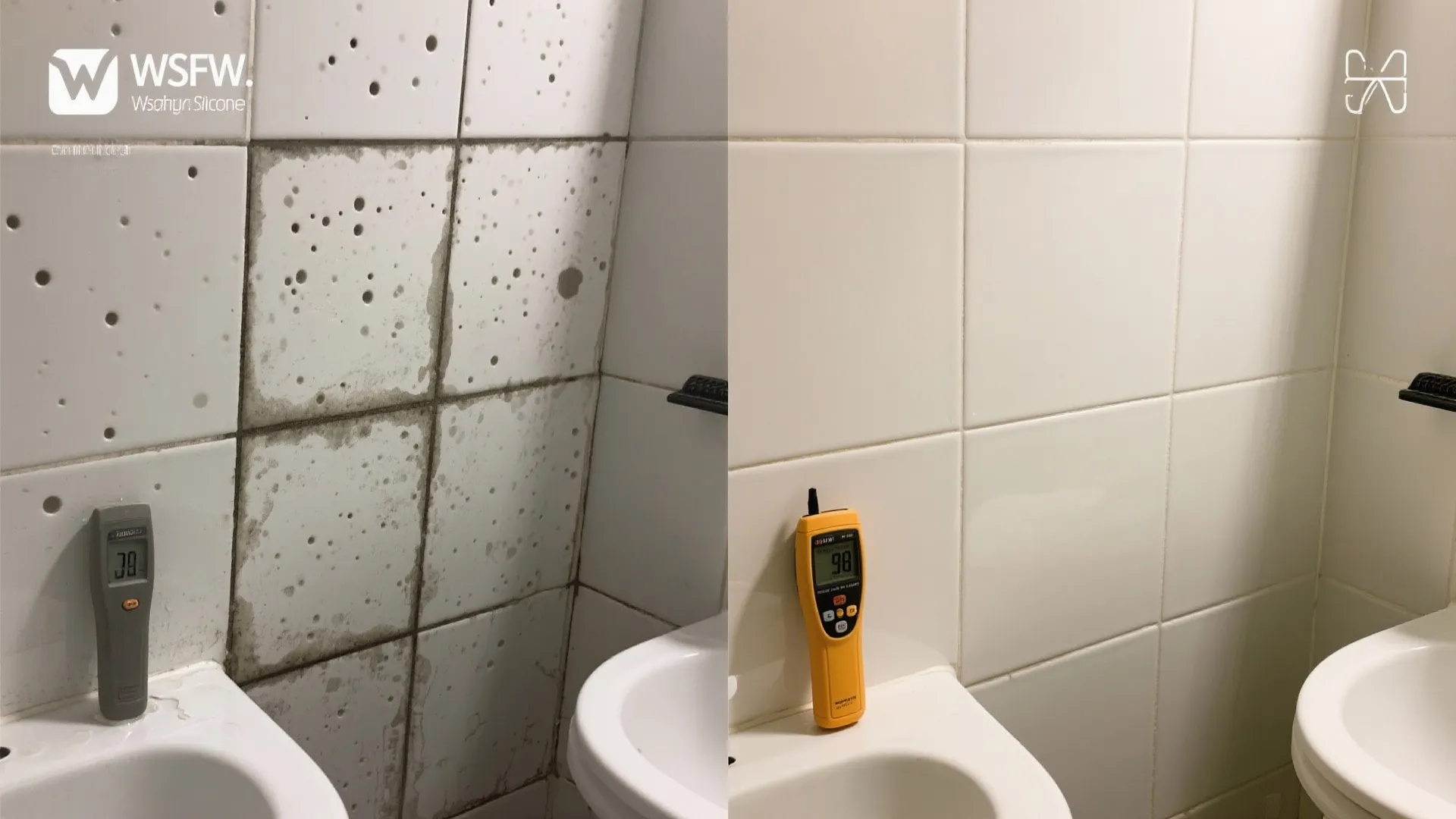

4) Regrouting and re-sealing the weak links

My Take

Sometimes, the smartest fix is not a full demo. In a small ensuite where tiles were sound but grout had pinholes, we did targeted regrouting, then applied a penetrating sealer. Moisture readings dropped within a week, and the musty smell vanished.

Pros

Regrouting isolates leak paths without replacing stable tiles, making it a cost-effective bathroom tiles leakage solution. Penetrating sealers reduce water absorption yet keep the grout breathable, balancing protection with vapor diffusion.

Cons

Sealers are not magic; they wear off and require reapplication every 12–24 months in high-use zones. If the substrate is compromised, regrouting is a Band-Aid — you’ll need deeper repairs.

Tips / Case

Test suspect areas with a moisture meter. Mark and remove only the deteriorated grout lines; it’s surgical and saves budget for a real waterproofing overhaul later.

save pin

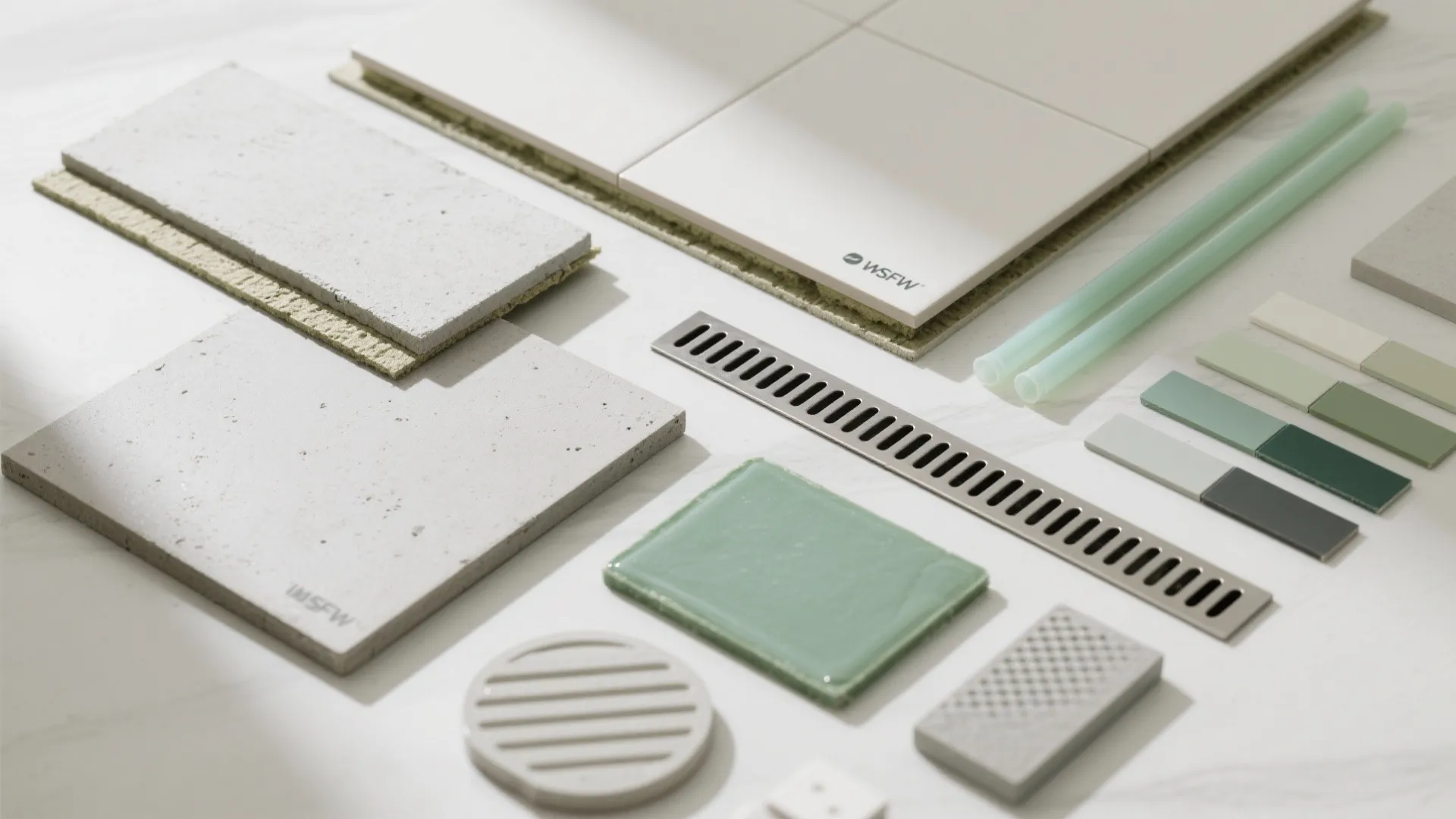

5) Smart material choices for wet walls and floors

My Take

Material selection is where design meets durability. In one humid studio bath, we used large-format porcelain tiles with minimal joints and a cementitious backer board behind them — the client told me their daily squeegee ritual takes 60 seconds now.

Pros

Porcelain with low water absorption (≤0.5%) resists seepage, and larger tiles mean fewer grout lines to fail. Using cement board or foam-backed waterproof panels behind tile creates a stable, moisture-resistant substrate — a long-term bathroom tiles leakage solution aligned with ANSI A118 and ASTM C627 guidance. The Tile Council of North America (TCNA) Handbook also details assemblies for showers that minimize moisture migration.

Cons

Large tiles demand a flatter substrate; any lippage can channel water along edges. And if you love handmade tiles with irregular surfaces, you’ll need extra care with grout and sealing to avoid micro-pools.

Tips / Cost

Balance aesthetics with performance. Budget for quality backer boards and consider anti-fracture membranes. Near project wrap-up, I often reference layouts like wood tones creating a warm atmosphere to harmonize material choice with waterproofing — warmth and water control can coexist.

save pin

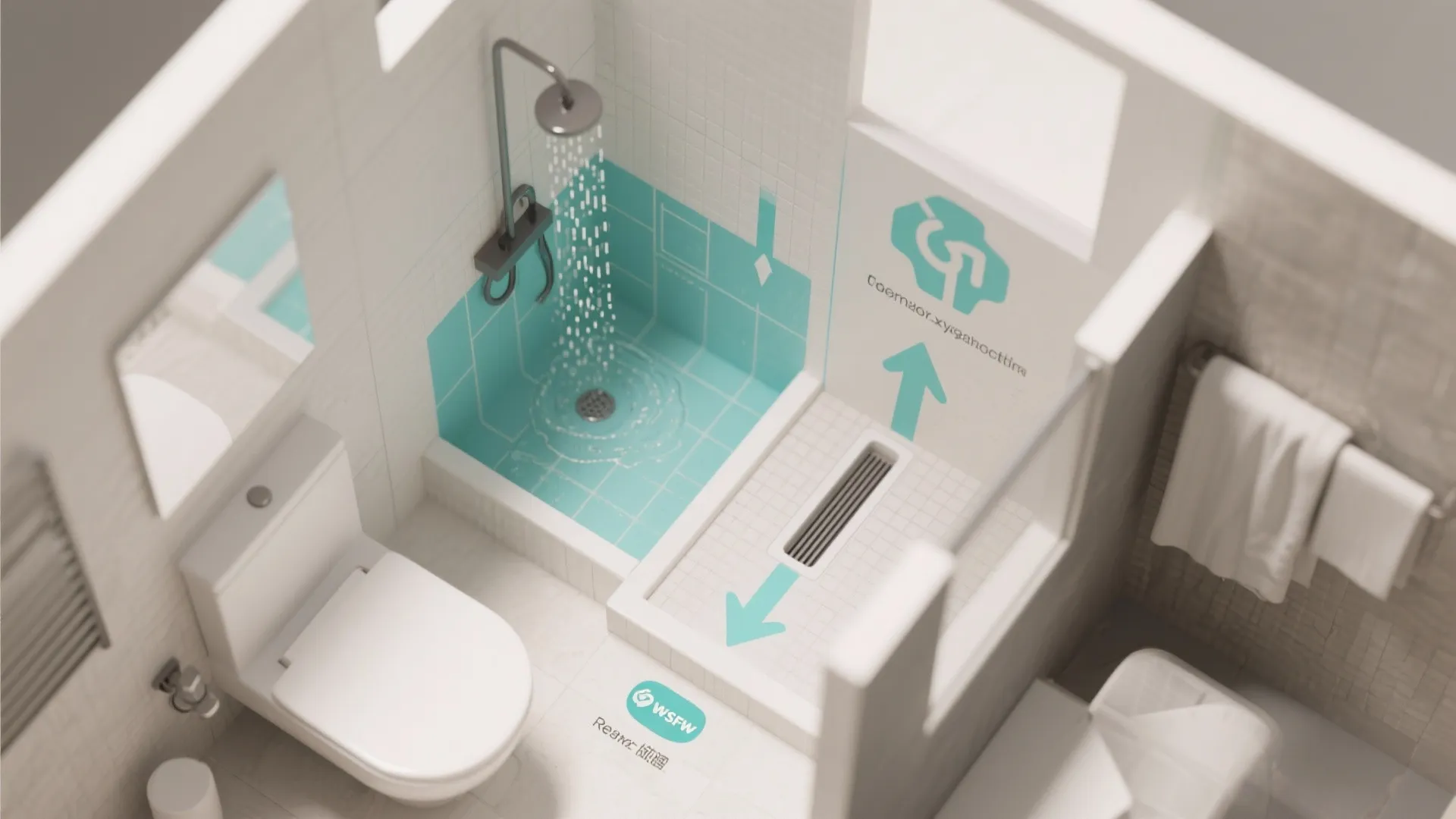

Summary

Small bathrooms aren’t a limitation — they’re a nudge toward smarter design. The right bathroom tiles leakage solution is layered: membranes, epoxy grout, proper drainage, targeted regrouting, and materials that resist absorption. TCNA guidance and plumbing codes reinforce that good waterproofing is planned, not patched. Which of these five ideas are you most excited to try in your bathroom?

save pin

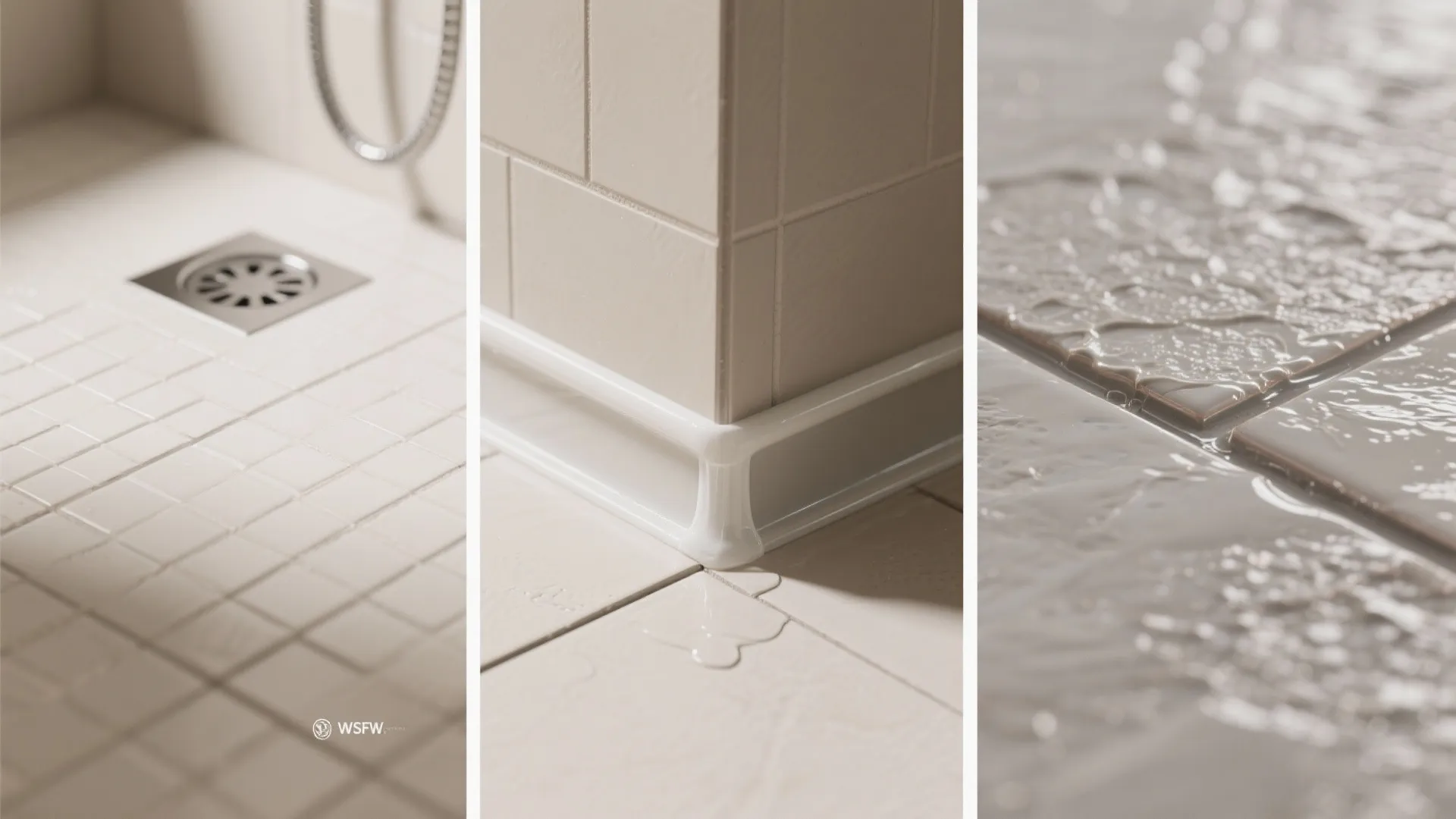

FAQ

1) What causes bathroom tiles leakage?

Poor waterproofing layers, cracked grout, and inadequate drain slopes are common culprits. Even tiny gaps at changes of plane can let water travel behind tiles.

2) Is epoxy grout worth it for small bathrooms?

Yes. Epoxy grout’s low porosity resists staining and seepage, making it ideal for compact showers. It pairs well with silicone at corners to handle movement.

3) Do I need a waterproof membrane under tiles?

In wet zones, absolutely. Liquid or sheet membranes that meet ANSI A118.10 provide a continuous barrier beneath tiles and are widely recommended by the Tile Council of North America (TCNA).

4) How often should I reseal grout?

Penetrating sealers typically last 12–24 months in high-use areas. Check for darkening after showers; if it lingers, it’s time to reseal.

5) Can regrouting fix all leaks?

No. Regrouting helps when tiles are sound and only joints fail. If the substrate or membrane is compromised, you’ll need deeper repairs.

6) What slope is best for shower floors?

Generally 1–2% toward the drain. Proper slope and a well-sized drain prevent pooling and reduce migration through grout lines.

7) What materials are best for wet areas?

Porcelain tiles with low water absorption, cement board or waterproof foam panels, and stainless linear drains. Fewer joints mean fewer leak paths.

8) Can layout affect leakage risk?

Yes. Thoughtful placement of the shower, drain, and splash zones reduces water exposure around joints. For planning inspiration, see minimalist kitchen storage design to understand how clean lines and smart layout control mess — the same idea applies to wet rooms.
