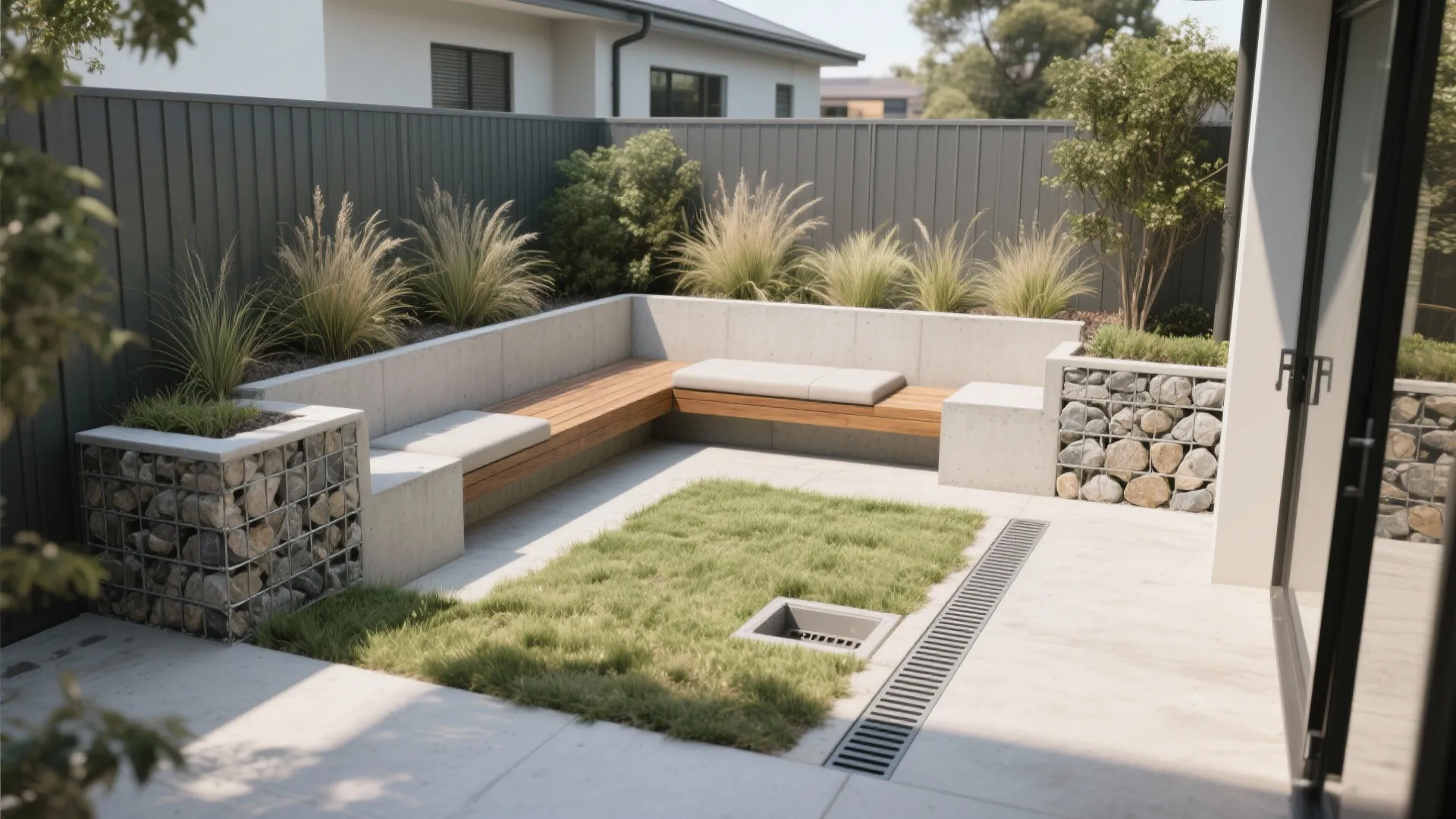

5 Bund Wall Design Ideas for Small Spaces: Sustainable, space-smart, and compliant bund wall design—practical inspiration from my real projects and data-backed guidance.

[Section: 引言]

Bund wall design has quietly become a design trend in small residential and light commercial spaces—especially where sustainability and safe storage meet aesthetics. When I prototype site layouts, I often start with an AI-generated backyard concept to test massing and drainage ideas before anything is poured or planted. Small space can spark big creativity, and a well-designed bund can disappear into your landscape while doing the serious job of secondary containment.

In this guide, I’ll share 5 bund wall design inspirations that blend compliance, durability, and beauty. I’ll weave in my project experience and expert data from authorities like CIRIA C736 and the EPA’s SPCC rule, so you know what’s stylish and what’s safe. Let’s make containment feel like a design choice, not a compromise.

[Section: 灵感列表]

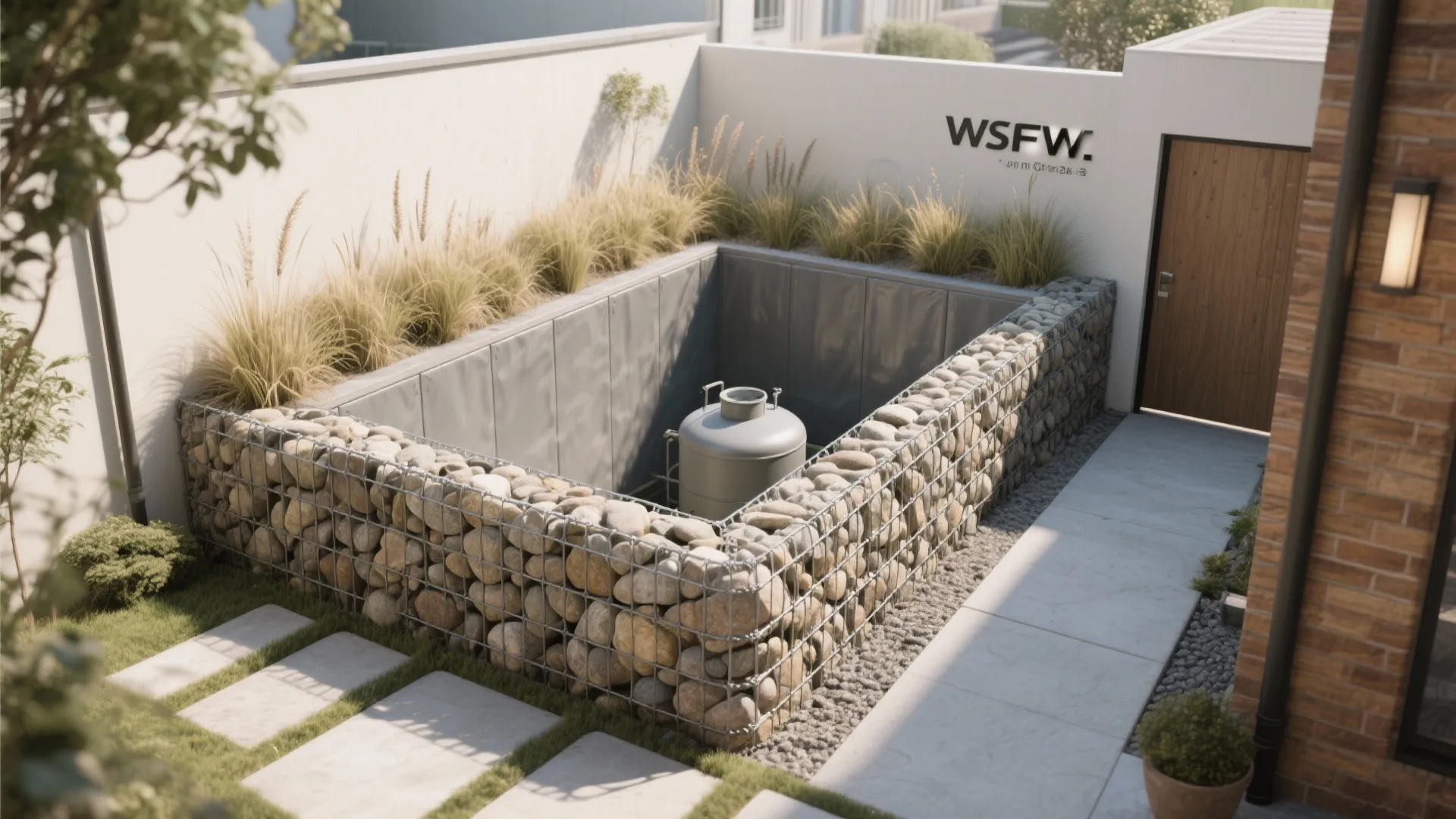

Gabion Bund with Native Planting

My Take: I once redesigned a compact courtyard that hid a small diesel tank behind a low, gabion-faced bund with native grasses and sedges. The trick was an impermeable liner inside the bund and the gabion basket as the aesthetic cladding, so it looked like a garden feature, not a barrier. In a 25-square-meter yard, the layered textures made the space feel richer, not smaller.

Pros: As a bund wall design for oil tank containment, the gabion look delivers a natural, tactile facade while the internal HDPE or GRP liner keeps the system truly impermeable. It’s resilient and easy to repair—swap a stone, not a whole wall—great for small lots where access is tight. The open, planted top edge softens the silhouette, helping the containment blend into a native planting palette.

Cons: Gabions are heavy and can eat into your clear footprint, which matters in tight sites. If you don’t detail the liner correctly, you risk leaks—gabion stones alone are permeable, so containment depends on the inner barrier. Maintenance can include weeding and occasional re-tensioning of baskets after freeze-thaw cycles.

Tips/Case/Cost: Use a smooth GRP liner with welded corners to minimize snag points and ensure continuous impermeability. Add a geotextile to protect the liner from stone abrasion. Budget-wise, expect gabion cladding to be mid-range; liner quality is where you should not skimp. For tiny yards, mock up the exact wall thickness so you don’t lose precious circulation width.

save pin

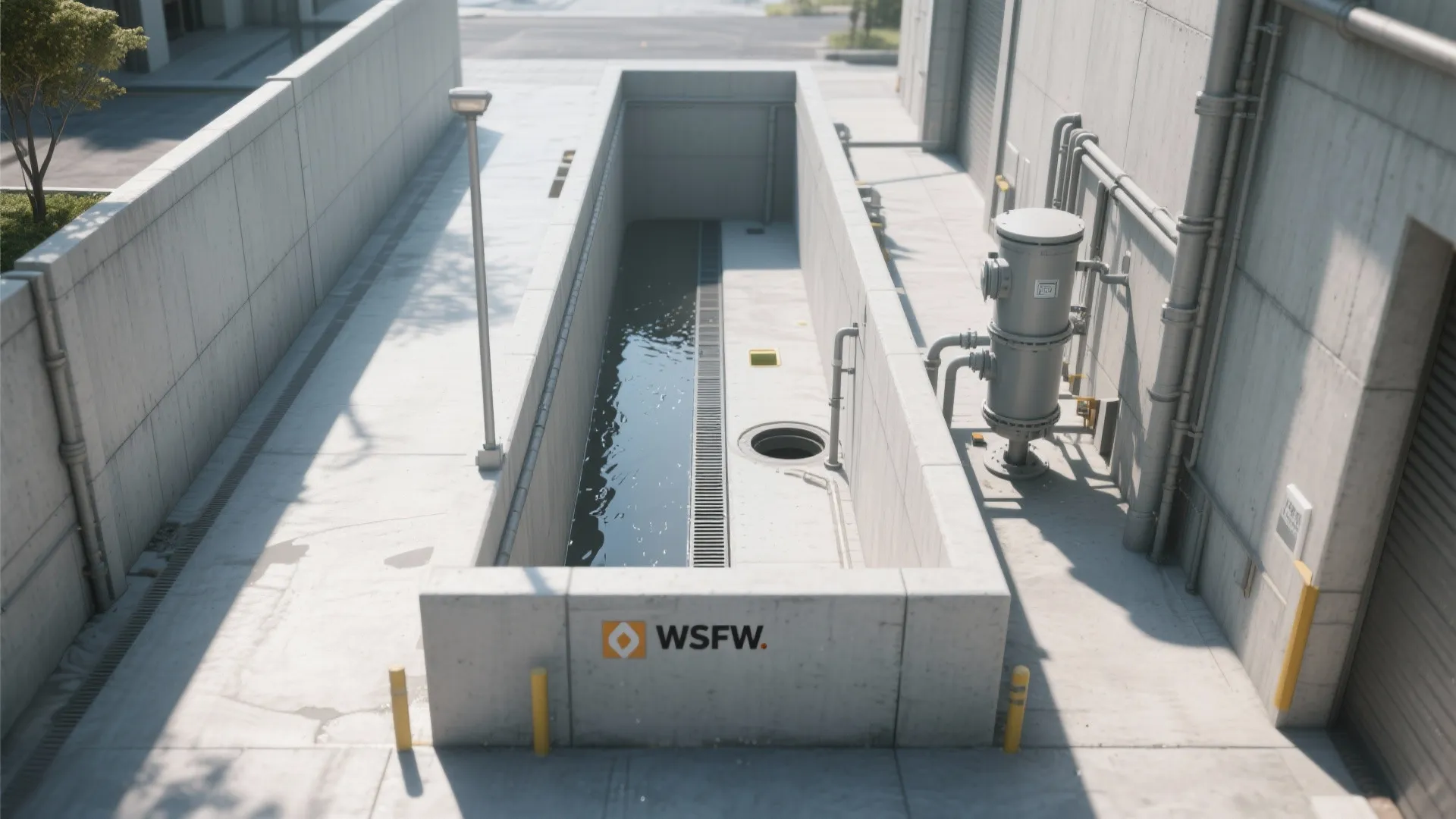

Architectural Concrete Bund with Hidden Drainage

My Take: For a semi-detached home with a tight service alley, I used architectural concrete for the bund and tucked a small channel drain leading to a monitored containment sump. The face was smooth and minimal, and the drainage points were discreet. The client loved how it looked like a crisp landscape wall rather than an industrial enclosure.

Pros: Concrete is robust and can be precisely cast to meet secondary containment bund wall height calculation, including freeboard for rainfall. With bunded areas drainage design, you can build in fall, interceptors, and pump-out points without compromising finishes. According to EPA SPCC (40 CFR 112), secondary containment should manage the entire contents plus precipitation; concrete bunds are ideal for meeting this requirement.

Cons: Concrete can crack—detail joints and reinforcement thoughtfully, especially near penetrations. A high-spec architectural mix and sealer add cost; not ideal for ultra-tight budgets. Getting the drainage approvals may involve local regulators, so plan time for paperwork.

Tips/Case/Cost: Specify fiber-reinforced concrete and water-reducing admixtures to improve finish and durability. Keep slopes gentle—1–2% is usually enough—to guide spills to the sump. Consider a compact oil-water separator where regulations require it. Expect a higher upfront cost but lower lifetime maintenance compared to blockwork with coatings.

save pin

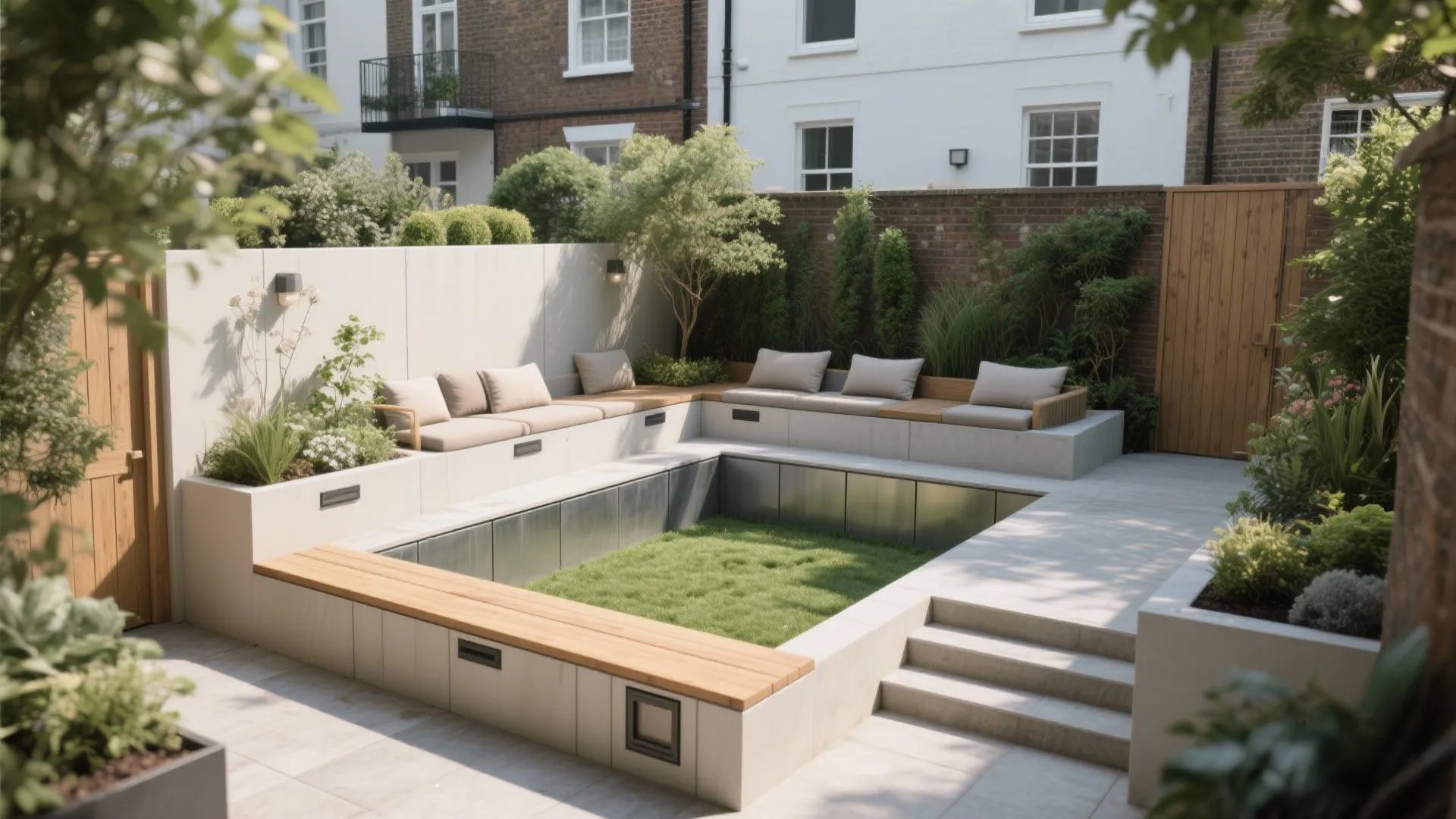

Split-Level Seating Bund for Micro Yards

My Take: In a pocket garden behind a townhouse, we turned the bund into a stepped bench and planter edge. The impermeable structure sat inside, and the outer finish became seating with storage below—no one guessed it was a containment measure. It made the space social without sacrificing safety.

Pros: This residential bund wall with integrated storage makes containment do double-duty, saving precious square footage. The design can hide inspection hatches and overfill alarms inside a clean, millwork-like envelope. CIRIA C736 guidance emphasizes capacity and impermeability; you can meet those requirements while delivering livable amenities.

Cons: Cutting into the outer finish for access can tempt people to make unapproved penetrations—train users and protect the inner liner. Multi-use surfaces get more wear, so durability matters; cheap cladding will age fast. Tolerances are tight—if seating depth is off by a few centimeters, it can feel cramped.

Tips/Case/Cost: Use a robust GRP or steel inner bund and mount the seating as a separate, floating skin so maintenance never touches the containment. Label hidden access covers clearly for inspectors. When mapping a tiny site, a scaled site plan visualization helps you confirm circulation clearances and seating ergonomics before you build. Cost varies, but modular bench components keep labor predictable.

save pin

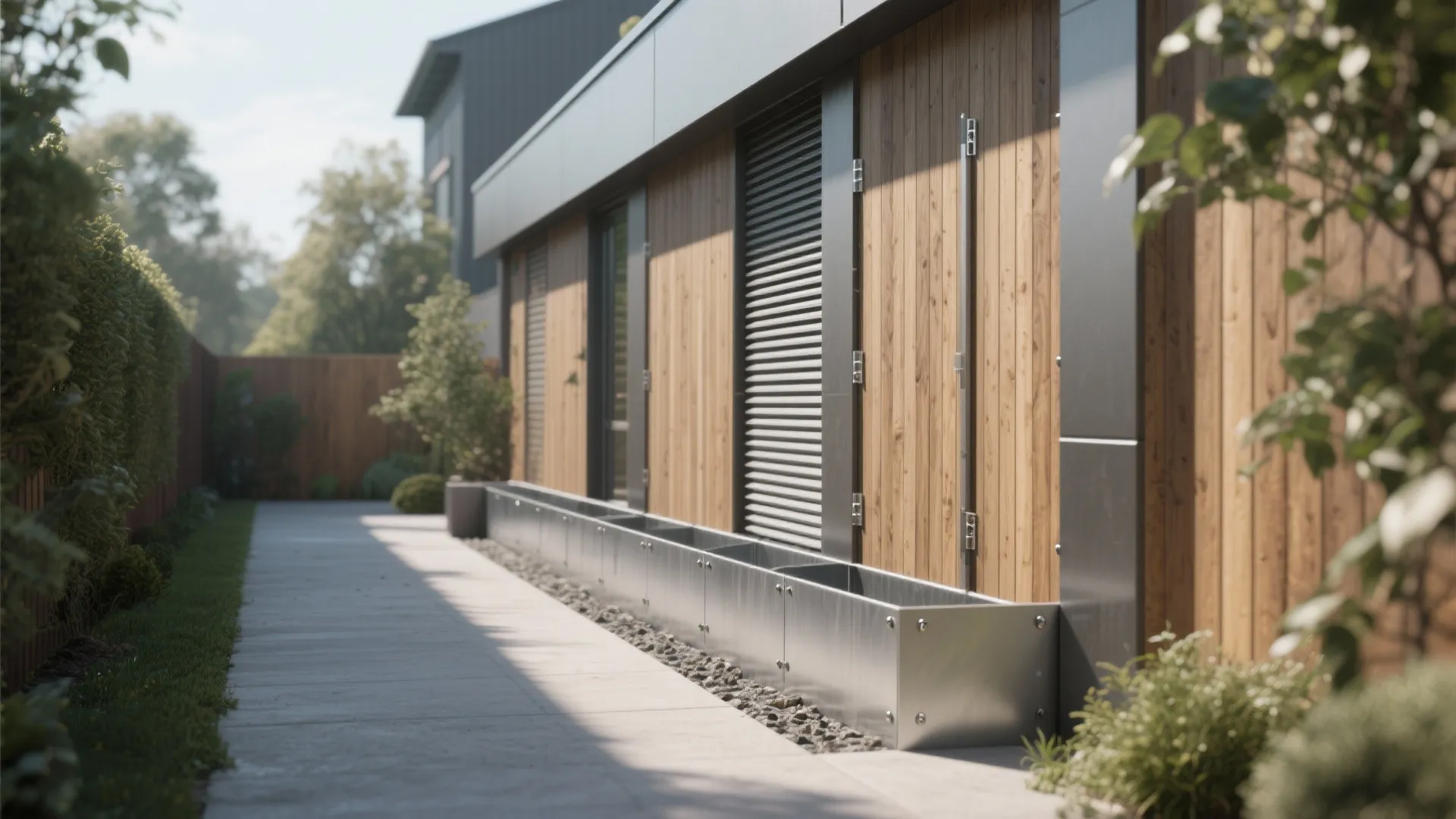

Timber-Clad Steel Bund with Warm Texture

My Take: Steel bunds are fantastic for small footprints; they can be thin yet strong. I wrapped one in thermally treated timber slats to deliver a warm, Scandinavian vibe in a narrow side yard. The steel did the heavy lifting; the timber made it feel like a crafted landscape piece.

Pros: Wood cladding on bund wall adds human-scale warmth, balancing the hard lines of steel and concrete. Steel containment can be fabricated to precise dimensions, ideal for compact plots with tight setbacks. With proper barriers behind the timber, you maintain an impermeable bund while giving the facade a natural tone.

Cons: Timber needs upkeep—oils or stains every year or two—so plan maintenance. If slats aren’t detailed off the ground, moisture can shorten lifespan; small sites often have splashback. Pests and UV can change color; embrace patina or budget for refinishing.

Tips/Case/Cost: Use thermally modified ash or cedar and stainless fasteners to resist warping and corrosion. Keep a 10–20 mm ventilated cavity behind the cladding to protect the inner bund and let water evaporate. Integrate removable sections for inspection points so you don’t ever perforate the containment envelope. Mid to high cost, depending on timber species and finish.

save pin

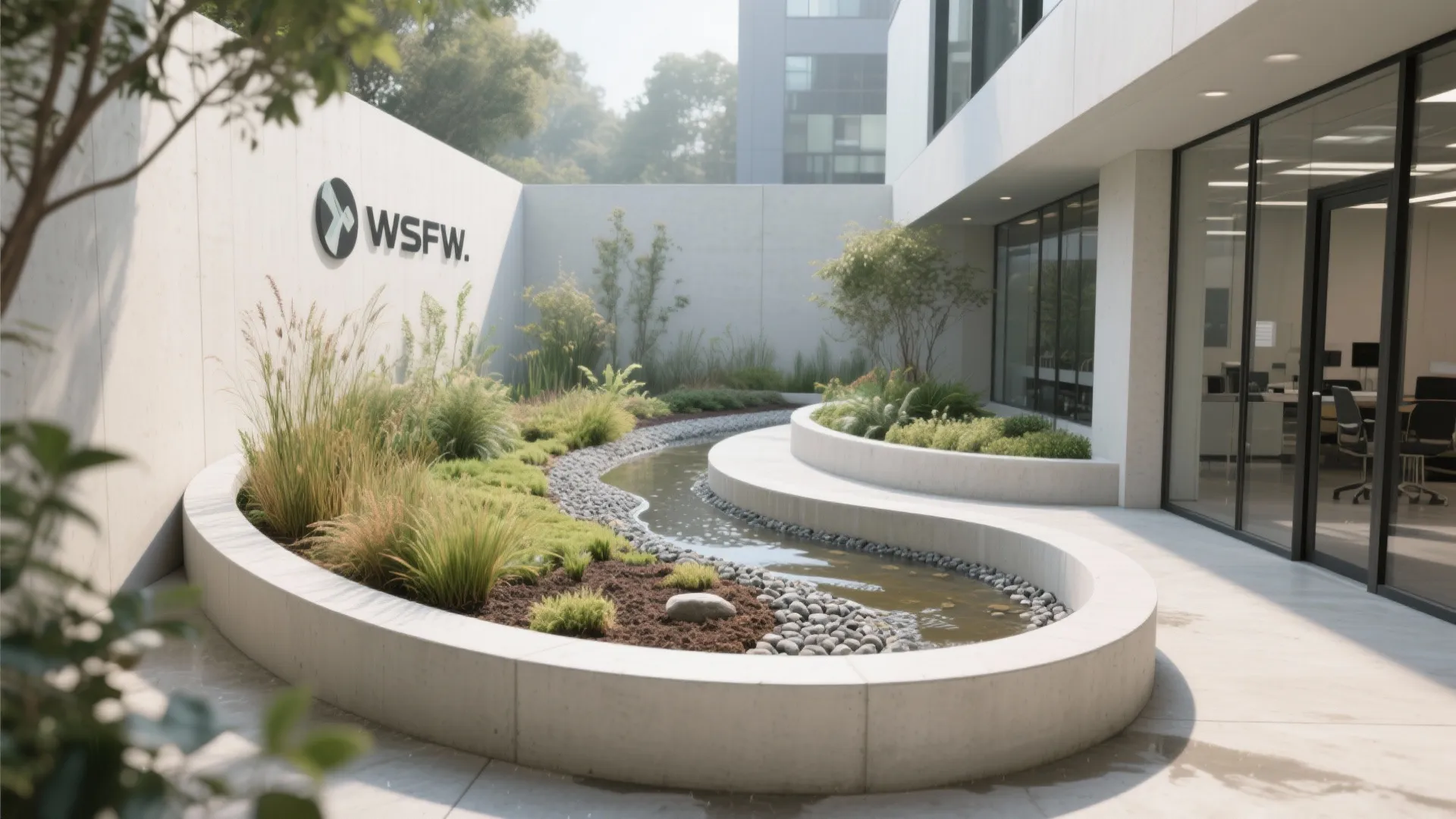

Curved Bund Integrated with a Rain Garden

My Take: For a small office courtyard, we curved the bund wall to echo a planting sweep, then placed a rain garden outside the containment area to handle roof runoff. The impermeable bund stayed pristine inside, while the rain garden managed landscape flows beautifully. The S-curve gave the space softer energy.

Pros: This rainwater-friendly bund wall design softens the visual mass and can redirect foot traffic intuitively. It helps separate containment and stormwater by design, aligning with best practice to keep bund interiors free of external water. UK guidance (e.g., Oil Storage Regulations and CIRIA C736) stresses impermeability and capacity; a curved wall can meet both when properly detailed.

Cons: Setting out curves takes skill—surveyors and formwork crews need time, which adds cost. Complex geometry can compress your usable area if not planned carefully. Plants in the rain garden need appropriate soil and overflow paths, or you’ll have seasonal mess.

Tips/Case/Cost: Model the curve at full scale digitally, then test plant masses and sightlines with a photorealistic outdoor rendering so you know the curve feels right. Keep the bund freeboard generous where local rainfall is intense and confirm sump sizing with your engineer. Expect moderately higher costs due to bespoke formwork and plantings, but the payoff in day-to-day enjoyment is worth it.

[Section: 总结]

Small kitchens taught me this first: small spaces reward smart design over brute size. Bund wall design is no different—small sites push us to be more creative, not more constrained. When you integrate impermeable structure, capacity per regulations, and a beautiful finish, containment becomes an invisible hero.

For technical guardrails, CIRIA C736 is a trusted reference for UK projects, and the EPA’s SPCC rule (40 CFR 112) guides U.S. secondary containment. Blend those standards with your site’s style, and you’ll be proud of the result. Which of these five bund wall design ideas would you try first?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is a bund wall?

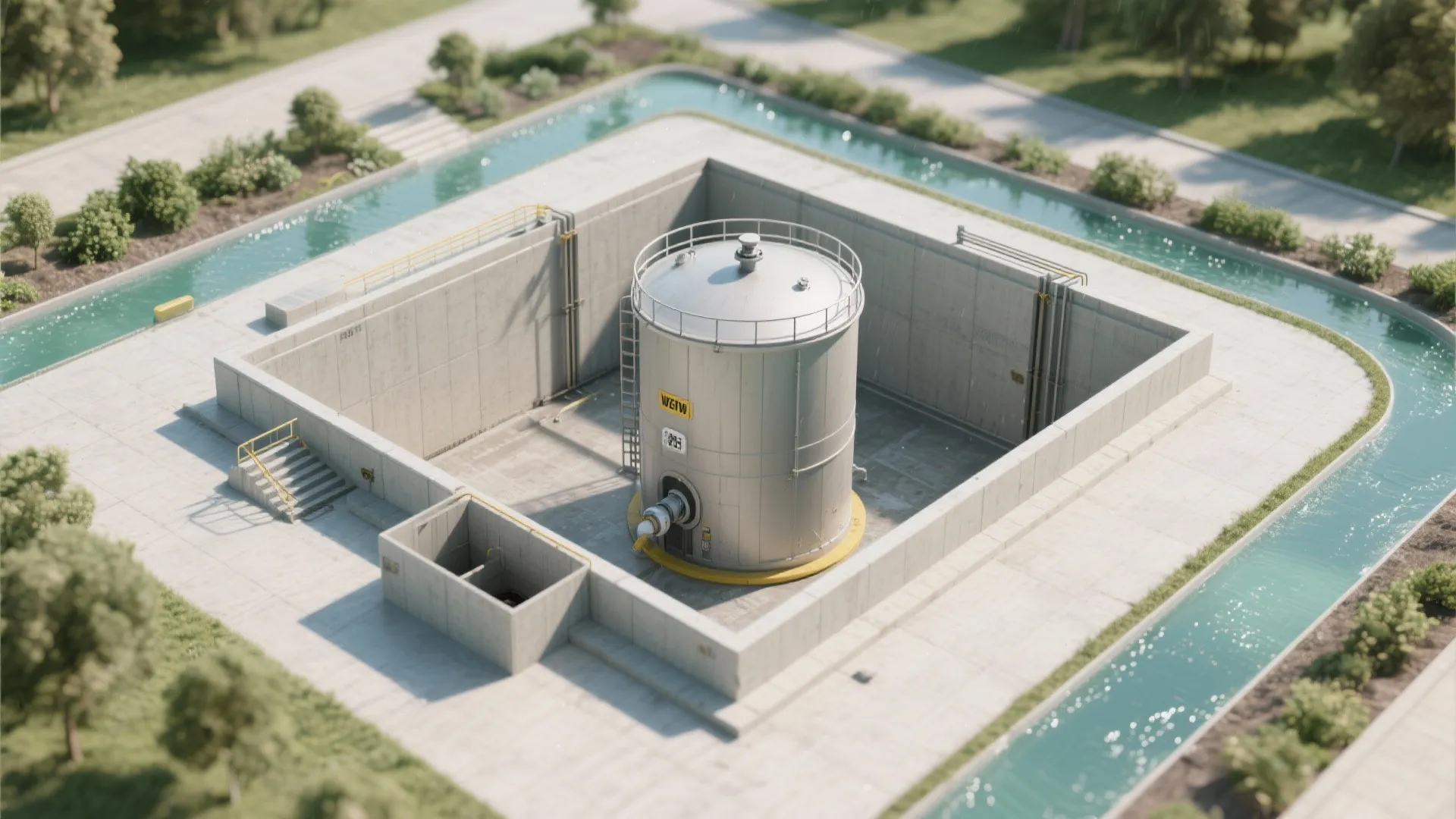

A bund wall is a physical barrier forming a secondary containment area around a tank or equipment to capture spills. In bund wall design, impermeable bases and walls are essential to prevent leaks into soil or drains.

2) How do I size a bund wall for a small oil tank?

Common practice (per UK Oil Storage Regulations and CIRIA guidance) is at least 110% of the largest container’s capacity, or 25% of the aggregate for multiple tanks—whichever is greater. Add freeboard to accommodate rainfall and dynamic sloshing.

3) Does the EPA require secondary containment?

In the U.S., the SPCC rule under 40 CFR 112 requires appropriate secondary containment for bulk storage. It must safely hold the contents plus precipitation; a well-detailed bund wall design typically meets this requirement when sized correctly.

4) Can bund walls look good in residential settings?

Yes—cladding, planting, and curved geometry help containment read as landscape architecture. In small spaces, multi-use seating or planter edges can hide a bund while keeping access for inspection.

5) What materials work best for bund wall design?

Concrete and steel are common for the impermeable structure; GRP liners are great inside masonry. Timber and gabion baskets are aesthetic skins only—they should not be the primary barrier unless combined with an impermeable liner.

6) How do I handle drainage in a bunded area?

Use controlled sump points, valves, or pump-out stations with monitoring. Bunded areas drainage design should ensure the interior stays clean and isolated, with rainwater handled separately per local regulations.

7) Do I need permits for a bund wall at home?

Often, yes—check local building control, environmental regulators, and HOA rules. Small sites may need approvals for impermeable structures, sumps, and discharge routes.

8) What’s a ballpark cost for a small residential bund?

Simple concrete or steel bunds can start in the low thousands; aesthetic cladding and integrated seating add cost. Maintenance, inspection, and compliance features should be part of your budget from day one.
