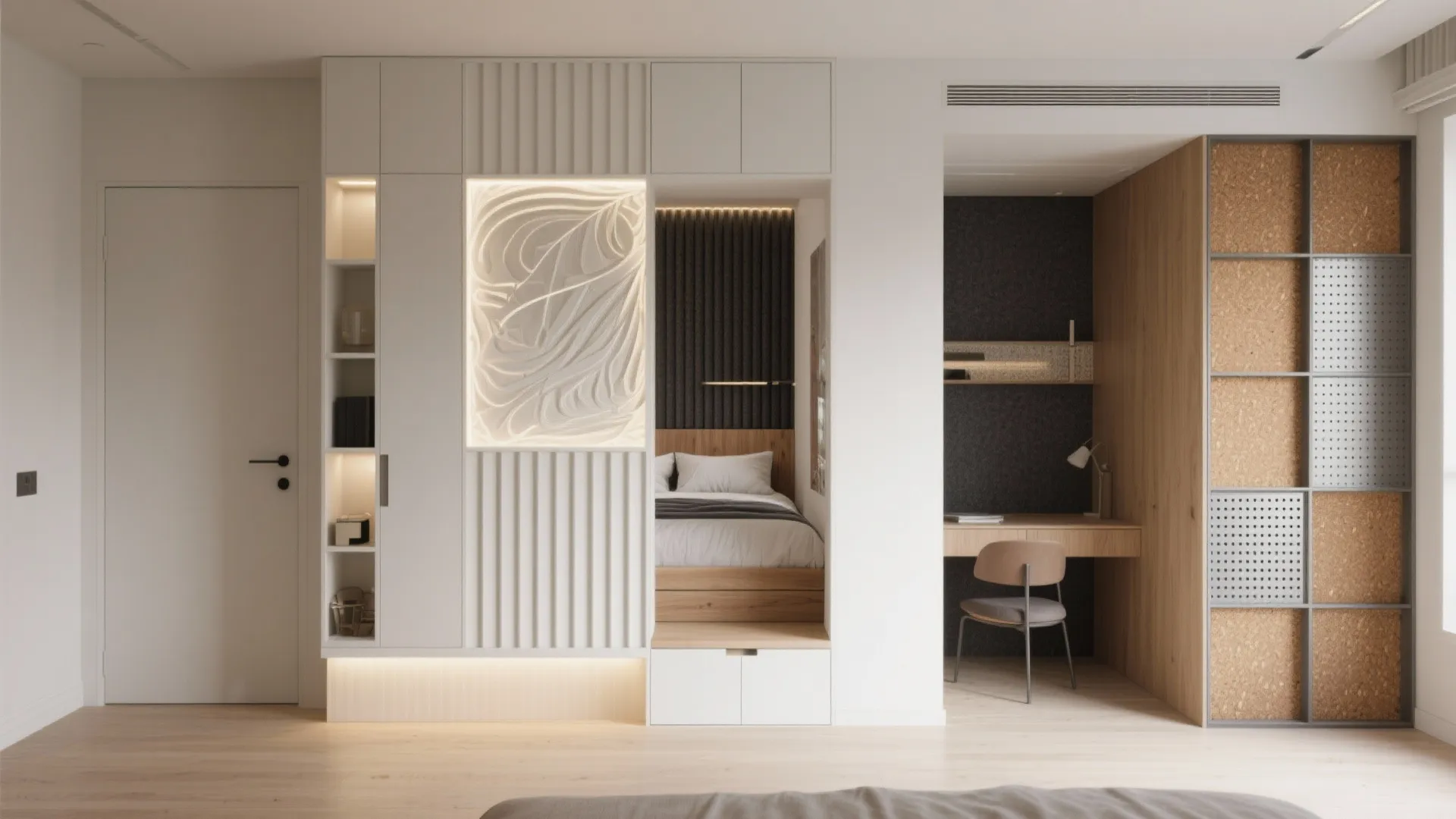

5 CNC Wall Panel Design Ideas That Transform Small Spaces: Real-world tips, budgets, and pros/cons from a senior interior designer who loves small-space problem solving

[Section: 引言]

I’ve spent a decade designing compact homes, and one trend I keep coming back to is CNC wall panel design. With precise milling, I can add texture, storage, and even lighting without stealing precious floor area. Small spaces inspire big creativity, and CNC opens that door in a cost-controlled, repeatable way.

In this guide, I’ll share 5 CNC wall panel design ideas I’ve used in real homes. I’ll mix personal wins (and a few mistakes), practical budgets, and expert data so you can pick confidently. By the end, you’ll know what fits your space, your maintenance style, and your wallet.

[Section: 灵感列表]

Fluted CNC Panels With Hidden Storage

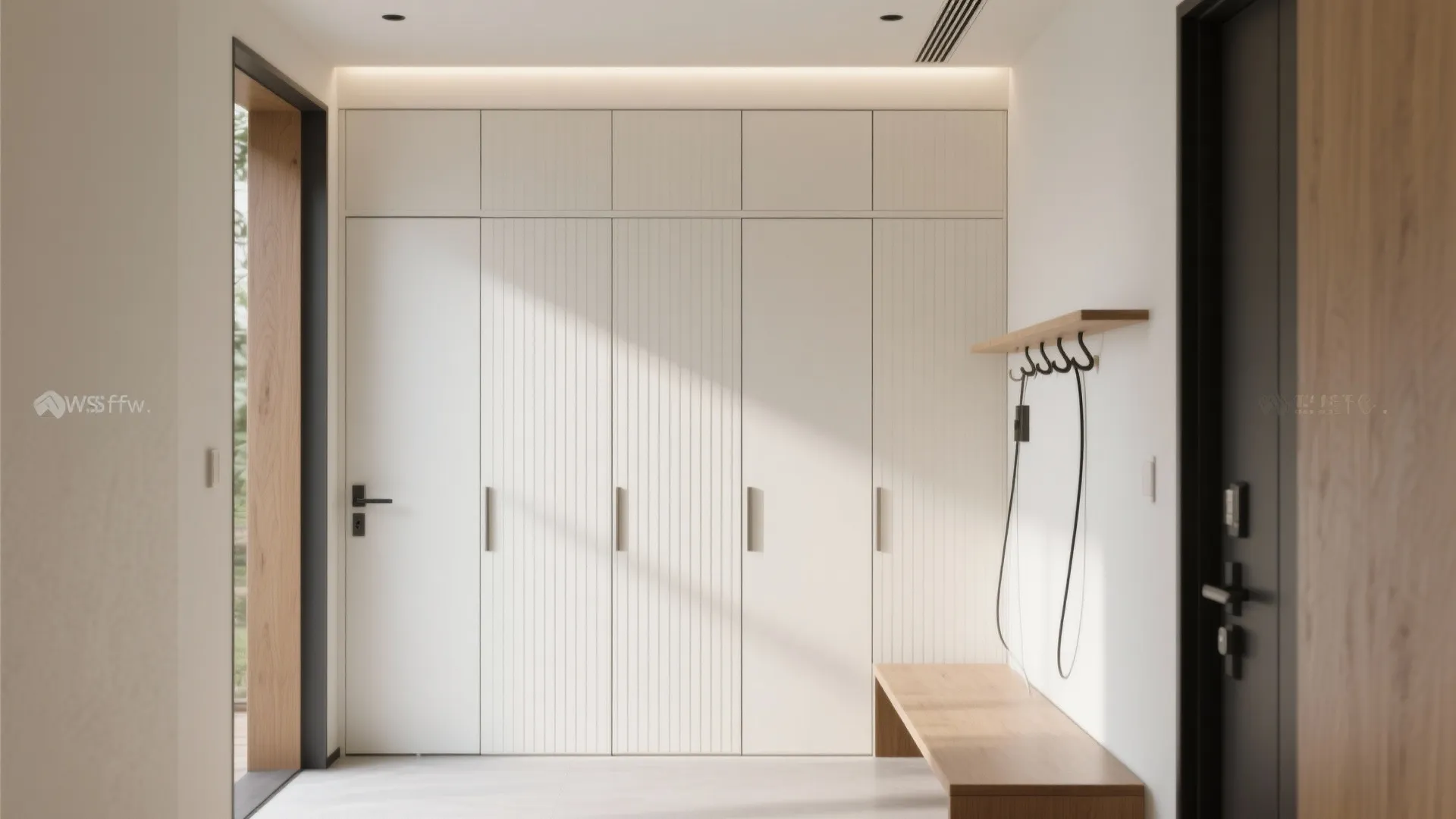

My Take: A young couple hired me to brighten a micro-apartment entry. We milled shallow flutes into painted MDF panels and hid push-latch cabinets between vertical ribs. The wall looked sculptural, yet it stored umbrellas, chargers, and a shoe-care kit.

Pros: Vertical flutes visually lift low ceilings, especially in narrow halls. When I use cnc fluted panels for small rooms, I can tuck shallow storage behind them without a bulky look. Channeling for LED strips, cable runs, and hooks is easy because CNC grooves are precise and repeatable.

Paint-grade MDF or a thin wood veneer keeps costs reasonable while delivering a bespoke look. If you choose cnc MDF panels with wood veneer, you’ll get warmth without the price of solid wood, and the patterned rhythm makes minor scuffs less noticeable.

Cons: Dust finds those grooves—no way around it. I recommend a soft brush attachment on a vacuum once a week. Deep flutes eat into corridor width, so I rarely exceed 8–10 mm depth in tight halls. If your space is echo-prone, hard, fluted surfaces can bounce sound; balance them with textiles.

Tips/Case/Cost: For concealed cabinets, standardize a 100–120 mm cavity so hardware fits cleanly and the facade stays flush. Expect $35–$80 per sq ft (materials + CNC machining + basic finishing) for painted MDF; add 20–40% for real wood veneer. In kitchens, I often pair flutes with compact layouts—an L-shaped layout frees more wall space for tall panels that hide spices, cleaning caddies, and a folding step stool.

save pin

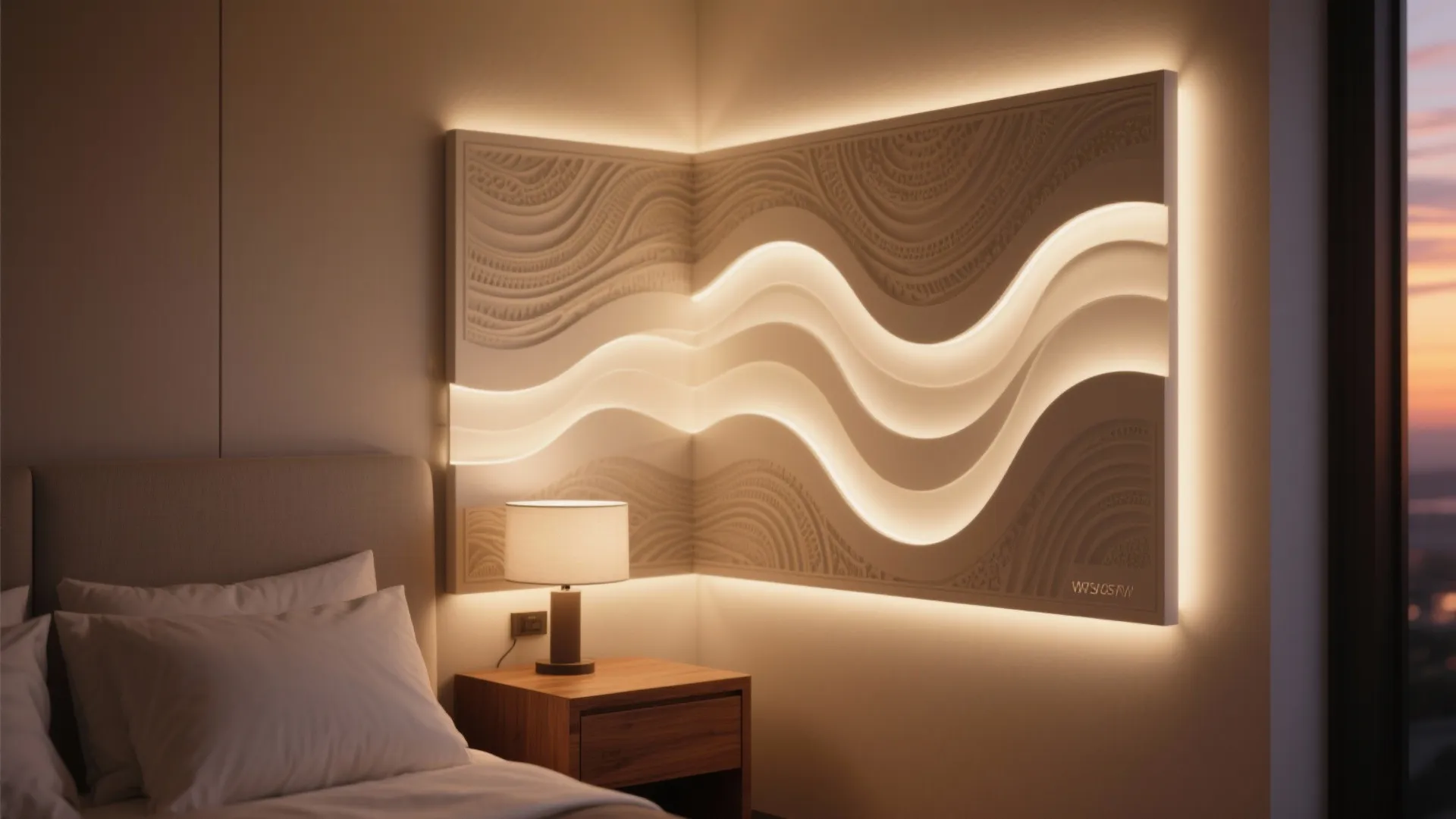

Backlit Relief Panels for Light and Shadow

My Take: Backlit CNC panels are my go-to when a room feels flat. I’ll cut shallow reliefs—waves, geometrics, or a soft arch—then float the panel off the wall on a cleat system with LED strips behind diffusers. Suddenly, the wall glows with a quiet, hotel-like warmth.

Pros: Backlit cnc wall panel design adds depth without crowding the footprint. Integrated lighting reduces the need for extra lamps, and dimmers give you day-to-night flexibility. LED-based systems are energy efficient; the U.S. Department of Energy notes LEDs use at least 75% less energy and last up to 25 times longer than incandescent bulbs (Source: U.S. DOE, energy.gov).

With low-profile diffusers and 2700–3000K LEDs, I can craft a relaxing ambience for bedrooms or dens. Long, sweeping reliefs also disguise minor waviness in existing walls better than flat paint.

Cons: Hotspots betray where the LED tape sits too close or the diffuser is inconsistent. You’ll need more careful planning around seams and corners, and a dimmer that matches your LED driver. Electricians may raise an eyebrow if there’s no service access—plan a removable panel or a hidden hatch.

Tips/Case/Cost: Keep relief depth under 6–8 mm for uniform glow and easier dusting. For durability in humid zones, use moisture-resistant MDF or sealed plywood. Budget $55–$120 per sq ft including LEDs, aluminum channels, and a decent dimmer; add for smart controls. If you’re nervous about patterns, prototype a 600 x 600 mm sample panel first to check diffusion and color temperature.

save pin

Moisture-Resistant CNC Panels for Kitchens and Baths

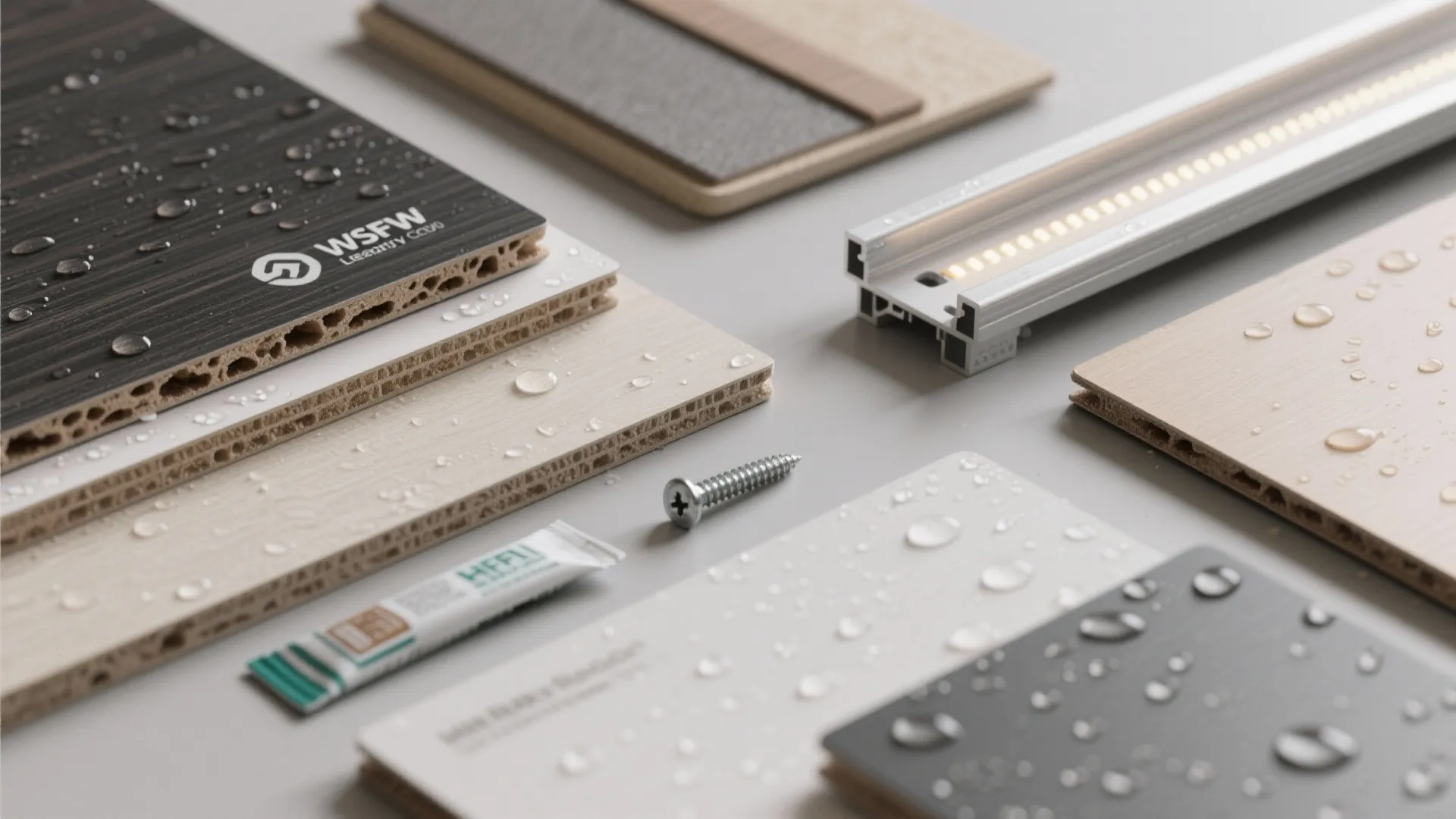

My Take: Kitchens and baths scare many clients because they imagine swollen MDF and peeling finishes. My fix is to select the right substrate and edge sealing. Compact laminate, PVC foam board, or moisture-resistant MDF with high-pressure laminate (HPL) faces all mill cleanly and survive splashes.

Pros: In active splash zones, I default to compact laminate or sealed HDF/HPL for easy wipe-downs. If you prefer wood grain, a sealed veneer on moisture-resistant MDF works well away from direct steam. When I specify low-emitting cores that meet EPA TSCA Title VI for formaldehyde, indoor air quality is easier to maintain (Source: U.S. EPA, epa.gov/tsca-title-vi).

For renters, removable CNC slat screens mounted on French cleats create a statement without drilling dozens of holes. It’s a quick way to add a modern wall paneling effect over dated tile.

Cons: Plastics and laminates can scratch and may look flat in large, unbroken areas. Panels near cooktops need heat clearance; adhesives can age in high steam. Seam alignment matters—misaligned grooves shouting across a backsplash will haunt you every breakfast.

Tips/Case/Cost: Always edge-seal cutouts, especially around outlets and taps. For codes and peace of mind, ask for a Class A/Type A flame spread rating (e.g., ASTM E84 or NFPA 286 compliance) from the supplier. If you’re unsure about color and sheen, preview options with high-fidelity 3D renders of wall textures before you buy long panels. Expect $45–$110 per sq ft depending on substrate and whether you’re adding backsplashes, miters, or curved corners.

save pin

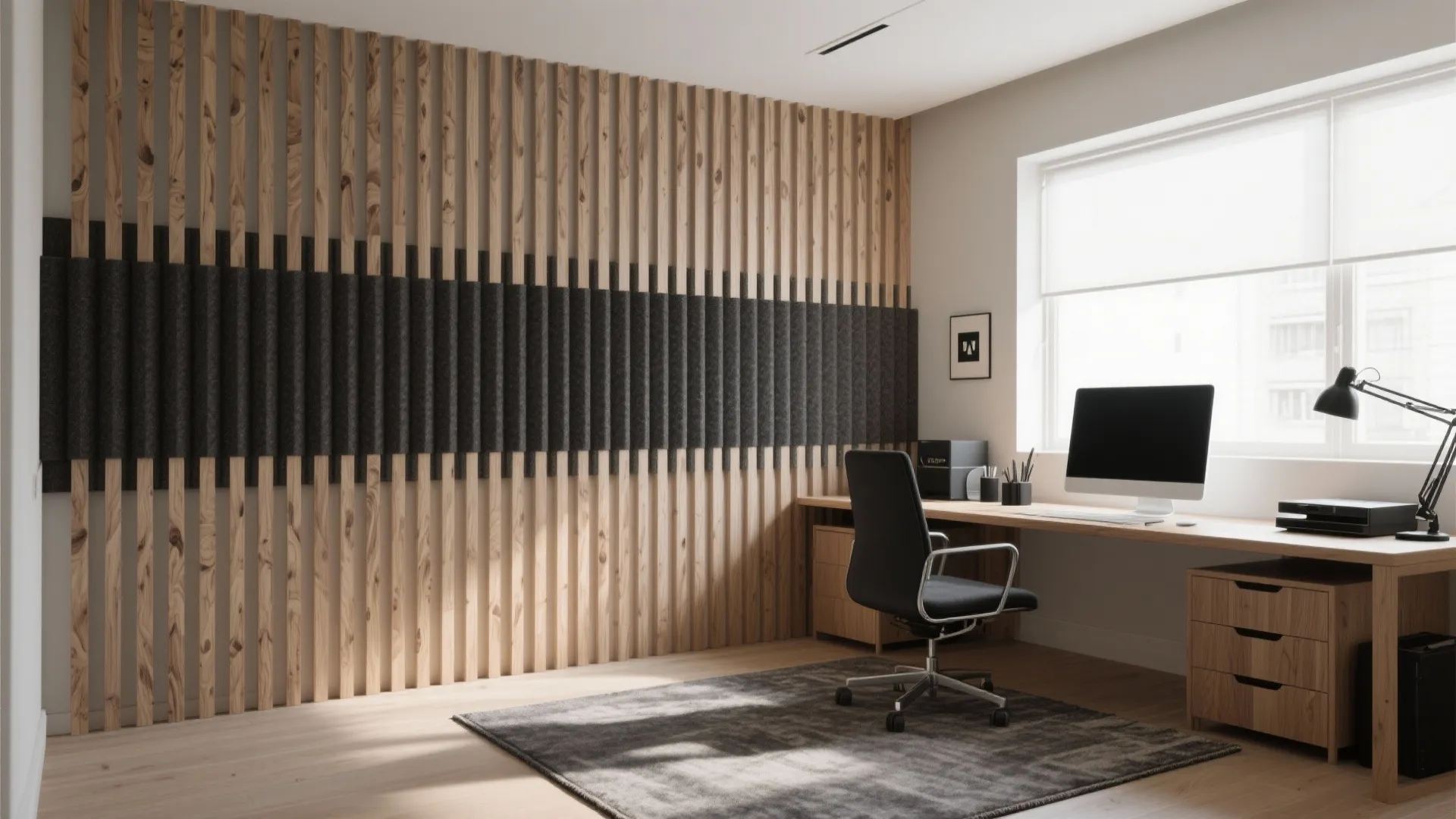

Acoustic Slat CNC Panels for Quiet, Cozy Rooms

My Take: A 12 m² home office I did had the worst Zoom echo. We CNC’d oak-veneer slats at 20 mm with 10 mm gaps and mounted them over 9 mm acoustic felt. The difference was instant—speech clarity improved, and the room felt calmer.

Pros: Acoustic cnc panels for home office can reach NRC values around 0.6–0.9 when paired with mineral wool or felt, depending on spacing and thickness. Sound absorption is typically verified under ISO 354 reverberation room methods (Source: ISO 354:2003). Slat geometry is predictable with CNC, so I can tune gap widths and backer depth to target mid-to-high frequencies where speech lives.

Beyond noise control, the rhythm of slats brings texture that hides minor wall flaws. If you prefer darker tones, smoked oak or black-stained ash makes screens look sleek on camera.

Cons: Slats and felt catch dust; a lint roller and a soft brush are your friends. Solid wood can move with humidity—engineered veneer over stable core reduces risk. Heavy assemblies need proper anchors; don’t trust weak drywall toggles for ceiling features.

Tips/Case/Cost: For living rooms, limit slats to one or two walls to avoid over-damping. Consider AI-assisted material matching for panels when you’re juggling fabrics, rugs, and wood tones. Budget $60–$140 per sq ft depending on species, backer, and fill. If you record podcasts, add 50–75 mm mineral wool behind the felt to tame lower-mid resonances.

save pin

Modular Mixed-Material Panels You Can Evolve

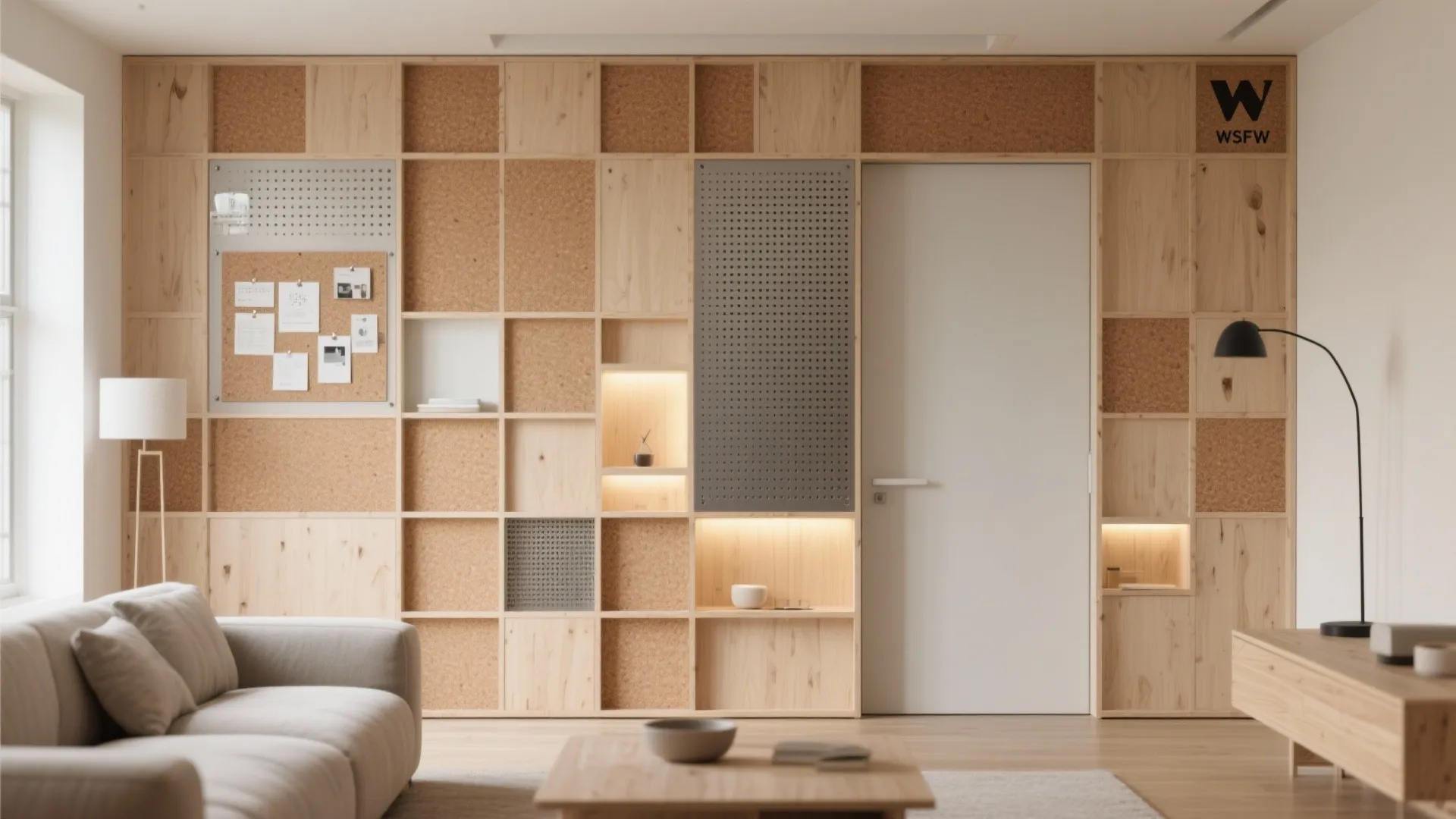

My Take: I love building “future-proof” walls. One favorite is a modular grid: a CNC’d plywood frame accepts cork tiles for pin-ups, perforated metal for airflow, and a few backlit wall panels for mood. We even hid a door behind a flush panel so the bedroom didn’t scream “storage closet.”

Pros: Modular cnc wall panel design lets you update patterns seasonally and swap finishes when life changes—kids, pets, hobbies, new shades of paint. Mixing cork, veneer, and matte lacquer boosts tactile interest without overwhelming a small room. Pegboard-style cutouts are brilliant for entry walls with rotating hooks and baskets.

Cons: Budget creep is real when you add too many panel types and fasteners. Grid alignment is unforgiving; one off-square module will telegraph across the wall. Go slowly and mock up a 2 x 2 module first.

Tips/Case/Cost: If you plan hidden doors, request tighter tolerances at the hinge side and micro-bevel edges for shadow gaps. Label modules on the back so future swaps don’t turn into a jigsaw puzzle. Expect $50–$120 per sq ft depending on material mix, plus hardware and magnets where needed. For renters, consider a removable cleat rail with lighter modules to avoid patchwork repairs later.

[Section: 总结]

Small rooms don’t limit you—they nudge you toward smarter details. With cnc wall panel design, you can sculpt light, hide storage, tune acoustics, and stand up to kitchen steam without eating floor space. When in doubt, prototype a small panel, test finishes, and confirm lighting or acoustic targets before you scale up.

I’ve found that the most satisfying walls are the ones that work hard without shouting. Which of these five ideas would you try first, and where would you put it?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is cnc wall panel design?

It’s the use of computer numerical control (CNC) milling or routing to carve patterns, flutes, slots, or reliefs into panels. You get precise, repeatable textures and functional cutouts for lighting, wiring, and storage.

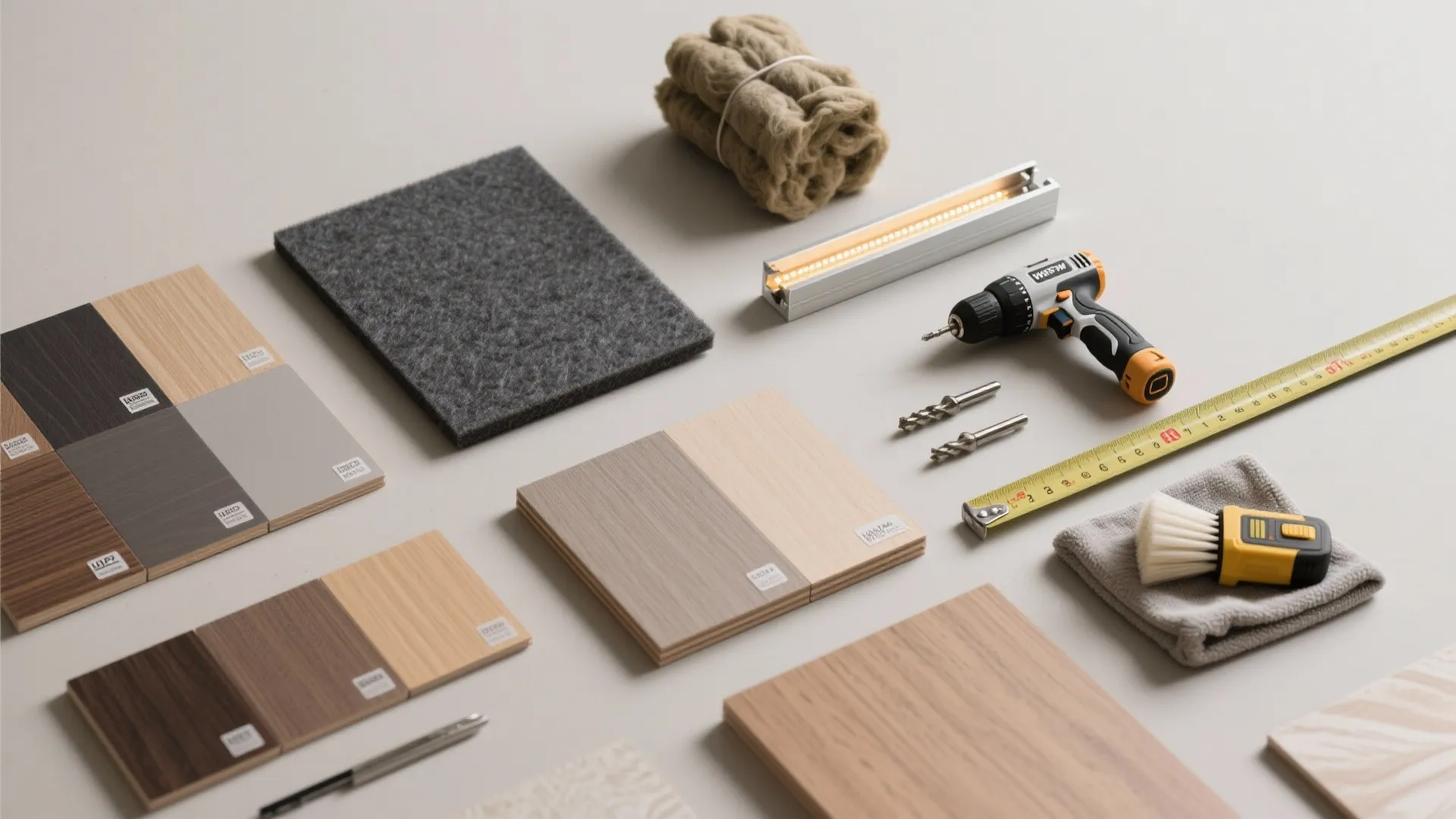

2) Which materials are best for small homes?

For most rooms, moisture-resistant MDF with paint or veneer balances cost and stability. In wet zones, consider compact laminate, sealed plywood, or PVC foam board, and keep natural veneer out of direct steam.

3) Can cnc wall panels improve acoustics?

Yes—slatted panels over felt or mineral wool absorb mid-to-high frequencies and reduce echo. Tuning slat width, gaps, and backer thickness helps target speech clarity in home offices and media rooms.

4) Are cnc panels safe for kitchens and baths?

Choose moisture-resistant cores and seal edges near sinks and showers. For air quality, look for cores that meet EPA TSCA Title VI formaldehyde emissions limits (Source: U.S. EPA), and check flame spread ratings like ASTM E84 where required.

5) How do I clean fluted or grooved panels?

Use a soft-bristle brush with a vacuum to lift dust from grooves, then a slightly damp microfiber cloth. Avoid harsh solvents on painted or veneered surfaces; a mild, pH-neutral cleaner is usually enough.

6) What’s a realistic budget?

For painted MDF: $35–$80 per sq ft; veneer and acoustic builds: $60–$140; backlit relief panels: $55–$120. Add labor for electricians or complex site conditions, and prototype a small panel to confirm finishes.

7) Can renters use cnc wall panel design?

Yes—use French cleats or rail systems for removable installs and keep panel weight manageable. Modular grids and slat screens can sit over existing walls with minimal holes to patch later.

8) Do I need a pro installer?

Simple feature walls are DIY-friendly if you’re comfortable measuring, leveling, and anchoring. For backlighting, hidden doors, or heavy acoustic assemblies, I recommend a pro to ensure wiring safety and clean alignment.
