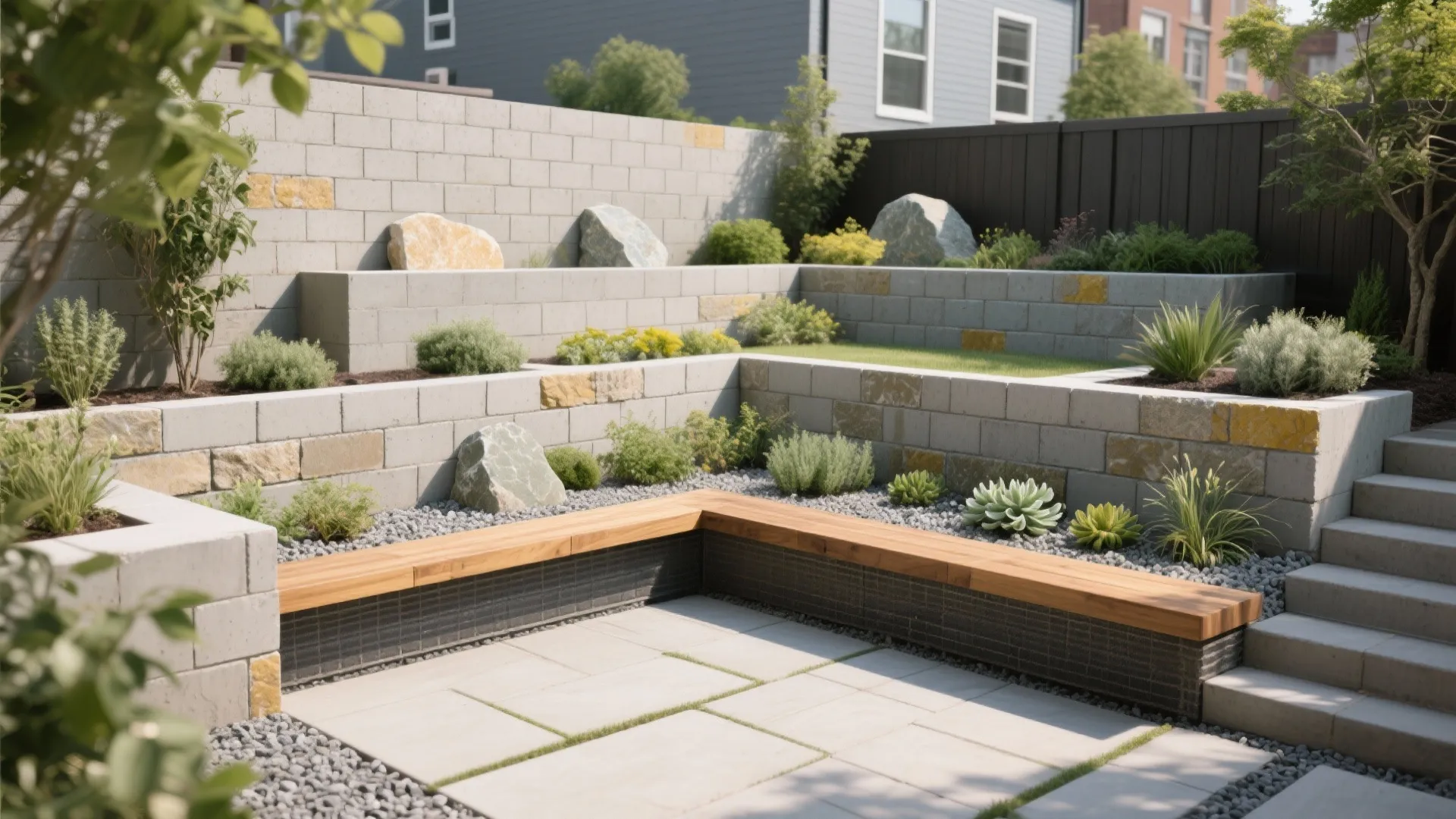

5 Gravity Retaining Wall Design Ideas: Small-space lessons for gravity retaining wall design: materials, drainage, terracing, and the details that keep your yard solid and stylish

[Section: 引言]

Over the past few seasons, I’ve watched gravity retaining wall design step out of pure engineering and into the language of residential style—clean lines, tactile stone, and terraces that feel like outdoor rooms. In small yards, big creativity thrives; I’ve turned tight slopes into cozy steps, planters, and benches without blowing the budget or the soil. If you’re curious how to translate that vibe, here are 5 gravity retaining wall design ideas I’ve learned hands-on, guided by expert standards and real-world constraints—starting from a minimalist backyard terraced garden and branching into materials, drainage, and details.

We’ll walk through five inspirations, the pros and cons from my own projects, and sprinkle in data from NCMA and FHWA where it matters. I’ll keep it friendly and practical, with short paragraphs you can skim while sipping your coffee. Let’s get your compact slope working smarter—and looking great.

[Section: 灵感列表]

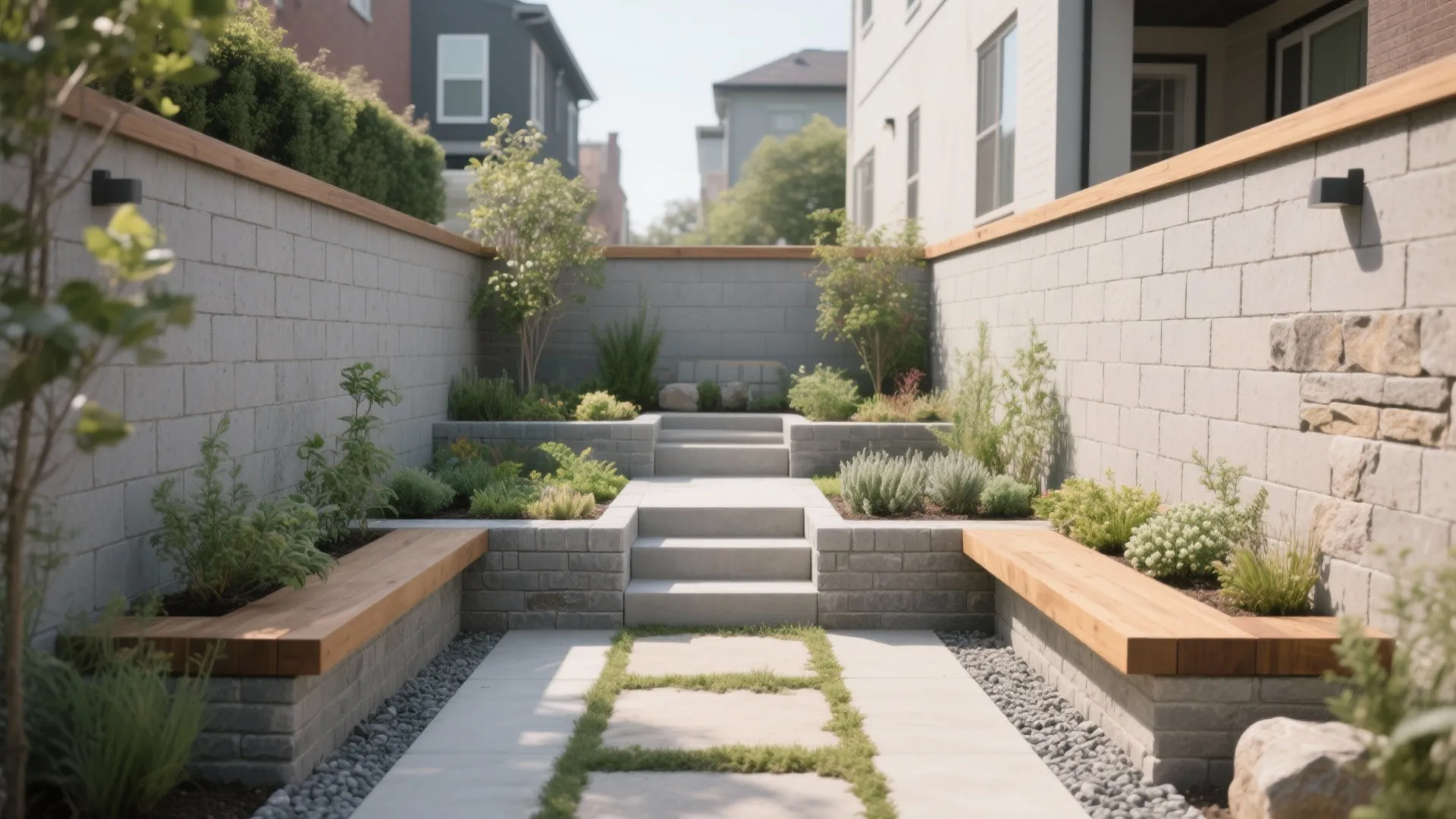

Tiered Walls that Double as Garden Seating

My Take: On a 5.5-meter deep urban yard, we carved a two-tier gravity wall with wide caps. Those caps became bench seating, and the lower tier turned into a herb bed you could reach without kneeling. The result was part landscape, part living room—no wasted inches.

Pros: Tiering breaks a single tall wall into safer, human-scale steps—great for small yard retaining wall ideas. You gain plantable pockets, better sunlight, and circulation, while the staggered mass keeps lateral earth pressure under control. This gravity retaining wall design also creates “useful edges,” which clients love for seating and display.

Cons: More tiers mean more caps, corners, and cuts—translation: time and cost go up. Each terrace needs its own drainage and proper base preparation with compacted gravel; if you rush the prep, frost heave or settlement will underline the mistakes with a wavy top course.

Tips / Cost: Keep vertical spacing proportional to plant root depth (20–30 cm is friendly for herbs and sedums). For materials and installation, segmental block terraced setups often land around mid-range budgets; DIYers can save but should budget for quality base aggregates and compaction gear.

save pin

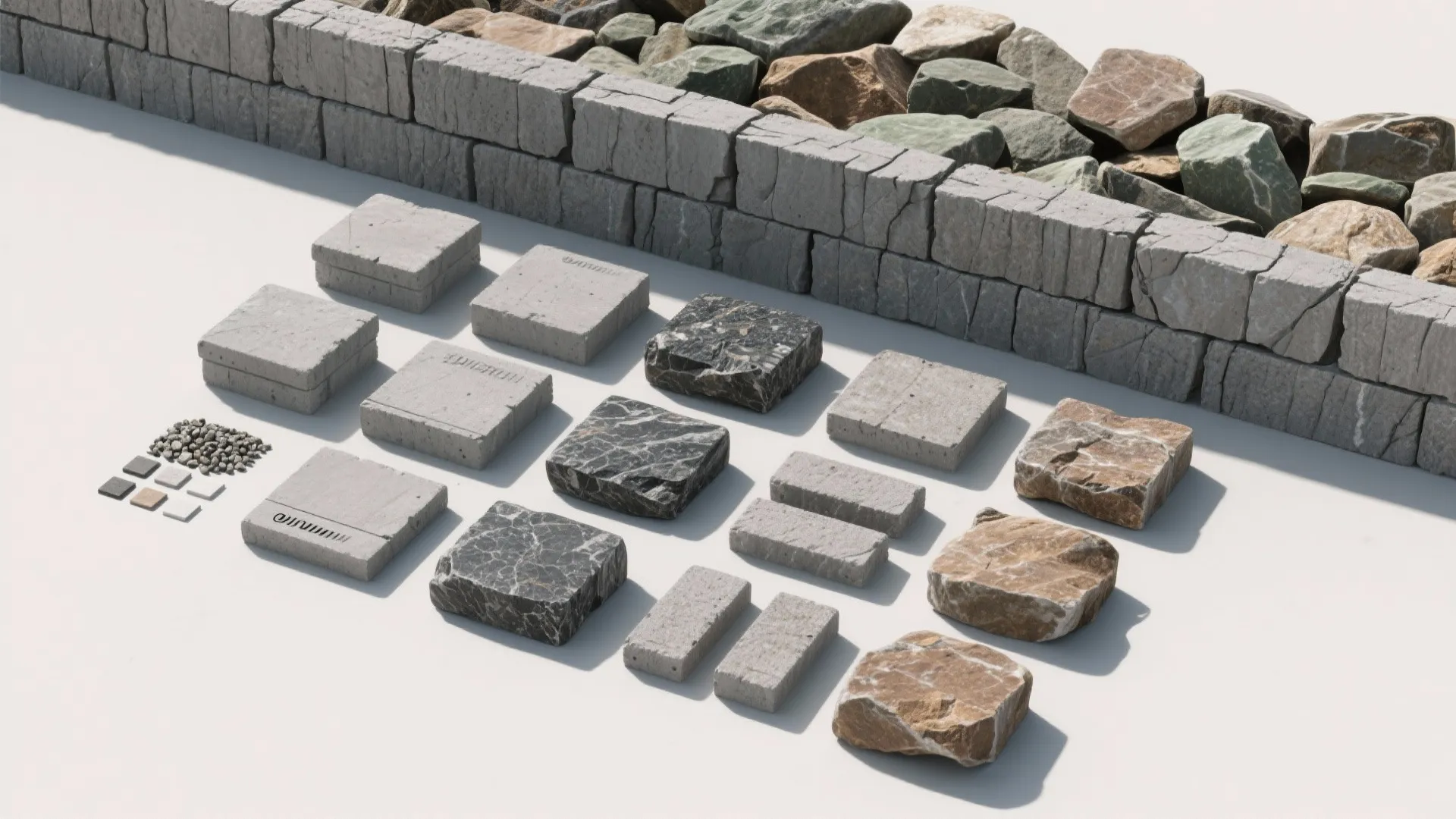

Split-Face Concrete or Natural Stone for Grip and Grace

My Take: I’m a fan of split-face CMU when clients want modern but not sterile. The texture looks like chiseled rock and adds friction at the block interface. Natural stone (granite, basalt, fieldstone) can deliver old-world calm; either way, the face feels lived-in.

Pros: Split-face concrete blocks pair structural mass with tactile finish—ideal for concrete gravity retaining wall design that doesn’t look like highway infrastructure. Natural stone brings a timeless accent and higher unit weight, which can help resist sliding in short wall scenarios. Long-tail bonus: segmental retaining wall blocks are modular, so you can phase work and minimize waste.

Cons: Stone is heavy—delivery, moving, and setting become a shoulder workout. Split-face CMU is more forgiving than random-stacked stone; if you misjudge course heights with fieldstone, expect a puzzle night. Material availability fluctuates, and color variation can surprise you once it’s all in daylight.

Tips / Case: I often sample a small mock-up (three blocks high, one meter long) to judge face pattern and mortar-less fits. If the budget allows, mix stone and split-face for a blended texture—stone at eye level, CMU for hidden layers.

save pin

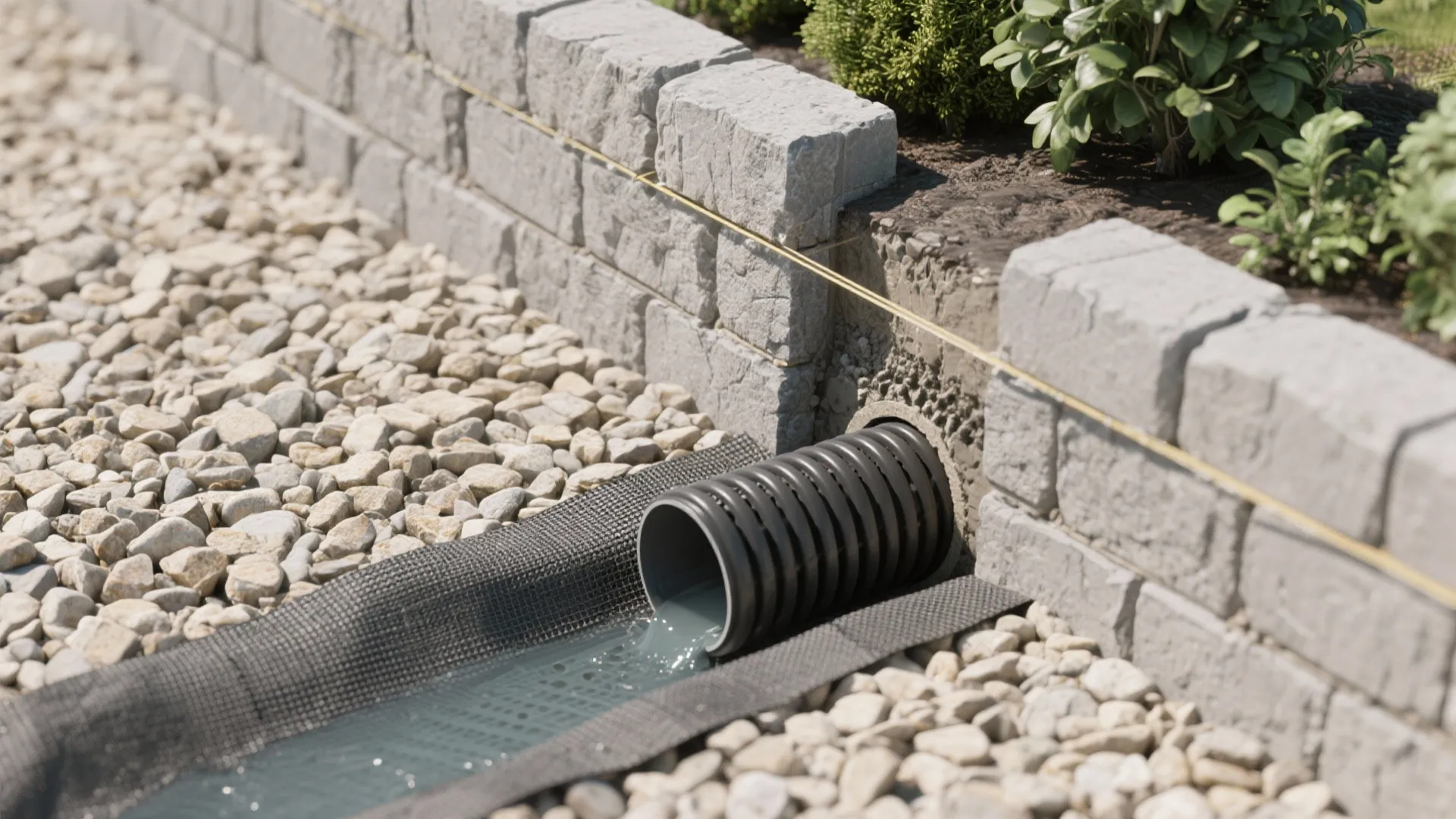

Drainage First: Gravel Backfill, Weep Holes, and Filter Fabric

My Take: My most headache-free walls started with drainage design that was downright obsessive. I specify clean 3/4" gravel behind the wall, perforated pipe at the base, and filter fabric to keep fines out. When water has a clear path out, the wall breathes easy.

Pros: Proper retaining wall drainage design reduces hydrostatic pressure, arguably the number one culprit in wall distress. The FHWA’s guidelines (FHWA NHI-10-024) emphasize free-draining backfill and outlets—simple moves that prolong service life and prevent freeze-thaw damage. The long-tail win: gravity retaining wall drainage design is inexpensive insurance.

Cons: It’s invisible work, so some folks try to save by skipping fabric or undersizing outlets. That’s like building a kitchen without a vent hood—you’ll smell the shortcuts later. Pipe outlets need periodic inspection; if leaf litter clogs them, your backfill can turn into a bathtub.

Tips / Visuals: I like to sketch the drainage layers for clients and show before–after renders; a photorealistic exterior visualization makes the gravel zone and weep holes feel real before the first shovel hits soil. If your slope concentrates runoff, consider a simple surface swale or permeable pavers up top to reduce the load behind the wall.

save pin

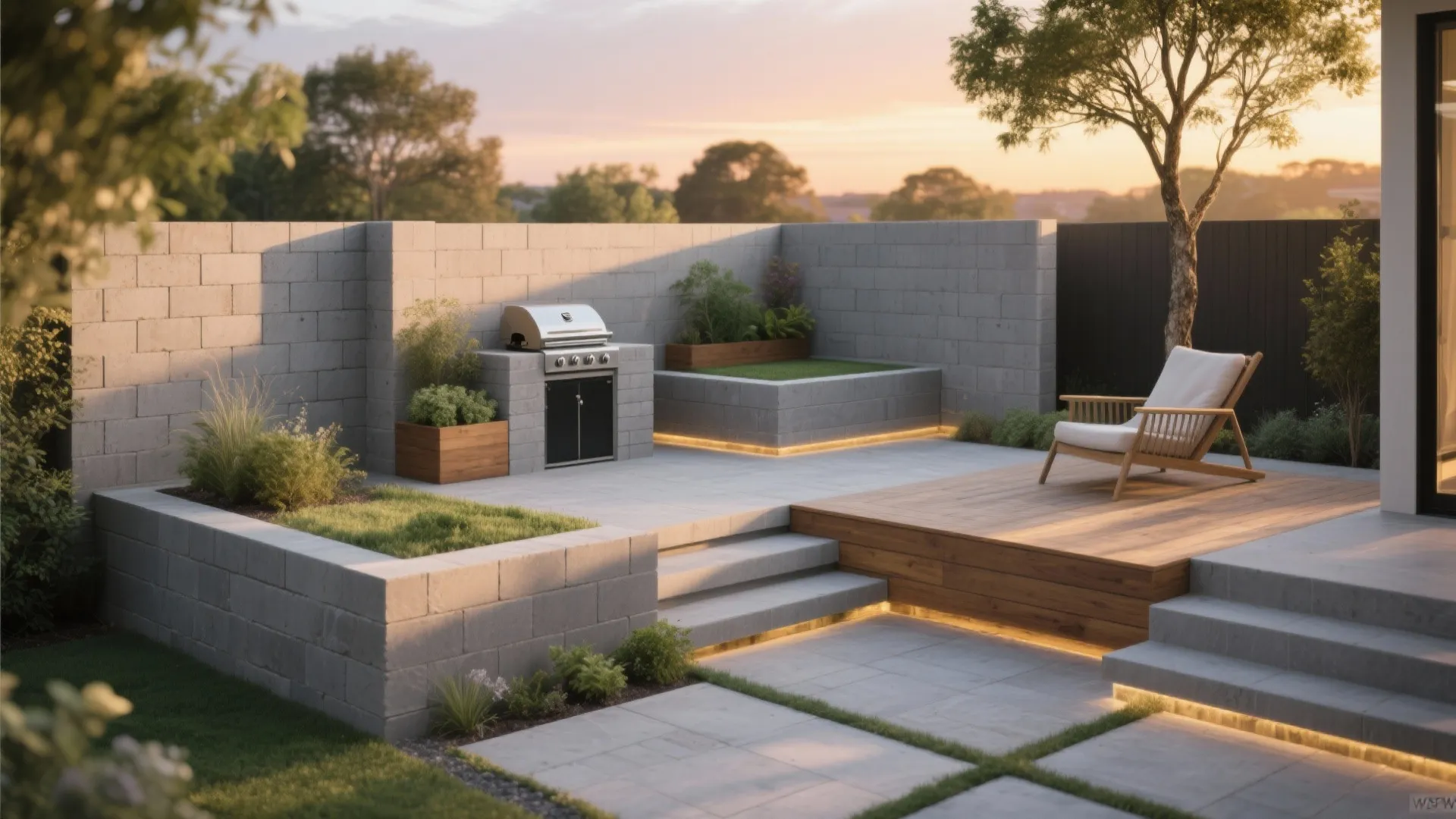

Short, Battered Modules: Terracing for Small Spaces

My Take: In pocket yards, I aim for several short walls (under 1.2 m) with a slight batter (face leaning into the soil). Each terrace doubles as a micro-zone—one for grilling, one for planters, one for a reading chair under a light tree. Small spaces love that rhythm.

Pros: Terracing with battered faces increases stability by aligning the wall’s mass with the pressure vector. It also reduces the need for geogrid reinforcement in short runs, simplifying segmental block wall construction steps. Long-tail payoff: tiered retaining wall landscaping improves drainage because each terrace breaks up sheet flow.

Cons: Terraces do add stairs—great for cardio, less so for accessibility. Mowing becomes more choreography than straight lines. If you don’t balance platform sizes, you’ll end up with tiers that look good on plan but feel too tight for actual furniture.

Tips / Case: I layout platforms as “use circles”: 1.8 m for a café table, 2.1–2.4 m for lounge chairs. Consider a modest shade element and planting that frames views; in one project, pergola-shaded seating integrated with terraced planting turned a steep corner into the client’s favorite morning spot.

save pin

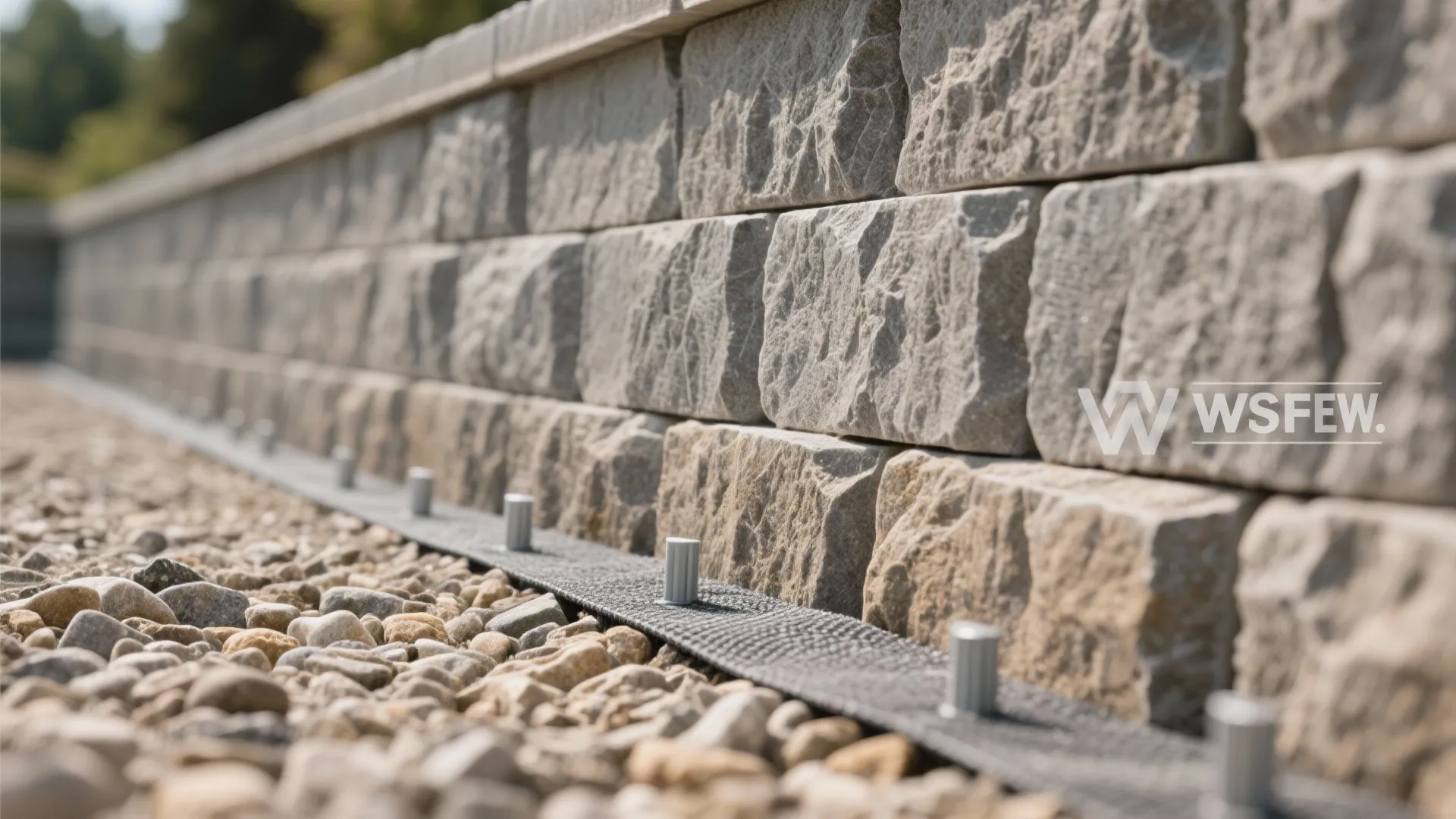

Smart Bases and Setbacks: The Details that Keep Walls Put

My Take: Details make or break gravity walls. I obsess over base embedment (burying the first course), leveling pads, and a consistent setback per course. Those millimeter-level habits turn a weekend project into something you trust for years.

Pros: A compacted gravel base and proper base thickness reduce differential settlement—critical in small yards with variable soils. Regular setbacks (say, 6–12 mm per course depending on the system) give a stable battered profile. IBC guidance (Section 1807.2) and NCMA best practices stress base preparation and embedment depth; following standards helps pass permits and avoid call-backs.

Cons: Precision is time-consuming; laser levels and patience are non-negotiable. If you’re prone to “close enough,” gravity will disagree. Getting the first course dead flat can feel like a slow start, but it’s cheaper than re-building Course #8 later.

Tips / Cost: For DIYers, rent a plate compactor and use well-graded aggregate for the base; soft sands alone won’t cut it. Expect overall costs to vary widely—materials, site access, and drainage: I’ve seen simple short walls land in the low range, while taller or curving walls stretch budgets. Anything approaching or exceeding 1.2 m height often needs a licensed engineer and may require geogrid layers and inspections.

[Section: 总结]

Small kitchens taught me that constraints are invitations to design smarter—and the same is true here: a compact yard doesn’t limit you; gravity retaining wall design just asks for clarity in mass, drainage, and detail. When you plan terraces as micro-rooms, pick the right texture, and sweat the base prep, a once-steep slope becomes a calm, usable place. I keep a thumb on standards (NCMA, FHWA, IBC) because they’re practical roadmaps, not hurdles. Which of these five ideas will you try first in your own yard?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is gravity retaining wall design?

It’s a wall system that resists soil pressure primarily through its own weight and geometry (often with a battered face). In small yards, gravity systems are popular because they can be built with segmental blocks or stone without full-height reinforcement.

2) How tall can I build a gravity wall without geogrid?

Common segmental systems allow short walls (often under about 1–1.2 m) without geogrid, depending on block design, batter, and site conditions. Always check the manufacturer’s tables and local code; taller walls typically require engineered design and reinforcement.

3) Do I need permits for a small yard retaining wall?

Many jurisdictions require permits for walls above a certain height (often around 1 m) or near property lines. If your gravity retaining wall design includes terraces, stairs, or drainage outlets, call your local building department early.

4) What are the most important drainage steps?

Use clean gravel backfill, a perforated drain at the base, and filter fabric to keep fines out. As FHWA NHI-10-024 notes, controlling water behind the wall is essential for long-term performance and to reduce hydrostatic pressure.

5) Which materials are best for small spaces?

Split-face CMU offers a contemporary texture and modular simplicity. Natural stone brings character and higher mass per unit, while segmental retaining wall blocks provide consistent sizing for clean terraces.

6) How do I plan terraces that feel usable, not cramped?

Think in “use circles” and furniture footprints—give each platform a clear function. Combine plantable pockets with comfortable seating zones so your gravity retaining wall design does double duty.

7) What base preparation should I prioritize?

Excavate to a stable subgrade, lay a well-compacted gravel base, and ensure the first course is perfectly level. Embed the first row slightly below grade to resist sliding and frost heave.

8) How much does a small gravity wall cost?

Costs vary with material, site access, height, curves, and drainage components. Short, straight runs are more budget-friendly; tall or curving walls with engineered details increase labor and materials.
