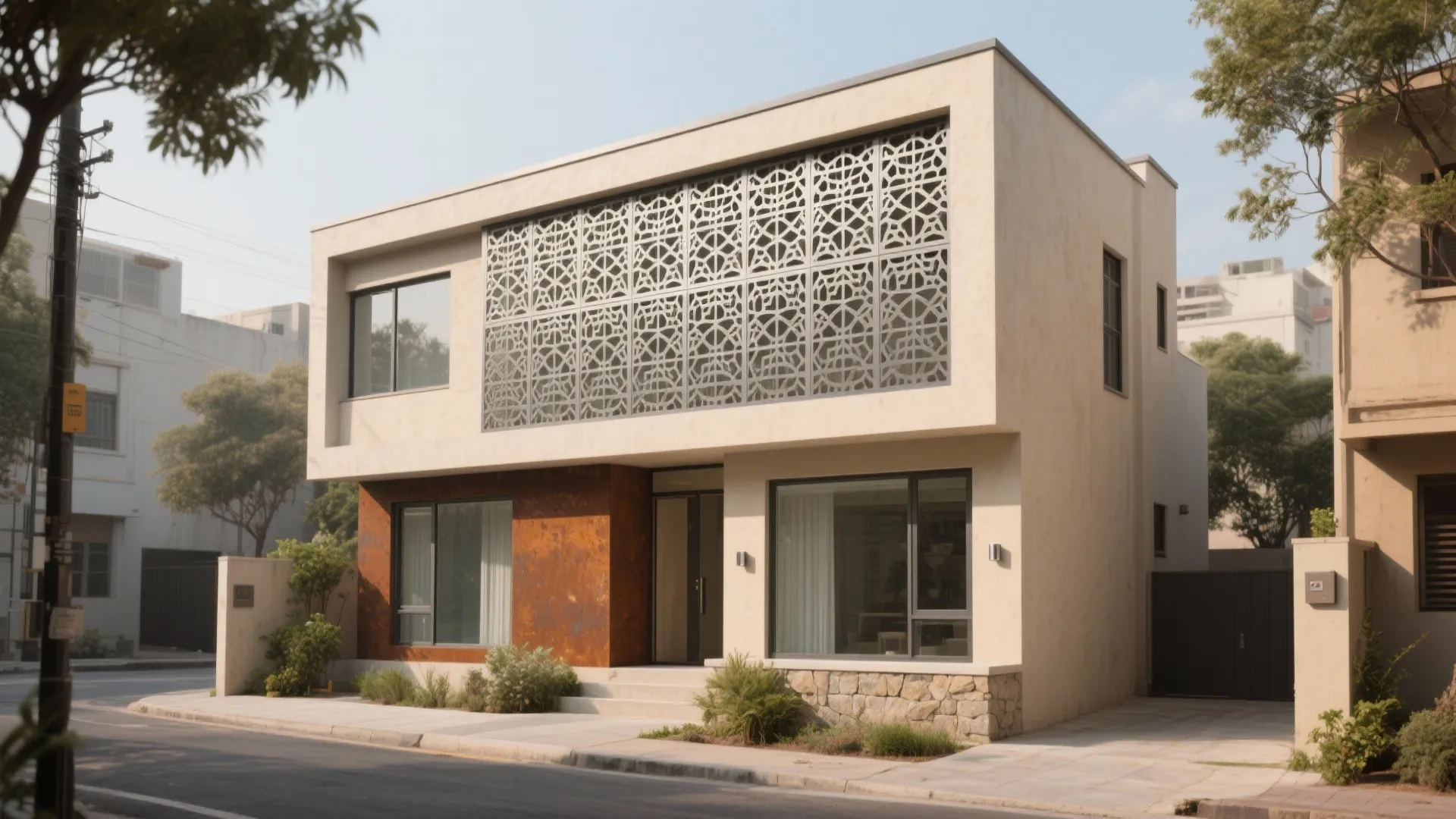

5 Ideas: Jali Design for Exterior Wall: A senior designer’s small-space friendly ways to use jali on façades—balanced light, airflow, privacy, and character without blowing the budget.

A client once asked me for a cat-themed jali across his entire façade—every opening a feline silhouette. I loved the whimsy, but the scale went wild; from the street it looked like a comic strip. I sketched it out, then ran fast 3D mockups to show how the pattern reads at 5, 15, and 30 meters. Lesson learned: jali is powerful, but it needs the right rhythm to sing.

That brings me to today’s topic: jali design for exterior walls. In small homes and tight plots, a jali can do the work of shade, privacy, and ventilation all at once. Small spaces really do spark big ideas, and I’m sharing five inspirations I use in real projects.

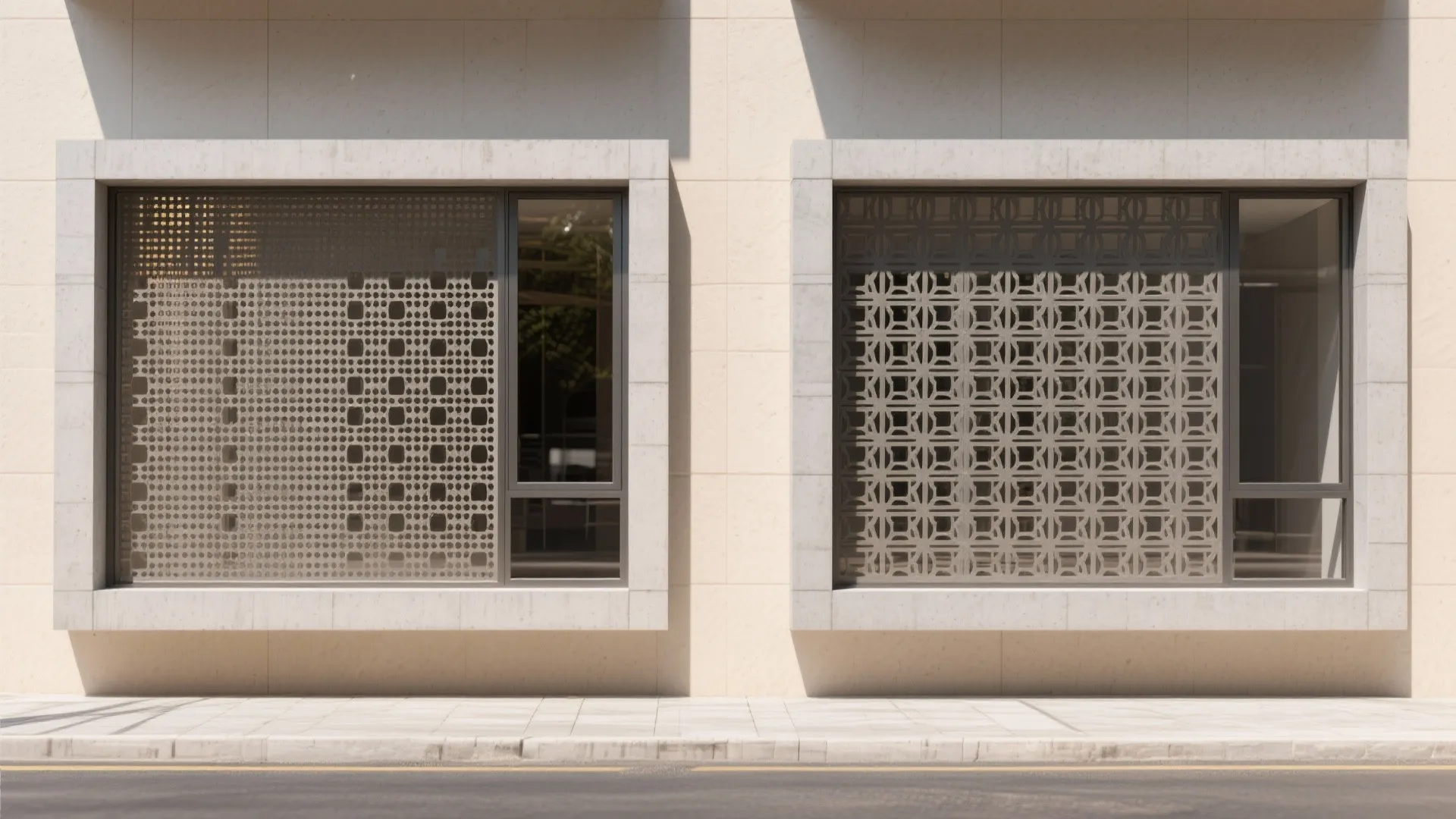

Tune the perforation to your sun and privacy

I start by matching open-area percentage to orientation and street context. South/west façades with harsh sun often do best around 20–35% openness; shaded or breezier sides can go up to 40–55% for airflow.

Denser patterns soften glare and protect privacy, but they can trap dust or feel heavy if overdone. I test a few densities and scale the motifs so the façade reads coherent from the street and delightful up close.

save pin

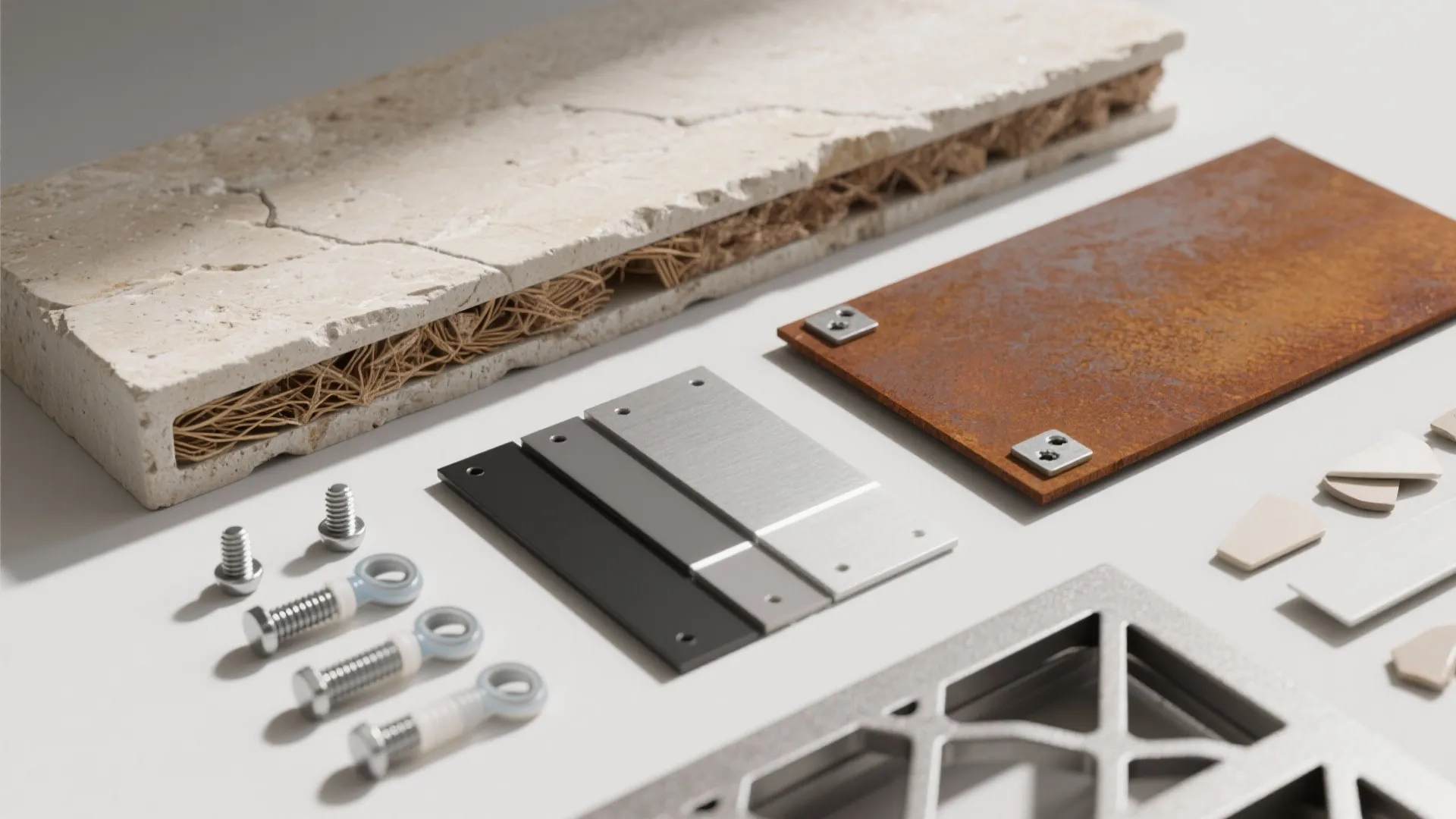

Choose the right material for your climate

Stone or precast concrete looks timeless and ages gracefully; great where heat is an issue and you want thermal mass. GRC (glass-reinforced concrete) gives slim profiles with good strength. Aluminum or Corten steel is light and crisp—perfect when you need fine geometry—but mind corrosion near coasts.

Powder-coated aluminum with marine-grade fasteners works nicely for salty air. If you’re exploring motifs before fabrication, try AI-assisted pattern exploration to quickly iterate scale and density without committing to a mold.

save pin

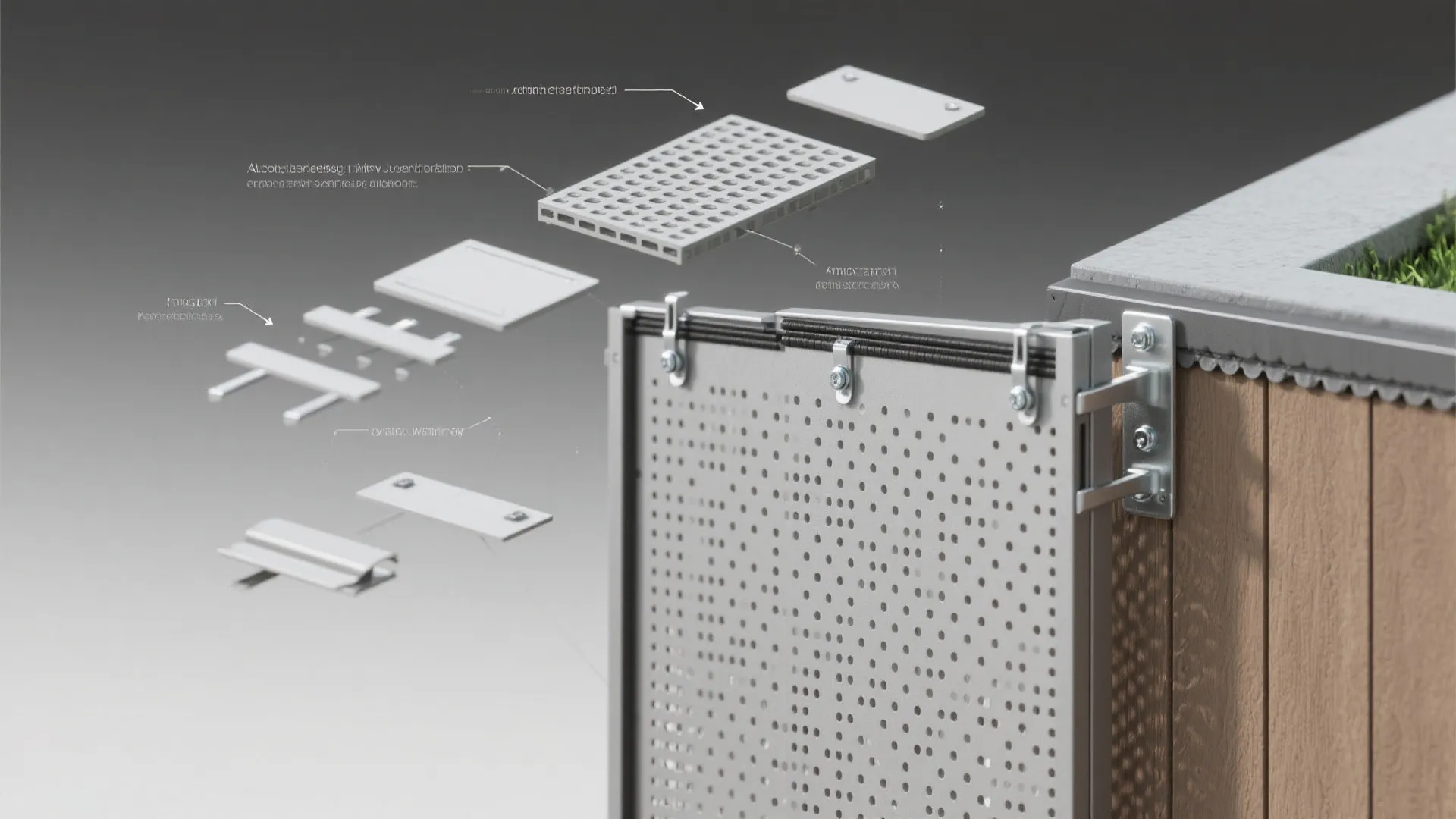

Think in modules for easy install and upkeep

I prefer panelized jali—repeatable modules that clip to a concealed frame. It speeds installation, reduces waste, and makes future repairs less painful. Removable panels near gardens or busy roads let you clean pollen and dust without a circus act.

Detail a drip edge and a tiny stand-off from the wall so rain and grime don’t streak the plaster. A simple gasket or silicone bed reduces rattle and keeps things quiet in wind.

save pin

Layer it: double-skin jali for comfort

A jali plus a recessed glazing layer creates a breathing façade: shade on the outside, controlled weather on the inside. Offset two patterns slightly and you get a gentle moiré effect that moves as you walk—subtle drama without neon lights.

It adds depth to a small elevation and calms heat gain, but mind maintenance access between layers. Plan a slim service gap and hinge a few panels for cleaning.

save pin

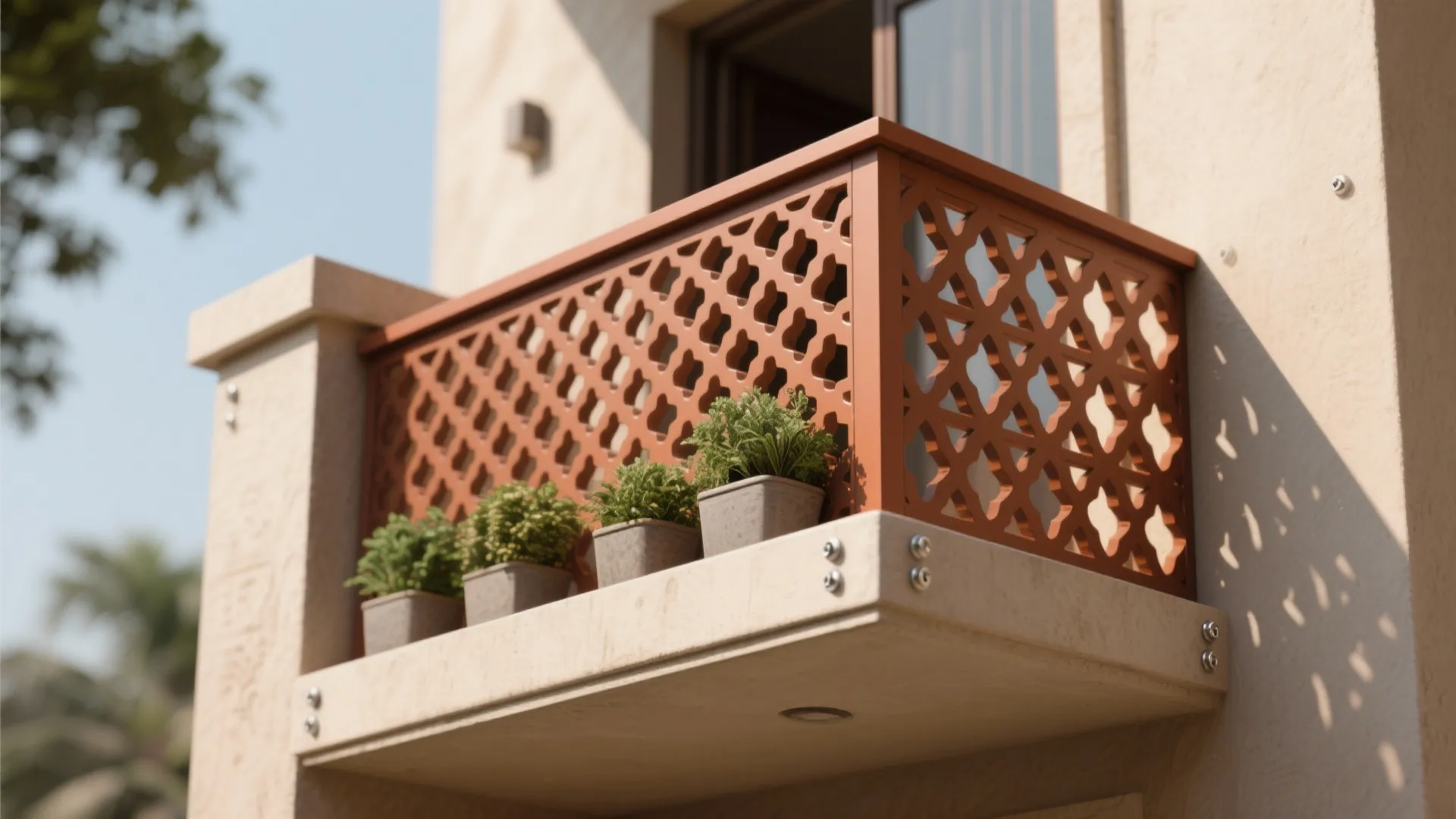

Go local with patterns, go modern with geometry

I love mixing a regional motif (say, a lattice inspired by local crafts) with parametric spacing so it performs better. Keep motif size consistent at eye level, then enlarge toward the parapet so the façade reads balanced from afar.

Use color intentionally—deep earthy tones hide dust, lighter hues bounce daylight. If your jali wraps a tiny balcony or pocket court, sketch the balcony and courtyard layout alongside the screen so circulation, planters, and seating align with the openings.

save pin

FAQ

1) What is jali design for exterior wall?

It’s a perforated screen integrated into the façade to manage light, privacy, and ventilation. Think of it as a breathable layer that can also carry ornament and local identity.

2) Which materials work best for exterior jali?

Stone, precast concrete, GRC, aluminum, and weathering steel are common. Choose based on climate: metal with marine-grade finishes near coasts; stone or concrete where durability and thermal mass matter.

3) How do I balance privacy and airflow?

Match openness to context: 20–35% open area for busy streets or strong sun, 40–55% where you want breezier ventilation. Scale the pattern so it blocks direct sight lines at eye level but allows diagonal airflow.

4) Does jali reduce heat and glare?

Yes—properly oriented and dense enough, it acts like a brise-soleil, cutting direct solar gain and diffusing light. You’ll still want glazing behind it if you need full weather protection.

5) Is a jali safe for balconies or upper floors?

If the jali functions as a guard, follow code rules on height and opening size. The International Building Code (IBC 2021, Section 1015.4) requires that a 4-inch (102 mm) sphere not pass through guard openings; cite your local code for exact compliance.

6) Can jali work in coastal areas?

Absolutely—use powder-coated aluminum with stainless (316) fixings or well-detailed GRC. Avoid untreated mild steel and ensure drainage to prevent salt buildup.

7) How do I maintain an exterior jali?

Dust and pollen can accumulate; design for access and plan a gentle wash every quarter. Inspect fasteners annually, touch up coatings as needed, and keep vegetation trimmed to prevent staining.

8) What does a jali façade cost?

Material and complexity drive costs. As a ballpark, modular aluminum or GRC panels can range widely by region; simple repeats are far cheaper than bespoke freeform geometries. Prototype a section to refine budget before full fabrication.
