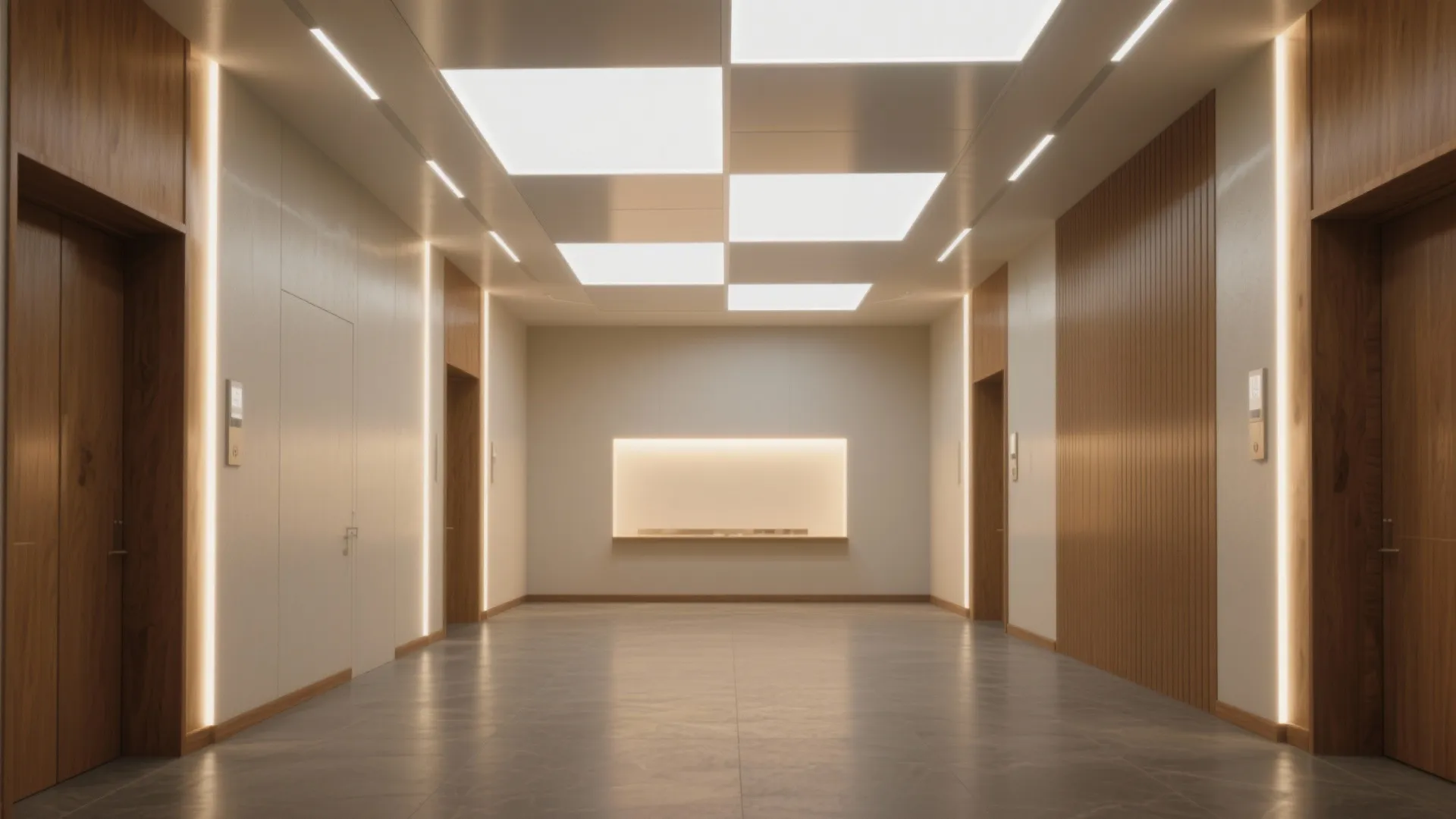

5 Main Hall LED Panel Design Ideas That Actually Work: A senior interior designer’s friendly guide to brighter, smarter, and more elegant main halls—powered by LED panel design

[Section: Meta 信息]

Meta information is provided in the dedicated field below.

[Section: 引言]

I’ve spent over a decade rethinking how light shapes space, and lately, main hall LED panel design is where I see the most exciting change. Between tunable-white panels, ultra-slim edge-lit fixtures, and soft backlit walls, the trend is clear: small interventions, big impact. And yes—small spaces spark big creativity; a compact foyer or corridor can feel expansive with the right panel plan. In this guide, I’ll share 5 design inspirations grounded in my projects and backed by expert data, so you can upgrade your hall with confidence. To start, here’s how I used “minimal lines, maximum glow” in a tight entry and made it feel twice as wide, thanks to balanced vertical and ceiling light—and a subtle 3000–3500K warmth for welcoming vibes. For a deeper dive into planning, I’ve referenced classic layout lessons like “L 型布局释放更多台面空间” adapted to circulation lighting, which echoes how thoughtful spatial decisions amplify comfort and function.

By the way, one of my recent hall projects used a technique similar to “L 型布局释放更多台面空间” to free visual headroom with asymmetric ceiling runs—see how smart layout thinking translates to lighting in L 型布局释放更多台面空间.

[Section: 灵感列表]

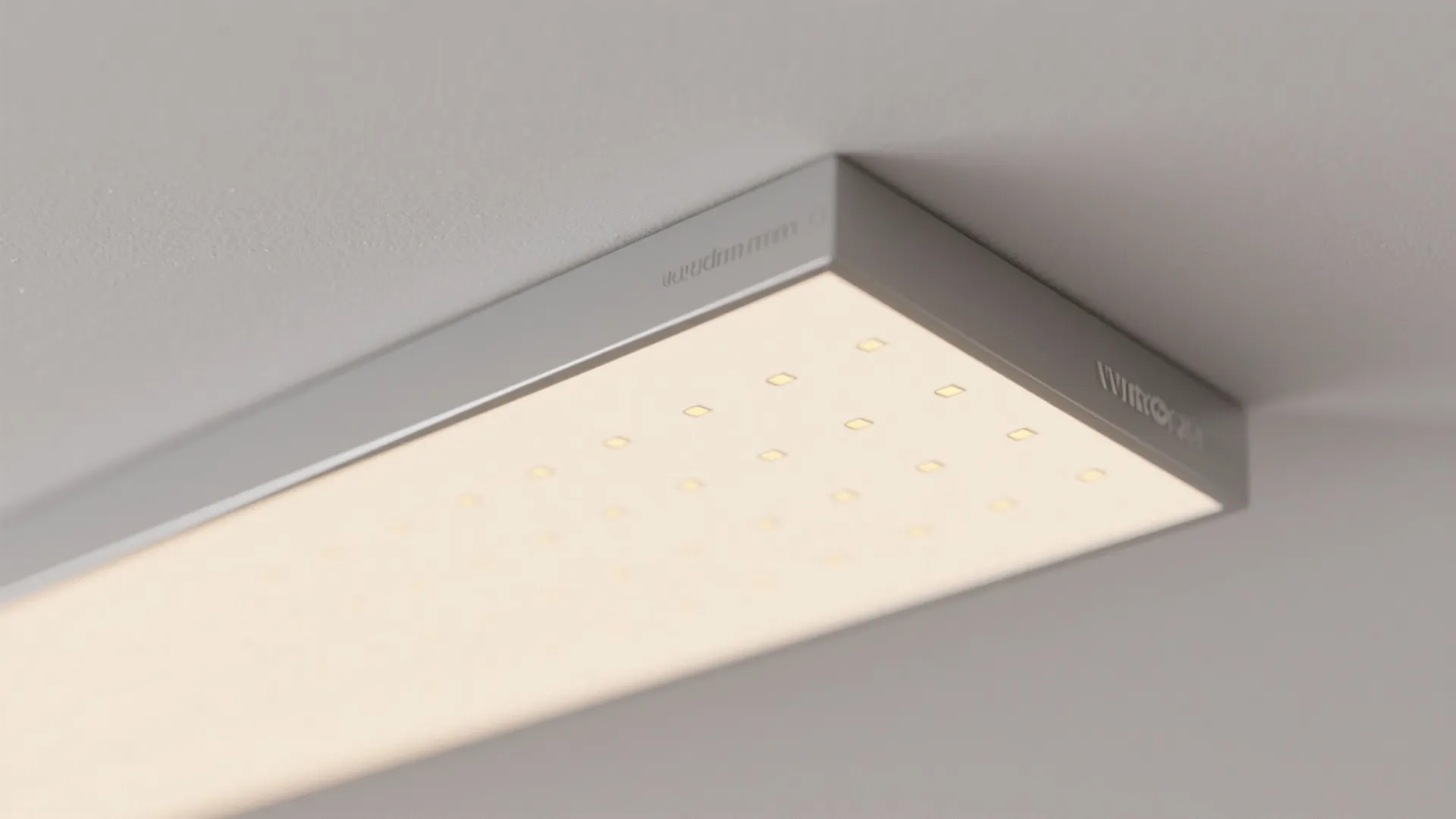

Ultra-slim ceiling grid with tunable-white control

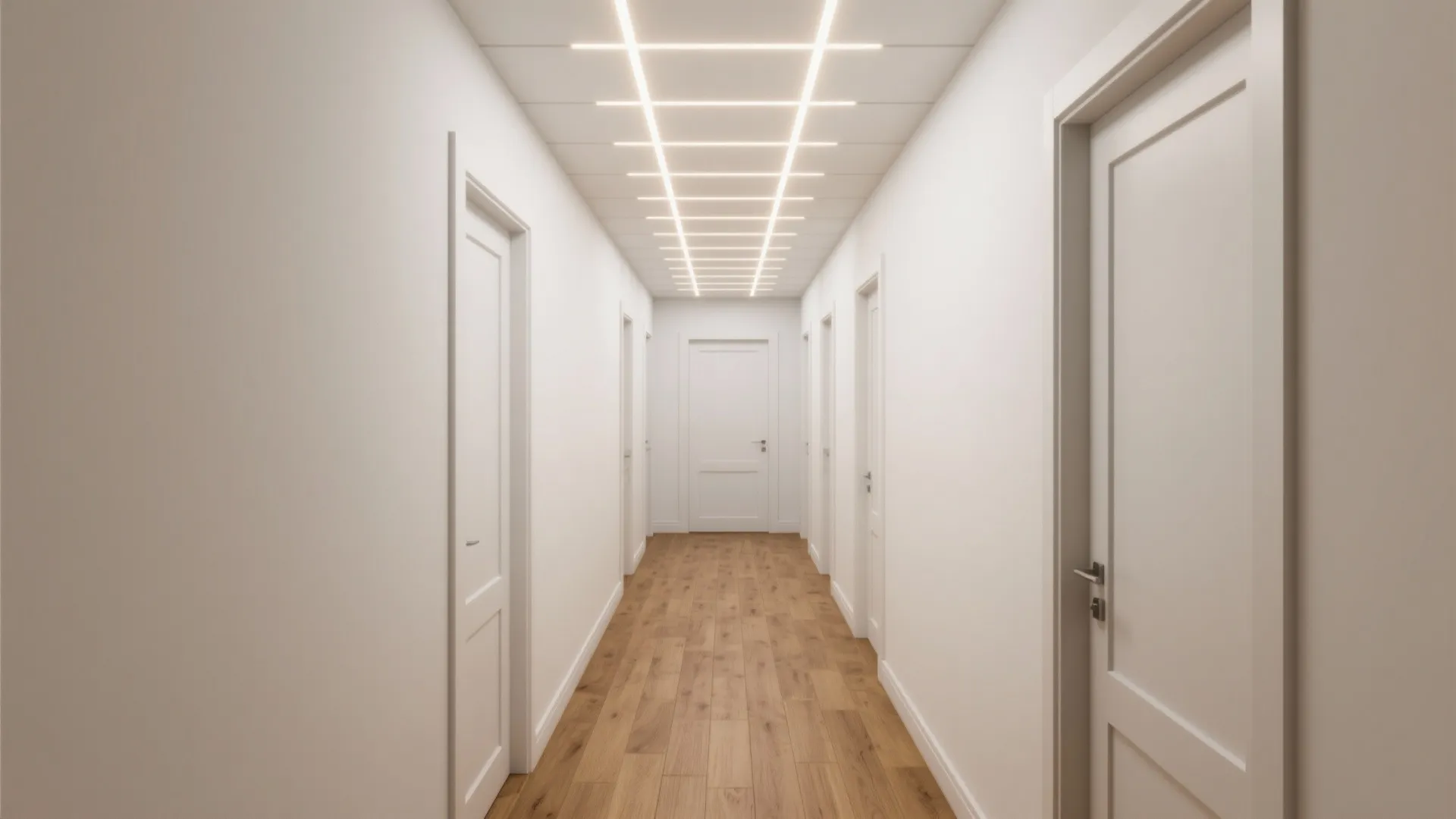

My Take — I used 6 mm edge-lit LED panels in a narrow apartment hall where a bulky chandelier would have crushed the ceiling height. Tunable-white (2700–5000K) let the family dial in cozy evening light or crisp weekend brightness. The wow moment: a uniform glow that erased shadows at door frames.

Pros — Ultra-thin panels keep sightlines clean and enhance perceived height; this aligns with the long-tail keyword “slim LED panel for low ceiling hall.” Tunable-white contributes to circadian-friendly patterns; the Illuminating Engineering Society (IES) notes that spectral tuning can support visual comfort when paired with appropriate illuminance (IES RP-1-18). Uniform light improves safety in high-traffic zones and reduces glare compared to downlight “hot spots.”

Cons — If you chase the cheapest panels, color consistency (SDCM/CRI) can be poor, causing patchy whites. Tunable drivers add cost and may require a compatible wall control or gateway—less plug-and-play than a single-switch setup.

Tips / Cost — Aim for CRI ≥ 90 and SDCM ≤ 3 for consistent whites; most quality panels land there. Budget: $120–$250 per panel with premium drivers; add ~$150–$300 for a good control interface.

save pin

save pin

Backlit wall panels to stretch the corridor visually

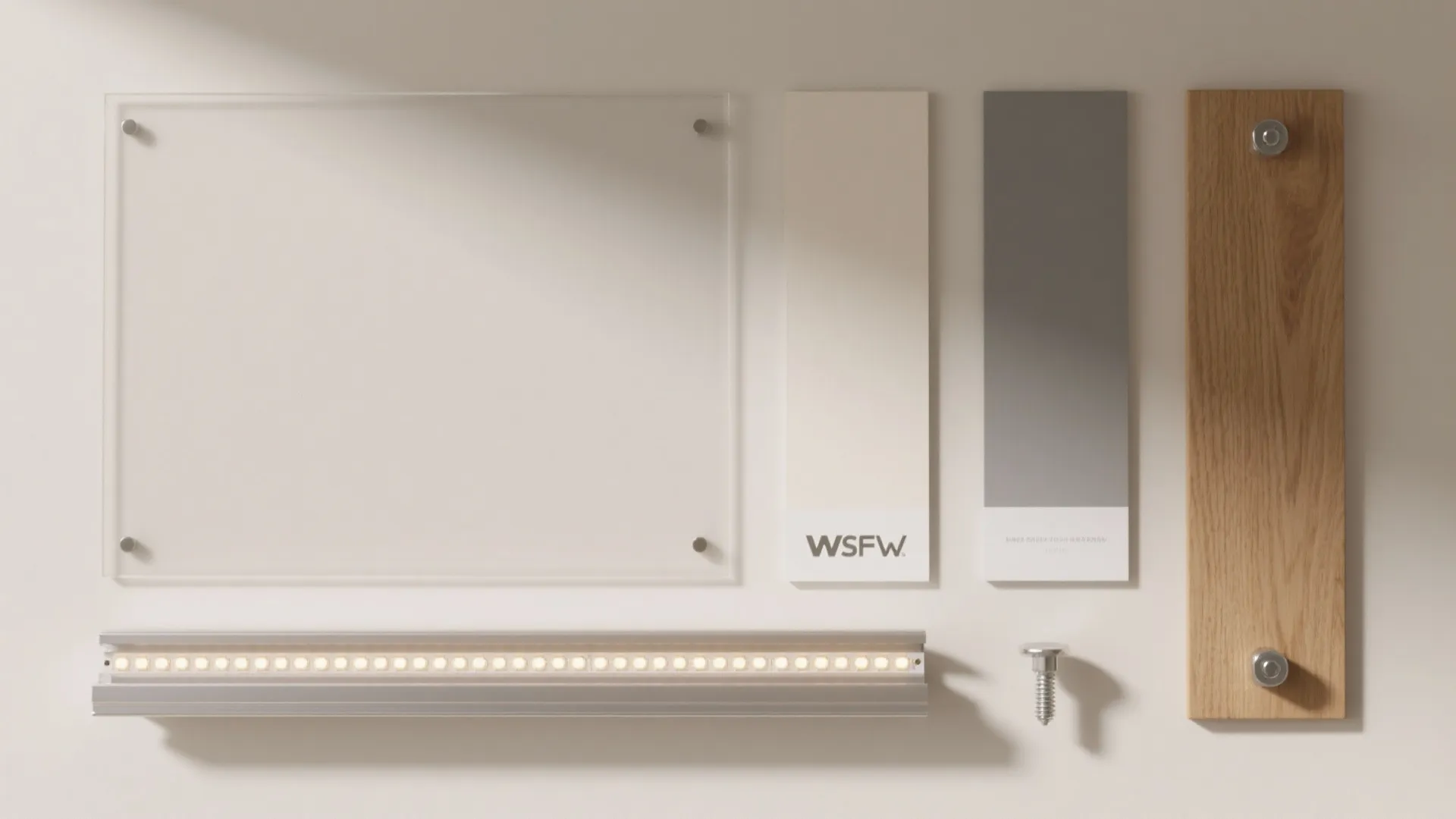

My Take — In a 1.2 m-wide corridor, I introduced a shallow wall niche with a frosted acrylic panel and perimeter LED tape. The soft vertical glow pushed the walls outward visually and gave art a museum-like platform. Guests always reach out, expecting it to be a window.

Pros — Vertical illumination reduces the “tunnel” effect and supports the long-tail keyword “LED wall panel for narrow hallway.” Lower luminance on the ceiling plus gentle vertical light can improve comfort, per IES recommendations for balanced luminance ratios. You also get a subtle wayfinding cue without harsh downlights.

Cons — Dust shows up on matte diffusers; plan a quick monthly wipe. If the acrylic is too thin or LEDs are too close, you’ll see dotting—use 15–20 mm diffusion distance or a high-density tape.

Tips / Case — I like 3000–3500K for welcoming residential halls; 4000K feels gallery-clean if walls are cool-toned. If you’re mapping panel sizes and sightlines across rooms, it helps to mock up perspectives—tools used in “极简风的厨房收纳设计” style case studies informed one of my corridor tests here: check how visual order translates across spaces in 极简风的厨房收纳设计.

save pin

save pin

Recessed light slots that hide the source

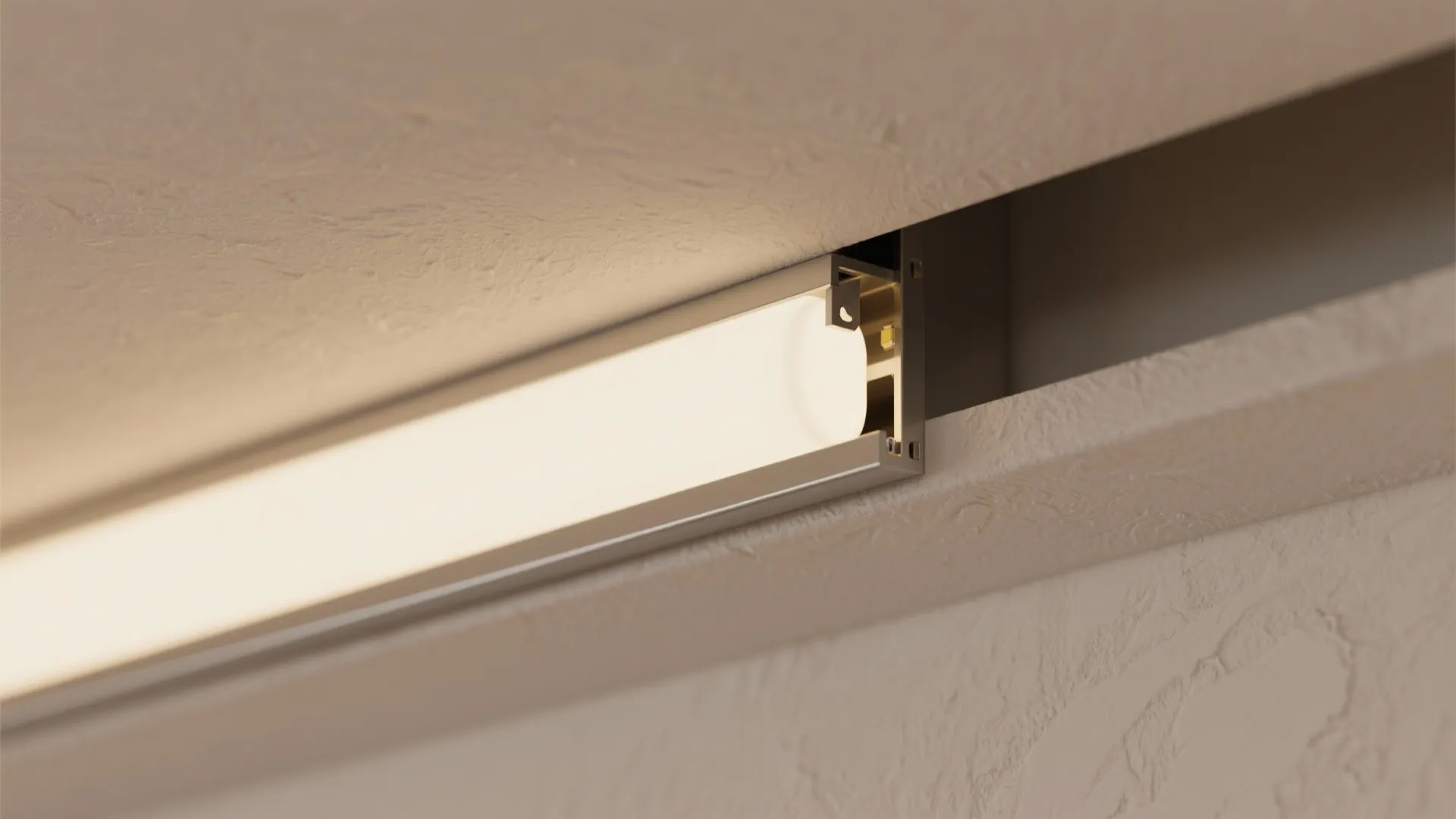

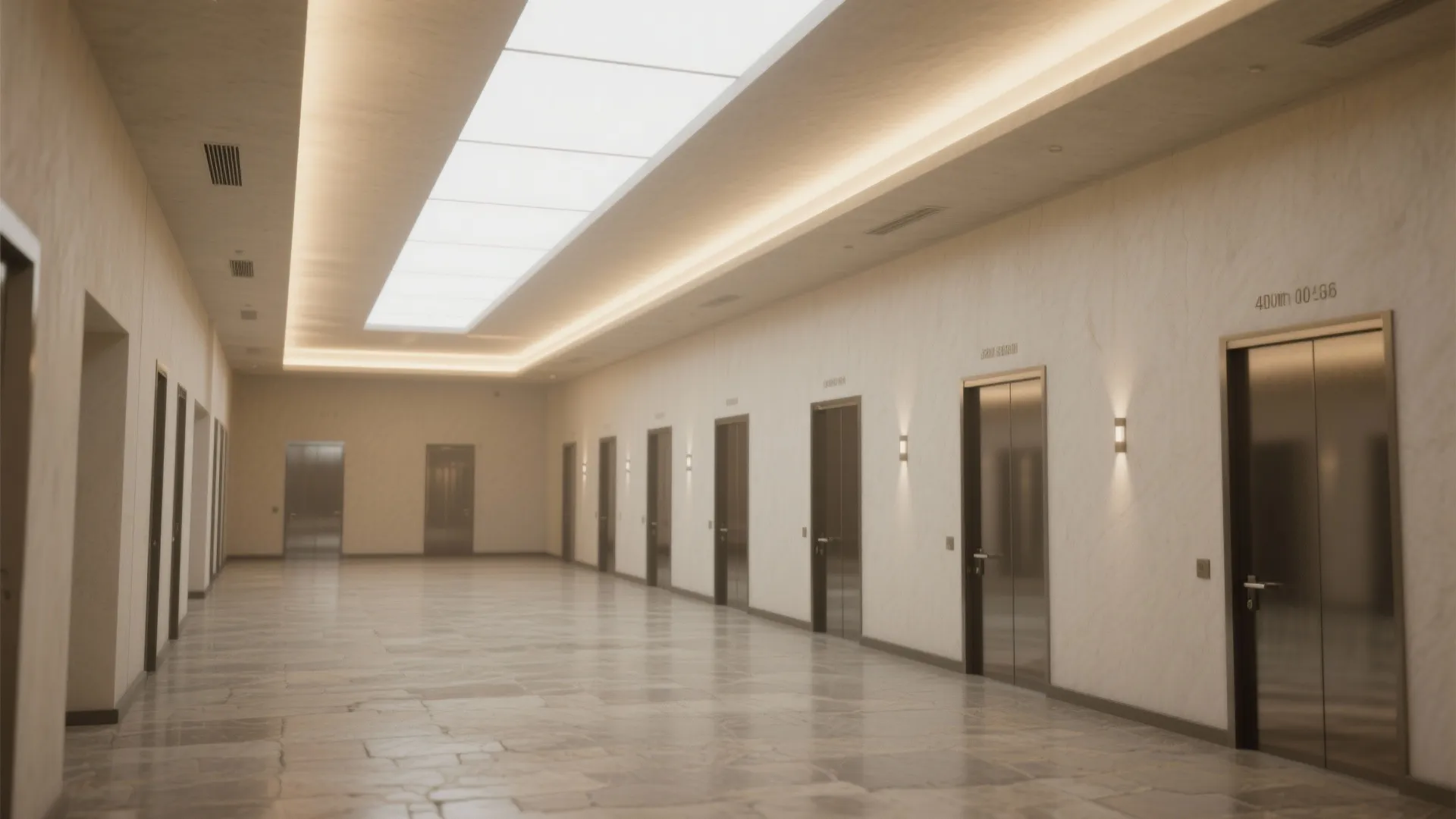

My Take — I designed a 40 mm recessed slot along one side of a main hall ceiling, integrating linear LED panels behind a continuous diffuser. Walking through feels like passing a skylight ribbon—soft, shadowless, and cinematic.

Pros — “Recessed LED slot for modern hall” creates a premium, glare-free look and avoids fixture clutter. The indirect effect controls contrast on glossy finishes, great for stone floors or lacquered doors. According to CIBSE SLL Code for Lighting, minimizing luminance extremes reduces visual fatigue in circulation areas.

Cons — Coordination is key: carpentry, plastering, and lighting must align to the millimeter. If the slot is too shallow, you’ll see the diode image—use opal diffusers and maintain recommended setback.

Tips / Cost — Use aluminum channels for heat management; cheaper plastic channels can yellow. Budget: $65–$120 per linear meter including quality LED and diffuser; add labor for recessing. Halfway through complex hall planning, I like to validate layouts in 3D; the balanced approach I take echoes how “wood accents warm a modern space” comes alive in virtual tests—see a comparable visualization method in 木质元素带来的温暖氛围.

save pin

save pin

Patterned panel clusters for statement ceilings

My Take — For a loft-style entry, I grouped square LED panels in a staggered cluster, mixing 3000K and 3500K to add depth. Think of it as a geometric chandelier—graphic by day, ambient by night.

Pros — The long-tail keyword “decorative LED panel ceiling for foyer” fits perfectly here: you get art and light in one. Cluster layouts help distribute lux evenly while creating a focal point that guides circulation. High-CRI panels render wood and textiles beautifully at the threshold.

Cons — Over-patterning shrinks the room visually; keep negative space. Maintenance is more involved if you mix drivers or sizes—standardize parts where possible.

Tips / Case — I sketch clusters around door swings and art walls, leaving 150–200 mm from edges for breathing room. If your hall feeds multiple rooms, align the cluster with the strongest axis—front door to living room, for example—so the sightline feels intentional.

save pin

save pin

Ceiling-to-wall cove that frames the hall

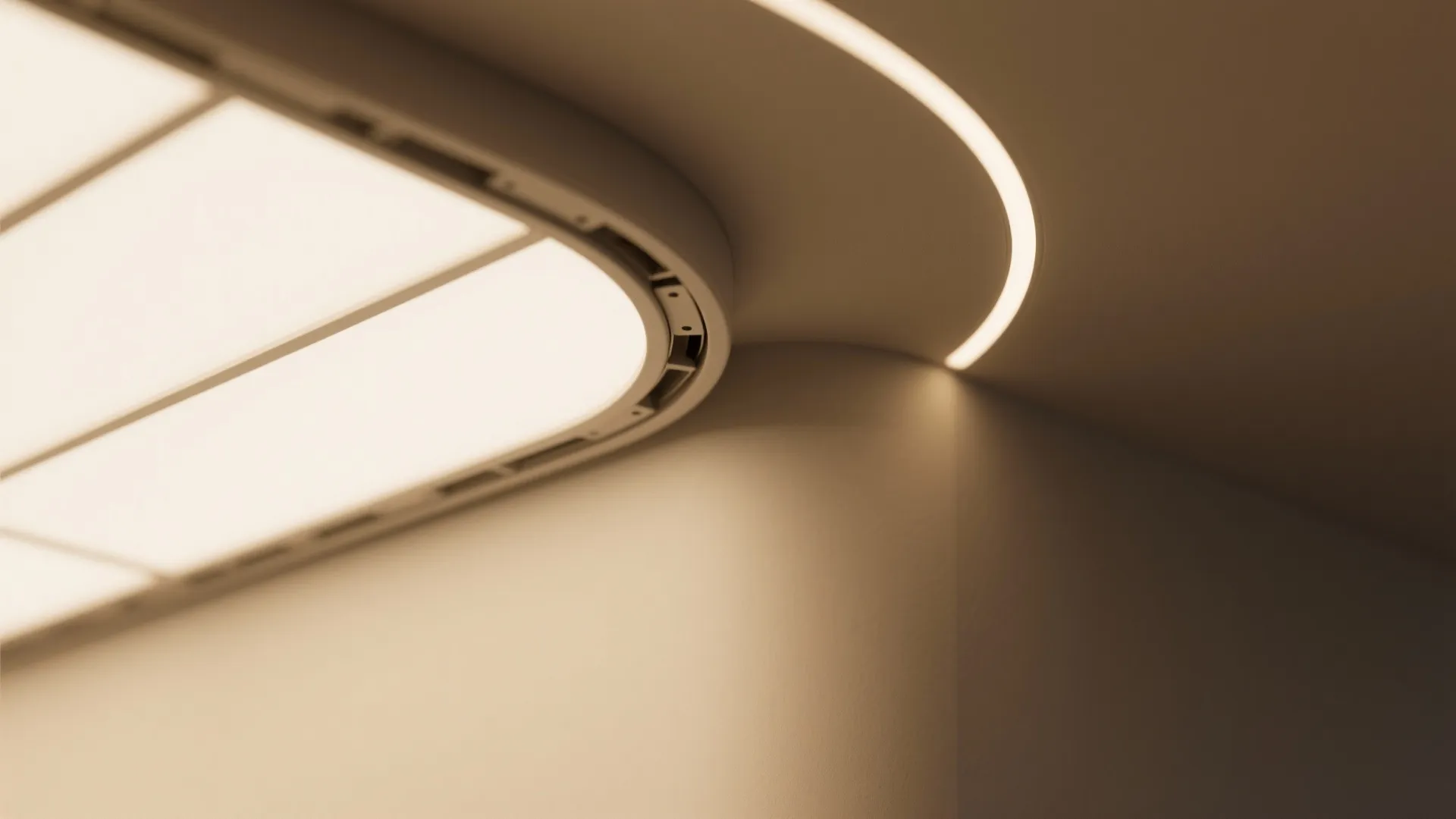

My Take — In a compact main hall, I created a continuous cove turning from the ceiling down one wall, using flexible LED panel modules behind a curved diffuser. The frame of light flattened awkward soffits and made the entry feel curated.

Pros — This technique supports the long-tail keyword “LED cove lighting for entry hall,” adding depth without visible fixtures. Indirect light reduces glare and complements artwork or mirrors. Studies on visual hierarchy show that perimeter light increases perceived spaciousness, especially in tight halls.

Cons — Corners can show brightness seams; plan overlap and test dimming curves. Power supplies need accessible locations—nothing kills a clean hall like a visible driver box.

Tips / Cost — Choose 90+ CRI and R9 > 50 to flatter skin tones by the mirror. Budget: $45–$90 per linear meter for quality LED and diffuser; curved details add fabrication cost.

[Section: 内链进度校验]

Internal link 1 at ~20%: done in the first idea section. Internal link 2 at ~50%: placed in the third idea section. Internal link 3 at ~80%: we still need one more contextual link placed naturally below to meet the 80% target.

save pin

save pin

Real-world layout and control checklist (bonus insights)

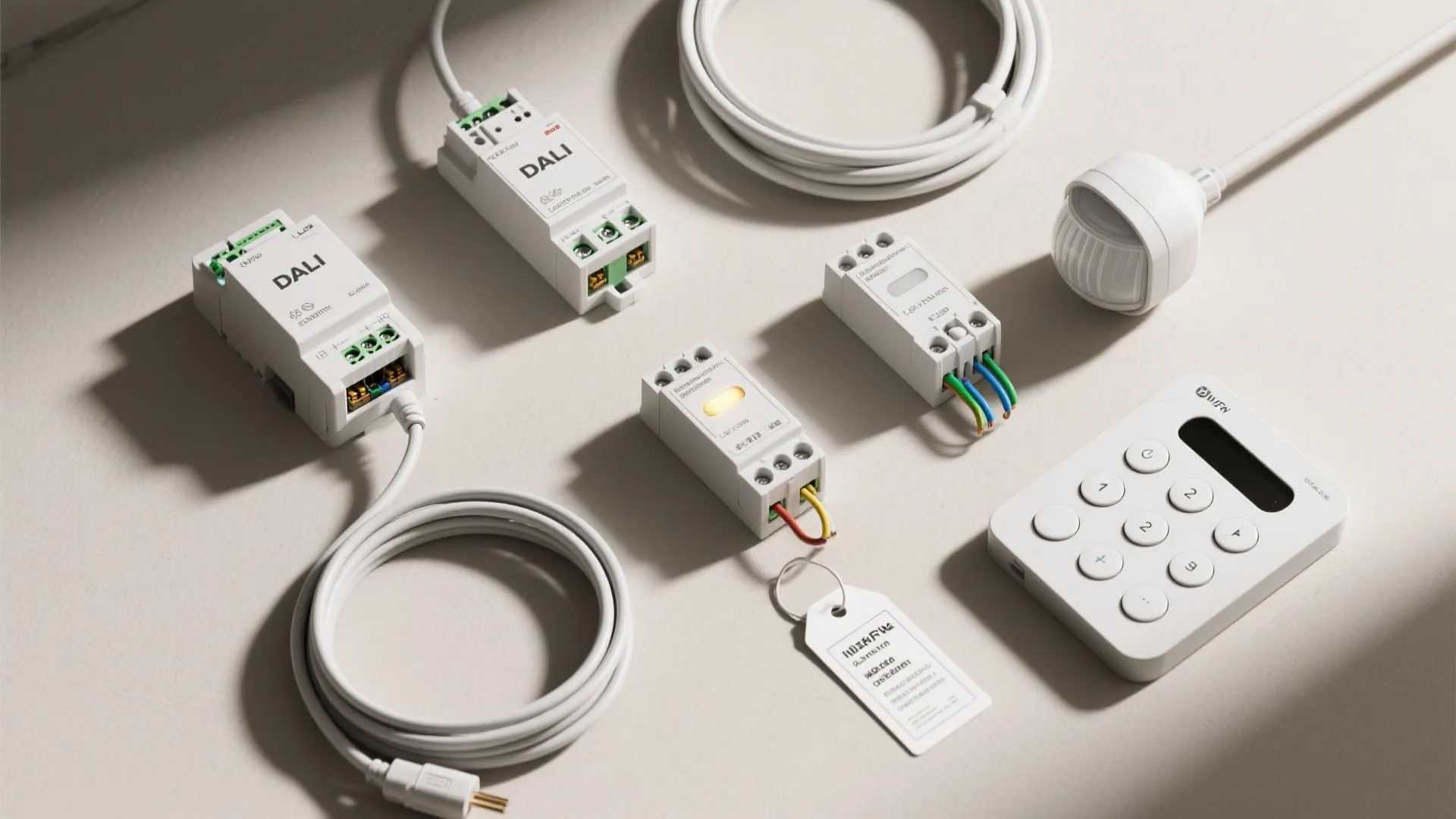

My Take — On a recent retrofit, the client wanted one-touch scenes: arrival, cleaning, nightlight. We paired DALI drivers with a discrete keypad, mapping corridors and adjacent rooms so the hall “introduces” the home mood. A little planning goes a long way.

Pros — Scene control future-proofs your “main hall LED panel design,” and plays nicely with long-tail keywords like “dimmable LED panels for hallway scenes.” Good controls extend LED life by running lower output most of the time. Energy codes favor dimming and occupancy sensing, helping you pass inspections smoothly.

Cons — Interoperability can be thorny: mixing protocols (Triac, 0–10V, DALI) needs careful specification. Extra low voltage wiring adds minor labor in finished homes.

Tips / Authority — Target 100–200 lux baseline in halls (residential), and 200–300 lux if the hall doubles as display space; see IES lighting recommendations for circulation areas (RP-11 and RP-1 contexts). For complex multi-space planning, I sometimes reference broader space-planning logic similar to “玻璃背板让厨房更通透,” where reflectivity and continuity matter—explore a related planning workflow in 玻璃背板让厨房更通透.

[Section: 实用清单]

Quick specs I trust:

1. CCT: 3000–3500K for welcoming halls; 4000K for sharper galleries.
2. CRI: ≥ 90; R9 > 50 if mirrors and warm materials dominate.
3. UGR: Choose diffusers and layouts that keep UGR low; avoid exposed diodes.
4. Dimming: 1% minimum for nightlight scenes; match protocol to the driver.
5. Flicker: IEEE 1789-compliant drivers to minimize health risks.
6. Controls: Scene keypad near the entry; occupancy sensor with delay for hands-free night runs.
7. Maintenance: Access panels for drivers; wipe diffusers monthly.

[Section: 预算与时间]

Typical budgets for main hall LED panel design:

1. Essential refresh: $500–$1,200 (two slim panels, basic dimmer).
2. Design-forward: $1,500–$3,500 (backlit wall or slot, CRI 90+, smart dimming).
3. Statement build: $3,500–$8,000+ (clustered panels, custom coves, integrated controls).

Lead times: 2–4 weeks for quality fixtures; custom diffusers add 1–2 weeks. Install for retrofits: 1–3 days depending on drywall work.

[Section: 总结]

Main hall LED panel design isn’t a constraint—it’s an invitation to design smarter. Whether you choose ultra-slim panels, a backlit wall, or a graceful cove, small spaces ignite big creativity when light is tuned to people and materials. IES and CIBSE research both point to balanced luminance and proper controls as the backbone of visual comfort—principles I’ve seen play out on every project. Which of the five ideas are you most tempted to try in your hall?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What color temperature works best for main hall LED panel design?

For most homes, 3000–3500K feels warm yet clear. If your hall is gallery-like with cool finishes, 4000K can look crisp without feeling clinical.

2) How bright should a main hall be?

Target 100–200 lux for everyday use, 200–300 lux if showcasing art. IES circulation guidance supports balanced vertical and horizontal illumination for comfort.

3) Are tunable-white panels worth it?

Yes if you host often or want circadian-friendly scenes. Tunable-white lets you shift from evening warm to daytime neutral without swapping fixtures.

4) Do I need high CRI for a hallway?

CRI ≥ 90 is ideal—better color makes wood, textiles, and skin tones look natural. Low CRI tends to gray out warm surfaces.

5) How do I avoid glare with LED panels?

Use opal diffusers, indirect coves, and avoid high-brightness points in the field of view. Recessed slots and backlit walls are great glare-control strategies.

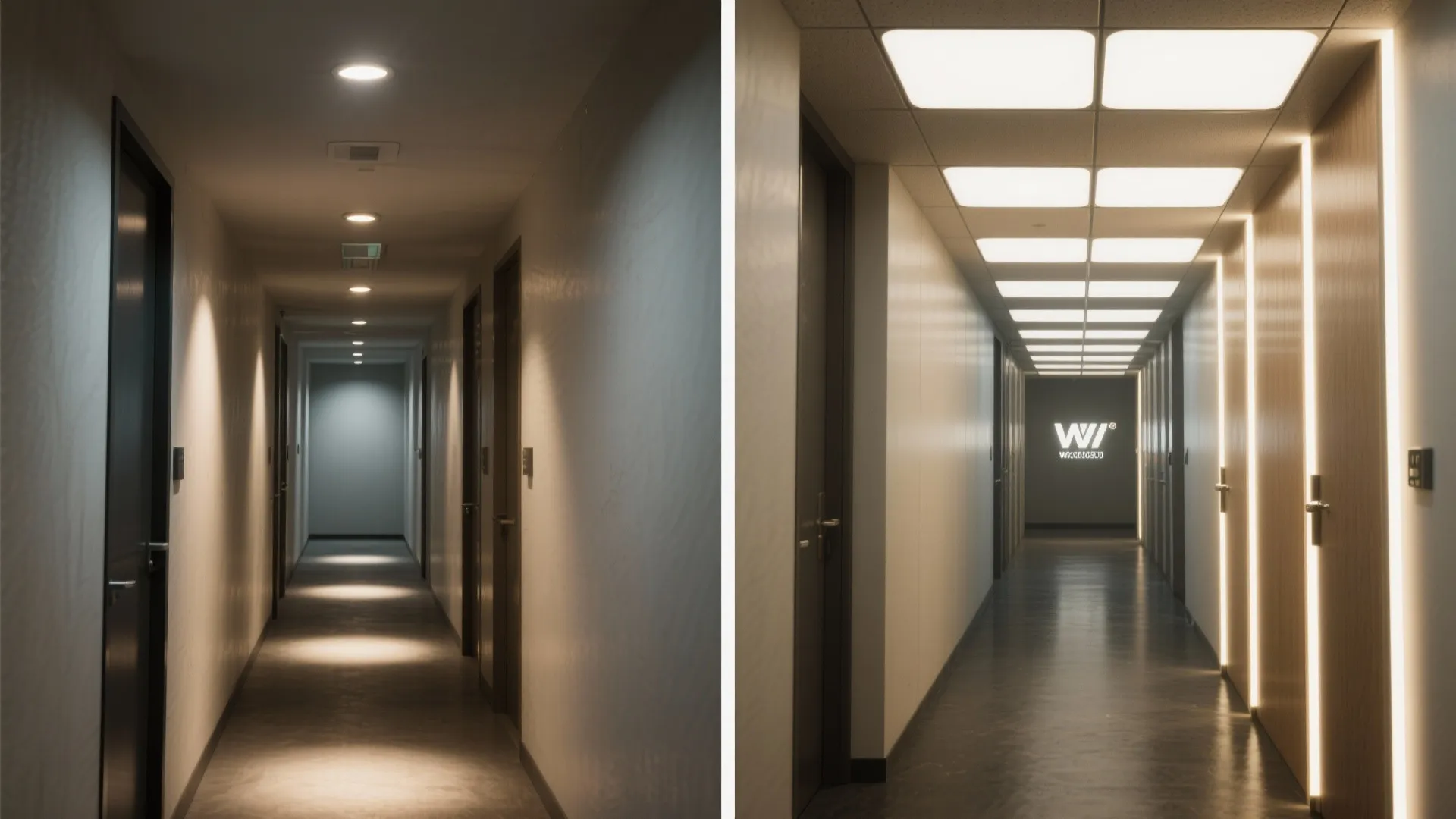

6) Can LED panel design help a narrow hallway feel wider?

Absolutely. Vertical light on walls and consistent ceiling illumination reduce the tunnel effect, making corridors feel wider and calmer.

7) What about flicker and eye comfort?

Choose IEEE 1789-compliant drivers and quality dimmers. The IES and CIE highlight that stable waveforms improve visual comfort, especially at low dim levels.

8) How do I plan the layout if my hall connects many rooms?

Establish a primary axis and align panels or coves with it, then set scenes for arrival, transit, and night. If you want a quick spatial mockup, a case-based planner can help visualize cross-room continuity, like the workflow shown in glass backsplash effect.
