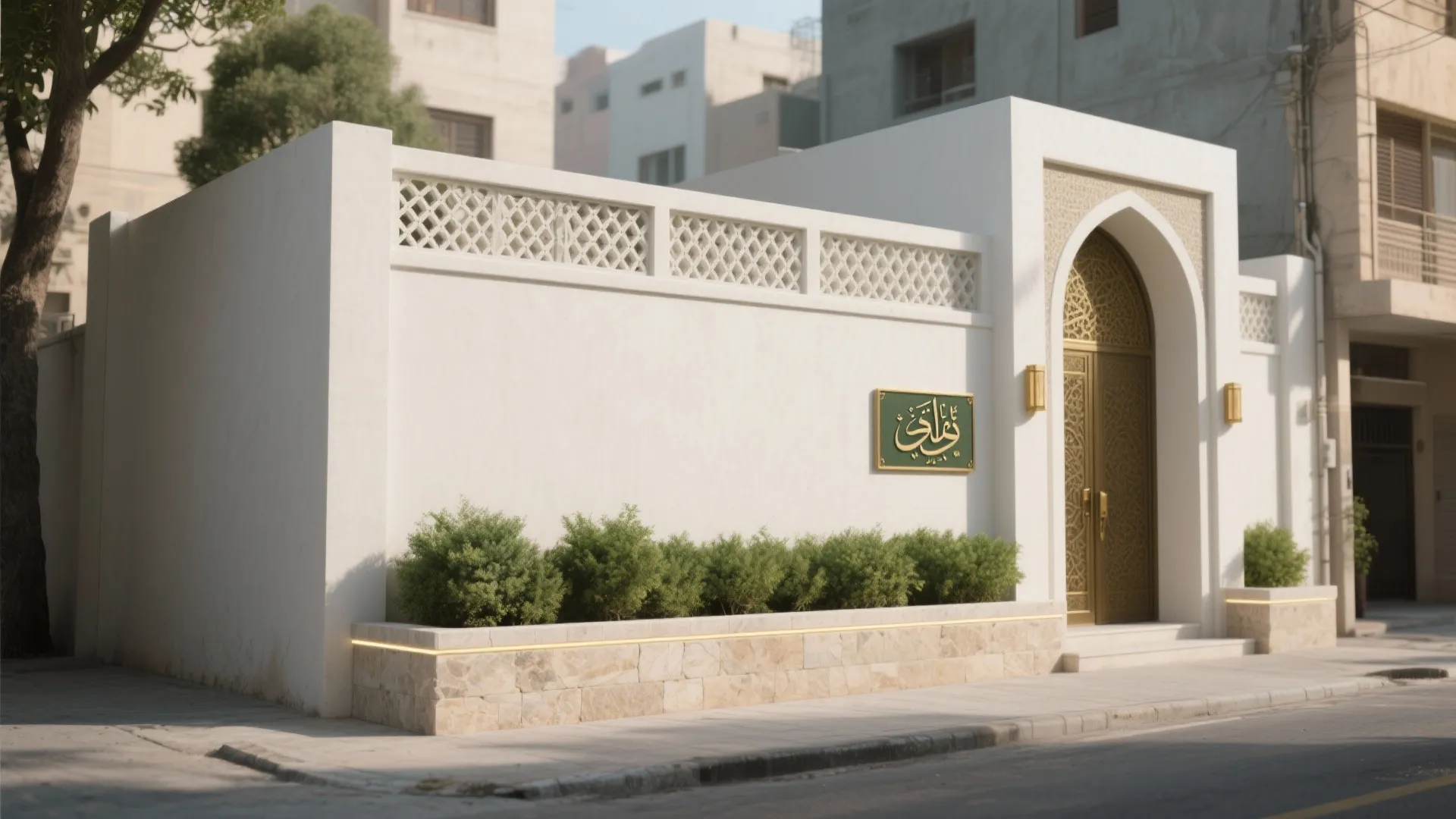

5 Masjid Boundary Wall Design Ideas That Work: Practical, culturally sensitive, and buildable ways I’ve used to make masjid boundary walls secure, welcoming, and beautiful—especially on tight plots where small spaces spark big creativity.

[Section: Introduction]

I’ve spent the last decade designing for tight urban plots where a few centimeters on a boundary can change how a place feels. When it comes to masjid boundary wall design, the latest trend is contextual minimalism—clean lines, honest materials, and details that respect tradition without feeling heavy.

Small spaces spark big creativity. I’ve learned that a thoughtful rhythm of solids and voids, careful lighting, and one memorable gesture (an arch, a jali, a line of calligraphy) can make a modest perimeter feel dignified and safe. In this guide, I’ll share 5 design inspirations, blending my on-site lessons with expert references and practical numbers you can use.

Whether you’re upgrading a neighborhood masjid or planning a new build, these ideas show how masjid boundary wall design can balance privacy, airflow, security, and welcome—without blowing the budget.

[Section: Inspiration List]

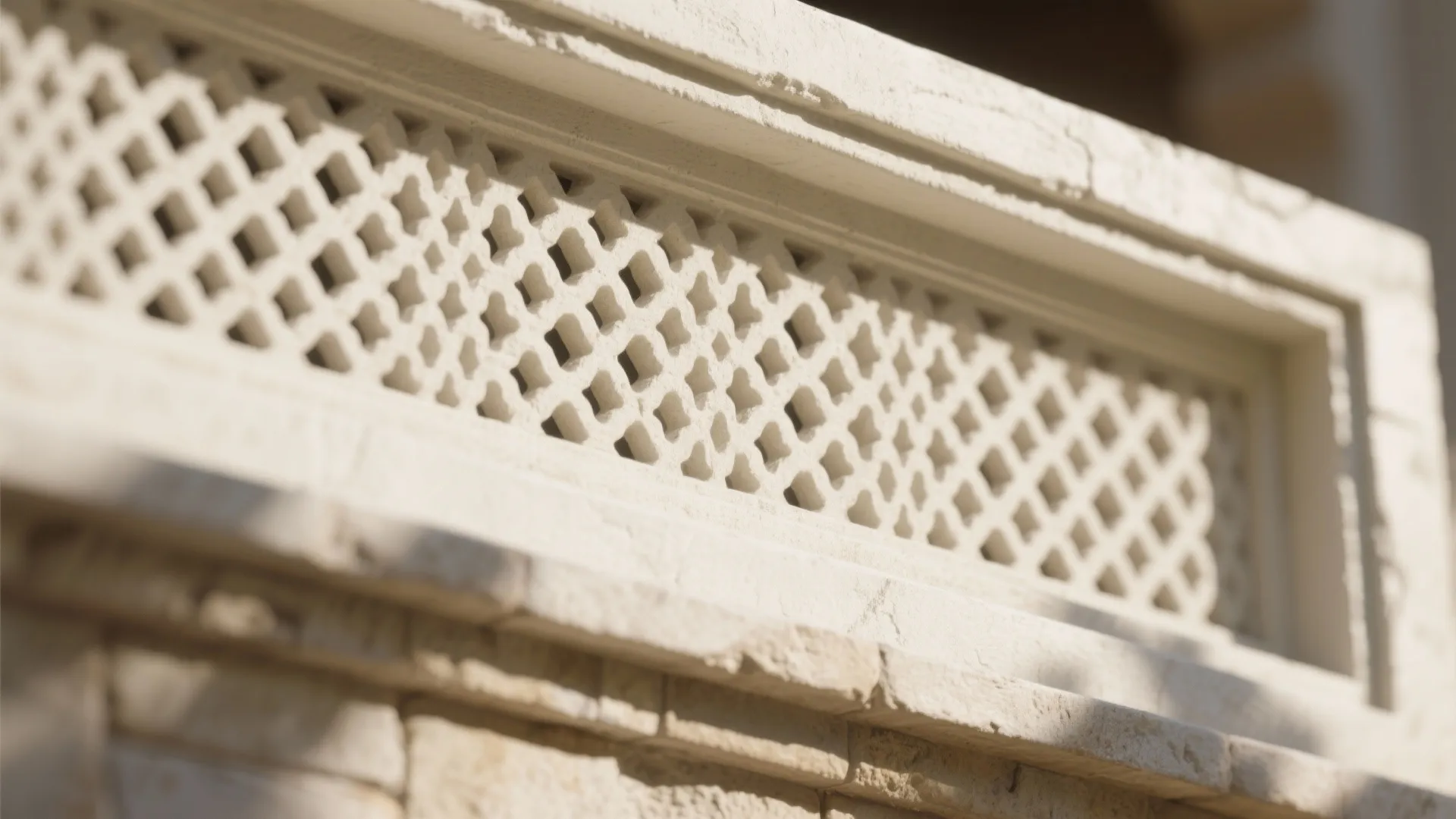

1) Minimalist jali rhythm with a solid base

My Take: On a compact corner masjid I renovated, we kept the lower 1.2 m as a solid plinth for security and dust control, then introduced a repeating band of perforated jali above. That simple shift instantly lifted the street presence and kept the courtyard breezy.

To visualize different perforation densities, I mocked up two sections with ornamental jali screens for privacy before we built samples on site. That saved a week of guesswork and gave the committee confidence to approve the pattern.

Pros: A jali band improves passive airflow while maintaining visual privacy—ideal for hot climates and peak-hour gatherings; in fact, thermal comfort models (see ASHRAE Standard 55) support the role of air movement in perceived comfort in warm conditions (https://www.ashrae.org/technical-resources/standards-and-guidelines/standards-addenda/55). The solid base helps with street grime and kick-resistance, a practical detail in “masjid boundary wall design with jali” that sees daily foot traffic. Visually, the alternating solid-void rhythm sits comfortably with Islamic geometric language without feeling ornate.

Cons: Perforations catch dust—someone will have to hose or brush them every few weeks. Kids love to poke fingers through jali (ask me how I know), so choose apertures too small to toe-hold. Depending on the material (cast concrete vs. aluminum vs. stone), custom tooling or molds can add lead time.

Tips/Costs: Keep apertures between 15–30 mm for privacy; go smaller on playground edges. In windy corridors, use a 60–40 solid-to-void ratio to limit gusts. Ballpark supply-and-install: precast concrete jali panels USD $120–$220 per linear meter (lm), laser-cut metal $180–$350/lm, stone $300–$600/lm, excluding foundations.

save pin

save pin

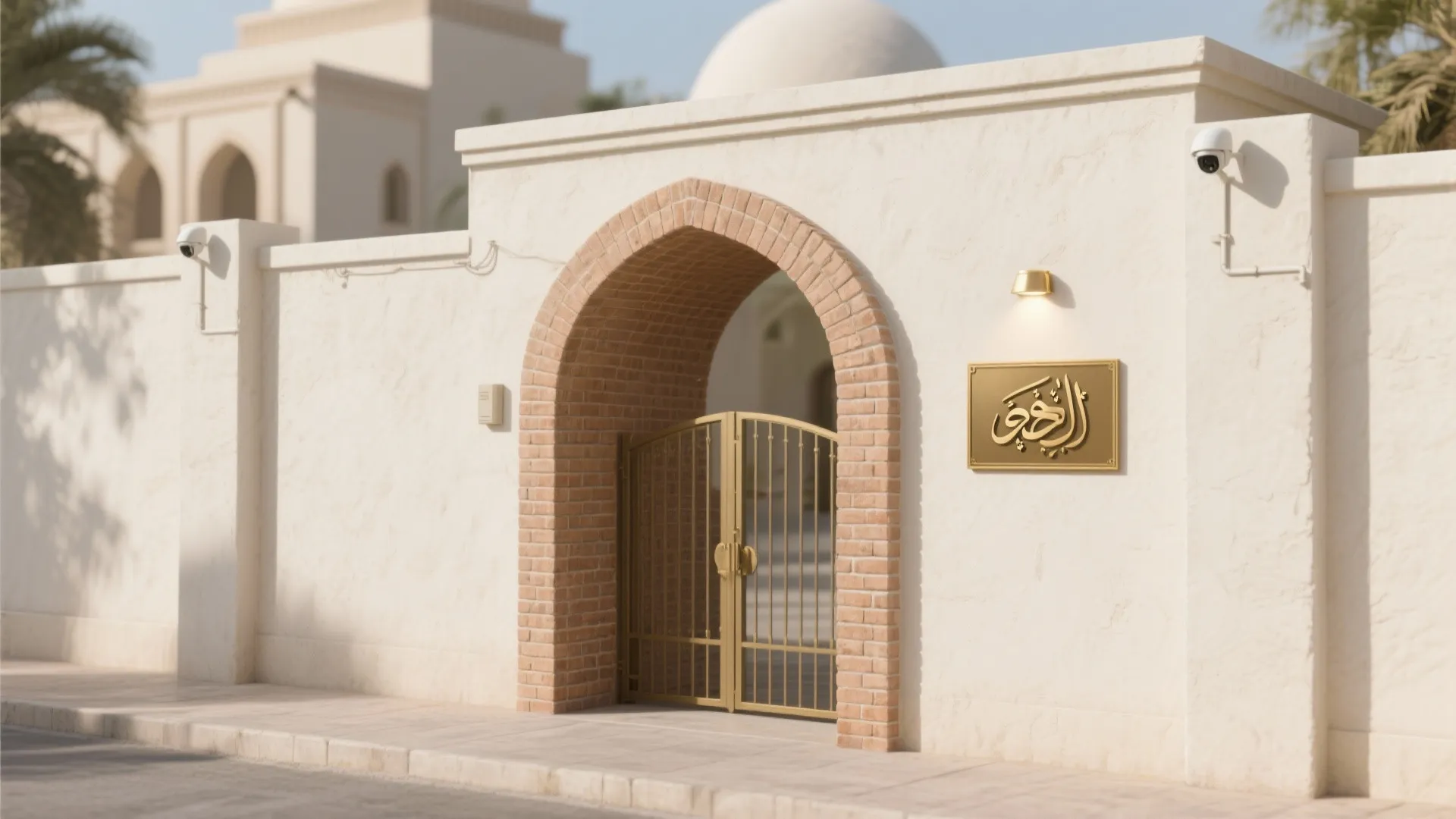

2) A signature arched entry with subtle calligraphy

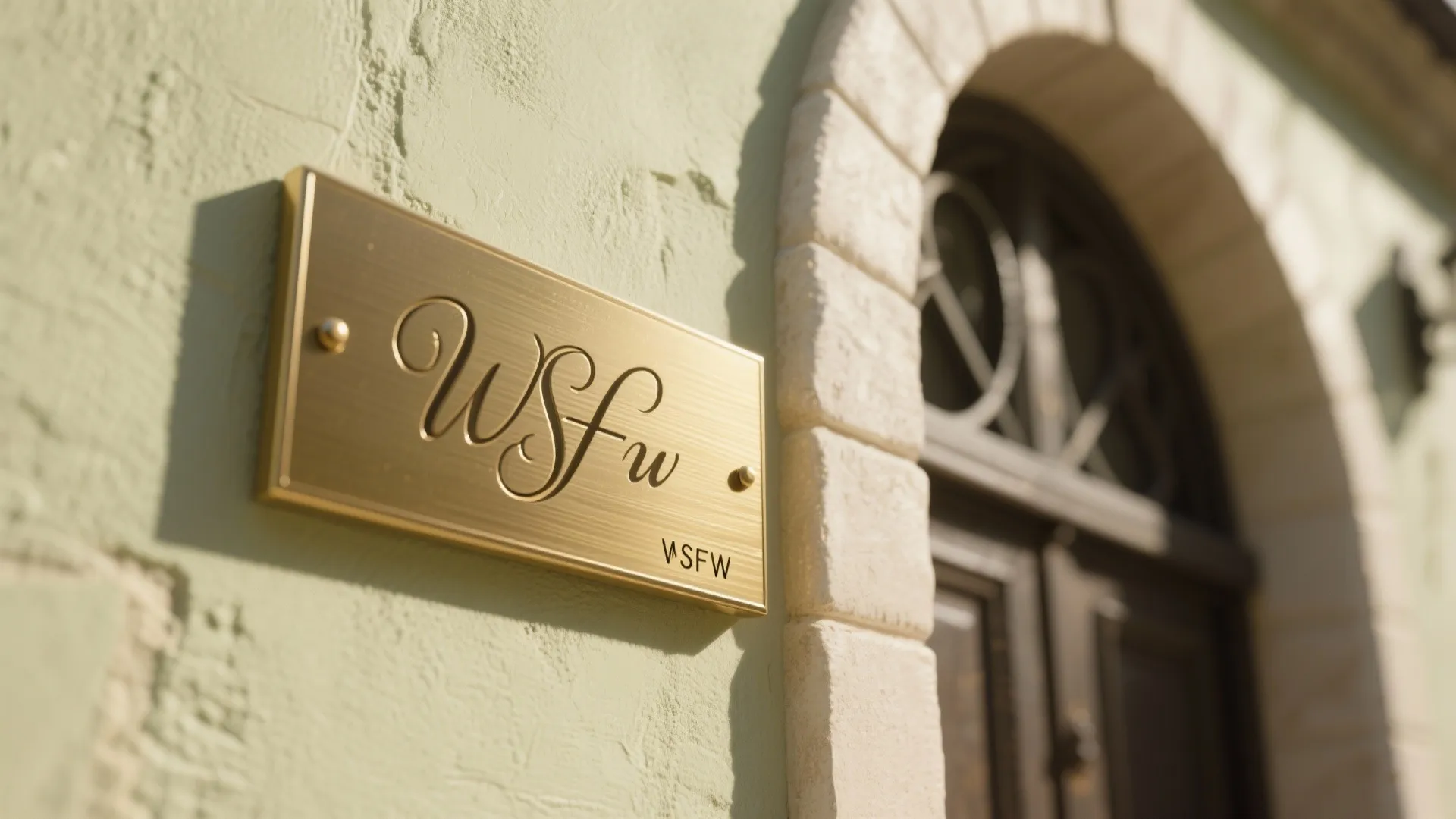

My Take: Entrances carry the story. For a small suburban masjid, we framed the main gate with a shallow brick arch and a slim brass name plate engraved in Naskh. By keeping the wall simple and letting the entry sing, we stayed on budget and still created a sense of arrival.

Pros: A composed gateway provides identity and orientation—people find their way faster during Jumu‘ah. As a long-tail benefit, an “arched entrance for masjid boundary wall” helps anchor signage, lighting, and CCTV neatly, making maintenance easier. Subtle calligraphy panels double as wayfinding without visual clutter.

Cons: Stone or brick arches need skilled labor; shortcuts show. Overly deep arches can create dark pockets unless you plan lighting. If vehicles share the gate, turning radii and clear widths can bloat the structure unless you plot maneuvers early.

Tips/Costs: For pedestrian gates, target a 1,000–1,200 mm clear opening; for service vehicles or fire access, 3,500–4,500 mm, coordinated with local code. As a best-practice accessibility reference, the 2010 ADA Standards recommend minimum clear widths and approach spaces for accessible paths (https://www.ada.gov/resources/2010-ada-standards/). Brick arches with reinforced concrete lintels typically run $250–$450/lm at the entry; carved stone rises to $600–$1,200/lm depending on depth and detailing.

save pin

save pin

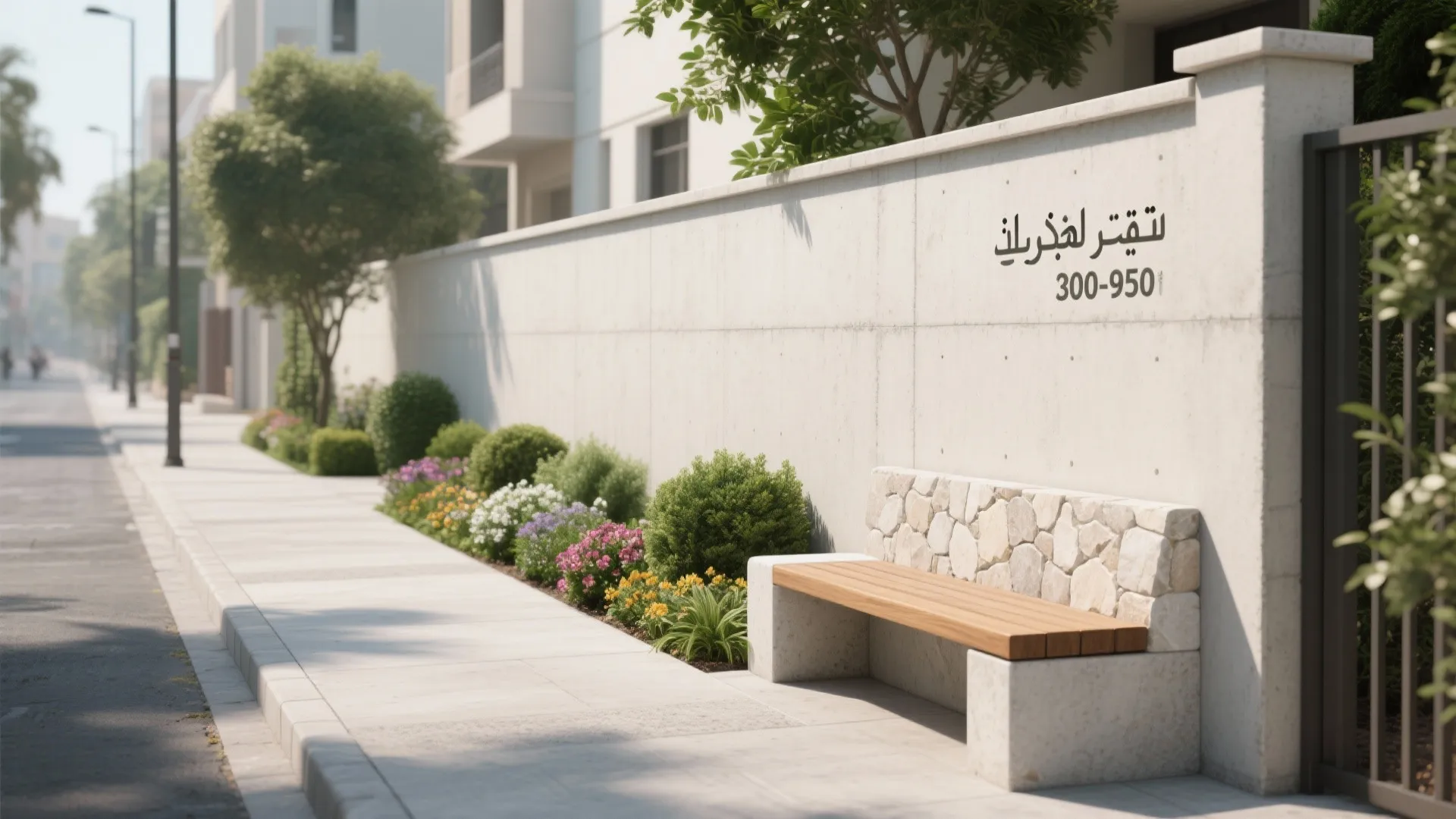

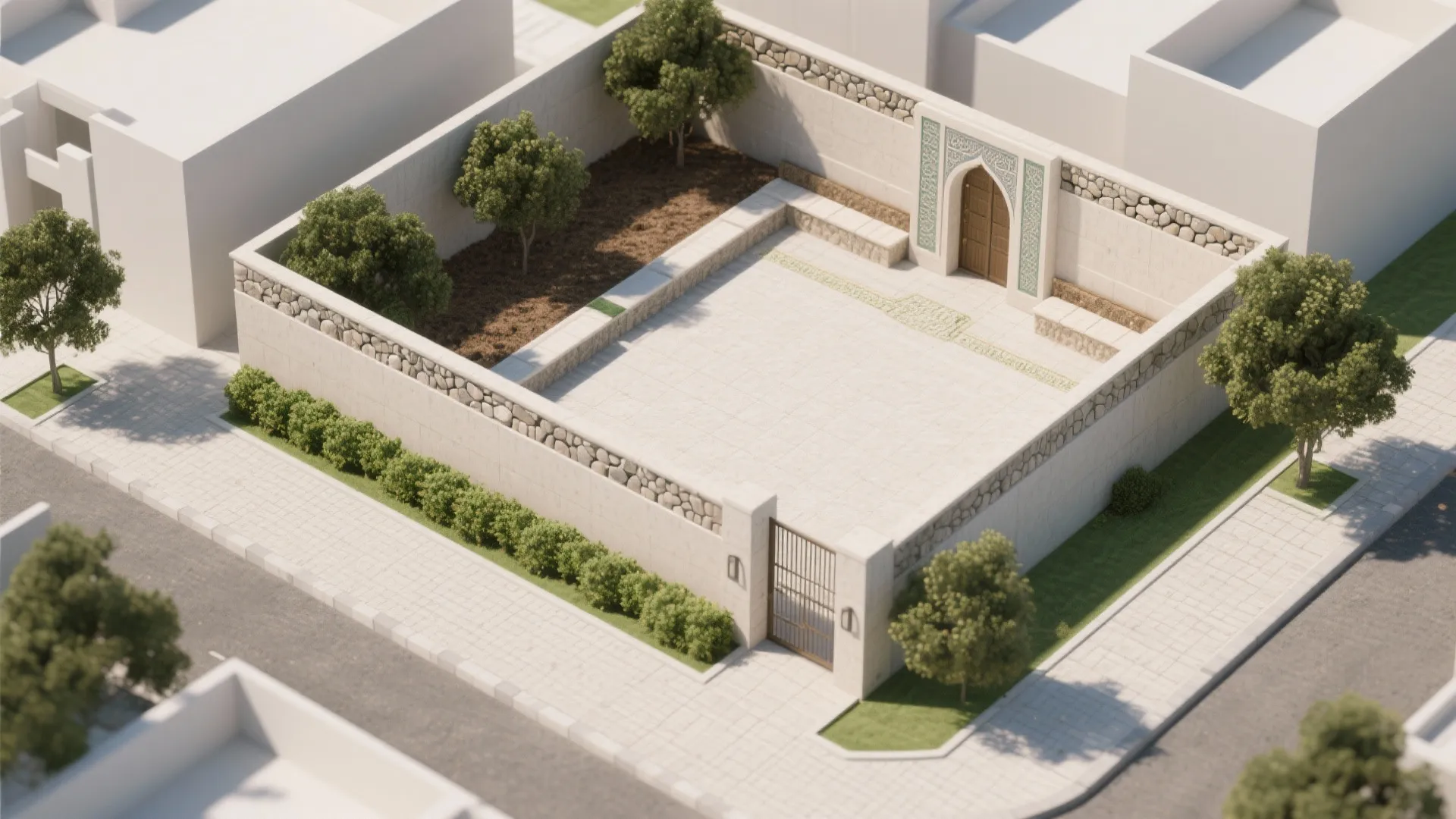

3) Community edge: low wall + green buffer + seating

My Take: One of my favorite solutions is a 600–900 mm low wall with a continuous seat cap, set behind a 600–800 mm planting strip. It reads open and welcoming, yet still defines sacred territory. We used shade-tolerant shrubs with seasonal flowers so the edge feels alive all year.

To explore how seating and planting feel on a narrow sidewalk, I sketched variations with low walls with integrated benches and checked bench depths against real users—elders loved a 420–450 mm seat height with a rounded front edge.

Pros: This layout supports “natural surveillance,” a core CPTED idea that well-used spaces deter crime; the U.S. COPS Office has a practical guide on CPTED for problem-solving (https://cops.usdoj.gov/RIC/Publications/cops-w0867-pub.pdf). For “mosque perimeter design with landscaping,” green buffers soften traffic noise and heat, and give families a place to wait and chat after prayers without blocking the gate.

Cons: Plants need watering and trimming—budget for drip irrigation and a seasonal prune. Seating can invite overnight loitering; add subtle armrests or center rails to discourage lying down. In water-scarce regions, pick native species and mulch generously to cut maintenance.

Tips/Costs: Keep plants below 900 mm near corners and crossings to preserve sightlines; use taller hedges only along mid-block stretches. Target 300–350 mm seat depth, 420–450 mm height, and 1,500 mm passing zones on sidewalks. Costs: concrete low wall with stone cap $140–$260/lm; planting with drip irrigation $40–$120/lm depending on species and soil prep.

save pin

save pin

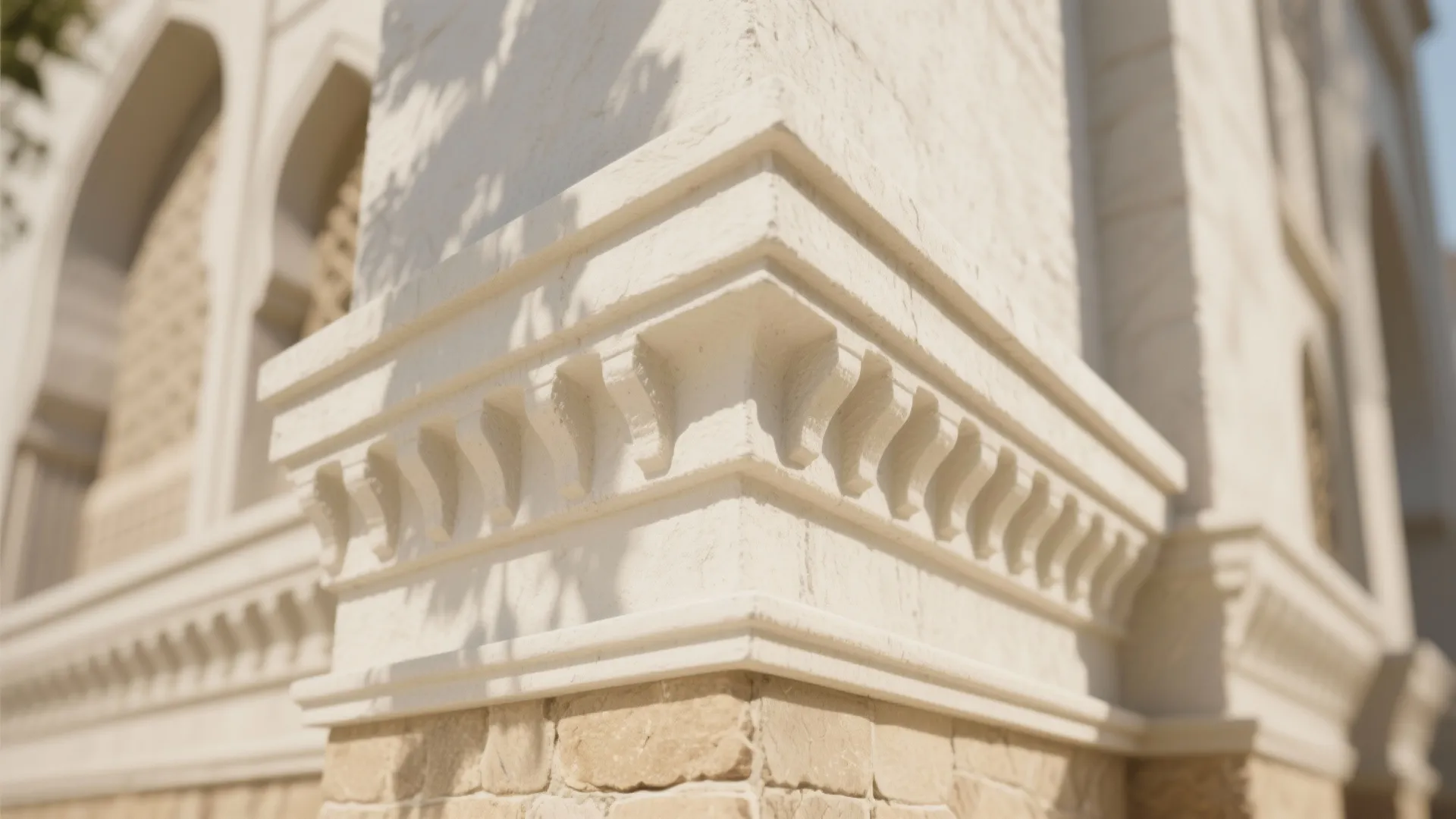

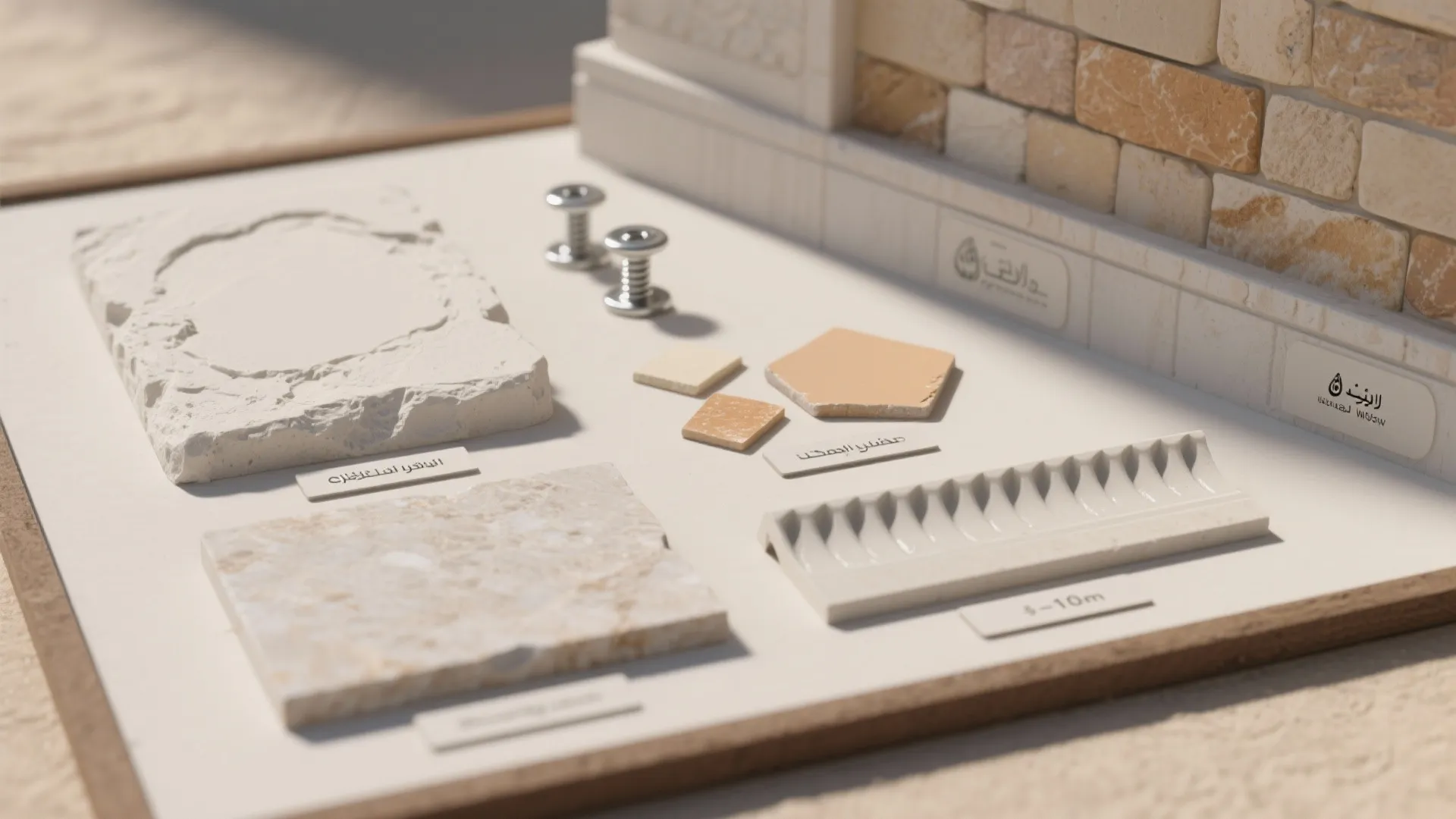

4) Climate-savvy materials with shadow lines

My Take: In hot-dry zones, I lean on stone plinths, lime-stuccoed masonry, and deep copings with drip grooves. In coastal towns, I specify sulfate-resistant cement and mineral paints to resist salt-laden air. These aren’t “fancy” choices; they’re the things that keep a wall beautiful after ten summers.

For a high-sun site, we mocked up a stone-and-stucco palette with shadow play, testing how a 25–40 mm projecting course could catch light at Asr without creating footholds. The committee loved how the wall shifted tone through the day.

Pros: Durable envelopes mean fewer patches and a calmer patina over time—key for “hot climate masjid boundary wall materials.” Lime-stucco over masonry breathes better than dense cement plaster, reducing trapped moisture. Deep copings shed rain, and textured courses add character without extra ornament.

Cons: Upfront costs can be higher, especially for natural stone and lime-based finishes. Heavier walls need proper strip footings and control joints; skipping those is a false economy. Mineral silicate paints are pricier than acrylics, though they outperform under UV.

Tips/Costs: Detail capstones with a 5–10 mm drip groove and 5–10° slope. Use control joints every 6–8 m for long runs; in hot climates, consider lighter hues (LRV 60–80) to reduce heat gain. Ballpark: limestone or granite plinth + masonry infill $280–$550/lm; lime-stucco and mineral paint $40–$90/m²; premium copings $30–$70/lm.

save pin

save pin

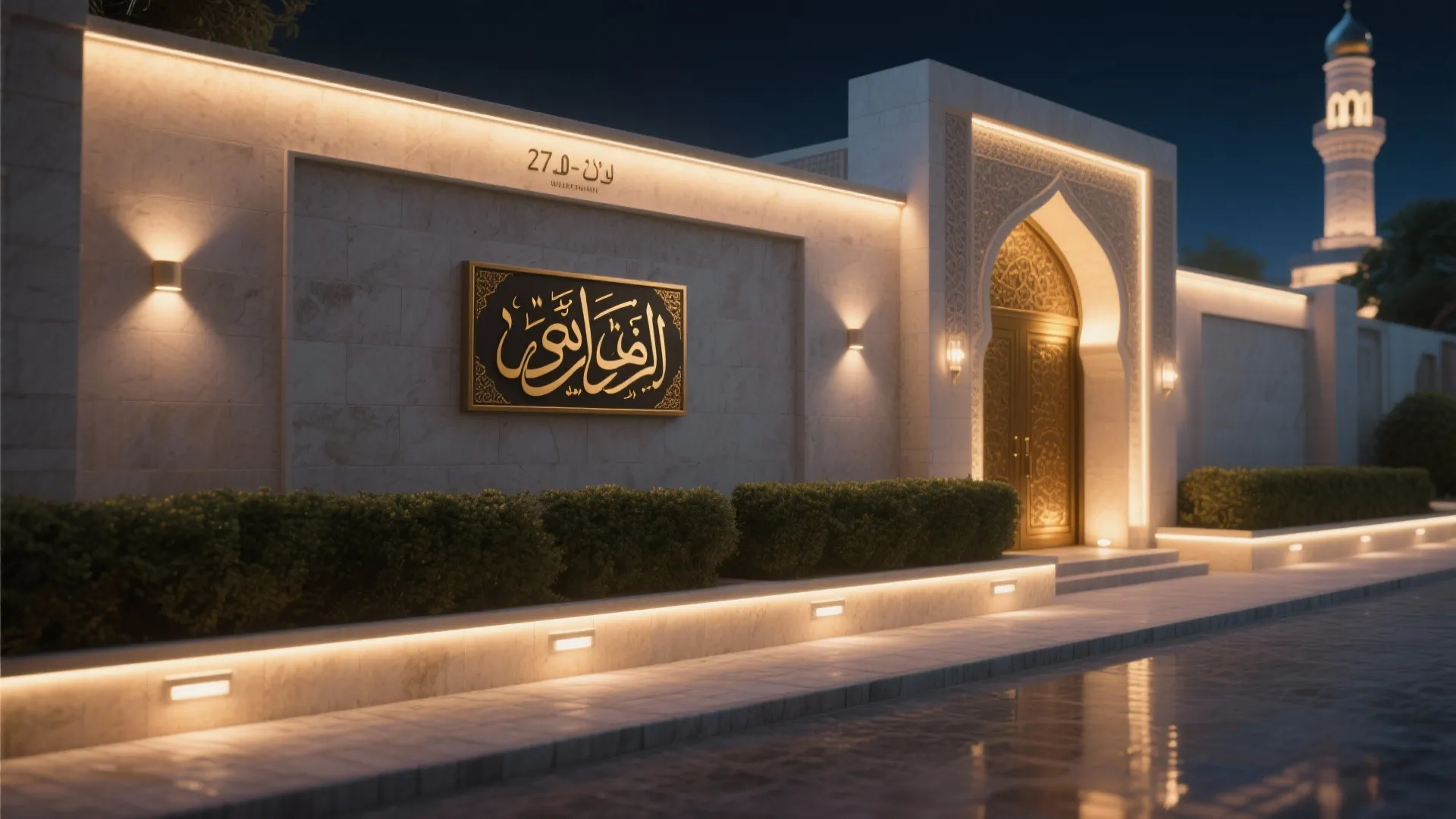

5) Night lighting, wayfinding, and quiet edges

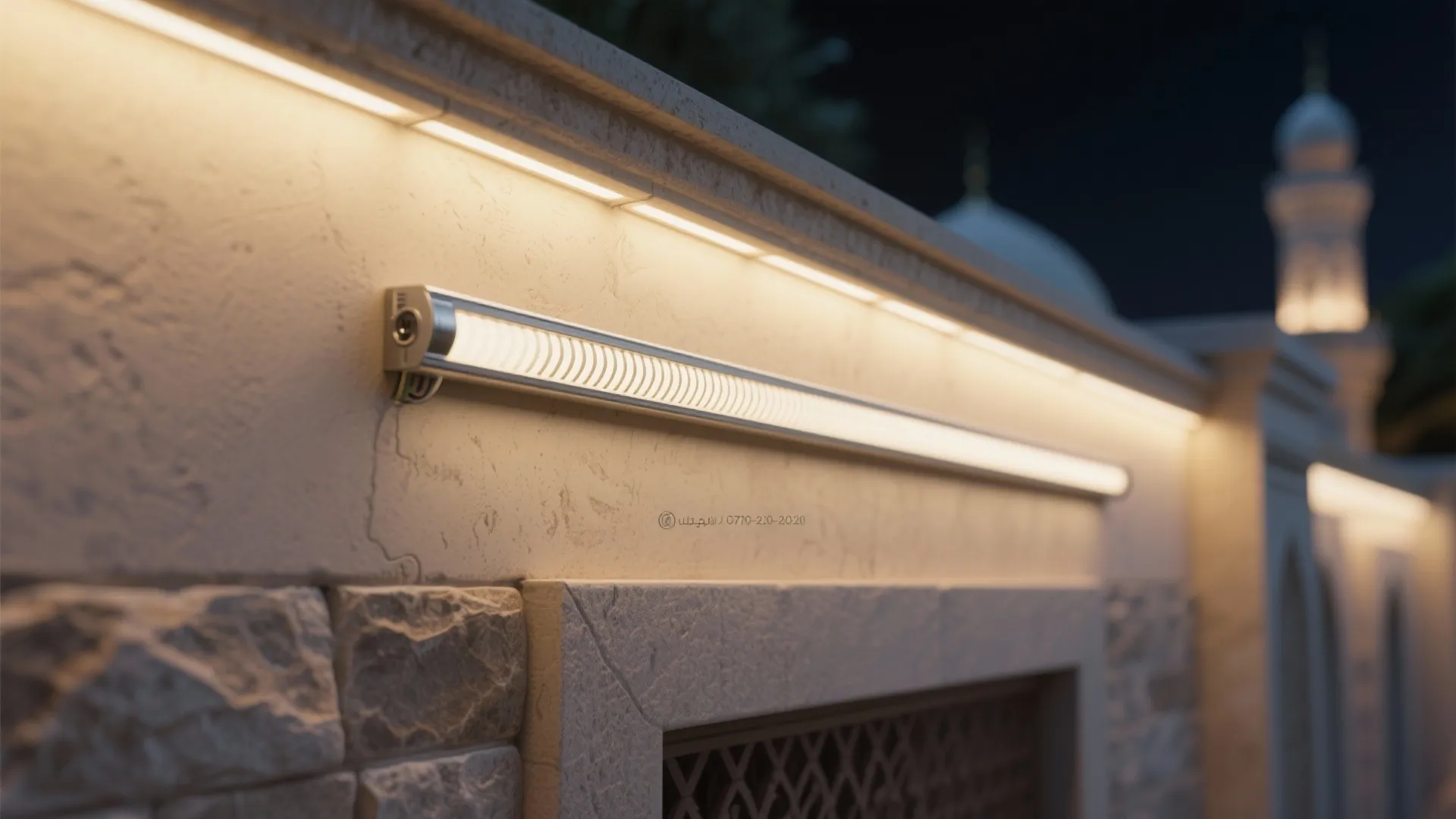

My Take: My checklist for evening prayers: safe illumination at entries, gentle grazing light on key panels, and a curfew after the last jama‘ah. On one project, a slim LED strip tucked under the coping washed a calligraphy plaque with a warm glow—simple, respectful, effective.

Pros: Thoughtful “masjid boundary wall lighting design” boosts safety and legibility without glare. Integrated wayfinding—subtle arrows, prayer time panels, or a QR code—keeps the wall tidy. A denser edge (hedge + solid base) near neighbors reduces late-night sound spill from the courtyard.

Cons: Light pollution is real; unshielded spots can annoy residents and attract bugs. Poorly placed fixtures invite tampering. If you overdo brightness, your beautiful wall washes out in photos—and you’ll chase maintenance on burnt LEDs.

Tips/Costs: Target 3–5 lux on pedestrian paths and 10–20 lux at entries; use 2700–3000K to stay warm and calm. Specify IP65/IK08 fixtures with back-shields or louvers, and add a timer or photocell. For acoustics, plant dense shrubs or use staggered wall segments near noise-sensitive edges. Costs: basic bollards $120–$250 each; linear grazers $35–$80/m; signage $150–$400 per panel.

[Section: Summary]

A thoughtful masjid boundary wall design isn’t a limitation—it’s an opportunity to be smarter. On tight plots, a few well-placed moves (a breathable jali, a dignified arch, a green buffer, durable details, and gentle light) can transform the edge from a barrier into a welcome. If you’re near a heritage district, I also look to UNESCO’s Historic Urban Landscape approach for context-sensitive design cues (https://whc.unesco.org/en/activities/638/).

Which of these five ideas would you try first on your site—and what does your community value most: airflow, quiet, or a strong sense of arrival?

[Section: FAQ]

save pin

save pin

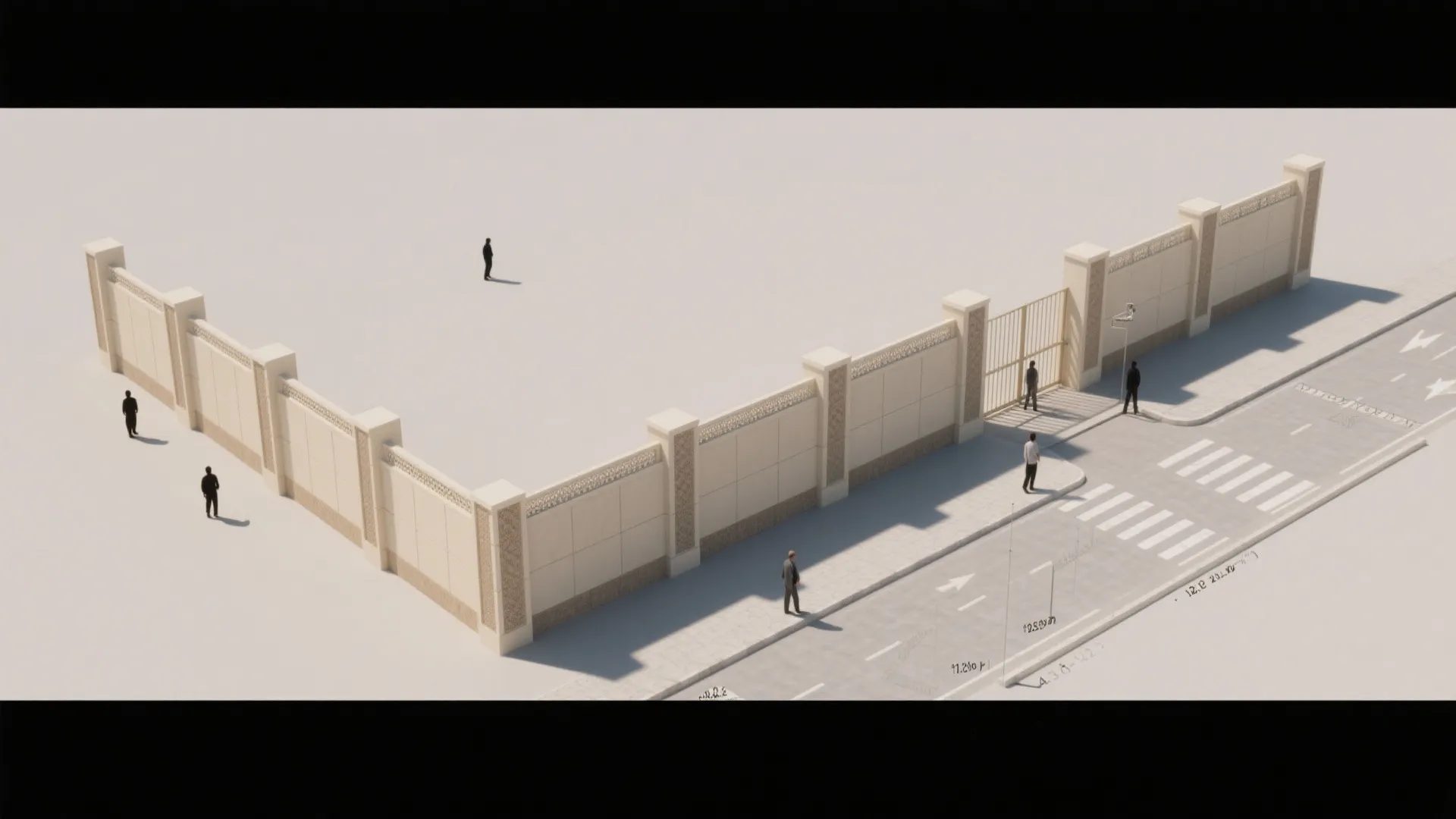

FAQ

1) What’s a sensible height for a masjid boundary wall?

Most neighborhood sites work well between 1.8–2.4 m depending on street context, security needs, and local planning rules. Corner plots and school-adjacent sites often prefer lower heights with transparent bands to preserve sightlines—always confirm with your local authority.

2) How do I balance privacy and airflow?

Use a solid base (1.0–1.2 m) with a jali or slatted band above to maintain ventilation while screening views. This is a classic “masjid boundary wall design with jali” move that performs beautifully in warm climates.

3) Which materials last in hot or coastal climates?

Stone plinths, masonry with lime-stucco, and mineral silicate paints hold up well under UV and salt. In coastal zones, specify sulfate-resistant cement and stainless fixings to curb corrosion.

4) How do I keep the wall welcoming yet secure?

Combine passive strategies—clear, well-lit entries, low walls with planting, and good visibility—with targeted hardware (robust locks, concealed conduit for cameras). CPTED principles emphasize natural surveillance and clear territorial definition to deter crime without fortress vibes (see COPS Office guide: https://cops.usdoj.gov/RIC/Publications/cops-w0867-pub.pdf).

5) What gate widths and accessibility details should I target?

Plan a pedestrian gate with at least 1,000–1,200 mm clear width and level approaches; vehicle gates follow local fire and service requirements. As a reference, the 2010 ADA Standards outline clear widths and turning spaces for accessible routes (https://www.ada.gov/resources/2010-ada-standards/).

6) How can lighting be respectful at night?

Use warm 2700–3000K LEDs, shielded optics, and timers to set a curfew after prayers. Keep paths at 3–5 lux and highlight entries or calligraphy with soft grazing light to avoid glare and light trespass.

7) What’s a rough budget per linear meter for a new wall?

Expect $140–$260/lm for a low concrete wall with a stone cap; $180–$350/lm for metal jali sections; $280–$550/lm for stone plinth + masonry infill; plus footings, gates, and lighting. Prices vary by region, labor, and finish level.

8) Can I use calligraphy or tiles without it feeling ornate?

Yes—make one focal point and keep the rest quiet. A single calligraphy plaque at the entry or a restrained tile band near the nameplate helps the wall feel composed and respectful, not busy.
