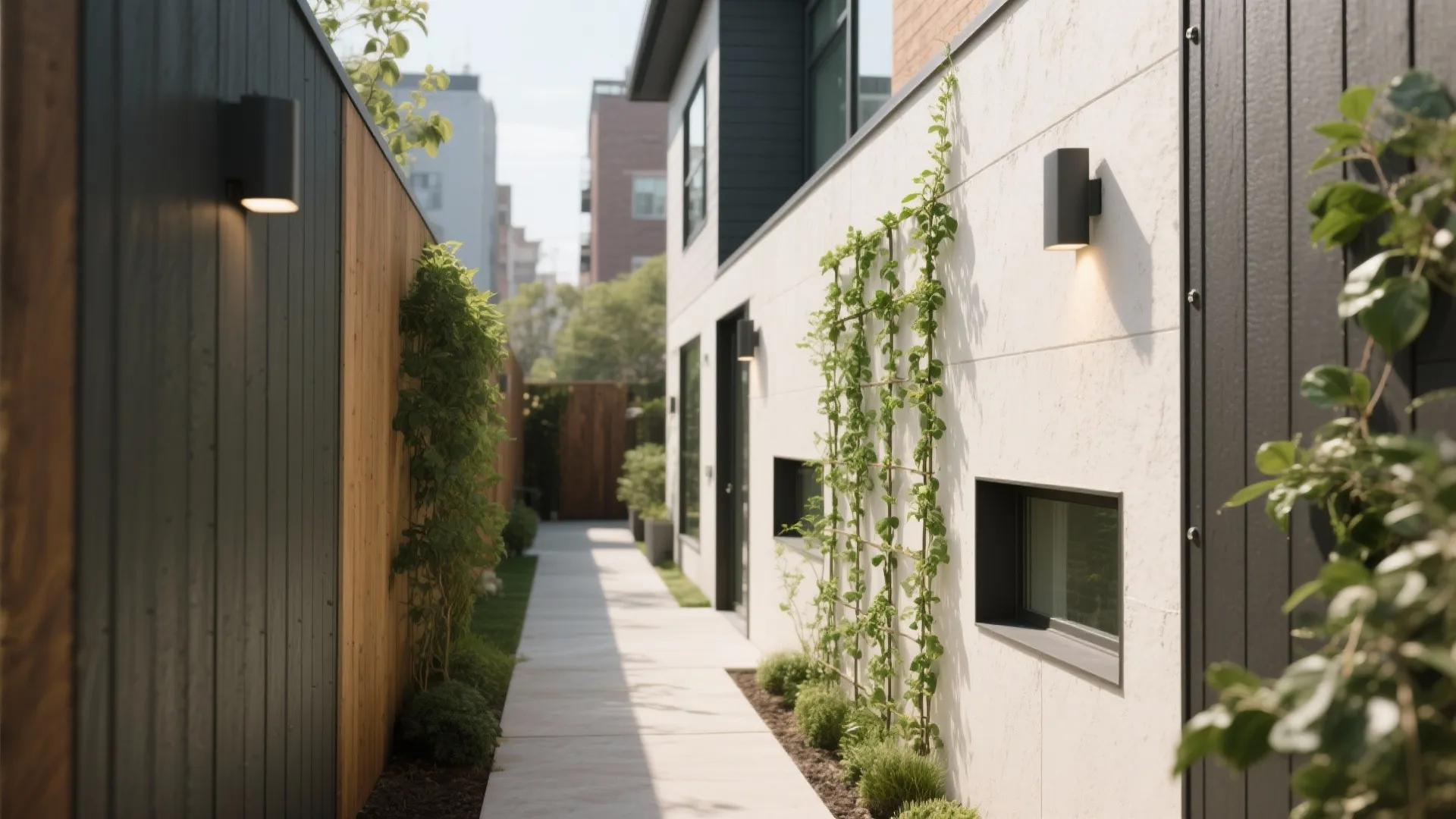

5 Outer Side Wall Design Ideas That Maximize Small Spaces: A senior designer’s field-tested strategies to make slim side elevations beautiful, durable, and practical

[Section: 引言]

Over the last few years, I’ve watched outer side wall design move from afterthought to headline—especially in tight urban lots where every millimeter counts. To help clients decide fast, I first preview materials with photorealistic exterior renderings, so we can see how light, texture, and color play out in a narrow side yard. Small spaces spark big creativity, and that’s exactly where a side elevation can shine.

In this guide, I’ll share 5 outer side wall design ideas I use in real projects, blending personal wins (and a few lessons learned) with expert data. Expect clear pros and cons, budget clues, and practical details you can take straight to your builder.

[Section: 灵感列表]

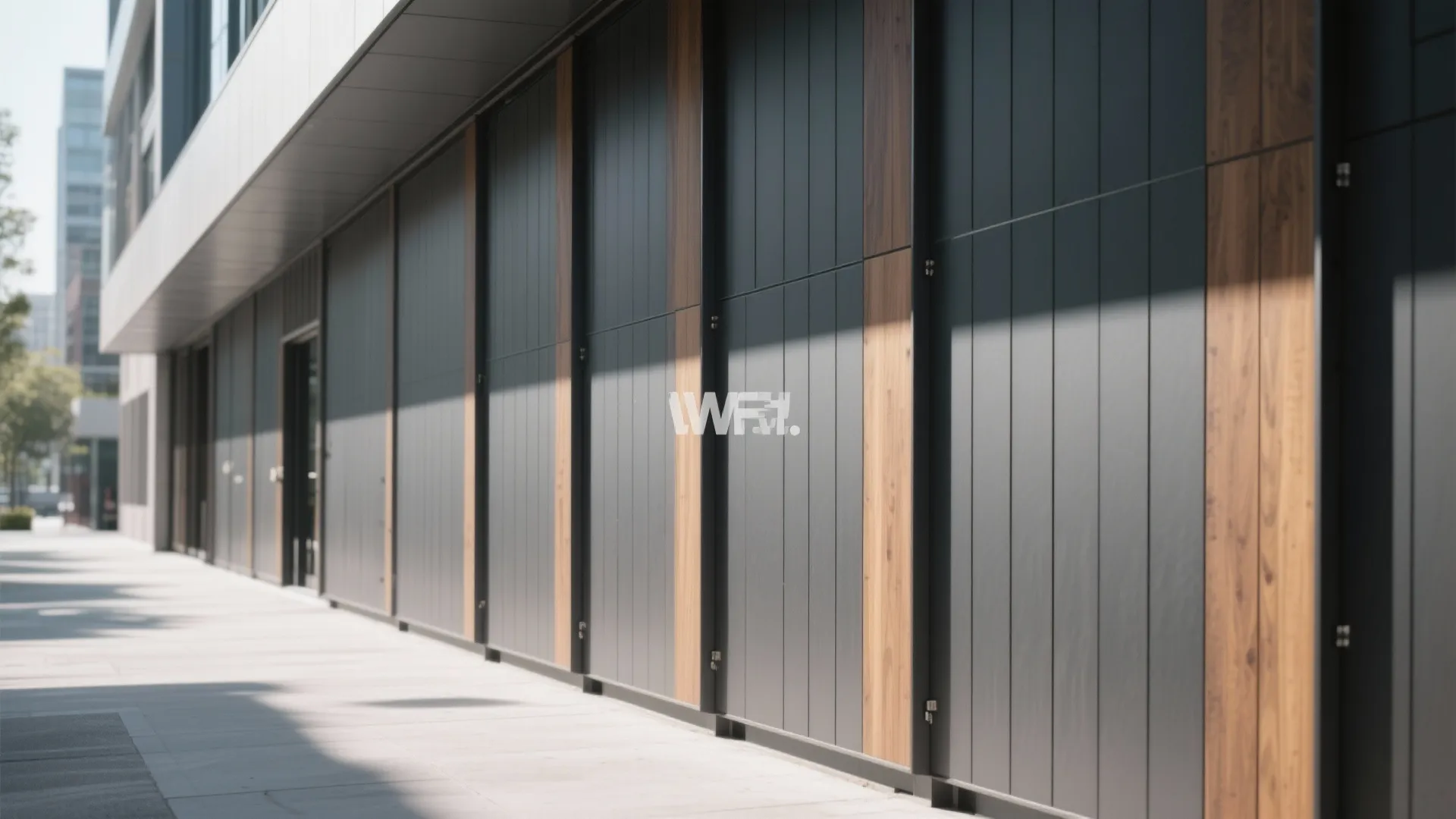

1) Slim Vertical Cladding With Clean Shadow Lines

My Take

When I’m working with a long, narrow side wall, vertical cladding instantly lifts the elevation and makes it feel taller. I love pairing slim battens with slightly varied profiles, so the facade reads crisp at noon and moody at sunset. It’s a quick way to get architectural presence without deep projections.

Pros

- Vertical profiles enhance height and rhythm—great for small facade design where proportions tend to feel squat. A subtle 10–15 mm relief creates natural shadow lines for all-day interest.

- Flexible palette: fiber-cement boards, engineered wood, or aluminum planks cover a wide range of budgets and maintenance needs. Long-tail bonus: it’s easy to spec low maintenance exterior wall finishes that resist UV and moisture.

- With proper flashing and back-priming, it’s compatible with insulated sheathing and thermal break strategies for better energy performance on exterior side wall design.

Cons

- If you live near a busy road, thin metal profiles can drum in high winds. I’ve fixed this with closer furring spacing and acoustic backing—simple, but don’t skip it.

- Vertical lines expose leveling errors: a wavy substrate will show. Budget time for string lines, shims, and patience.

- Dark stains look elegant but can show dust runs after heavy rain. Go one shade lighter than you think for a cleaner look over time.

Tips / Case / Cost

- Materials: fiber-cement $8–15/sq ft installed; engineered wood $12–20/sq ft; aluminum $18–35/sq ft (regional labor varies). Add 10–20% for custom battens.

- Use concealed fasteners for a sleeker read in tight side yards, where close-up views are the norm.

- In coastal zones, specify marine-grade coatings and stainless fasteners; salt air is relentless.

save pin

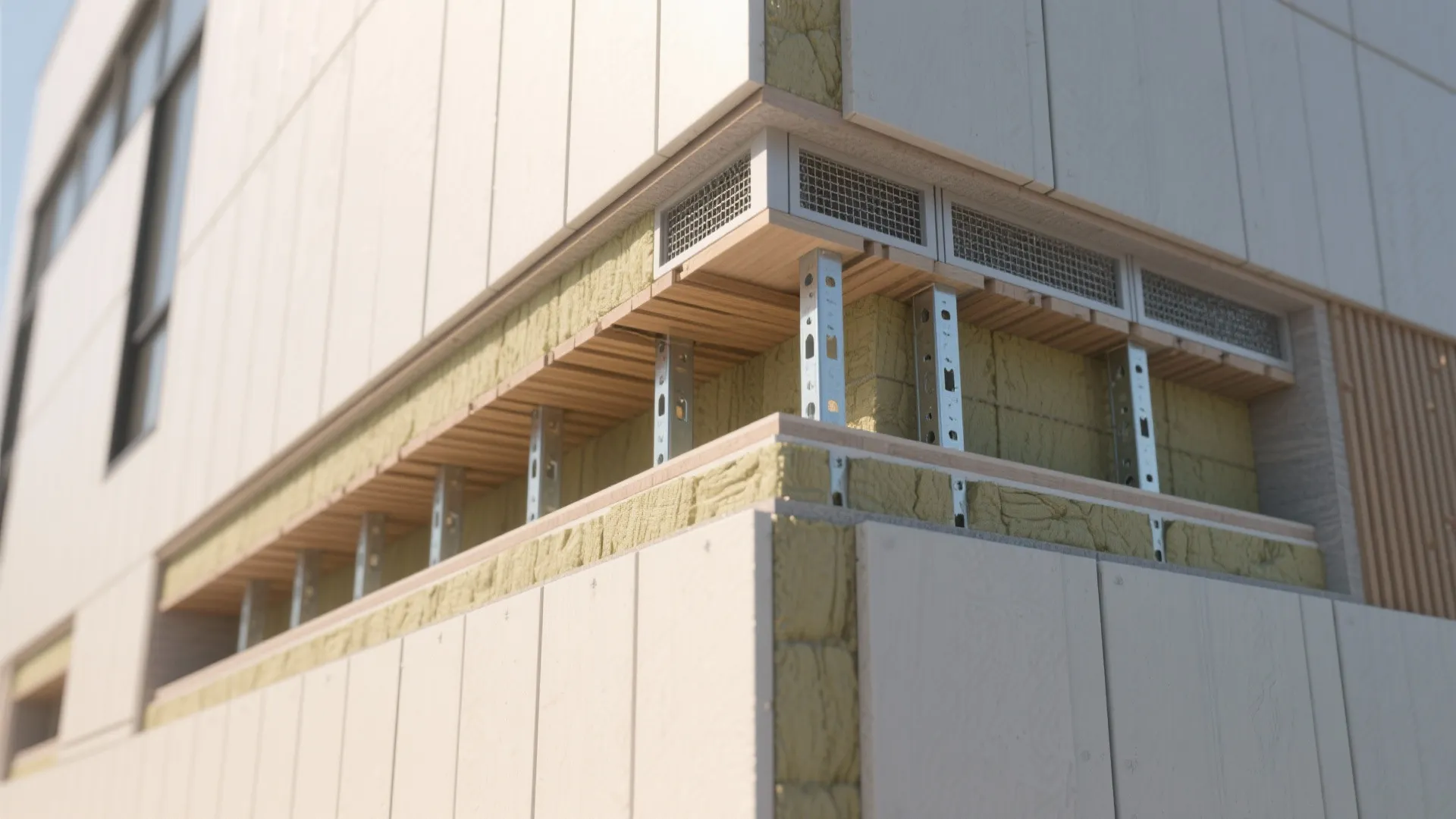

2) Ventilated Rainscreen With Continuous Insulation

My Take

Whenever moisture is a risk—think shaded side yards, foliage, or sprinkler overspray—I default to a ventilated rainscreen. The small air gap lets the wall dry out, and continuous insulation keeps the interior comfortable even when the sun hits a side facade like a spotlight.

Pros

- Moisture management is the big win. A ventilated facade system reduces inward vapor drive and helps the cladding dry faster, boosting durability and paint life. According to Building Science Corporation (BSC), properly detailed rainscreens significantly improve enclosure performance in wet climates.

- Energy gain: continuous insulation reduces thermal bridging across studs, a proven thermal bridge reduction for exterior walls that translates to fewer drafts and steadier indoor temps.

- Material freedom: from fiber-cement lap to terracotta or phenolic panels, the same cavity principle applies—pick your look and stay dry.

Cons

- More layers mean more details. If your contractor isn’t used to ventilated assemblies, expect a learning curve and a few extra site meetings from you or your designer.

- Adds 1–2 inches of wall thickness. In narrow setbacks, check code tolerances and property line clearances early.

- Budget creep is real: furring, membranes, and insect screens add up. I treat it as insurance.

Tips / Case / Cost

- Cost: add roughly $6–12/sq ft over direct-fixed siding for furring, membranes, and screens (varies by climate zone and labor rates).

- In hot climates, use a reflective WRB or light-colored cavity surfaces to amplify cooling in the air gap.

- Always detail insect screens top and bottom; small gap, big peace of mind.

save pin

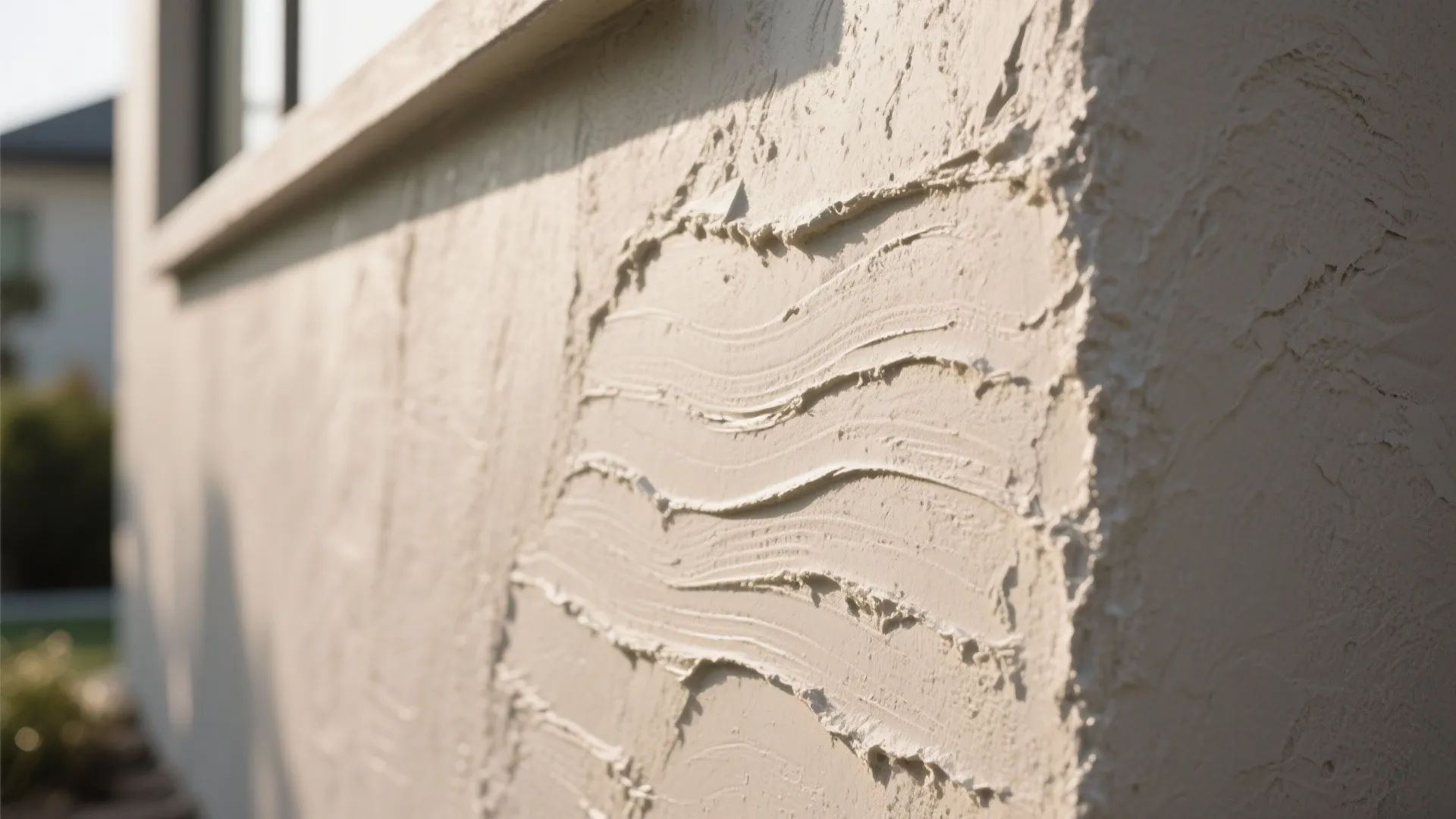

3) Mineral Plaster That Plays With Light and Shadow

My Take

On narrow passages, paint can feel flat, but a breathable mineral plaster transforms the side wall into a canvas. I like a fine, troweled texture by the front, and a slightly coarser finish toward the rear—subtle, but it pulls you along the space. It’s also a maintenance win when vegetation occasionally brushes the wall.

Pros

- Breathable and robust: silicate and lime plasters handle micro-cracks gracefully, and touch-ups blend better than paint. It’s a smart route for exterior wall cladding materials in mixed or older substrates.

- Texture hides minor substrate imperfections better than smooth paint—a gift on renovations.

- Excellent for daylight drama: even with limited sun, shallow textures catch stray light and create depth.

Cons

- Not all plasters love constant splash-back; in high-splash zones, add a 12–18 inch stone or tile skirt.

- Requires skilled hands. A great trowel finish is part craft, part choreography; don’t underbid the applicator.

- Color shifts subtly as it cures—beautiful to me, surprising to some clients. Set expectations.

Tips / Case / Cost

- Cost: $10–22/sq ft depending on system layers and texture depth.

- Pair with low-profile wall lights on dimmers to highlight texture without glare.

- To speed early design, I often iterate schematic looks with AI-assisted facade concepts, then approve full-size sample boards on site before ordering.

save pin

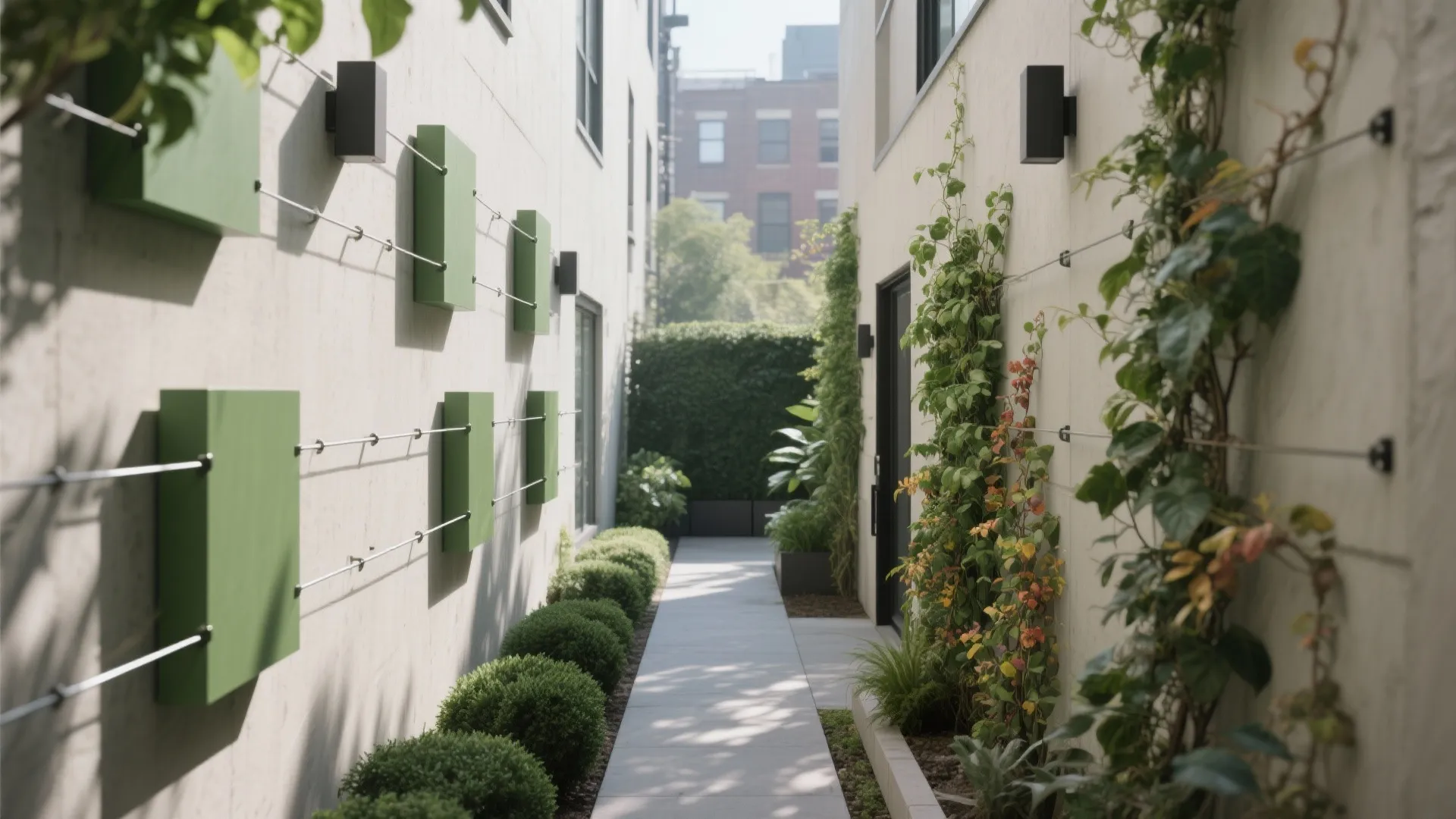

4) Green Facade Modules and Slim Trellises

My Take

Side yards can be harsh: heat, glare, and noisy neighbors. Green facade modules or wire trellises soften everything at once—sound, temperature, and mood. I use fast climbers near windows for privacy and slower, textured species where we want detail up close.

Pros

- Comfort and microclimate: a planted facade can reduce surface temperatures and improve perceived cooling in narrow corridors. It’s one of my favorite low maintenance exterior wall finishes if irrigation is thoughtful.

- Acoustic relief: foliage plus a small air gap can noticeably dampen mid- to high-frequency street noise—handy for urban narrow side yard facade conditions.

- Modular systems are renter-friendly and can be staged over time: start near the entry, extend as budget allows.

Cons

- Irrigation and drainage are everything. Without them, a green wall is a short-lived romance.

- Roots and humidity near foundations demand respect; plan offsets, root barriers, and maintenance access.

- Winter dieback can look sparse. Mix evergreen anchors with seasonal color for year-round interest.

Tips / Case / Cost

- Cost: wire trellis + anchors $12–20/sq ft; modular planter panels $55–120/sq ft; add $600–1,800 for drip irrigation zones depending on runs.

- Choose species for your orientation: east/west facades handle climbers differently than north/south. Ask your local nursery for heat- and drought-tolerant options.

- Keep plantings 2–4 inches off the wall to preserve airflow and paint life.

save pin

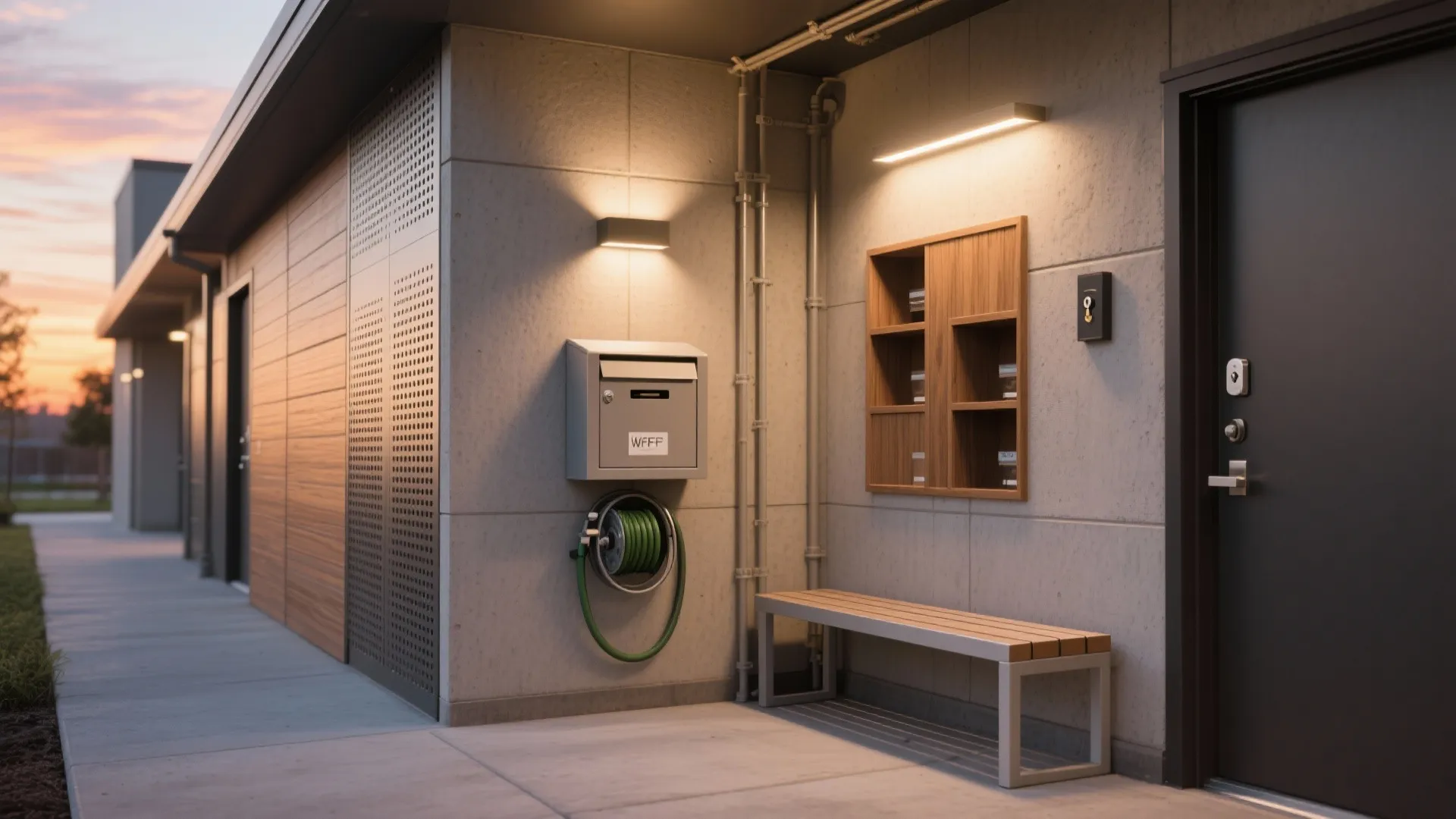

5) Lighting, Niches, and Micro-Storage Built Into the Side Wall

My Take

In compact homes, the side wall is prime real estate. I like carving in shallow niches for parcel drop boxes, hose reels, or folding benches, then weaving a low-glare lighting plan along the route. The result feels composed rather than “service alley.”

Pros

- Multi-functional: integrated storage and wayfinding combine utility and delight—very on-trend for small facade design.

- Safety: shielded wall washers and low-level step lights improve visibility without lighting up your neighbor’s bedroom. A great area to explore passive solar shading design if the wall sees afternoon sun.

- Cable management heaven: planning conduits early avoids surface-mounted spaghetti later.

Cons

- Cutouts require meticulous waterproofing and flashing; I’ve seen many boxes leak when detailing is rushed.

- In high-crime areas, unsecured niches can become stash points. Use lockable doors or perforated metal fronts.

- Power upgrades may be needed for layered lighting and outlets—budget a visit from your electrician.

Tips / Case / Cost

- Cost: recessed niches $250–650 each to frame/flash/finish; wall washers $90–220 per fixture plus wiring; add $1,200–2,500 if panel upgrades are required.

- Keep beam angles under 60° and color temperature around 2700–3000K for a warm, hospitality feel.

- For sun-exposed walls, I prototype custom fins and light cutoffs with quick parametric shading studies before fabricating.

[Section: 总结]

Outer side wall design isn’t a constraint—it’s an invitation to design smarter. From ventilated facades to texture-rich plaster and green modules, small spaces spark big creativity when you layer function and beauty. Use assemblies that manage moisture, specify finishes that earn their keep, and let light do the storytelling. Which of these five ideas are you most excited to try on your own side elevation?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the best material for outer side wall design in a rainy climate?

In wet zones, I favor a ventilated rainscreen with fiber-cement or metal panels over a robust WRB. The cavity lets water drain and the wall dry, extending paint life and durability.

2) How do I reduce heat on a sun-exposed side wall?

Combine light-colored, high-SRI finishes with a ventilated facade or vertical fins. Even small overhangs and trellises can cut late-afternoon gains without bulky projections.

3) Can green walls actually cool a narrow side yard?

Yes, climbing plants and modular facades create shade and evapotranspiration that lower surface temps. Beyond comfort, they add privacy and soften hard edges beautifully.

4) What’s the cost range for upgrading a basic side wall?

Expect $10–22/sq ft for mineral plaster, $8–35/sq ft for cladding, and $6–12/sq ft extra for rainscreen components. Lighting and niches are highly variable—plan a contingency of 10–15%.

5) How do I avoid moisture problems on an outer side wall design?

Prioritize flashing, a well-detailed WRB, and if possible, a ventilated cavity. Keep irrigation off the wall and maintain a clean 2–4 inch air gap behind trellises and cladding.

6) What exterior side wall ideas work when space is extremely tight?

Think slim: vertical cladding, shallow plaster textures, and recessed lighting. Built-in niches with flush doors keep hoses, meters, and parcels tidy without protrusions.

7) Are there energy benefits to upgrading the side wall?

Yes—continuous insulation and reduced thermal bridging deliver steadier indoor temps and lower energy bills. A smart outer side wall design can be both pretty and performant.

8) Do I need permits for changing cladding or adding niches?

Often yes, especially near property lines or in wildfire/wind zones. Check local codes early and verify setback rules; approvals are faster when details are clear.
