5 Precast Compound Wall Design Ideas: Small-site strategies, real costs, and buildable details from a designer’s notebook

Precast compound wall design has been quietly stealing the spotlight in recent residential projects, especially on tight urban plots where every millimeter matters. Over the last decade, I’ve learned that small spaces spark big creativity—and a boundary wall is often the very first canvas. Before we even touch the soil, I like to test massing, textures, and gate positions with AI-generated variants for tricky corners so my clients can see options, not guesses.

In this guide, I’m sharing five buildable design ideas drawn from real sites I’ve managed—plus a dash of expert data that keeps your wall sturdy, compliant, and good-looking. Whether you’re chasing speed, privacy, or a softer street presence, these are the moves that have consistently worked for me.

I’ll walk you through modular layouts, textures, drainage, security, and corner/gate tricks for compact lots. Expect practical pros and cons, small-site tips, and cost cues you can actually use. By the end, you’ll have a toolkit to brief your contractor—and the confidence to ask the right questions.

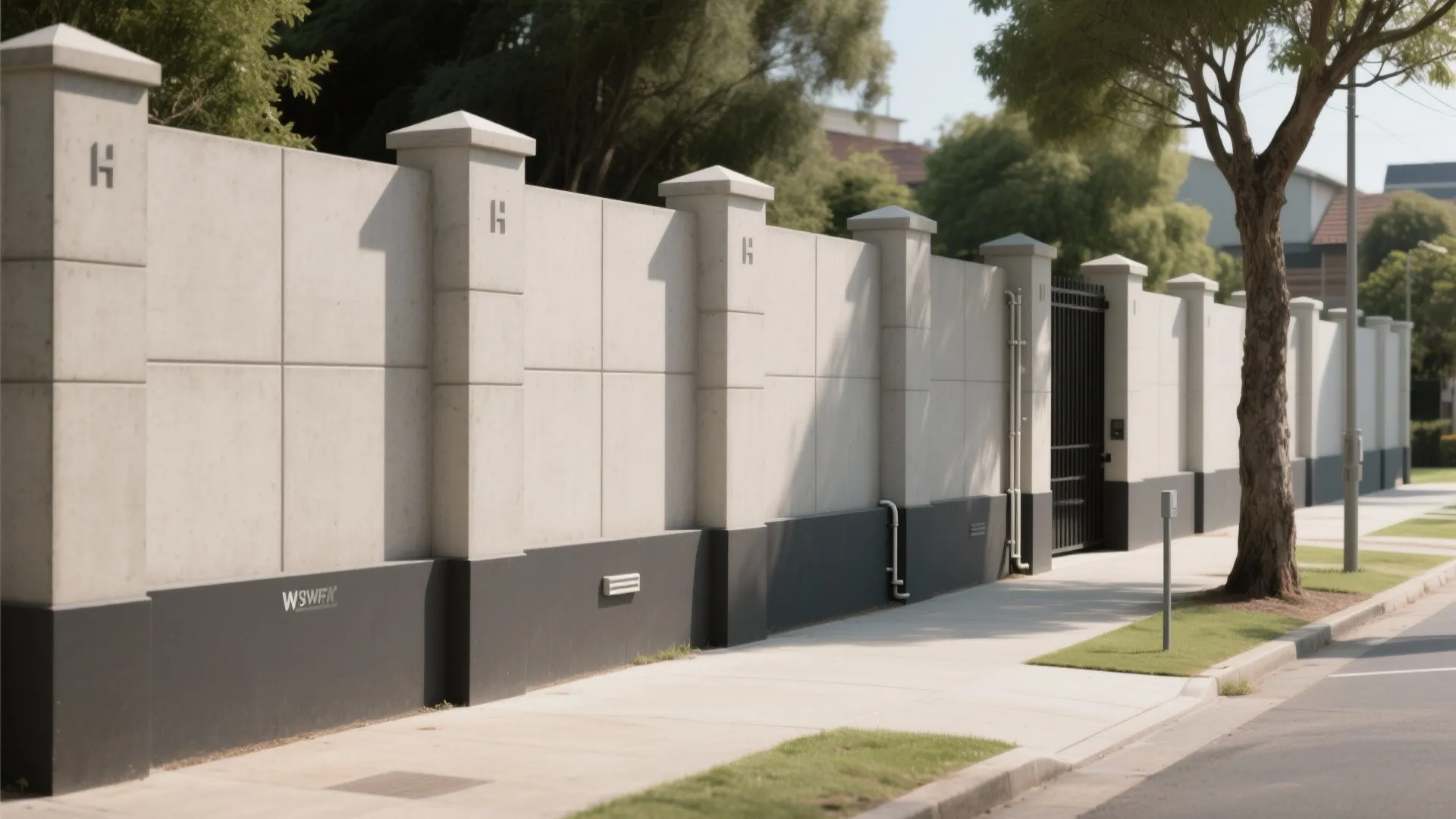

Modular H‑Column + Panel Rhythm

My Take: On a 30-foot frontage home I did last year, we used a classic H-column and infill panel system at roughly 2.4 m bays. It installed in two days, looked crisp, and kept the budget predictable per running meter. The rhythm also helped us step the wall cleanly where the footpath dipped near a tree.

Pros: A standardized H-column panel system is fast to erect and easy to price, which is gold for precast compound wall design cost per running meter. According to the National Precast Concrete Association (NPCA), factory-made elements shorten on-site time while improving quality control, so tolerances and finish are consistent. With modular spans, you can pre-plan lighting conduits and intercom runs without messy ad-hoc drilling.

Cons: The grid can feel monotonous if you don’t break it up with reveals, cap profiles, or a feature bay near the gate. On uneven terrain, rigid panel heights might fight the slope; expect to step panels or shim posts, which can look awkward if not detailed. And if your access lane is narrow, unloading long panels may be a mini Tetris marathon.

Tips/Case/Cost: In my market, a 1.8–2.1 m high precast boundary typically lands near USD $28–$60 (or ₹2,200–₹5,000) per running meter depending on height, finish, and footing complexity—treat these as ballparks. Ask your fabricator for shop drawings showing panel joint details, drip edges, and column cap profiles. If you like a more domestic vibe, specify a 60–75 mm-thick panel with a shallow reveal every second bay to add shadow and soften the “industrial” read.

save pin

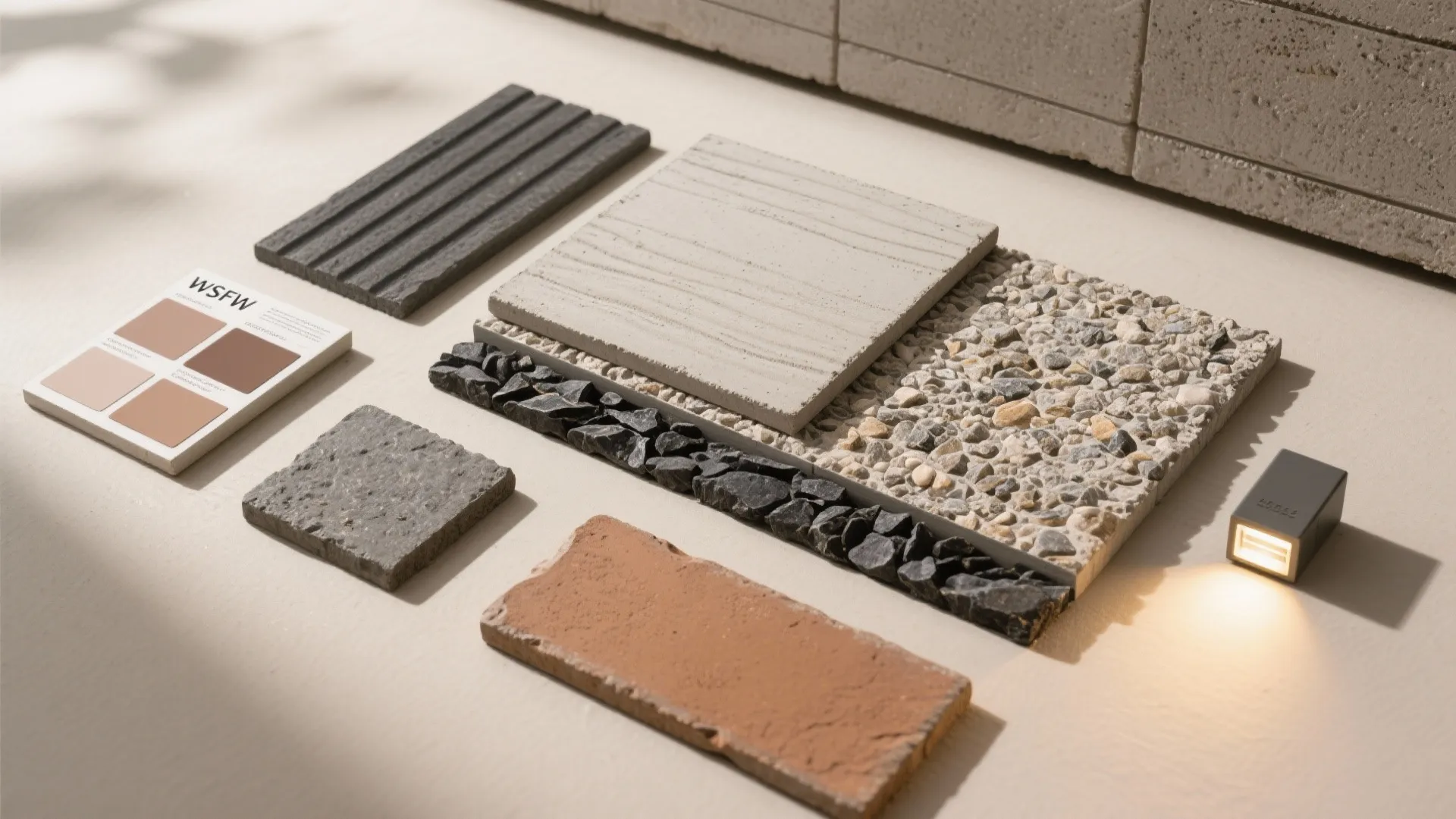

Texture, Color, and Warmth

My Take: Concrete doesn’t have to look cold. I’ve had great success with board-formed textures, light sandblasting, and even pigmented sealers to warm up the façade. One client told me their “concrete fence feels handcrafted,” which is the best compliment a precast wall can get.

Pros: Textured precast wall panels mitigate the monolithic feel and boost curb appeal for small homes where the boundary is highly visible. Board-formed or light-exposed aggregate finishes deliver a shadow play that reads premium without huge cost jumps. With an anti-graffiti sealer, you can keep a light tone clean even on a busy street.

Cons: Specialty form liners or post-blast finishing add lead time and a small premium, so factor that into your tender. Pigmented sealers may need reapplication every few years, especially under strong UV. Dark finishes get hotter, which can be tough on plantings right against the wall.

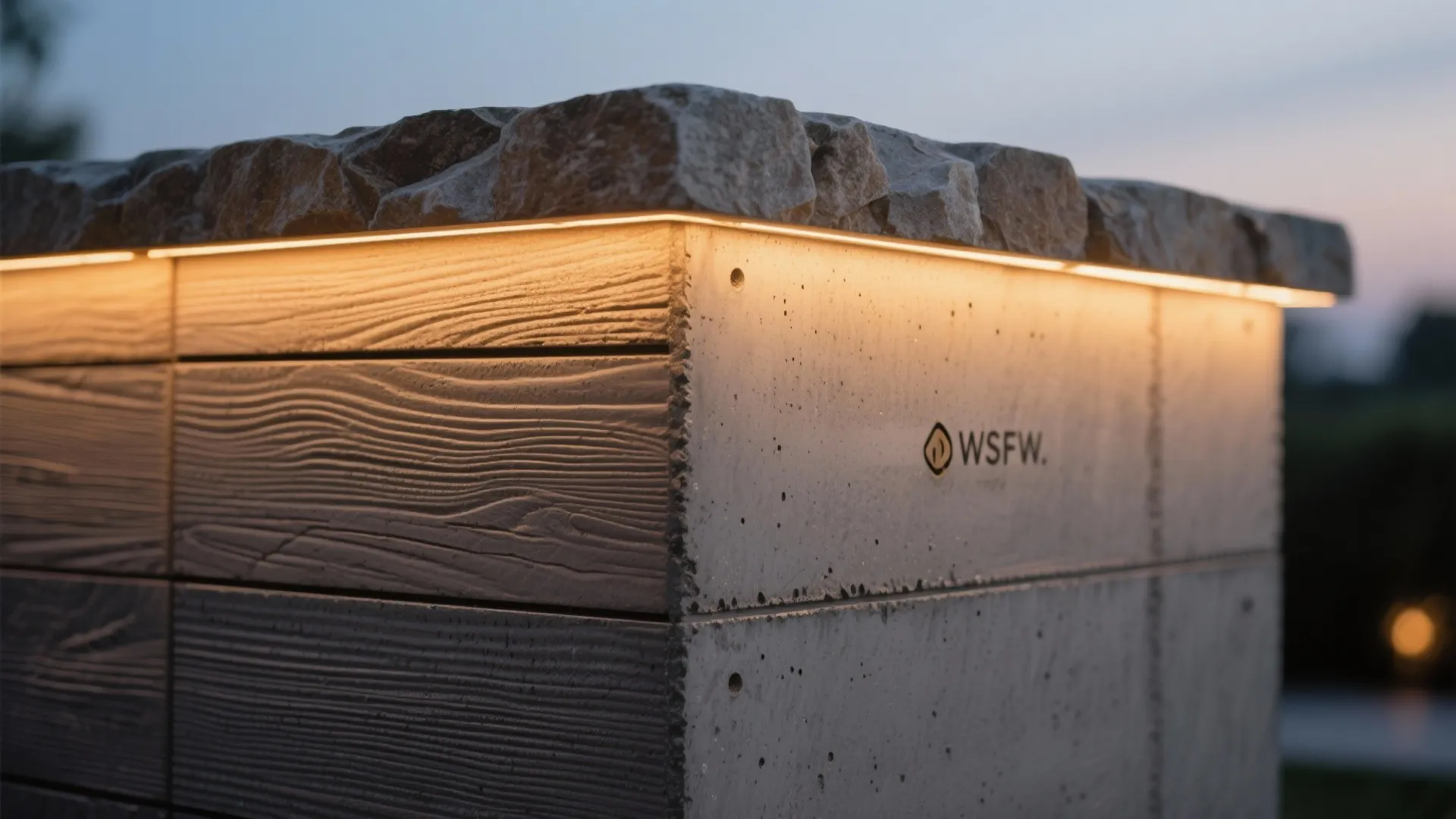

Tips/Case/Cost: For a softer street edge, I like a two-tone approach—natural concrete body with a warm cap stone or a 300 mm high “plinth band” in charcoal to hide splash marks. If you’re greening the boundary, specify trellis inserts or vine ties at 450 mm centers so climbers can scale without drilling later. A subtle LED uplight every third bay adds safety and gently celebrates the texture after dark.

save pin

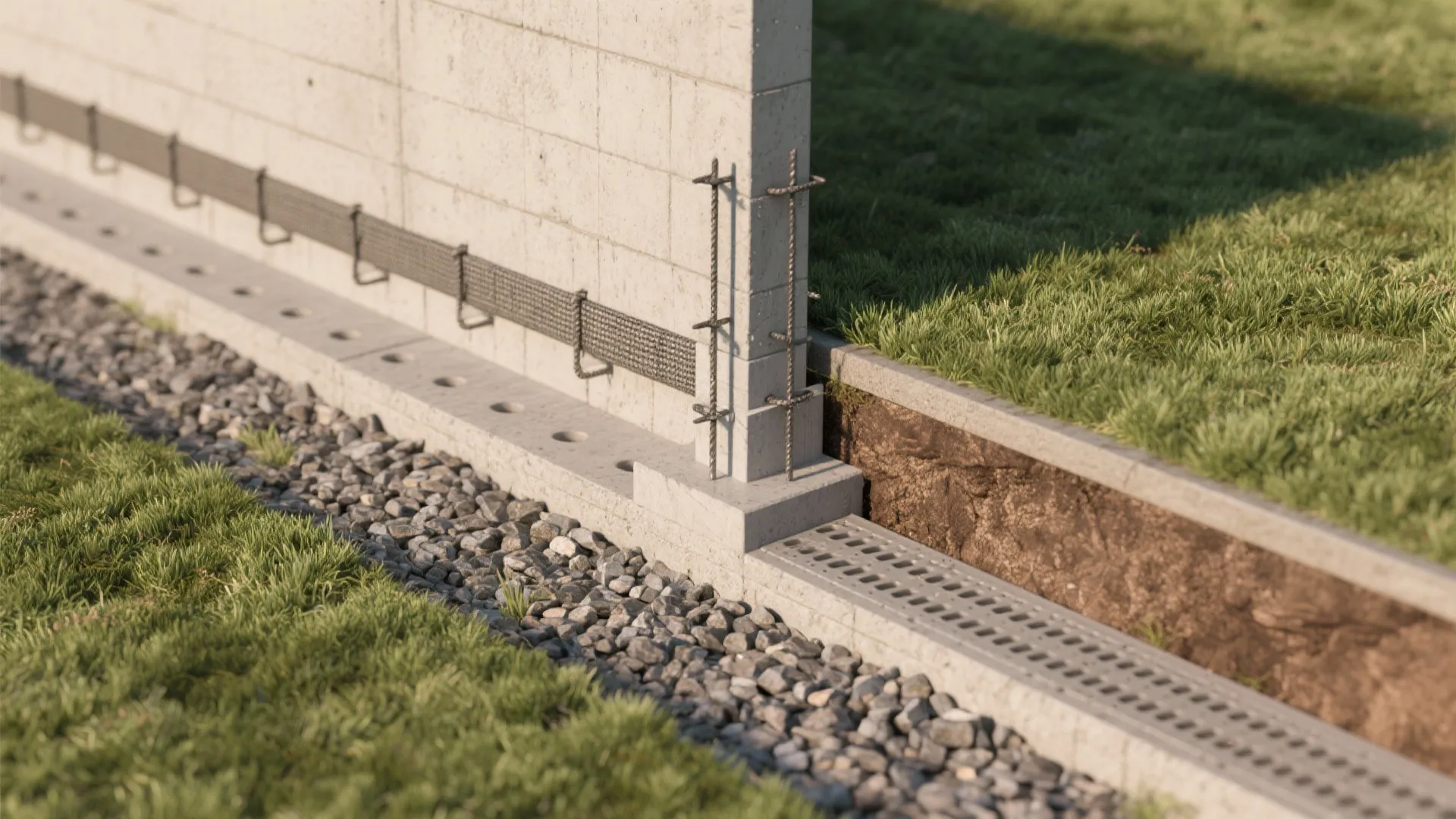

Foundation, Drainage, and Durability

My Take: The least glamorous detail is often the most important. On a site with high groundwater, we kept the wall dry by lifting the plinth 150 mm, using weep holes at each bay, and laying a gravel trench with geotextile. It still looks fresh two monsoons later, and the lawn no longer floods against the wall.

Pros: A robust precast compound wall footing detail prevents settlement and moisture creep, especially on fill or clay. For durability, follow code-referenced cover and exposure guidance—ACI 318 and IS 456 both outline minimum concrete cover and mix protections for aggressive environments, which prolongs service life. For wind, check local requirements such as IS 875 (Part 3) or ASCE 7; higher wind zones may need closer column spacing or deeper embedment.

Cons: Drainage work feels like “invisible spend,” and clients sometimes want to skip it—until the first storm. Utilities exactly where you want the footing can mean awkward offsets or micro-piles. And yes, cutting neat weep holes only to have them clogged by mulch is a rite of passage—cover with mesh or a gravel collar.

Tips/Case/Cost: As a rule of thumb, post embedment can be around one-third to one-half of exposed height, but always verify with your structural engineer and soil report. Where the footpath slopes, step the footing by full panel increments to avoid odd slivers. I also like a sacrificial anti-splash band (paint or tile) at the base to keep maintenance simple. If you’re presenting options to a client, a quick visual of 3D-rendered footing and post connections sells the idea better than any verbal explanation.

save pin

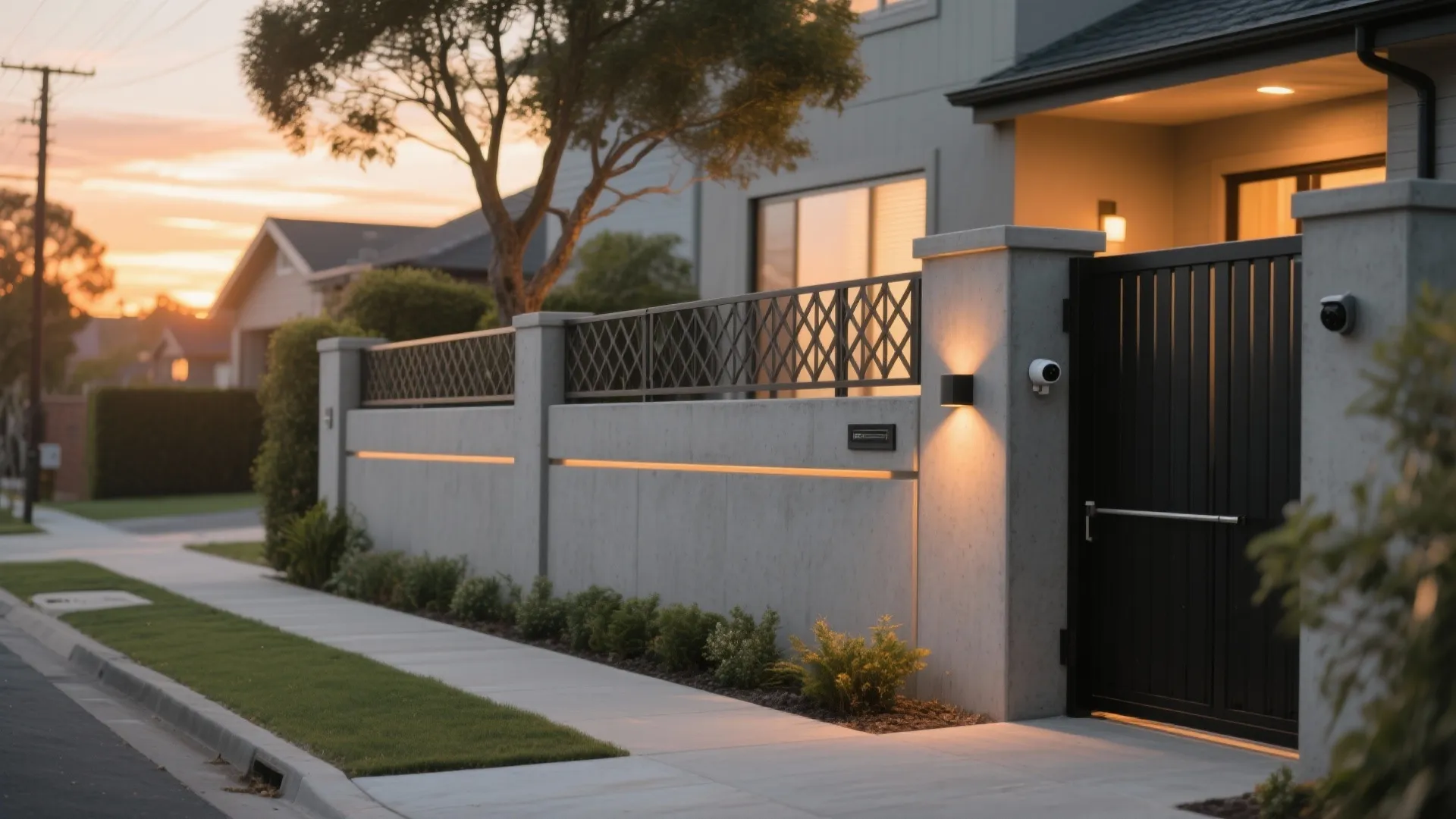

Security Without the Fortress Look

My Take: Security doesn’t have to be hostile. I often use a solid lower band for privacy (say 1.5–1.8 m) with a permeable top band—slender precast lattice or metal pickets—for airflow, light, and sightlines near the gate. It signals welcome while keeping what needs to be inside… inside.

Pros: A layered approach deters climb-over without building a bunker. Anti-climb coping, smooth exterior faces, and discreet conduit for CCTV or gate sensors make the whole system smart, not just strong. For homes along busy streets, a continuous, dense wall improves noise control via mass—the Federal Highway Administration notes that barrier effectiveness scales with height, continuity, and surface mass, so a well-detailed precast wall can be a useful noise buffer.

Cons: Height and transparency rules vary; some municipalities cap the solid portion at the front boundary, so check your local code early. Combining materials (concrete plus metal) means coordinating two trades, which can nudge timelines. And the more “designed” the top band is, the more you’ll want a mock-up to avoid surprises.

Tips/Case/Cost: If your driveway is tight, clip a corner with a 45-degree splay to improve sightlines while keeping the wall’s rhythm. I like integrated lighting at posts—just pre-plan the conduit in the precast so you’re not drilling after install. For a discreet security upgrade, specify a recessed magnetic contact near the gate leaf and a hidden junction box inside the nearest column.

save pin

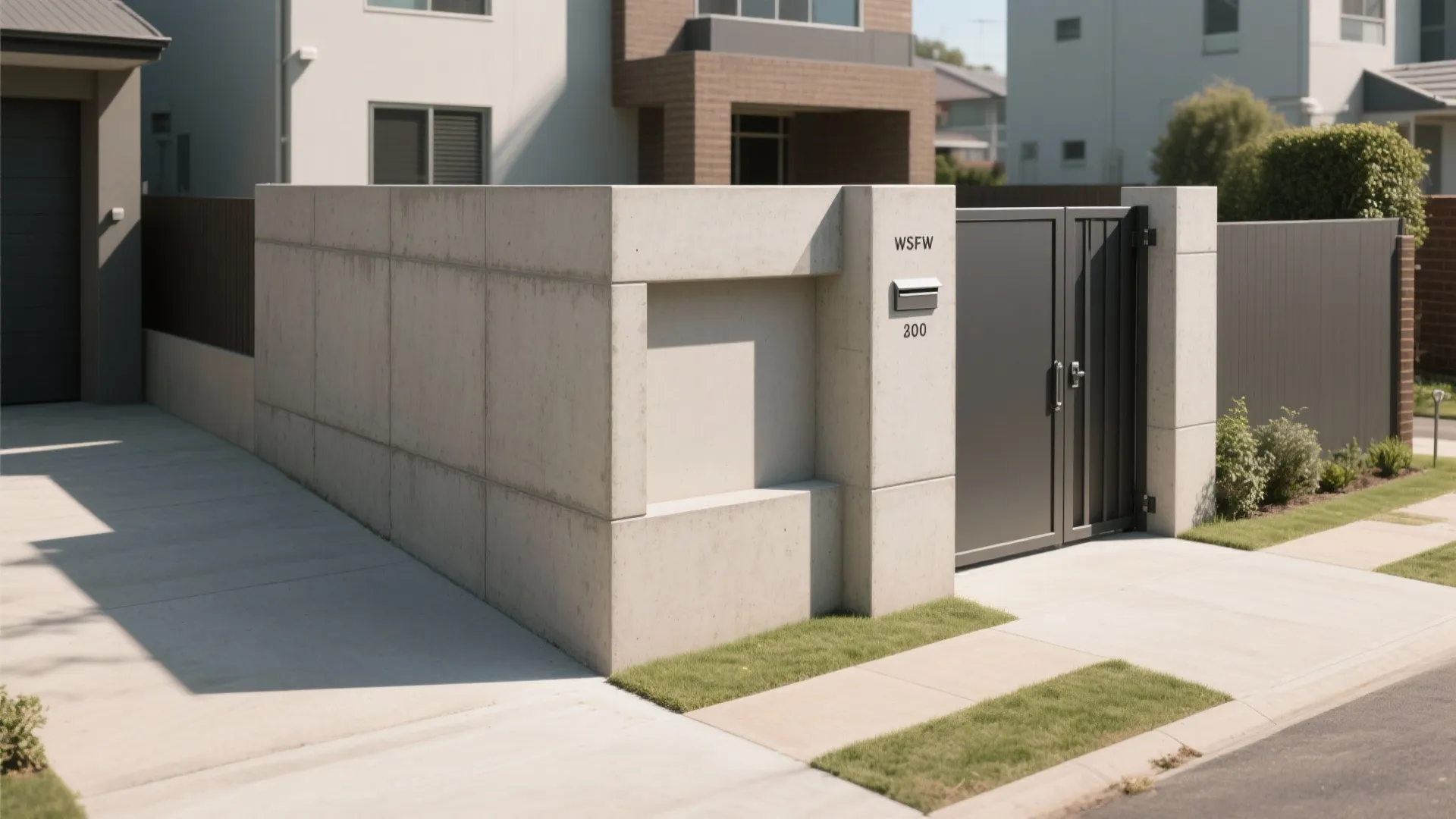

Corners, Gates, and Small‑Site Tricks

My Take: Corners and gates are where scale and function collide on small plots. On a 8 m × 20 m lot, shifting the gate 600 mm off the corner created a pocket for utilities, a tidy address plaque, and safer turning clearance. The wall felt considered, not squeezed.

Pros: Modular corner panels, slimmer end posts, and pre-hung gate frames speed installation and reduce rework. A small-service bay beside the gate keeps meters and deliveries out of the main entry view. Stepped panels handle slope without custom heights, and a simple shadow-gap joint makes each step look intentional.

Cons: Gate hardware adds weight; if the post footing isn’t beefy enough, you’ll feel it in a season. Corner geometry can snowball—shift a gate and suddenly your driveway radius, mailbox, and intercom all want new homes. Pre-hung frames save time but lock you into the vendor’s hinge positions and tolerances.

Tips/Case/Cost: Mock doors on site with tape and a cardboard leaf to test swing clearances before you cast. If your driveway slopes, consider a rising-hinge or a sliding gate to avoid scraping. For terraced sites, keep your step heights consistent with panel increments for a clean, rhythmic top line. When I’m laying out a tight frontage, I lean on modular boundary alignment for tight lots to test offsets, corner splays, and mailbox nooks without guesswork.

save pin

Summary

A small site doesn’t limit you—it nudges you toward smarter choices. Precast compound wall design shines because it’s modular, repeatable, and easy to elevate with textures, drainage smarts, and humane security. If you want backup for the technical side, standards like ACI 318/IS 456 for durability and local wind codes (IS 875 Part 3/ASCE 7) are your compass. Which of these five ideas are you most excited to try on your plot?

save pin

FAQ

1) What is the typical height for a residential precast compound wall?

Most homes land between 1.8 m and 2.4 m, sometimes adding a permeable top band for light and airflow. Check your local zoning—front setbacks and corner visibility often affect max solid height.

2) How much does a precast compound wall cost per running meter?

In my projects, I’ve seen roughly USD $28–$60 (₹2,200–₹5,000) per running meter for 1.8–2.1 m walls, excluding gates and premium finishes. Footings, access constraints, and textures will nudge the number up or down.

3) Are precast walls durable in coastal or high-rain zones?

Yes—specify appropriate concrete cover, mix design, and sealers per exposure. ACI 318 and IS 456 outline durability provisions for concrete in aggressive environments; following them dramatically improves service life.

4) Can a precast wall help with traffic noise?

Mass and continuity help. The Federal Highway Administration’s guidance on noise barriers indicates that higher, continuous, and massive walls yield better attenuation; a 1.8–2.4 m precast wall can make outdoor spaces noticeably calmer.

5) How do I handle slopes without custom panel heights?

Use stepped foundations and keep step increments tied to full panel heights to avoid slivers. A shadow-gap detail at steps keeps the transition crisp instead of “patchy.”

6) What’s the best footing approach for unstable soil?

Get a geotechnical opinion first. Deeper posts, wider strip footings, or micro-piles may be necessary; your structural engineer will size these to local loads (wind) and soil conditions.

7) Can I integrate lighting, intercom, and CCTV neatly?

Absolutely—pre-plan conduits, junction boxes inside columns, and service sleeves under the driveway before pouring. It’s cheaper and cleaner than retrofitting.

8) Is there a fast way to visualize finishes and joints before ordering?

I like building quick option sets with 3D visuals so clients can compare textures and cap profiles. Even a simple render of a 2–3 bay sample makes decisions faster and reduces on-site changes.
