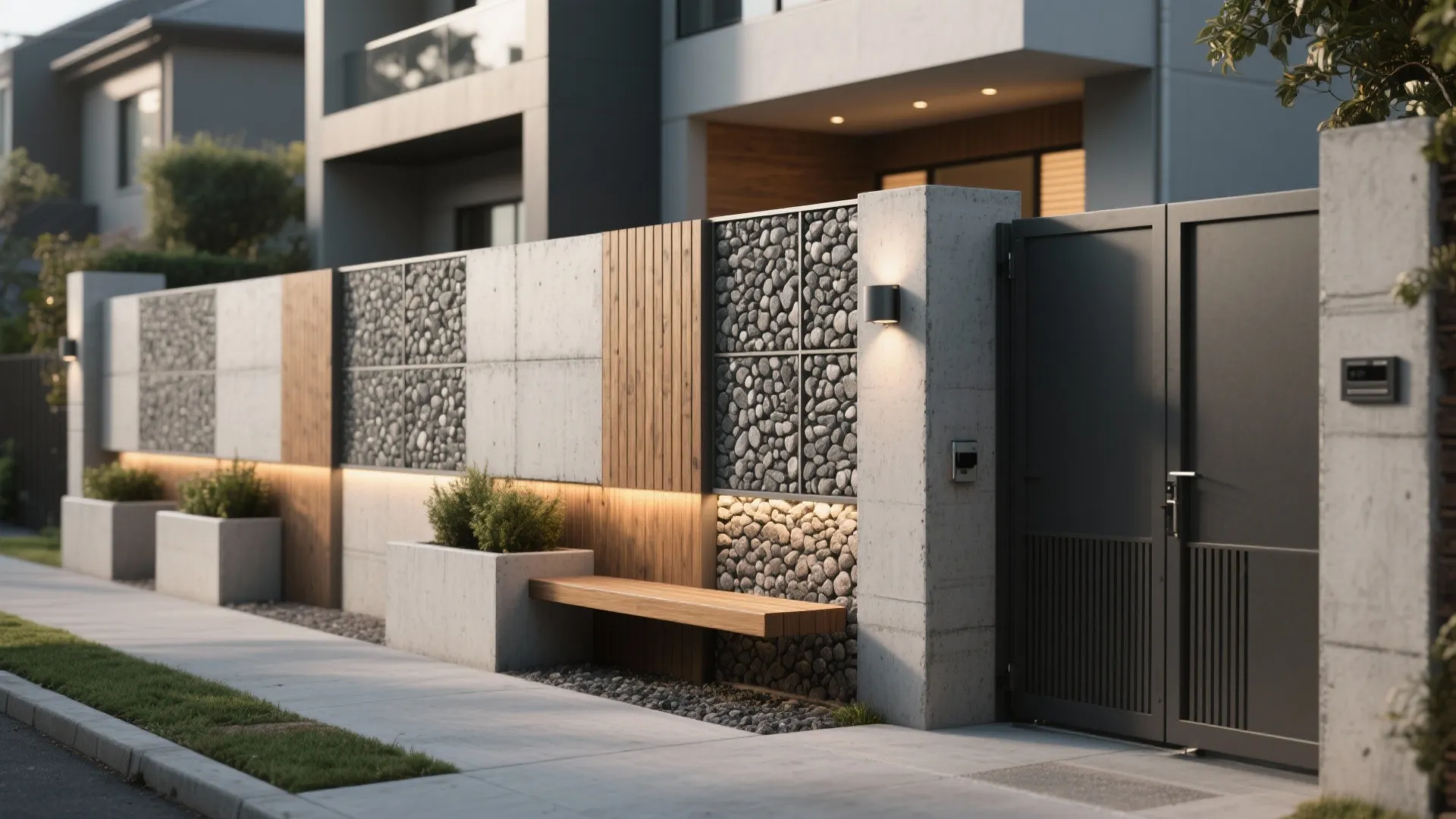

5 RCC Boundary Wall Design Ideas I Trust: Practical, stylish, and secure RCC boundary wall design ideas drawn from real projects and hard data

[Section: 引言]

RCC boundary wall design has quietly become part of the broader home style conversation, thanks to cleaner textures, safer perimeters, and smarter integrations. On tight plots, small spaces spark big ideas—your boundary wall can do far more than mark lines. In this guide, I’ll share 5 design inspirations I’ve used, blending personal experience with expert data, starting with a love for board-formed concrete boundary wall texture that transforms a plain edge into a crafted facade.

I learned early in my practice that a thoughtful compound wall sets the tone for your home—curb appeal, privacy, and security all in one. When the site is constrained, the wall becomes a design canvas: structure meets style, and details matter.

Below are five ideas I’ve implemented on residential sites from compact city plots to mid-size villas. I’ll cover aesthetics, RCC wall footing design, height standards, and budget notes, with a couple of code references to keep it grounded.

[Section: 灵感列表]

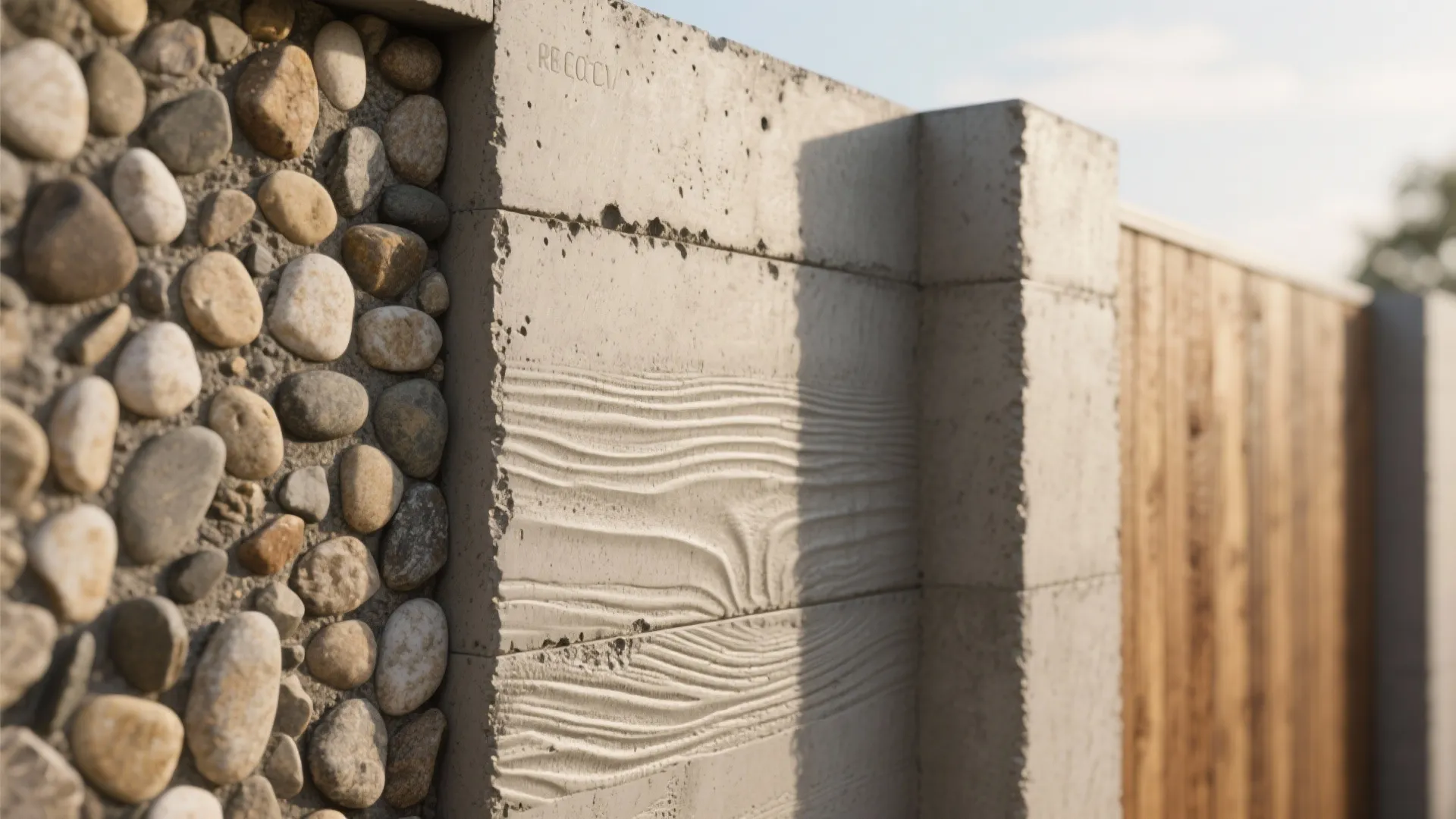

Board-Formed and Exposed Aggregate Concrete Finishes

My Take

I’m a fan of textures that feel handcrafted. Board-form concrete imprints timber grain onto RCC, giving even a modest boundary wall a warm, architectural identity. Exposed aggregate is another win—sparkle by day, subtle shadow by night.

Pros

Textured concrete masks minor surface imperfections and elevates curb appeal without cladding. Using a controlled mix and proper curing aligns with compound wall design best practices and keeps maintenance minimal. With a consistent formwork schedule, the finish cost per running meter is predictable—handy when you’re balancing RCC boundary wall design and budget.

Cons

Board-form needs clean, straight timber and tight joints; sloppy carpentry telegraphs onto the wall. Exposed aggregate can be harsh if overdone near pedestrian paths—choose rounded aggregates to avoid snagging clothes (yes, learned that the hard way).

Tips / Case / Cost

Use a 1.5–2.0 m module for formwork repeats to keep rhythm consistent. Consider a two-tone strategy: smooth piers and textured infill panels for depth without visual clutter.

save pin

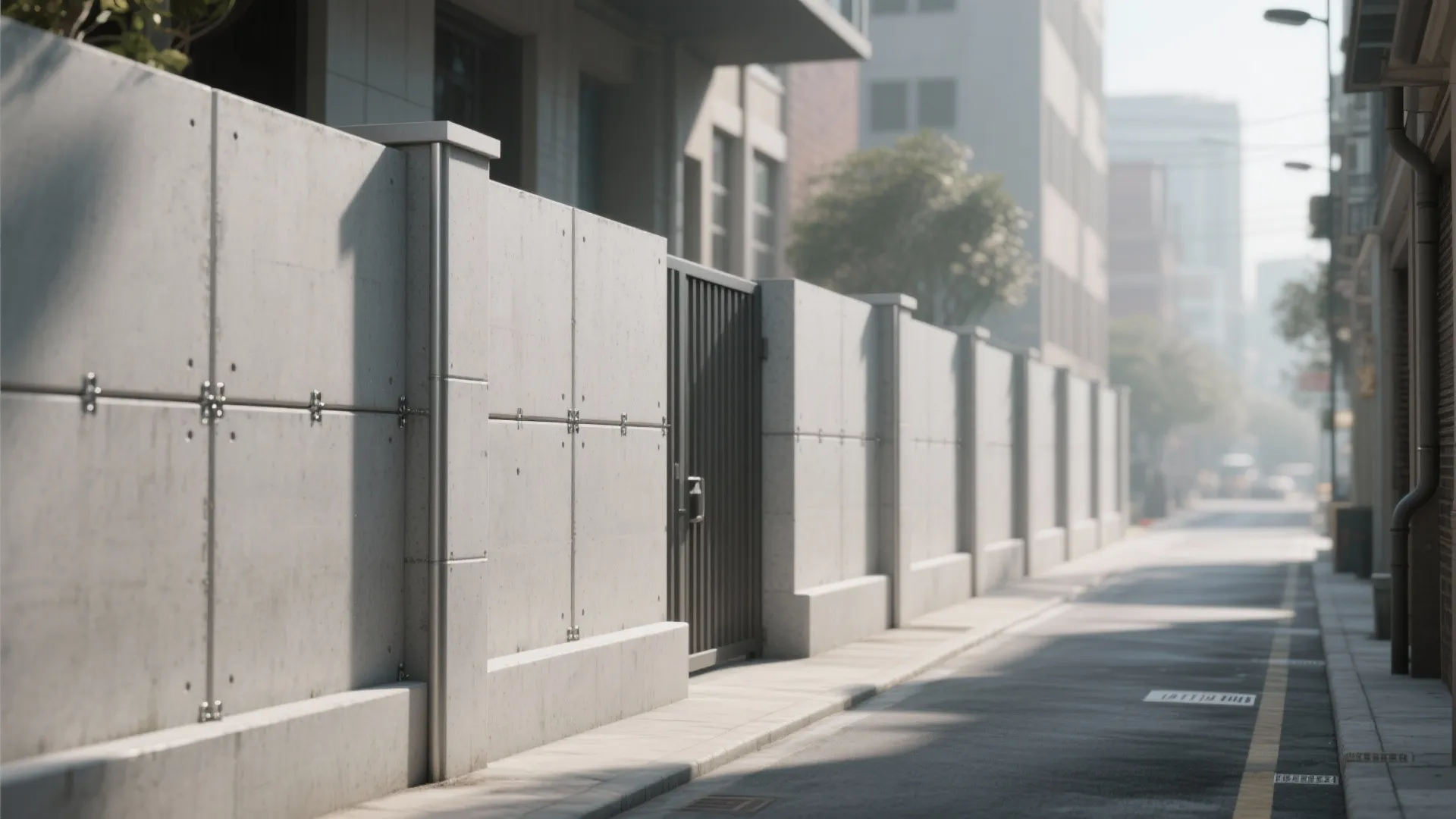

Modular Precast RCC Boundary Walls

My Take

When speed and uniformity are the brief, precast RCC panels shine. I’ve installed modular runs on tight schedules with minimal site disruption and clean quality control.

Pros

Factory-made panels reduce on-site variables, making expansion joint spacing and alignment more precise. For windy sites, a uniform section ties nicely with boundary wall height standard interpretations and simplifies approvals. Precast RCC boundary wall cost per meter is often competitive when you factor labor, formwork, and time.

Cons

Transport and crane access can be tricky in narrow lanes. Panel joints need careful sealing; otherwise, stains appear along seams (the kind your neighbors love to point out).

Tips / Case / Cost

Ask suppliers for panel load data and recommended post spacing. PCI (Precast/Prestressed Concrete Institute) recommended practices provide helpful baselines for tolerances and erection. Mid-project visualizations help—drop in mock modules to plan gate transitions and corner returns with modular precast RCC panels so you can foresee awkward junctions before they happen.

save pin

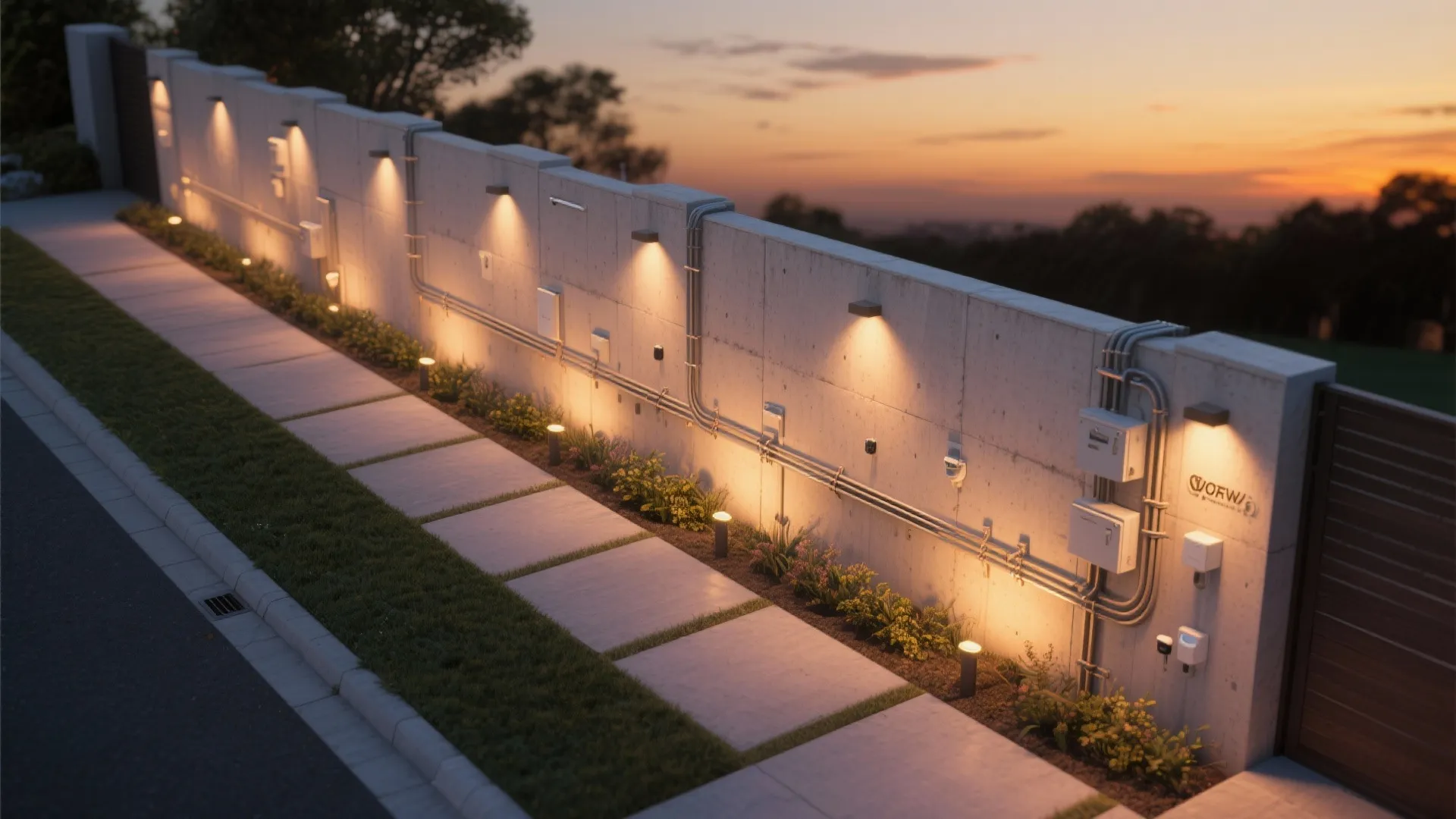

Smart Lighting, Conduits, and Security Integration

My Take

I like to treat the wall as a backbone for safety and ambiance. Concealed conduits, low-voltage fixtures, and camera mounts designed into RCC save retrofit headaches later.

Pros

Integrated security lighting on boundary walls deters intrusions and improves nighttime visibility. Planning cable runs during RCC wall footing design prevents messy chiseling later. Subtle, warm-white wash lights turn a plain perimeter into a welcoming facade.

Cons

Over-lighting can annoy neighbors or blow your energy budget; set dimmers and motion controls. Conduit layouts need discipline—future you will curse past you if boxes and junctions aren’t mapped.

Tips / Case / Cost

Run separate circuits for security and decorative lighting; label inspection points clearly. Consider PIR sensors and timed scenes to balance safety with energy use. I often build in spare conduit stubs for upgrades. For a quick concept check, I prototype placement and glare angles using integrated lighting for perimeter safety to visualize night scenarios before committing to fixtures.

save pin

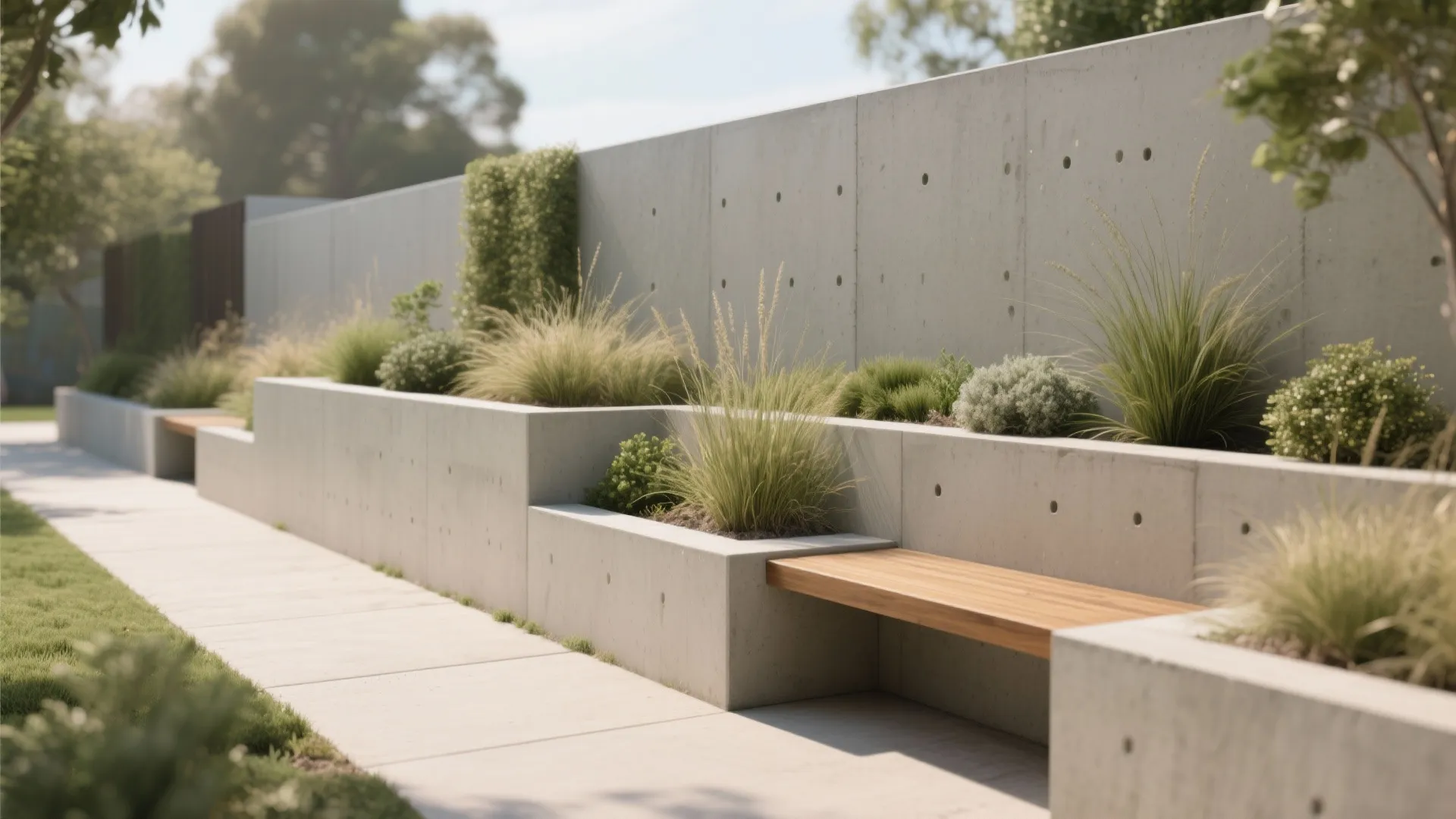

Planter Bays, Niches, and Seating in the Wall

My Take

Small site? Make the boundary wall work double-time. I’ve carved planter pockets and bench niches into RCC walls to bring greenery and social spots right to the perimeter.

Pros

Integrating planters softens massing and supports privacy by adding foliage. For family homes, seating niches become spontaneous chat corners. If your RCC boundary wall height standard caps taller sections, layered planting boosts perceived height without violating rules.

Cons

Planters add water and soil load; drainage must be bulletproof. Poor detailing invites stains or moss—lovely in ruins, less charming on your fresh wall.

Tips / Case / Cost

Use fiber-reinforced waterproofing in planter cavities and add weep holes. Favor drought-tolerant species to reduce maintenance. Keep niche depths to 300–400 mm to avoid structural complications and maintain clear walkway width.

save pin

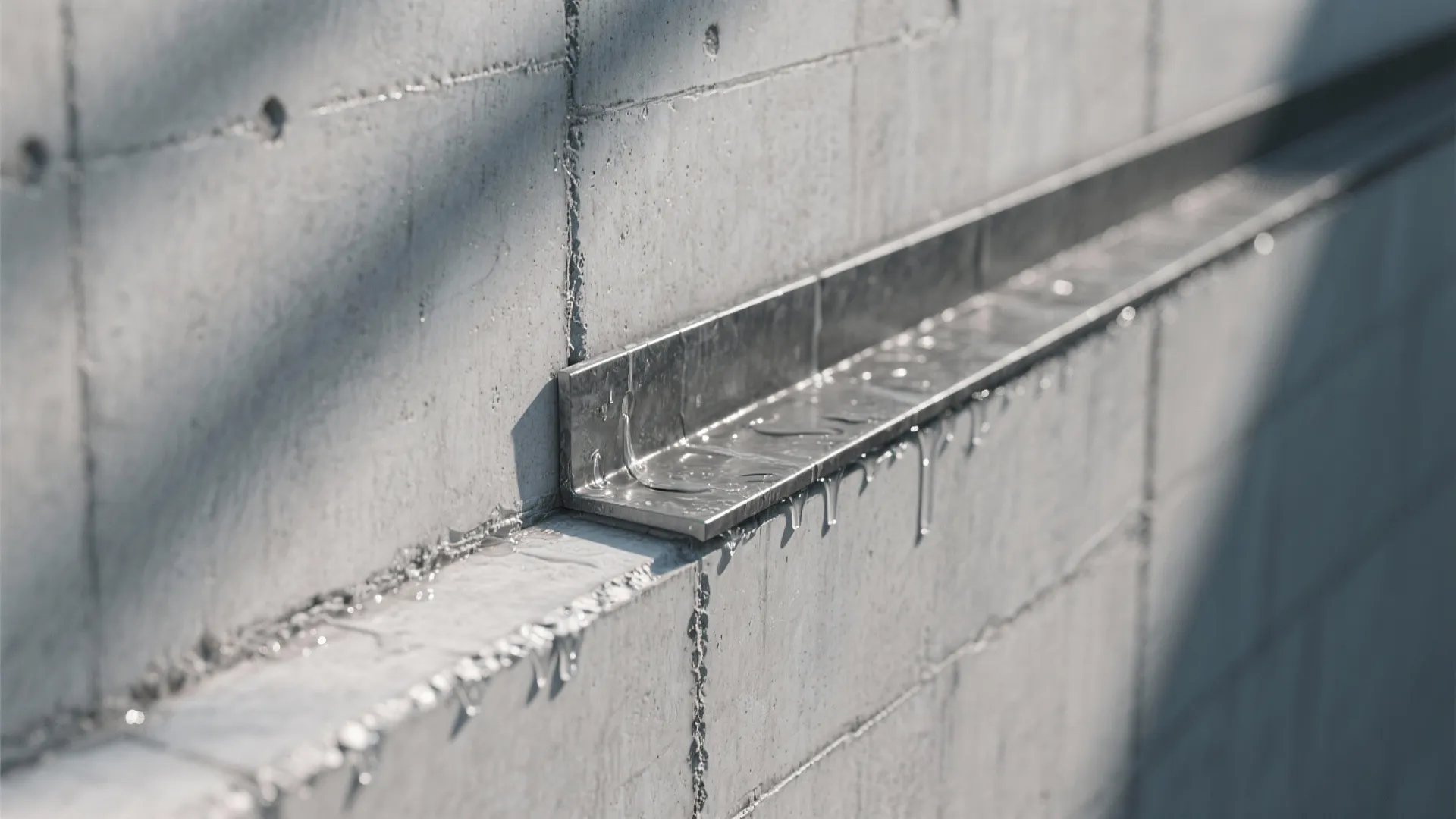

Structural Detailing: Footings, Copings, and Expansion Joints

My Take

Good design lives in the details: footing depth, reinforcement, joint strategy, and coping profile. On one coastal project, dialing wind loads first made everything else fall into place.

Pros

Sound RCC wall footing design, with rebar cover and concrete grade calibrated to site conditions, extends life and safety. For wind and seismic guidance, IS 875 (Part 3) and ASCE 7 are reliable references; reinforcement limits align with ACI 318 and IS 456 for compound wall design. Copings shed water away, reducing efflorescence and staining—small detail, big payoff.

Cons

Skipping expansion joints or placing them arbitrarily invites cracks that telegraph right across your finish. Overly thin copings chip; overly wide ones look like hats. Balance, as always.

Tips / Case / Cost

Typical joint intervals range from 6–8 m for straight runs, adjusted for temperature swings and restraint. Confirm local boundary wall height standard with your municipality; aim for consistent pier spacing. Reference IS 456:2000 for cover and durability classes, and ACI 318 for detailing lap lengths and stirrup spacing. If you’re blending aesthetics with structure, mock the coping profile alongside textures with integrated lighting for perimeter safety to catch shadow lines early.

[Section: 总结]

In my experience, a small plot and strict rules don’t limit you—they nudge you toward smarter RCC boundary wall design. From texture and precast speed to smart lighting and meticulous footings, the wall can be beautiful and rock-solid. Codes like IS 875 and ACI 318 keep decisions grounded; creativity makes them yours. Which of these five ideas would you try first?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the typical height for an RCC boundary wall?

Local boundary wall height standards vary from 1.5–2.4 m, often capped by municipal bylaws. Always confirm your city’s rules before finalizing design and permits.

2) How should I design RCC wall footings?

Footing design depends on soil bearing capacity, wall height, and loads. Use IS 456:2000 or ACI 318 for reinforcement, cover, and concrete grade guidance, and consult a structural engineer for site-specific calculations.

3) Are precast RCC boundary walls cost-effective?

Precast RCC boundary wall cost per meter can be competitive due to reduced on-site labor and faster schedules. Factor in transport, lifting, and joint sealing for a fair comparison with cast-in-place.

4) How do I handle wind loads on tall compound walls?

Check IS 875 (Part 3) or ASCE 7 for wind pressure calculations and adjust pier spacing and reinforcement accordingly. Bracing or thicker sections may be needed in high-wind regions.

5) What finishes are best for RCC boundary walls?

Board-formed concrete and exposed aggregate are durable choices with strong visual impact. For a subtler look, consider mineral paint or silicone-based coatings that resist UV and efflorescence.

6) Can I integrate lighting and security into the wall?

Yes—plan conduits, junction boxes, and mounting points during RCC casting. Motion sensors and low-glare fixtures provide safety without overwhelming neighbors.

7) How far apart should expansion joints be?

A common range is 6–8 m for straight RCC runs, adjusted for temperature, restraint, and layout. Your engineer should confirm spacing based on site conditions and material behavior.

8) Which codes apply to RCC boundary wall design?

Start with IS 456:2000 (concrete practice) and IS 875 (loads), or ACI 318 for reinforcement and detailing in other regions. These are authoritative references widely used by professionals.
