I’ve redesigned more small yards than I can count, and lately I’m seeing homeowners ask for practical retaining wall solutions that feel like part of the overall design, not an afterthought. Small space can spark big creativity—especially when a wall doubles as seating, planters, and subtle lighting. If you’re searching for a retaining wall design example PDF to guide choices, I’ll share five design inspirations backed by personal experience and expert data, plus how I decide materials, drainage, and finishes for compact sites. To visualize concepts like tiered terraces early, I often mock up tiered garden terraces so clients can see how levels flow with their patio and planting beds.

These ideas come from projects where every centimeter mattered—tight setbacks, odd slopes, and budgets that favored smart detail over brute force. I’ll walk through the strengths and trade-offs of each approach, where a retaining wall design example PDF is most helpful, and the subtle features (drainage, geogrid reinforcement, and footing details) that make or break long-term performance.

[Section: 灵感列表]

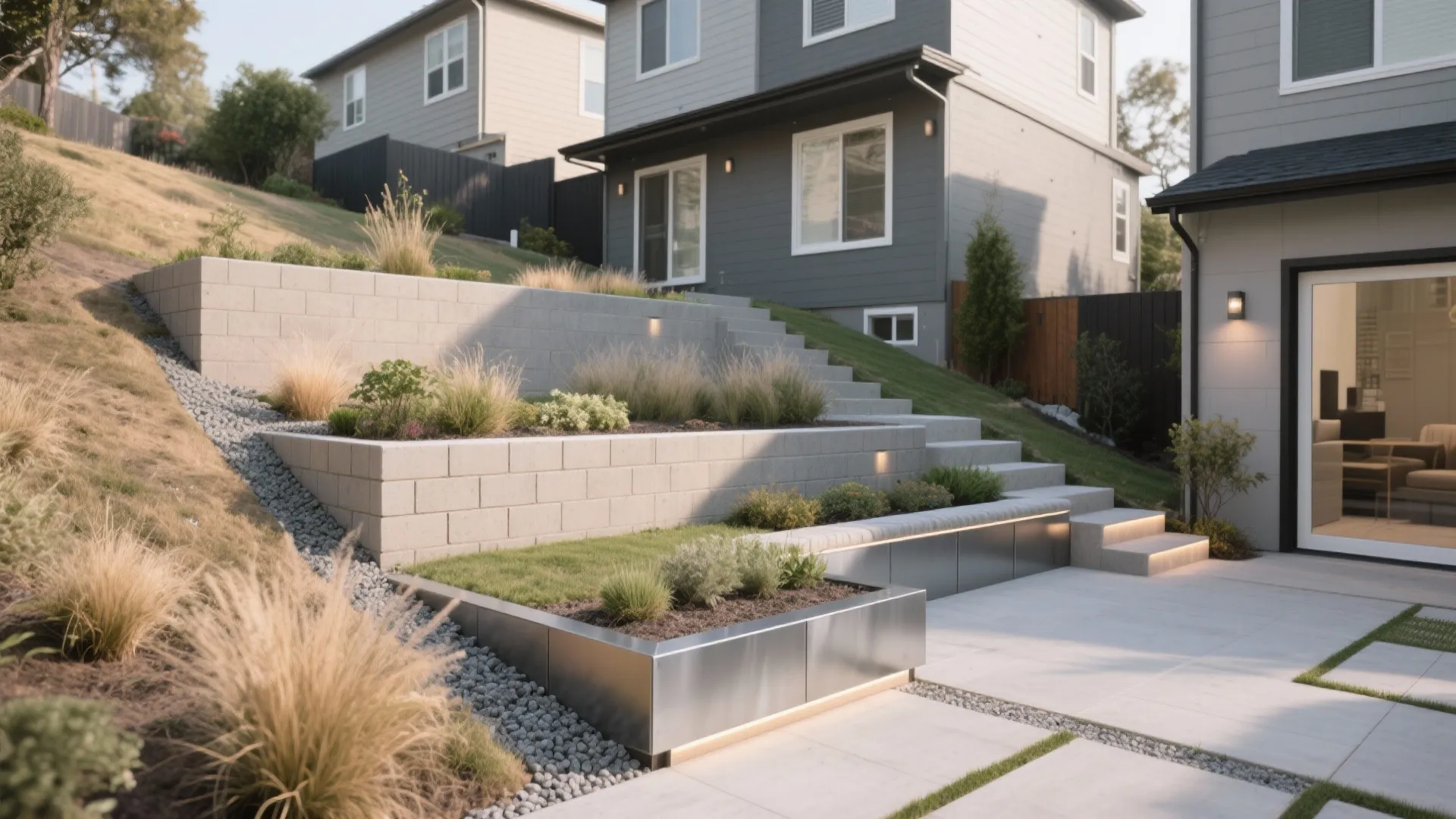

Minimalist Terraced Planters

My Take: When I inherit a steep patch behind a townhouse, I often split the height into two or three short terraces with planter-ready faces. It looks gentle, gives usable bed space, and avoids one imposing wall. I’ve used powder-coated steel edging with concrete footings, or modular block walls with crisp caps to keep the look lean and modern.

Pros: Multiple short walls reduce lateral pressures per lift and simplify drainage, which is great for small sites. Many retaining wall design example PDF sets include step-by-step layouts for tiered configurations and soil separation, making them client-friendly. Planting between tiers softens mass and promotes infiltration, so the system feels like landscaping, not just structure.

Cons: More tiers can mean more total linear footage and more cap pieces, so your budget may stretch in a different way. Lighting and irrigation lines need careful routing between terraces—easy to forget until you’re on site. If the slope is very tight, too many breaks can look busy; restraint matters.

Tips / Cost: I keep each lift under 1 meter where possible to minimize permits and engineering on residential lots (always check local codes). Use a perforated drain behind each wall with filter fabric and clean aggregate; avoid fines that clog.

save pin

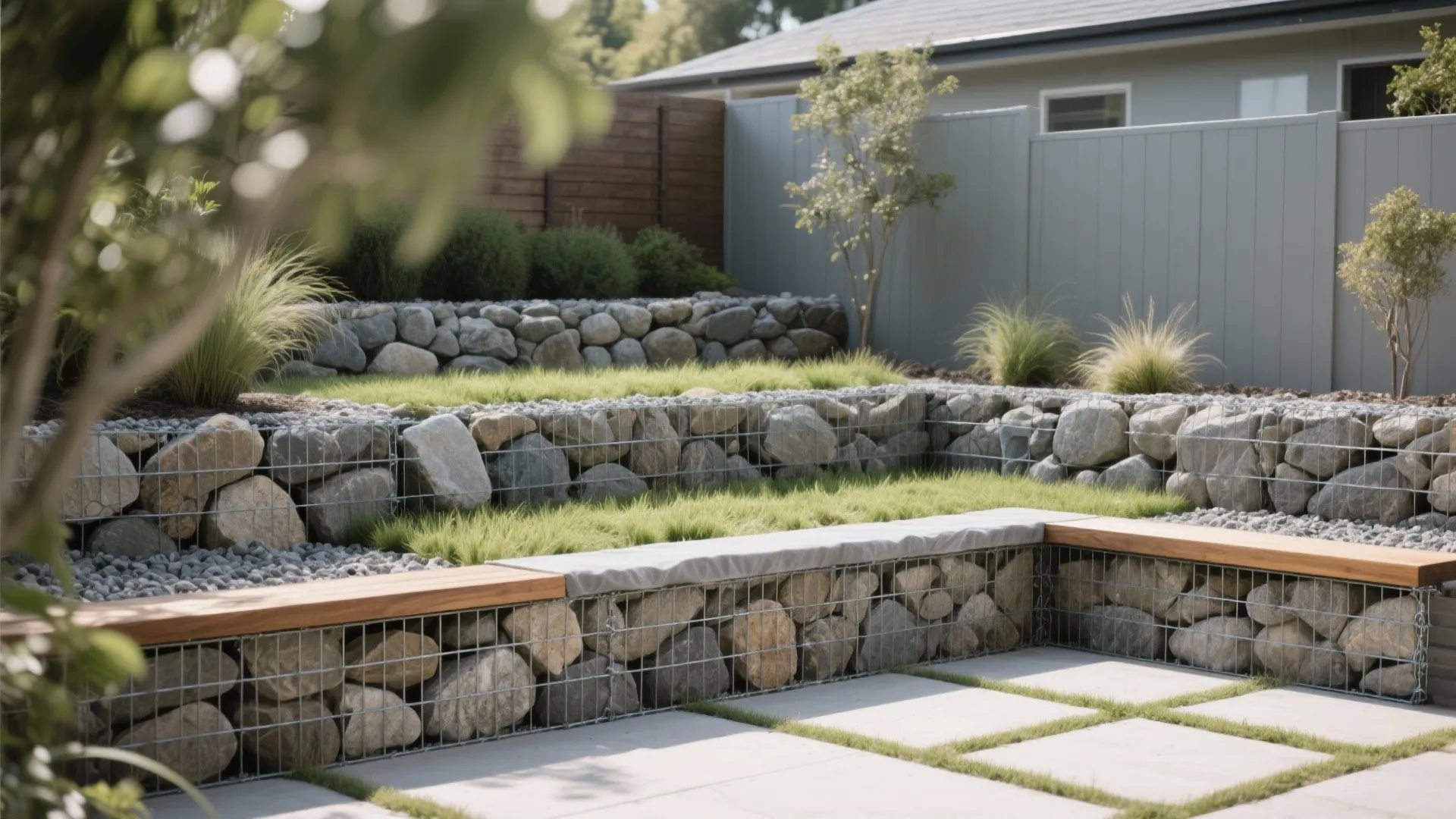

Gabion Textures With Native Stone

My Take: Gabions are my go-to when a client loves rugged texture and wants a wall that ages gracefully. In small backyards, a low gabion face can double as a bench back or planter border while highlighting site-harvested rock. I like mixing sizes—larger stones up front, smaller fill behind—to lock things up visually and structurally.

Pros: Gabions drain naturally, reducing hydrostatic pressure without complex pipework. A clear retaining wall design example PDF often shows basket sizing, tie wire, and lift height limits, making coordination with contractors smoother. They blend into native landscapes and minimize concrete use, which can be a win for carbon-conscious clients.

Cons: Not every HOA loves the “industrial” cage aesthetic; some ask for wood or planted screening. At very small scales, gabion baskets can feel chunky—slim modules and fine mesh help. Stone selection impacts cost; mismatched rock can look chaotic instead of curated.

Tips / Case: I wrap geotextile behind the basket to keep soil fines from migrating and staining the face. A simple top cap—stone slab or timber—reads finished and offers casual seating.

save pin

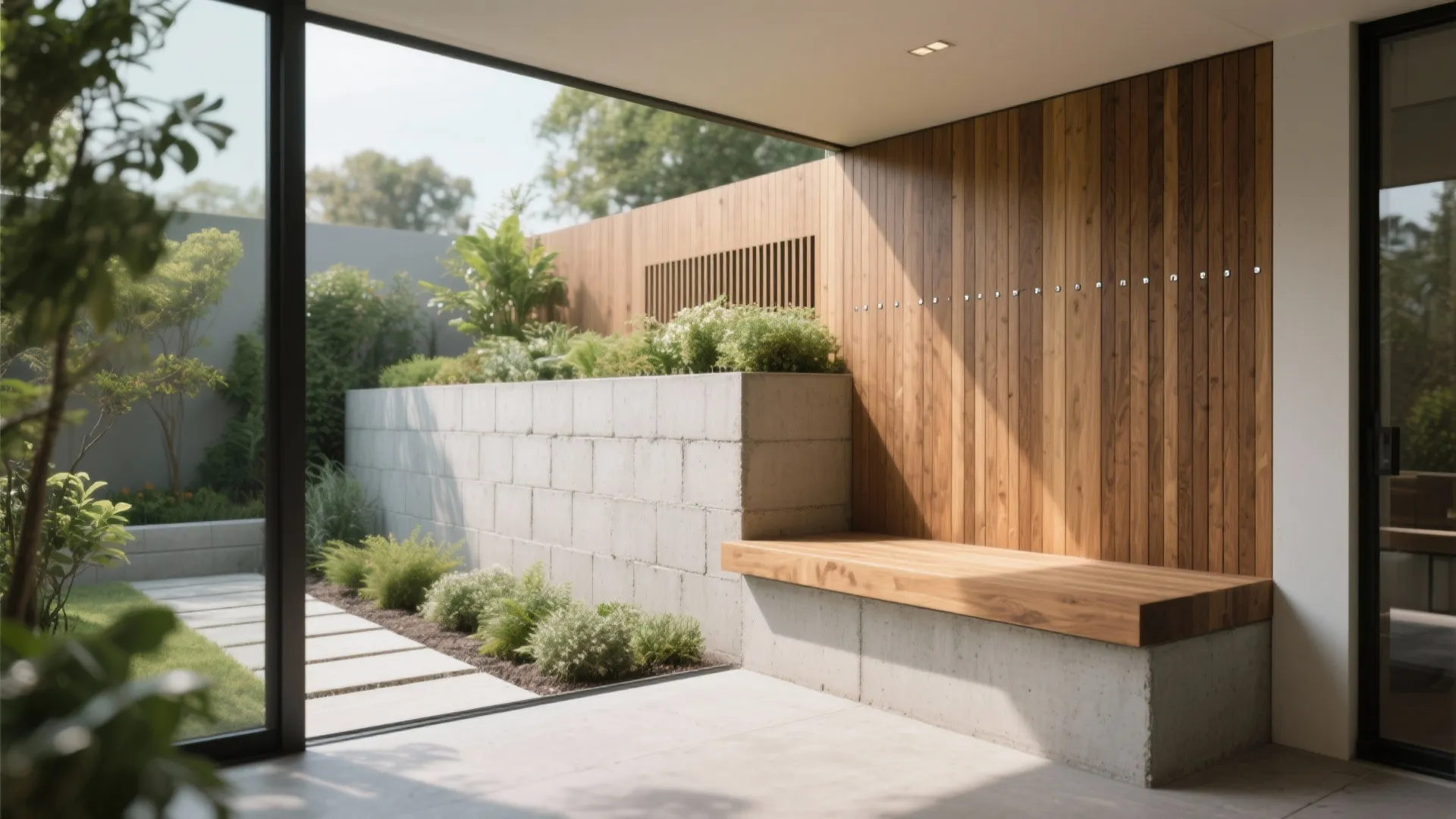

Warm Wood-Clad Gravity Wall

My Take: Clients who love indoor-outdoor continuity often ask for the warmth of timber. Structurally, we’ll build a small gravity wall—concrete or block—and then add a ventilated wood cladding system on the face. The result feels like built-in furniture along a garden edge.

Pros: You get the reliability of a gravity wall with the tactile appeal of wood. A retaining wall design example PDF for timber cladding typically covers batten spacing, corrosion-resistant fasteners, and allowance for airflow to prevent trapped moisture. If the yard’s footprint is tight, a cantilevered cap can become practical bench seating without eating space.

Cons: Wood introduces maintenance—UV finish, resealing, and occasional board replacement—so set client expectations early. In very damp microclimates, even rot-resistant species need detail perfection. If the wall height creeps up, wood costs rise quickly compared to a simple textured concrete face.

Authority Note: For structural basics under the cladding, I often reference FHWA’s “Earth Retaining Structures” (NHI-10-024) for drainage and backfill practices; it’s a sober and time-tested anchor for design decisions.

Design Tip: Where space allows, extend the cap to form a 300–450 mm deep perch; it’s enough for comfortable seating and keeps the line elegant. In family yards, a shallow overhang prevents scuffing the wood face.

When the wall doubles as usable edges, I’ll model stepped planter walls with integrated seating to balance circulation with planting pockets. It helps clients understand clearances and how cushions or lanterns will live on the cap at night.

save pin

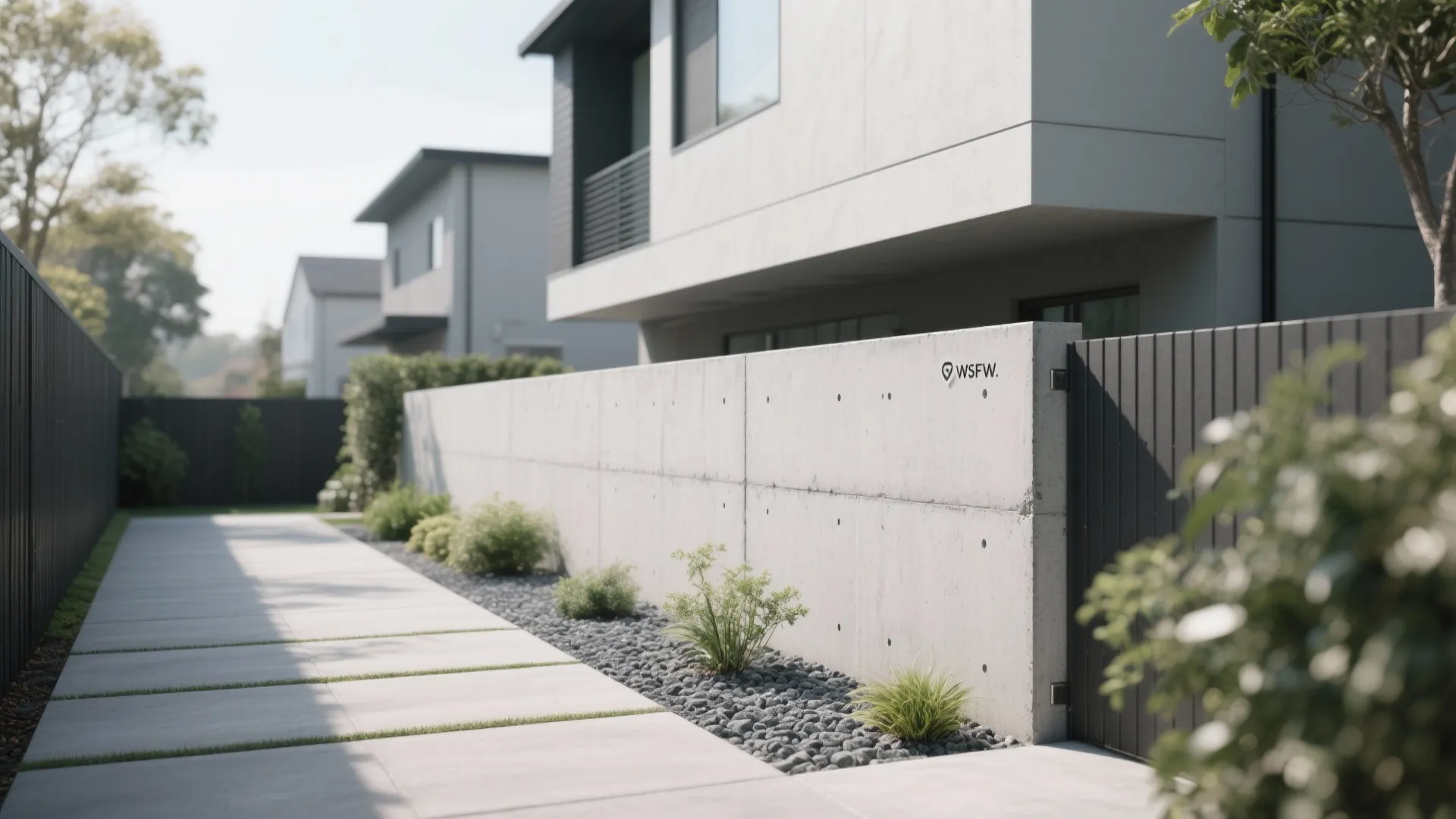

Cantilevered Reinforced Concrete in Tight Corners

My Take: On cramped lots with close property lines, a cantilevered reinforced concrete wall can deliver slender thickness and reliable performance. I aim for clean, board-formed textures or sandblasted finishes to make the structure read intentional, not purely utilitarian.

Pros: Cantilever walls are strong and space-efficient, ideal for narrow passages and side yards. Many retaining wall design example PDF files include rebar schedules, key dimensions, and weep hole spacing, which fast-track engineering reviews. Properly detailed waterproofing and flashing integrate with adjacent paving, keeping the surface clean over time.

Cons: Upfront costs can be higher than modular blocks, especially with site mobilization and forming. Concrete aesthetic depends on craftsmanship; bad formwork leaves honeycombing or awkward joints. Expansion joints and crack control need real attention or the finish telegraphs flaws.

Authority Note: For segmental alternatives, the NCMA “Best Practices Guide for SRWs” outlines geogrid lengths relative to wall height—handy when deciding if a modular option beats cast-in-place in a small yard.

Tips / Cost: If you’re comparing quotes, ask contractors to itemize forming, reinforcing, and drainage separately. That clarity makes apples-to-apples comparison fairer, especially on tight sites.

save pin

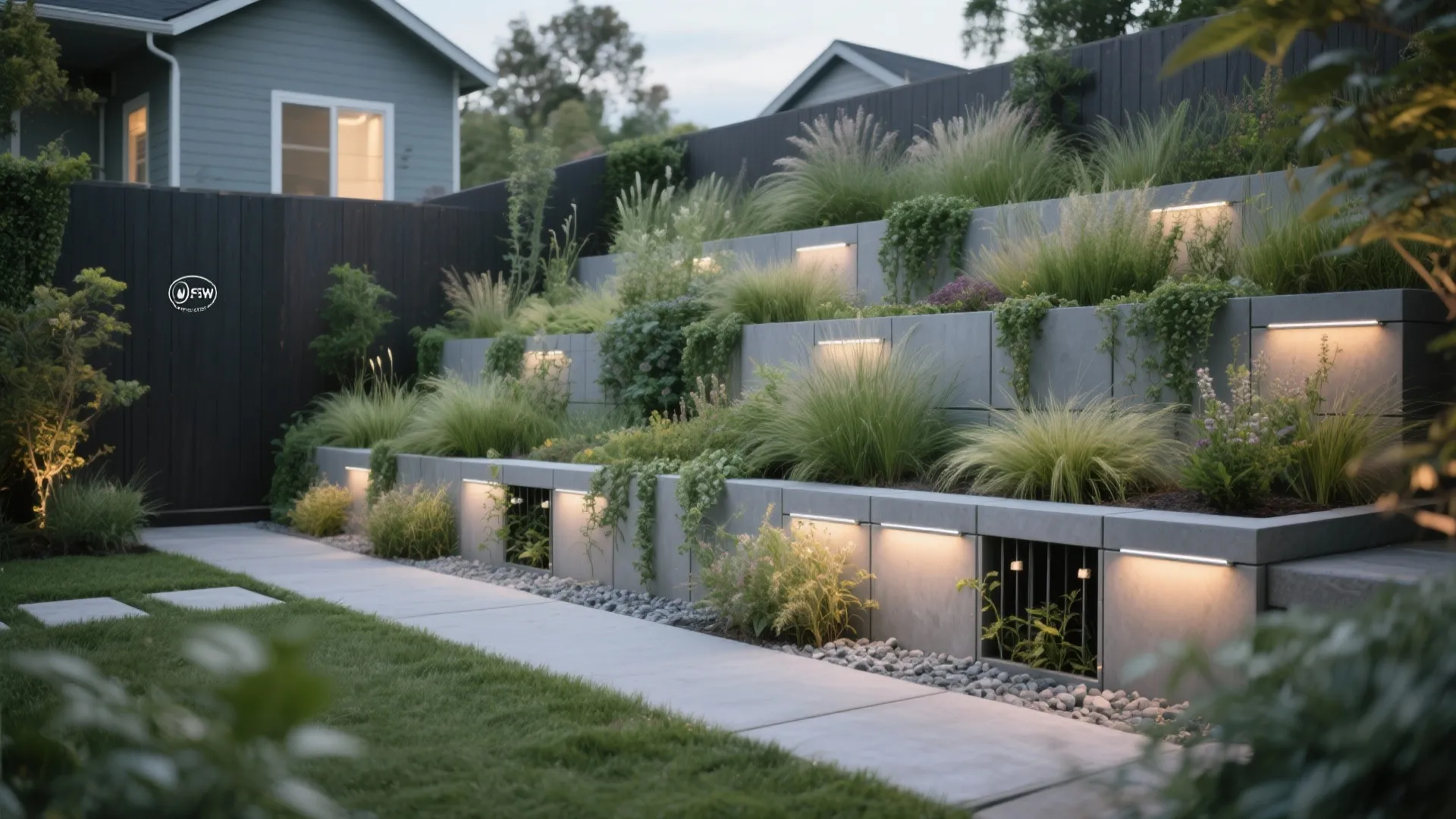

Green Walls With Hidden Drainage and Night Lighting

My Take: Some of my favorite small yards hide the “wall” within a lush planted face. Using modular units with planting pockets, you get living texture by day and a soft glow at night with integrated low-voltage lighting. It’s part garden, part architecture.

Pros: Living walls soften height and help with microclimate comfort. Look for a retaining wall design example PDF that shows pocket geometry, irrigation loops, and weep path routing—the plumbing diagram is as important as the structural section. At eye level, native grasses and trailing perennials add movement and seasonal change without heavy upkeep.

Cons: Irrigation maintenance is real; clogged emitters or uneven flow create patchy growth. Plant selection must suit the sun exposure of each tier—shade-loving plants fry quickly on west faces. If the wall is too tall, the upper pockets become hard to access for trimming.

Case / Tip: I separate irrigation zones by tier, with flush points at the ends for easy maintenance. A thin stainless edging at the cap keeps the planted face crisp and protects against bumps from furniture.

For a natural, indoor-outdoor feel, I sometimes echo the backyard palette with a warm wood-clad retaining face so the yard reads as an extension of the living room. It’s subtle, but it pulls the whole home together.

[Section: 总结]

Small kitchens taught me a lesson I bring outdoors: constraints don’t limit design; they sharpen it. A compact yard with grade changes is an opportunity to craft levels, seating, and planting in one move. If you came here for a retaining wall design example PDF, I hope these five directions show how structure and style can work together—drainage, backfill, and cap details are the hidden heroes. FHWA and NCMA guidance offer trustworthy baselines, while your site’s quirks dictate the final call. Which inspiration would you try first in your space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the best material for a small residential retaining wall?

Concrete and modular block are reliable and space-efficient, while gabions and wood-clad faces add texture. Your soil type, height, and drainage dictate the best choice; consult a retaining wall design example PDF for specs before bidding.

2) Do I need engineering for a short retaining wall?

Many jurisdictions allow walls under a certain height without stamped engineering, but local codes vary widely. If you’re adding surcharge (parking, fencing, or a deck), get an engineer involved even for short walls.

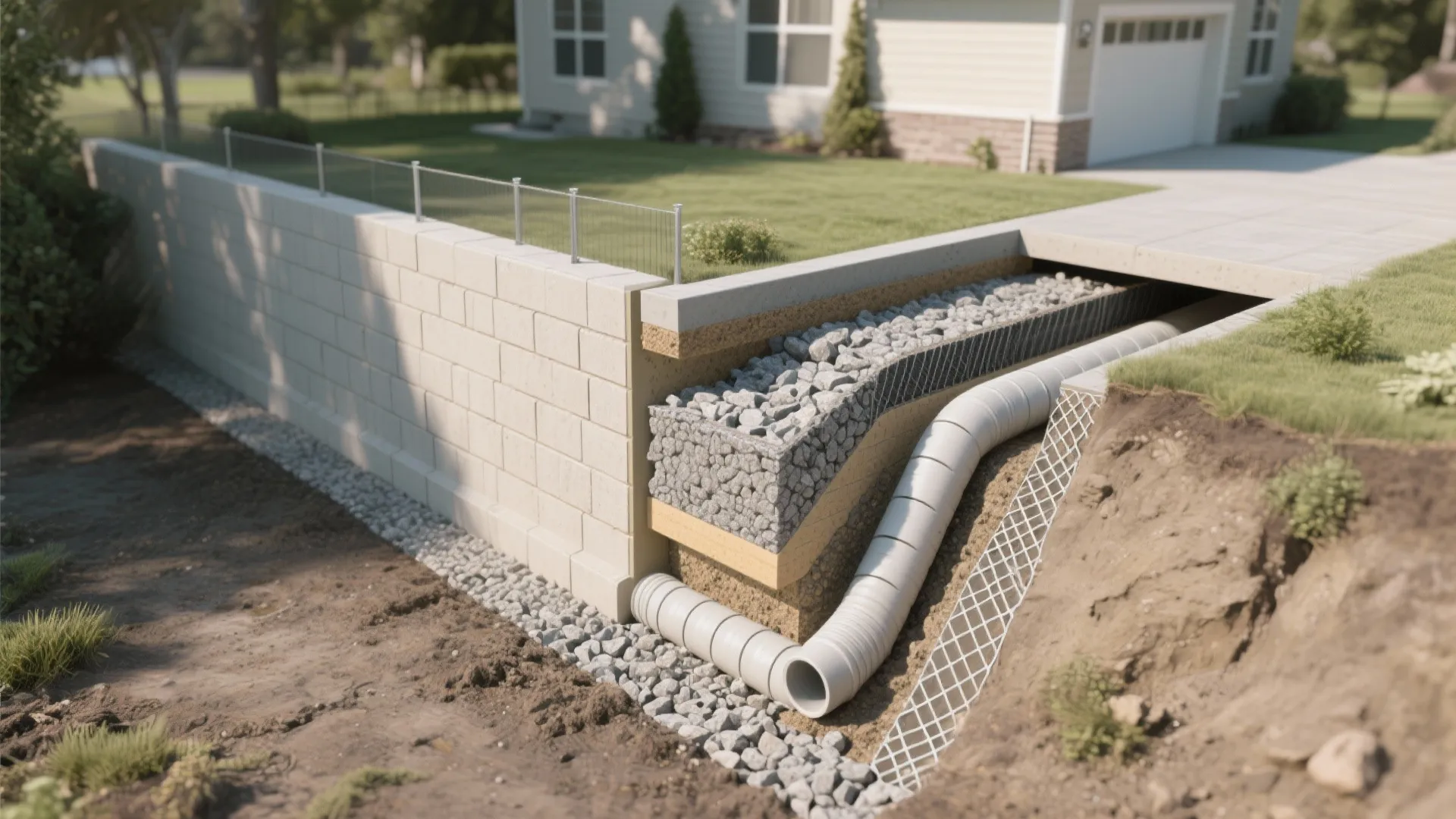

3) How critical is drainage behind a retaining wall?

Very. Without proper drain pipe, weep holes, and free-draining backfill, hydrostatic pressure can push a wall over time. FHWA’s Earth Retaining Structures (NHI-10-024) emphasizes drainage as a core design driver.

4) Can I build a green (planted) retaining wall on a small site?

Yes, but plan irrigation loops, access for maintenance, and sun/shade mapping. A retaining wall design example PDF for living walls will show pocket size, soil mix, and drip emitter layouts to keep growth even.

5) What’s the difference between gravity and cantilever retaining walls?

Gravity walls rely on mass and base width; cantilever walls use reinforcement and a footing to resist overturning. In tight spaces, cantilevered designs save thickness but may cost more upfront.

6) Are gabion walls suitable for urban backyards?

They can be, especially for low heights and where natural drainage is a plus. Choose fine-mesh baskets and curated stone to avoid a rough industrial look if your HOA is sensitive.

7) Where can I find a retaining wall design example PDF?

Contractors and manufacturers often provide them; NCMA and local building departments publish guides with typical sections, drainage paths, and geogrid lengths. Ask for versions specific to your wall height and soil.

8) How do I estimate costs for a small retaining wall?

Break out excavation, materials, drainage, and finish separately to compare bids. A detailed retaining wall design example PDF helps contractors price consistently and reduces surprises during construction.
