5 Steel Balcony Design Ideas That Work Hard: Five real-world, small-space steel balcony ideas from a senior interior designer who has remodeled dozens of tight urban patios and terraces.

[Section: 引言]

When clients ask me about balcony design steel, they usually want two things: more light and more usability without bulky structure. The good news is that steel is having a moment in urban design, from slim railings to modular add-ons and breezy pergolas.

In my experience, small spaces spark big creativity. A 1 to 3 square meter balcony can do the work of a mini living room, a herb garden, or a quiet reading nook when the steel detailing is lean, durable, and smart.

In this guide, I will share 5 design inspirations I keep coming back to. Each one blends hands-on lessons from my residential projects with expert data where it matters, so you can decide what suits your lifestyle and building rules.

[Section: 灵感列表]

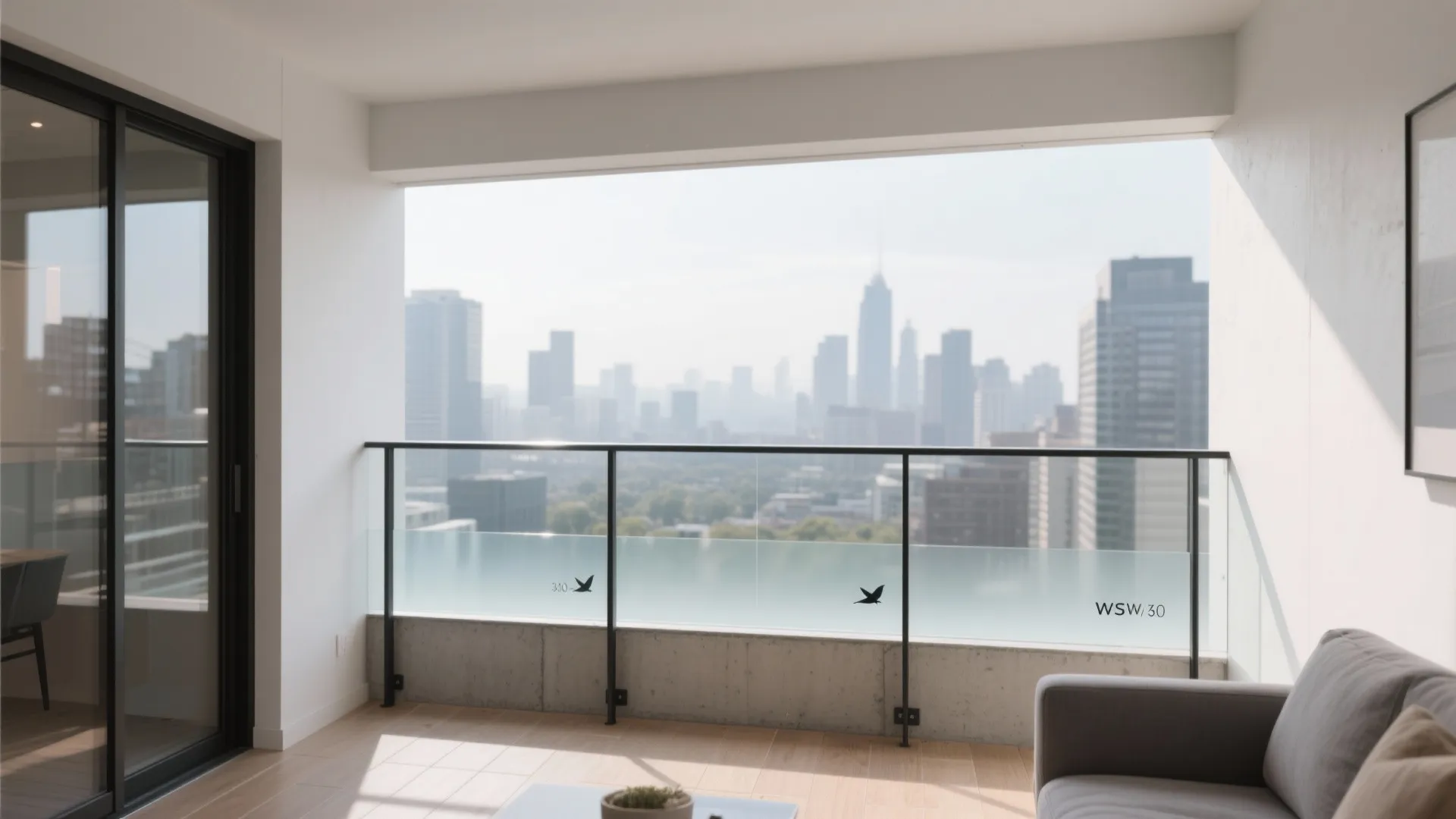

Slim Steel Railings with Glass Infill for More Light

My Take: On a 3 square meter city balcony, I replaced a chunky concrete parapet with a thin steel frame and low-iron glass infill. The apartment instantly felt wider and brighter, and the outdoors stopped feeling like a blocked edge. I always mock this up with 3D renders of compact balconies so clients can judge privacy and glare before fabrication.

Pros: A slender steel balcony railing with glass keeps sightlines open while staying safe, and it pairs nicely with both modern and traditional facades. Most code paths I work with follow guard rules like IRC R312 for one- and two-family homes, which sets minimum heights and a 4-inch sphere opening limit; glass and steel frames make those dimensions predictable and clean (see ICC IRC R312: https://codes.iccsafe.org/content/IRC2021P2/chapter-3-building-planning#IRC2021P2_Pt03_Ch03_SecR312). If your goal is balcony design steel that maximizes daylight, a narrow top rail and post layout can be a game changer.

Cons: Glass shows smudges, so you will want a squeegee and hydrophobic coating if you face a dusty street. In very sunny exposures, reflected heat and glare can be a thing, especially with low-iron glass; a frosted bottom band or micro-perforated steel panel below knee height helps. Birds may bump the clear surface in leafy contexts, so consider subtle decals near eye level to reduce collisions.

Tips/Cost: I usually spec powder-coated steel posts in a satin finish and 316-grade stainless fasteners for coastal or humid cities. Low-iron tempered glass looks high-end but costs more; standard tempered with a light gray or bronze tint can reduce glare and budget. If privacy is a concern, a 300 to 450 mm frosted strip at the bottom balances openness with a cleaner indoor backdrop.

save pin

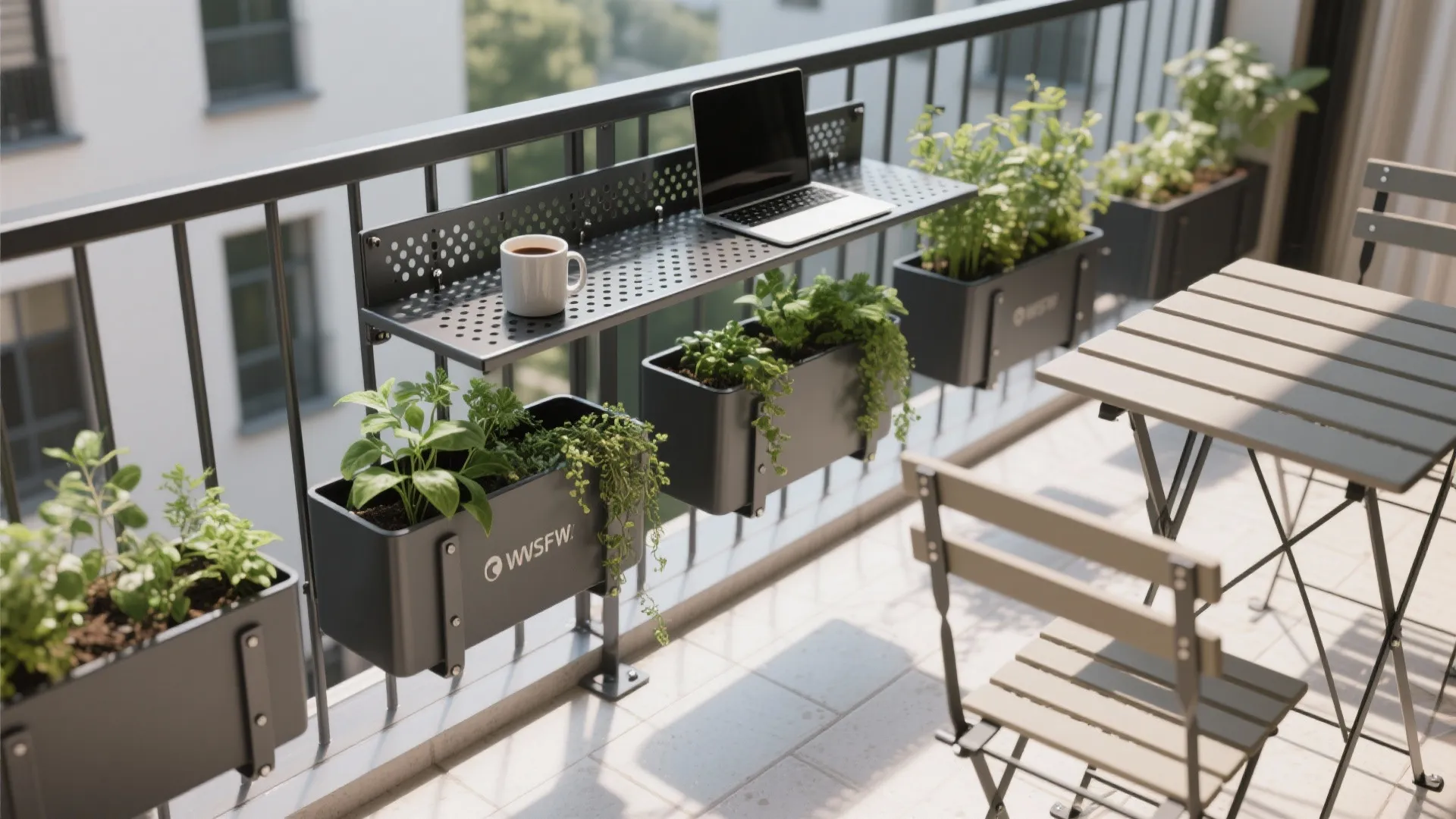

Modular Steel Planters and Rail-Hung Storage

My Take: One of my favorite small balcony design steel tricks is to let the railing do double duty. I have used rail-hung planters for herbs, and a shallow perforated steel shelf panel for coffee mugs and a laptop when the balcony becomes a morning desk. These pieces can be swapped seasonally or removed for deep cleaning.

Pros: Modular steel planters and rail-mounted shelves use the vertical zone, freeing floor area for a foldable bistro set or a lounge chair. With hot-dip galvanizing and powder coating, these accessories resist corrosion and look crisp, even in damp climates; this is a straightforward way to get balcony storage without bulky cabinets. The best long-tail win here is lightweight modular steel balcony planters that clip to balustrades, keeping drainage under control and surfaces tidy.

Cons: Watch the combined water weight of saturated soil, planters, and any hanging storage; a few planters can add up after a rainstorm. If drainage holes are poorly designed, you might get staining on the steel or puddles on the slab. And if your railing profile is unusual, you may need custom brackets rather than off-the-shelf clips.

Tips/Cost: I give clients a quick load budget: plan on roughly 15 to 20 kg per linear meter of planters when wet, spaced to avoid point loads. Choose planters with removable plastic liners for easier soil refreshes and less mess. Perforated steel shelves around 2 mm thick stay light, stiff, and visually quiet; black or warm gray powder coat hides dirt best.

save pin

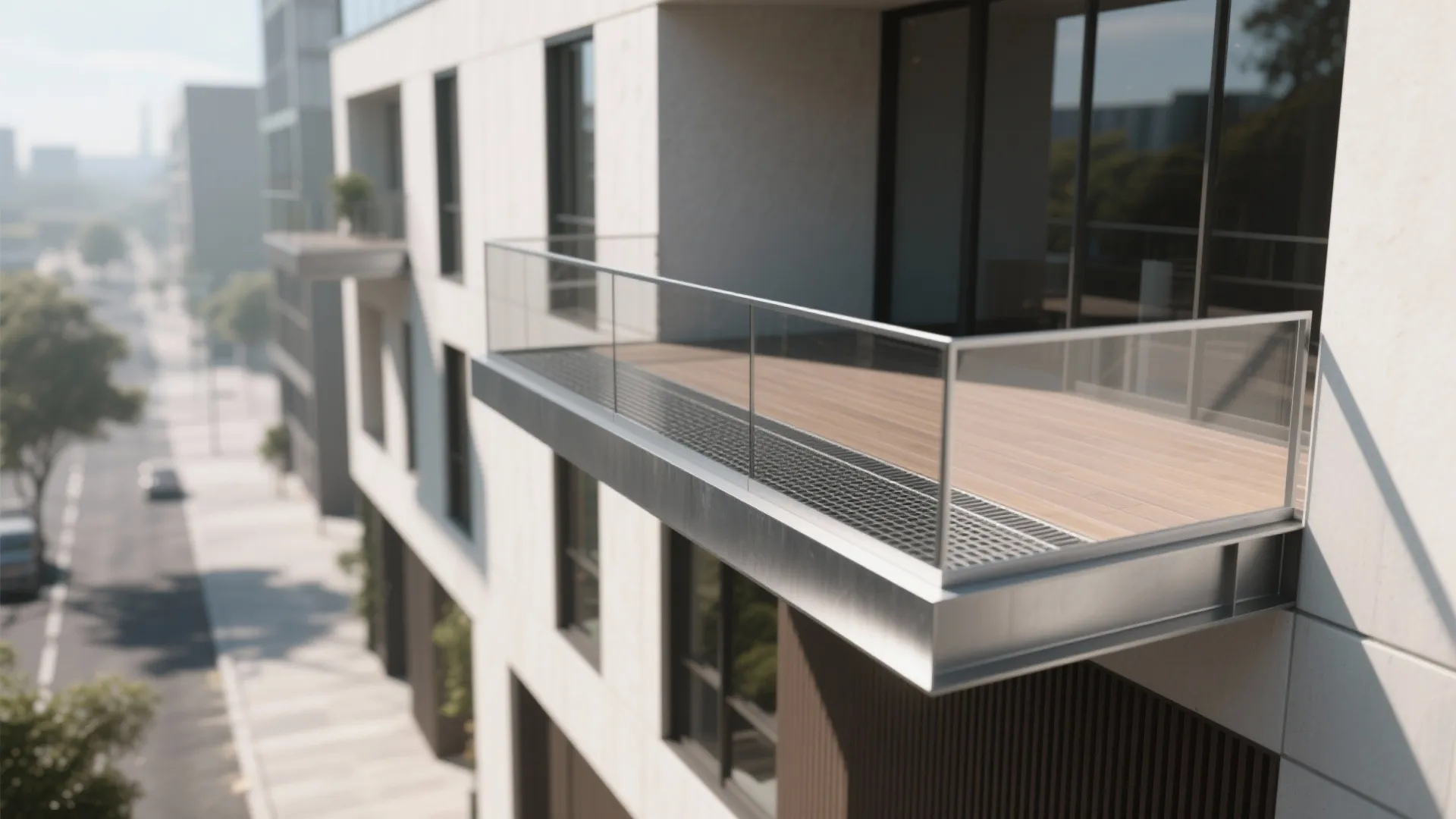

Cantilevered Steel Platforms with a Thin Edge

My Take: On a renovation where the old balcony slab felt heavy and tiny, we replaced it with a cantilevered steel platform that had a 10 to 12 mm edge reveal. The facade looked fresher, the shadows were sharper, and the client ended up with a balcony that drained faster and felt more open underfoot.

Pros: A cantilevered steel balcony design can shed thickness compared to concrete and speed up install with off-site fabrication. For load planning, residential balconies often fall under local interpretations of IRC R301.5 live loads; in many jurisdictions, that means designing for at least 40 psf for one- and two-family dwellings, but always verify with your engineer and building department (see IRC R301: https://codes.iccsafe.org/content/IRC2021P2/chapter-3-building-planning#IRC2021P2_Pt03_Ch03_SecR301). Prefab steel balcony systems also let you choose slip resistant decking or grating, so rain passes through and the surface dries fast.

Cons: Thin edges can highlight any waviness, so you need a good fabricator and careful site tolerances. Thermal bridging at connections can transfer heat or cold into the interior if your balcony attaches through the wall, and some cantilevers have a bit of bounce that sensitive folks notice. You will likely need an engineer to size the steel members and plates, which adds time and fee to the process.

Tips/Cost: I often pair the platform with hidden adjustable pedestals or grating infill to keep the profile low while leveling. Specify slip resistance ratings if the balcony is exposed to rain or plant watering. During planning, it helps to visualize railing spacing and furniture clearance so the structure supports your layout rather than fighting it.

save pin

Powder-Coated Steel in Color for Style and Durability

My Take: One small balcony in a monochrome building came alive with a warm taupe powder-coated steel railing and a color-matched bistro set. The matte finish hid fingerprints, and the client told me that the balcony finally felt like a designed room instead of a leftover edge.

Pros: Powder-coated steel balcony railings offer a durable, UV-stable finish with thousands of RAL colors, and a matte or satin texture softens reflections. In coastal or wet cities, I love a duplex system—hot-dip galvanizing plus powder coat—as the American Galvanizers Association notes, combining zinc with an organic topcoat can extend life by providing barrier and cathodic protection together (see AGA Duplex Systems: https://galvanizeit.org/hot-dip-galvanizing/what-is-hot-dip-galvanizing/duplex-systems). For long-tail performance, powder-coated steel balcony railings with a duplex system stand up well to salt spray and urban pollutants.

Cons: Corners and edges are chip-prone if parts knock against masonry during install; touch-up kits help, but planning for padded handling is better. Very dark colors on sun-baked elevations can get hot to the touch in midsummer. If a previous owner used poor prep or a thin coat, you might see premature fading or micro-rust at cut edges.

Tips/Cost: Ask for at least 80 to 100 microns of powder coat thickness for exterior parts, and request proper pre-treatment after galvanizing to ensure adhesion. Satin black is timeless, but earthy mid-tones and soft greens feel warm outdoors and play nicely with foliage. Check any color against your facade under morning and afternoon light; paint a sample steel coupon if you can.

save pin

Steel Pergolas and Perforated Screens for Shade and Privacy

My Take: The game changer for heat and overlooking is a light steel pergola or a perforated screen panel integrated with the railing. I have used slatted steel fins to filter harsh west sun and perforated sheets with 20 to 40 percent open area to obscure direct views while keeping airflow.

Pros: A steel pergola balcony can define a room-like ceiling outdoors, anchor string lights, and support climbing plants for natural shade. Perforated steel privacy screens offer a Goldilocks balance of breeze and seclusion, and they gel well with minimalist or industrial facades. For long-tail flexibility, a modular steel pergola with removable screens lets you tune sunlight seasonally and keep the small balcony cool.

Cons: Screens behave like sails in wind; your engineer will size posts and fixings accordingly and may limit panel width. Added elements introduce weight and complexity, which can trigger approvals in some buildings. In coastal zones, unprotected cuts and fastener interfaces are corrosion hot spots, so detailing and sealants matter.

Tips/Cost: Pick perforation patterns between 10 and 40 percent open area to balance shade and view; smaller holes feel more private at seated height. If you plan vines, integrate stainless cables or a secondary trellis for better plant training and easier cleaning. For study and visualization, I often run AI-powered sun-shade studies for balcony screens to compare slat angles and perforation ratios before we weld anything.

[Section: 总结]

The bottom line: a small balcony does not limit you, it pushes you toward smarter moves. With balcony design steel in mind, thin railings, modular storage, cantilevered platforms, color-fast finishes, and simple shade systems can transform even the tightest footprint into a daily joy.

If you have code questions, start with your local version of the IRC or IBC to confirm guard heights, opening limits, and live loads, then layer design on top. Which of these five design inspirations would you try first on your balcony?

[Section: FAQ 常见问题]

save pin

FAQ

1) What does balcony design steel actually cover?

In practice, it spans steel railings, posts, balcony platforms or frames, and add-ons like pergolas and perforated screens. It also includes the finishes that protect steel outdoors, from galvanizing to powder coating.

2) How high should a steel balcony railing be?

For many one- and two-family homes in the US, the International Residential Code sets guard height and opening rules for safety; see IRC R312 for minimum guard heights and the 4-inch sphere opening limit (ICC: https://codes.iccsafe.org/content/IRC2021P2/chapter-3-building-planning#IRC2021P2_Pt03_Ch03_SecR312). Always confirm your local code and building bylaws.

3) Steel vs aluminum for a small balcony rail: which is better?

Steel allows slimmer profiles at a given strength and welds cleanly, which is great for minimalist lines. Aluminum resists corrosion naturally and weighs less; it can be a good pick for DIY installs, but it often needs bulkier sections to match steel stiffness.

4) How do I prevent rust in balcony design steel near the coast?

Use a duplex system: hot-dip galvanizing plus powder coating, and specify 316 stainless fasteners and caps on open tube ends. The American Galvanizers Association notes that duplex systems combine barrier and cathodic protection to extend service life (AGA: https://galvanizeit.org/hot-dip-galvanizing/what-is-hot-dip-galvanizing/duplex-systems).

5) What live load should a residential steel balcony be designed for?

Many jurisdictions align with IRC R301.5 live loads for one- and two-family dwellings; in lots of areas that means 40 psf, but some places require more. Your engineer and local building department have the final say, especially for retrofits on existing structures.

6) Is powder-coated steel durable enough for a high-sun, high-rain exposure?

Yes, if you choose good prep and adequate film thickness, and consider a duplex system if you are in harsh conditions. Matte or satin textures hide water spots better than gloss and feel less hot to the touch.

7) Can I combine wood decking with steel balcony frames?

Absolutely. Steel frames support quickly draining composite or wood deck tiles; opt for rot-resistant species or composites with slip resistance. Mind the interface details to prevent trapped water at steel-to-wood contacts.

8) What is a typical cost range for a small steel balcony retrofit?

Costs vary widely by city, access, and finishes, but as a rough guide, simple railing replacements might start in the low thousands, while full platform replacements or pergolas can multiply that. Shop fabrication, engineering, and building approvals add to the timeline and budget.
